Model Whirlpool KUDS23HBAL0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

WPL 4171634 WPL 4171634 Contact Us For Availability

WPL 4171635 WPL 4171635 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 9741358 WPL 9741358 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT9742004 WPL LIT9742004 Contact Us For Availability

WPL LIT9742114 WPL LIT9742114 Contact Us For Availability

WPL LIT9742211 WPL LIT9742211 Contact Us For Availability

WPL LIT9742248 WPL LIT9742248 Contact Us For Availability

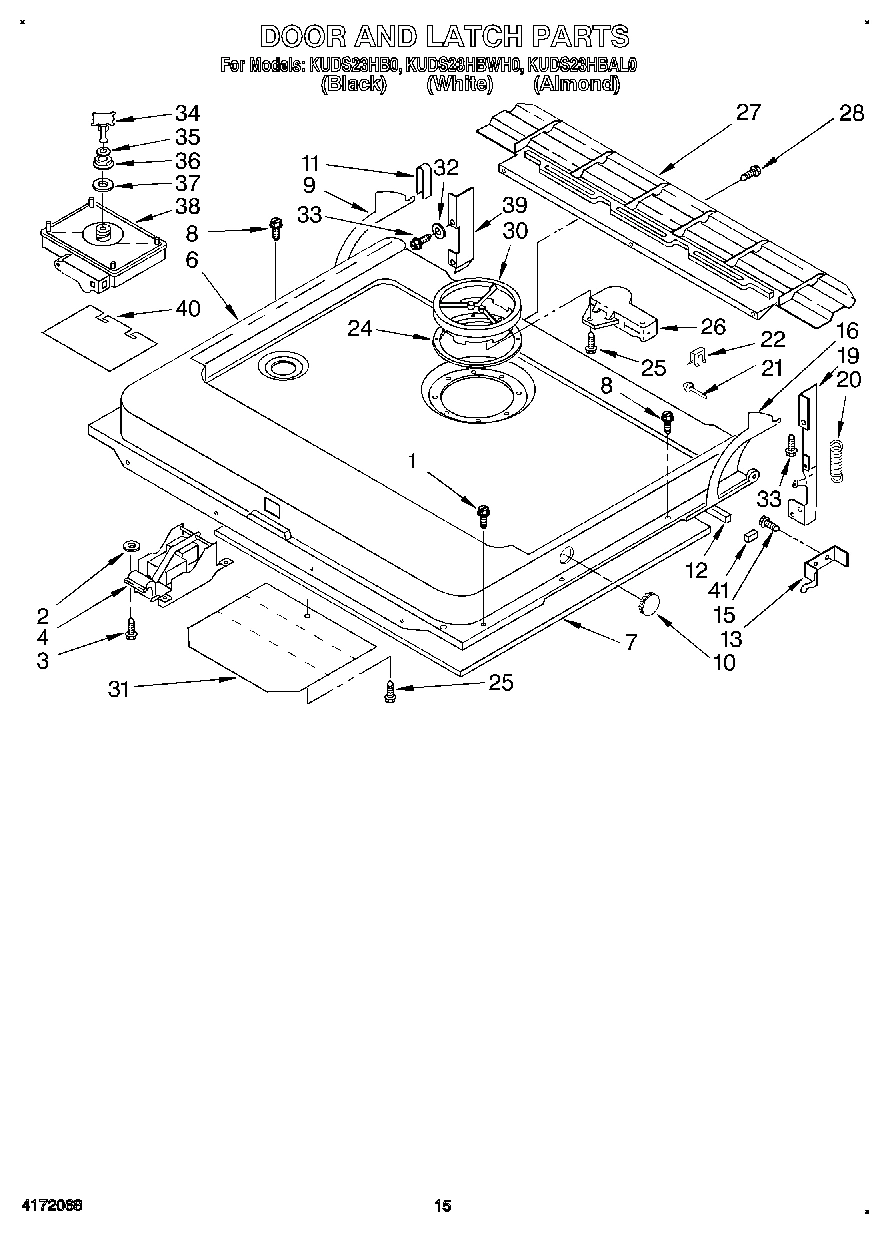

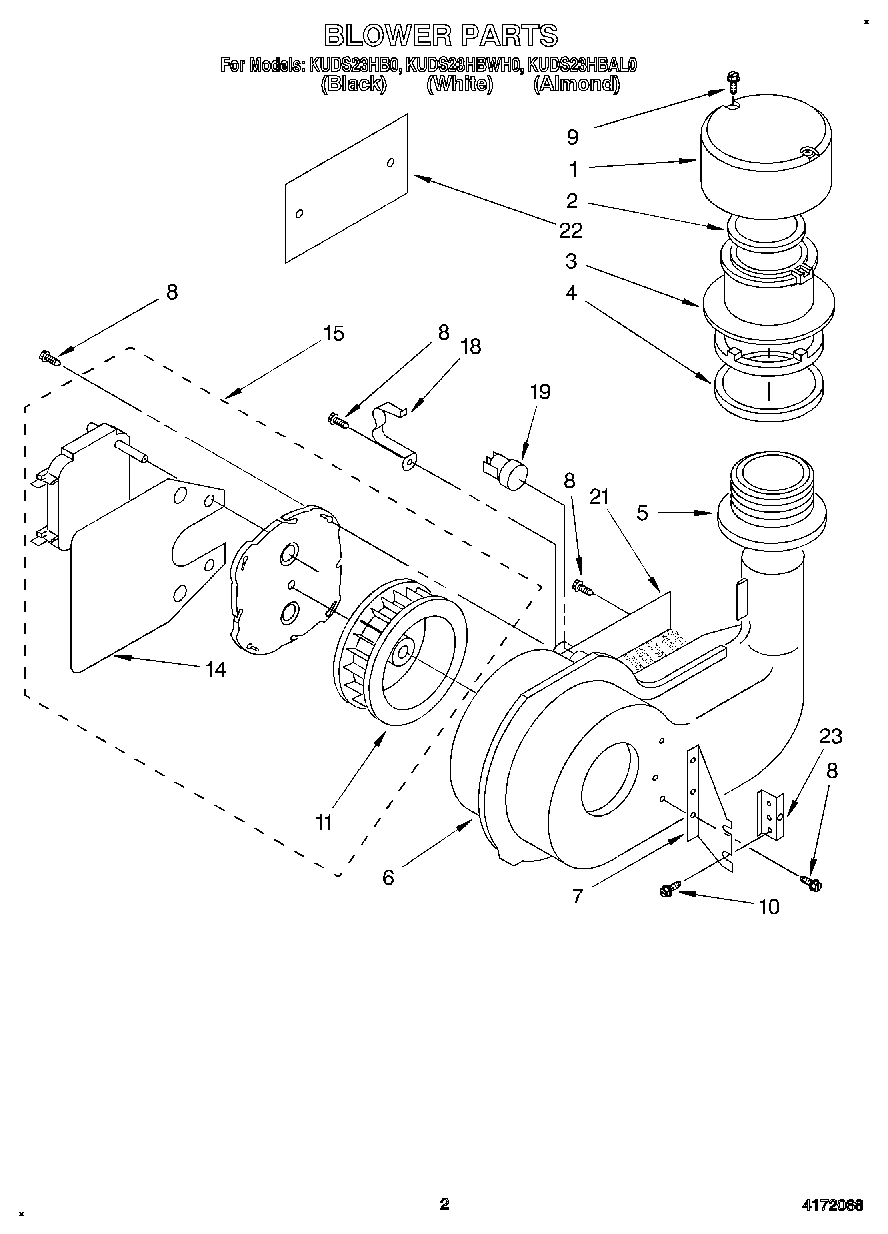

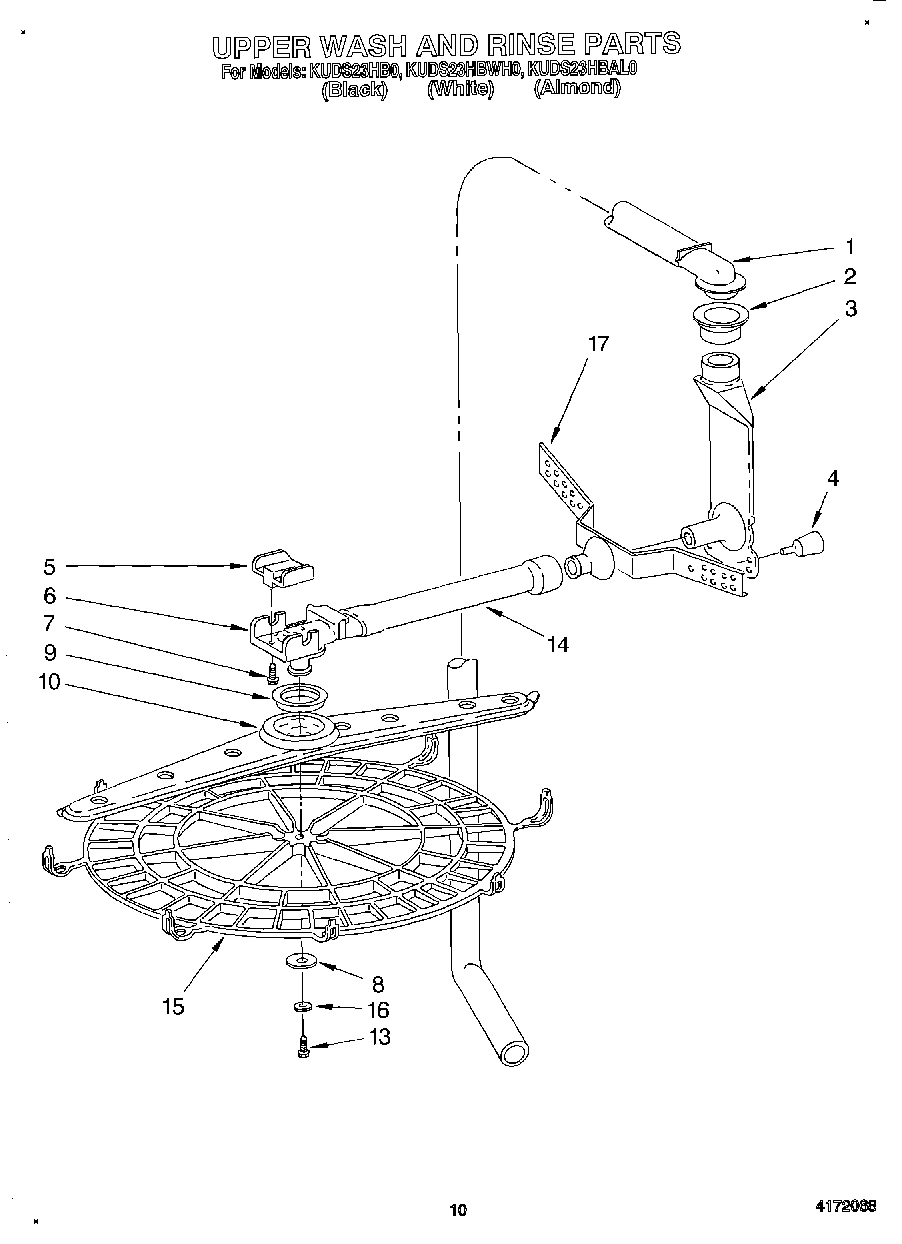

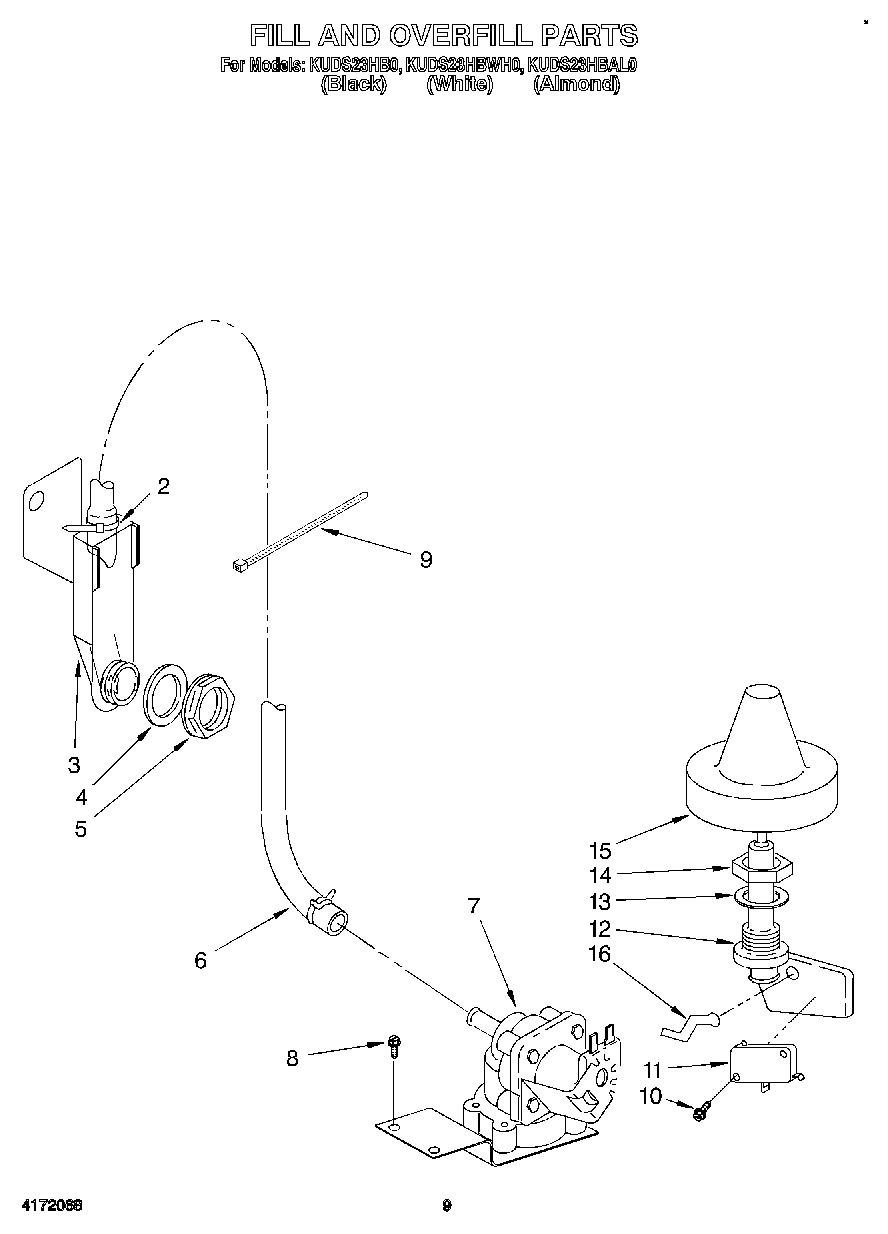

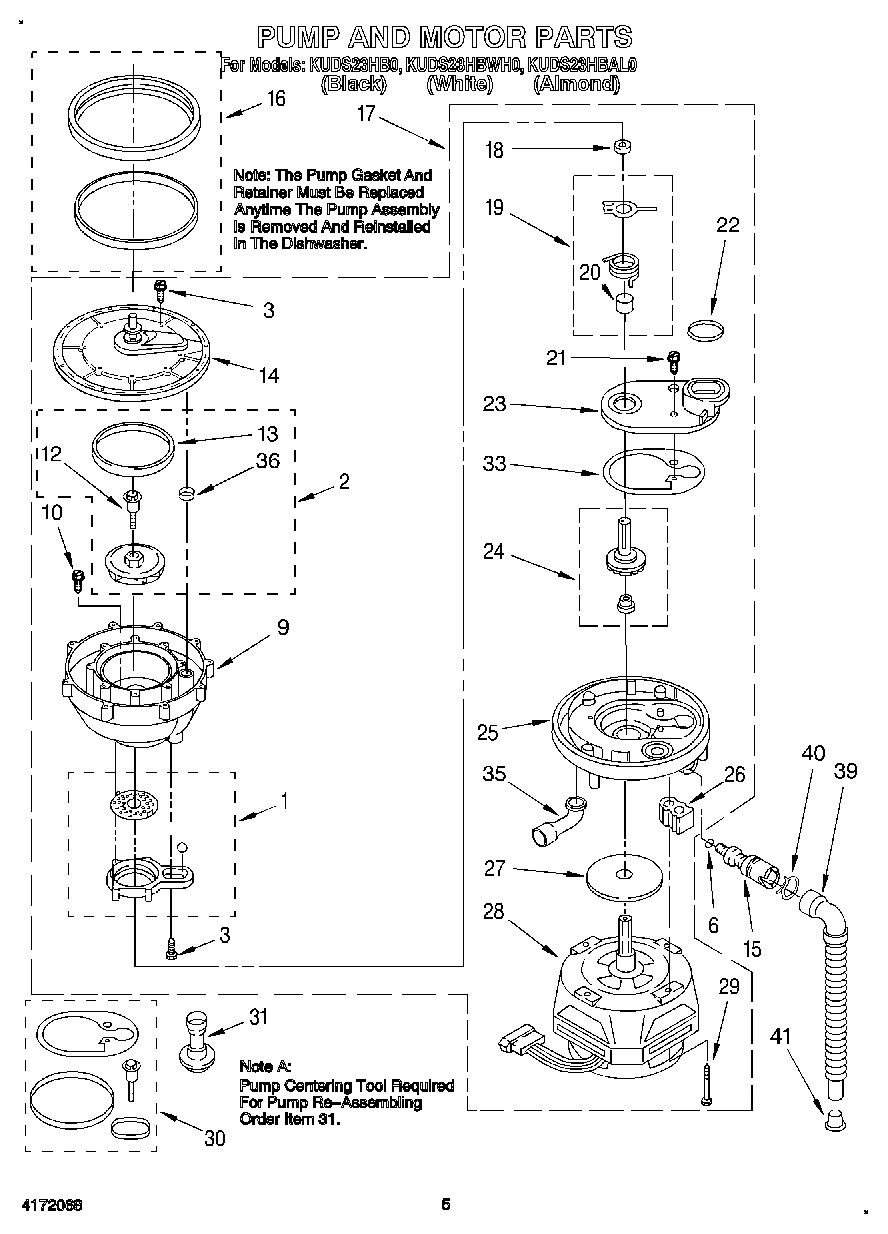

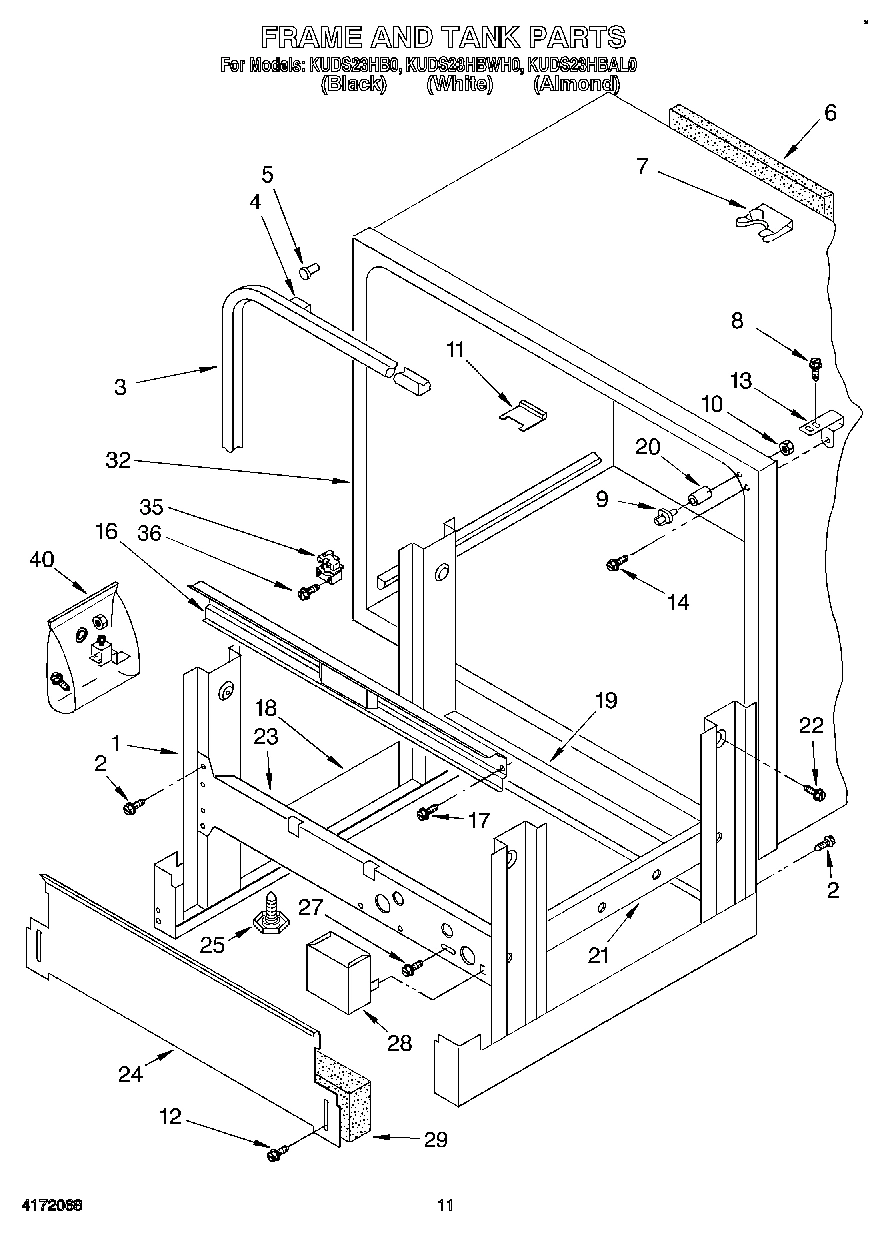

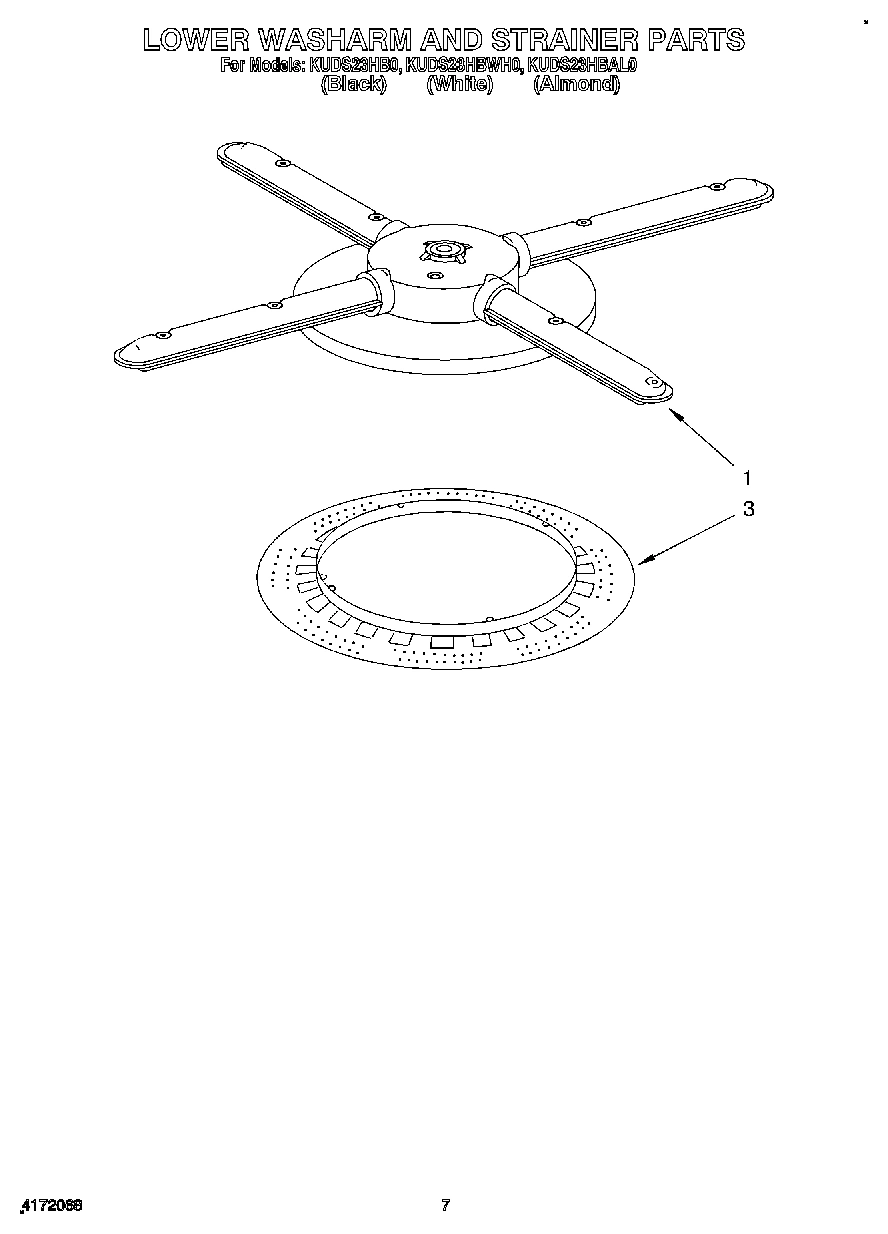

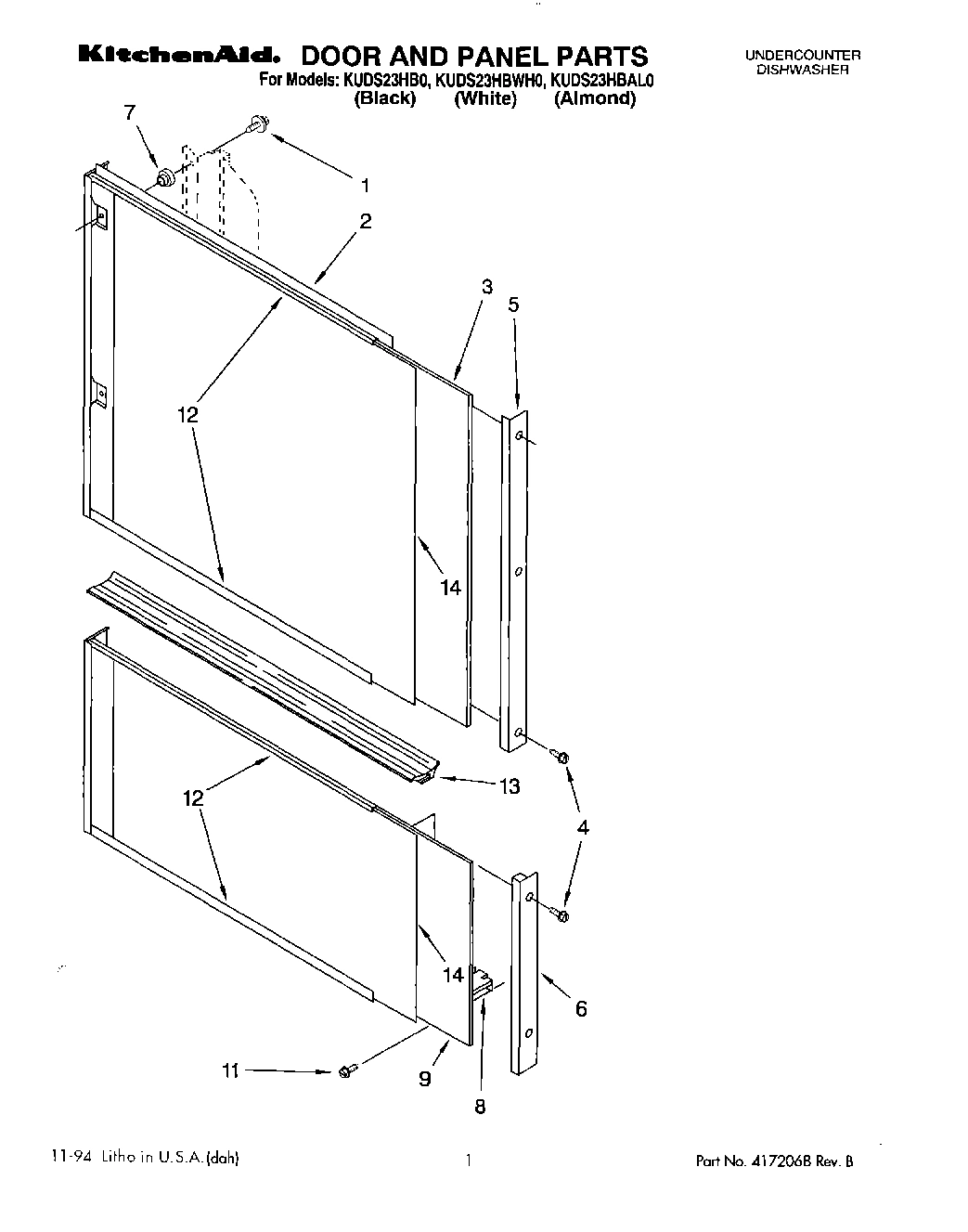

1

Control Panel (Includes: Insert, No.3 Seal, a WPL 9741946 Contact Us For Availability

1

Control Panel (Includes: Insert, No.3 Seal, a WPL 9741947 Contact Us For Availability

1

Control Panel (Includes: Insert, No.3 Seal, a WPL 9741948 Contact Us For Availability

1

Wash Arm Assembly WPL 9740787 Contact Us For Availability

1

Cover, Air Inlet WPL 9740633 Contact Us For Availability

1

Inlet Base Assy. (Also Order Item 30) See Not WPL 675704 Contact Us For Availability

1

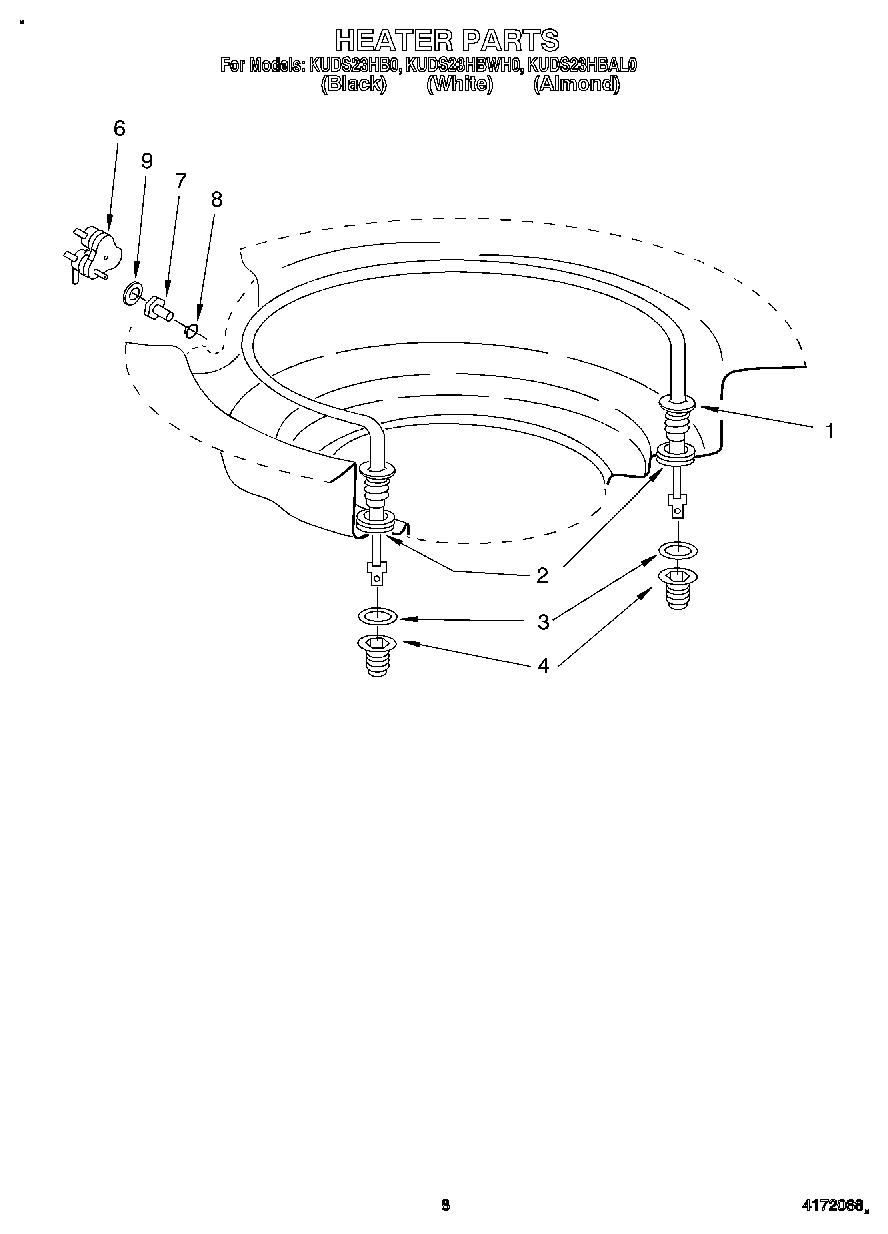

Element, Heater WPL 9740724 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

Tube & Connector Assembly WPL 9740307 Contact Us For Availability

1

Lower Rack Assembly (Includes Items 2, 3 & 5) WPL 9741002 Contact Us For Availability

1

Screw and Washer WPL 9742113 Contact Us For Availability

1

Short Frame Assembly (Includes Items 2, 18, 1 WPL 4171627 Contact Us For Availability

2

Axle, Lower Rack WPL 4162321 Contact Us For Availability

2

Filler, Control Panel WPL 9742231 Contact Us For Availability

2

Float, Check Valve WPL 4161590 Contact Us For Availability

2

Grommet, Heater Element WPL 4162521 Contact Us For Availability

2

Upper Mounting Panel Assembly (Includes Upper WPL 9742083 Contact Us For Availability

2

Upper Mounting Panel Assembly (Includes Upper WPL 9742084 Contact Us For Availability

2

Upper Mounting Panel Assembly (Includes Upper WPL 9742085 Contact Us For Availability

2

Connector, Vertical Conduit WPL 9740763 Contact Us For Availability

2

Washer WPL 4159513 Contact Us For Availability

2

Clamp, Hose WPL 4162103 Contact Us For Availability

2

Screw, 10-16 x 1/2 WPL 9740980 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $2.51

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability

3

Strainer (Coarse) WPL 9741049 Contact Us For Availability

3

Seal, Control Panel WPL 9741864 Contact Us For Availability

3

Vent Tube WPL 9740634 Contact Us For Availability

3

Washer, Heater Element WPL 4163554 Contact Us For Availability

3

Filler (Upper Panel) WPL 4171421 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Water Inlet and Hose Assembly WPL 9741568 Contact Us For Availability

4

Switch, Time Delay WPL 9741877 Contact Us For Availability

4

Seal WPL 9740635 Contact Us For Availability

4

Nut, Heater Element WPL 718537 Contact Us For Availability

4

Screw (White Model) WPL 4171463 Contact Us For Availability

4

Screw (Black Model) WPL 9740957 Contact Us For Availability

4

Screw (Almond Model) WPL 9741604 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

Basket, Silverware WPL 9742246 Contact Us For Availability

4

Latch Mechanism Assembly WPL 9741590 Contact Us For Availability

4

Gasket, Rubber WPL 4161545 Contact Us For Availability

4

Clip, Seal WPL 4161608 Contact Us For Availability

5

Bumper, Lower Rack WPL 4171555 Contact Us For Availability

5

Spring, Switch Cancel WPL 9742256 Contact Us For Availability

5

Retainer, Vent Tube WPL 9740632 Contact Us For Availability

5

Side Trim (Upper Panel) (White Model) WPL 9742087 Contact Us For Availability

5

Side Trim (Upper Panel) (Almond Model) WPL 9742088 Contact Us For Availability

5

Side Trim (Upper Panel) (Black Model) WPL 9742089 Contact Us For Availability

5

Retainer, Manifold WPL 4171540 Contact Us For Availability

5

Nut (Fill Air Gap) WPL 4171300 Contact Us For Availability

5

Bumper, Door WPL 4161626 Contact Us For Availability

6

Bracket, Program Switch WPL 9741861 Contact Us For Availability

6

Dryer Housing WPL 9740638 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

6

Thermostat WPL 4163522 Contact Us For Availability

6

Side Trim (Lower Panel) (White Model) WPL 4171673 Contact Us For Availability

6

Side Trim (Lower Panel) (Black Model) WPL 4172054 Contact Us For Availability

6

Side Trim (Lower Panel) (Almond Model) WPL 9741628 Contact Us For Availability

6

Manifold, Upper Arm WPL 4171541 Contact Us For Availability

6

Plate Rack WPL 4171556 Contact Us For Availability

6

Inner Door Assembly WPL 4171443 Contact Us For Availability

6

Clamp, Hose WPL 4161505 Contact Us For Availability

6

Insulation, Tank (Back) WPL 4171910 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

7

Fill Valve Assembly WPL 9741906 Contact Us For Availability

7

Bracket, Housing Support WPL 4162703 Contact Us For Availability

7

Probe, Heat Sensing WPL 9741277 Contact Us For Availability

7

Grommet, Panel WPL 4162735 Contact Us For Availability

7

Lid, Basket WPL 4171554 Contact Us For Availability

7

Insulation, Inner Door WPL 4163577 Contact Us For Availability

7

Clip, Retainer WPL 9740303 Contact Us For Availability

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

Switch, Program WPL 9741811 Contact Us For Availability

8

Screw, 8-18 X 5/16 (8) WPL 4159442 Contact Us For Availability

8

``O`` Ring WPL 4159822 Contact Us For Availability

8

Lower Mounting Panel Assembly (Includes Upper WPL 4171672 Contact Us For Availability

8

Lower Mounting Panel Assembly (Includes Upper WPL 4172053 Contact Us For Availability

8

Lower Mounting Panel Assembly (Includes Upper WPL 9741635 Contact Us For Availability

8

Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability

8

Screw, 10-16 X 1/2 WPL 3369139 Contact Us For Availability

8

Screw & Washer Assembly WPL 9740922 Contact Us For Availability

9

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Clip, Retainer WPL 9742232 Contact Us For Availability

9

Screw, No.6 (2) WPL 9740664 Contact Us For Availability

9

Box, Separator Collector (Also Order Item 30) WPL 9740676 Contact Us For Availability

9

Gasket WPL 4161644 Contact Us For Availability

9

Filler (Lower Panel) WPL 4162734 Contact Us For Availability

9

Bearing, Arm (Top) WPL 4162491 Contact Us For Availability

9

Actuator, Interlock Switch WPL 4171197 Contact Us For Availability

Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability

Screw, 10-16 X 5/8 (2) WPL 4159178 Contact Us For Availability

Screw, 8-18 (4) WPL 9741258 Contact Us For Availability

Wash/Rinse Arm Assembly WPL 9742178 Contact Us For Availability

Plug Button WPL 9740847 Contact Us For Availability

Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability

Locknut WPL 308306 Contact Us For Availability

Bearing, Door Stop Insert WPL 4160355 Contact Us For Availability

Switch, start WPL 9741876 Contact Us For Availability

Wheel, Blower WPL 4162741 Contact Us For Availability

Keeper, Latch WPL 4160092 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

Button, Time Delay (2) (Black Model) WPL 9742237 Contact Us For Availability

Button, Time Delay (2) (White Model) WPL 9742238 Contact Us For Availability

Button, Time Delay (2) (Almond Model) WPL 9742239 Contact Us For Availability

Screw, 10-16 X 3/8 WPL 9741435 Contact Us For Availability

Trim, Panel (Upper & Lower) (White Model) WPL 4171671 Contact Us For Availability

Trim, Panel (Upper & Lower) (Black Model) WPL 4172052 Contact Us For Availability

Trim, Panel (Upper & Lower) (Almond Model) WPL 9741620 Contact Us For Availability

Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $11.66

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

WP9741251 Whirlpool Mounting Bracket In Stock WPL WP9741251 $3.70

Endcap (2) WPL 300845 Contact Us For Availability

Switch, Interlock WPL 4160658 Contact Us For Availability

Channel, Evaporation WPL 9740868 Contact Us For Availability

Screw WPL 4161737 Contact Us For Availability

Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability

Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability

W11596033 Whirlpool Microwave Screw Backorder WPL W11596033 $9.59

Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Stainless WPL 4171198 Contact Us For Availability

Cover, Dryer Motor WPL 4162443 Contact Us For Availability

Outlet, Pump (Includes Item 13) WPL 9741379 Contact Us For Availability

Panel Insert Kits WPL 4171200 Contact Us For Availability

WPL 4171201 WPL 4171201 Contact Us For Availability

WPL 4171592 WPL 4171592 Contact Us For Availability

WPL 4171595 WPL 4171595 Contact Us For Availability

WPL 4172092 WPL 4172092 Contact Us For Availability

Nut, Standpipe WPL 4161596 Contact Us For Availability

Screw WPL 9741257 Contact Us For Availability

4159493 Whirlpool Lockwasher Backorder WPL 4159493 $8.73

675238 Whirlpool Check Valve In Stock WPL 675238 $29.44

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

Blower Motor Assembly WPL 4162742 Contact Us For Availability

Guard, Arm WPL 4171543 Contact Us For Availability

Float & Retainer Assembly WPL 4171216 Contact Us For Availability

Gasket, Pump WPL 717000 Contact Us For Availability

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Washer WPL 4162624 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

Support, Lower Panel WPL 9741276 Contact Us For Availability

17

Pump & Motor Assembly (Includes Item 16) WPL 9740665 Contact Us For Availability

17

Arm, Receiver WPL 4171545 Contact Us For Availability

17

Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability

18

Clip, Thermoprotector WPL 4162990 Contact Us For Availability

18

Bushing, Grind WPL 302707 Contact Us For Availability

18

Frame Assembly (L.H.) WPL 4171620 Contact Us For Availability

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $89.38

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

Thermostat WPL 4160464 Contact Us For Availability

Cross Frame, Rear WPL 9741173 Contact Us For Availability

20

WP4162629 Whirlpool Dishwasher Spring Backorder WPL WP4162629 $11.00

20

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

20

Sleeve, Actuator Spacer WPL 9740120 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Heater WPL 9742072 Contact Us For Availability

Pin, Hinge WPL 4161563 Contact Us For Availability

Frame Assembly (R.H.) WPL 4171619 Contact Us For Availability

Access Cover WPL 4163186 Contact Us For Availability

Seal, Drain Cover WPL 302704 Contact Us For Availability

Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability

Screw WPL 9741690 Contact Us For Availability

Clip, Partition (6) WPL 4160480 Contact Us For Availability

Bracket, Blower Mounting WPL 9740631 Contact Us For Availability

Cover, Drain (Includes Item 33) (Also Order I WPL 302723 Contact Us For Availability

Cross Frame, Front WPL 9742264 Contact Us For Availability

WP4171447 Whirlpool Dishwasher Seal Backorder WPL WP4171447 $5.03

Kick Board ((Black)) WPL 4171618 Contact Us For Availability

Kick Board ((White)) WPL 9742213 Contact Us For Availability

Kick Board ((Almond)) WPL 9742214 Contact Us For Availability

Clip, Grounding (Front Panel) WPL 9742169 Contact Us For Availability

Screw, 8-18 x 1/2 WPL 9741365 Contact Us For Availability

Base, Pump (Includes Items 24 & 33) (Also Ord WPL 9740671 Contact Us For Availability

Foot, Leveling WPL 4162911 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

WP9741678 Whirlpool Dishwasher Bi-Metal In Stock WPL WP9741678 $30.96

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

Baffle, Lower WPL 4161295 Contact Us For Availability

Button, Program Switch (8) (Black Model) WPL 9742241 Contact Us For Availability

Button, Program Switch (8) (White Model) WPL 9742242 Contact Us For Availability

Button, Program Switch (8) (Almond Model) WPL 9742243 Contact Us For Availability

Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability

28

Motor (Includes Items 24 & 27) (Also Order It WPL 3369330 Contact Us For Availability

28

Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability

29

Screw WPL 4159364 Contact Us For Availability

29

Screw (4) WPL 3369331 Contact Us For Availability

29

Shield, Insulation WPL 3382404 Contact Us For Availability

30

Pump Seal Kit (Includes Items 12, 13, 22 & 36 WPL 675703 Contact Us For Availability

30

Detergent Dispenser & Gasket Assembly (115 V. WPL 9740171 Contact Us For Availability

30

Bracket, Support WPL 4171364 Contact Us For Availability

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

Tool, Pump Centering WPL 303918 Contact Us For Availability

Screw, 8-32 x 1/2 (Black Model) WPL 4172012 Contact Us For Availability

Barrier, Detergent Cup WPL 9742181 Contact Us For Availability

Handle, Latch (Black Model) WPL 9741857 Contact Us For Availability

Handle, Latch (White Model) WPL 9741858 Contact Us For Availability

Handle, Latch (Almond Model) WPL 9741859 Contact Us For Availability

Washer (Rubber) WPL 4159594 Contact Us For Availability

Tank (Serviced Complete with Frame) WPL 9741965 Contact Us For Availability

33

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70

33

Screw, 10-32 x 5/8 WPL 9741328 Contact Us For Availability

34

Clip, Harness Guide WPL 4163372 Contact Us For Availability

34

Fill Hole Plug Assembly (Includes Item 35) WPL 4162490 Contact Us For Availability

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

Wiring Harness (Main) WPL 9741884 Contact Us For Availability

Connector, Overhead WPL 4161605 Contact Us For Availability

Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability

Relay, Start WPL 304658 Contact Us For Availability

36

WP9740678 Whirlpool Dishwasher Ring Seal Backorder WPL WP9740678 $9.85

36

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

37

Panel, Bottom WPL 9740042 Contact Us For Availability

38

Rinse Agent Dispensing Valve WPL 9741234 Contact Us For Availability

39

Tube, Drain WPL 9741366 Contact Us For Availability

39

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

40

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

40

Shield, Rinse Dispenser WPL 9741866 Contact Us For Availability

40

Ground Lug Kit WPL 675708 Contact Us For Availability

41

Cap, Drain WPL 9741415 Contact Us For Availability

41

Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability

44

Timer Assembly ( WPL 9742247 Contact Us For Availability

47

WPL 9742225 WPL 9742225 Contact Us For Availability

49

WPL 9741378 WPL 9741378 Contact Us For Availability
