Model KUDS03FSBL2 – Common Parts & Diagrams

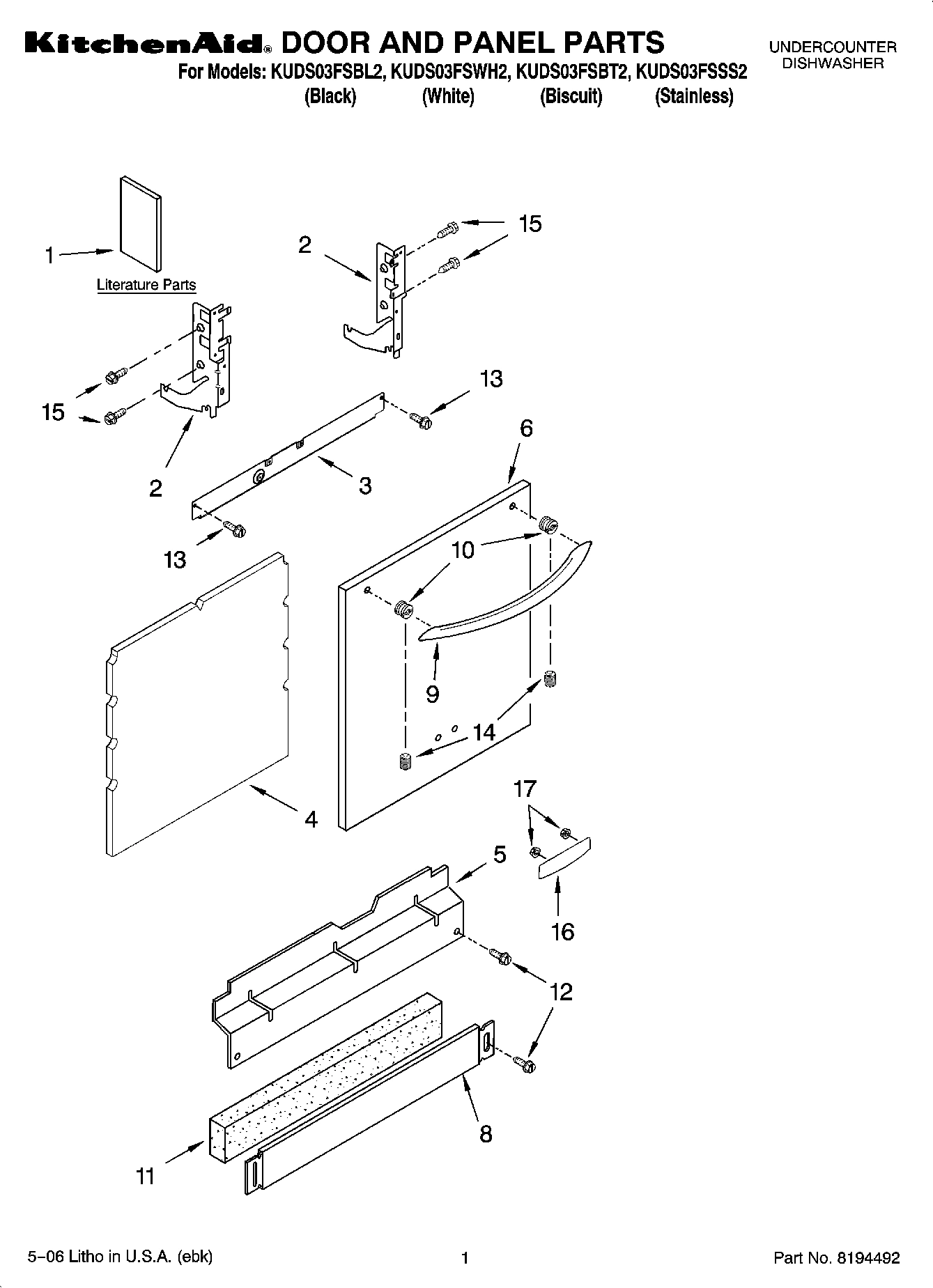

01 - DOOR AND PANEL PARTS

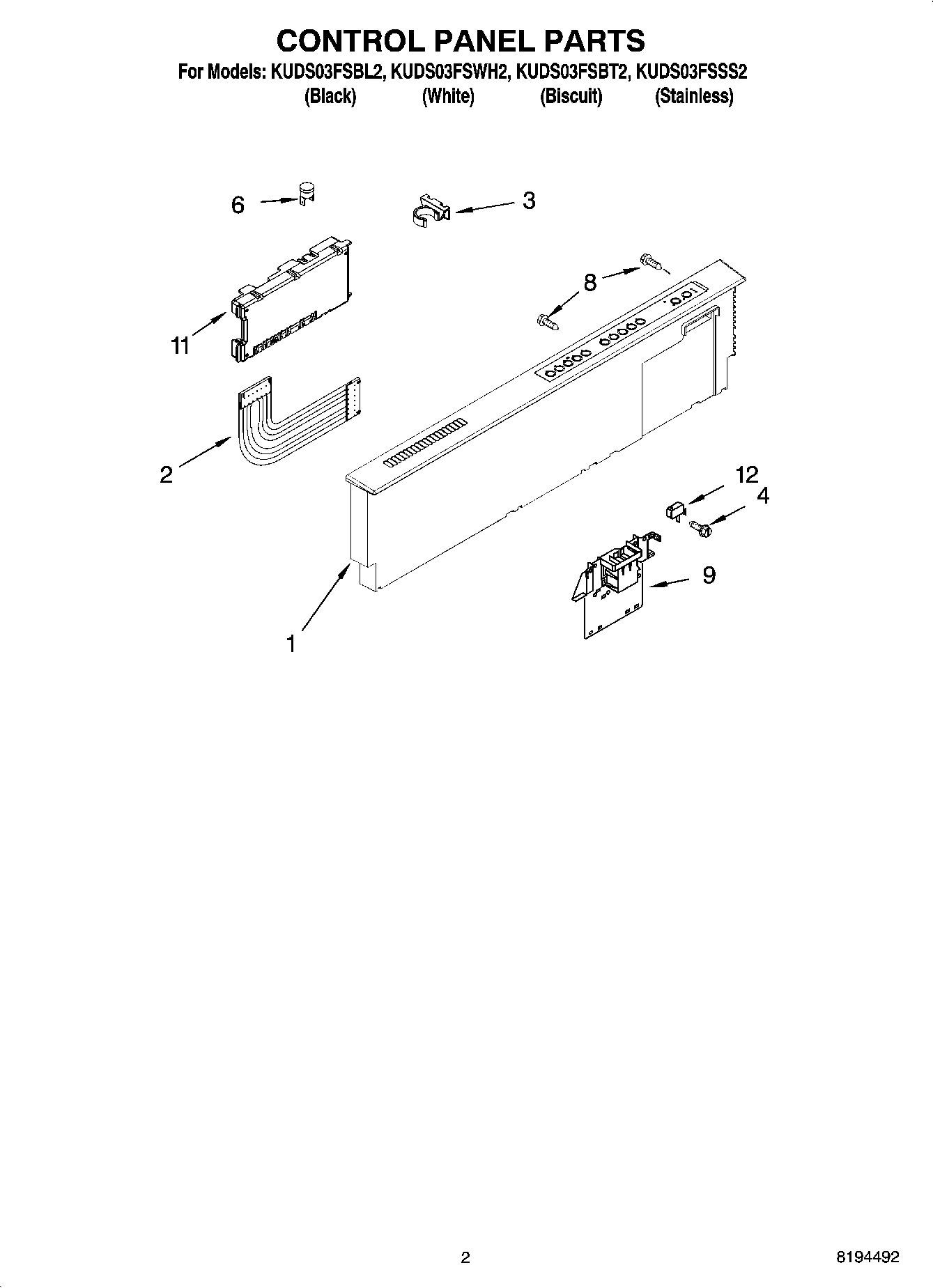

02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS

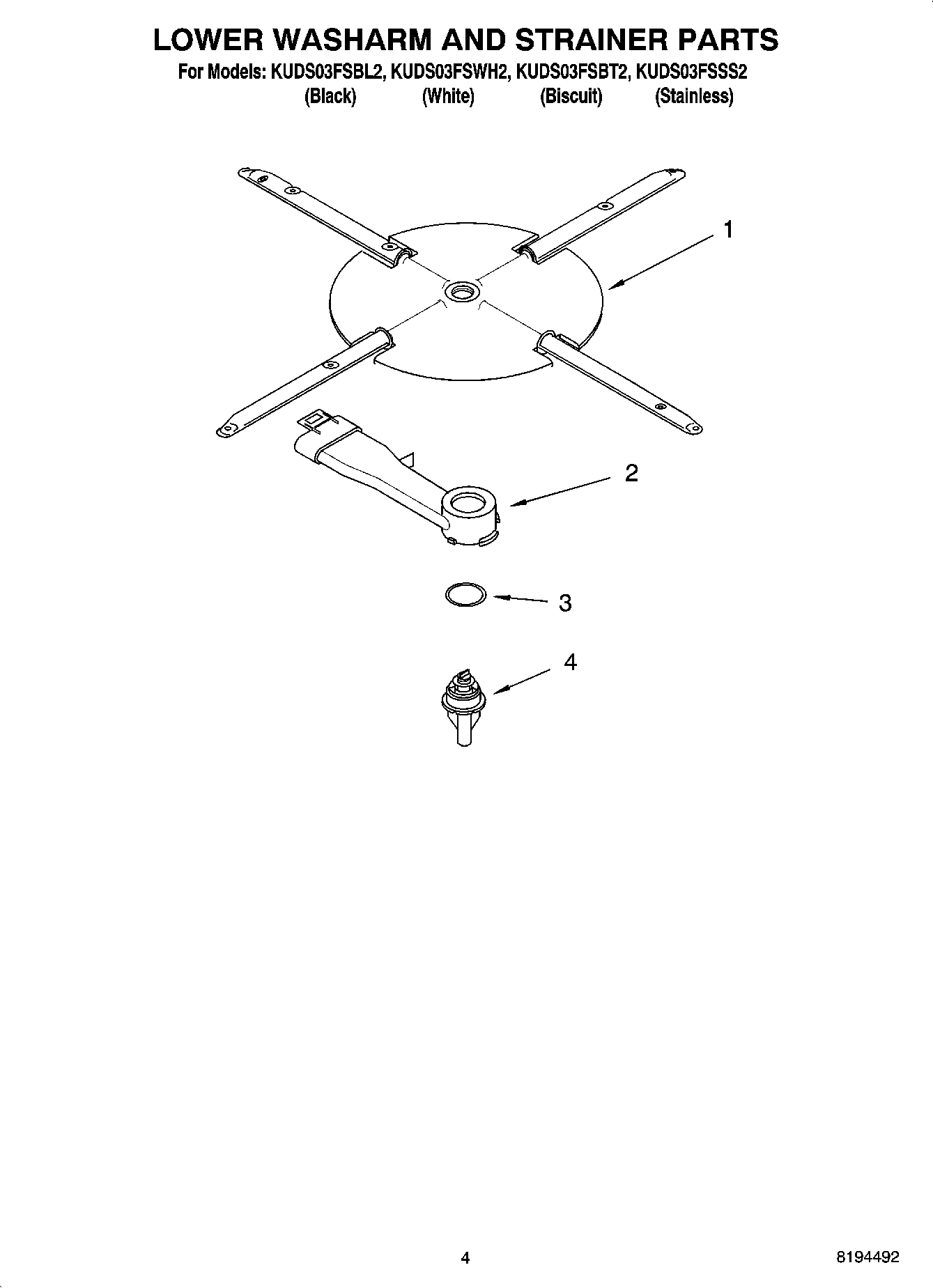

04 - LOWER WASHARM AND STRAINER PARTS
05 - HEATER PARTS

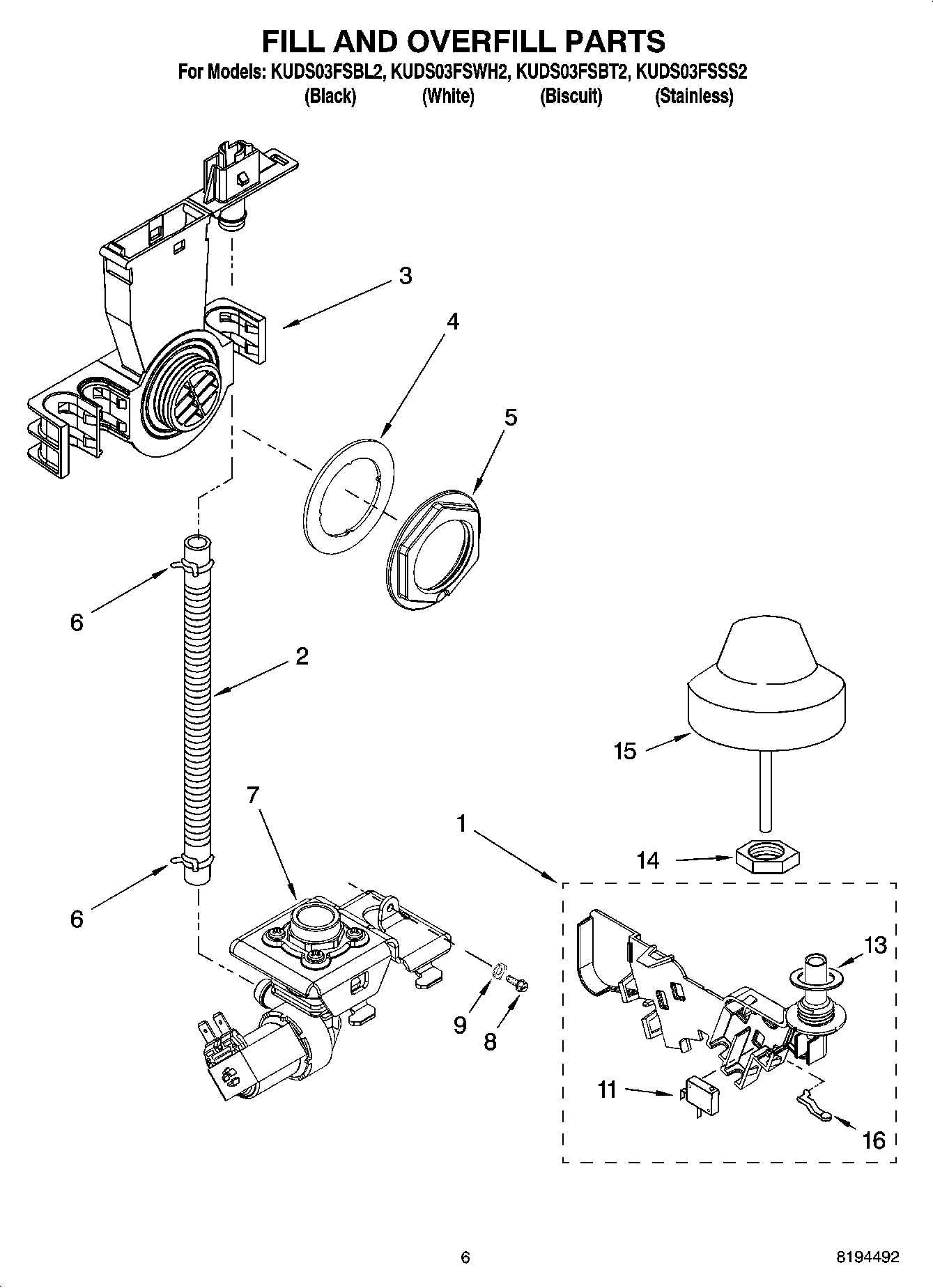

06 - FILL AND OVERFILL PARTS

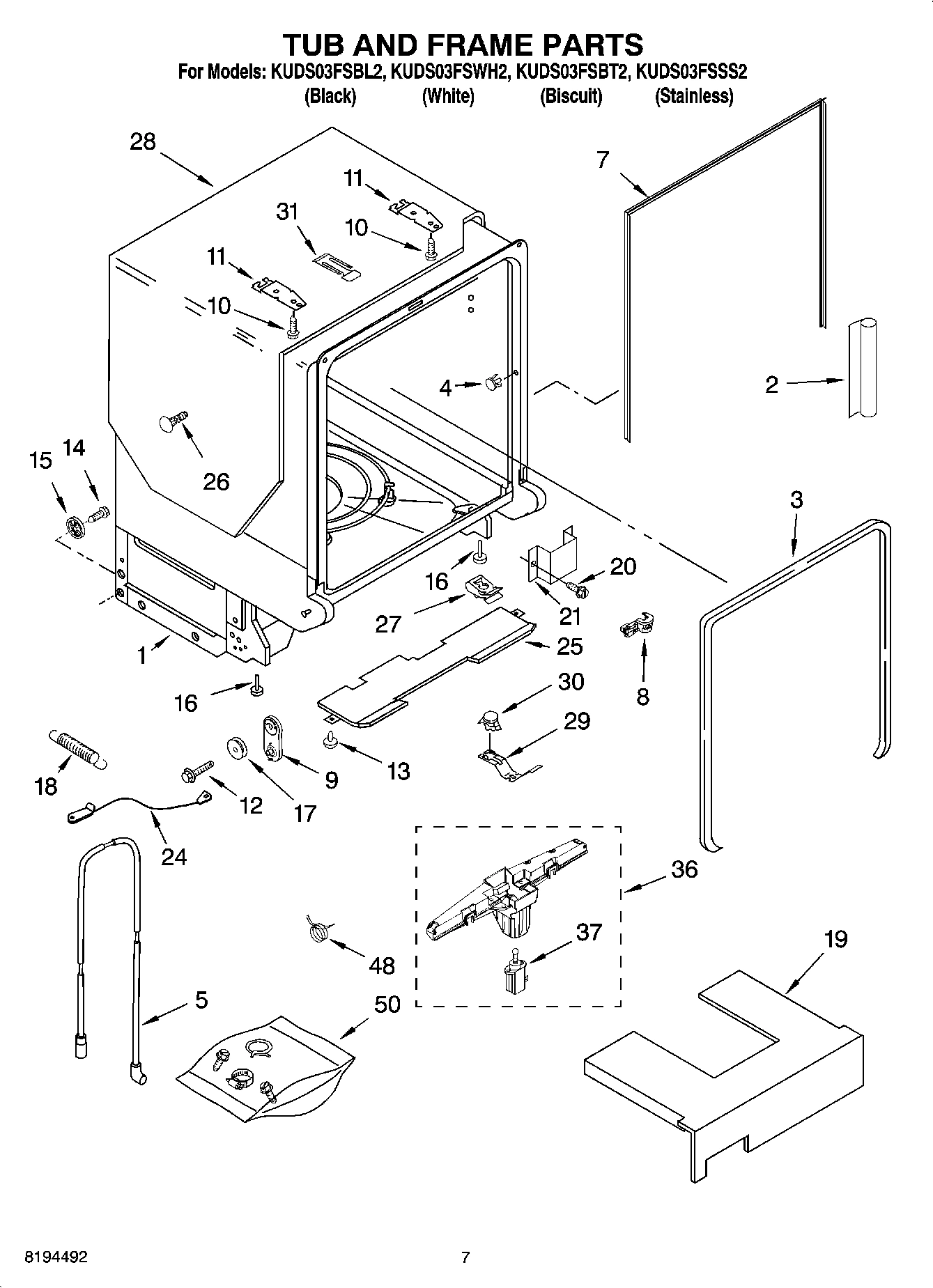

07 - TUB AND FRAME PARTS
08 - PUMP AND MOTOR PARTS

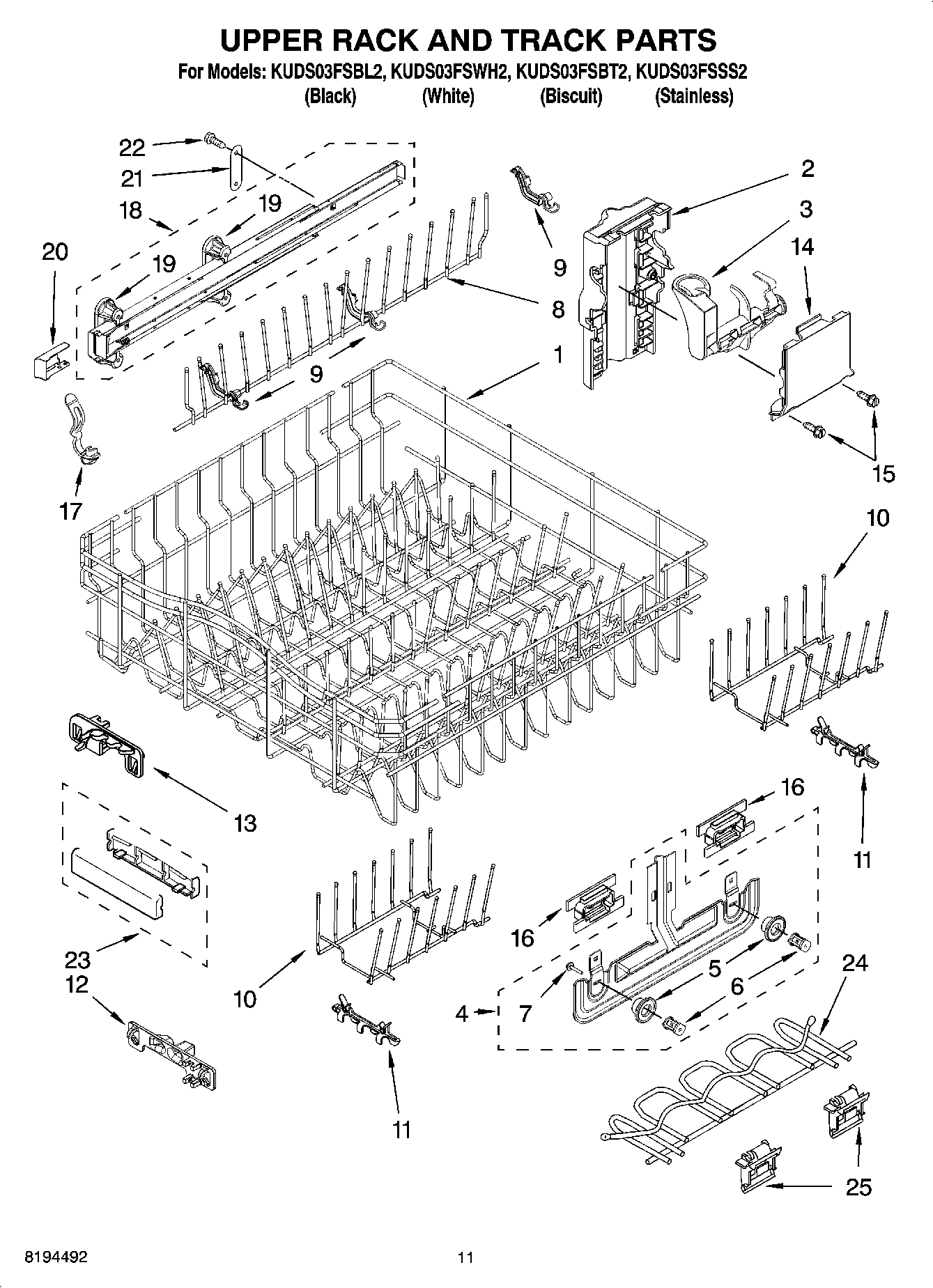

09 - UPPER RACK AND TRACK PARTS
10 - THIRD LEVEL RACK AND TRACK PARTS

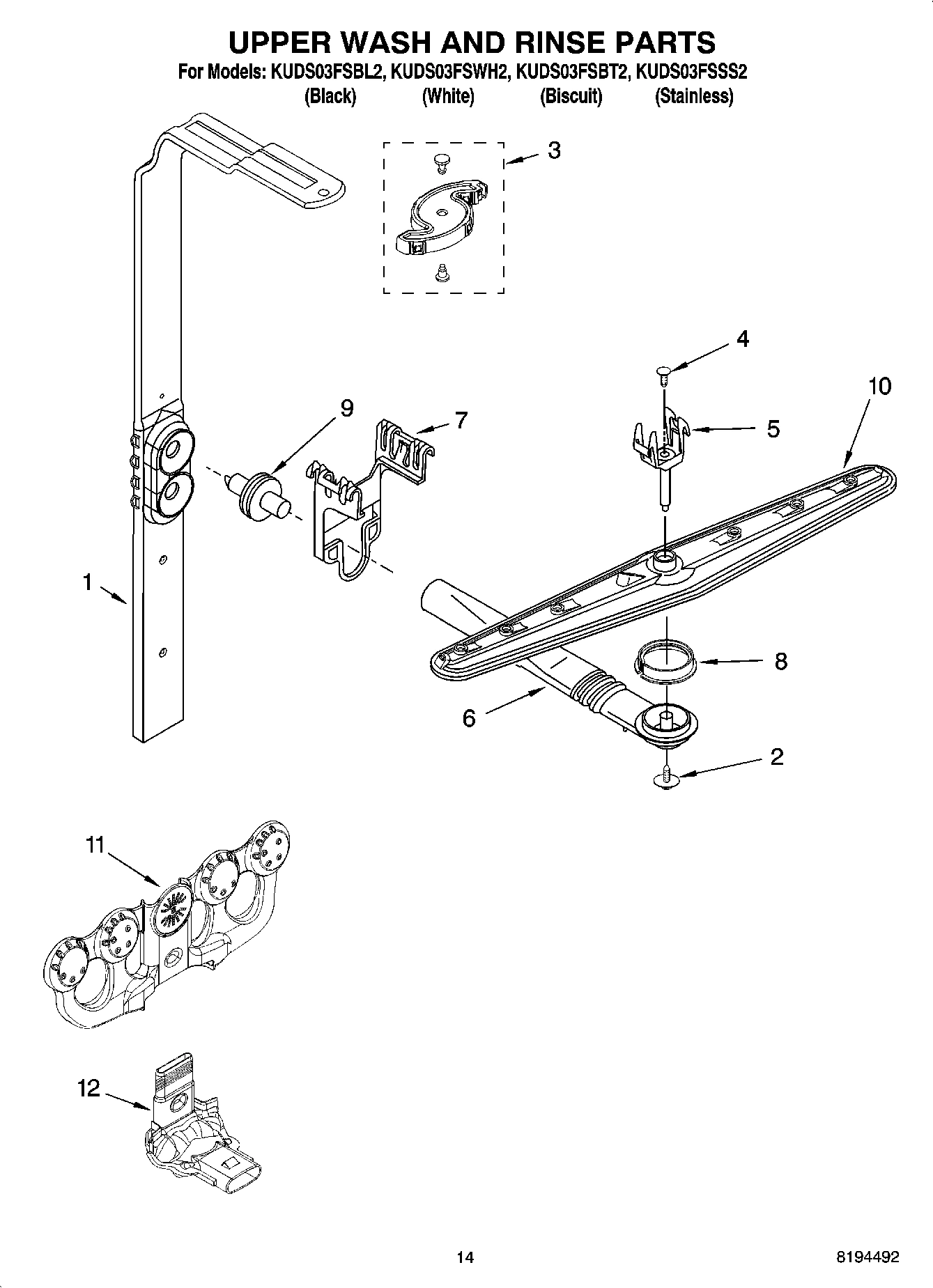

11 - UPPER WASH AND RINSE PARTS
12 - LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
