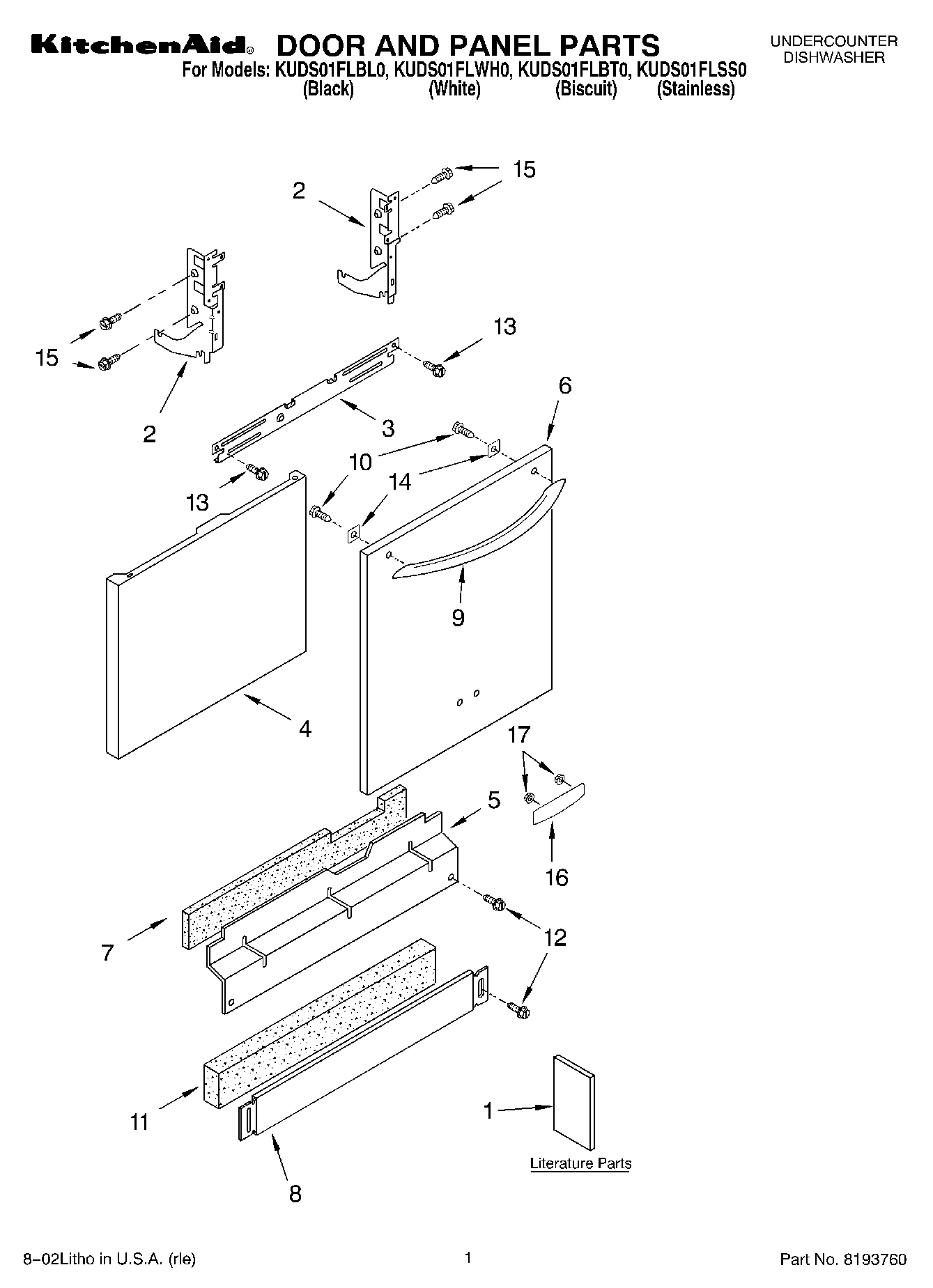

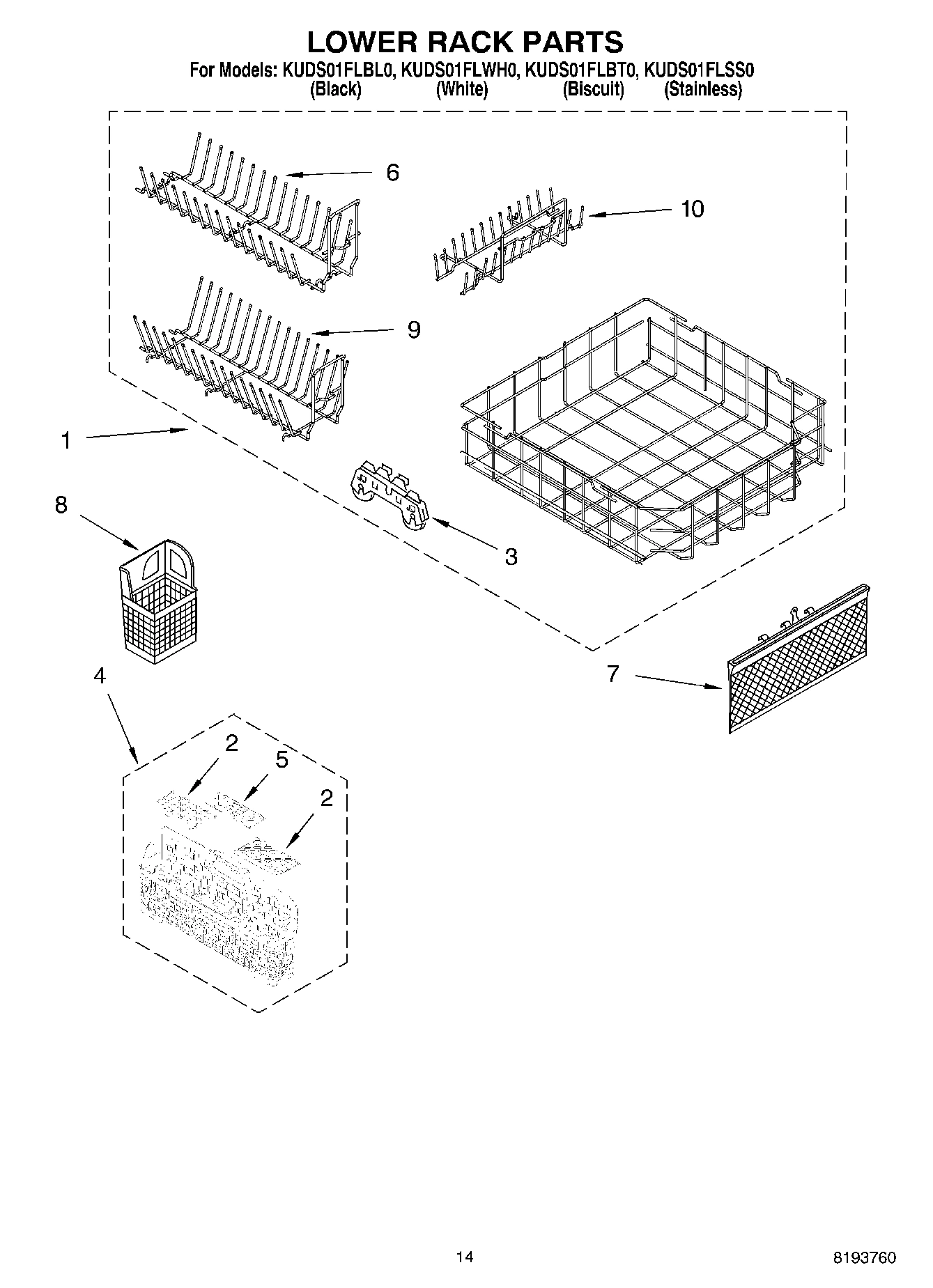

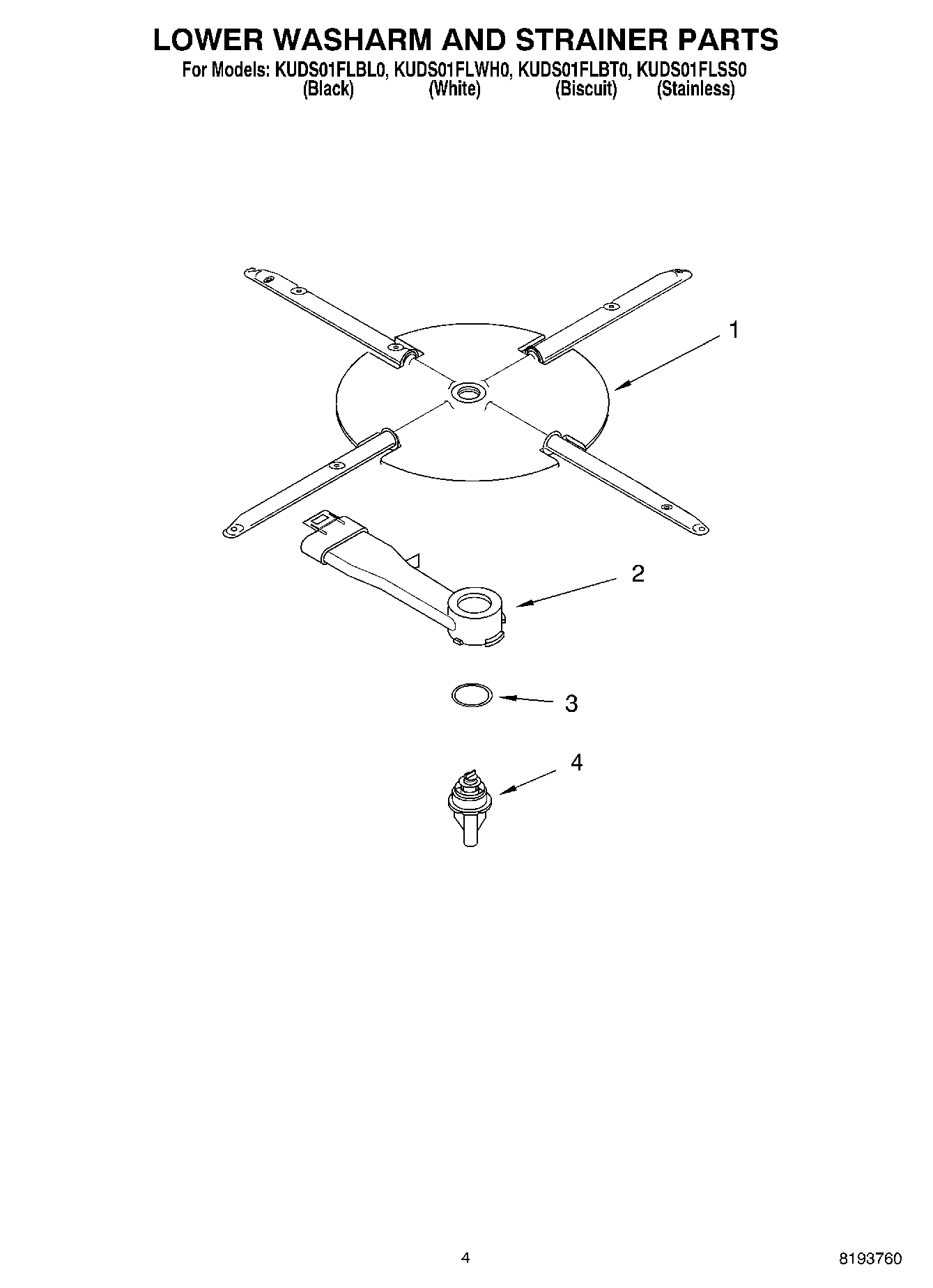

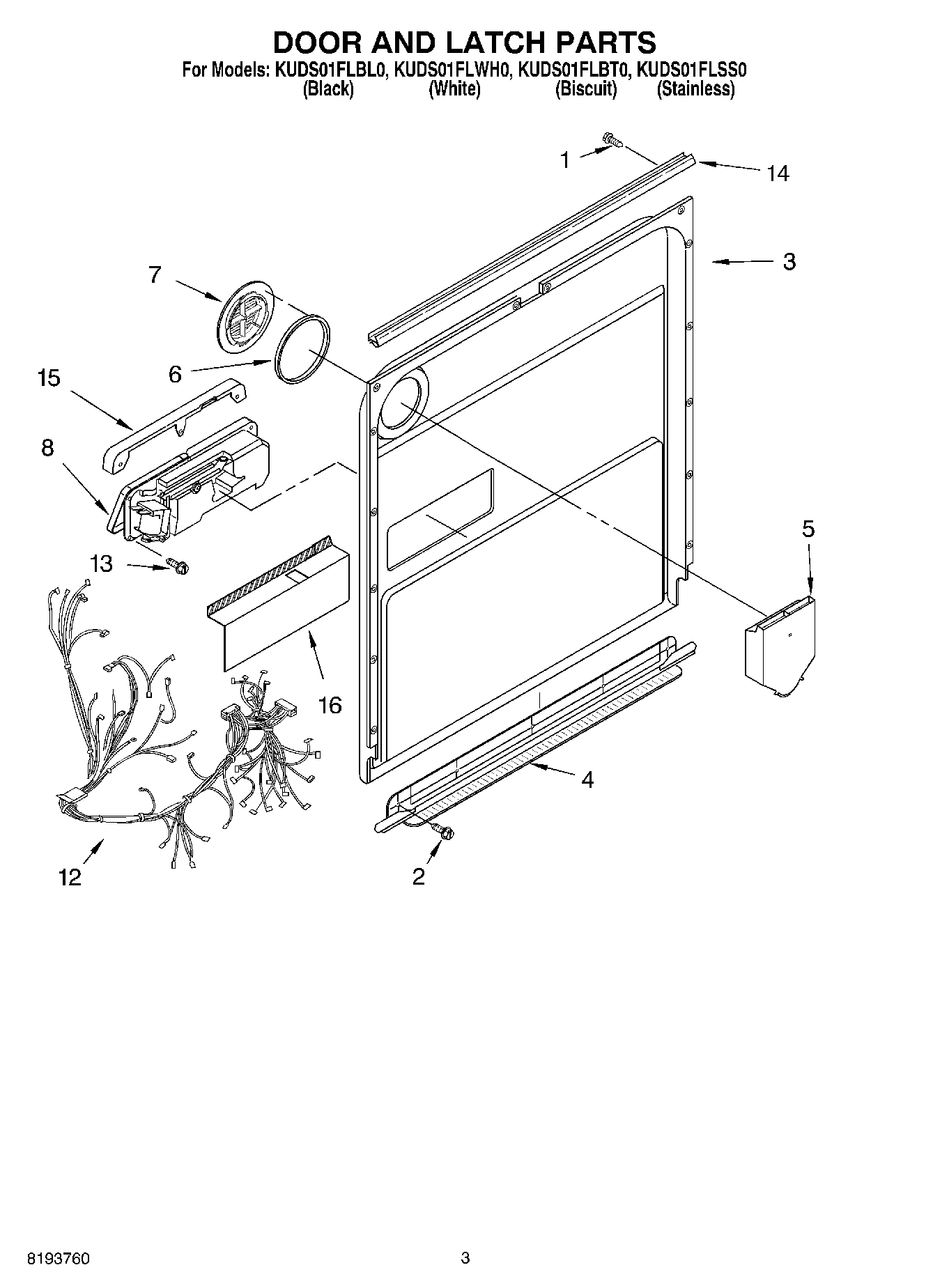

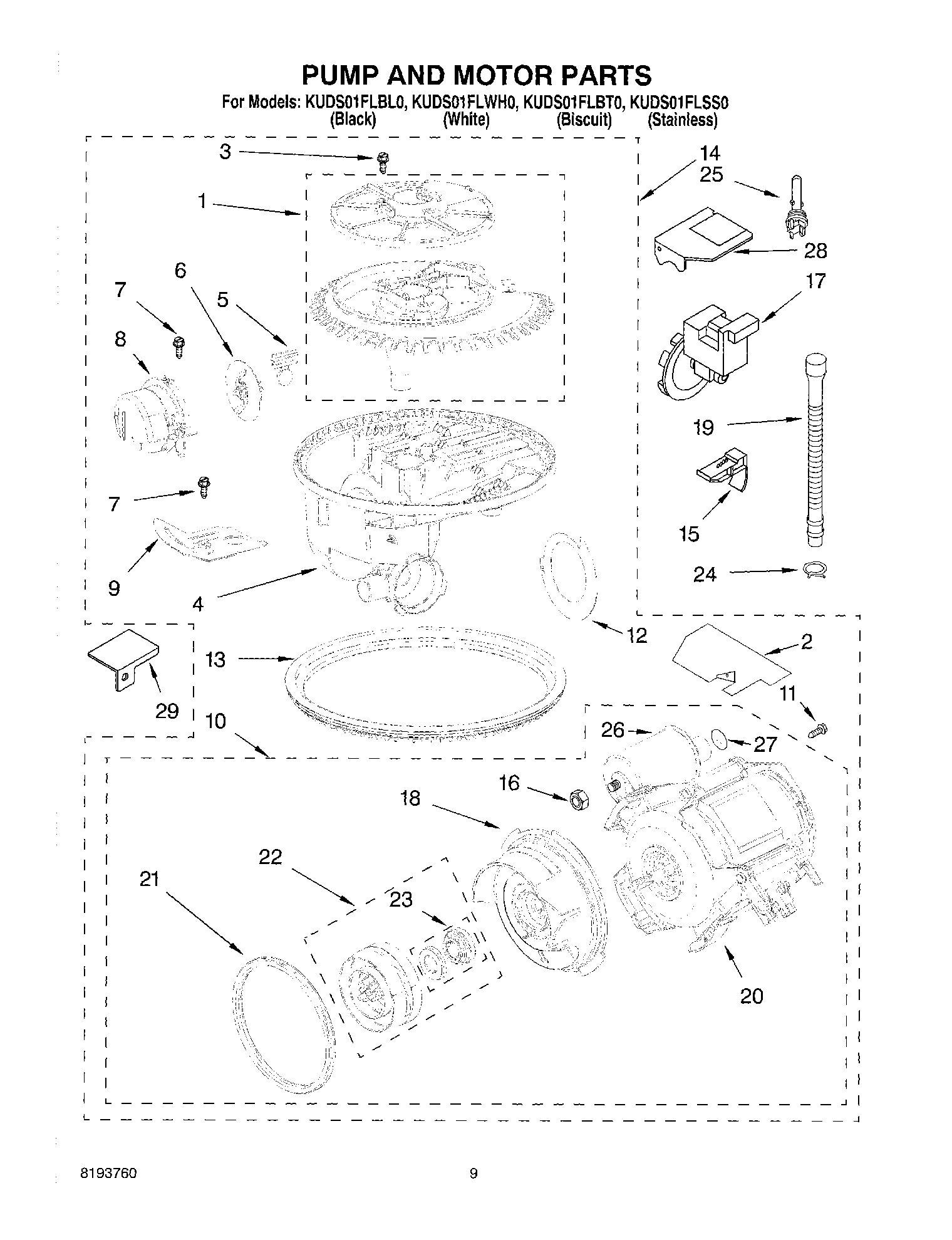

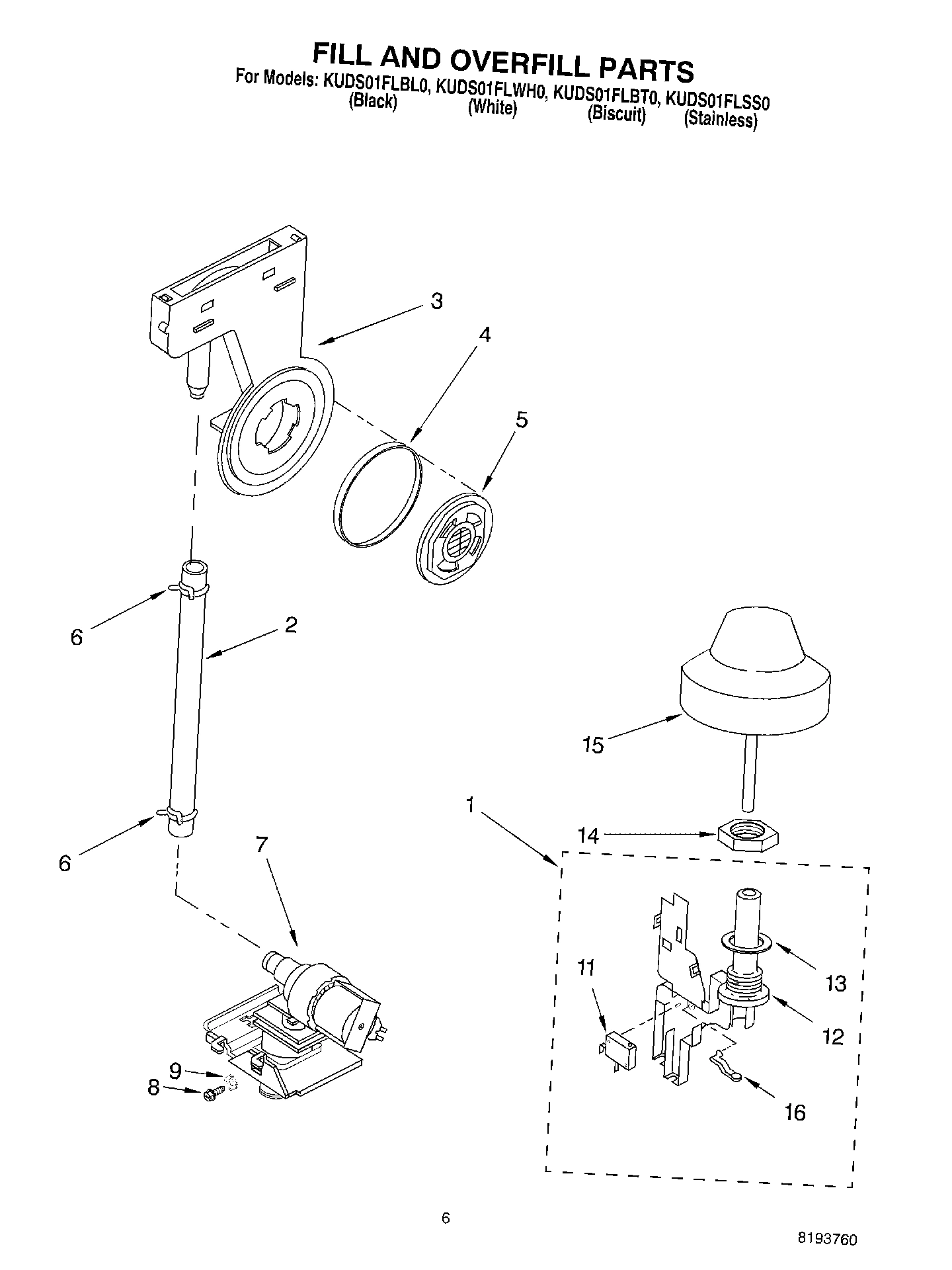

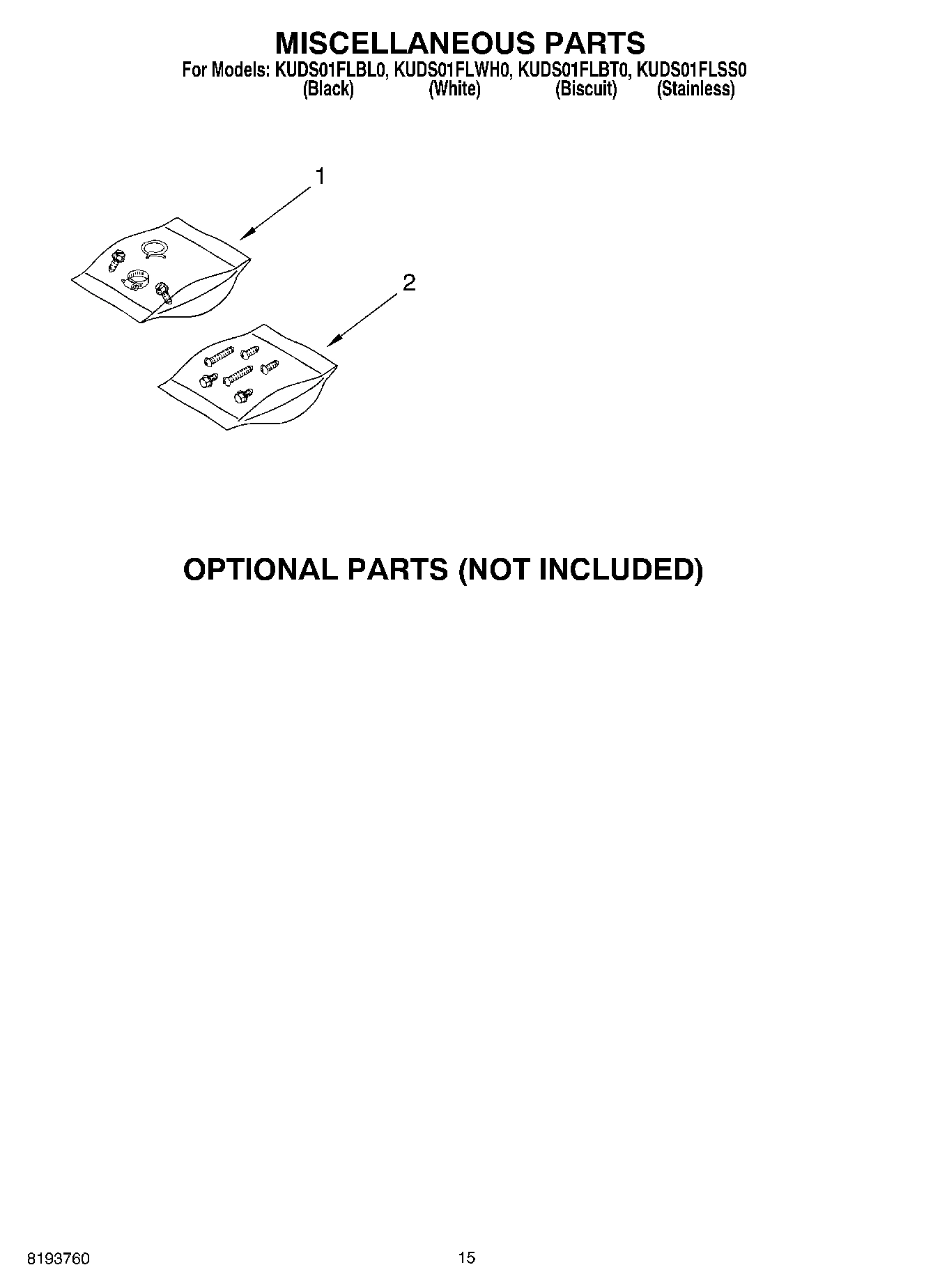

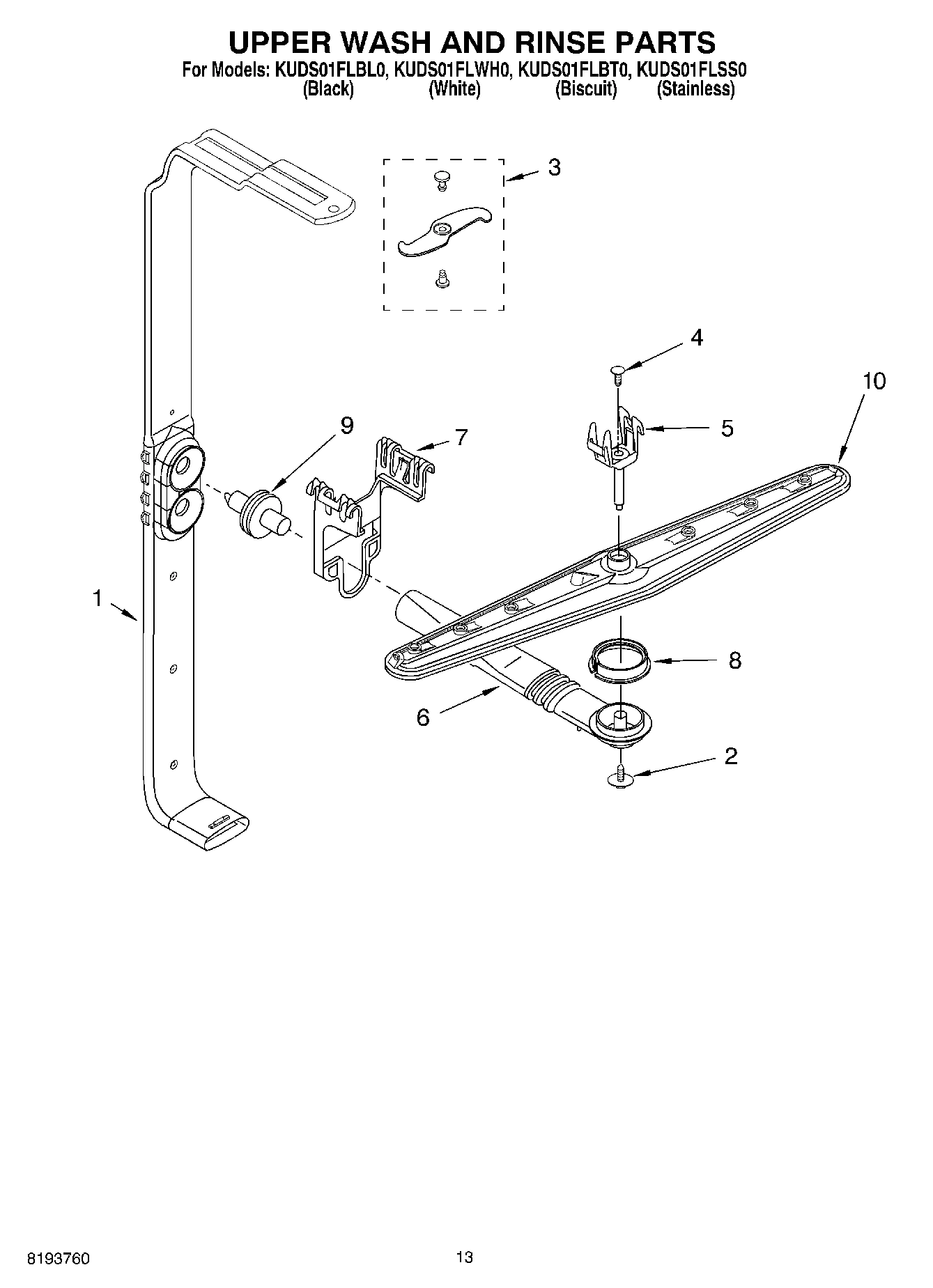

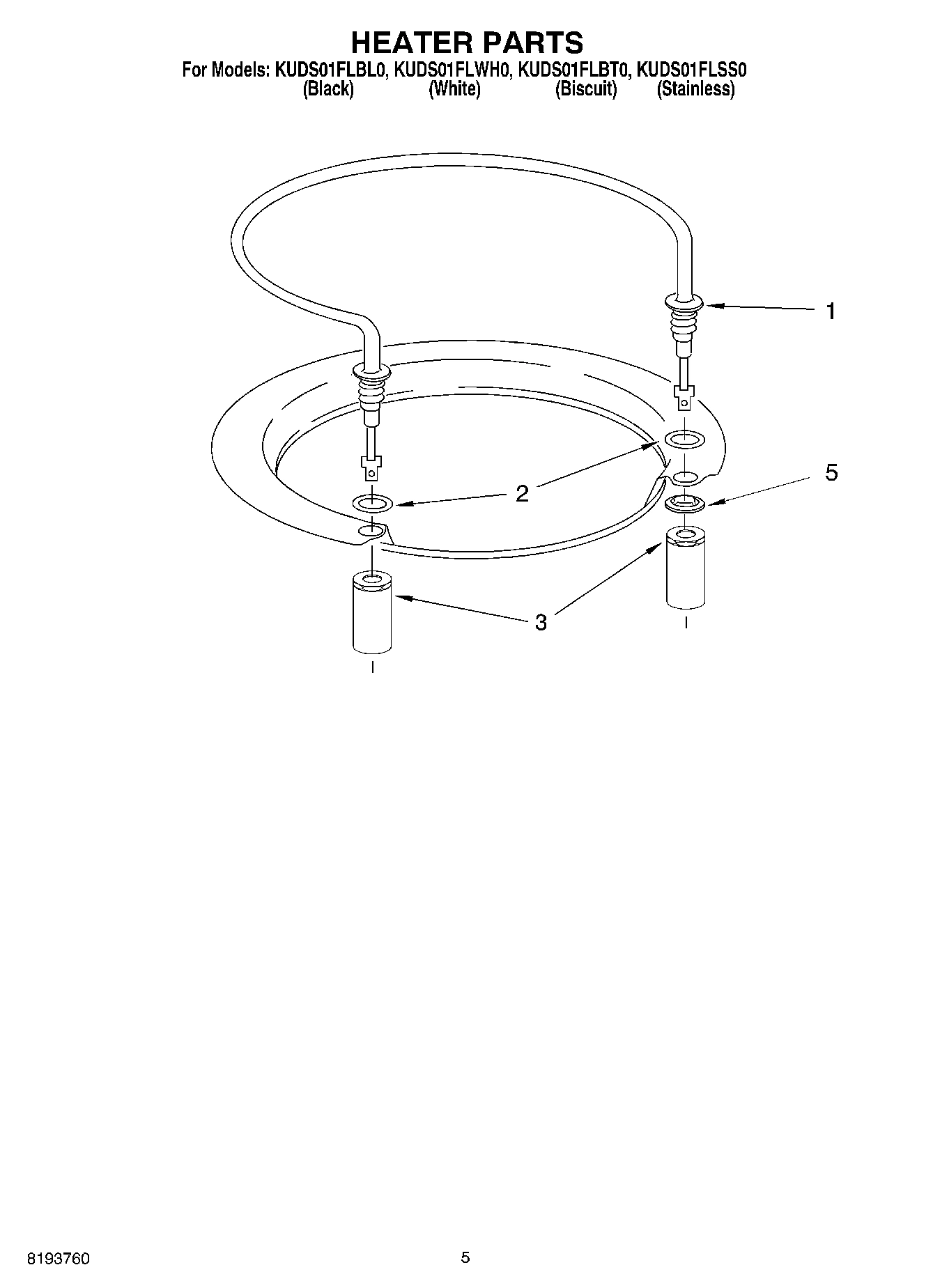

Model Whirlpool KUDS01FLBS0 DISHWASHER – Common Parts &amp; Diagrams

1

W10780925 Whirlpool Dishwasher Lower Dishrack Backorder WPL W10780925 $298.39

1

Literature PartsTech Sheet (English/French) WPL LIT8533399 Contact Us For Availability

2

285006 Whirlpool Spray In Stock WPL 285006 $28.82

2

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

2

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

2

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.97

2

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

2

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

2

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

2

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

2

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $16.47

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $30.89

2

8519695 Whirlpool Dishwasher Basket Cover Backorder WPL 8519695 $12.02

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $33.75

2

WP8268522 Whirlpool Dishwasher Retainer Backorder WPL WP8268522 $3.70

2

WP8269242 Whirlpool Dishwasher Fill Hose Backorder WPL WP8269242 $34.18

2

WP8270168-includeCORE Whirlpool WP8270168 Dis Backorder WPL WP8270168-includeCORE $199.58

2

Seal, Sump WPL 8268395 Contact Us For Availability

2

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

2

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

2

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

2

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.64

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $31.42

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

RIBBON, CABLE WPL 8524447 Contact Us For Availability

3

Stiffener, Door WPL 8268983 Contact Us For Availability

3

Screw WPL 3400069 Contact Us For Availability

4

W11113792 Whirlpool Dishwasher Panel Backorder WPL W11113792 $110.38

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $50.88

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $28.09

4

WPW10190415 Whirlpool Dishwasher Basket Ware In Stock WPL WPW10190415 $50.25

4

Cover, Screw WPL 3400920 Contact Us For Availability

4

Gasket WPL 8269241 Contact Us For Availability

4

Sump WPL 8268382 Contact Us For Availability

5

8519662 Whirlpool Dishwasher Lid Backorder WPL 8519662 $30.91

5

W10871198 Whirlpool Dishwasher Panel Backorder WPL W10871198 $54.63

5

W11763736 Whirlpool Access Panel In Stock WPL W11763736 $16.98

5

PANEL Backorder WPL W11763739 $16.98

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8270138 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8270138 $4.56

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

5

Medallion WPL 8524425 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP8268703 Whirlpool Dishwasher Rack Axle In Stock WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

Panel, Full Front (Stainless) WPL 8531225 Contact Us For Availability

6

Panel, Full Front (Black) WPL 8531226 Contact Us For Availability

6

Panel, Full Front (White) WPL 8531227 Contact Us For Availability

6

Panel, Full Front (Biscuit) WPL 8531228 Contact Us For Availability

6

Insert, Large WPL 8519706 Contact Us For Availability

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability

7

Screw WPL 8281156 Contact Us For Availability

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $11.73

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $63.15

8

WPW10586591 Whirlpool Dishwasher Toe Panel Backorder WPL WPW10586591 $131.08

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

8

Toe Panel (Includes Item 11) (Biscuit) WPL 8270028 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

9

Clip, Pivot WPL 8519669 Contact Us For Availability

9

Handle (Black) WPL 8524407 Contact Us For Availability

9

Handle (White) WPL 8524408 Contact Us For Availability

9

Handle (Biscuit) WPL 8524409 Contact Us For Availability

9

Handle (Stainless) WPL 9744438 Contact Us For Availability

9

Insert, Medium WPL 8519707 Contact Us For Availability

10

Screw WPL 3400067 Contact Us For Availability

10

Insert, Small WPL 8519717 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

W10831329 Whirlpool Dishwasher Shield In Stock WPL W10831329 $16.85

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $30.27

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.53

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $32.39

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.75

Wiring Harness & Protector WPL 8269191 Contact Us For Availability

13

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

14

W10782773 Whirlpool Dishwasher Pump and Motor In Stock WPL W10782773 $165.66

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

14

Plate, Backing WPL 9744437 Contact Us For Availability

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $44.65

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WPW10300599 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10300599 $31.92

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $30.25

Positioner, Arm WPL 8268738 Contact Us For Availability

Nameplate (Black) WPL 2005292 Contact Us For Availability

Nameplate (Biscuit) WPL 2209118T Contact Us For Availability

Nameplate (White) WPL 2209118W Contact Us For Availability

Nut WPL 3400921 Contact Us For Availability

17

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

Pump, Drain WPL 661658 Contact Us For Availability

18

WP8270182 Whirlpool Door Spring Assembly In Stock WPL WP8270182 $15.87

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.55

19

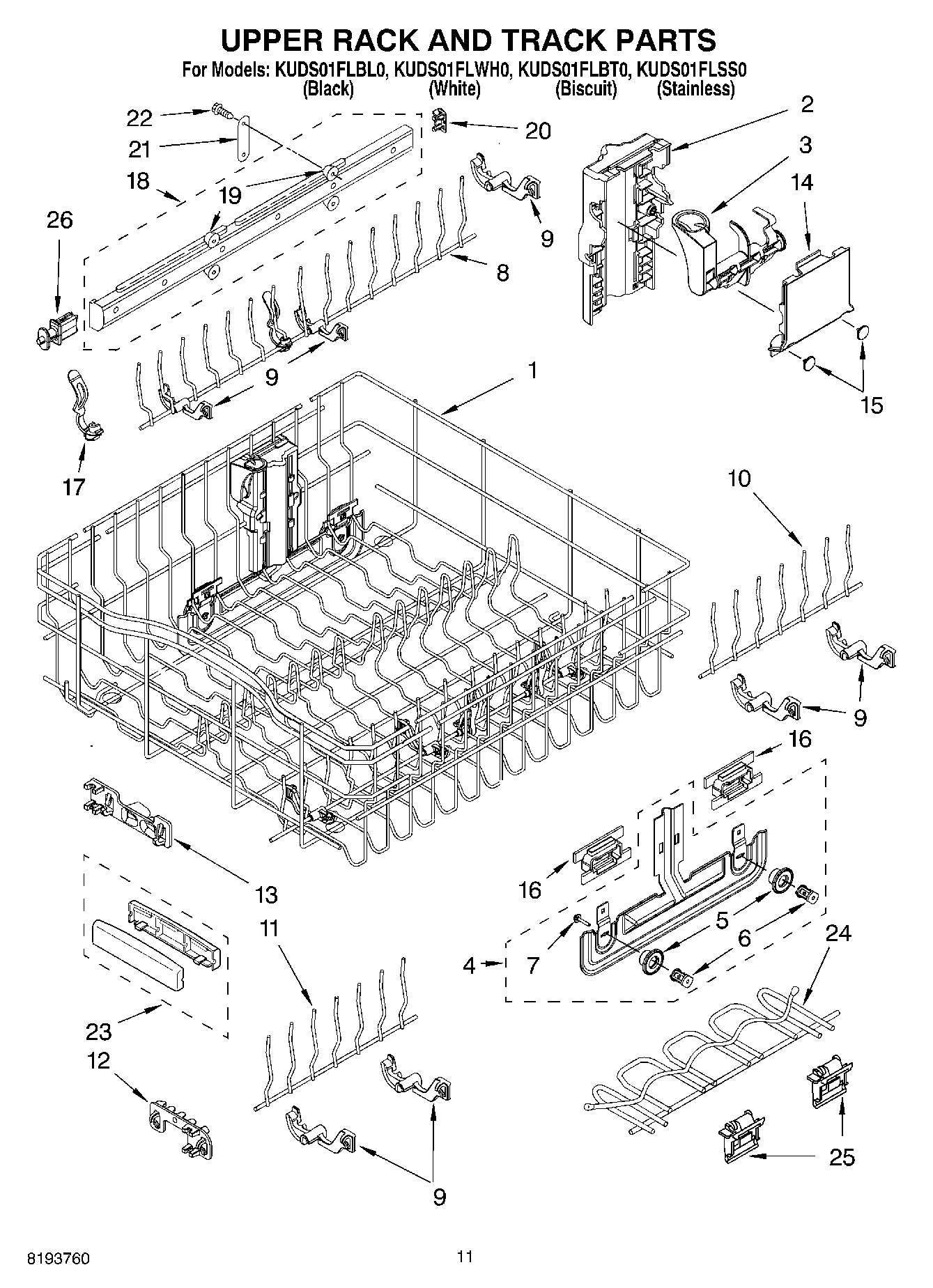

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

Stop, Track WPL 8270136 Contact Us For Availability

21

W11622922 Whirlpool Dishwasher Volute In Stock WPL W11622922 $8.20

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

22

WPW10757217 Whirlpool Circulation Pump and Mo Backorder WPL WPW10757217 $159.69

23

8193951A Whirlpool Impeller Assembly Backorder WPL 8193951A $87.26

25

Thermister WPL 8269208 Contact Us For Availability

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

26

WPW10334457 Whirlpool Dishwasher Capacitor Backorder WPL WPW10334457 $72.33

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

27

Shield, Capacitor WPL 8269512 Contact Us For Availability

28

Shield, Drain Pump WPL 8269449 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

29

Shield, Pressure Switch WPL 8269501 Contact Us For Availability

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
