Model Whirlpool KUDP02SRBT4 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $12.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $125.83

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

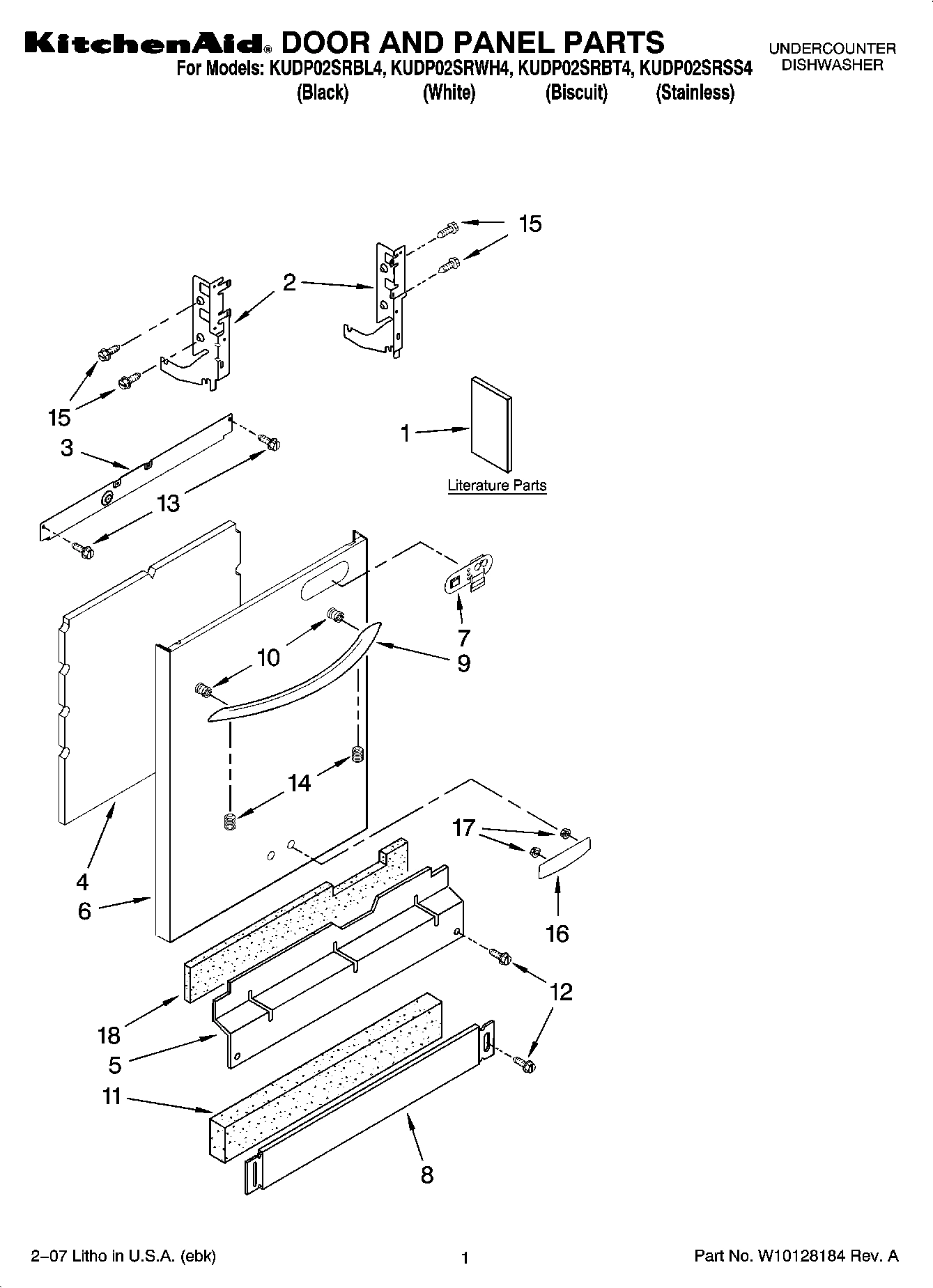

1

WPW10077863 Whirlpool Dishwasher Feed Tube Backorder WPL WPW10077863 $66.01

1

WPW10082892 Whirlpool Dishwasher Heater In Stock WPL WPW10082892 $32.34

1

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $29.43

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $37.28

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $61.92

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $61.92

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

2

CABLE-RIBBON WPL 8531877 Contact Us For Availability

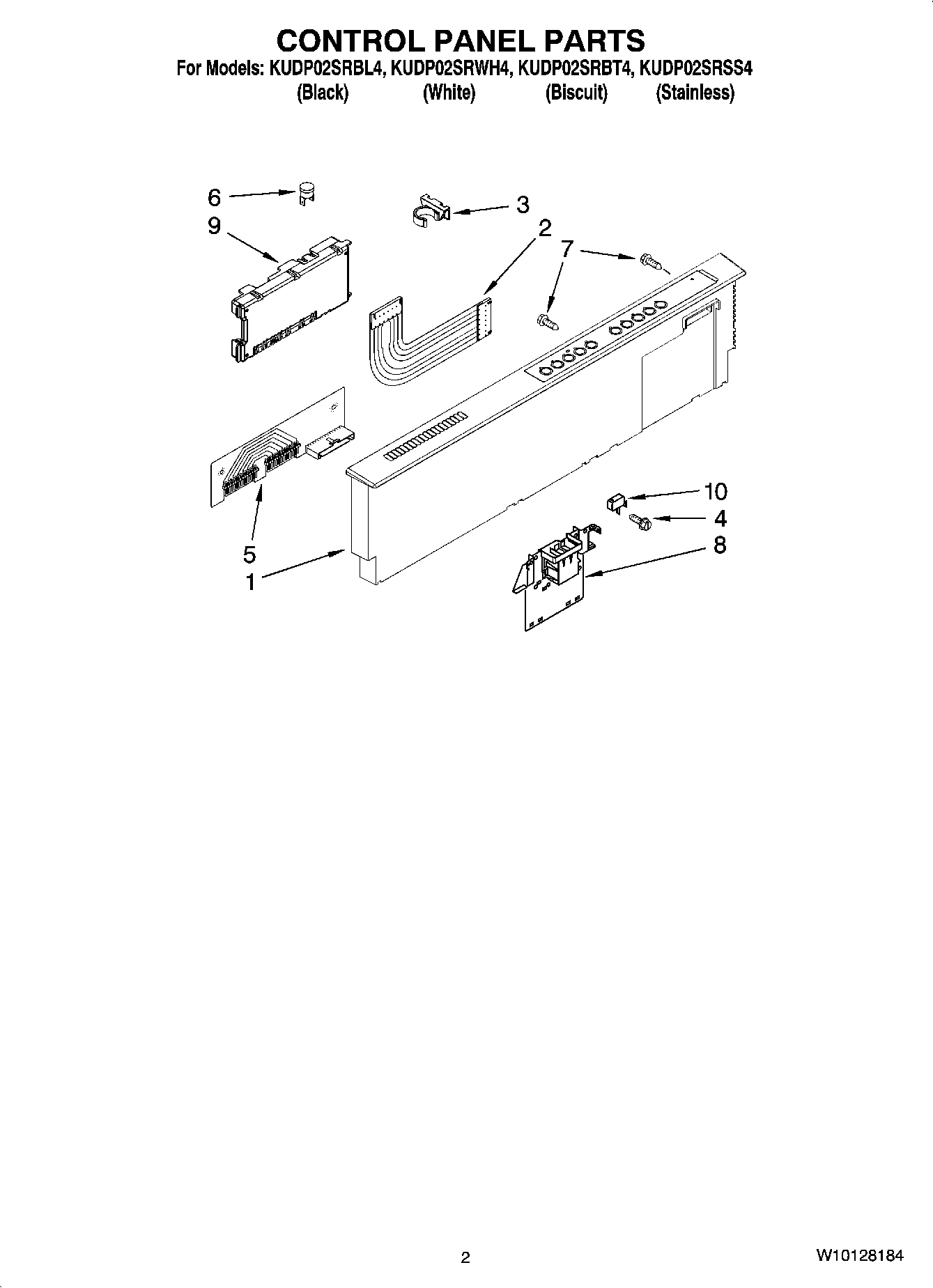

3

8193983 Whirlpool Spinner Kit In Stock WPL 8193983 $12.43

3

W11196317 Whirlpool Dishwasher Door Gasket In Stock WPL W11196317 $59.68

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $29.92

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Clip, BI-Metal WPL 8546546 Contact Us For Availability

3

Inner Door Mastic Assembly (Also Order Item 6 WPL 8530900 Contact Us For Availability

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $26.75

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $113.08

4

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

4

NOTE: If heater element is removed, it must b WPL ARI115158A Contact Us For Availability

5

WP8268321 Whirlpool Dishwasher Mount Backorder WPL WP8268321 $34.28

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

WP8270138 Whirlpool Dishwasher Upper Wheel Backorder WPL WP8270138 $4.56

5

WP8531873 Whirlpool Dishwasher Control Board Backorder WPL WP8531873 $75.22

5

WP8572611 Whirlpool Air Duct Assembly Backorder WPL WP8572611 $86.52

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP8268703 Whirlpool Dishwasher Rack Axle Backorder WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

6

WPW10323423 Whirlpool Manifold Backorder WPL WPW10323423 $32.56

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8281156 Whirlpool Dishwasher Screw Backorder WPL WP8281156 $2.51

7

WP8531314 Whirlpool Dishwasher Retainer In Stock WPL WP8531314 $10.76

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $30.85

8

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $60.15

8

WPW10224430 Whirlpool Dishwasher Detergent Di In Stock WPL WPW10224430 $116.22

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

9

WP8539190 Whirlpool Tine Pivot In Stock WPL WP8539190 $27.71

9

WP8562069 Whirlpool Dishwasher Basket Ware Backorder WPL WP8562069 $26.04

9

WP8564929 Whirlpool Rinse Aid Cap In Stock WPL WP8564929 $13.76

9

WPW10082831 Whirlpool Dishwasher Probe In Stock WPL WPW10082831 $15.72

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $28.82

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.05

WP8535086 Whirlpool Dishwasher Spray Arm Backorder WPL WP8535086 $40.68

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

Harness, Vent Motor WPL 8545608 Contact Us For Availability

11

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

11

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

11

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $30.85

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8539102 Whirlpool Dishwasher Positioner In Stock WPL WP8539102 $40.97

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WPW10413097 Whirlpool Dishwasher Wire Harness Backorder WPL WPW10413097 $157.21

13

WP8268895 Whirlpool Dishwasher Float Assembly Backorder WPL WP8268895 $30.80

13

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $3.46

14

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $28.80

14

WP8534008 Whirlpool Screw Backorder WPL WP8534008 $2.40

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $56.09

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $12.13

16

WP8268738 Whirlpool Dishwasher Positioner Backorder WPL WP8268738 $32.85

16

WP8531865 Whirlpool Dishwasher Door Shield Backorder WPL WP8531865 $35.78

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $31.86

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.17

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8573953 Whirlpool Dishwasher Stop Assembly Backorder WPL WP8573953 $3.70

20

WP8573954 Whirlpool Dishwasher Stop Assembly Backorder WPL WP8573954 $3.70

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

28

W10877094 Whirlpool Shield In Stock WPL W10877094 $79.73

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

31

WP8574157 Whirlpool Dishwasher Strike In Stock WPL WP8574157 $29.06

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
