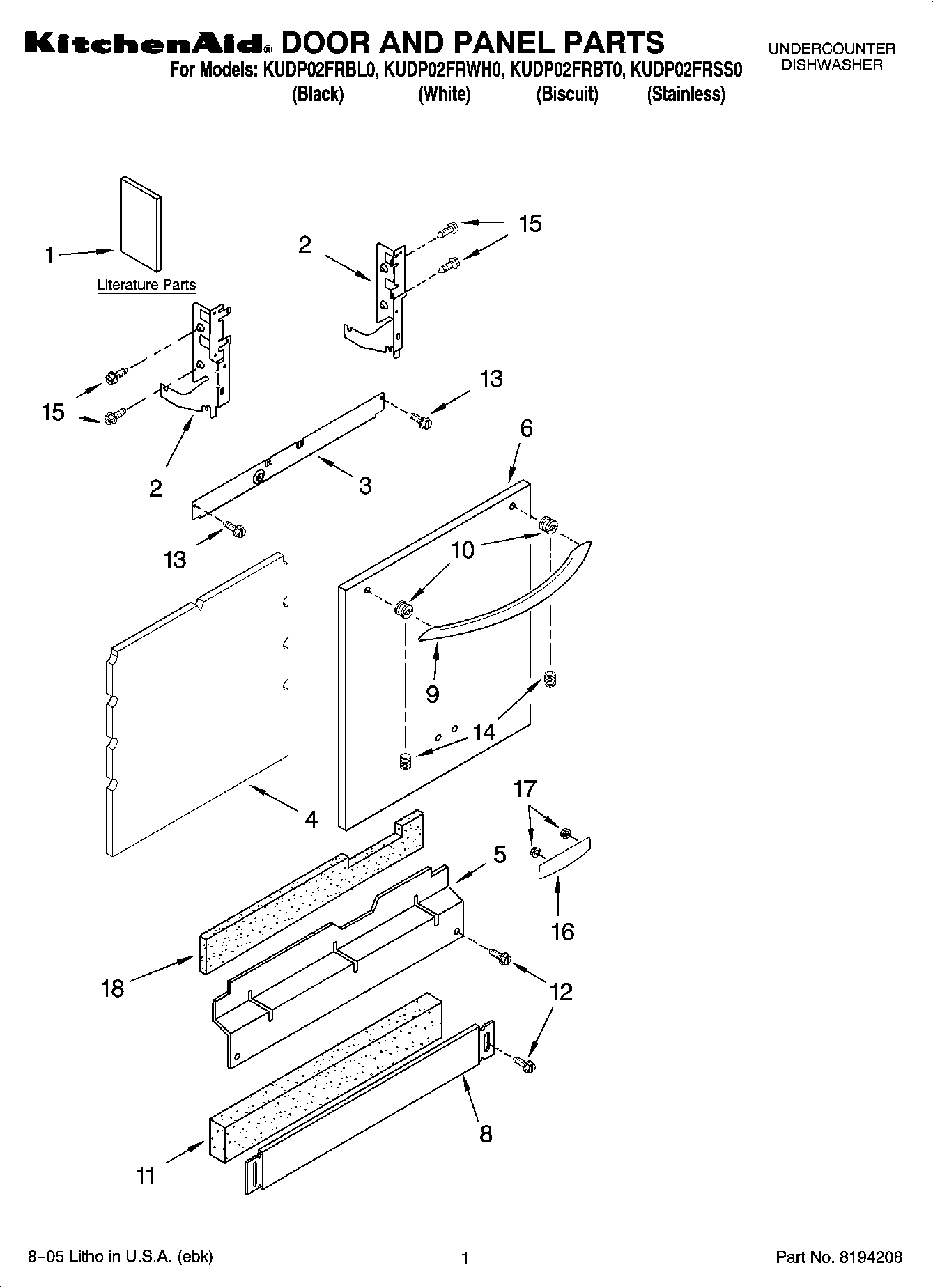

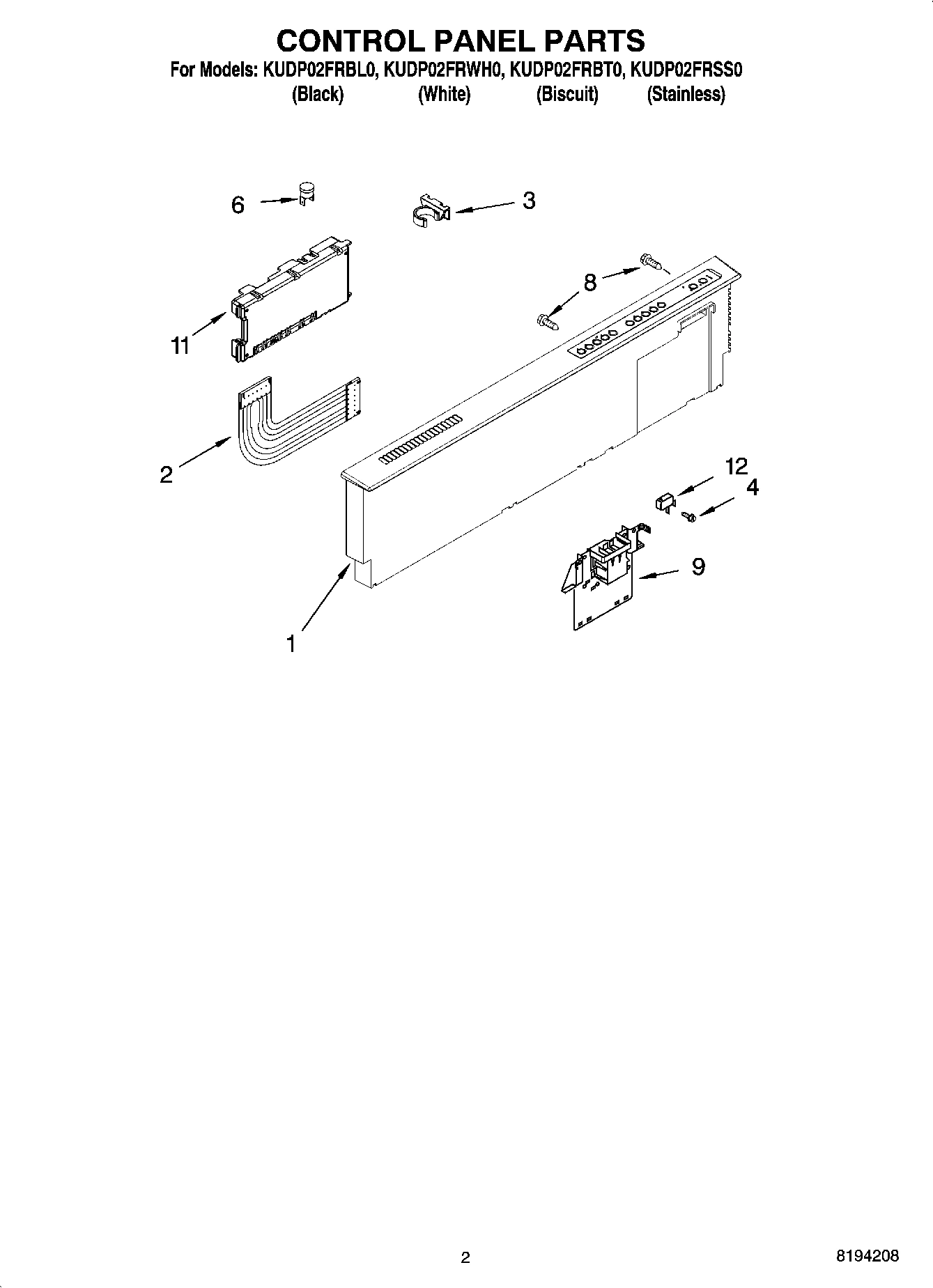

Model Whirlpool KUDP02FRBL0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

WPL 72017 WPL 72017 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

WPL 72032 WPL 72032 Contact Us For Availability

ACCESSORIES SIDE PANEL KITS PAINT, TOUCH-UP ( WPL 4392899 Contact Us For Availability

POWER CORD KIT (INCLUDES POWER CORD & MISC. H WPL 4317824 Contact Us For Availability

ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZE WPL 285006 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability

ACCESSORIES SIDE PANEL KITS (Kit) WPL 4396277 Contact Us For Availability

WPL 8171659 WPL 8171659 Contact Us For Availability

WPL 8171571 WPL 8171571 Contact Us For Availability

WPL 8171656 WPL 8171656 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

WPL 8171657 WPL 8171657 Contact Us For Availability

1

WPW10077863 Whirlpool Dishwasher Feed Tube Backorder WPL WPW10077863 $69.30

1

WPW10082892 Whirlpool Dishwasher Heater In Stock WPL WPW10082892 $33.95

1

Tub Assembly WPL 8573202 Contact Us For Availability

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $30.89

2

W10850507 Whirlpool Dishwasher Ribbon Cable Backorder WPL W10850507 $120.52

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $39.14

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $33.75

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

3

8193983 Whirlpool Spinner Kit In Stock WPL 8193983 $13.05

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.64

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $31.42

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Clip, BI-Metal WPL 8546546 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $5.62

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $33.21

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $28.09

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $118.74

4

Cover, Screw WPL 3400920 Contact Us For Availability

5

WP8268321 Whirlpool Dishwasher Mount Backorder WPL WP8268321 $36.00

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8270138 Whirlpool Dishwasher Upper Wheel Backorder WPL WP8270138 $4.56

5

WP8531314 Whirlpool Dishwasher Retainer Backorder WPL WP8531314 $10.76

5

WP8572611 Whirlpool Air Duct Assembly Backorder WPL WP8572611 $90.84

5

WPW10358302 Whirlpool Dishwasher Drain Hose In Stock WPL WPW10358302 $42.40

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

5

NOTE: If heater element is removed, it must b WPL ARI156117A Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP8268703 Whirlpool Dishwasher Rack Axle In Stock WPL WP8268703 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

6

WPW10323423 Whirlpool Manifold Backorder WPL WPW10323423 $34.18

7

W10864081 Whirlpool Dishwasher Seal In Stock WPL W10864081 $49.46

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $32.39

7

Screw WPL 8281156 Contact Us For Availability

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $63.15

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

9

8194001 Whirlpool Dishwasher Door Balance Lin In Stock WPL 8194001 $12.88

9

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

9

WP8539190 Whirlpool Tine Pivot In Stock WPL WP8539190 $29.10

9

WP8562069 Whirlpool Dishwasher Basket Ware Backorder WPL WP8562069 $27.34

9

WP8564929 Whirlpool Rinse Aid Cap Backorder WPL WP8564929 $13.76

9

WPW10082831 Whirlpool Dishwasher Probe In Stock WPL WPW10082831 $16.51

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP8535086 Whirlpool Dishwasher Spray Arm Backorder WPL WP8535086 $42.71

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

Harness, Vent Motor WPL 8545608 Contact Us For Availability

11

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

11

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $30.27

11

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.53

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.75

WP8539102 Whirlpool Dishwasher Positioner Backorder WPL WP8539102 $43.02

Screen, Separation WPL 8268391 Contact Us For Availability

13

WP3400924 Whirlpool Dishwasher Retainer In Stock WPL WP3400924 $14.31

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $22.34

WP8534008 Whirlpool Screw In Stock WPL WP8534008 $2.40

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $58.90

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

Screw (2) WPL 3370389 Contact Us For Availability

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

15

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $32.34

15

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $30.25

16

Positioner, Arm WPL 8268738 Contact Us For Availability

17

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $33.45

18

WP8270182 Whirlpool Door Spring Assembly In Stock WPL WP8270182 $15.87

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.55

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8573954 Whirlpool Dishwasher Stop Assembly Backorder WPL WP8573954 $3.70

20

Stop, Track (Left) WPL 8573953 Contact Us For Availability

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

23

8193951A Whirlpool Impeller Assembly Backorder WPL 8193951A $87.26

25

WPW10705575 Whirlpool Dishwasher Sensor In Stock WPL WPW10705575 $16.21

25

WPW10746770 Whirlpool Insulation Pad Backorder WPL WPW10746770 $16.85

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

26

WPW10334457 Whirlpool Dishwasher Capacitor Backorder WPL WPW10334457 $72.33

27

8534946 Whirlpool Dishwasher Shield Backorder WPL 8534946 $10.25

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

28

W10877094 Whirlpool Shield In Stock WPL W10877094 $83.71

29

BRACKET, THERMOSTAT WPL 9742648 Contact Us For Availability

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

31

WP8574157 Whirlpool Dishwasher Strike In Stock WPL WP8574157 $30.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

50

WPW10292170 Whirlpool Dishwasher Miscellaneou Backorder WPL WPW10292170 $34.48
