Model Whirlpool KUDI01FKWH0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

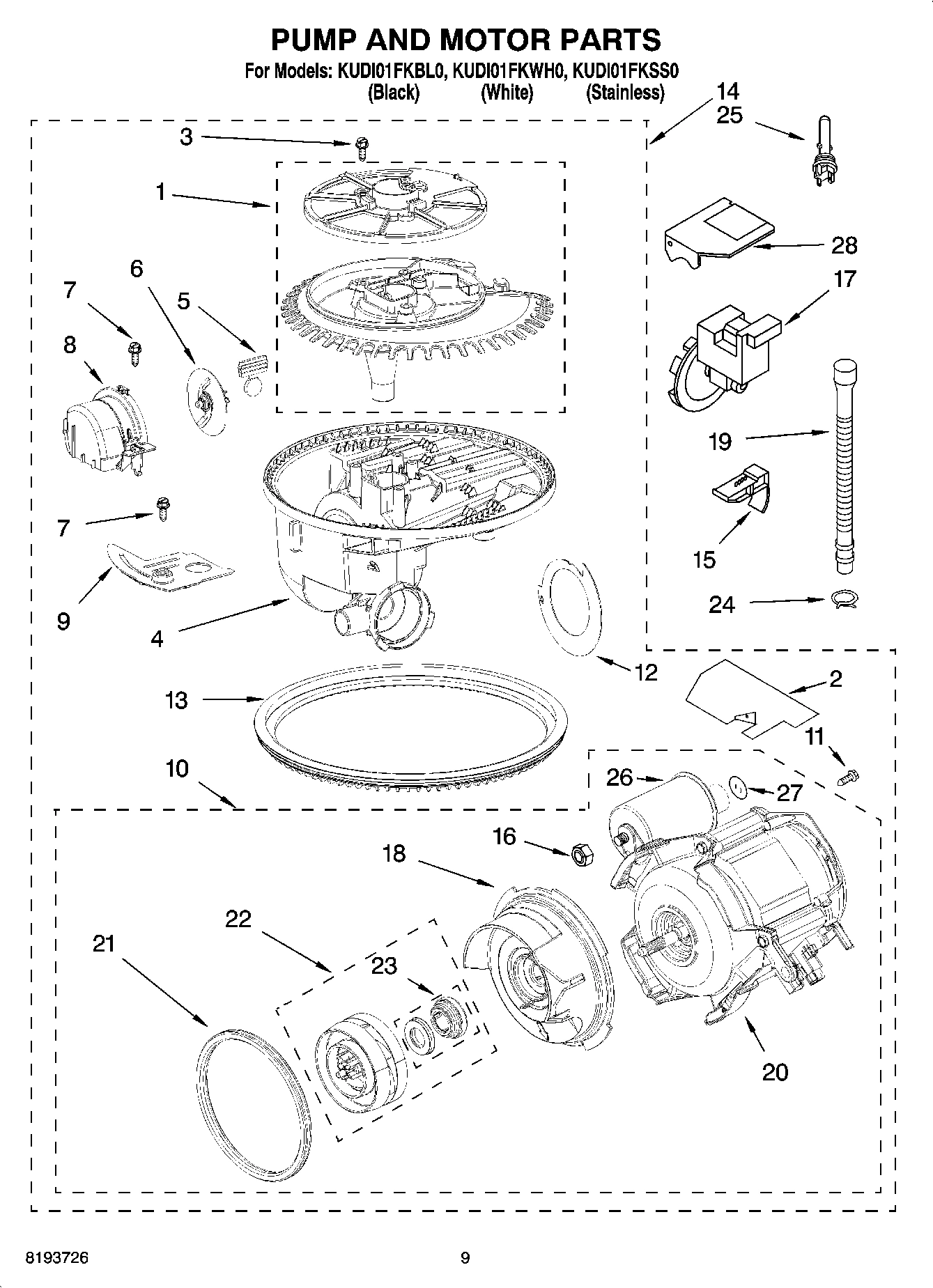

08 - PUMP AND MOTOR PARTS

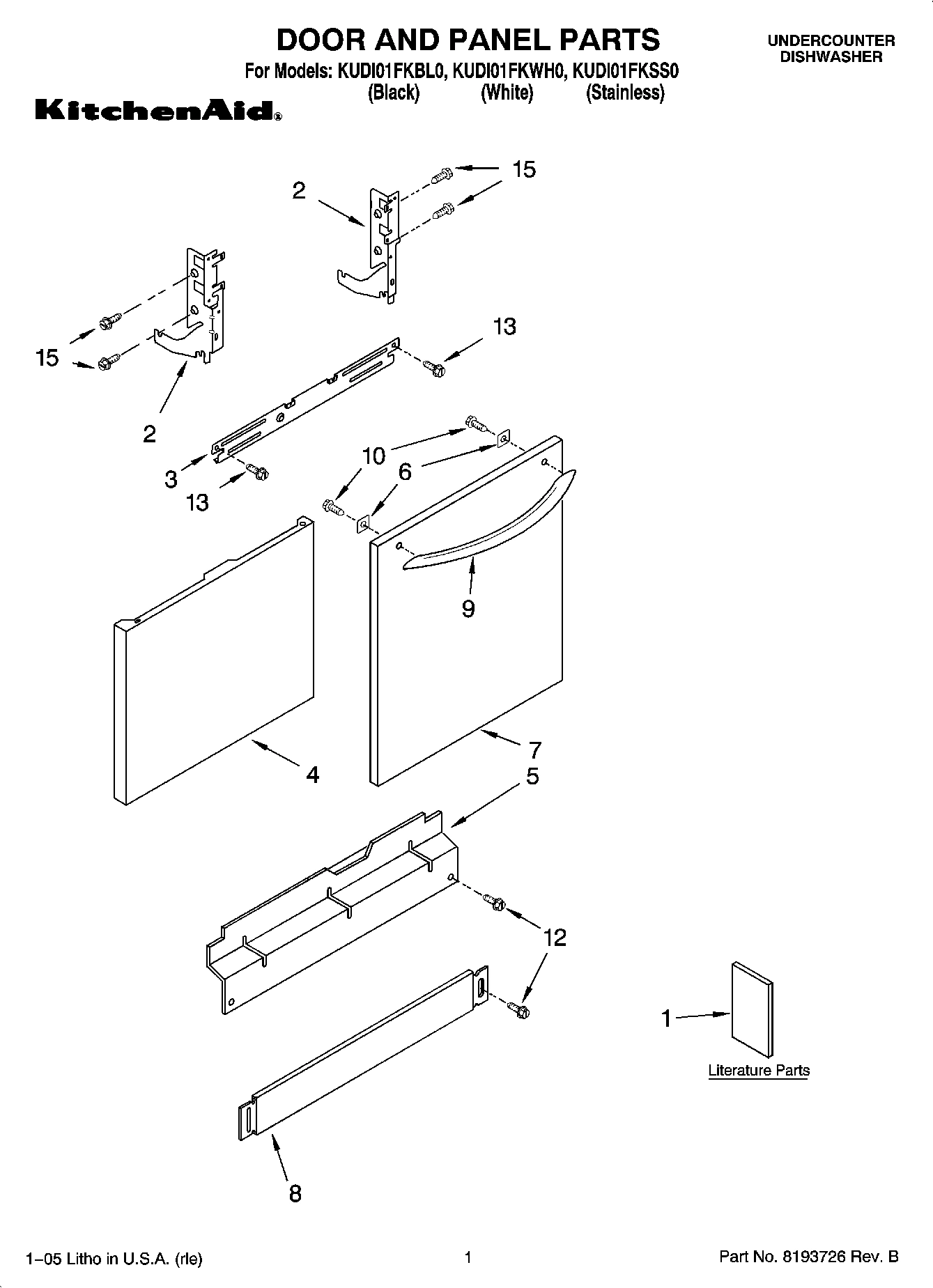

01 - DOOR AND PANEL PARTS
03 - DOOR AND LATCH PARTS
09 - UPPER RACK AND TRACK PARTS
10 - UPPER WASH AND RINSE PARTS
05 - HEATER PARTS
07 - TUB AND FRAME PARTS
11 - LOWER RACK PARTS
12 - MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)
06 - FILL AND OVERFILL PARTS
02 - CONTROL PANEL PARTS
04 - LOWER WASHARM AND STRAINER PARTS
Common parts from model Whirlpool KUDI01FKWH0 UNDERCOUNTER DISHWASHER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
POWER CORD KIT (INCLUDES POWER CORD & MISC. H WPL 4317824 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Almond) WPL 350956 Contact Us For Availability
Floor Mount Kit WPL 8171477 Contact Us For Availability
WPL 8171659 WPL 8171659 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Cobalt Blue) WPL 8171571 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Empire Re WPL 8171652 Contact Us For Availability
WPL 8171656 WPL 8171656 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
WPL 8171657 WPL 8171657 Contact Us For Availability
Custom Panel Kits (Biscuit) WPL 8171557 Contact Us For Availability
Custom Panel Kits (Graphite) WPL 8171558 Contact Us For Availability
Custom Panel Kits Color Panel Kits (Cobalt Bl WPL 8171574 Contact Us For Availability
Custom Panel Kits Color Panel Kits (Hunter Gr WPL 8171575 Contact Us For Availability
Custom Panel Kits Color Panel Kits (Empire Re WPL 8171576 Contact Us For Availability
Custom Panel Kits Color Panel Kits (Majestic WPL 8171577 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (Hunter Green) WPL 8171651 Contact Us For Availability
WPL 8171653 WPL 8171653 Contact Us For Availability
WPL 8171658 WPL 8171658 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL ARI155740A WPL ARI155740A Contact Us For Availability
WPL ARI155741A WPL ARI155741A Contact Us For Availability
WPL ARI155742A WPL ARI155742A Contact Us For Availability
1
Heater Element Assembly (Includes Item 2 & El WPL 8194200 Contact Us For Availability
1
Console Asm. Includes Active Overlay & Insert WPL 8530996 Contact Us For Availability
2
Screws, Bag Door Assembly (Includes 2 Screws WPL 8524464 Contact Us For Availability
3
RIBBON, CABLE WPL 8524447 Contact Us For Availability
3
Water Inlet Assembly (Includes Items 4 & 5) WPL 8269240 Contact Us For Availability
4
Gasket WPL 8269241 Contact Us For Availability
5
Retainer, Spring Grip WPL 3400931 Contact Us For Availability
5
Bezel, Inlet WPL 8269268 Contact Us For Availability
5
Medallion WPL 8524426 Contact Us For Availability
6
Manifold WPL 8268355 Contact Us For Availability
9
Nozzle, Feed WPL 8269295 Contact Us For Availability
11
Screw WPL 3400217 Contact Us For Availability
11
Control, Electronic WPL 8530909 Contact Us For Availability
12
Wiring Harness Main WPL 8269191 Contact Us For Availability
12
Screen, Separation WPL 8268391 Contact Us For Availability
13
Seal, Sump WPL 8268395 Contact Us For Availability
14
Shield WPL 8524547 Contact Us For Availability
15
Screw WPL 3400409 Contact Us For Availability
17
Pump, Drain WPL 661658 Contact Us For Availability
25
Thermister WPL 8269208 Contact Us For Availability
29
BRACKET, THERMOSTAT WPL 9742648 Contact Us For Availability
× ![]()
