Model Whirlpool KUDH230Y2 – Common Parts & Diagrams
11 - LOWER RACK
08 - UPPER WASH AND RINSE

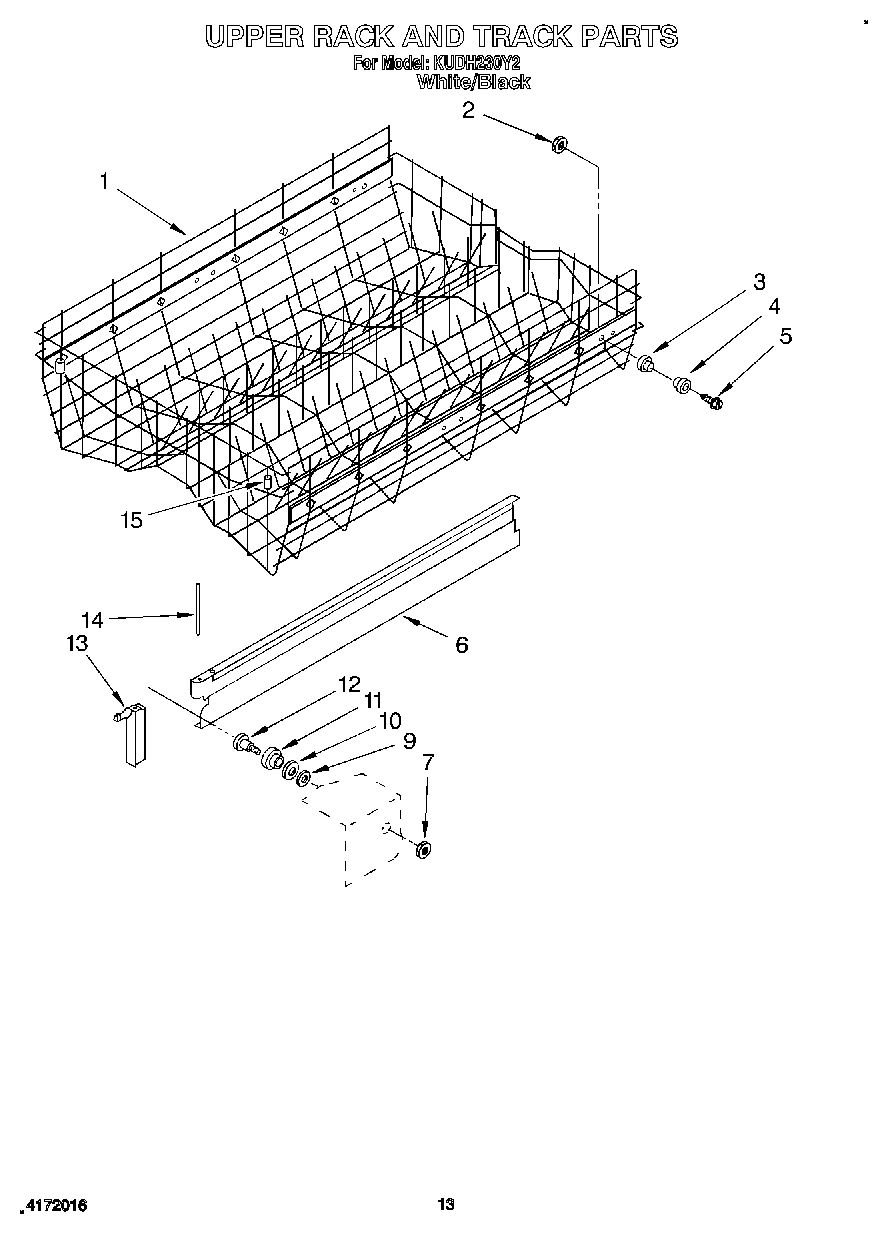

10 - UPPER RACK AND TRACK

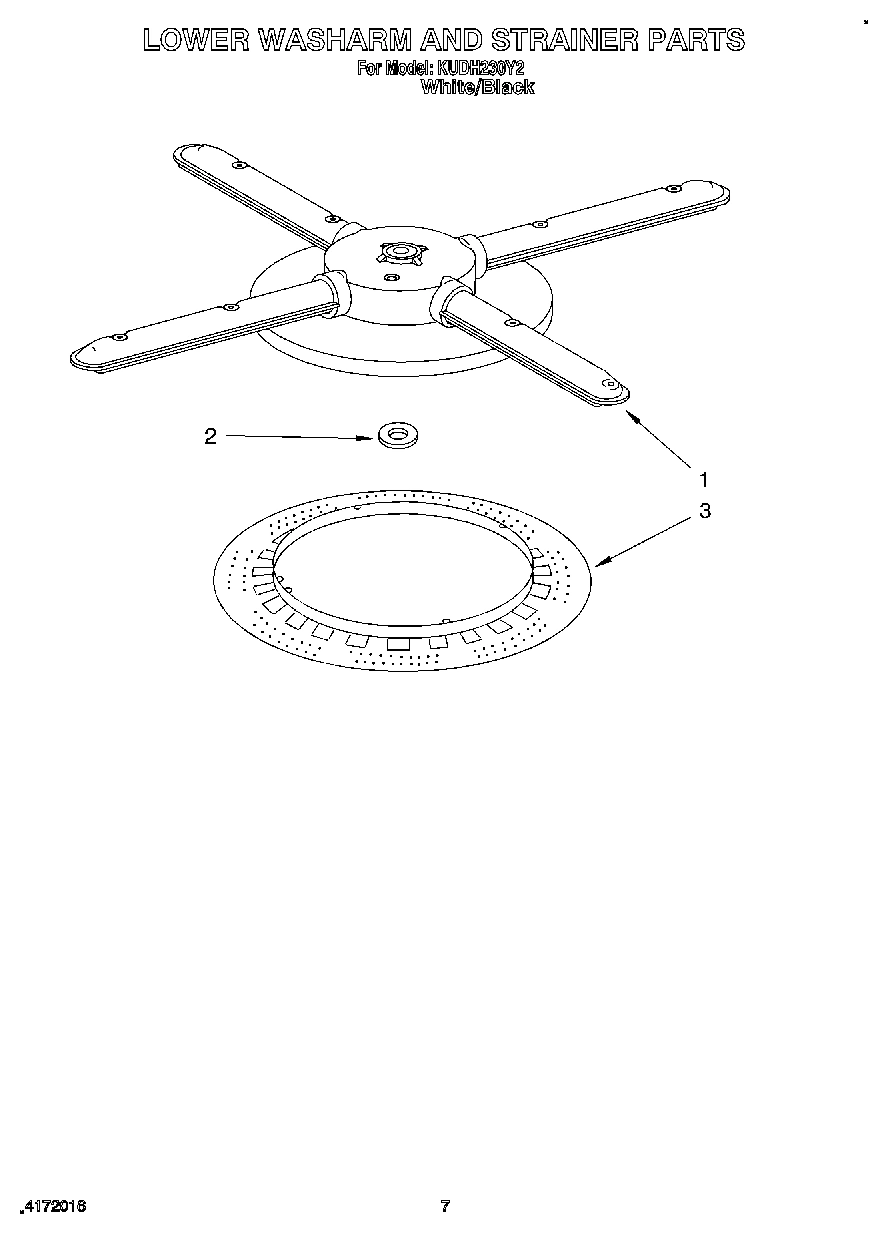

05 - LOWER WASHARM AND STRAINER

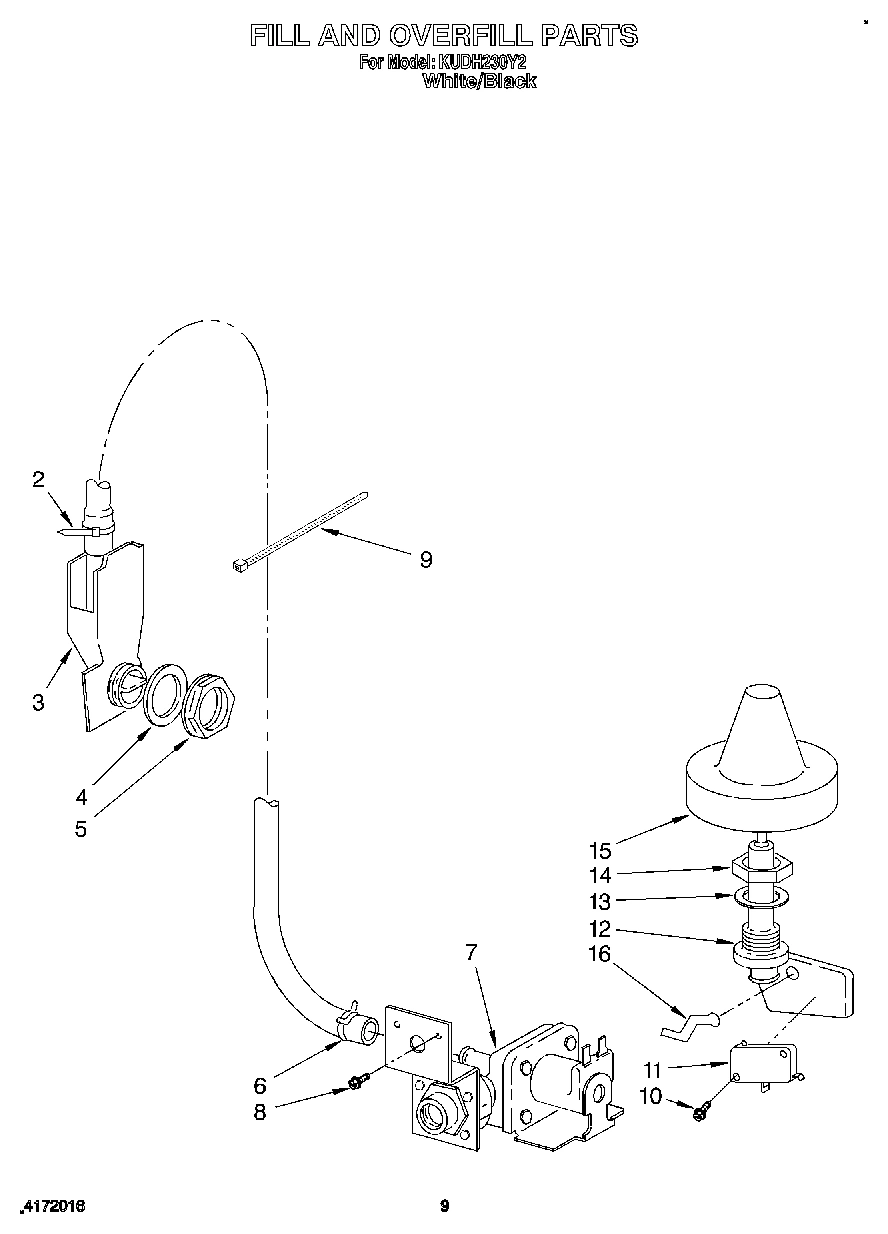

07 - FILL AND OVERFILL
02 - BLOWER

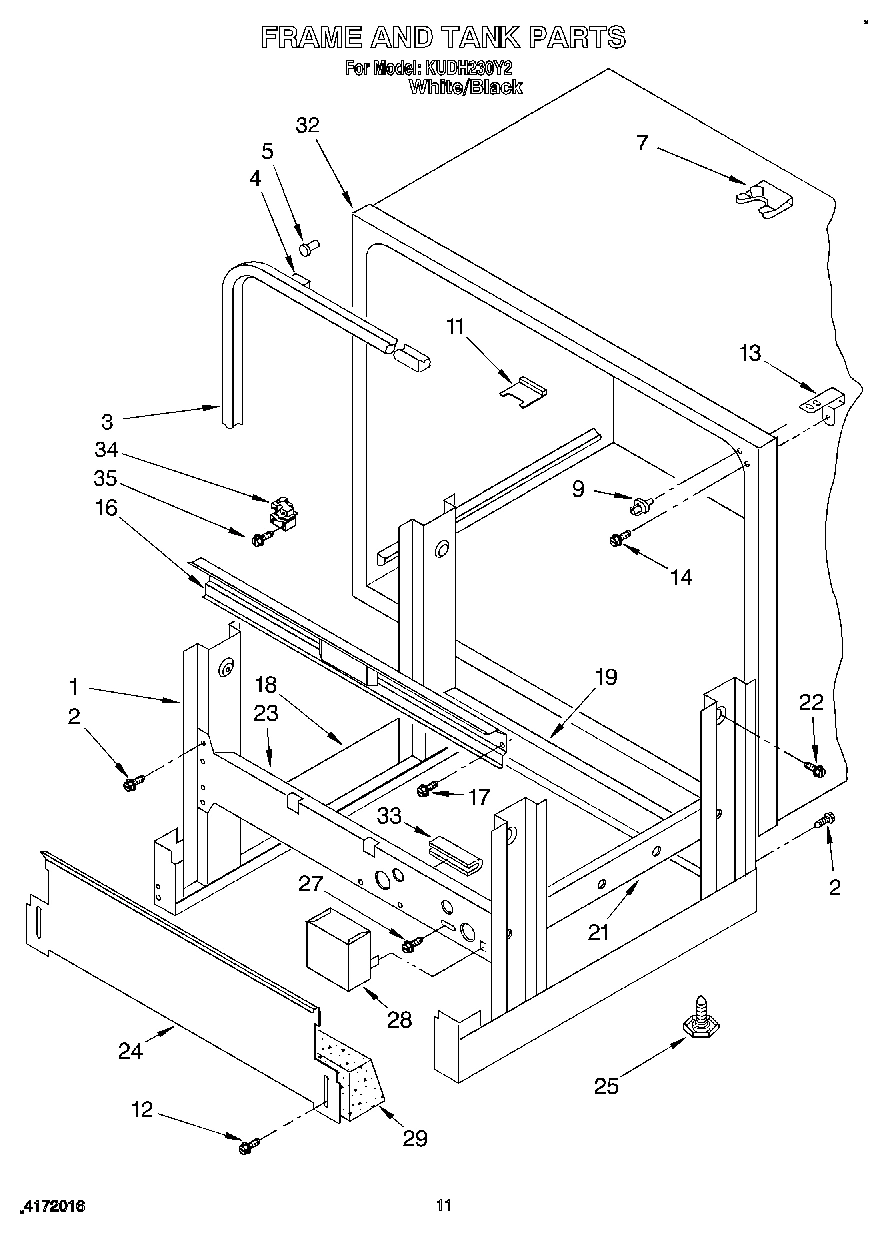

09 - FRAME AND TANK

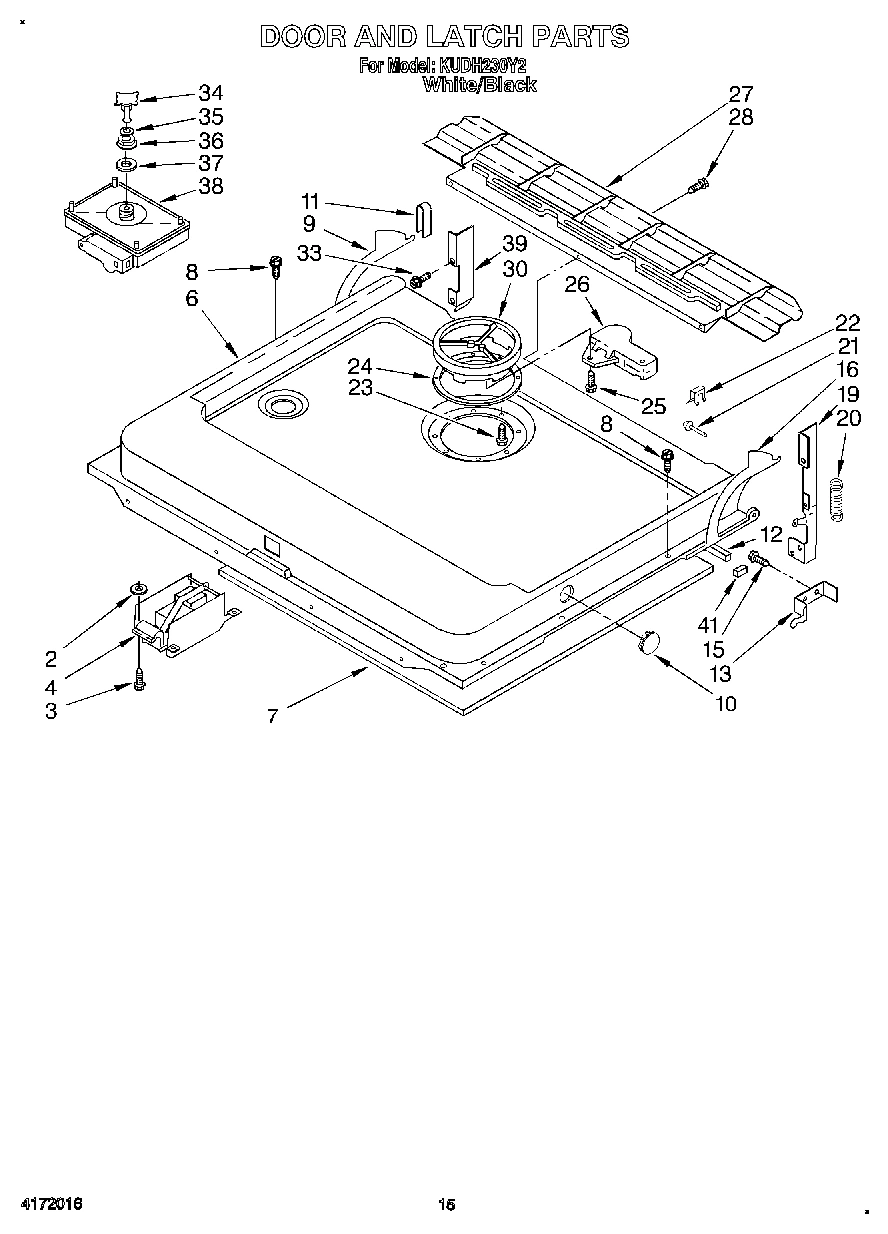

12 - DOOR AND LATCH
04 - PUMP AND MOTOR

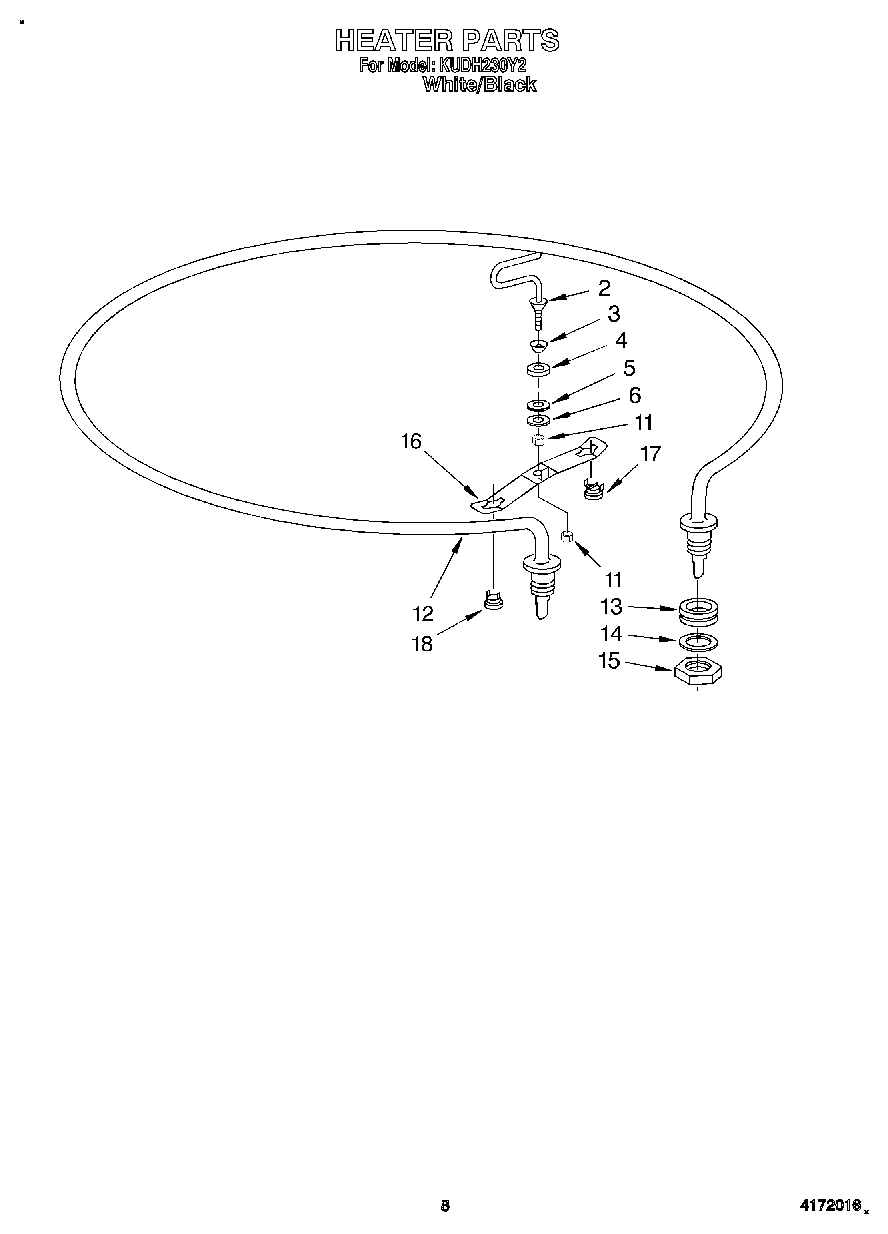

06 - HEATER

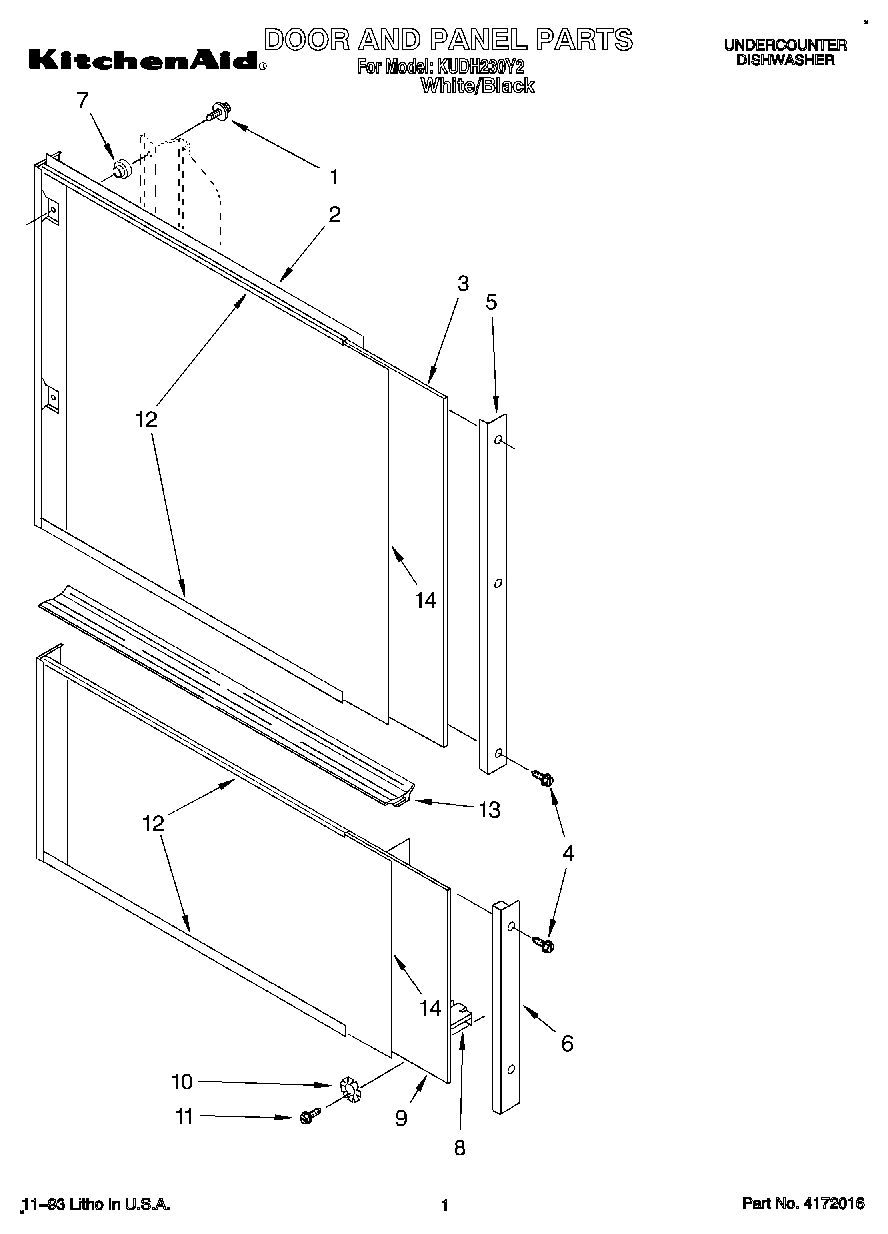

01 - DOOR AND PANEL

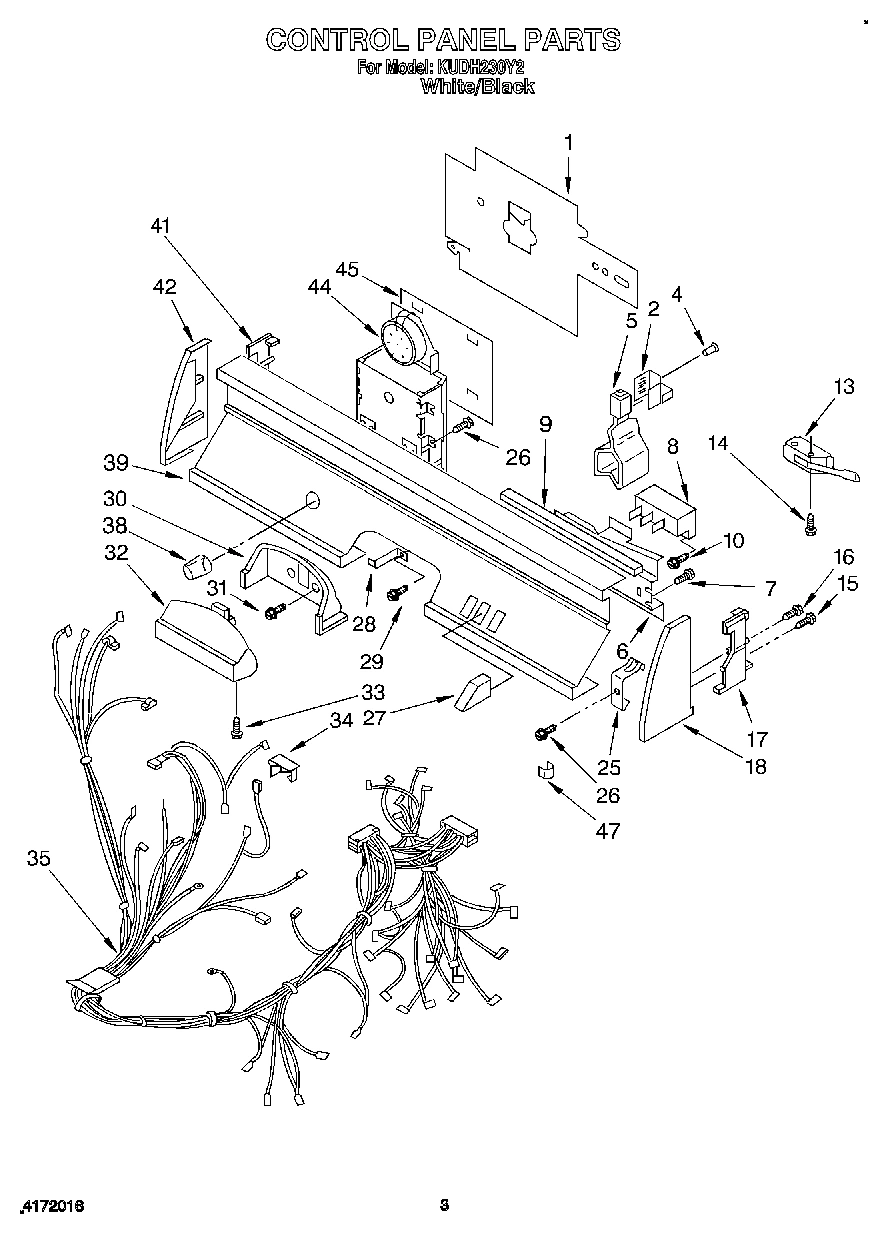

03 - CONTROL PANEL, LIT/OPTIONAL
Common parts from model Whirlpool KUDH230Y2
WPL 799344 WPL 799344 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
Platinum (Uncut) WPL 285368 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Wood Top Kit WPL 4162841 Contact Us For Availability
Insulation Kit (Kit Includes Tub, Kickboard, WPL 4171179 Contact Us For Availability
Adjustable Kickboard Kit WPL 4171476 Contact Us For Availability
White (R.H.) WPL 4171632 Contact Us For Availability
Almond (R.H.) WPL 4171633 Contact Us For Availability
White (L.H WPL 4171634 Contact Us For Availability
WPL 4171635 WPL 4171635 Contact Us For Availability
WPL 675506 WPL 675506 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 799640 WPL 799640 Contact Us For Availability
WPL 9741087 WPL 9741087 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT9741064 WPL LIT9741064 Contact Us For Availability
WPL LIT9741514 WPL LIT9741514 Contact Us For Availability
WPL LIT9741528 WPL LIT9741528 Contact Us For Availability
WPL LIT9741780 WPL LIT9741780 Contact Us For Availability
1
Screw, 6-32 X 7/8 WPL 4159436 Contact Us For Availability
1
Short Frame Assembly (Includes Items 2, 18, 1 WPL 4171627 Contact Us For Availability
1
Inlet Base Assy. (Also Order Item 30) See Not WPL 675704 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Insulator, Latch WPL 4171130 Contact Us For Availability
2
Axle, Lower Rack (8) WPL 4162321 Contact Us For Availability
2
Cap, Air Inlet WPL 4162482 Contact Us For Availability
2
Screw, 10-16 x 1/2 WPL 9740980 Contact Us For Availability
2
Washer WPL 4159513 Contact Us For Availability
2
Hook, Heater Element WPL 4163549 Contact Us For Availability
2
Upper Mounting Panel Assembly (Includes Upper WPL 4171622 Contact Us For Availability
2
Anchor, Cancel Spring WPL 4171120 Contact Us For Availability
3
Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability
3
Strainer (Coarse) WPL 9741049 Contact Us For Availability
3
Damper, Air Inlet WPL 4162485 Contact Us For Availability
3
Screw, 10-16 X 3/8 WPL 3369139 Contact Us For Availability
3
Washer WPL 4159477 Contact Us For Availability
3
Filler (Upper Panel) WPL 4162733 Contact Us For Availability
4
Roller, Upper Rack Track (4) WPL 4161607 Contact Us For Availability
4
Tube, Air Inlet WPL 4162483 Contact Us For Availability
4
Clip, Seal WPL 4161608 Contact Us For Availability
4
Latch Mechanism Assembly WPL 9741590 Contact Us For Availability
4
Washer, Sealing WPL 4160051 Contact Us For Availability
4
Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability
4
Rivet WPL 4159169 Contact Us For Availability
5
Bumper, Lower Rack (2) WPL 4171555 Contact Us For Availability
5
Seal, Air Inlet WPL 4162481 Contact Us For Availability
5
Bumper, Door WPL 4161626 Contact Us For Availability
5
Washer WPL 4159567 Contact Us For Availability
5
Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability
5
Spring, Switch Cancel WPL 4163257 Contact Us For Availability
6
Inner Door Assembly WPL 4162508 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
6
Washer WPL 4159583 Contact Us For Availability
6
Side Trim (Lower Panel) WPL 4171624 Contact Us For Availability
6
Bracket, Program Switch WPL 4163256 Contact Us For Availability
7
Support, Blower WPL 9740989 Contact Us For Availability
7
Clip, Retainer WPL 9740303 Contact Us For Availability
7
Insulation, Inner Door WPL 4163577 Contact Us For Availability
7
Grommet, Panel WPL 4162735 Contact Us For Availability
8
Housing, Blower WPL 4162487 Contact Us For Availability
8
Screw & Washer Assembly WPL 9740922 Contact Us For Availability
8
Lower Mounting Panel Assembly (Includes Upper WPL 4171623 Contact Us For Availability
8
Switch, Program WPL 9741519 Contact Us For Availability
9
Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability
9
Plate, Motor Mounting WPL 9740961 Contact Us For Availability
9
Actuator, Interlock Switch WPL 9741676 Contact Us For Availability
9
Box, Separator Collector (Also Order Item 30) WPL 9740676 Contact Us For Availability
9
Filler (Lower Panel) WPL 4162734 Contact Us For Availability
9
Seal, Moisture WPL 9741700 Contact Us For Availability
10
Screw WPL 9740973 Contact Us For Availability
10
Plug Button WPL 9740847 Contact Us For Availability
10
Screw, 8-18 (4) WPL 9741258 Contact Us For Availability
10
Lock Washer WPL 4159494 Contact Us For Availability
10
Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability
11
Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability
11
Keeper, Latch WPL 4160092 Contact Us For Availability
11
Locknut WPL 718829 Contact Us For Availability
12
Nut, 6-32 Hex WPL 4159071 Contact Us For Availability
12
Screw, 10-16 X 3/8 WPL 9741435 Contact Us For Availability
12
Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability
12
Element, Heater WPL 9740416 Contact Us For Availability
12
Trim, Panel (Upper & Lower) WPL 4171625 Contact Us For Availability
13
Bumper, Rack Track (4) WPL 4171547 Contact Us For Availability
13
Lockwasher WPL 4159491 Contact Us For Availability
13
Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability
13
Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability
13
Grommet, Heater Element WPL 4162521 Contact Us For Availability
13
Channel, Evaporation WPL 9740868 Contact Us For Availability
13
Switch, Interlock WPL 4160658 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability
14
Panel Insert Kits (Stainless Steel) WPL 4169400 Contact Us For Availability
14
Nut, Standpipe WPL 4161596 Contact Us For Availability
14
Motor, Blower WPL 9740267 Contact Us For Availability
14
Screw, 7-19 x 1/2 WPL 9741257 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 9740683 Contact Us For Availability
14
Washer, Heater Element WPL 4163554 Contact Us For Availability
14
Panel Insert Kits (White/Black OPTIONAL KITS) WPL 4162833 Contact Us For Availability
14
Panel Insert Kits (Harvest Gold/Almond) WPL 4162834 Contact Us For Availability
14
Panel Insert Kits (Fresh Avocado/ Coffee) WPL 4162835 Contact Us For Availability
14
Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability
14
Panel Insert Kits (Platinum/Toast) WPL 4169402 Contact Us For Availability
14
Panel Insert Kits (Sand/Onyx Black) WPL 4169403 Contact Us For Availability
14
Panel Insert Kits (Silver/Onyx Black) WPL 4169404 Contact Us For Availability
14
Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability
14
Panel Insert Kits (Almond/Black) WPL 4171534 Contact Us For Availability
15
Float & Retainer Assembly WPL 4171216 Contact Us For Availability
15
Screw, 6 X 1/2 WPL 4171131 Contact Us For Availability
15
Nut, Heater Element WPL 718537 Contact Us For Availability
15
Screw & Washer Assembly WPL 4163263 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability
16
Lever, Overflow Switch WPL 4171116 Contact Us For Availability
16
Blower Wheel Assembly (Includes Item 17) WPL 4162499 Contact Us For Availability
16
Support, Lower Panel WPL 9741276 Contact Us For Availability
16
Bracket, Thermostat WPL 9741192 Contact Us For Availability
17
Nut WPL 9740265 Contact Us For Availability
17
Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 9740665 Contact Us For Availability
17
Thermostat WPL 9741786 Contact Us For Availability
17
Spacer, End Cap (R.H.) WPL 4171124 Contact Us For Availability
18
Frame Assembly (L.H.) WPL 4171620 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Thermostat WPL 9741196 Contact Us For Availability
18
End Cap (R.H.) WPL 4151575 Contact Us For Availability
19
Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability
19
Cross Frame, Rear WPL 9741173 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
21
Frame Assembly (R.H.) WPL 4171619 Contact Us For Availability
21
Pin, Hinge WPL 4161563 Contact Us For Availability
22
Screw WPL 9741690 Contact Us For Availability
22
Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cross Frame, Front WPL 4161368 Contact Us For Availability
23
Screw WPL 9740851 Contact Us For Availability
23
Cover, Drain (Includes Item 33) (Also Order I WPL 302723 Contact Us For Availability
24
Kick Board WPL 4171618 Contact Us For Availability
25
Foot, Leveling (4) WPL 4162911 Contact Us For Availability
25
Screw, 8-18 x 1/2 WPL 9741365 Contact Us For Availability
25
Base, Pump (Includes Items 24 & 33) (Also Ord WPL 9740671 Contact Us For Availability
25
Clip, Grounding (Front Panel) WPL 9741779 Contact Us For Availability
27
Baffle, Lower WPL 4161295 Contact Us For Availability
27
Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
27
Button, Program Switch (3) WPL 4163239 Contact Us For Availability
28
Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability
28
Motor (Includes Items 24 & 27) (Also Order It WPL 3369330 Contact Us For Availability
28
Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability
29
Shield, Insulation WPL 4171176 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
29
Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability
30
Pump Seal Kit (Includes Items 12, 13, 22 & 36 WPL 675703 Contact Us For Availability
30
Detergent Dispenser & Gasket Assembly (115 V. WPL 9740170 Contact Us For Availability
30
Trim, Handle WPL 4163255 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Screw, 8-32 x 1/2 WPL 4172012 Contact Us For Availability
32
Tank (Serviced Complete with Frame) WPL 9741372 Contact Us For Availability
32
Handle, Latch WPL 4163243 Contact Us For Availability
33
Protector, Edge WPL 4171215 Contact Us For Availability
33
Screw And Washer (4) WPL 9741419 Contact Us For Availability
33
Screw, 10-32 x 5/8 WPL 9741328 Contact Us For Availability
34
Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability
34
Relay, Start WPL 304658 Contact Us For Availability
34
Clip, Harness Guide WPL 4163372 Contact Us For Availability
35
Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability
35
Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability
35
Connector, Overhead WPL 4161605 Contact Us For Availability
35
Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability
35
Wiring Harness (Main) WPL 9741537 Contact Us For Availability
36
Nut, Rinse Agent Dispenser WPL 4161667 Contact Us For Availability
37
Gasket, Rinse Agent Dispenser WPL 4161545 Contact Us For Availability
38
Rinse Agent Dispensing Valve WPL 9741234 Contact Us For Availability
38
Knob, Timer WPL 4171119 Contact Us For Availability
39
Tube, Drain WPL 9741366 Contact Us For Availability
39
Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability
39
Control Panel WPL 9741704 Contact Us For Availability
41
Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability
41
Cap, Drain WPL 9741415 Contact Us For Availability
41
Spacer, End Cap (L.H.) WPL 4171125 Contact Us For Availability
42
End Cap (L.H.) WPL 4151576 Contact Us For Availability
44
Timer Assembly WPL 9741557 Contact Us For Availability
45
Barrier, Timer WPL 9741378 Contact Us For Availability
47
Clip, Endcap (2) WPL 4171127 Contact Us For Availability
× ![]()
