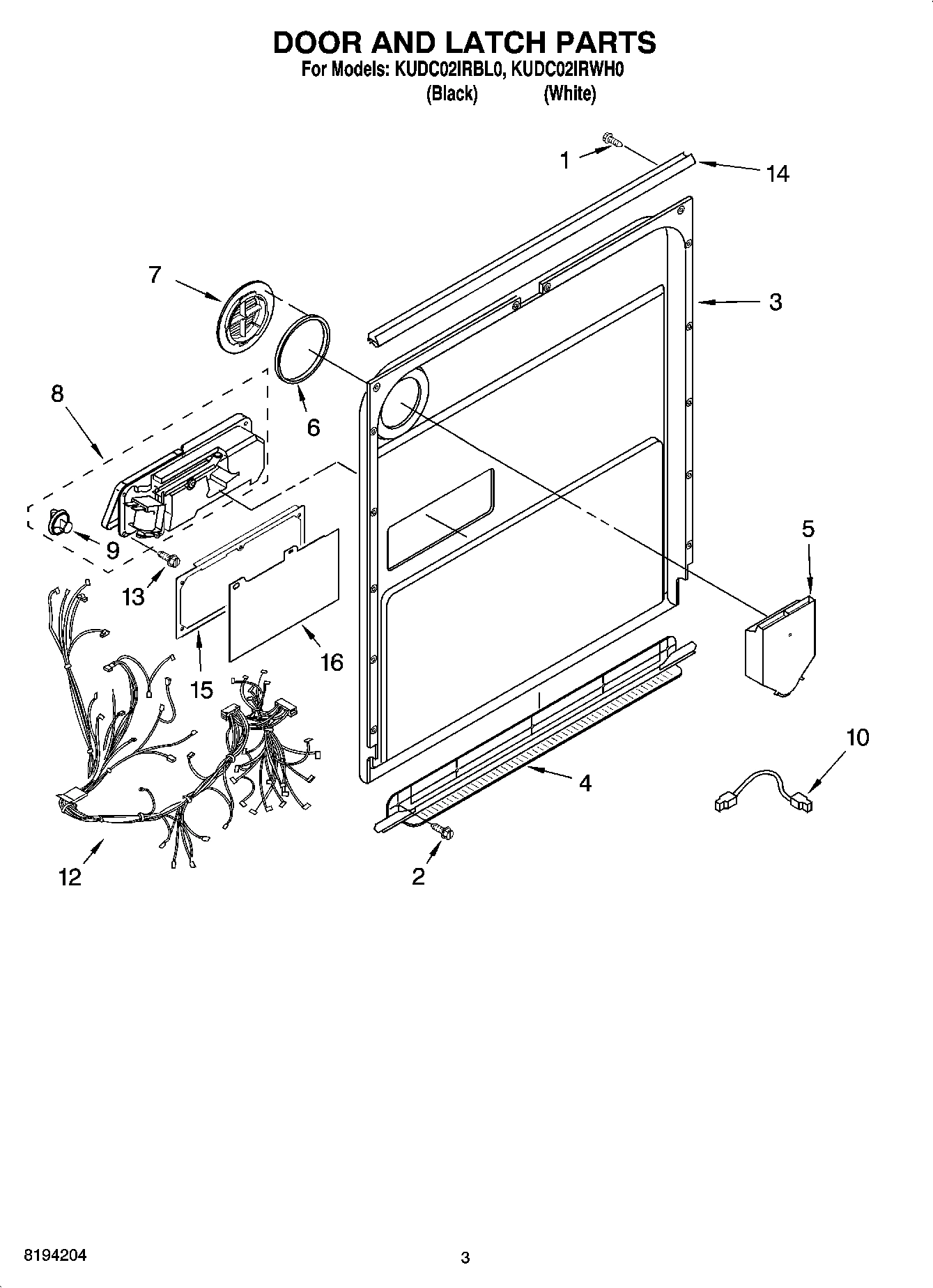

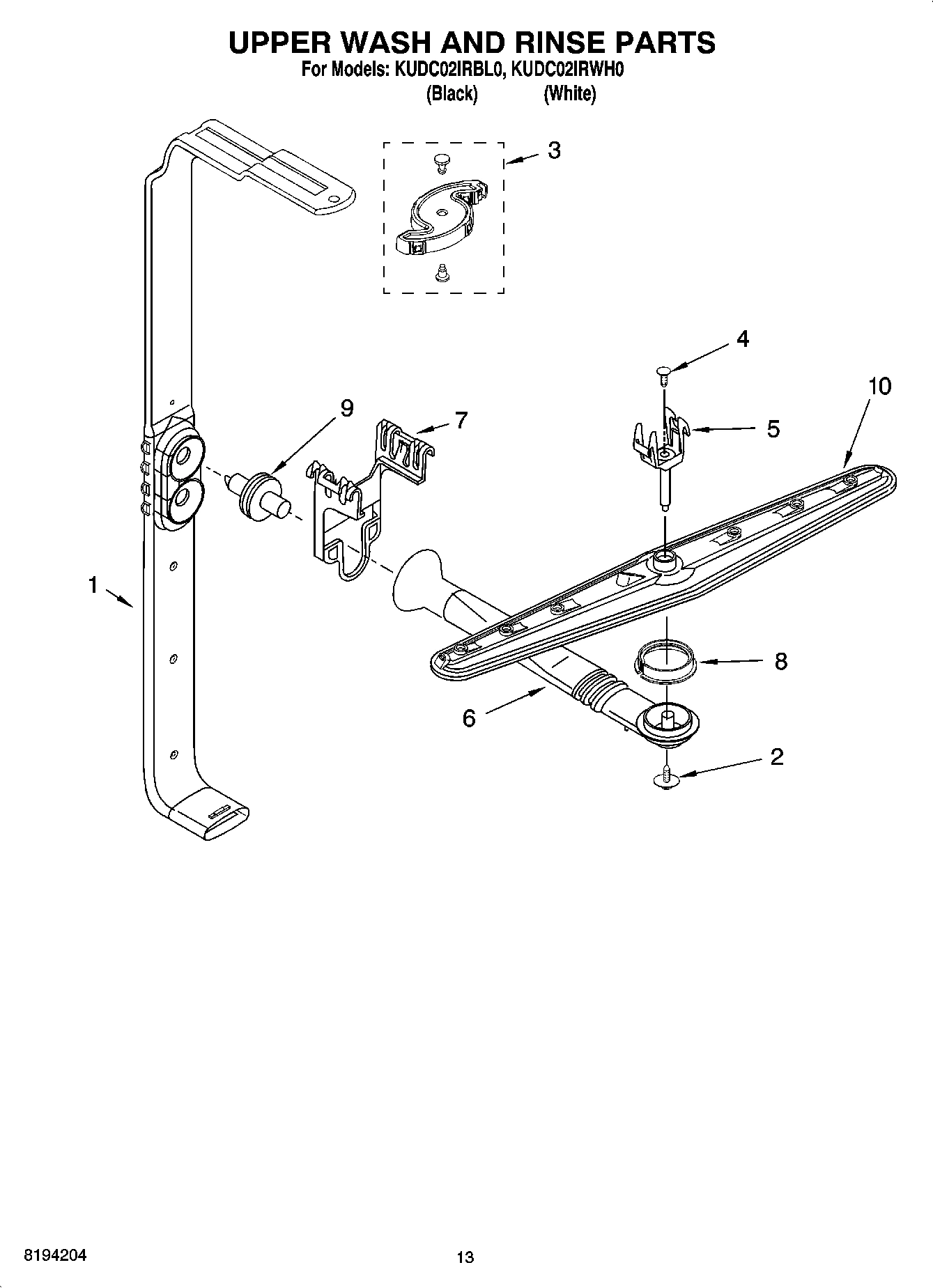

Model Whirlpool KUDC02IRBL0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $10.80

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $17.29

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

WPL 8171659 WPL 8171659 Contact Us For Availability

WPL 8171656 WPL 8171656 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

WPL 8171657 WPL 8171657 Contact Us For Availability

1

Console Assembly (Includes Insert) (Black) WPL 8572331 Contact Us For Availability

1

Console Assembly (Includes Insert) (White) WPL 8572333 Contact Us For Availability

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $44.34

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $10.41

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $33.75

2

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $3.33

2

WP8539101 Whirlpool Dishwasher Clip In Stock WPL WP8539101 $34.28

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $3.46

3

WP8268645 Whirlpool Dishwasher Lower Dishrack In Stock WPL WP8268645 $30.78

3

WP8268655 Whirlpool Roller Assembly In Stock WPL WP8268655 $13.45

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $63.20

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $4.52

3

Clip, BI-Metal WPL 8546546 Contact Us For Availability

4

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

4

WP3400412 Whirlpool Dishwasher Screw In Stock WPL WP3400412 $2.51

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $50.88

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $28.91

4

WP8531288 Whirlpool Silverware Basket In Stock WPL WP8531288 $57.38

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.87

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $118.74

4

Cover, Screw WPL 3400920 Contact Us For Availability

5

8519662 Whirlpool Dishwasher Lid Backorder WPL 8519662 $30.91

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $24.96

5

WPW10508676 Whirlpool Dishwasher Tube Nut Backorder WPL WPW10508676 $6.73

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

W10258275 Whirlpool Dishwasher Bimetal Fuse In Stock WPL W10258275 $16.84

6

W10728160 Whirlpool Tine Assembly In Stock WPL W10728160 $29.52

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $4.78

6

Manifold WPL 8268355 Contact Us For Availability

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $6.28

7

WP8531314 Whirlpool Dishwasher Retainer Backorder WPL WP8531314 $11.58

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $32.39

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.33

7

WPW10158389 Whirlpool Dishwasher Inlet Valve In Stock WPL WPW10158389 $31.69

8

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $11.73

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $63.15

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.33

9

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $39.56

9

WP8564929 Whirlpool Rinse Aid Cap In Stock WPL WP8564929 $14.59

9

Nozzle, Feed WPL 8269295 Contact Us For Availability

10

8193882 Whirlpool Dishwasher Primary Latch Bo In Stock WPL 8193882 $41.65

10

Harness, Vent Motor WPL 8545608 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $31.09

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $6.27

WPW10084141-includeCORE Whirlpool WPW10084141 Backorder WPL WPW10084141-includeCORE $182.82

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $32.39

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.33

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $3.33

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $15.57

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $58.90

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $3.33

15

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $44.65

15

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $5.54

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $30.25

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $13.60

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $12.37

19

WP8270019 Whirlpool Dishwasher Dishrack Wheel In Stock WPL WP8270019 $5.54

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $15.26

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52
