Model Whirlpool KTRV20MGWH01 – Common Parts & Diagrams

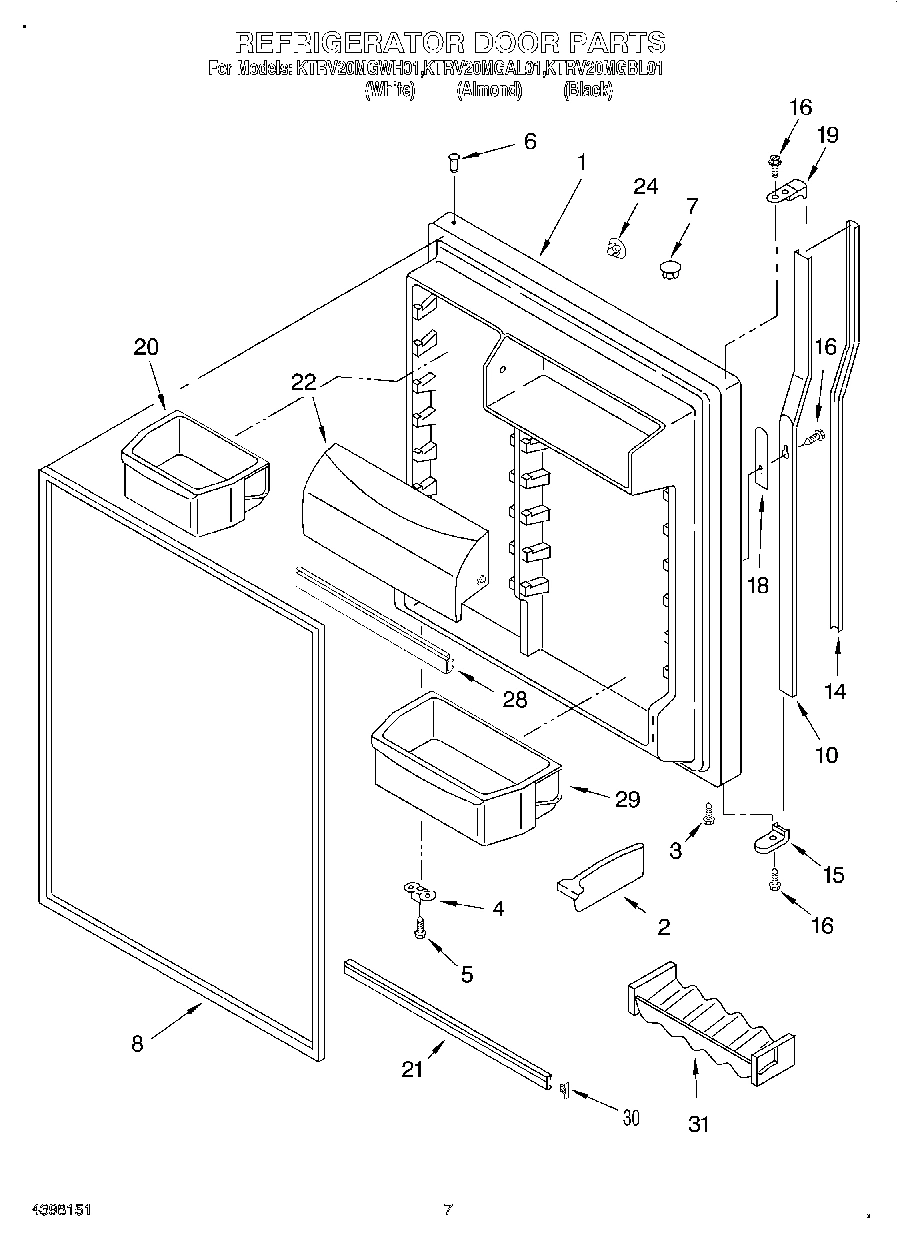

04 - REFRIGERATOR DOOR
06 - ICEMAKER
05 - UNIT

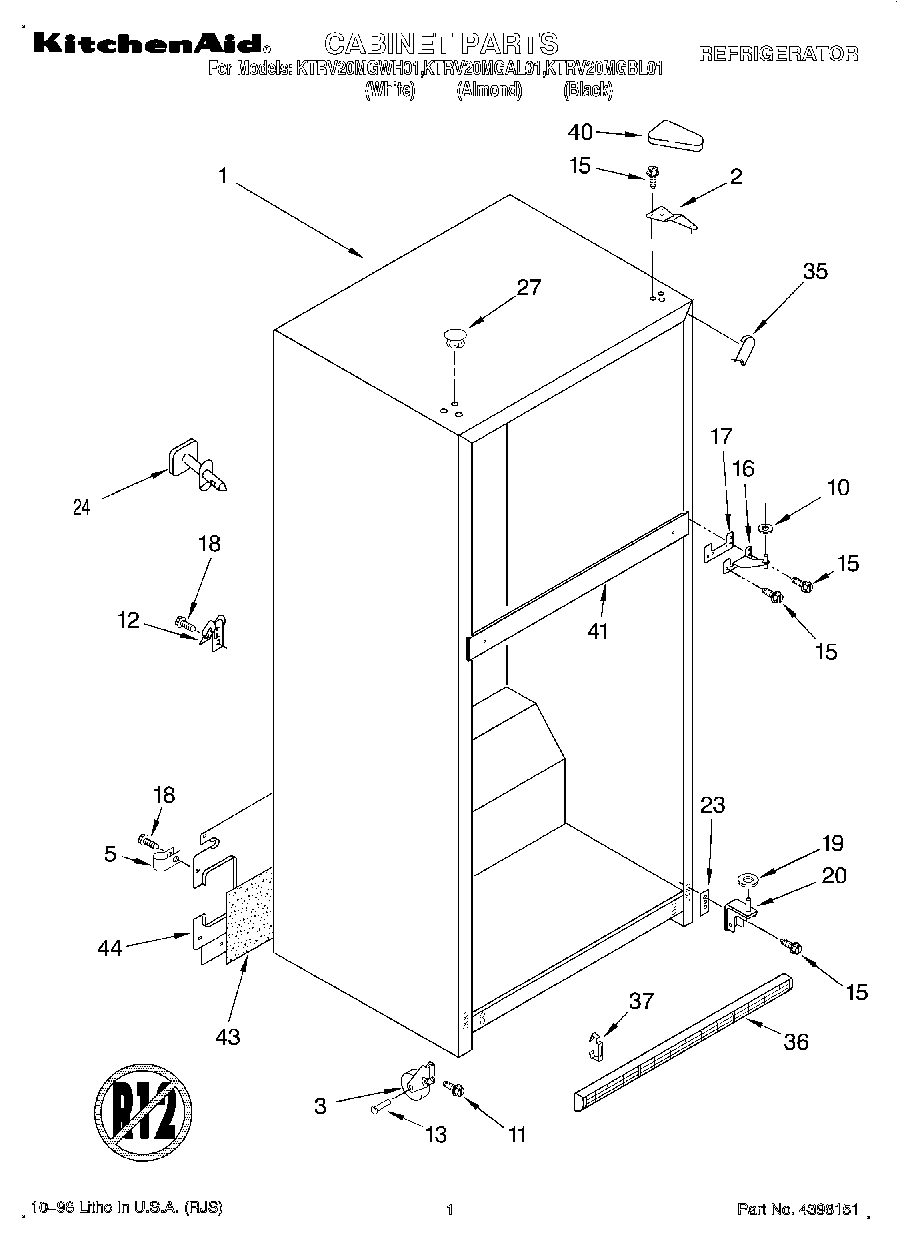

01 - CABINET

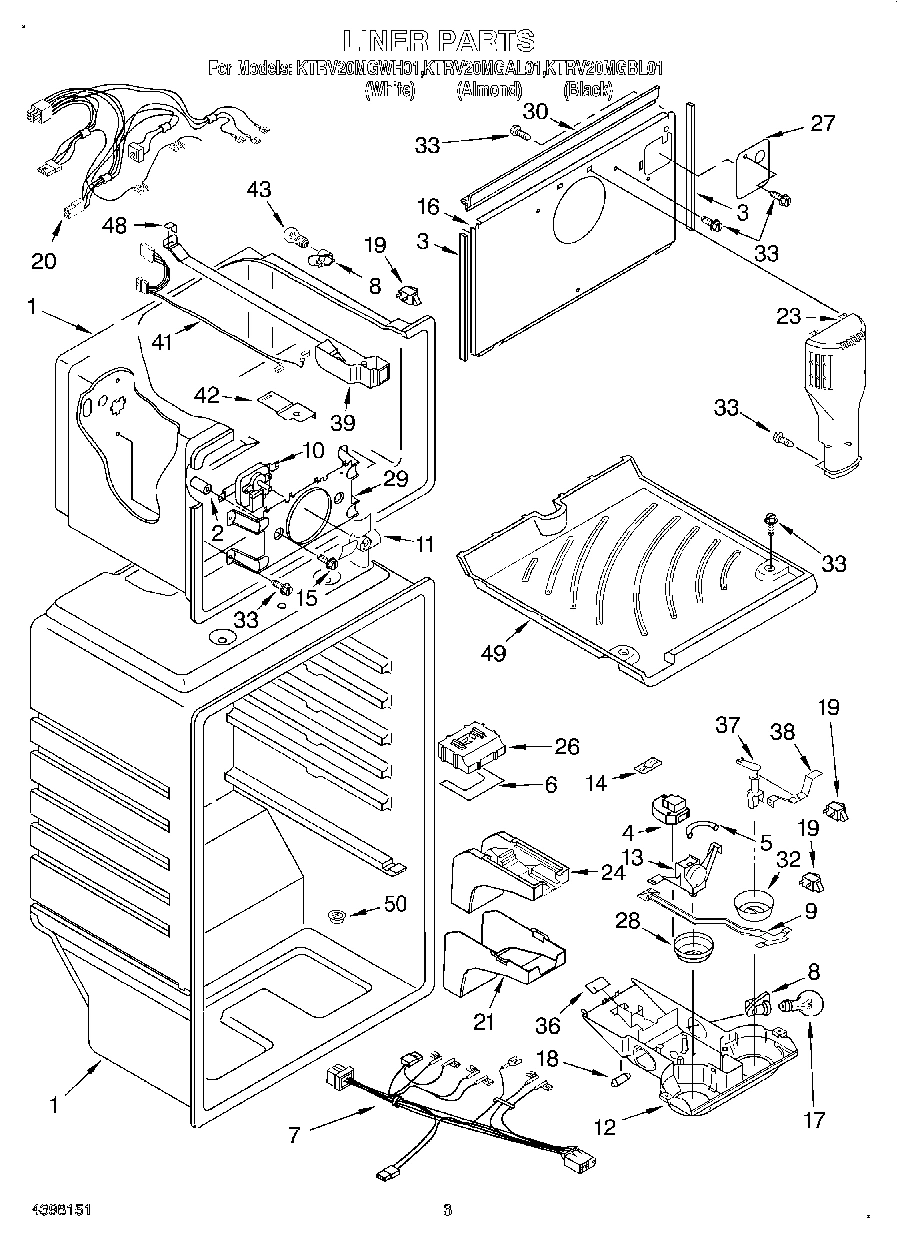

02 - LINER

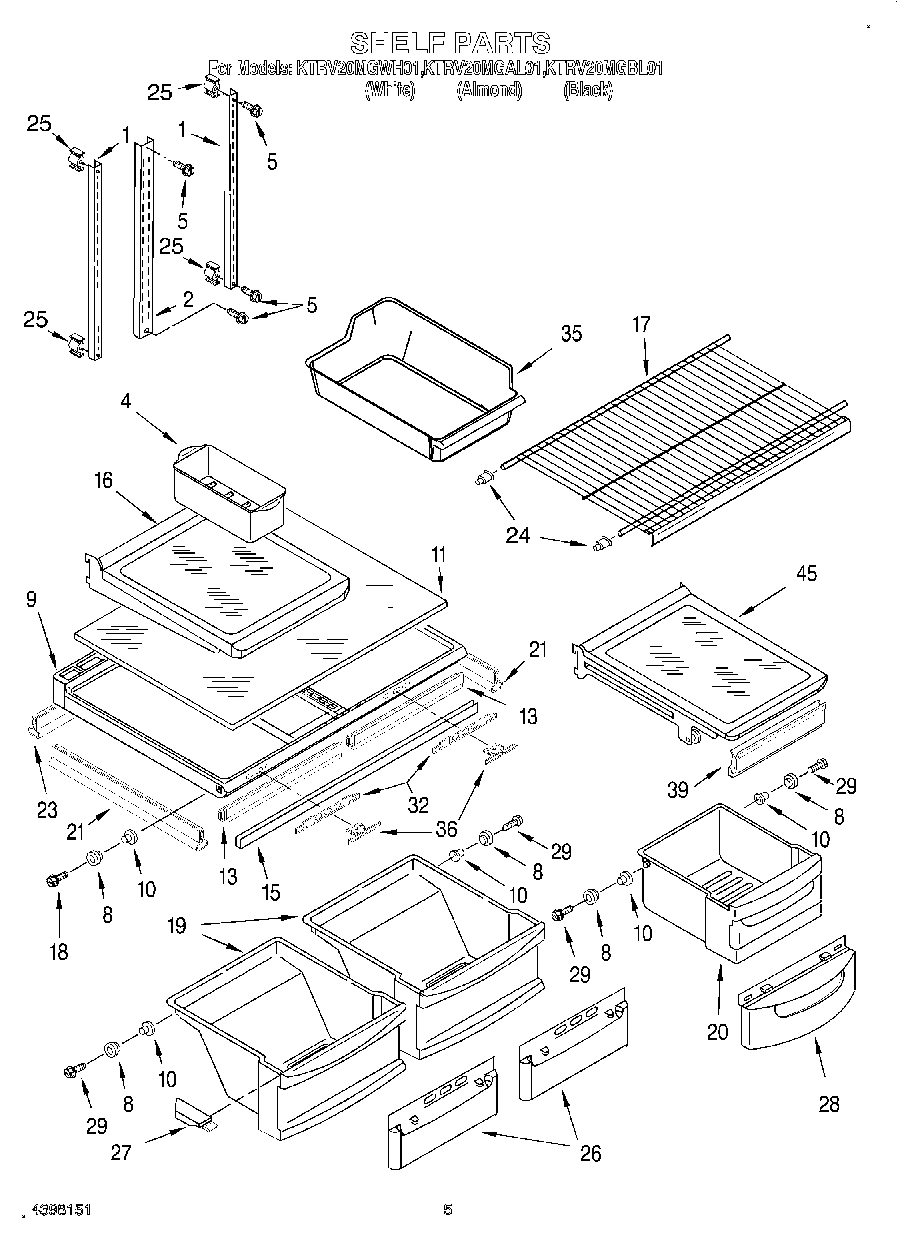

03 - SHELF

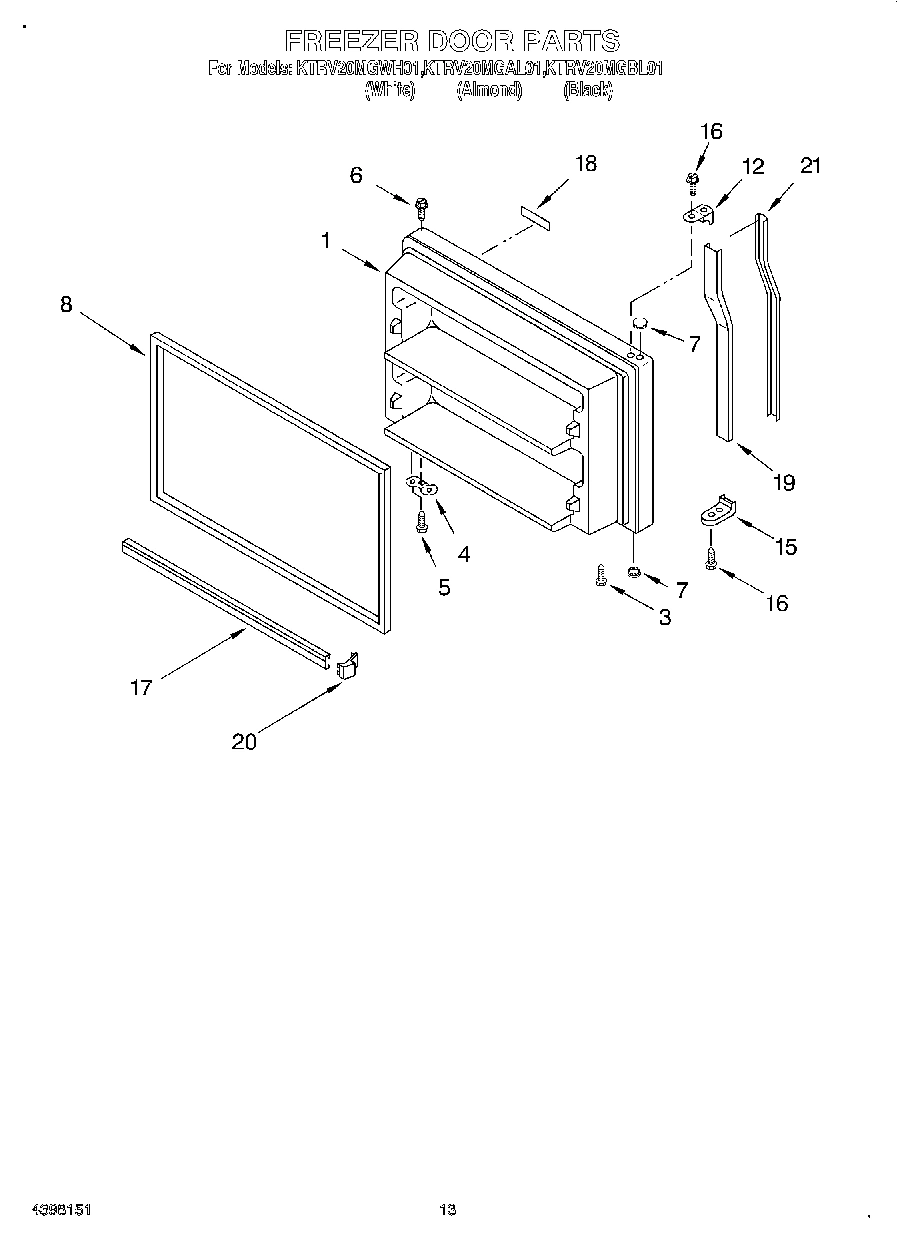

07 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool KTRV20MGWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2199010 WPL LIT2199010 Contact Us For Availability
WPL LIT2200701 WPL LIT2200701 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI113067A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Almond) WPL 2184400 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
6
Seal, Air Diffuser WPL 2179834 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Damper, Air (Slide) WPL 2179858 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198761 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Endcap (White) WPL 2195994W Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
12
End Cap (Black) WPL 2195994B Contact Us For Availability
12
Endcap (Almond) WPL 2195994N Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
End Cap (Black) WPL 2195995B Contact Us For Availability
15
Endcap (Almond) WPL 2195995N Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174030 Contact Us For Availability
17
Trim, Door WPL 2195947 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
18
Nameplate (White) WPL 2188149 Contact Us For Availability
18
Nameplate (Almond) WPL 2188150 Contact Us For Availability
18
Nameplate (Black) WPL 2188151 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
19
Insert, Handle (Black) WPL 2195992B Contact Us For Availability
19
Insert, Handle (Almond) WPL 2195992N Contact Us For Availability
19
Insert, Handle (White) WPL 2195992W Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175448 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Insert, Handle (Black) WPL 2188154 Contact Us For Availability
21
Insert, Handle (White) WPL 2195984 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2195985 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI113065A Contact Us For Availability
26
Air Diffuser, Top WPL 2189984 Contact Us For Availability
26
Window, Crisper WPL 2175373 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
27
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
27
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Window, Meat Pan WPL 2175445 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
32
Knob, Damper WPL 2176297 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Almond) WPL 2201007 Contact Us For Availability
36
Grille (Black) WPL 2201008 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Post, Damper WPL 2179859 Contact Us For Availability
38
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
39
Housing Base WPL 2184633 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI113066A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Floor, Freezer WPL 2184617 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 17, 20) Also See Ref.Dr. WPL 2200703 Contact Us For Availability
100
Door Reversal Instructions WPL 2179846 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 WPL 542639 Contact Us For Availability
100
WPL 799832 WPL 799832 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
