Model Whirlpool KTRV20KGBL01 – Common Parts & Diagrams

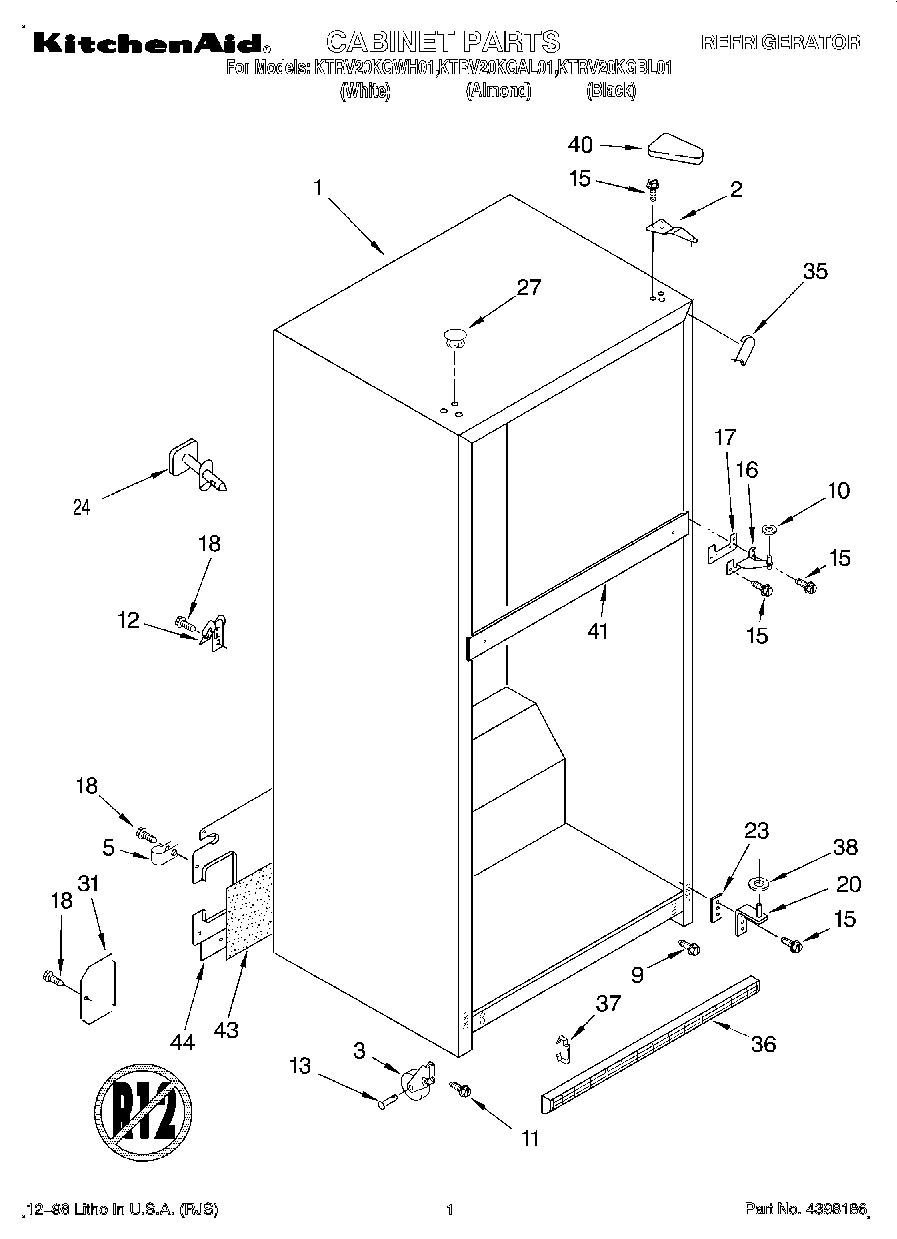

01 - CABINET

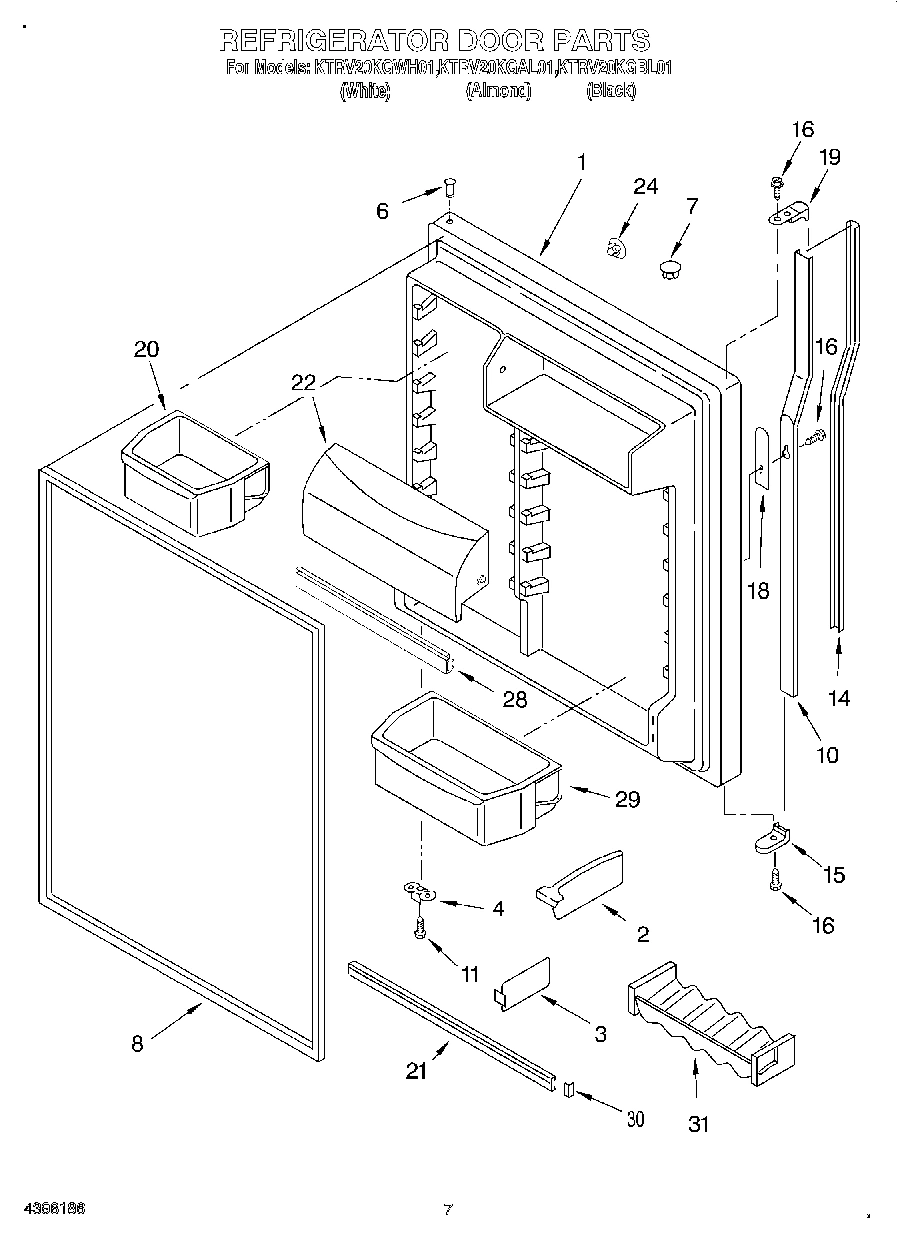

04 - REFRIGERATOR DOOR
05 - UNIT

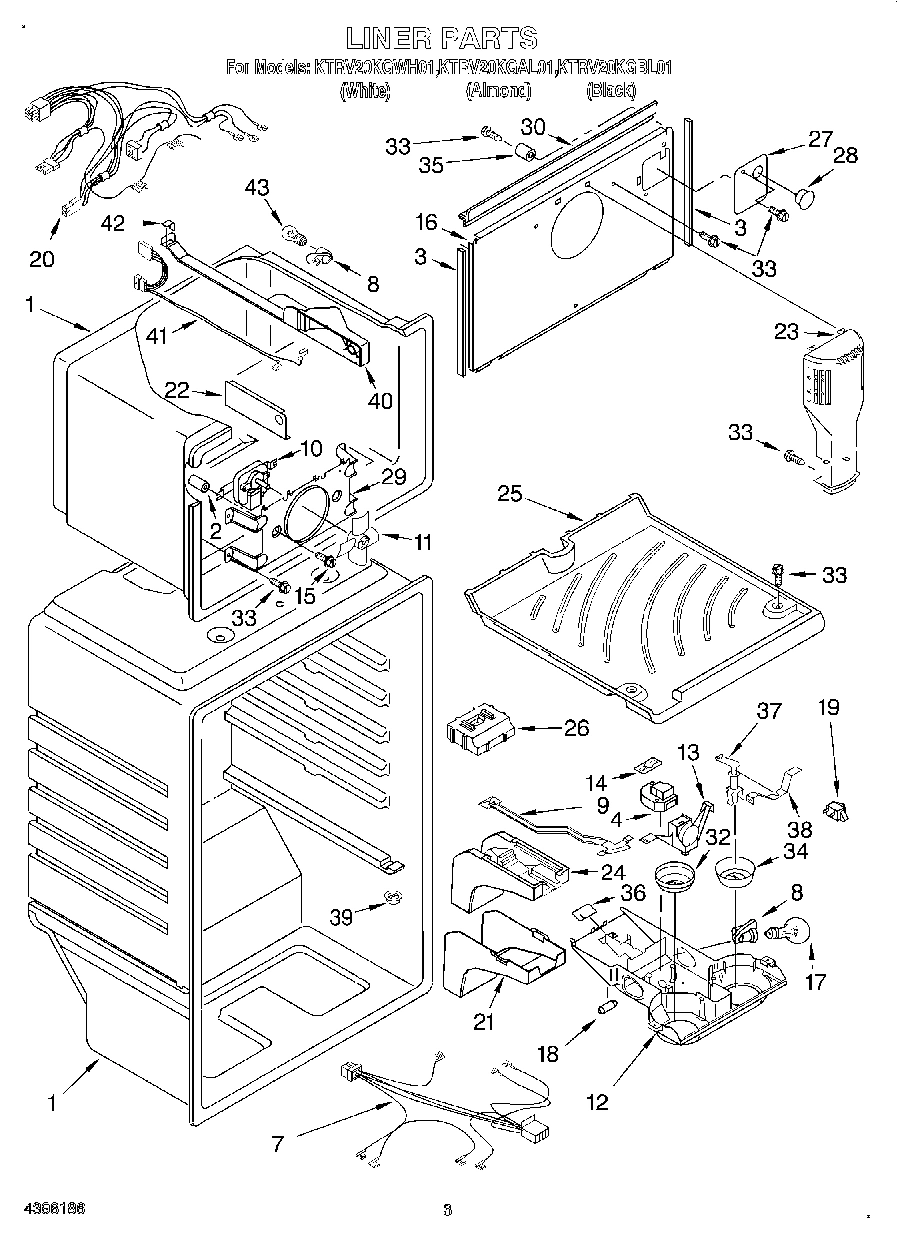

02 - LINER

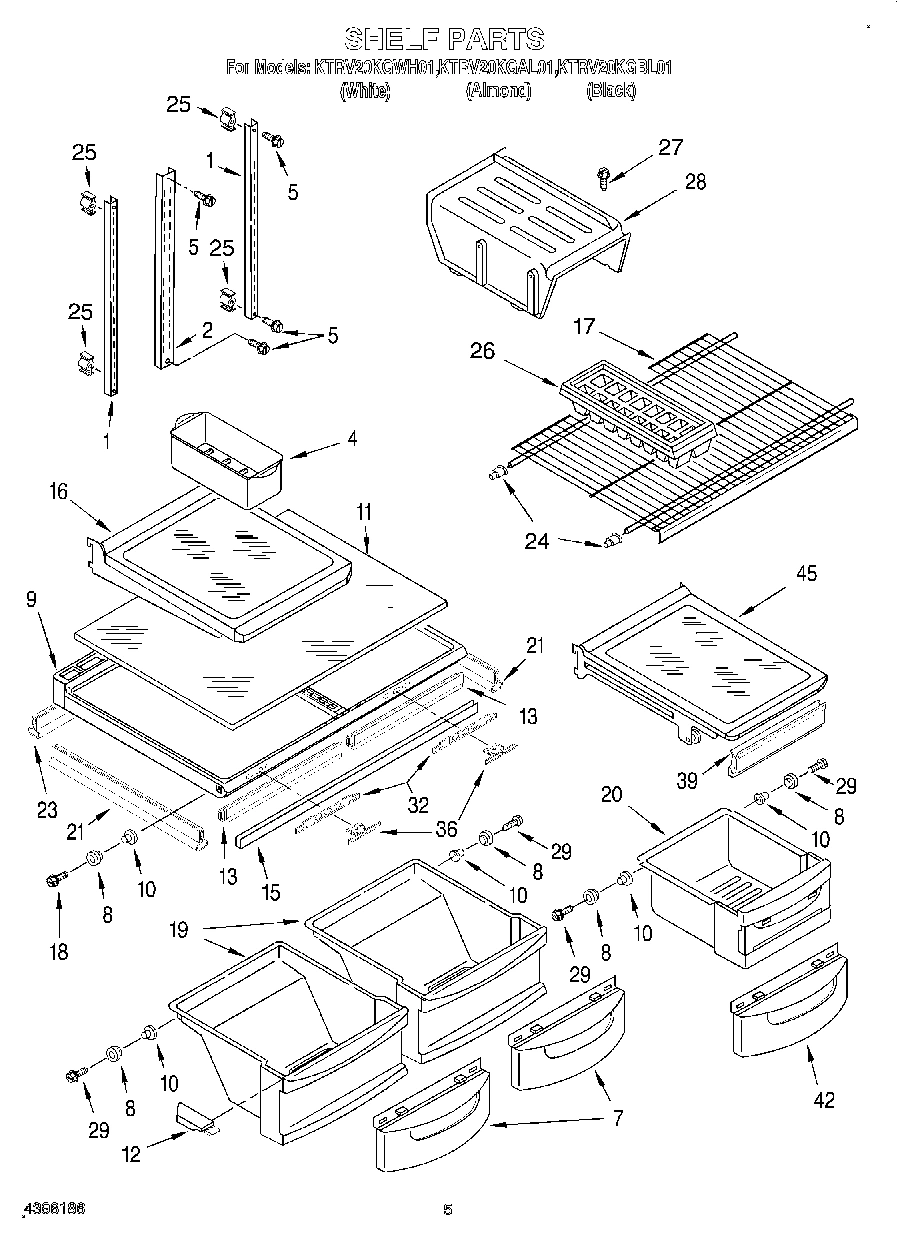

03 - SHELF

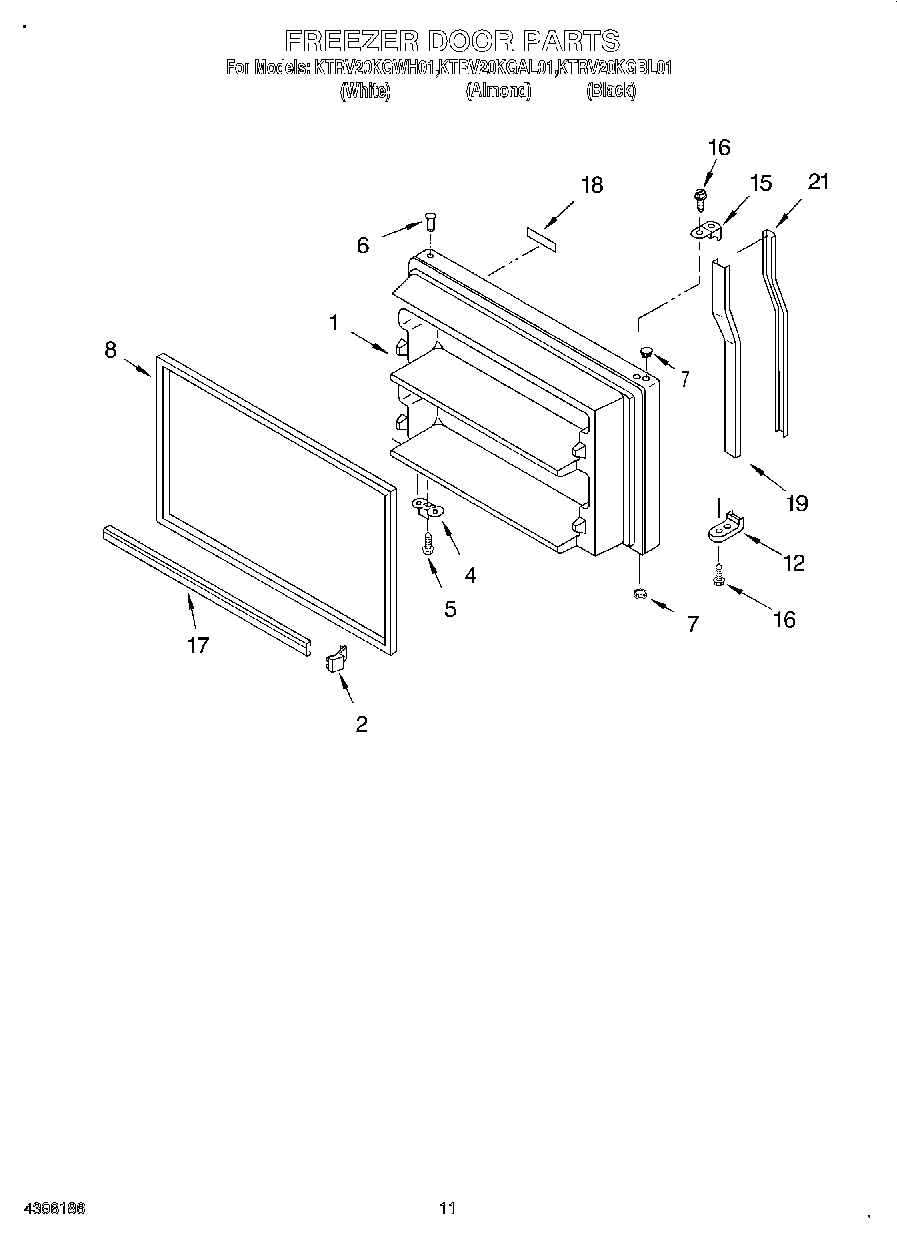

06 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool KTRV20KGBL01
Torx Key WPL 1117510 Contact Us For Availability
Service & Wiring Sheet WPL LIT2195481 Contact Us For Availability
Use & Care Guide WPL LIT2199010 Contact Us For Availability
Energy Label WPL LIT2200701 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI113023A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2184400 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
7
Window WPL 2175373 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Damper, Air (Slide) WPL 2179858 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198761 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183448 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
12
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
12
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
12
Endcap, Handle (Black) WPL 2195995B Contact Us For Availability
12
Endcap, Handle (Almond) WPL 2195995N Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200830 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
End Cap (Black) WPL 2195994B Contact Us For Availability
15
Endcap (Almond) WPL 2195994N Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174030 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
18
Nameplate (White) WPL 2188149 Contact Us For Availability
18
Nameplate (Almond) WPL 2188150 Contact Us For Availability
18
Nameplate (Black) WPL 2188151 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
19
Insert, Retainer (Black) WPL 2195992B Contact Us For Availability
19
Insert, Retainer (Almond) WPL 2195992N Contact Us For Availability
19
Insert, Retainer (White) WPL 2195992W Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175448 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI113024A Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Insert, Handle (Black) WPL 2188154 Contact Us For Availability
21
Insert, Handle (White) WPL 2195984 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2195985 Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
22
Electric Shield, Freezer Light WPL 2193491 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2189984 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Post, Damper WPL 2179859 Contact Us For Availability
38
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
40
Housing, Freezer Light WPL 2184633 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability
42
Wire Assy. Unit WPL 2200629 Contact Us For Availability
42
Gasket, Rear WPL 2166284 Contact Us For Availability
42
Window, Meat Pan WPL 2175445 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
NI
WPL 876029 WPL 876029 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
Featurepak (Includes 2, 17. See also Shelf Pa WPL 2200703 Contact Us For Availability
NI
Door Reversal Instructions WPL 2179846 Contact Us For Availability
NI
WPL 542639 WPL 542639 Contact Us For Availability
NI
WPL 799832 WPL 799832 Contact Us For Availability
NI
WPL 799833 WPL 799833 Contact Us For Availability
NI
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
