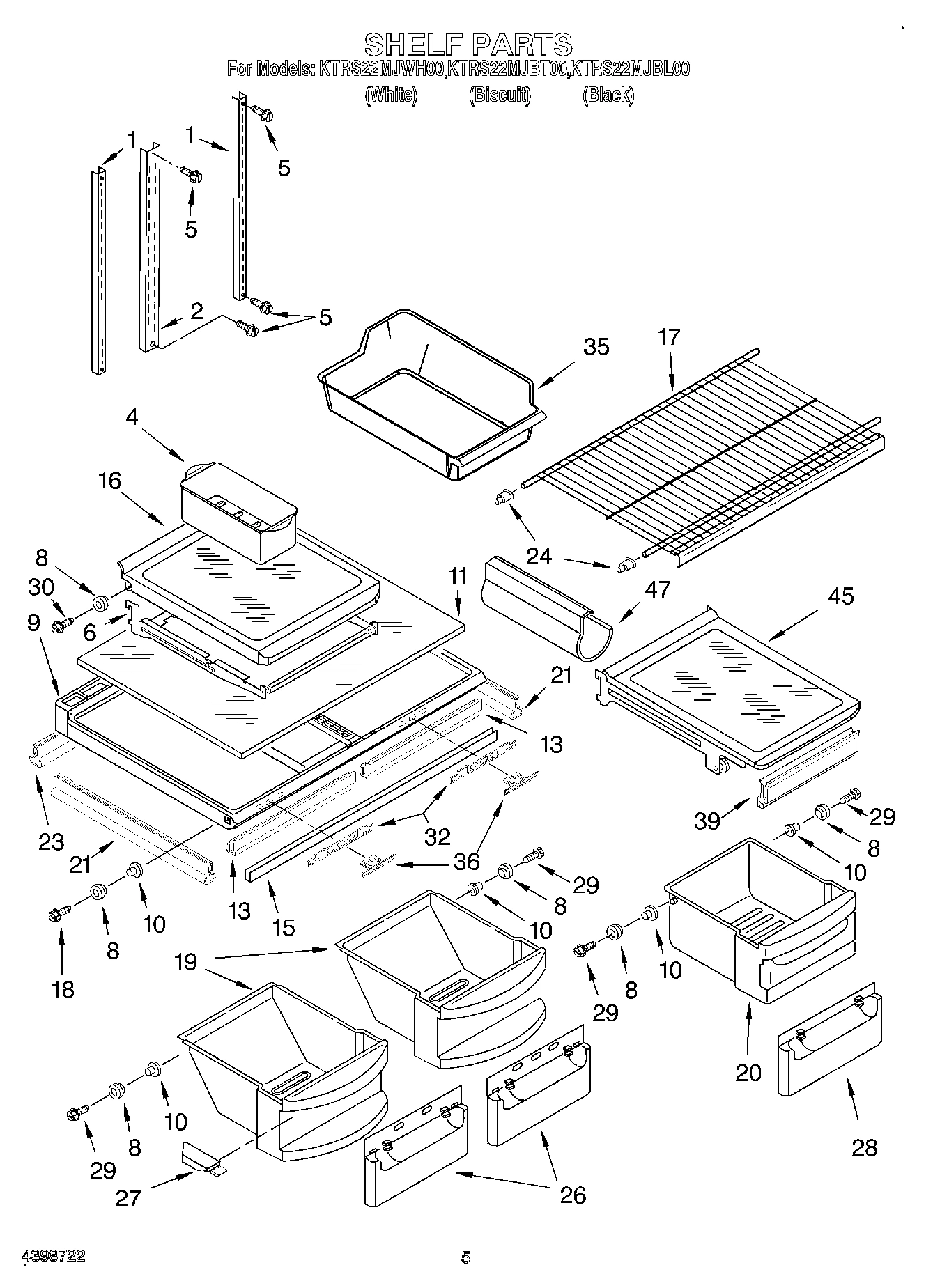

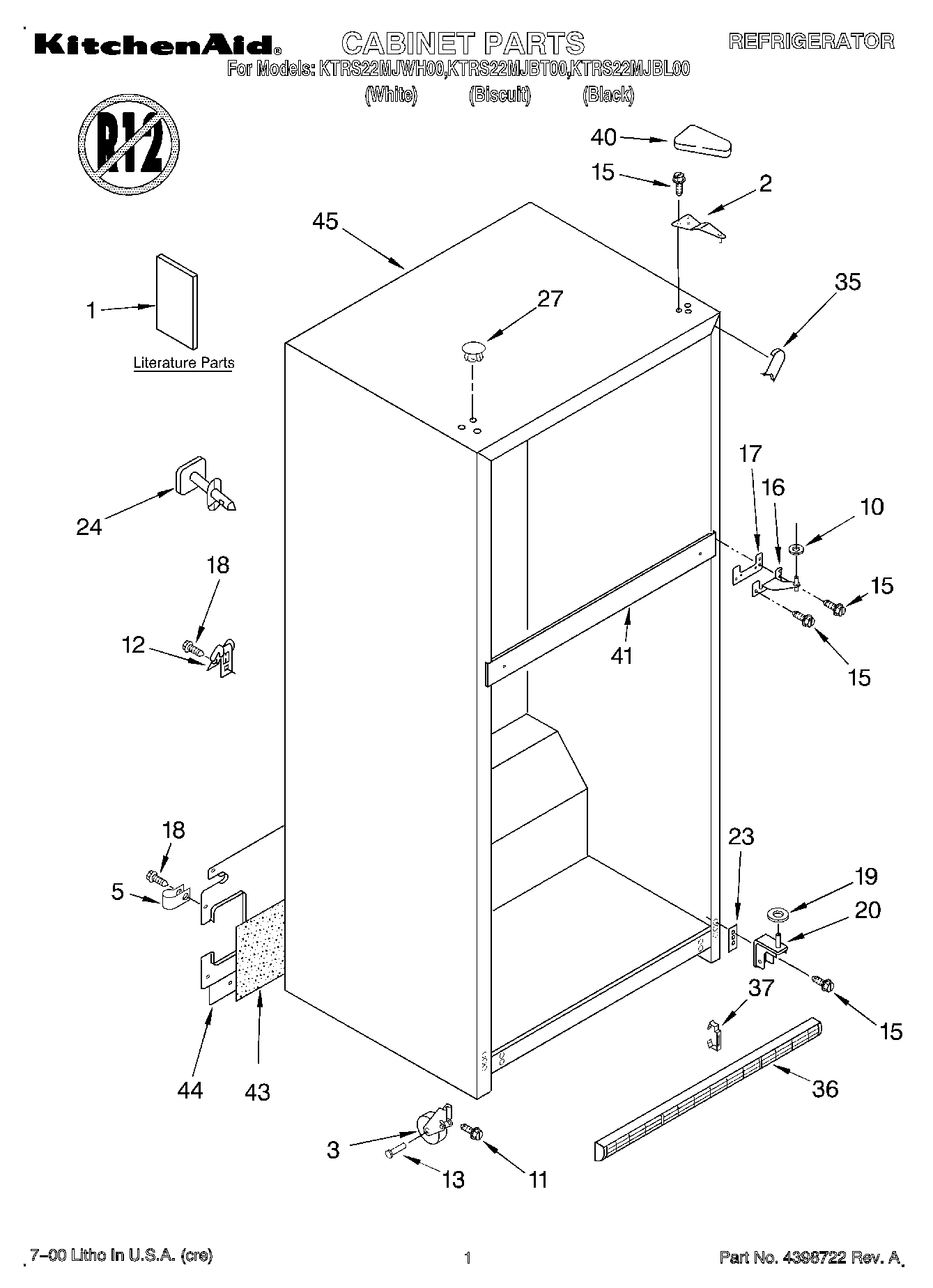

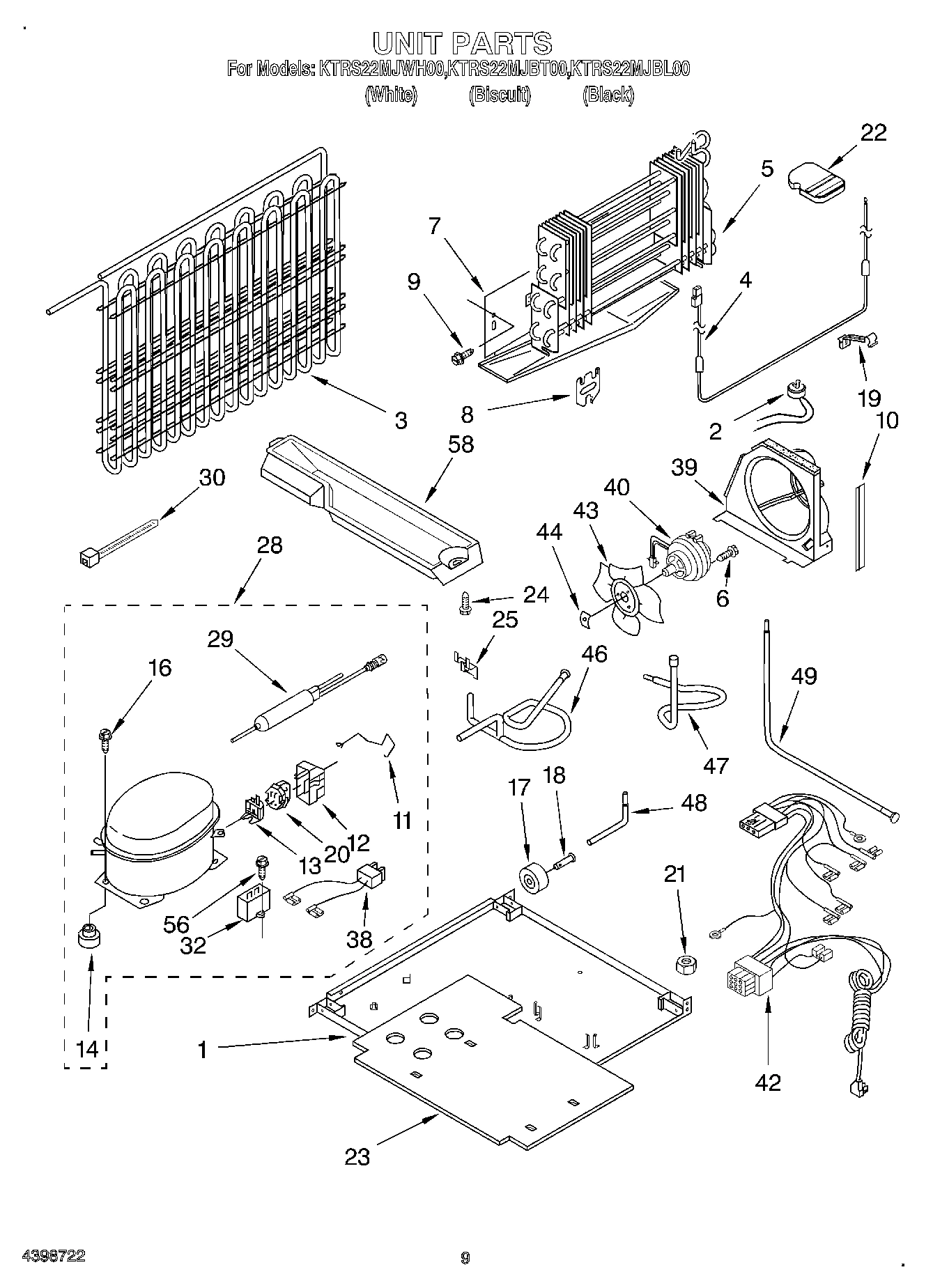

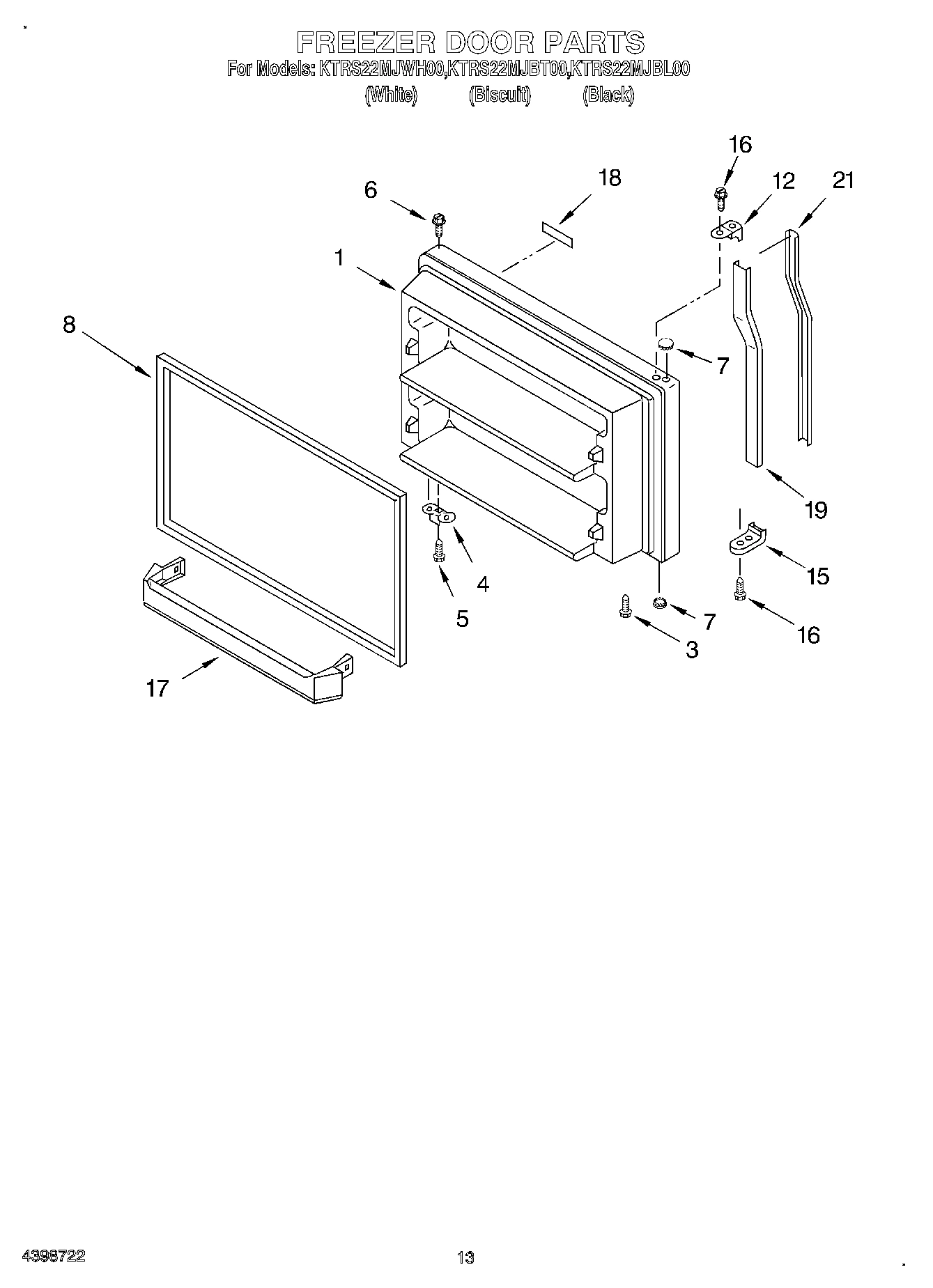

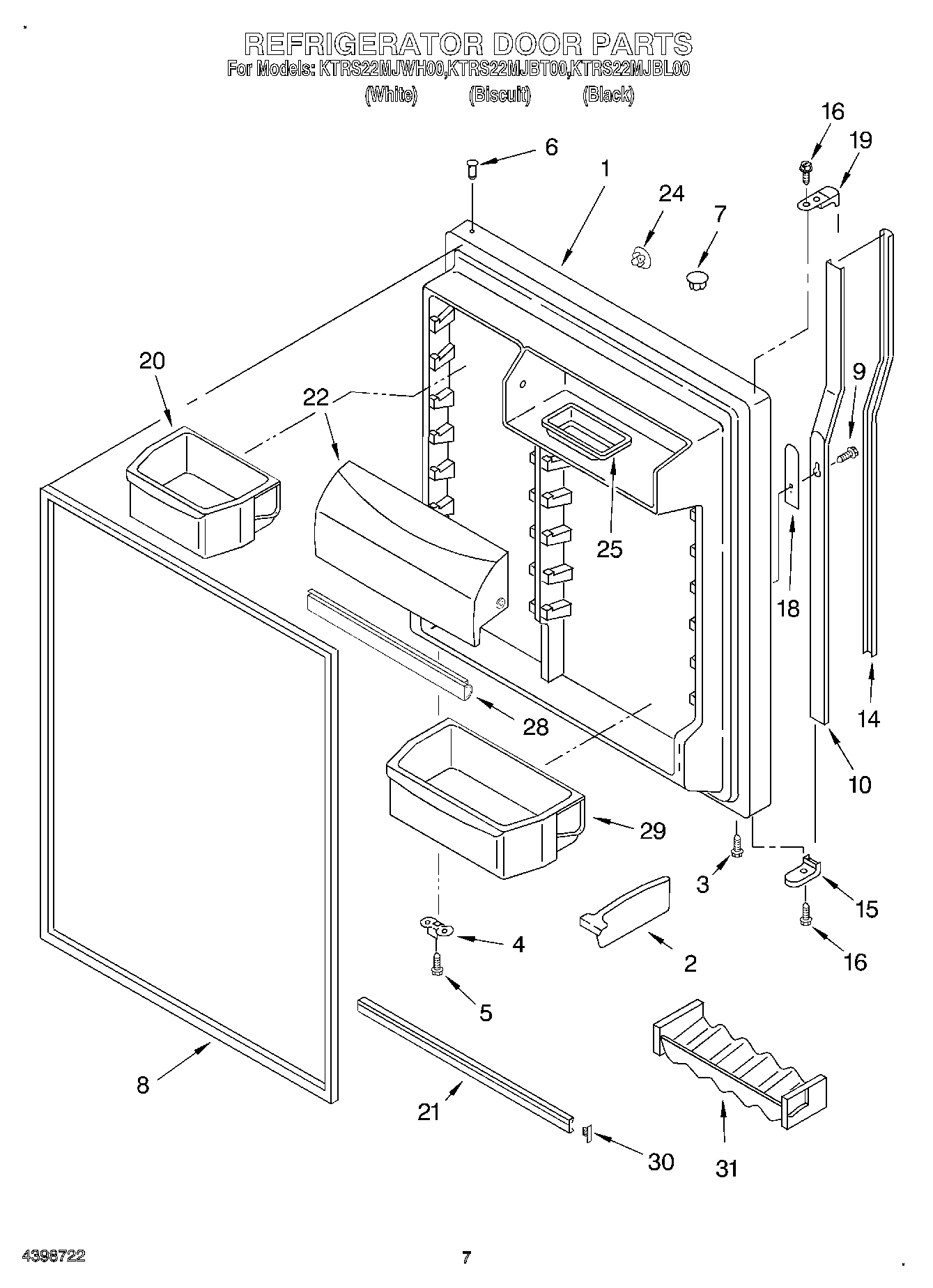

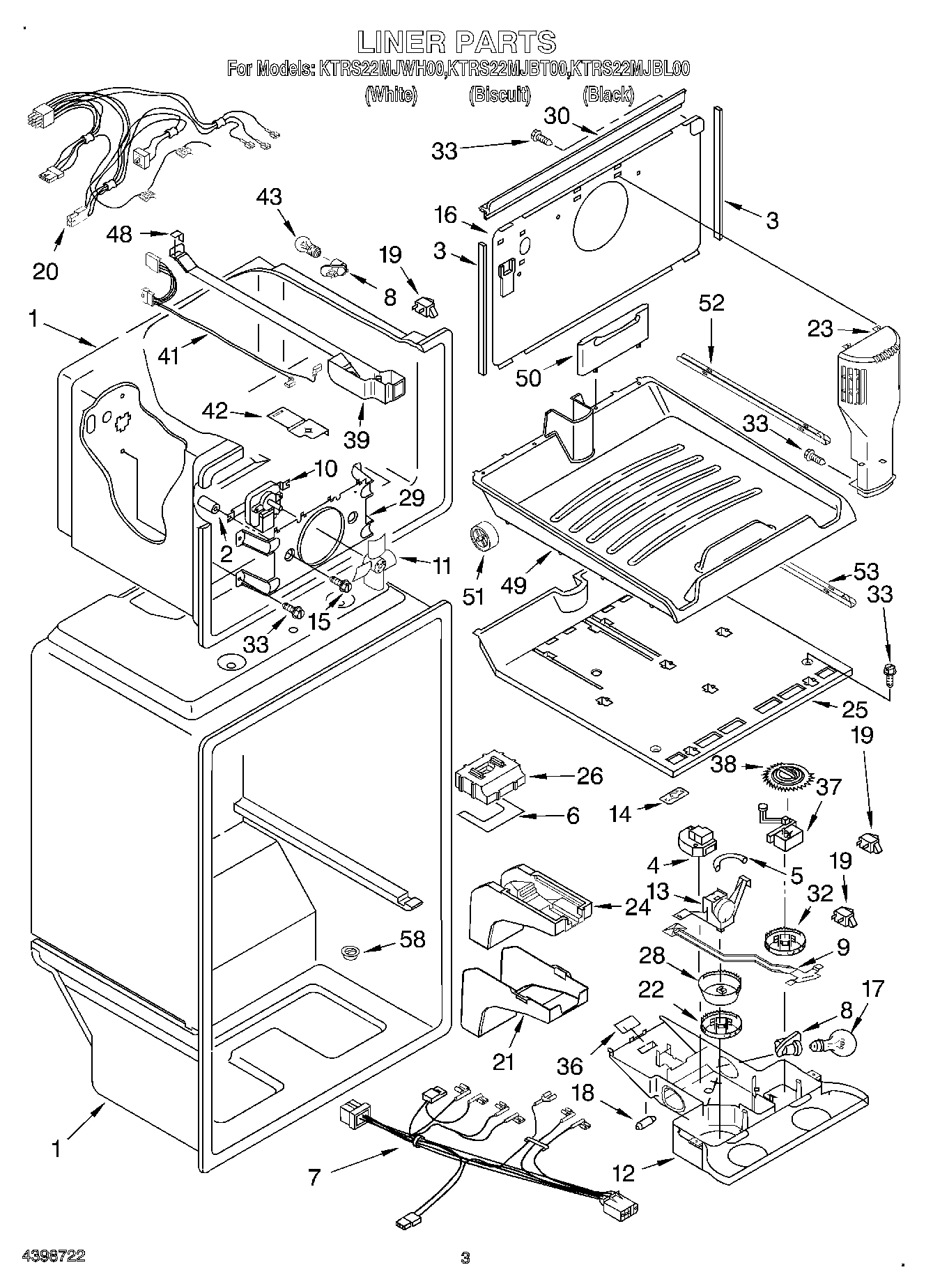

Model Whirlpool KTRS22MJWH00 – Common Parts &amp; Diagrams

1

Plate, Unit Mounting WPL 2201162 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI112789A Contact Us For Availability

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

2

Grommet (2) WPL 531933 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

Condenser WPL 2183849 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $56.15

4

Timer, Defrost WPL 2193084 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

Seal, Air Diffuser WPL 2179834 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Drain Pan WPL 2172620 Contact Us For Availability

7

Wire Assy. Control Box WPL 2200632 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

Damper, Air (Slide) WPL 2212413 Contact Us For Availability

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

Eyelet, Roller WPL 2174478 Contact Us For Availability

Extension, Air Baffle WPL 2163780 Contact Us For Availability

Fan Motor WPL 2183448 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Glass, Crisper Cover WPL 2174141 Contact Us For Availability

Clamp WPL 943322 Contact Us For Availability

12

Endcap (White) WPL 2195994W Contact Us For Availability

12

Cover (Service Only) WPL 1105055 Contact Us For Availability

12

Control Box WPL 2212461 Contact Us For Availability

2183409 Whirlpool Refrigerator Overload Backorder WPL 2183409 $43.54

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $33.47

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

Thermostat Assembly (Includes Items 5, 18, & WPL 2204984 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

End Cap (Black) WPL 2195995B Contact Us For Availability

Endcap (Biscuit) WPL 2195995T Contact Us For Availability

Screw WPL 489412 Contact Us For Availability

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

16

Cover, Evaporator WPL 2201180 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

Trim, Door WPL 2159292 Contact Us For Availability

2174157 Whirlpool Refrigerator Front Cover Backorder WPL 2174157 $30.47

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Nameplate (White) WPL 2205367 Contact Us For Availability

Nameplate (Biscuit) WPL 2205368 Contact Us For Availability

Nameplate (Black) WPL 2205369 Contact Us For Availability

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Endcap (White) WPL 2195995W Contact Us For Availability

Insert, Handle (Black) WPL 2195992B Contact Us For Availability

Insert, Handle (Biscuit) WPL 2195992T Contact Us For Availability

Insert, Handle (White) WPL 2195992W Contact Us For Availability

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

20

Relay (Production (Service - See Overload)) WPL 2176805 Contact Us For Availability

20

Wire Assembly, Freezer Compartment WPL 2187279 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Insert, Handle (Black) WPL 2188154 Contact Us For Availability

Insert, Handle (White) WPL 2195984 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200932 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

Nut (Not Serviced) WPL ARI112790A Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Support WPL 2201185 Contact Us For Availability

22

Knob, Thermostat WPL 2205094 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

Cover, Unit WPL 2198740 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

Screw (4) WPL 489462 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

25

Clip WPL 2166683 Contact Us For Availability

25

Freezer Floor WPL 2190589 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $344.71

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

Installation Kit WPL 482801 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

29

Bracket, Fan Motor WPL 2200641 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Knob, Damper WPL 2204951 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

37

Control, Freezer WPL 2204991 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Air Baffle WPL 2198921 Contact Us For Availability

39

Housing Base WPL 2201153 Contact Us For Availability

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

Wiring Harness, Freezer Light WPL 2187280 Contact Us For Availability

42

Wire Assy. Unit WPL 2200628 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Tube, Discharge WPL 2201141 Contact Us For Availability

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

47

Tube, Suction WPL 2189173 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2189449 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

Roller, Slide WPL 2176246 Contact Us For Availability

52

Side Support, Floor Assembly WPL 2179713 Contact Us For Availability

53

Center Support, Floor Assembly WPL 2179714 Contact Us For Availability

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tray, Evaporator WPL 2189433 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

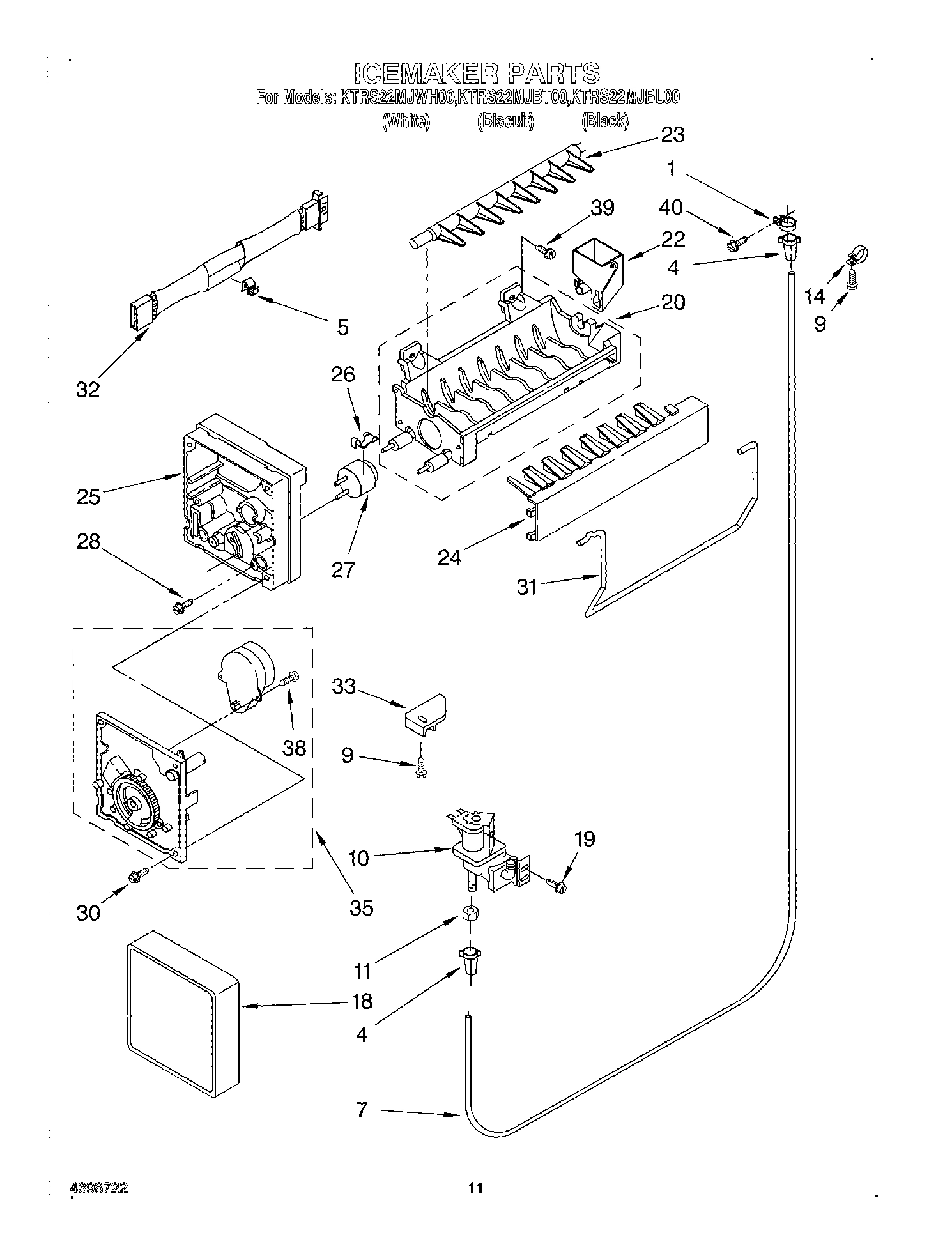

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
