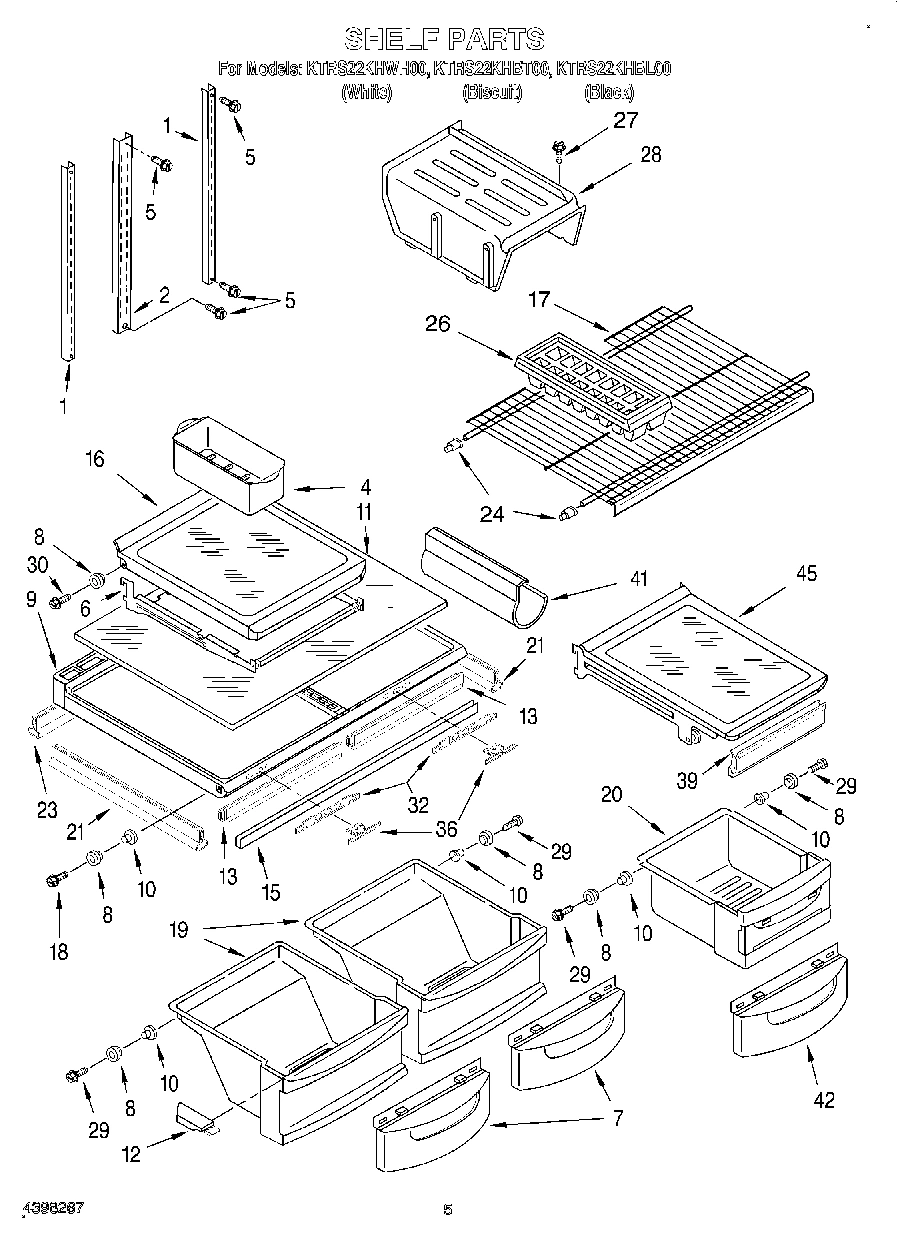

Model Whirlpool KTRS22KHWH00 – Common Parts & Diagrams

1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI112653A Contact Us For Availability
View on Model
1
Service & Wiring Sheet
Service & Wiring Sheet WPL LIT2195481 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL LIT2200941 Contact Us For Availability
View on Model
1
Energy Label
Energy Label WPL LIT2204721 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.8) (White)
Refrigerator Door (Includes No.8) (White) WPL 2198970 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.8) (Black)
Refrigerator Door (Includes No.8) (Black) WPL 2200613 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.8) (Biscuit)
Refrigerator Door (Includes No.8) (Biscuit) WPL 2200927 Contact Us For Availability
View on Model
2
Grommet (2)
Grommet (2) WPL 531933 Contact Us For Availability
View on Model
3
Divider, Door Shelf
Divider, Door Shelf WPL 1123293 Contact Us For Availability
View on Model
4
Timer, Defrost
Timer, Defrost WPL 2193084 Contact Us For Availability
View on Model
5
Screw, 8 x 1/2
Screw, 8 x 1/2 WPL 3400873 Contact Us For Availability
View on Model
7
Wire Assy. Control Box
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
View on Model
9
Damper, Air (Slide)
Damper, Air (Slide) WPL 2179858 Contact Us For Availability
View on Model
9
Screw
Screw WPL 489462 Contact Us For Availability
View on Model
10
Eyelet, Roller
Eyelet, Roller WPL 2174478 Contact Us For Availability
View on Model
10
Fan Motor
Fan Motor WPL 2183833 Contact Us For Availability
View on Model
10
Retainer, Insert (Black)
Retainer, Insert (Black) WPL 2195993B Contact Us For Availability
View on Model
10
Retainer, Insert (Biscuit)
Retainer, Insert (Biscuit) WPL 2195993T Contact Us For Availability
View on Model
10
Retainer, Insert (White)
Retainer, Insert (White) WPL 2195993W Contact Us For Availability
View on Model
11
Glass, Crisper Cover
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
View on Model
11
Screw
Screw WPL 2174650 Contact Us For Availability
View on Model
12
Endcap, Handle (White)
Endcap, Handle (White) WPL 2195994W Contact Us For Availability
View on Model
12
Control Box
Control Box WPL 2200820 Contact Us For Availability
View on Model
13
Thermostat Assembly (Includes Items 5, 18, &
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
View on Model
14
Clip, Defrost Timer
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
View on Model
14
Insert, Handle (Black)
Insert, Handle (Black) WPL 2188155 Contact Us For Availability
View on Model
14
Insert, Handle (White)
Insert, Handle (White) WPL 2195986 Contact Us For Availability
View on Model
14
Insert, Handle (Biscuit)
Insert, Handle (Biscuit) WPL 2200932 Contact Us For Availability
View on Model
15
Endcap (White)
Endcap (White) WPL 2195995W Contact Us For Availability
View on Model
15
Screw
Screw WPL 489412 Contact Us For Availability
View on Model
15
Endcap, Handle (Black)
Endcap, Handle (Black) WPL 2188132 Contact Us For Availability
View on Model
15
Endcap, Handle (White)
Endcap, Handle (White) WPL 2195990 Contact Us For Availability
View on Model
15
Endcap, Handle (Biscuit)
Endcap, Handle (Biscuit) WPL 2200930 Contact Us For Availability
View on Model
16
Cover-Evaporator
Cover-Evaporator WPL 2189833 Contact Us For Availability
View on Model
17
Trim, Door Shelf (2)
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
View on Model
18
Nameplate (White)
Nameplate (White) WPL 2188149 Contact Us For Availability
View on Model
18
Nameplate (Black)
Nameplate (Black) WPL 2188151 Contact Us For Availability
View on Model
18
Nameplate (Biscuit)
Nameplate (Biscuit) WPL 2200935 Contact Us For Availability
View on Model
18
Weight, Thermal
Weight, Thermal WPL 2200831 Contact Us For Availability
View on Model
18
Spacer, Handle
Spacer, Handle WPL 2188146 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
19
Insert, Retainer (Black)
Insert, Retainer (Black) WPL 2195992B Contact Us For Availability
View on Model
19
Insert, Retainer (Biscuit)
Insert, Retainer (Biscuit) WPL 2195992T Contact Us For Availability
View on Model
19
Insert, Retainer (White)
Insert, Retainer (White) WPL 2195992W Contact Us For Availability
View on Model
19
End Cap (Black)
End Cap (Black) WPL 2195995B Contact Us For Availability
View on Model
19
Endcap (Biscuit)
Endcap (Biscuit) WPL 2195995T Contact Us For Availability
View on Model
20
Wire Assembly, Freezer Compartment
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
View on Model
20
Bin, Door Shelf (2)
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
21
Insert, Handle (Black)
Insert, Handle (Black) WPL 2188154 Contact Us For Availability
View on Model
21
Insert, Handle (White)
Insert, Handle (White) WPL 2195984 Contact Us For Availability
View on Model
21
Insert, Handle (Biscuit)
Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability
View on Model
22
WPL 876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
22
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
22
Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
22
Enamel, Biscuit (13 Oz. Spray Can)
Enamel, Biscuit (13 Oz. Spray Can) WPL 439290 Contact Us For Availability
View on Model
22
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
View on Model
22
WPL 542639
WPL 542639 WPL 542639 Contact Us For Availability
View on Model
22
WPL 799832
WPL 799832 WPL 799832 Contact Us For Availability
View on Model
22
WPL 799833
WPL 799833 WPL 799833 Contact Us For Availability
View on Model
22
WPL 978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
23
Shim, Bottom Hinge
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
23
Tray, Butter
Tray, Butter WPL 2165792 Contact Us For Availability
View on Model
24
Fitting, Water Tube (Not Serviced)
Fitting, Water Tube (Not Serviced) WPL ARI112651A Contact Us For Availability
View on Model
25
Freezer Floor
Freezer Floor WPL 2190589 Contact Us For Availability
View on Model
26
Air Diffuser, Top
Air Diffuser, Top WPL 2204690 Contact Us For Availability
View on Model
27
Hole Plug (6) (Biscuit)
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
View on Model
28
Installation Kit
Installation Kit WPL 482801 Contact Us For Availability
View on Model
28
Gasket, Door Compartment
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
View on Model
29
Bin, Door Shelf
Bin, Door Shelf WPL 2171062 Contact Us For Availability
View on Model
29
Bracket, Fan Motor
Bracket, Fan Motor WPL 2200511 Contact Us For Availability
View on Model
31
Cover, Water Valve
Cover, Water Valve WPL 2166251 Contact Us For Availability
View on Model
31
Beverage Holder
Beverage Holder WPL 2193409 Contact Us For Availability
View on Model
32
Featurepak (Includes 3,20,21, 22,23,28,29,30
Featurepak (Includes 3,20,21, 22,23,28,29,30 WPL 2199051 Contact Us For Availability
View on Model
34
Knob, Damper
Knob, Damper WPL 2176297 Contact Us For Availability
View on Model
36
Grille (White)
Grille (White) WPL 2201006 Contact Us For Availability
View on Model
36
Grille (Black)
Grille (Black) WPL 2201008 Contact Us For Availability
View on Model
36
Grille (Biscuit)
Grille (Biscuit) WPL 2201020 Contact Us For Availability
View on Model
37
CLIP, GRILLE
CLIP, GRILLE WPL 2189356 Contact Us For Availability
View on Model
37
Post, Damper
Post, Damper WPL 2179859 Contact Us For Availability
View on Model
38
Bracket, Damper Knob
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
View on Model
39
Housing Base
Housing Base WPL 2184633 Contact Us For Availability
View on Model
41
Wiring Harness, Freezer Light
Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability
View on Model
41
Rail Center (Not Serviced)
Rail Center (Not Serviced) WPL ARI112652A Contact Us For Availability
View on Model
42
Electrical Shield, Freezer Light
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
View on Model
43
Blade, Fan
Blade, Fan WPL 2190685 Contact Us For Availability
View on Model
44
Cover, Unit
Cover, Unit WPL 2200508 Contact Us For Availability
View on Model
48
Gasket, Rear
Gasket, Rear WPL 2166284 Contact Us For Availability
View on Model
49
Pullout, Freezer Floor
Pullout, Freezer Floor WPL 2189449 Contact Us For Availability
View on Model
50
REAR FENCE PULL-OUT FREEZER FLOOR
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
View on Model
51
Roller, Slide
Roller, Slide WPL 2176246 Contact Us For Availability
View on Model
52
Side Support, Floor Assembly
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
View on Model
53
Center Support, Floor Assembly
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
View on Model
58
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
58
Tray, Evaporator
Tray, Evaporator WPL 2189433 Contact Us For Availability
View on Model
