Model Whirlpool KTRS22KGWH01 – Common Parts & Diagrams
06 - FREEZER DOOR, LIT/OPTIONAL
02 - LINER

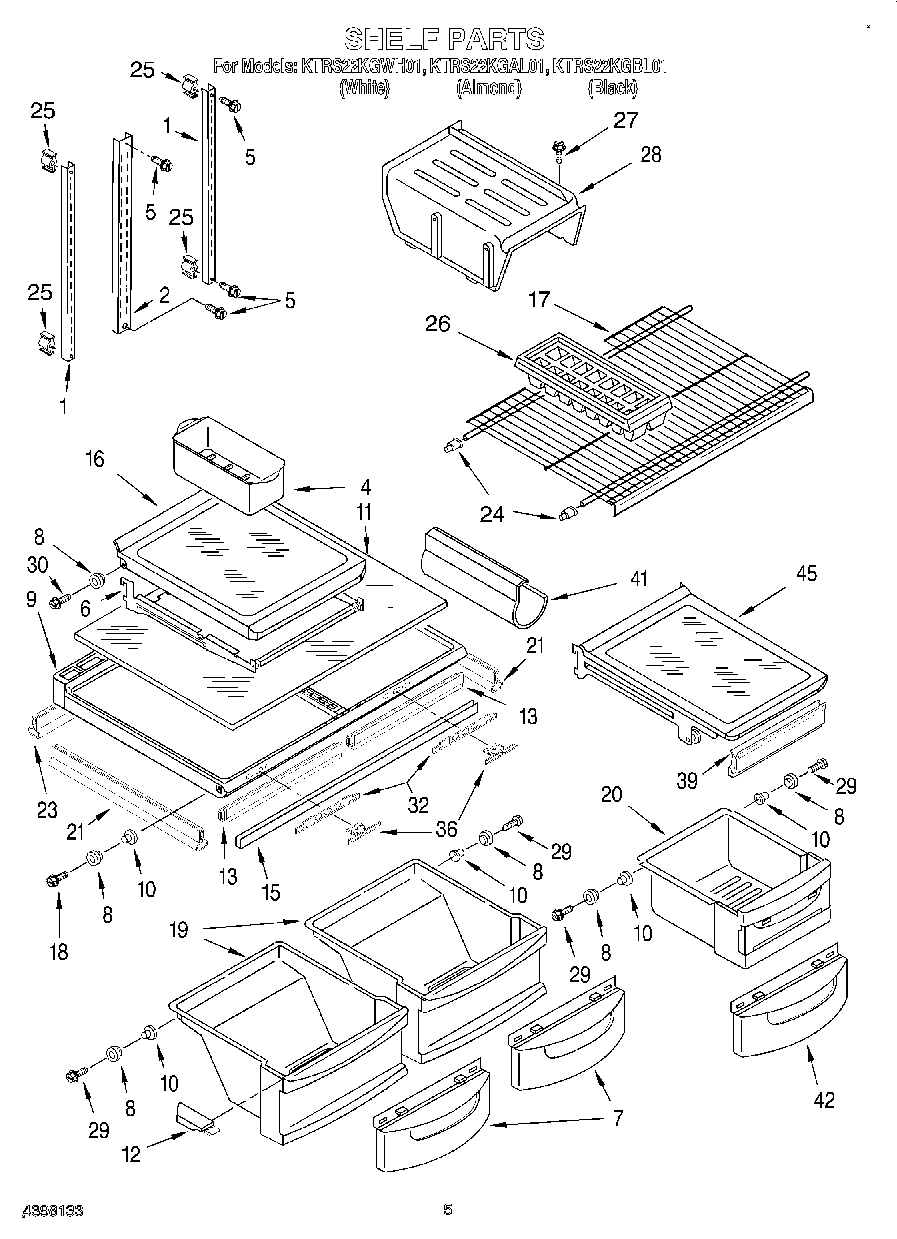

03 - SHELF

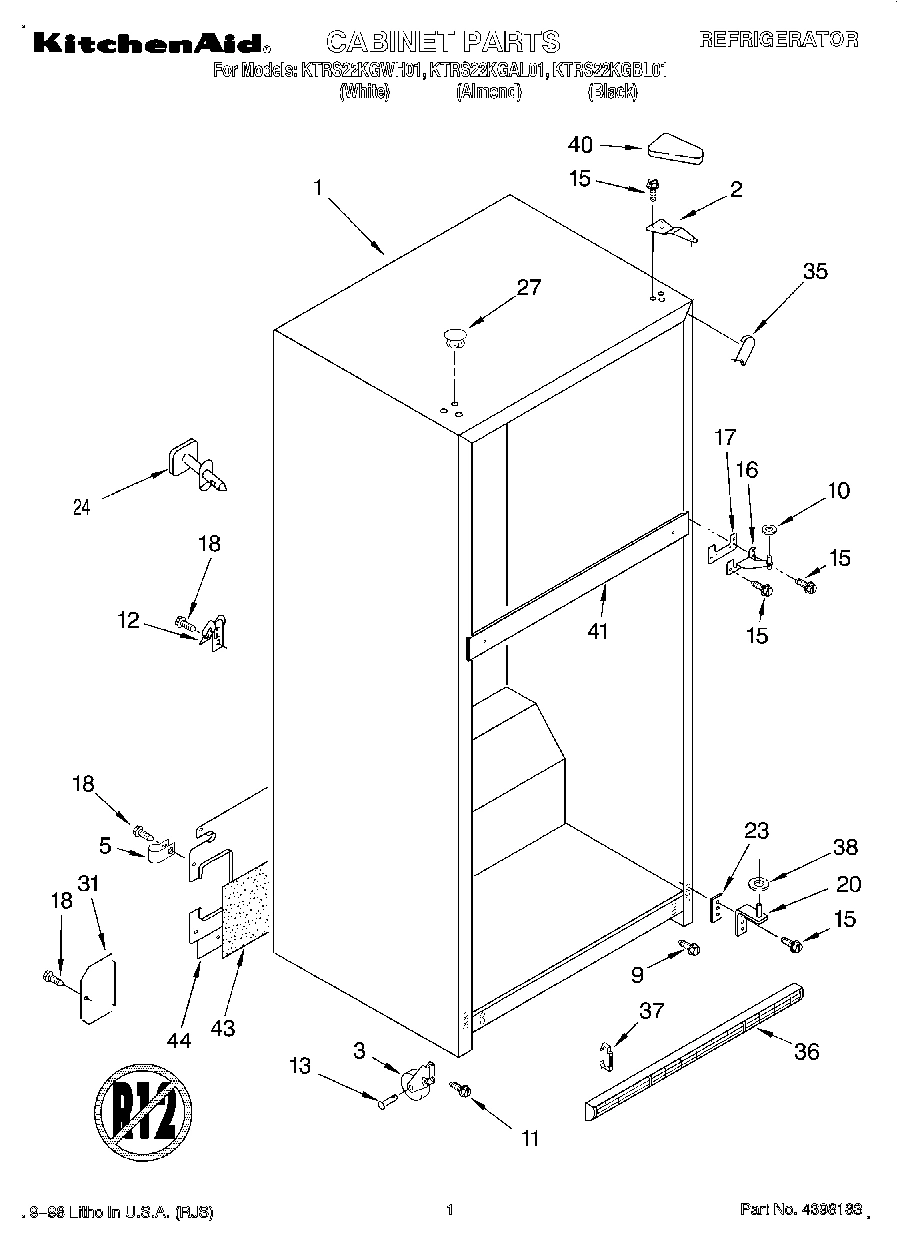

01 - CABINET

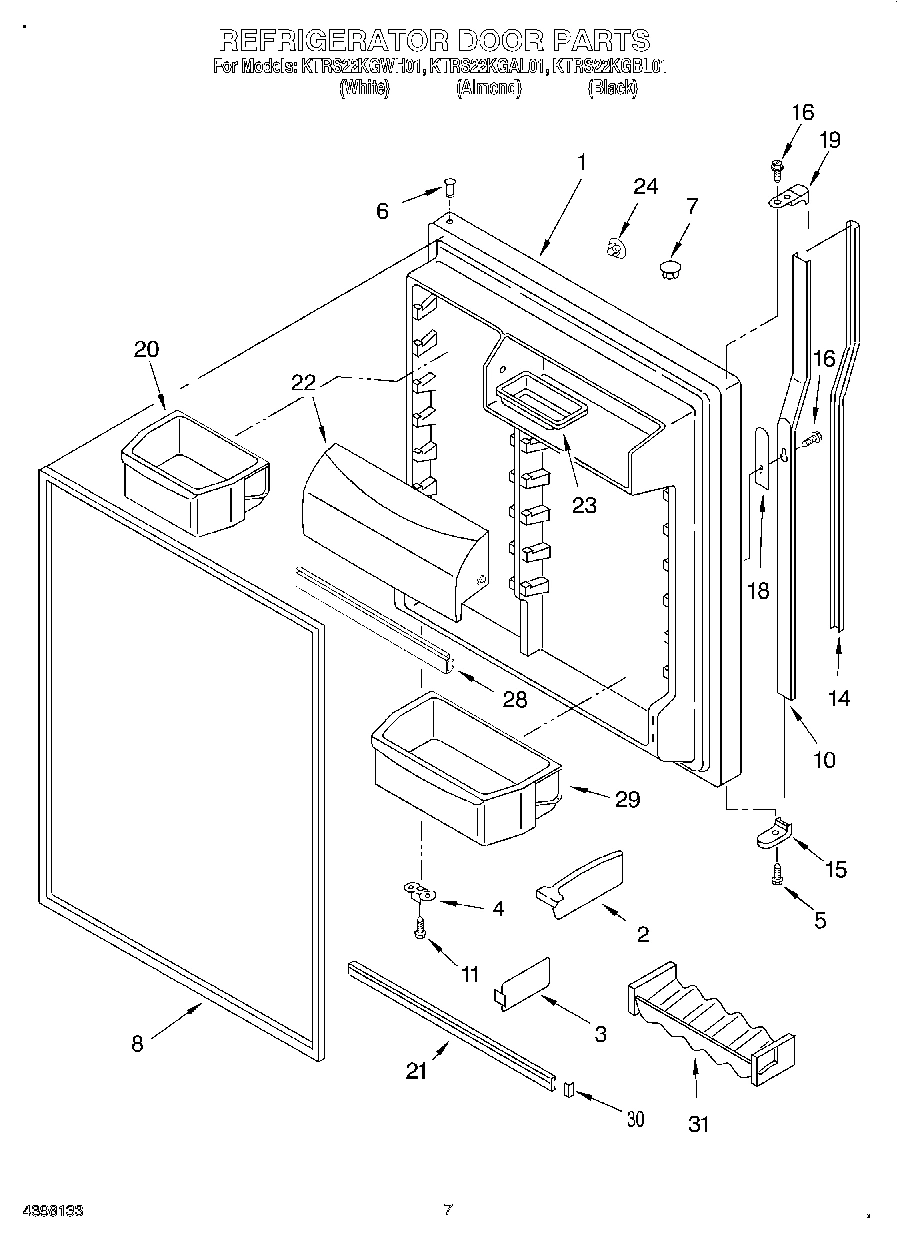

04 - REFRIGERATOR DOOR
05 - UNIT
Common parts from model Whirlpool KTRS22KGWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112637A Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2198970 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2198971 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Black) WPL 2200613 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188167 Contact Us For Availability
3
Divider, Door Shelf WPL 1123293 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
7
Window WPL 2175373 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198761 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2195993B Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2195993N Contact Us For Availability
10
Retainer, Insert (White) WPL 2195993W Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
12
Endcap, Handle (White) WPL 2195994W Contact Us For Availability
12
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
12
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
14
Insert, Handle (Black) WPL 2188155 Contact Us For Availability
14
Insert, Handle (White) WPL 2195986 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2195987 Contact Us For Availability
15
Endcap, Handle (Black) WPL 2188132 Contact Us For Availability
15
Endcap, Handle (White) WPL 2195990 Contact Us For Availability
15
Endcap, Handle (Almond) WPL 2195991 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Spacer, Handle WPL 2188146 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
19
End Cap (Black) WPL 2195995B Contact Us For Availability
19
Endcap (Almond) WPL 2195995N Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175448 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI112641A Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
23
Tray, Butter WPL 2165792 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI112638A Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
25
Support WPL 2189314 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf WPL 2171062 Contact Us For Availability
30
Screw WPL 489439 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
31
Relay (Not Serviced) WPL ARI112642A Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
32
Featurepak (Includes 3, 20, 21, 22, 23, 28, 2 WPL 2199051 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Almond) WPL 2201007 Contact Us For Availability
36
Grille (Black) WPL 2201008 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI112639A Contact Us For Availability
42
Window, Meat Pan WPL 2175445 Contact Us For Availability
42
Wire Assy. Unit WPL 2200629 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
