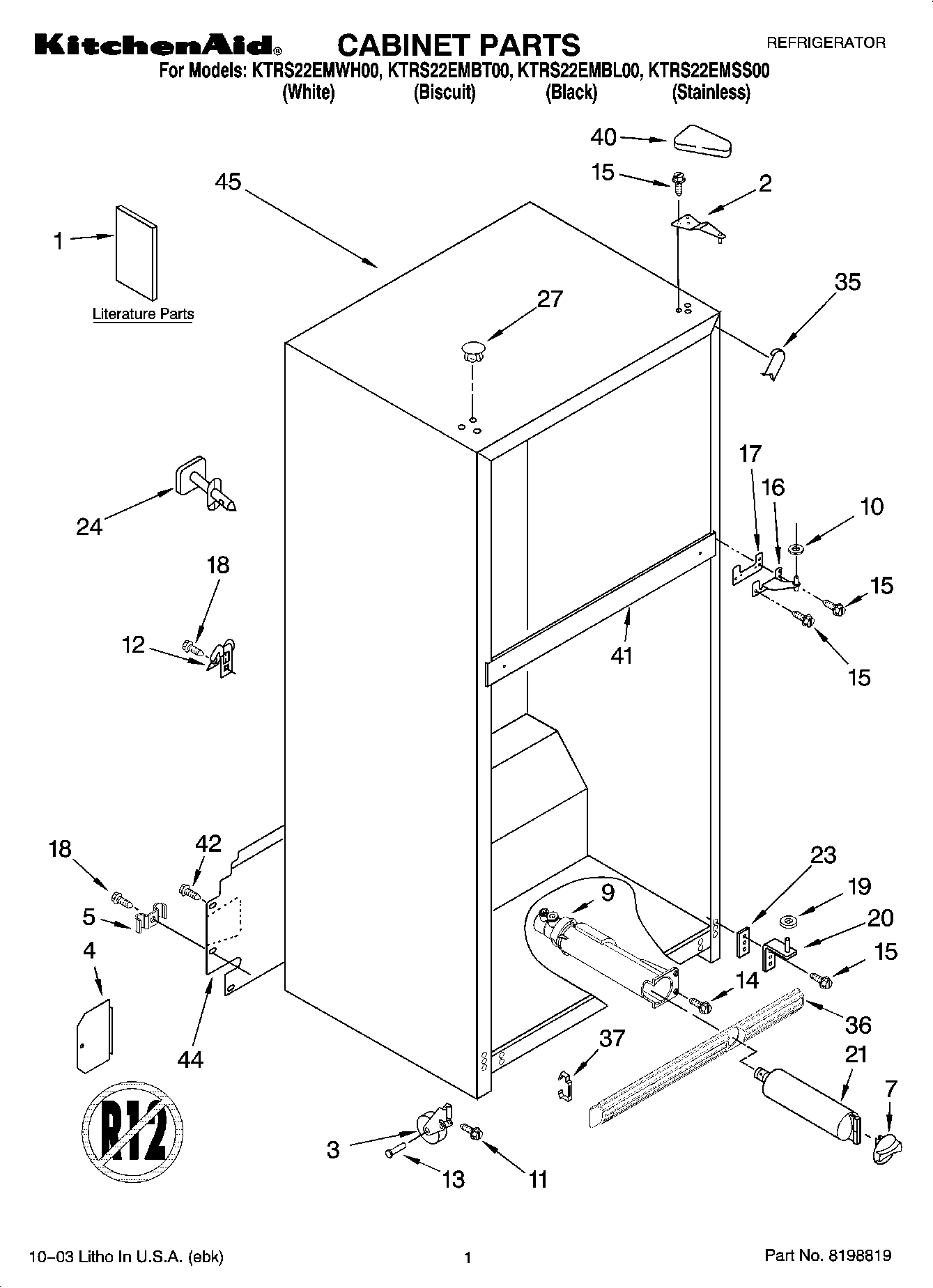

Model Whirlpool KTRS22EMWH00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

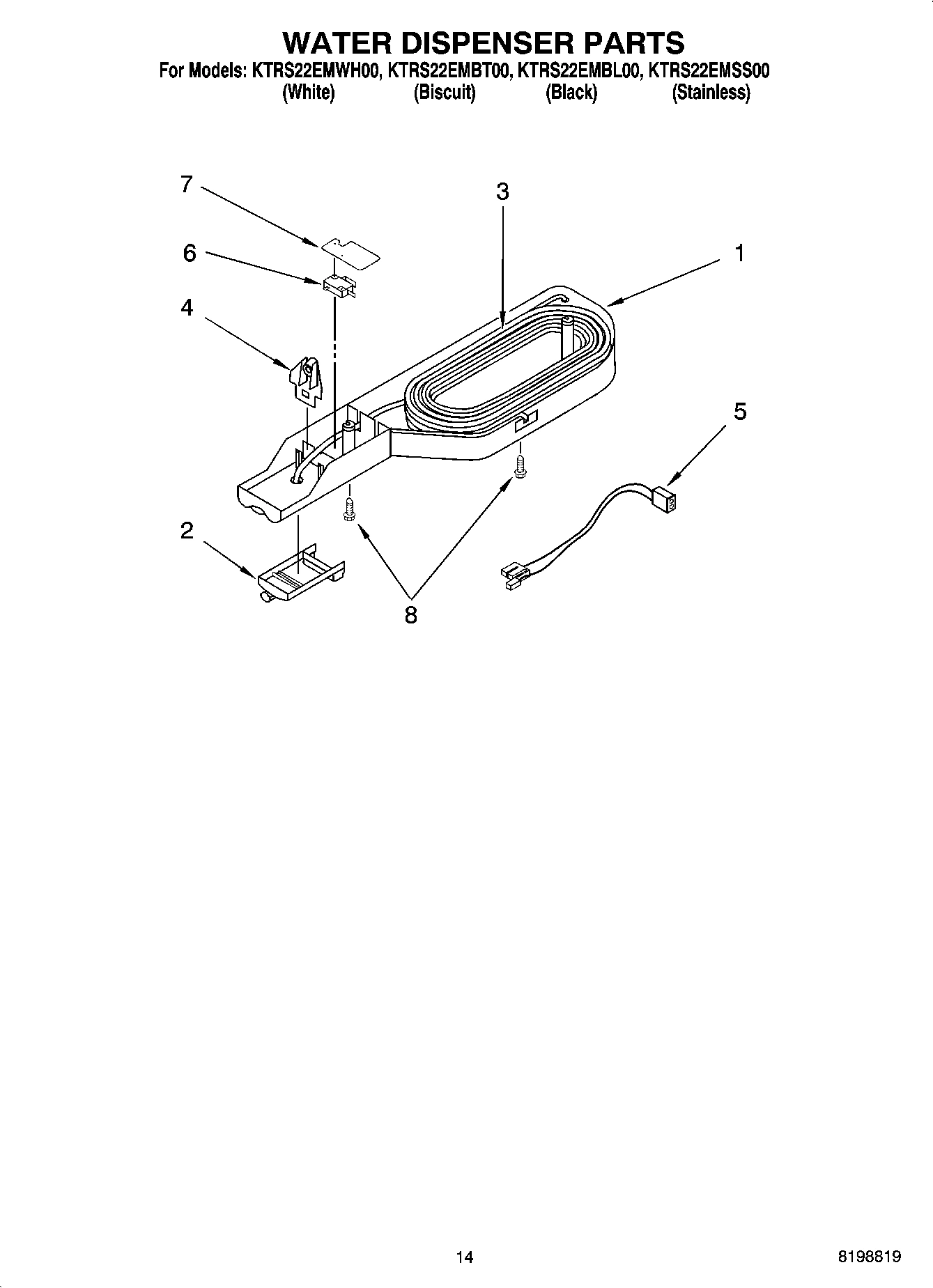

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

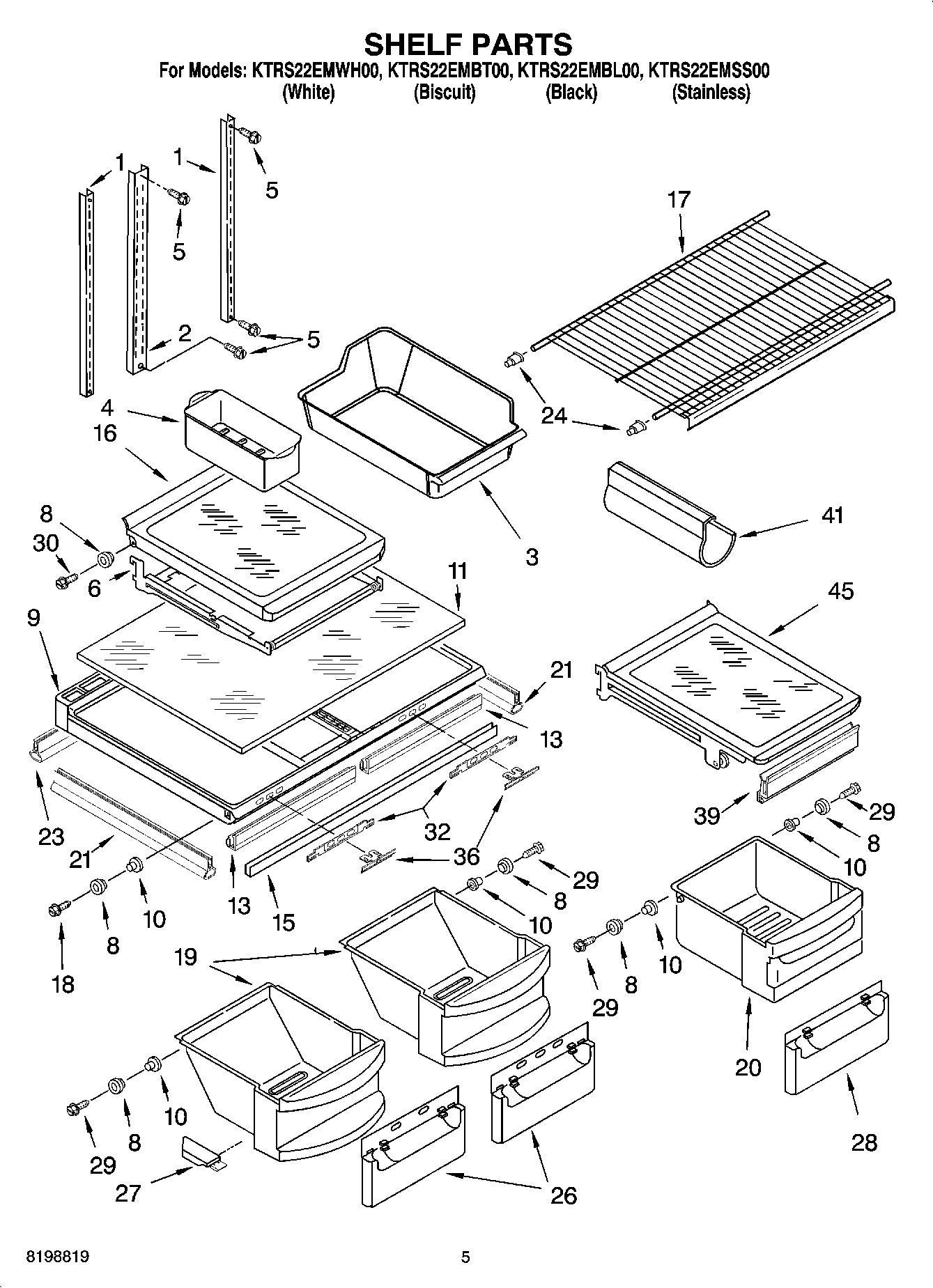

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

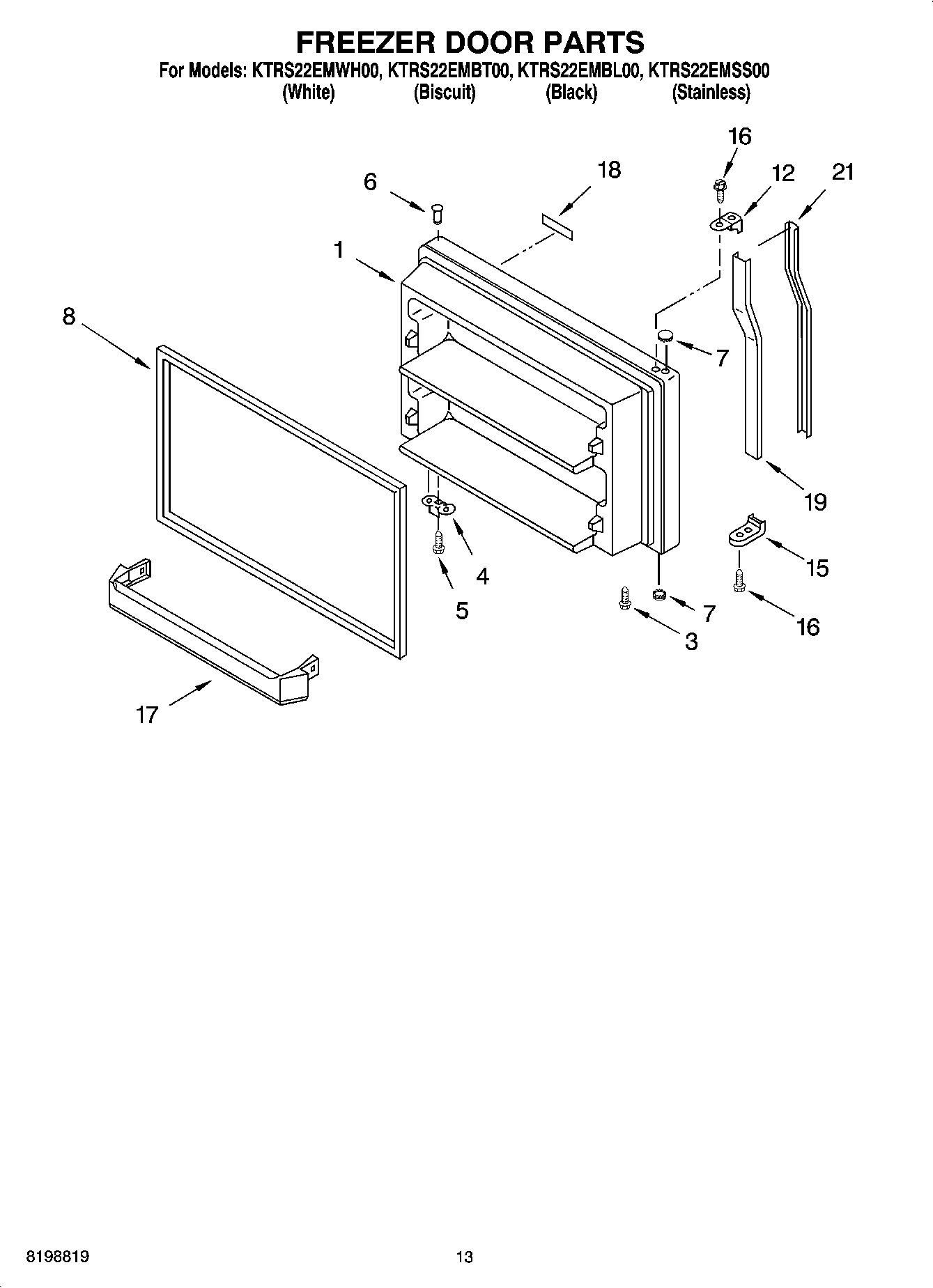

Freezer Door (Includes 6 & 8) (White) WPL 2183862 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Black) WPL 2200621 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Biscuit) WPL 2200928 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Stainless) WPL 2218678 Contact Us For Availability

1

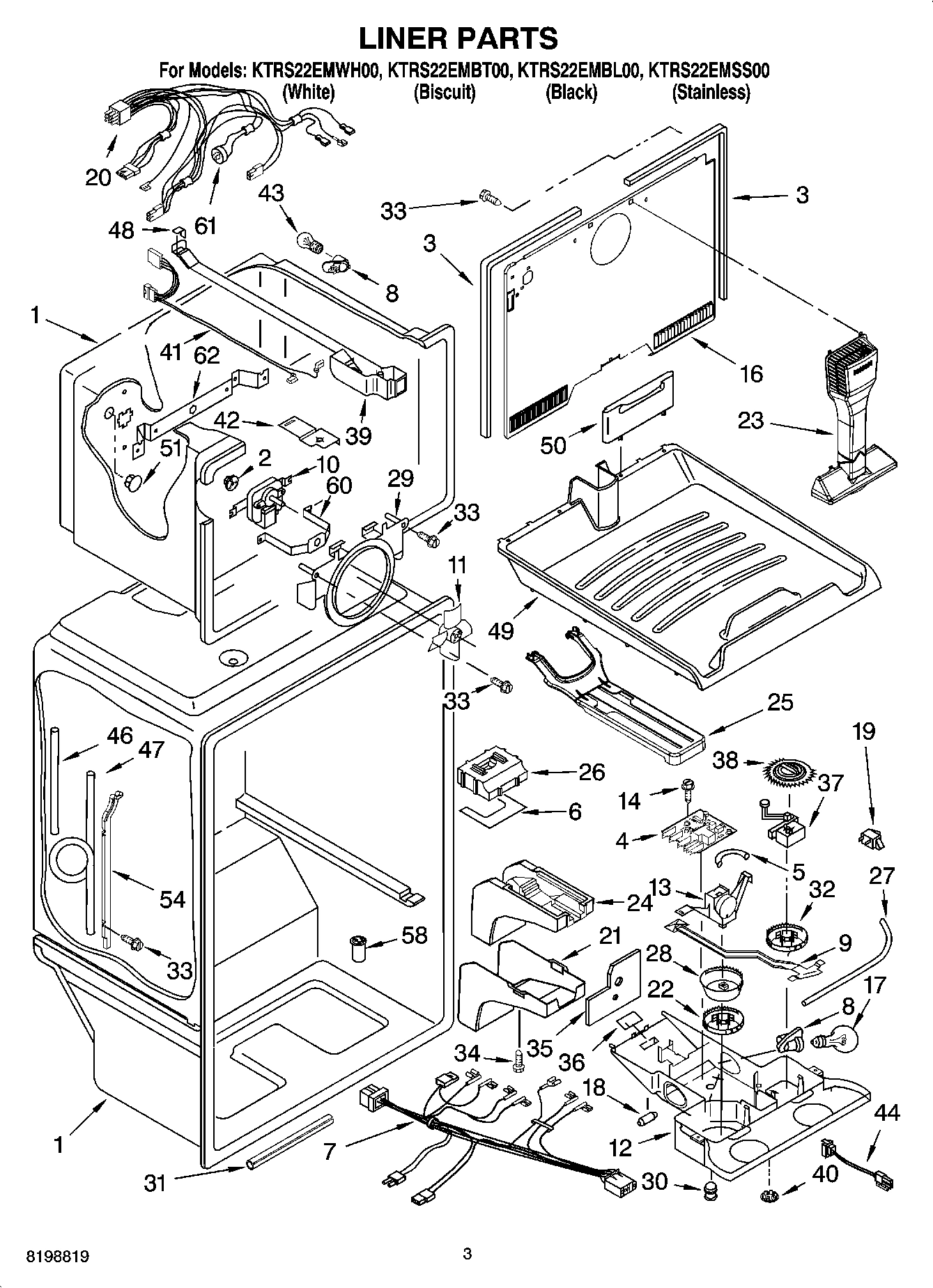

Liner (Not A Serviceable Part) WPL ARI112528A Contact Us For Availability

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $17.06

2

Shelf, Ladder Center WPL 2202821 Contact Us For Availability

3

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $15.66

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

3

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

3

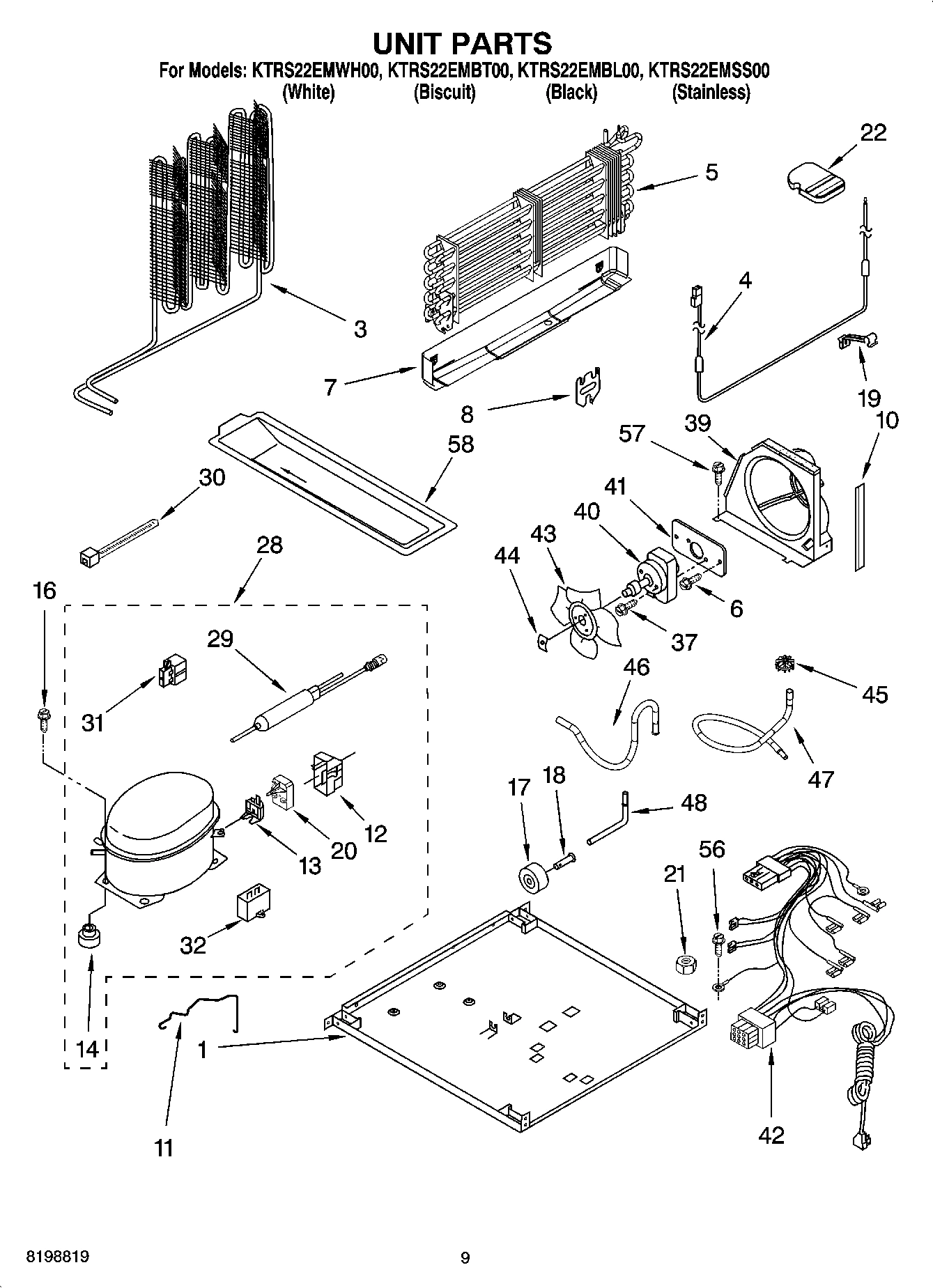

Condenser WPL 2214960 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability

6

Seal, Air Diffuser WPL 2179834 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

7

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Wire Assembly Control Box WPL 2187448 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

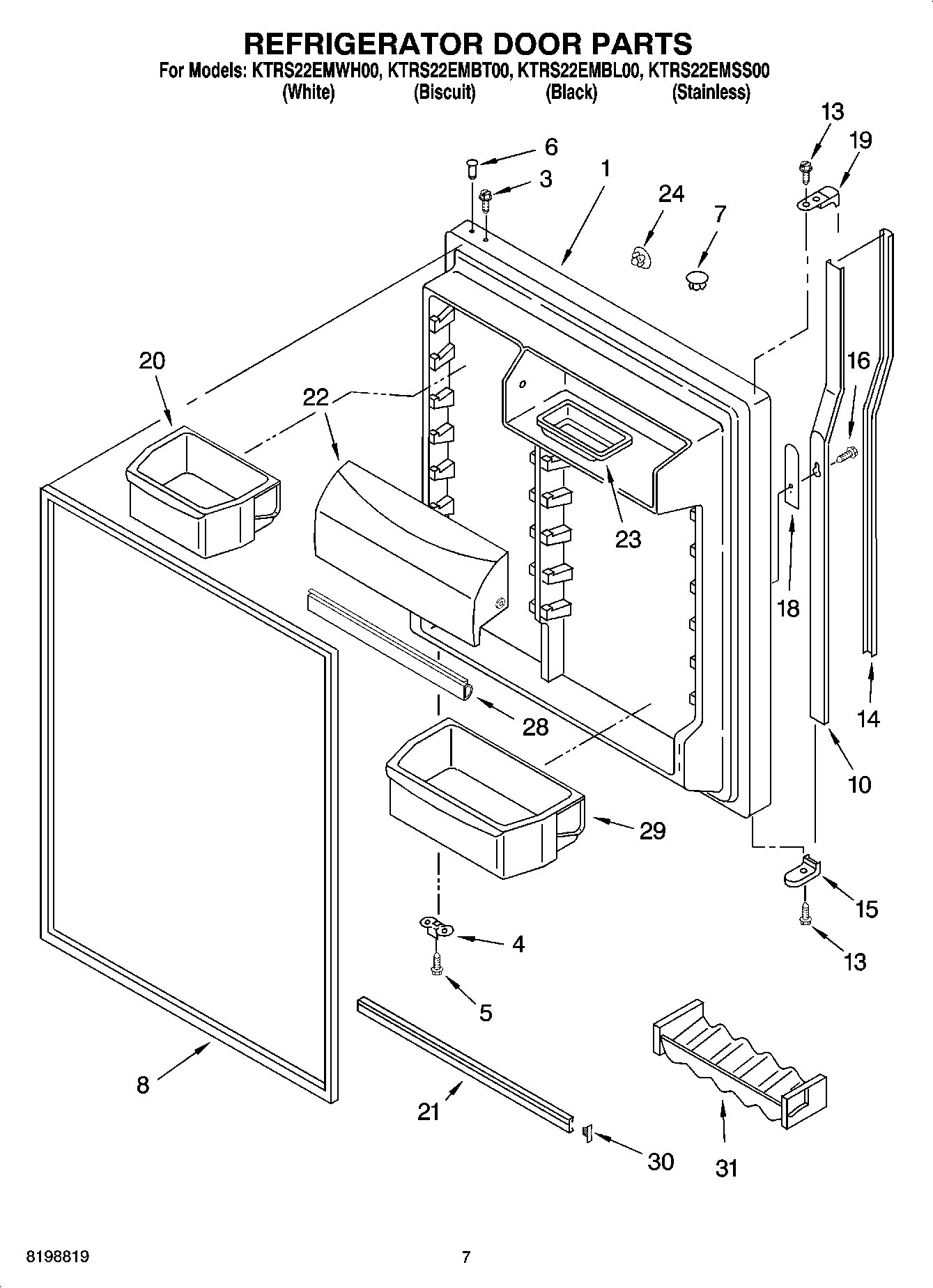

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $107.38

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $97.38

9

Crisper Cover (Includes Rollers) WPL 2210578 Contact Us For Availability

9

Damper, Air (Slide) WPL 2212413 Contact Us For Availability

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

11

Glass, Crisper Cover WPL 2210571 Contact Us For Availability

Endcap (White) WPL 2195994W Contact Us For Availability

End Cap (Black) WPL 2195994B Contact Us For Availability

Endcap (Biscuit) WPL 2195994T Contact Us For Availability

Control Box WPL 2218670 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

13

Thermostat Assembly (Includes Item 5) WPL 2204984 Contact Us For Availability

14

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Endcap (White) WPL 2195995W Contact Us For Availability

End Cap (Black) WPL 2195995B Contact Us For Availability

Endcap (Biscuit) WPL 2195995T Contact Us For Availability

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $101.31

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability

Cover, Evaporator WPL 2254262 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

Trim, Door WPL 2159292 Contact Us For Availability

Shelf, Freezer WPL 2184667 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Clip, Heater WPL 2182338 Contact Us For Availability

Pan, Crisper (Includes Rollers) WPL 2188816 Contact Us For Availability

Insert, Handle (Black) WPL 2195992B Contact Us For Availability

Insert, Handle (Biscuit) WPL 2195992T Contact Us For Availability

Insert, Handle (White) WPL 2195992W Contact Us For Availability

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

20

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

20

Pan, Meat (Includes Rollers) WPL 2188818 Contact Us For Availability

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

Insert, Handle (Black) WPL 2188154 Contact Us For Availability

Insert, Handle (White) WPL 2195984 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

22

Support Block WPL 2201185 Contact Us For Availability

22

Knob, Thermostat WPL 2205094 Contact Us For Availability

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $54.06

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

Retainer, Freezer Floor WPL 2225473 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

26

Window, Crisper WPL 2188718 Contact Us For Availability

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $27.52

28

Window, Meat Pan WPL 2188720 Contact Us For Availability

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

29

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Screw WPL 489439 Contact Us For Availability

Cover, Light Lens WPL 2213495 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

31

Insulation, Water Tube WPL 2301622 Contact Us For Availability

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

32

Slide, Humidity WPL 2174257 Contact Us For Availability

32

Knob, Damper WPL 2204951 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Shield, heat WPL 2204639 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

36

Grille (White) WPL 2301618W Contact Us For Availability

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

37

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

37

Control, Freezer WPL 2204991 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Gasket, Front WPL 2174396 Contact Us For Availability

39

Housing Base WPL 2201153 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $6.28

44

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $30.25

46

Tube, Water WPL 2301621 Contact Us For Availability

47

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225476 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

54

Cover, Tubing WPL 2225531 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI112530A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI112531A Contact Us For Availability

60

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

61

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

62

WPL 2214976 WPL 2214976 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
