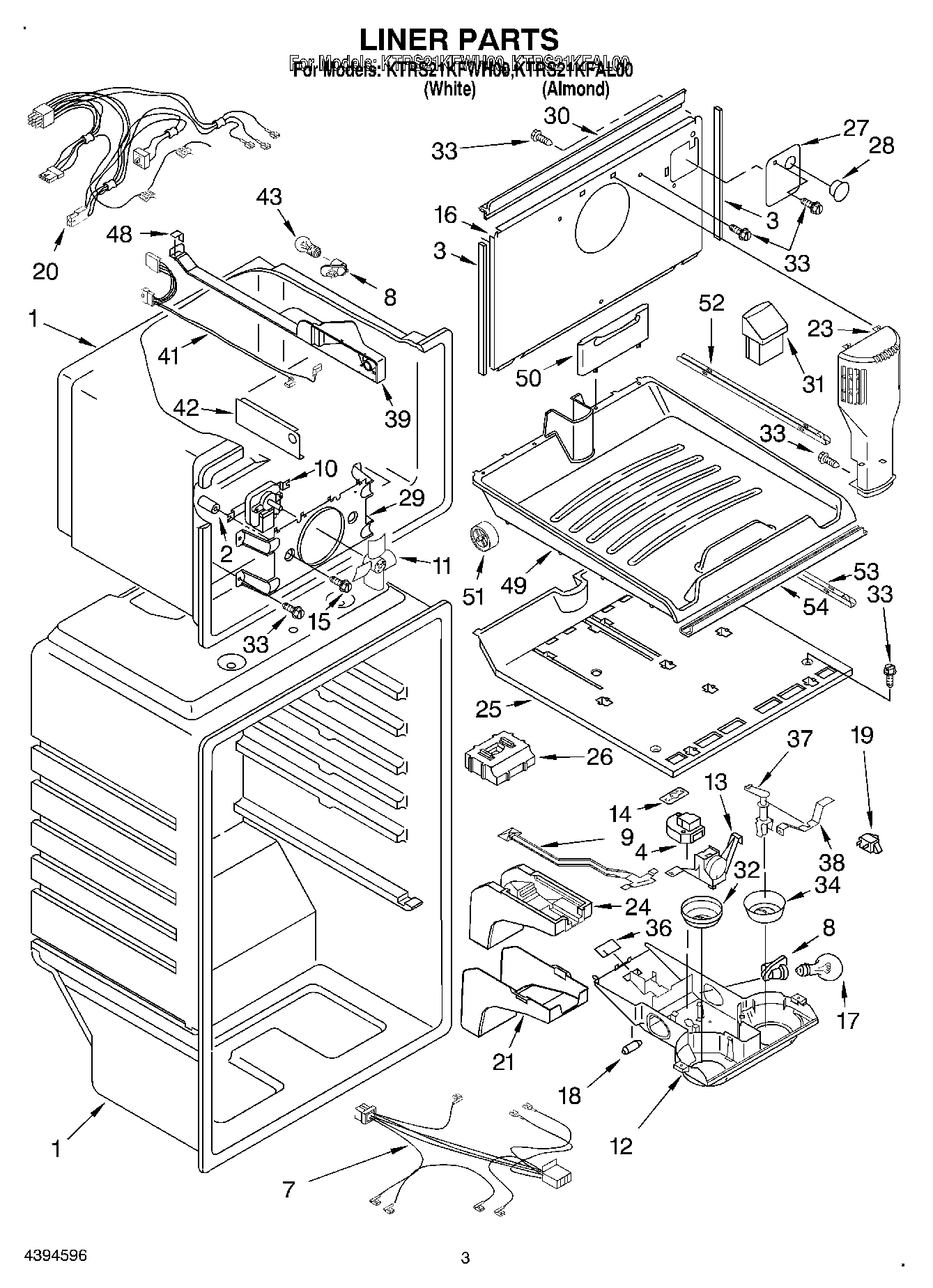

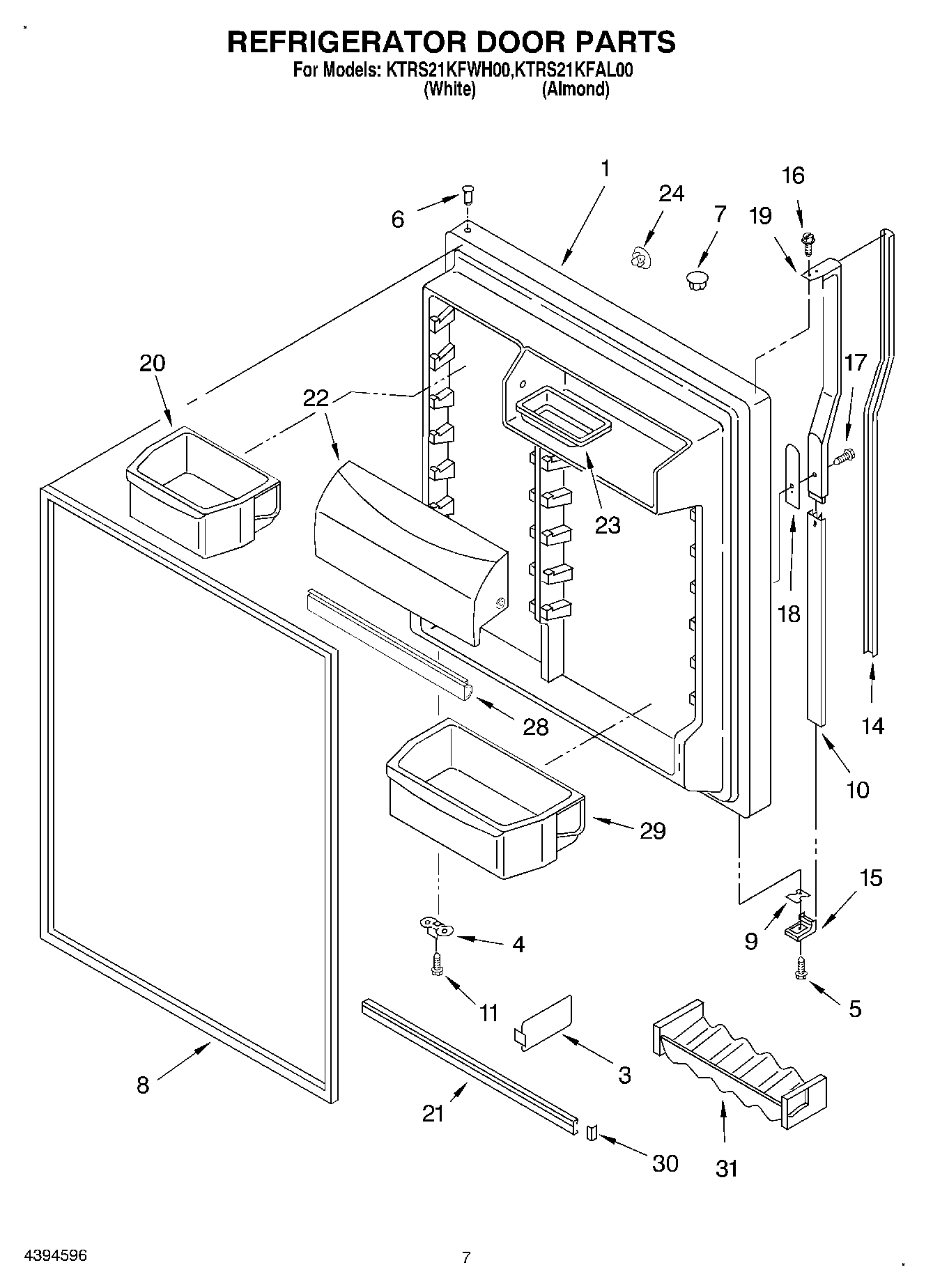

Model Whirlpool KTRS21KFAL00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Door Reversal Instructions WPL 2179846 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINU WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Use & Care Guide WPL LIT2195462 Contact Us For Availability

Service & Wiring Sheet WPL LIT2195481 Contact Us For Availability

Energy Label WPL LIT2195600 Contact Us For Availability

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

W11023679 Whirlpool Refrigerator Door Assembl Backorder WPL W11023679 $471.91

1

Freezer Door (Includes No.8) (Almond) WPL 2184400 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI112084A Contact Us For Availability

1

Shelf, Ladder (2) WPL 2163756 Contact Us For Availability

1

Plate, Unit Mounting WPL 2195272 Contact Us For Availability

2

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $39.86

2

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

2

Shelf, Ladder Center WPL 2163826 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

Condenser WPL 2195400 Contact Us For Availability

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $63.70

5

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

Screw WPL 489459 Contact Us For Availability

6

Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Drain Pan WPL 2172620 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $98.99

8

Roller & Tread Assembly WPL 2174388 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

Screw WPL 489462 Contact Us For Availability

9

Crisper Cover (Includes Rollers) WPL 2174128 Contact Us For Availability

10

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

Glass, Crisper Cover WPL 2174141 Contact Us For Availability

Screw WPL 2174650 Contact Us For Availability

Clamp (Production Only) WPL 943322 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

Cover (Service Only) WPL 1105055 Contact Us For Availability

2183409 Whirlpool Refrigerator Overload Backorder WPL 2183409 $45.71

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $35.14

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

Spacer, Handle WPL 1107628 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

14

Shim, Handle WPL 2151813 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

15

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability

Screw WPL 489473 Contact Us For Availability

4388239 Whirlpool Refrigerator Primary Cabine Backorder WPL 4388239 $41.28

Trim, Door Shelf (2) WPL 2171265 Contact Us For Availability

Shim, Hinge Center WPL 2183853 Contact Us For Availability

Shelf, Freezer WPL 2184667 Contact Us For Availability

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Nameplate (White Model) WPL 2168800 Contact Us For Availability

Nameplate (Almond Model) WPL 2168991 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Clip, Heater WPL 2182338 Contact Us For Availability

Handle WPL 2168901 Contact Us For Availability

Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

20

Pan, Meat (Includes Rollers) WPL 2175448 Contact Us For Availability

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $41.74

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Insert, Handle (White) WPL 2168898 Contact Us For Availability

Insert, Handle (Almond) WPL 2168899 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

Nut (Not Serviced) WPL ARI112088A Contact Us For Availability

22

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $153.80

22

Support Block WPL 2189906 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

23

Tray, Butter WPL 2165792 Contact Us For Availability

23

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability

Fitting, Water Tube (Not Serviced) WPL ARI112085A Contact Us For Availability

25

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

26

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

27

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

27

Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

Shelf, Ice Tray WPL 2172569 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

29

Bin, Door Shelf WPL 2171063 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

30

Screw WPL 489439 Contact Us For Availability

31

Beverage Holder WPL 2193409 Contact Us For Availability

31

Cover, Water Valve WPL 2166251 Contact Us For Availability

31

Relay (Not Serviced) WPL ARI112089A Contact Us For Availability

32

Slide, Humidity WPL 2174257 Contact Us For Availability

32

Capacitor (Service) WPL 2169137 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability

36

Grille (White) WPL 2189154 Contact Us For Availability

36

Grille (Almond) WPL 2189155 Contact Us For Availability

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

38

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

39

Gasket, Front WPL 2174396 Contact Us For Availability

39

Air Baffle WPL 2195677 Contact Us For Availability

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

Rail Center (Not Serviced) WPL ARI112086A Contact Us For Availability

Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability

Window, Meat Pan WPL 2175445 Contact Us For Availability

Wire Assy. Unit WPL 2189997 Contact Us For Availability

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2189060 Contact Us For Availability

45

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

46

Tube, Discharge WPL 2184451 Contact Us For Availability

47

Tube, Suction WPL 2182475 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

51

Featurepak (Includes 4, 6, 16, 20, 41, 42 & 4 WPL 2182582 Contact Us For Availability

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Evap. Tray WPL 2176276 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
