Model Whirlpool KTRS20KHBL00 REFRIGERATOR – Common Parts & Diagrams

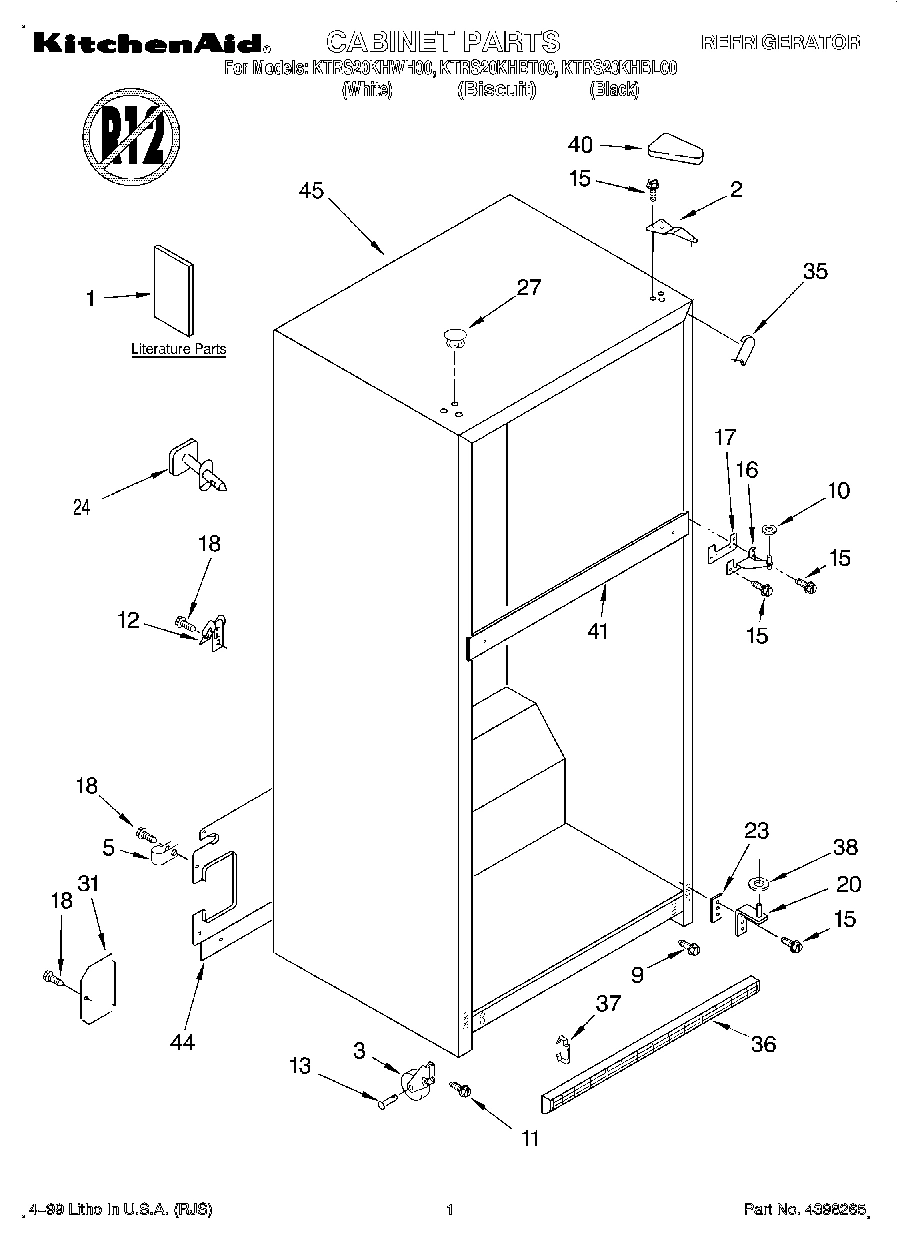

01 - CABINET, LITERATURE

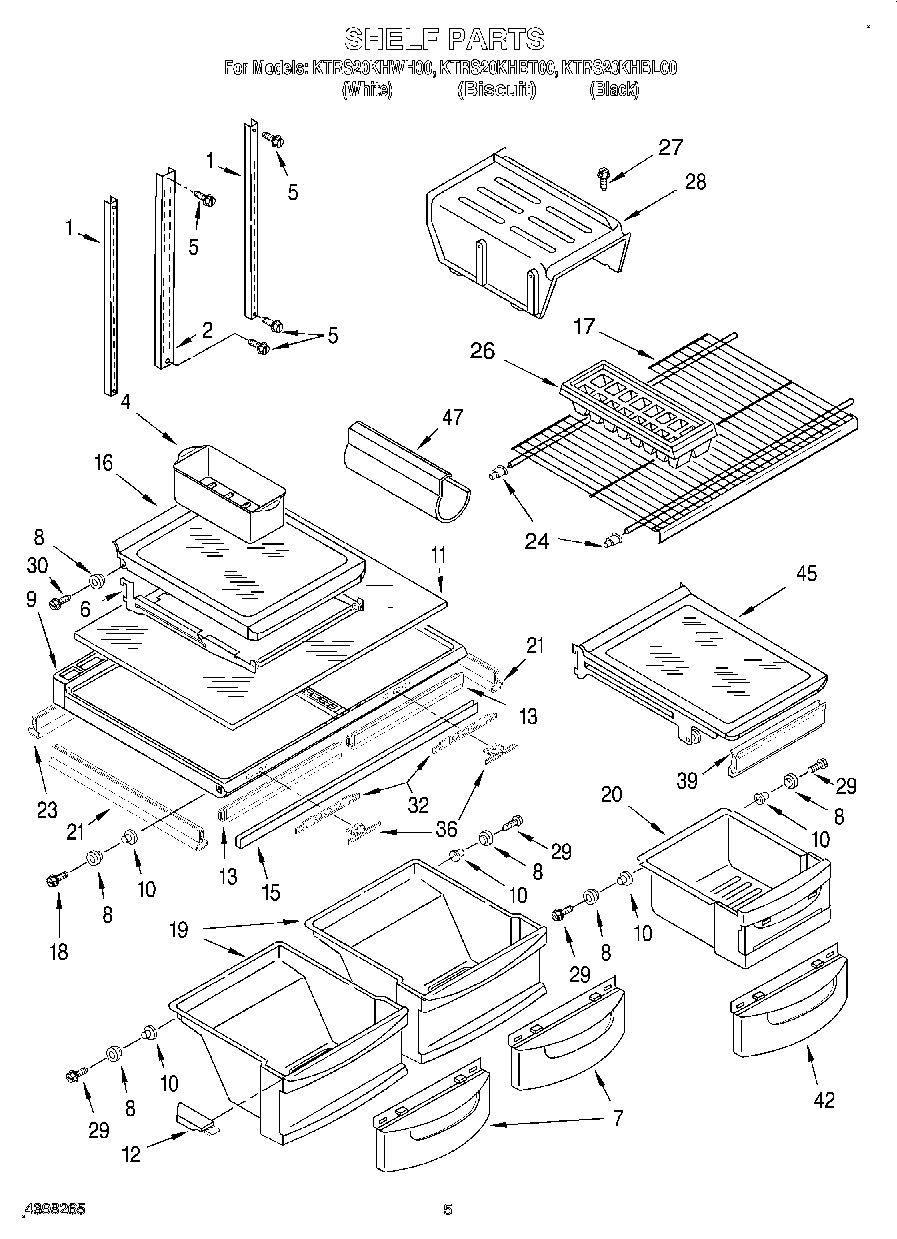

03 - SHELF

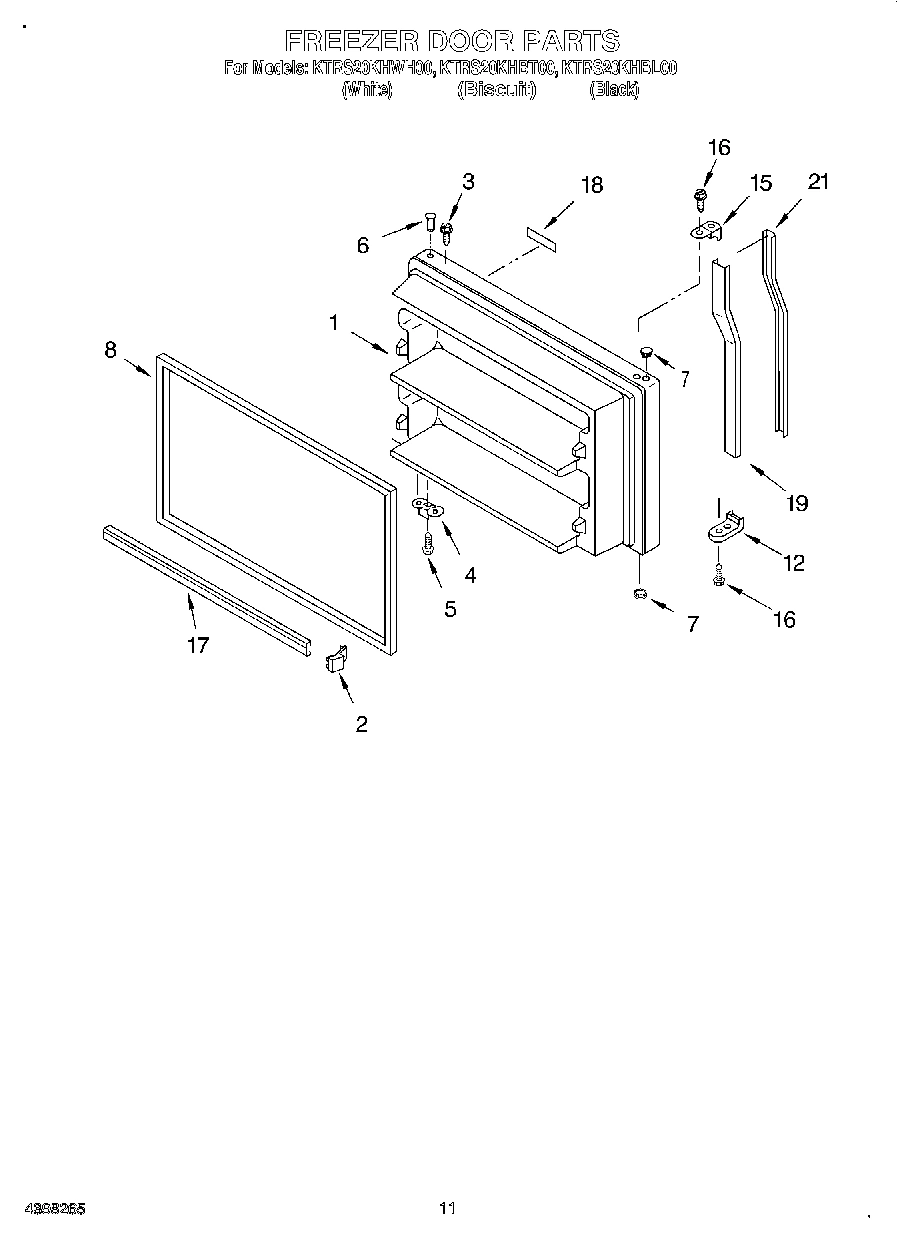

06 - FREEZER DOOR, OPTIONAL

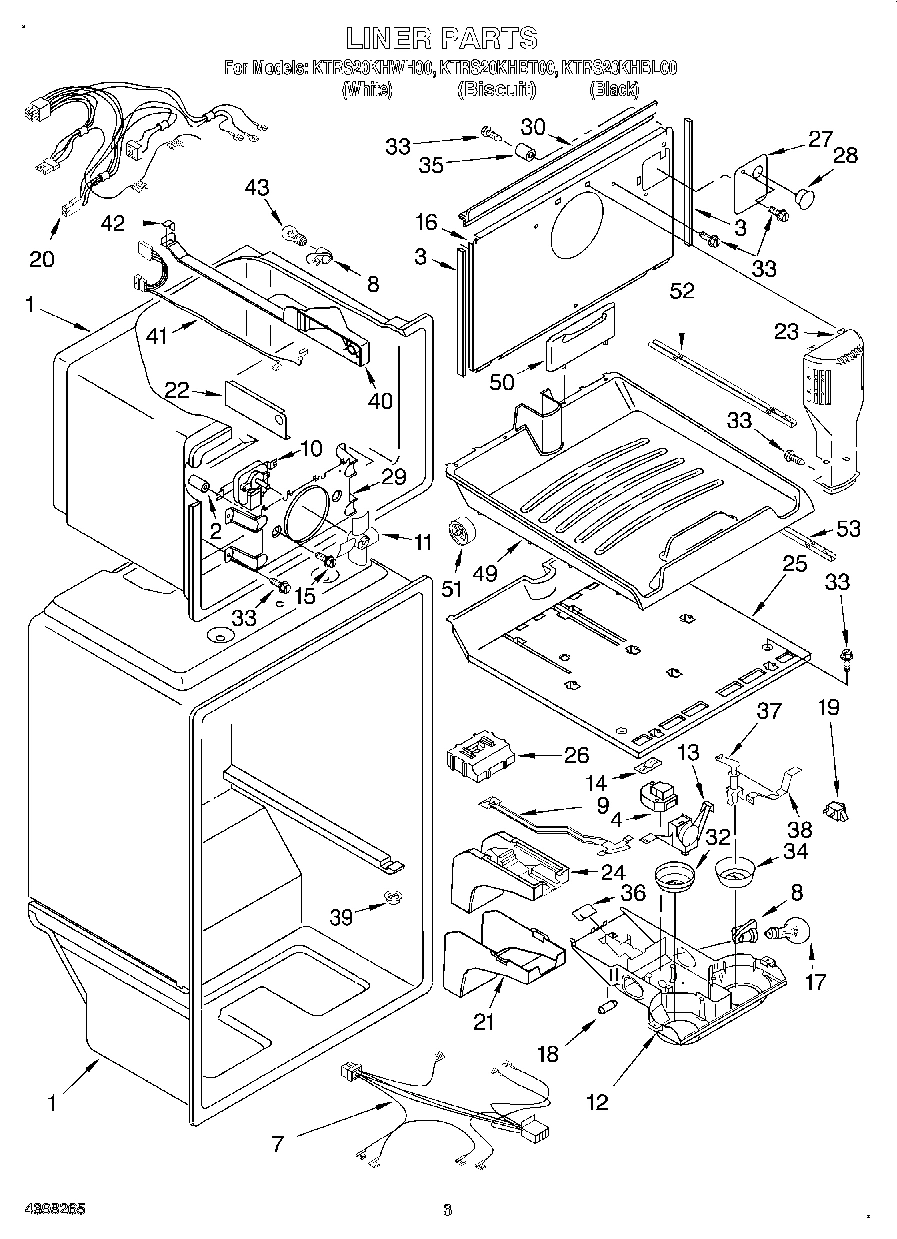

02 - LINER

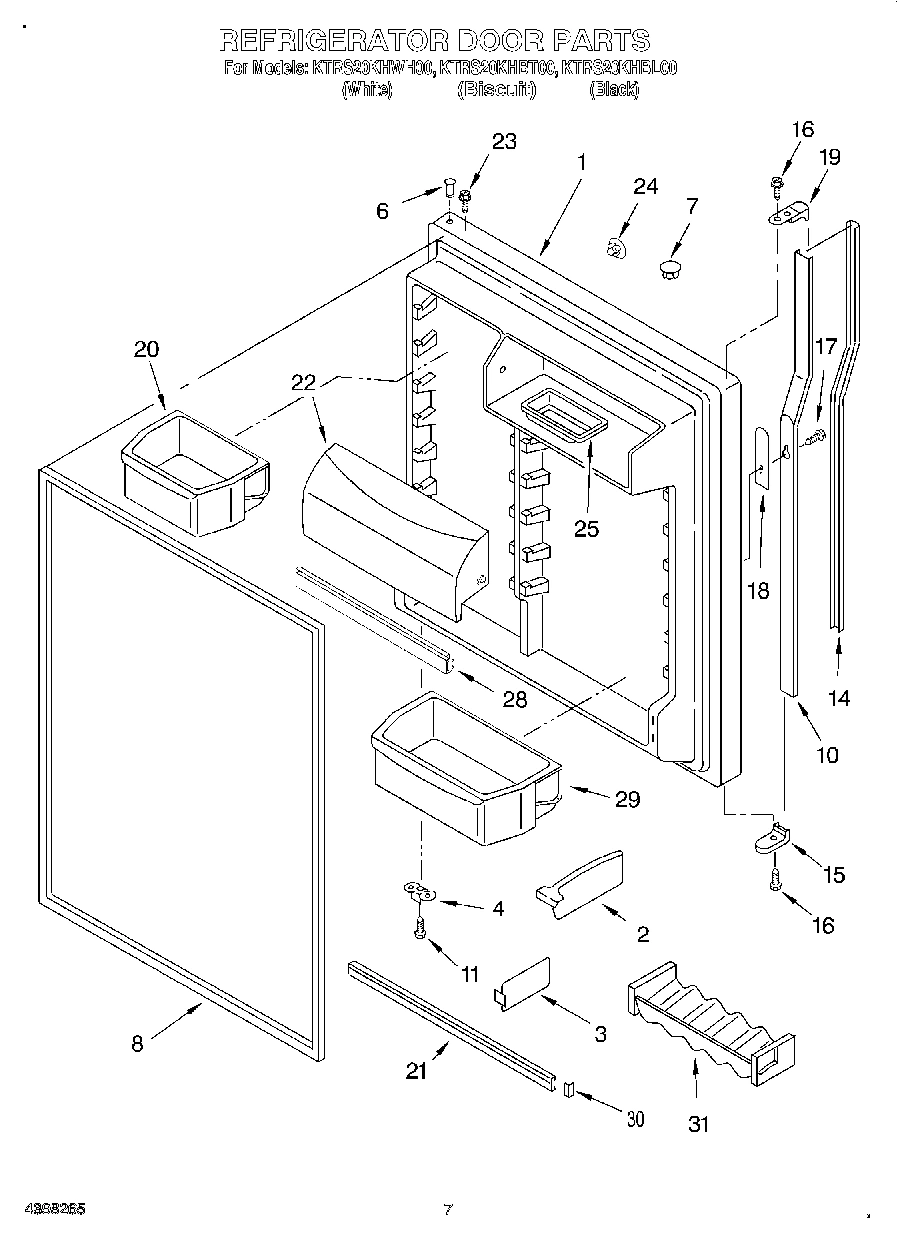

04 - REFRIGERATOR DOOR
05 - UNIT
Common parts from model Whirlpool KTRS20KHBL00 REFRIGERATOR
1
Liner (Not A Serviceable Part) WPL ARI111905A Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2183935 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Black) WPL 2200713 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Biscuit) WPL 2204687 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188167 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Divider, Door Shelf WPL 1123293 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air (Slide) WPL 2179858 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2200546 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2188222B Contact Us For Availability
10
Retainer, Insert (Biscuit) WPL 2188222T Contact Us For Availability
10
Retainer, Insert (White) WPL 2188222W Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
12
Endcap, Handle (White) WPL 2195995W Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200830 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Insert, Handle (Black) WPL 2188155 Contact Us For Availability
14
Insert, Handle (White) WPL 2195986 Contact Us For Availability
14
Insert, Handle (Biscuit) WPL 2200932 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Endcap, Handle (Black) WPL 2188132 Contact Us For Availability
15
Endcap, Handle (White) WPL 2195990 Contact Us For Availability
15
Endcap, Handle (Biscuit) WPL 2200930 Contact Us For Availability
15
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Screw WPL 3400873 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
18
Spacer, Handle WPL 2188146 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
End Cap (Black) WPL 2195995B Contact Us For Availability
19
Endcap (Biscuit) WPL 2195995T Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171066 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (Black) WPL 2188154 Contact Us For Availability
21
Insert, Handle (White) WPL 2195984 Contact Us For Availability
21
Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111906A Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Torx Key WPL 1117510 Contact Us For Availability
22
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
22
WPL 542639 WPL 542639 Contact Us For Availability
22
WPL 799340 WPL 799340 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
22
Electric Shield, Freezer Light WPL 2193491 Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
25
Tray, Butter WPL 2165792 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200511 Contact Us For Availability
29
Bin, Door Shelf WPL 2171063 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
31
Relay (Production (Service - See Overload)) WPL 2176805 Contact Us For Availability
32
Featurepak (Includes 3, 20, 21, 22, 28, 29, 3 WPL 2204676 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Post, Damper WPL 2179859 Contact Us For Availability
38
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Housing, Freezer Light WPL 2184633 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability
42
Gasket, Rear WPL 2166284 Contact Us For Availability
42
Wire Assy. Unit WPL 2200798 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189449 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Side WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
