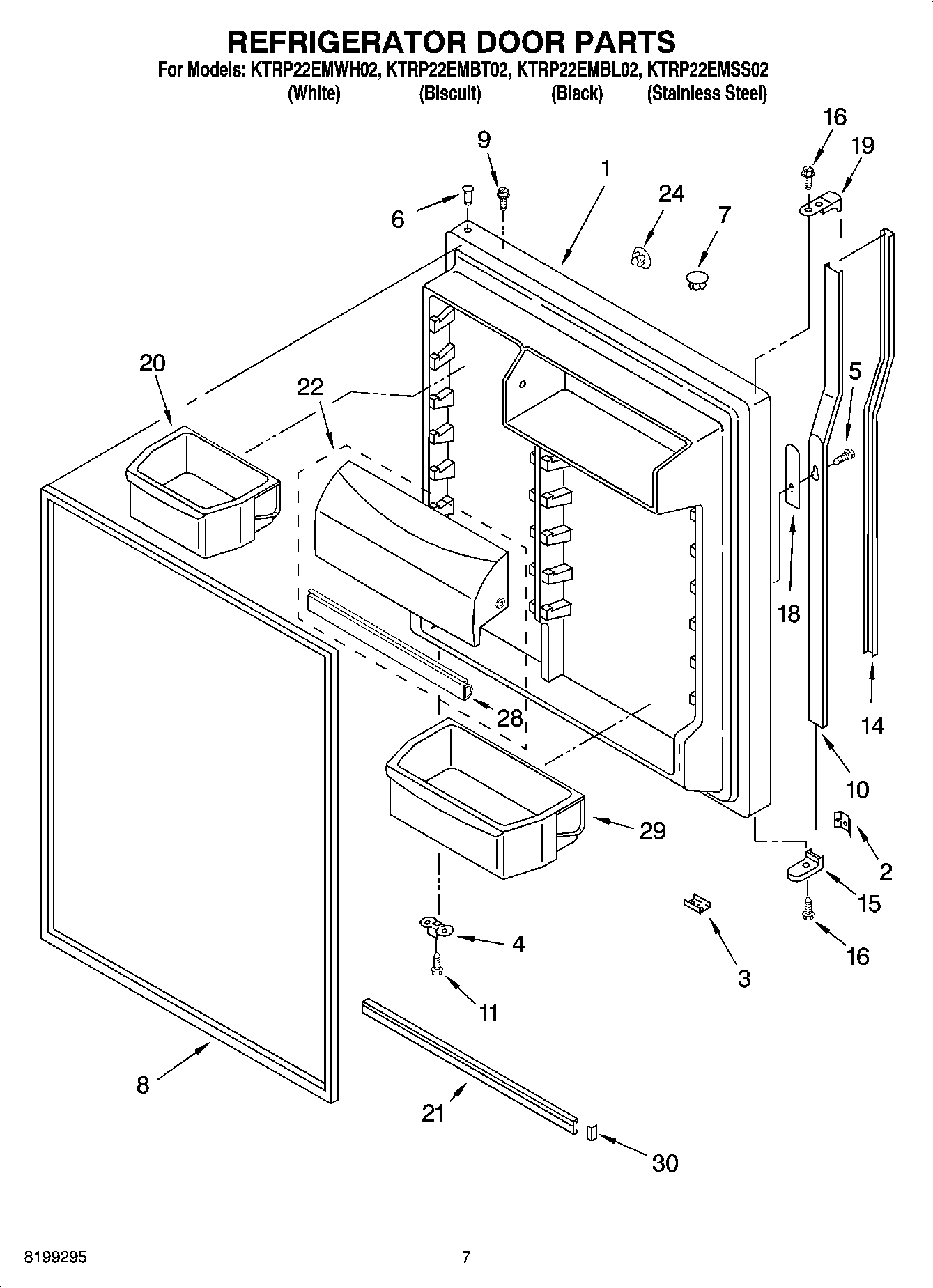

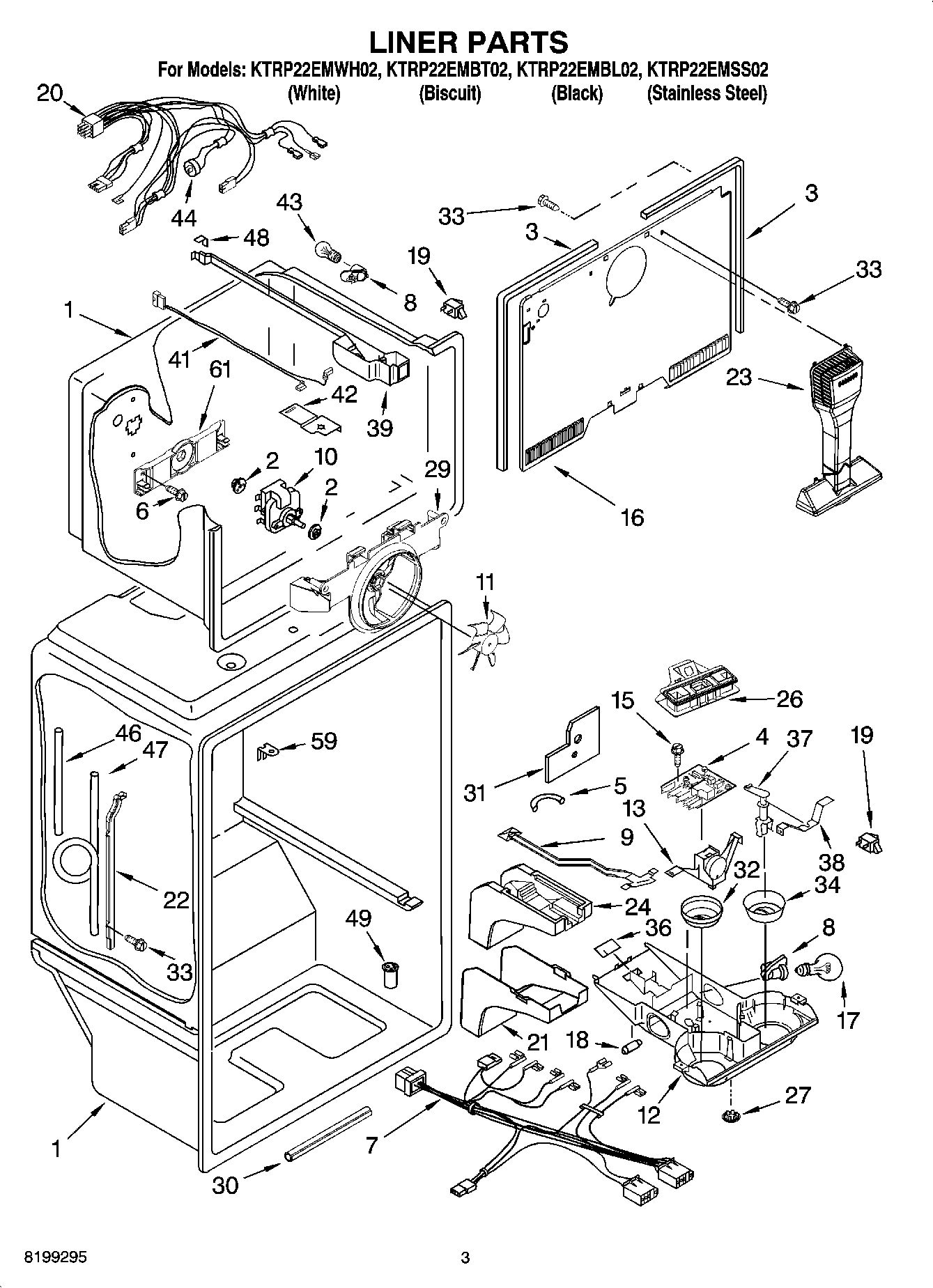

Model Whirlpool KTRP22EMWH02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL ARI111356A WPL ARI111356A Contact Us For Availability

WPL ARI111357A WPL ARI111357A Contact Us For Availability

WPL ARI111358A WPL ARI111358A Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Freezer Door (Includes Illus. 6,9 & 8) (White WPL 2183862 Contact Us For Availability

1

Freezer Door (Includes Illus. 6,9 & 8) (Black WPL 2200621 Contact Us For Availability

1

Freezer Door (Includes Illus. 6,9 & 8) (Biscu WPL 2200928 Contact Us For Availability

1

Freezer Door (Includes Illus. 6,9 & 8) (Stain WPL 2218678 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225596 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

2

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

2

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

2

Button, Dispenser WPL 2210567 Contact Us For Availability

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

3

Deflector, Air (Crisper Pan) WPL 2254458 Contact Us For Availability

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $56.15

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Wire Assembly WPL 2187291 Contact Us For Availability

5

Evaporator Assy. WPL 2221761 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WPW10171469 Whirlpool Refrigerator Screw In Stock WPL WPW10171469 $4.58

6

Frame Assembly, Cantilever WPL 2225698 Contact Us For Availability

7

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $92.74

9

WP2314549 Whirlpool Refrigerator Cover In Stock WPL WP2314549 $103.84

9

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

9

Tap Plate WPL 2183000 Contact Us For Availability

10

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $120.79

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

Endcap, Short (White) WPL 2195994W Contact Us For Availability

Endcap, Short (Black) WPL 2195994B Contact Us For Availability

Endcap, Short (Biscuit) WPL 2195994T Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $50.58

13

Thermostat Assembly (Includes Items 5 & 18) WPL 2210491 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Endcap, Long (White) WPL 2195995W Contact Us For Availability

Endcap, Long (Black) WPL 2195995B Contact Us For Availability

Endcap, Long (Biscuit) WPL 2195995T Contact Us For Availability

16

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $96.47

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

16

WP999520 Whirlpool Refrigerator Glass Shelf Backorder WPL WP999520 $127.04

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

Shelf, Freezer WPL 2184667 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

Clip, Heater WPL 2182338 Contact Us For Availability

Insert, Retainer (Black) WPL 2195992B Contact Us For Availability

Insert, Retainer (Biscuit) WPL 2195992T Contact Us For Availability

Insert, Retainer (White) WPL 2195992W Contact Us For Availability

20

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

20

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $102.95

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Insert, Handle (Black) WPL 2188154 Contact Us For Availability

Insert, Handle (White) WPL 2195984 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability

Nut (Not Serviced) WPL ARI111351A Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Support Block WPL 2201185 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

26

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

29

Bin, Door Shelf WPL 2171062 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

36

Grille (Includes Illus. 37) (White) WPL 2301618W Contact Us For Availability

37

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

37

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

Housing Base WPL 2300418 Contact Us For Availability

39

Air Baffle WPL 2302249 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

41

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

42

2187916 Whirlpool Refrigerator Wire Harness Backorder WPL 2187916 $86.77

42

Trim, Meat Pan WPL 2176357 Contact Us For Availability

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

45

Shelf Assembly, Spillguard WPL 2205162 Contact Us For Availability

46

Tube, Water WPL 2301621 Contact Us For Availability

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

57

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI111352A Contact Us For Availability

REFRIGERANT CHARGE 4.00 Ozs. (R134A) WPL ARI111353A Contact Us For Availability

61

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
