Model Whirlpool KTRP19KGWH01 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF
05 - UNIT

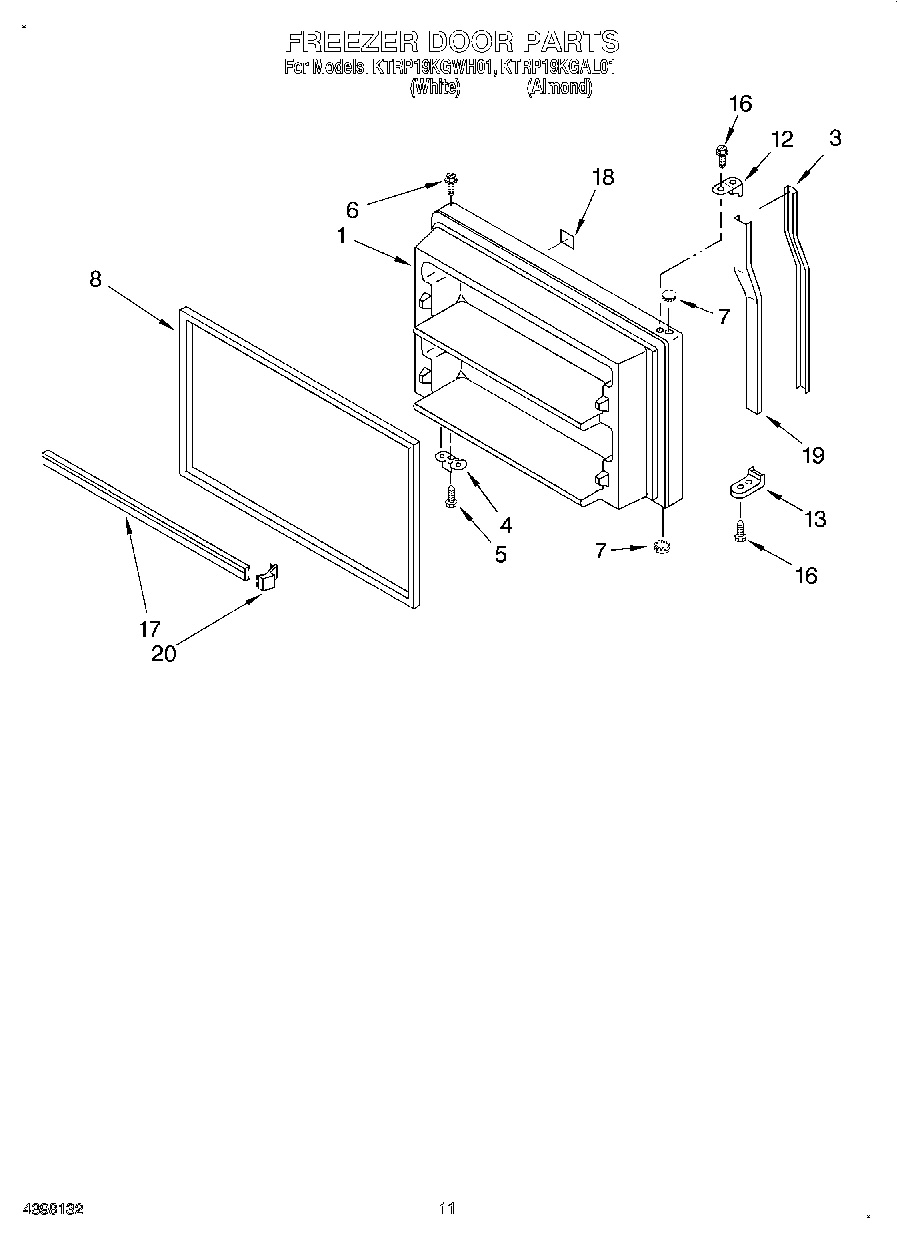

06 - FREEZER DOOR, LIT/OPTIONAL

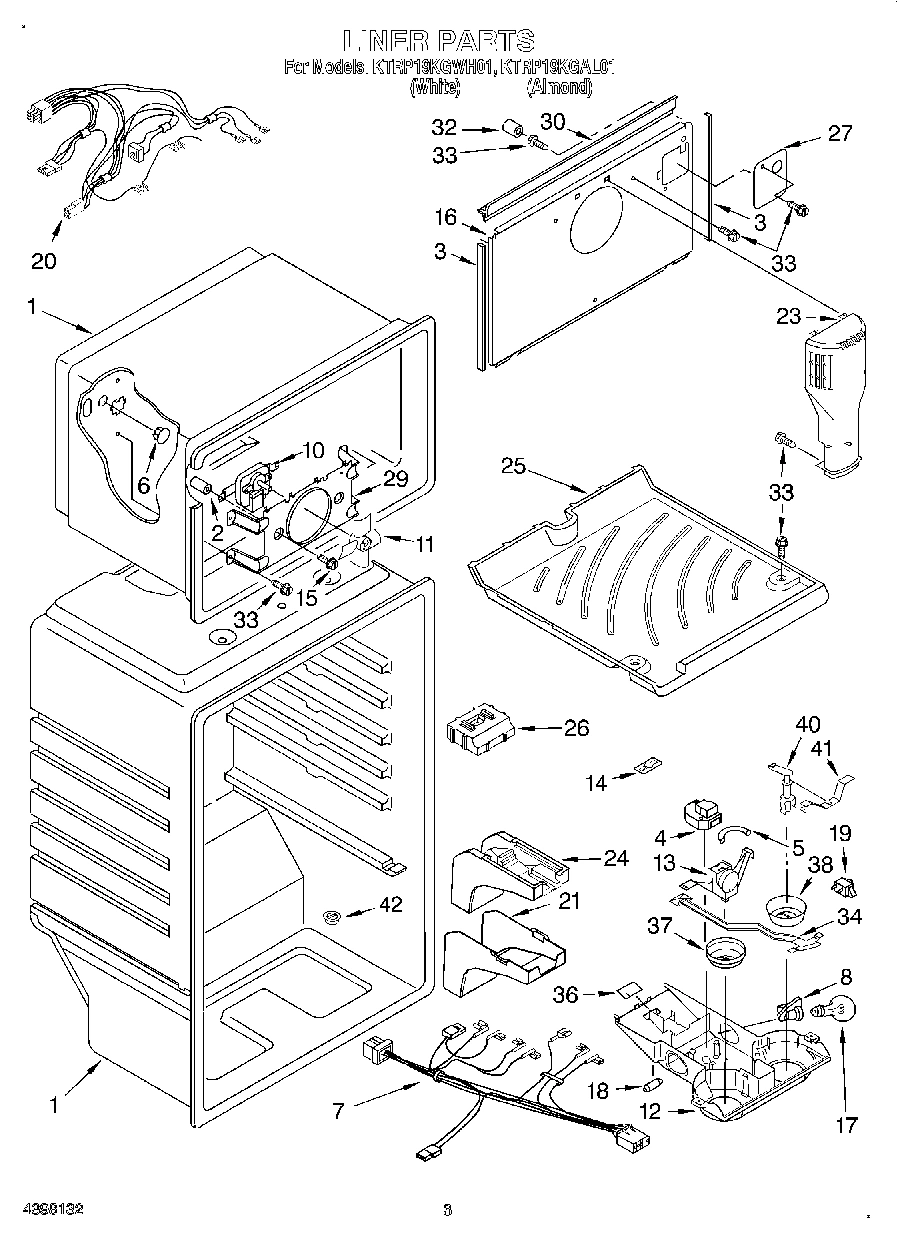

02 - LINER

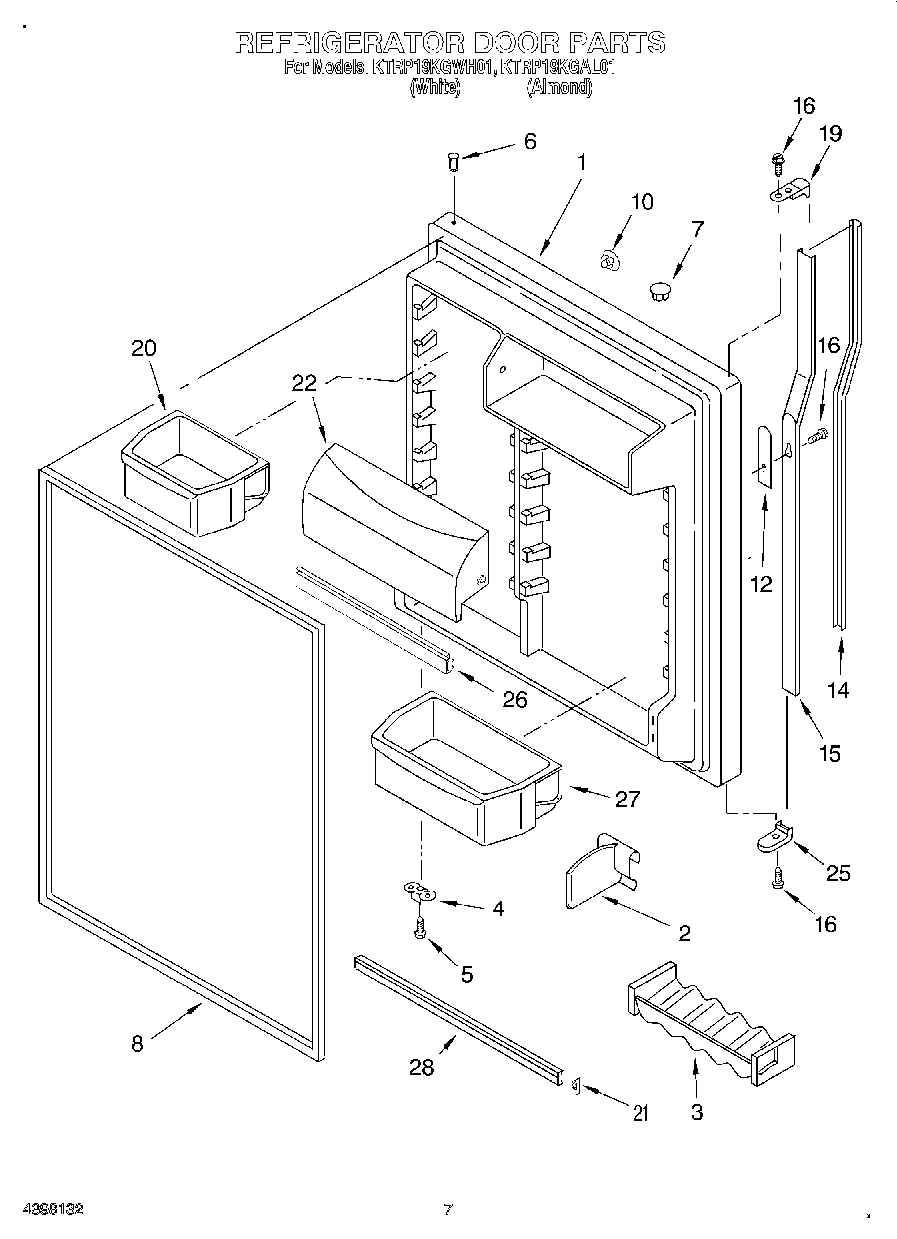

04 - REFRIGERATOR DOOR

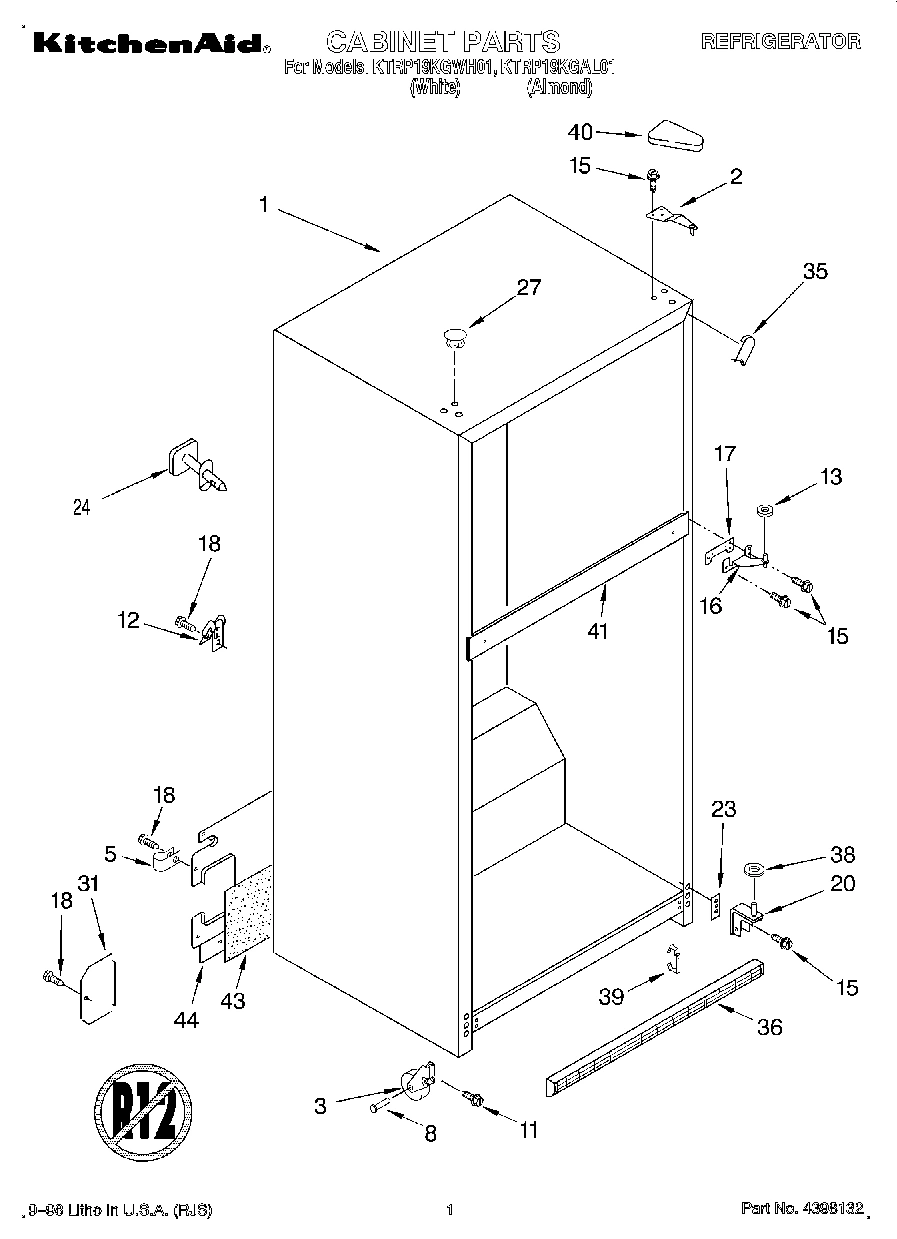

01 - CABINET
Common parts from model Whirlpool KTRP19KGWH01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2199061 WPL LIT2199061 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2183860 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Almond) WPL 2183861 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI110828A Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2183866 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Alm WPL 2183867 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI110825A Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Divider, Door Bin WPL 1123293 Contact Us For Availability
3
Insert, Handle (White) WPL 2195984 Contact Us For Availability
3
Insert, Handle (Almond) WPL 2195985 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
4
Timer, Defrost WPL 2199008 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
10
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Endcap (White) WPL 2195994W Contact Us For Availability
12
Endcap (Almond) WPL 2195994N Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
12
Spacer, Door Handle WPL 2188146 Contact Us For Availability
13
Endcap (White) WPL 2195995W Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200830 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Insert, Handle (White) WPL 2195986 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2195987 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Retainer, Insert (Almond) WPL 2195993N Contact Us For Availability
15
Retainer, Insert (White) WPL 2195993W Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
17
Trim-Door (2) WPL 2195946 Contact Us For Availability
18
Nameplate (White) WPL 2188149 Contact Us For Availability
18
Nameplate (Almond) WPL 2188150 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap (Almond) WPL 2195995N Contact Us For Availability
19
Insert, Retainer (Almond) WPL 2195992N Contact Us For Availability
19
Insert, Retainer (White) WPL 2195992W Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI110826A Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
25
Endcap, Bottom (White) WPL 2195990 Contact Us For Availability
25
Endcap, Bottom (Almond) WPL 2195991 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
30
Support WPL 2189314 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Air Damper WPL 2179858 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (Almond) WPL 2201010 Contact Us For Availability
38
Knob, Damper WPL 2176297 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
40
Post, Damper WPL 2179859 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI110827A Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200777 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Door Reversal Instructions WPL 2180007 Contact Us For Availability
100
FeaturePak (Includes 2, 3, 13, 20, 21, 22, 26 WPL 2199044 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN WPL 799832 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
