Model Whirlpool KTRC18KDAL00 – Common Parts & Diagrams
02 - FREEZER DOOR
03 - SHELF

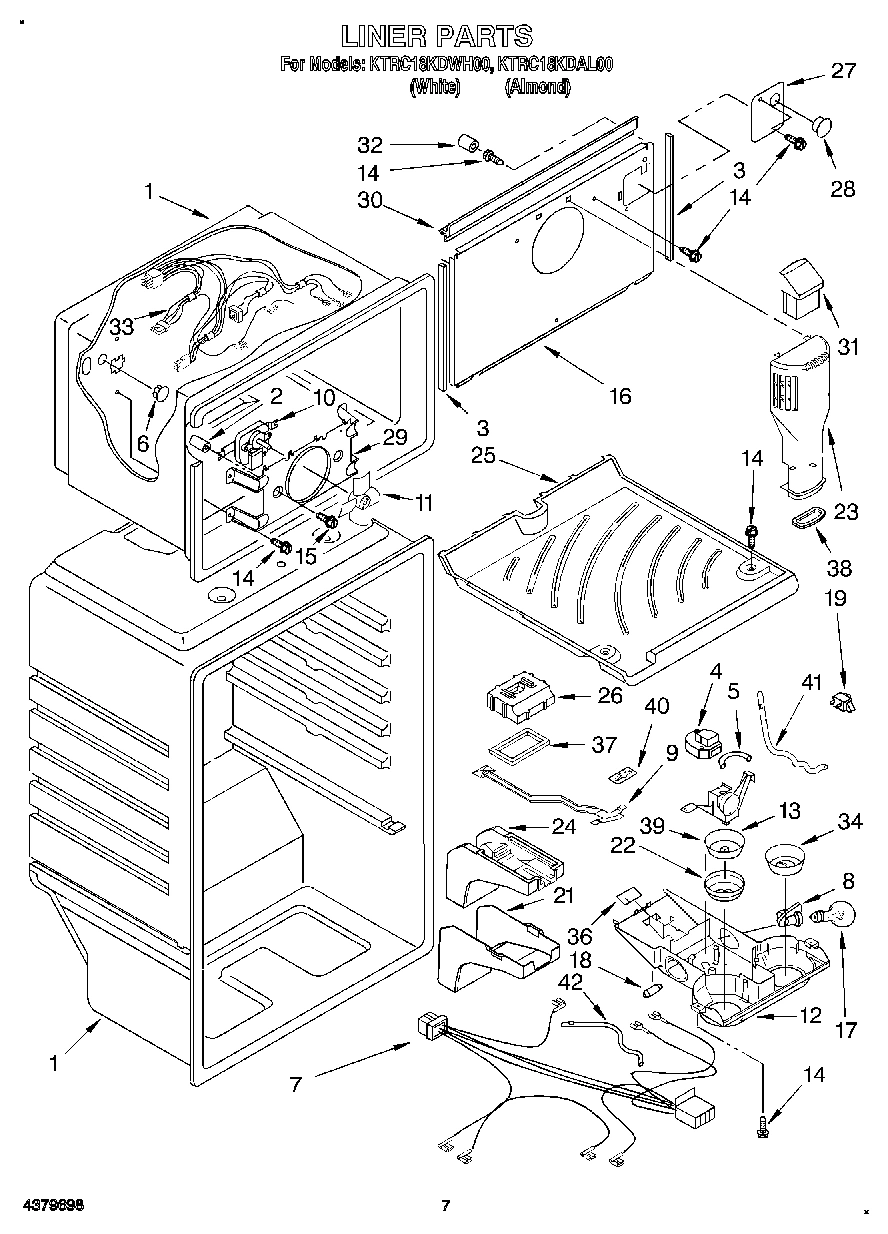

05 - LINER

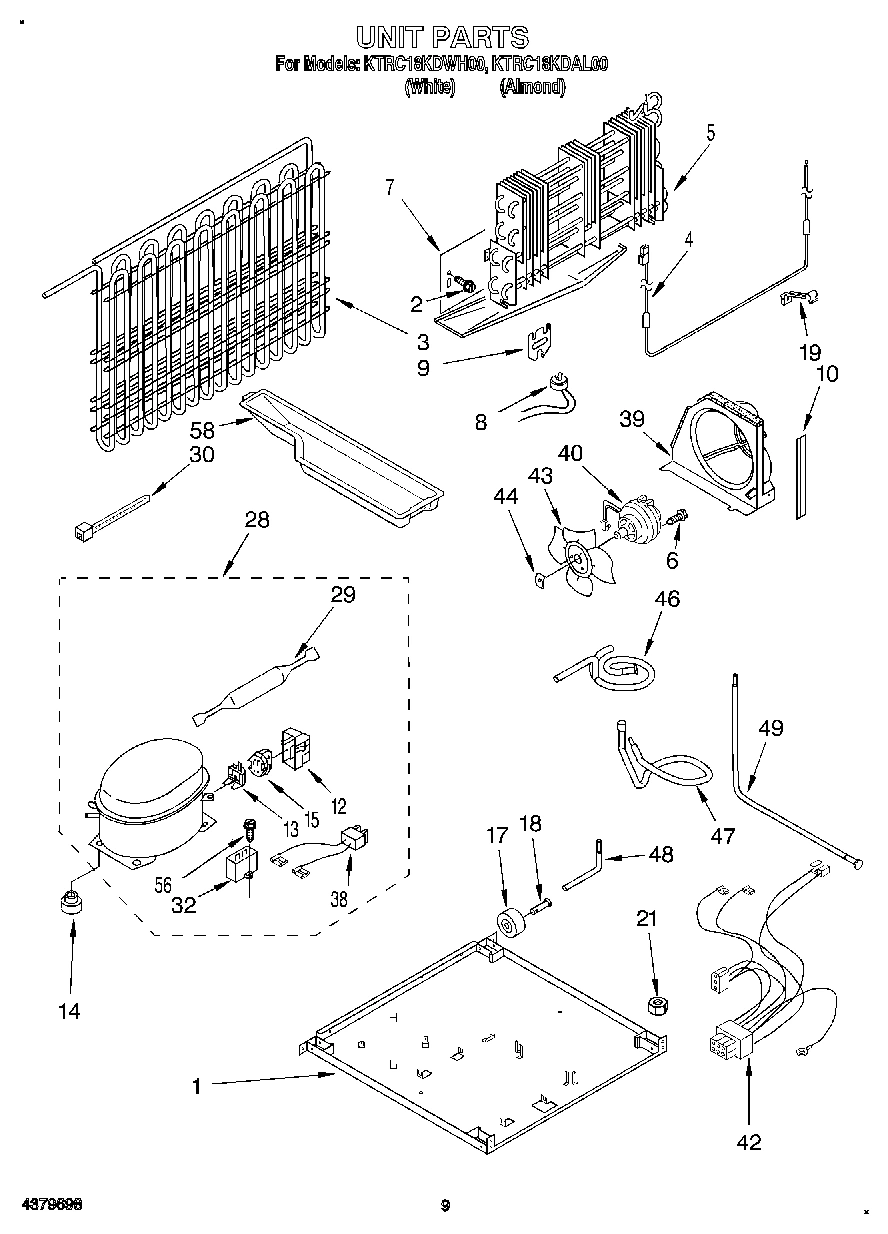

06 - UNIT, LIT/OPTIONAL

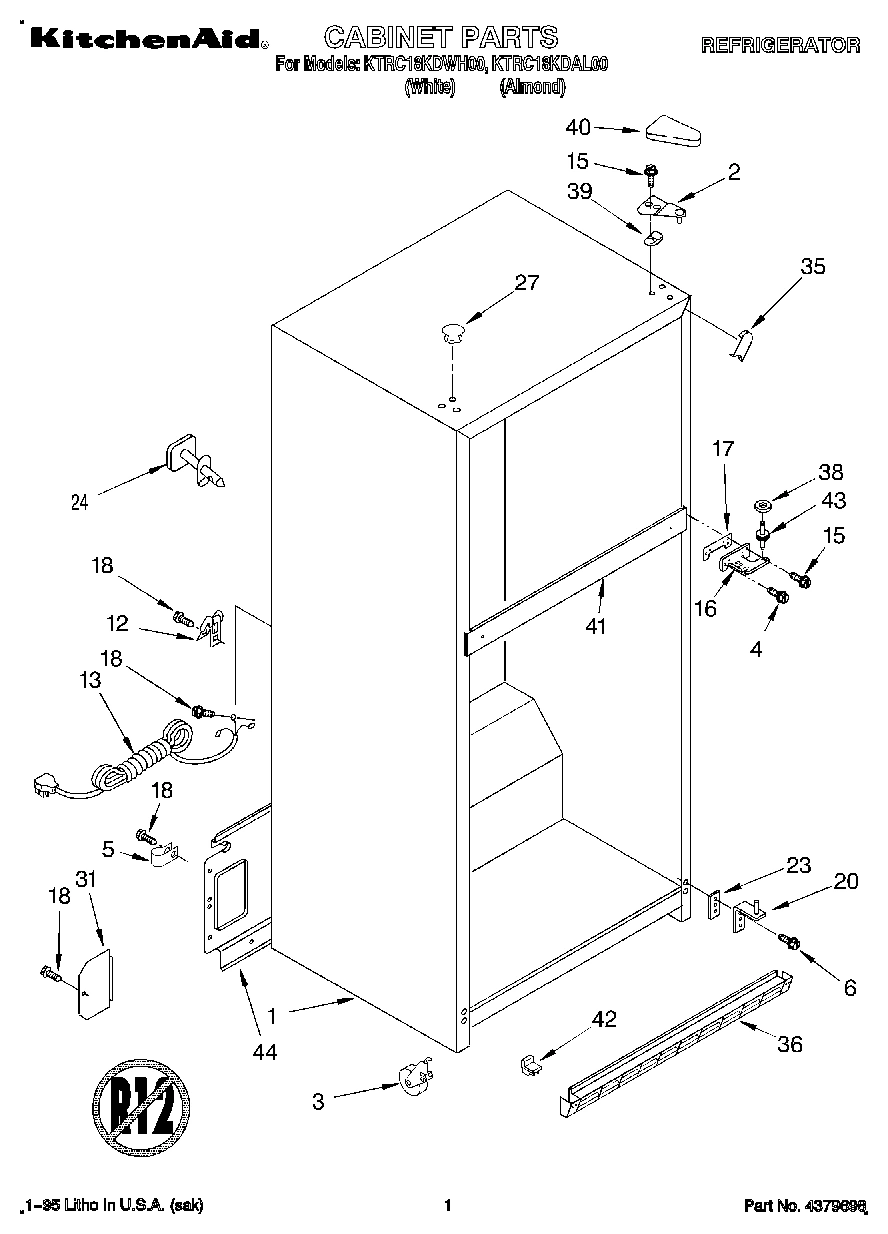

01 - CABINET

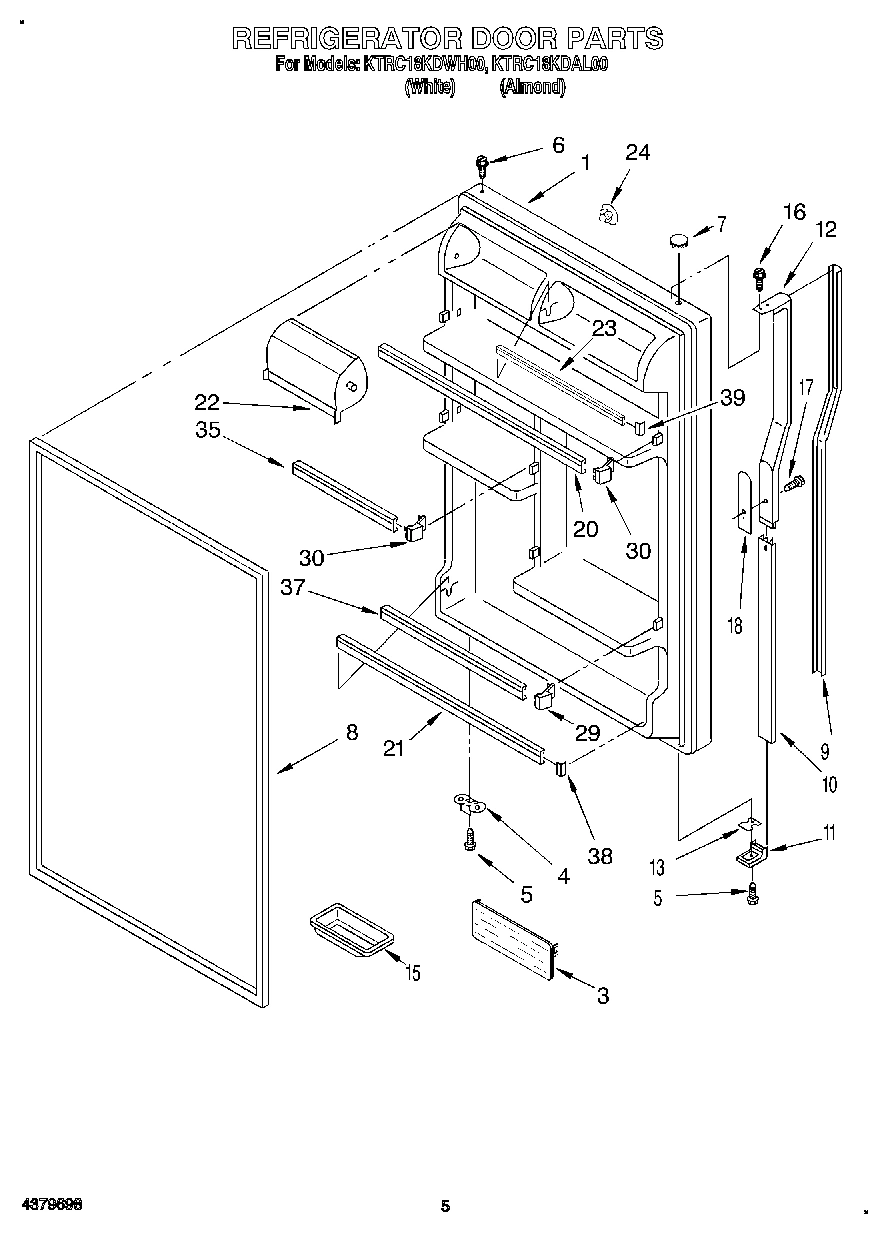

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRC18KDAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2168977 WPL LIT2168977 Contact Us For Availability
WPL LIT2169007 WPL LIT2169007 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2177807 WPL LIT2177807 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI109024A Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI109021A Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (W WPL 2171228 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (A WPL 2171229 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
6
Screw WPL 489457 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
9
Damper, Air WPL 2176268 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Insert, Handle (White) WPL 2168896 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Retainer, Insert WPL 2168900 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
12
Control Box WPL 2179798 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Relay (See Overload) WPL ARI109025A Contact Us For Availability
15
Butter, Tray WPL 1125936 Contact Us For Availability
16
Cover - Evaporator WPL 2163818 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Spacer, Door Handle WPL 1107650 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Trim, Door Shelf WPL 2168973 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI109026A Contact Us For Availability
21
Trim, Door Shelf WPL 2168975 Contact Us For Availability
22
Knob, Thermostat WPL 2174522 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI109022A Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Cover, Egg Bin WPL 2164374 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Shelf, Freezer WPL 2172569 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
30
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
34
Knob, Damper WPL 2174521 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Trim, Door Shelf WPL 2168968 Contact Us For Availability
36
Grille (White) WPL 2163889 Contact Us For Availability
36
Grille (Almond) WPL 2166133 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
37
Trim, Door Shelf WPL 2168974 Contact Us For Availability
38
Gasket, Air Tower WPL 2179839 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Light Bar, R.S. WPL 2174627 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI109023A Contact Us For Availability
42
Light Bar, L.S. WPL 2174628 Contact Us For Availability
42
Wire Assy. Unit WPL 2176279 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
46
Tube, Discharge WPL 2172660 Contact Us For Availability
47
Tube, Suction WPL 2172662 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2180007 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
