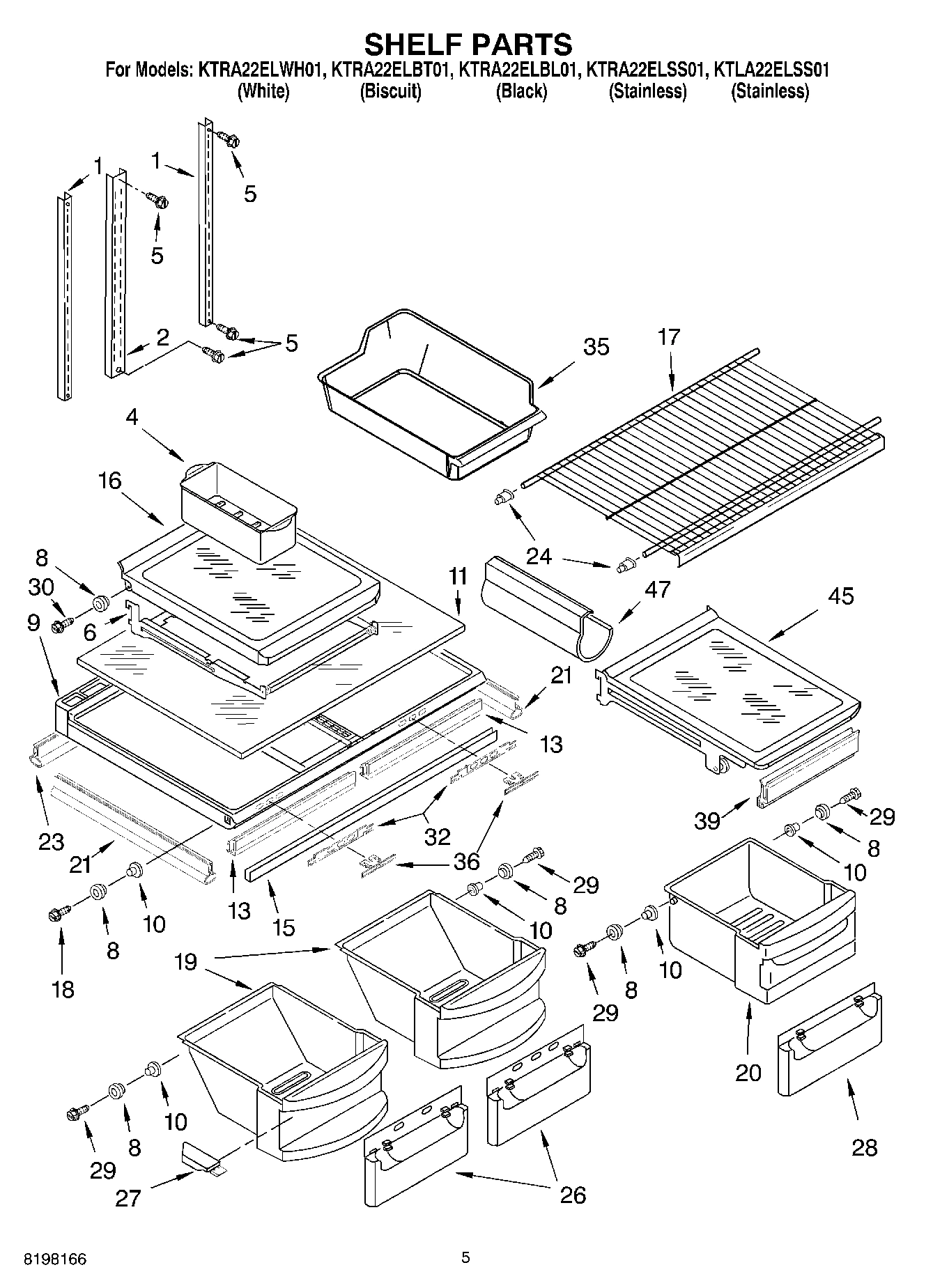

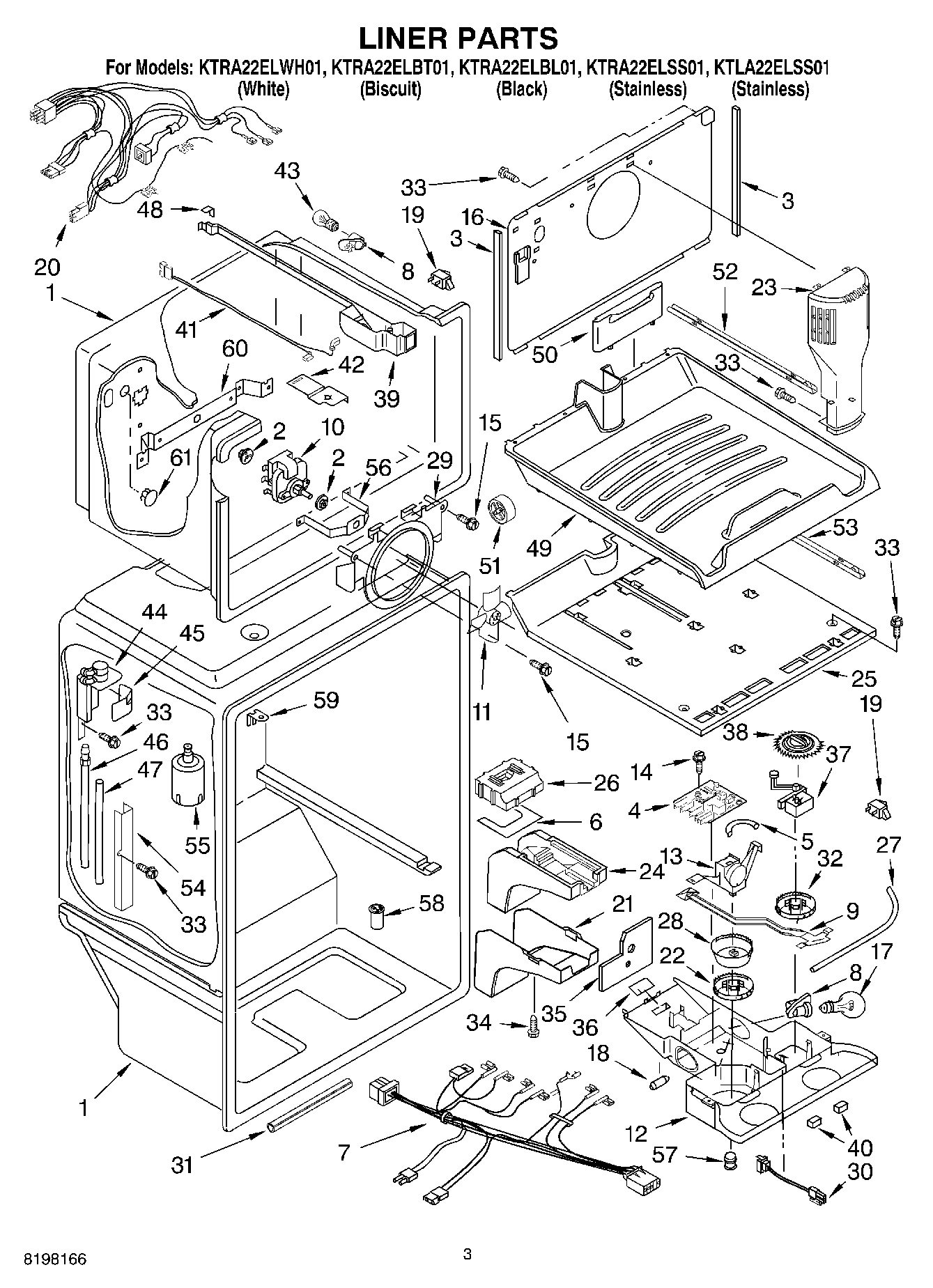

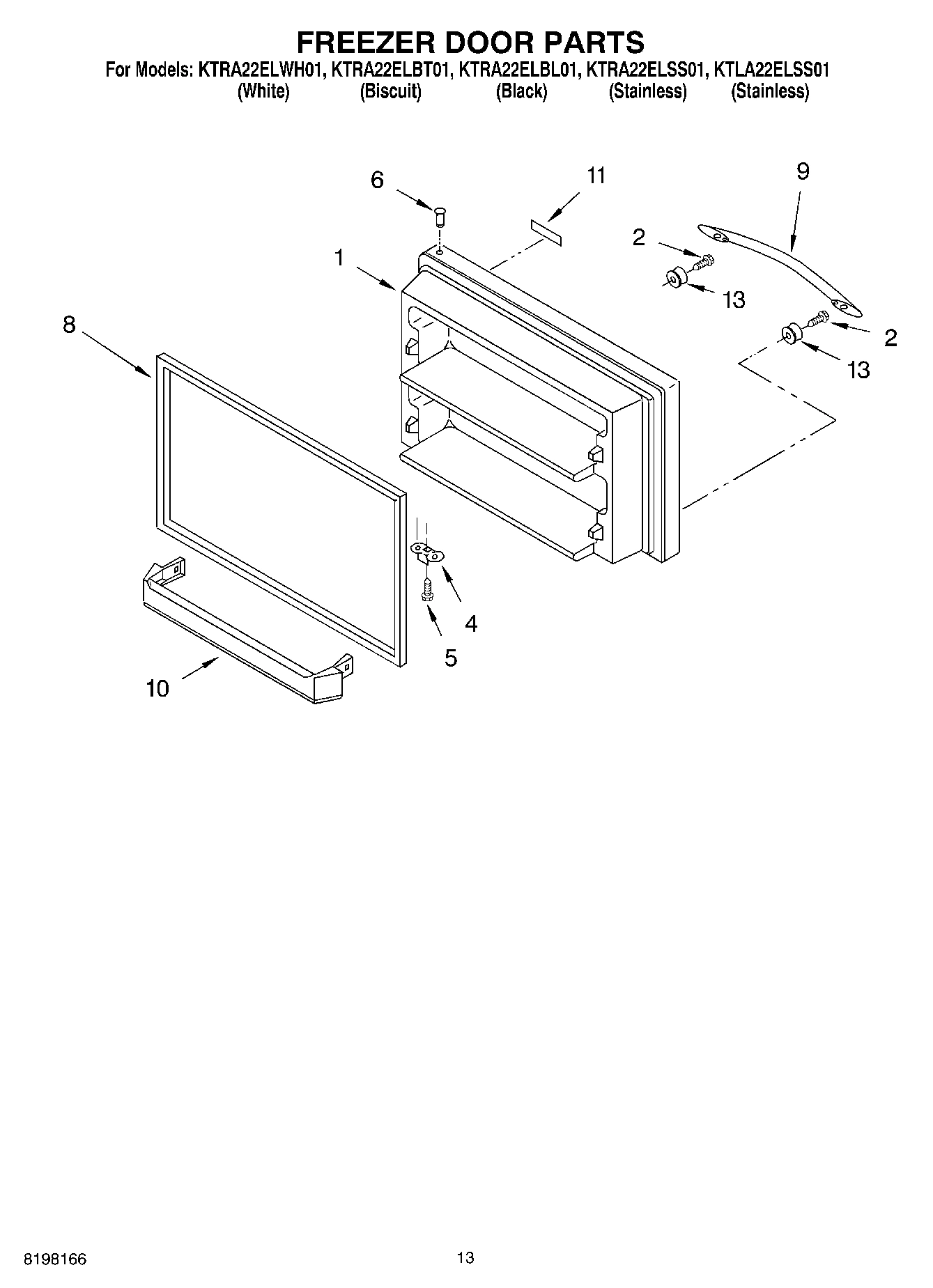

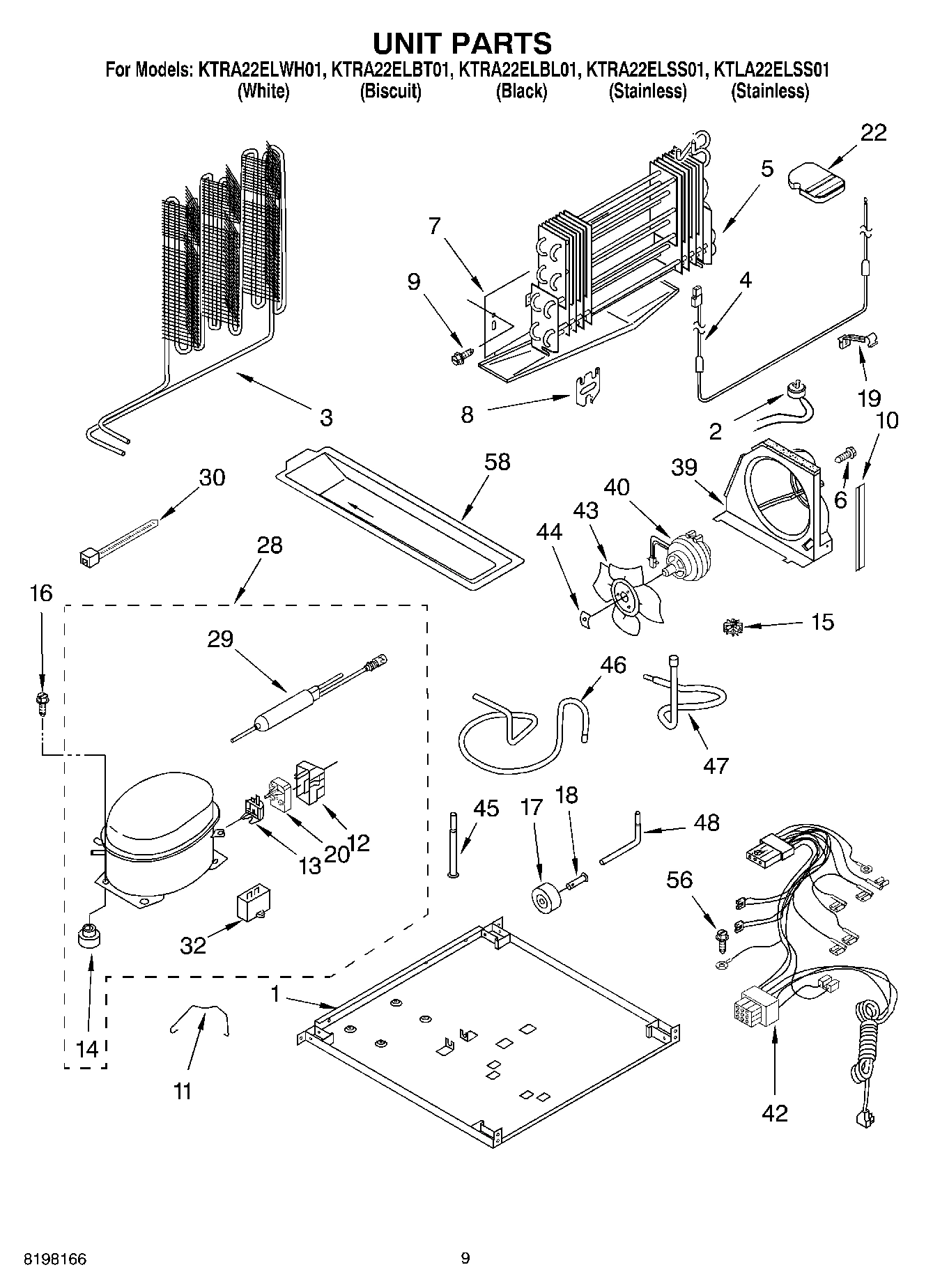

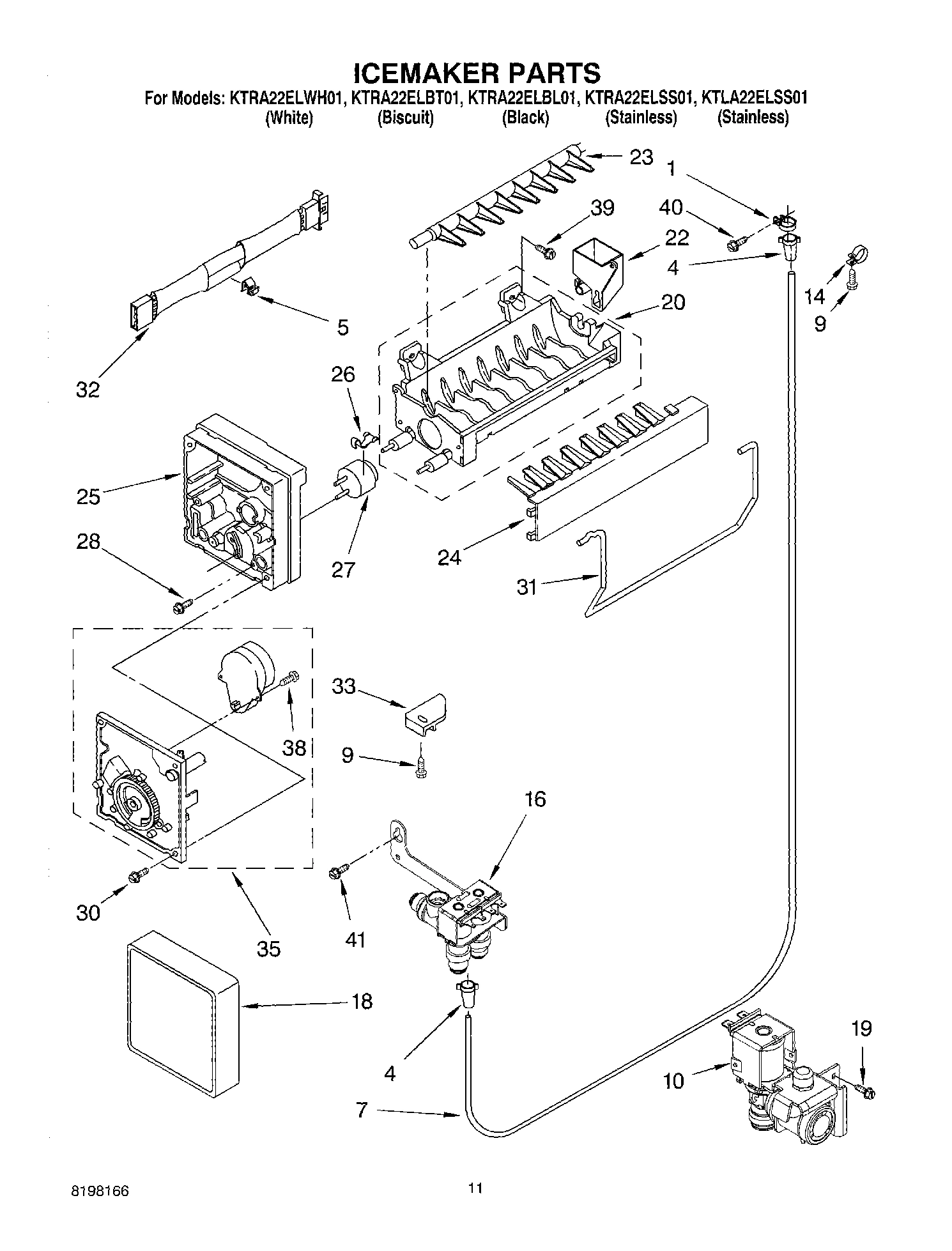

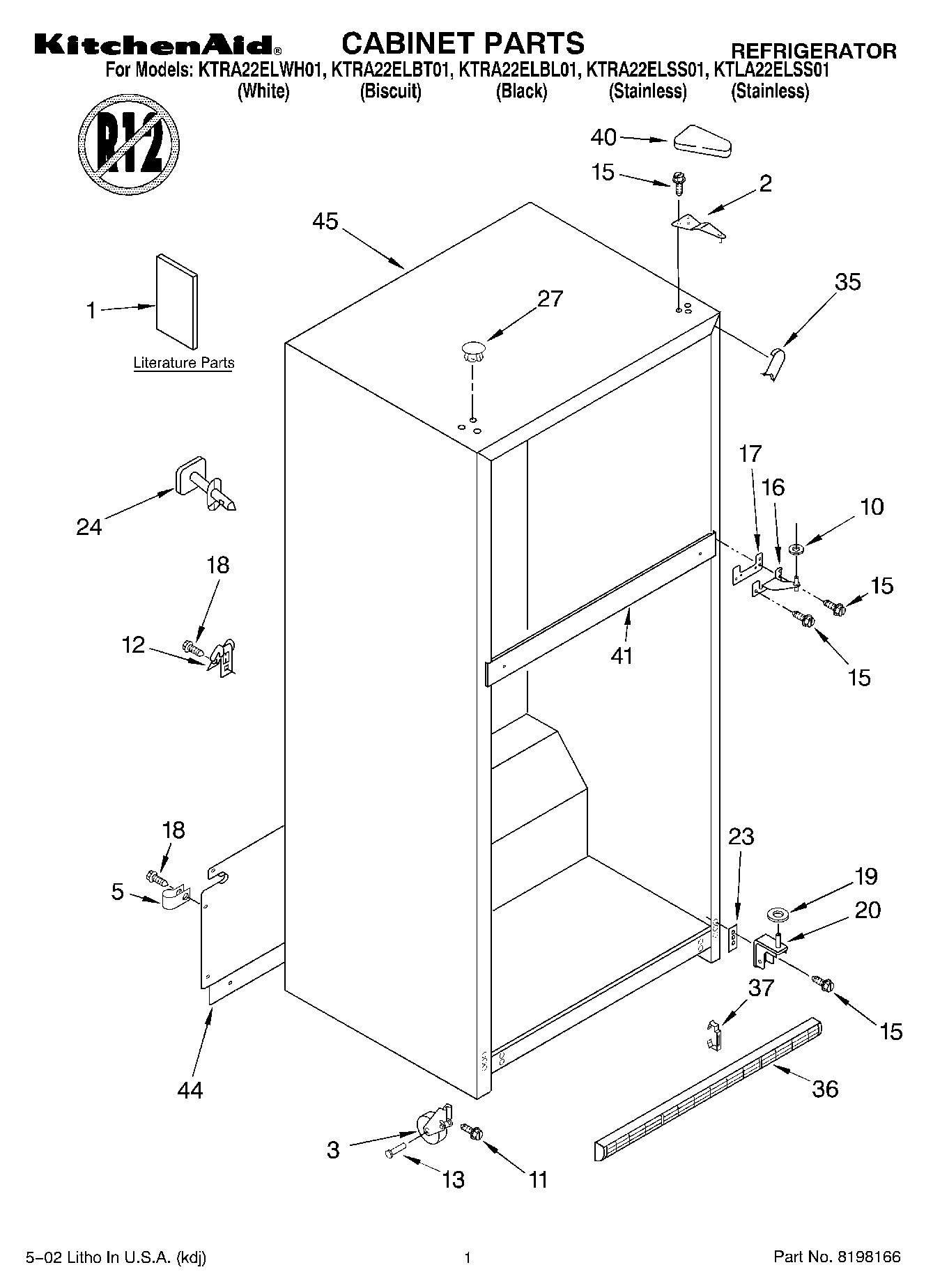

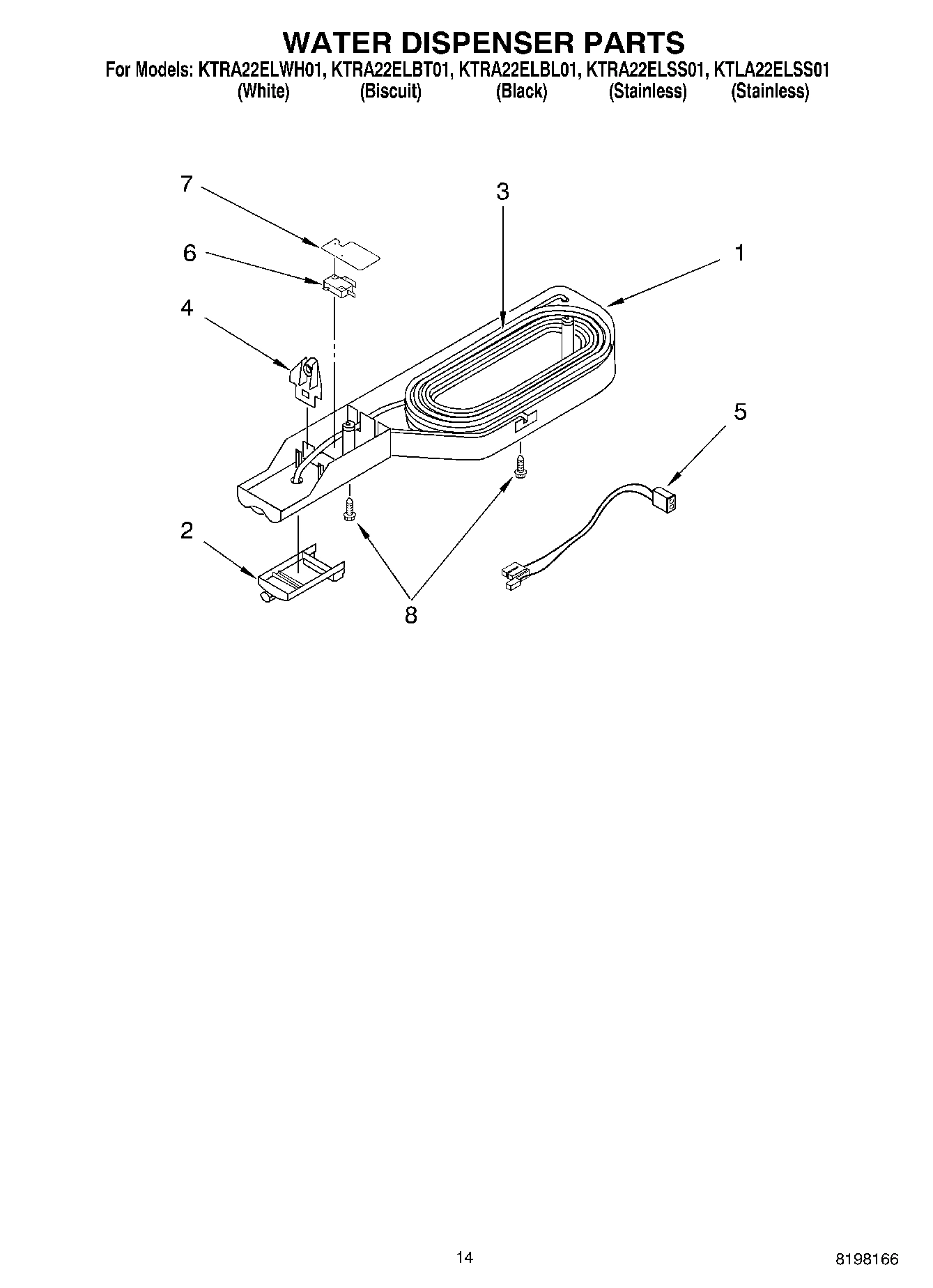

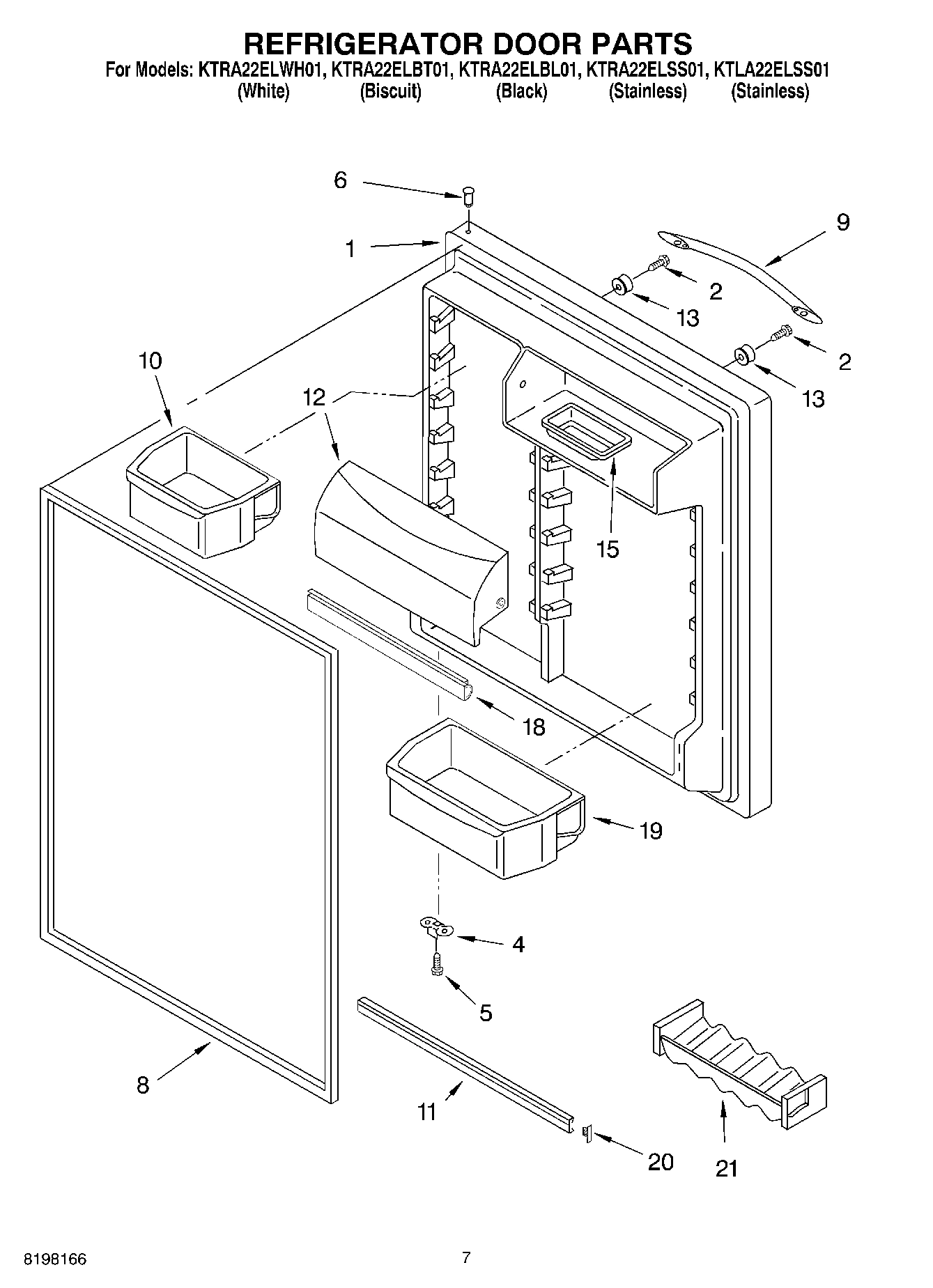

Model Whirlpool KTRA22ELSS01 REFRIGERATOR – Common Parts &amp; Diagrams

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2221720 Contact Us For Availability

1

Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2221721 Contact Us For Availability

1

Refrigerator Door (Includes No.6 & No.8) (Bis WPL 2221722 Contact Us For Availability

1

Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2221742 Contact Us For Availability

1

Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2221743 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

Plate, Unit Mounting WPL 2205340 Contact Us For Availability

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

2

Shelf, Ladder Center WPL 2202821 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $56.15

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability

7

Drain Pan WPL 2172620 Contact Us For Availability

8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

8

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

8

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

8

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

8

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

8

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

8

Torx Key WPL 1117510 Contact Us For Availability

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

Handle (Stainless) WPL 2221770 Contact Us For Availability

9

Handle (White) WPL 2221771 Contact Us For Availability

9

Handle (Black) WPL 2221772 Contact Us For Availability

9

Handle (Biscuit) WPL 2221773 Contact Us For Availability

9

Crisper Cover (Includes Rollers) WPL 2210583 Contact Us For Availability

WPW10498990 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10498990 $87.30

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim, Door WPL 2159292 Contact Us For Availability

Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability

Extension, Air Baffle WPL 2163780 Contact Us For Availability

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

Glass, Crisper Cover WPL 2210571 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

12

Door, Compartment WPL 2218122 Contact Us For Availability

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $33.47

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

14

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Butter, Dish WPL 2165792 Contact Us For Availability

Grommet WPL 531933 Contact Us For Availability

16

WP2188785 Whirlpool Water Inlet Valve Backorder WPL WP2188785 $95.04

16

Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

17

Shelf, Freezer WPL 2184667 Contact Us For Availability

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

18

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Pan, Meat (Includes Rollers) WPL 2188289 Contact Us For Availability

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Beverage Holder WPL 2193409 Contact Us For Availability

LEFT HAND DOOR SWING (White) WPL 2221723 Contact Us For Availability

LEFT HAND DOOR SWING (Black) WPL 2221724 Contact Us For Availability

LEFT HAND DOOR SWING (Biscuit) WPL 2221725 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Support WPL 2201185 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

24

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

26

Window, Crisper WPL 2188276 Contact Us For Availability

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Cement Alumilastic) WPL 542369 Contact Us For Availability

Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

Window, Meat Pan WPL 2188278 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Screw WPL 489439 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Slide, Humidity WPL 2174257 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

35

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Gasket, Front WPL 2174396 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

42

Wire Assembly Unit WPL 2187385 Contact Us For Availability

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

45

Tube, Transition WPL 2212603 Contact Us For Availability

46

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

47

Tube, Filter Inlet WPL 2210518 Contact Us For Availability

47

Tube, Suction WPL 2219622 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2189449 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

Roller, Slide WPL 2176246 Contact Us For Availability

52

Side Support, Floor A WPL 2179713 Contact Us For Availability

53

WPL 2179714 WPL 2179714 Contact Us For Availability

54

WPL 2210521 WPL 2210521 Contact Us For Availability

55

WPL 2213384 WPL 2213384 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

56

WPL 2214979 WPL 2214979 Contact Us For Availability

57

WPL 2213495 WPL 2213495 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Tray, Evaporator WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

59

WPL 2210563 WPL 2210563 Contact Us For Availability

60

WPL 2214976 WPL 2214976 Contact Us For Availability

61

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
