Model Whirlpool KSUP22QDAL02 – Common Parts & Diagrams
07 - DISPENSER FRONT
09 - AIR FLOW

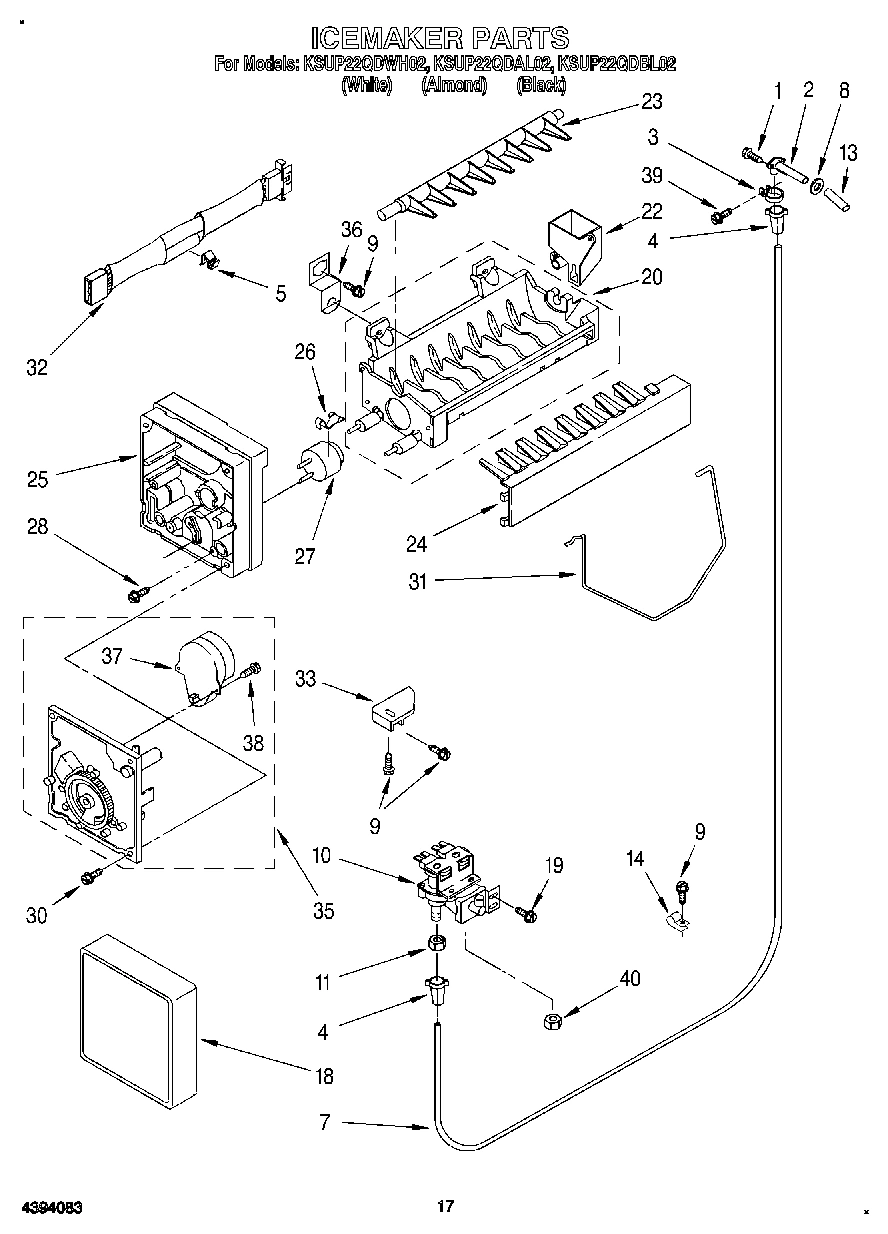

11 - ICEMAKER

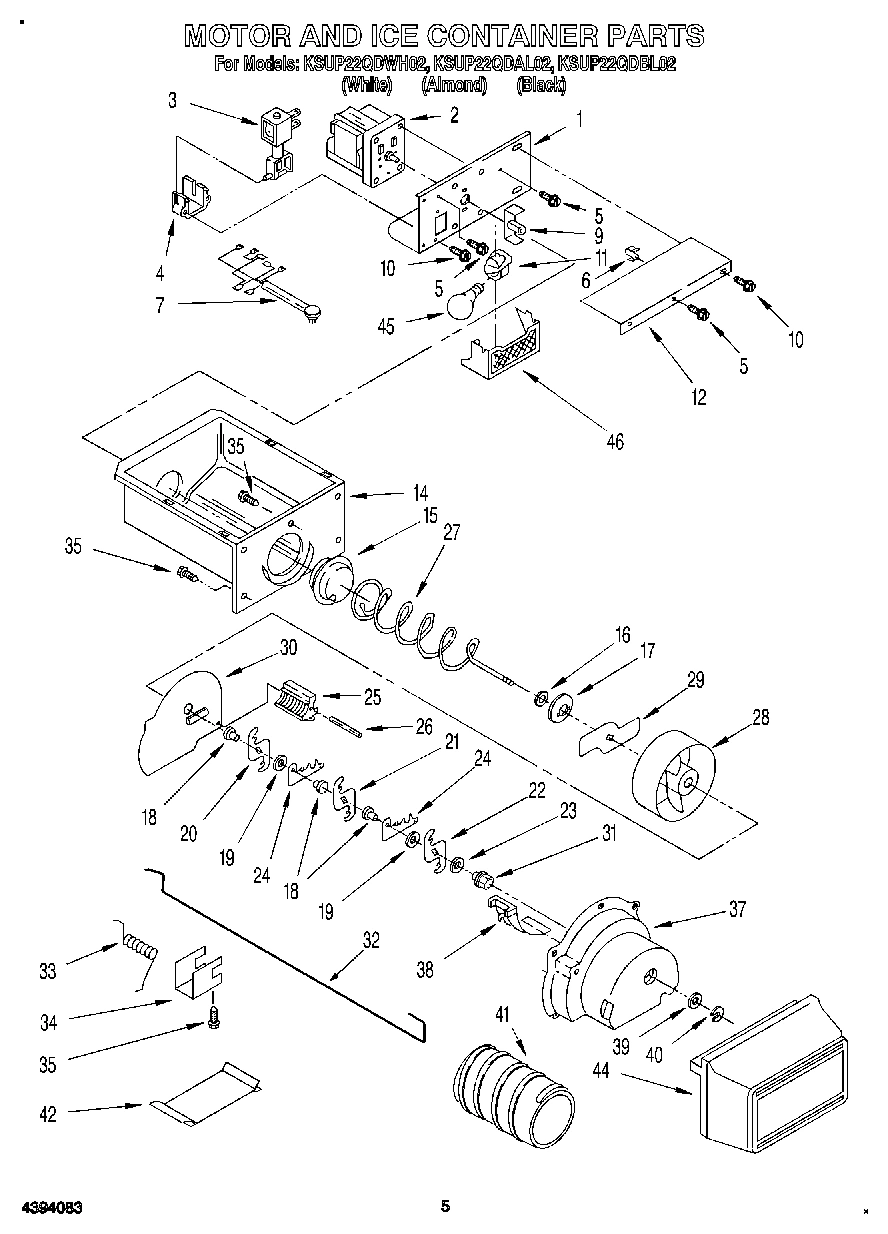

04 - MOTOR AND ICE CONTAINER
06 - FREEZER DOOR

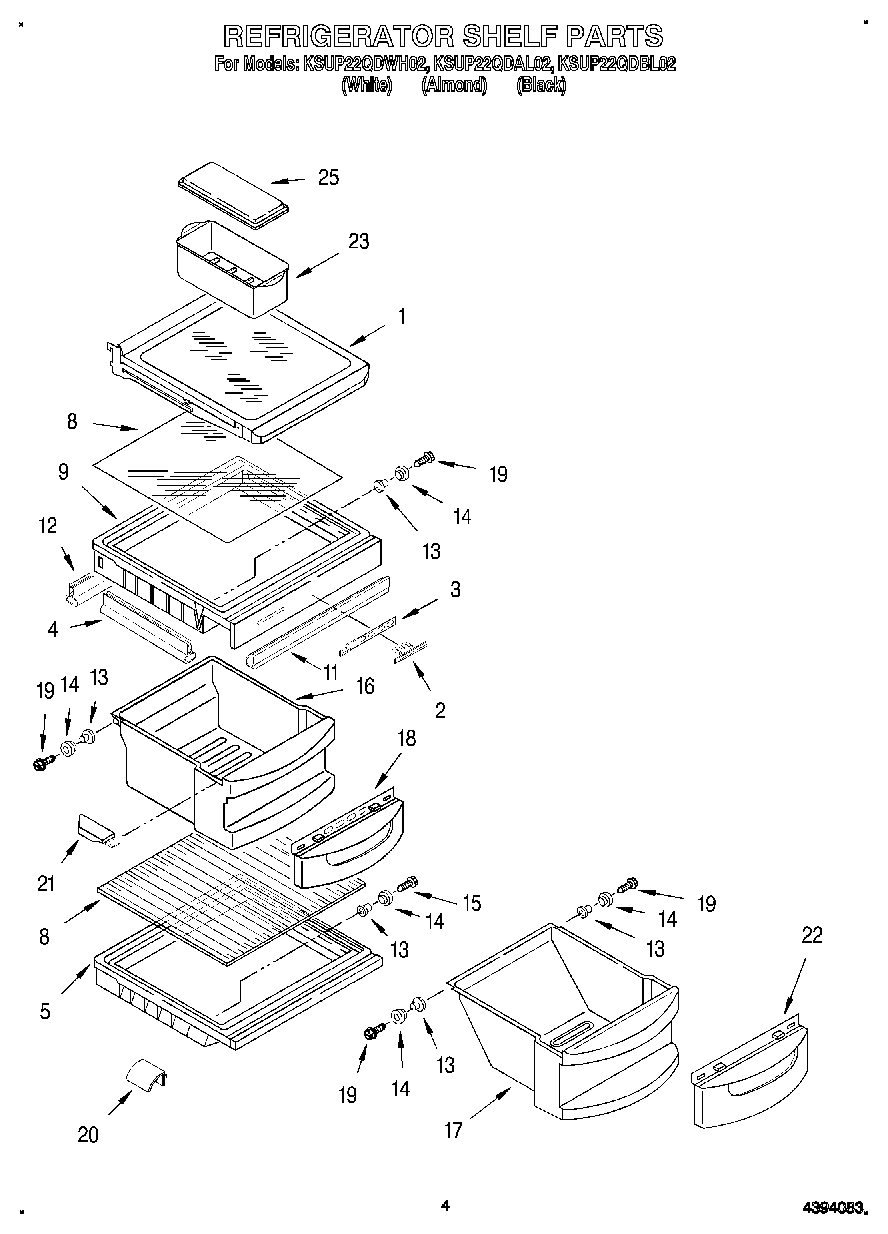

03 - REFRIGERATOR SHELF

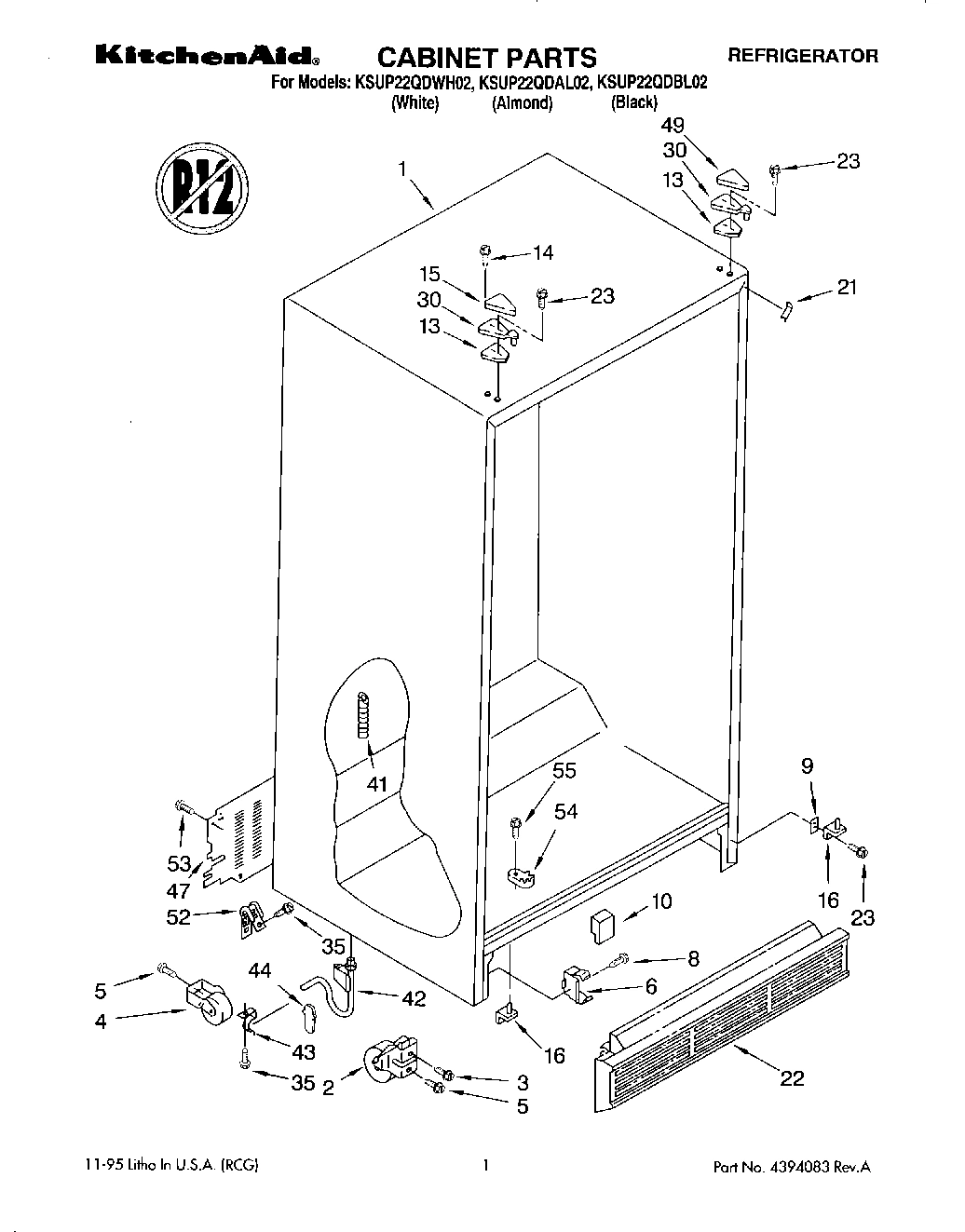

01 - CABINET

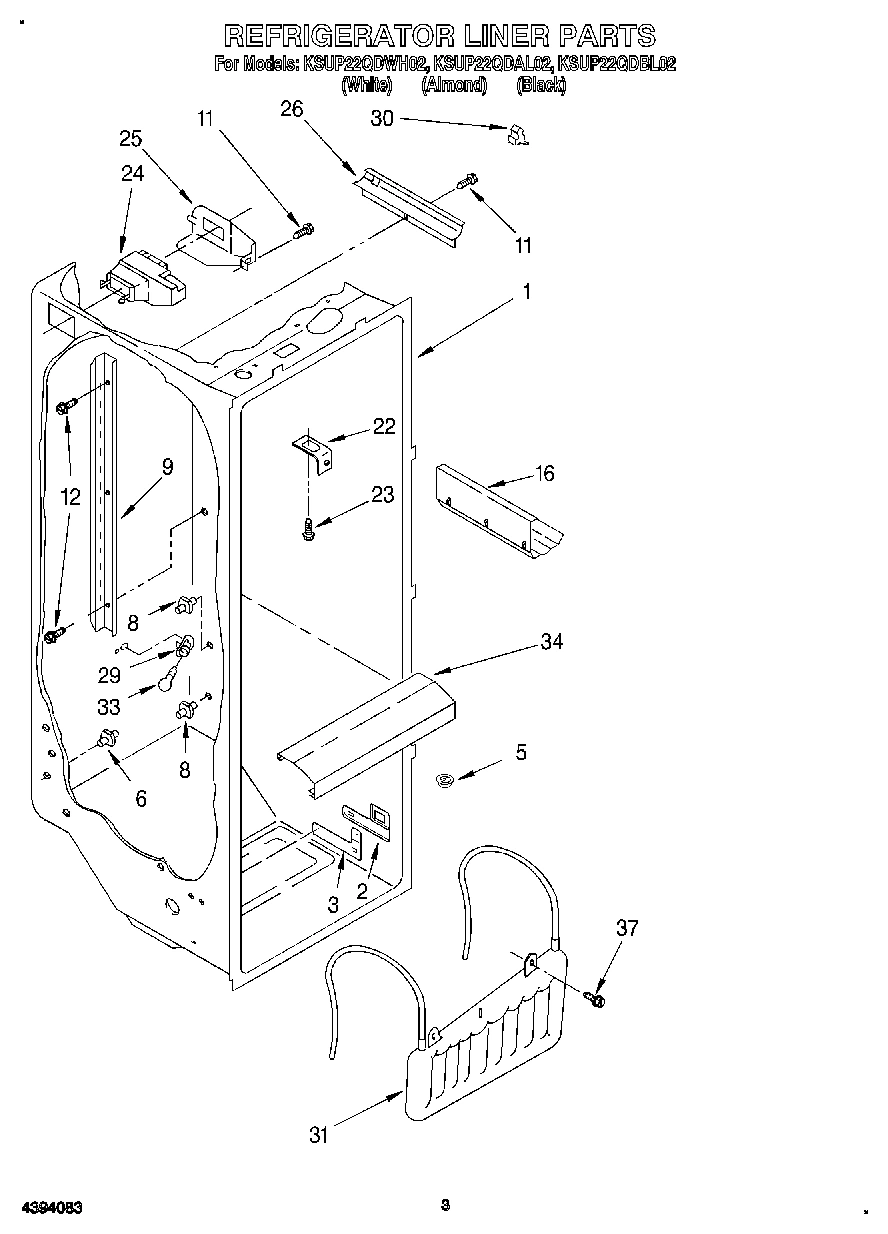

02 - REFRIGERATOR LINER

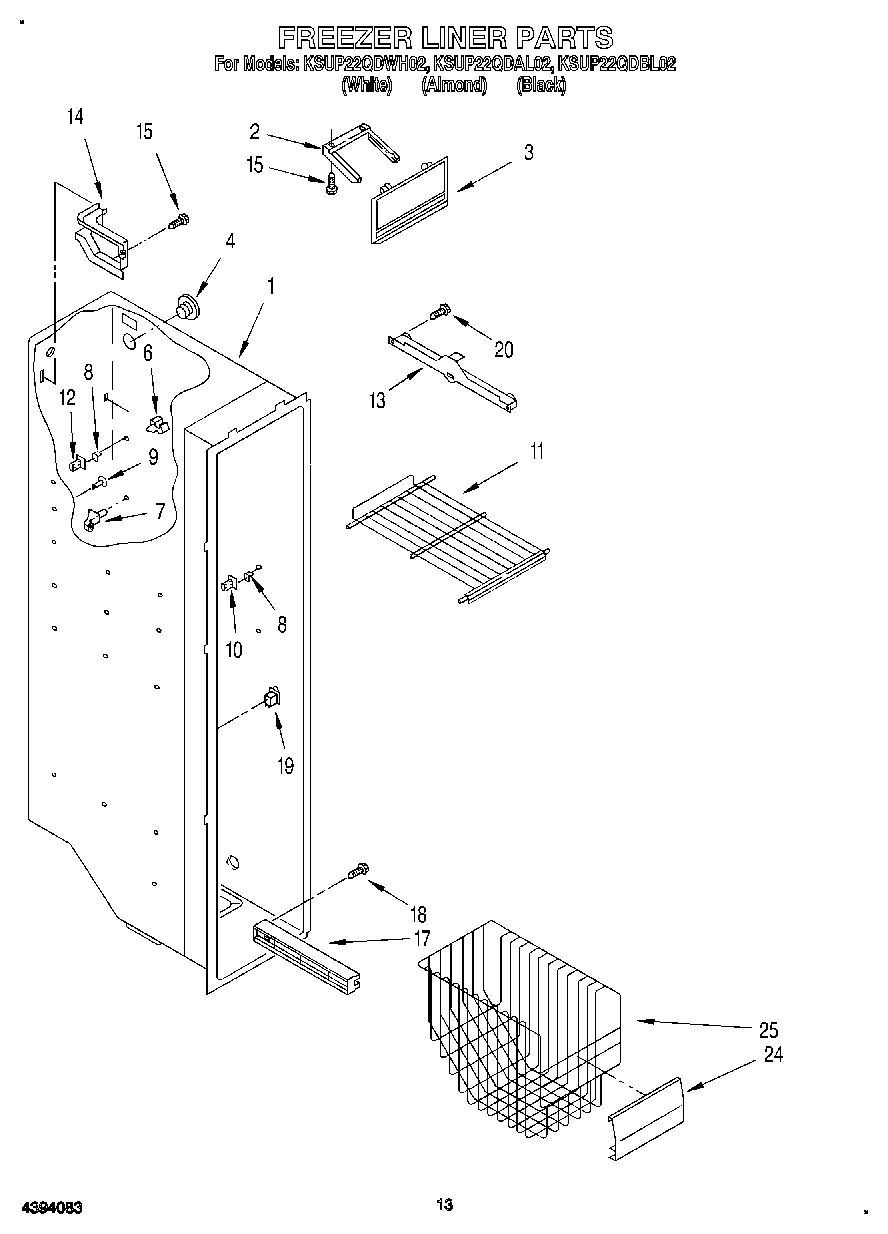

08 - FREEZER LINER

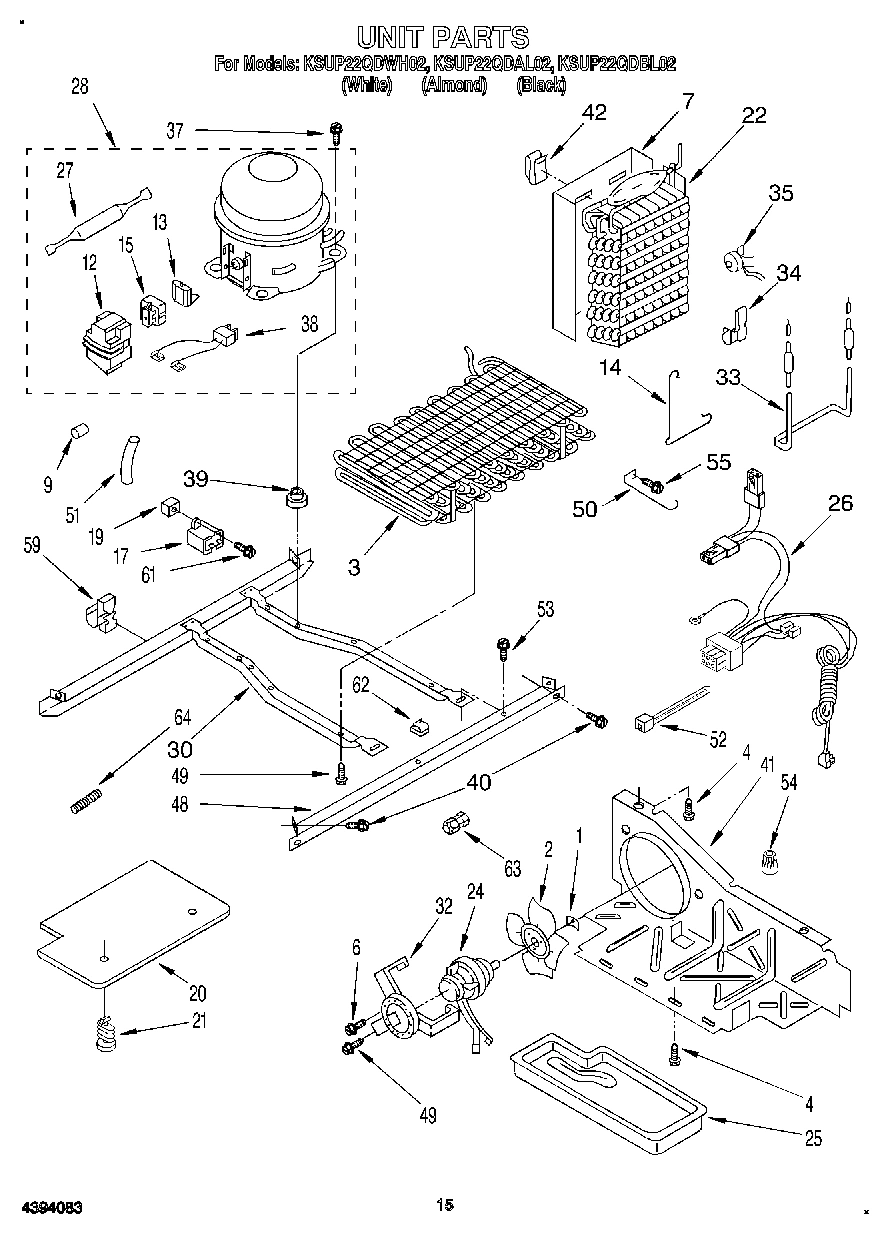

10 - UNIT

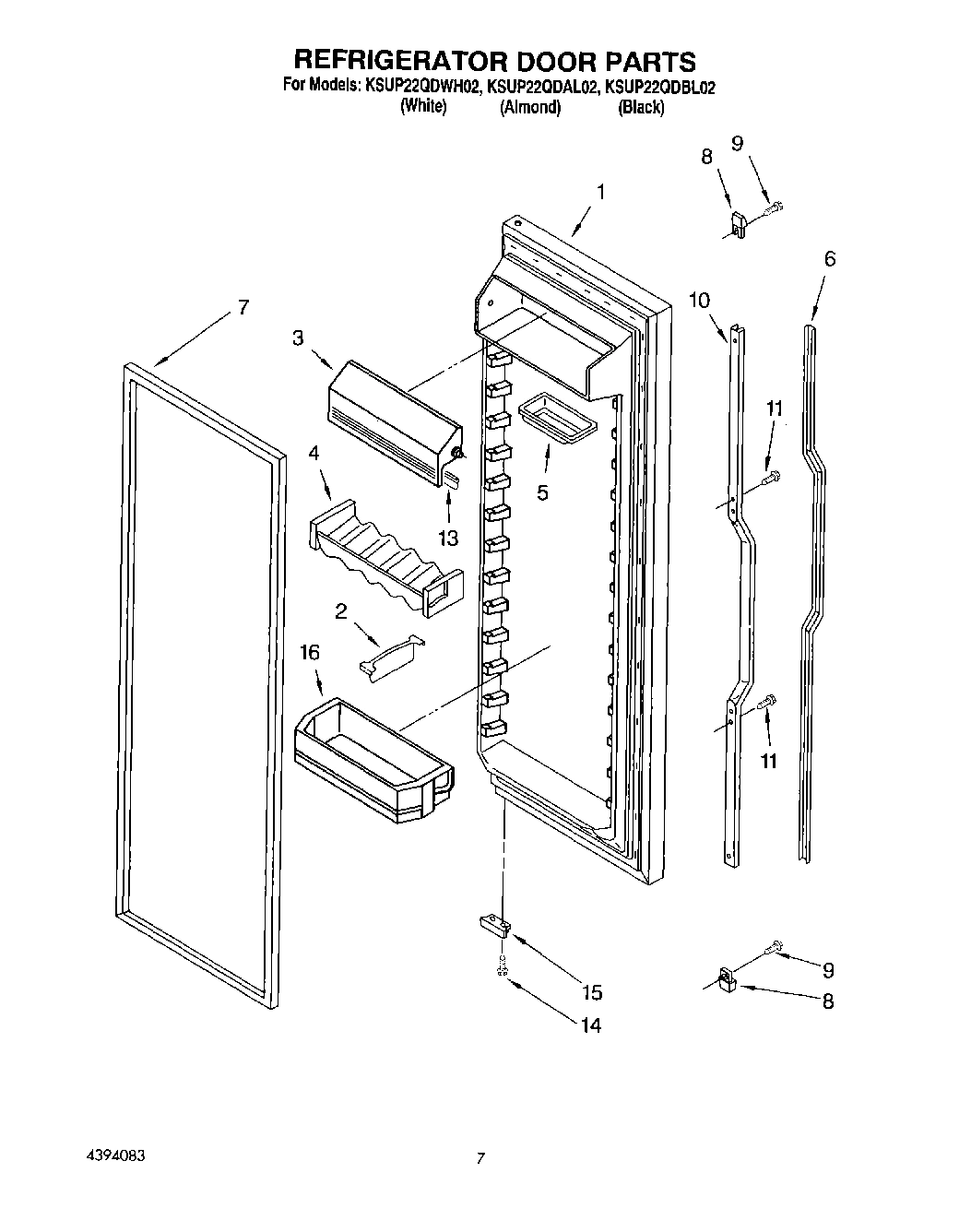

05 - REFRIGERATOR DOOR

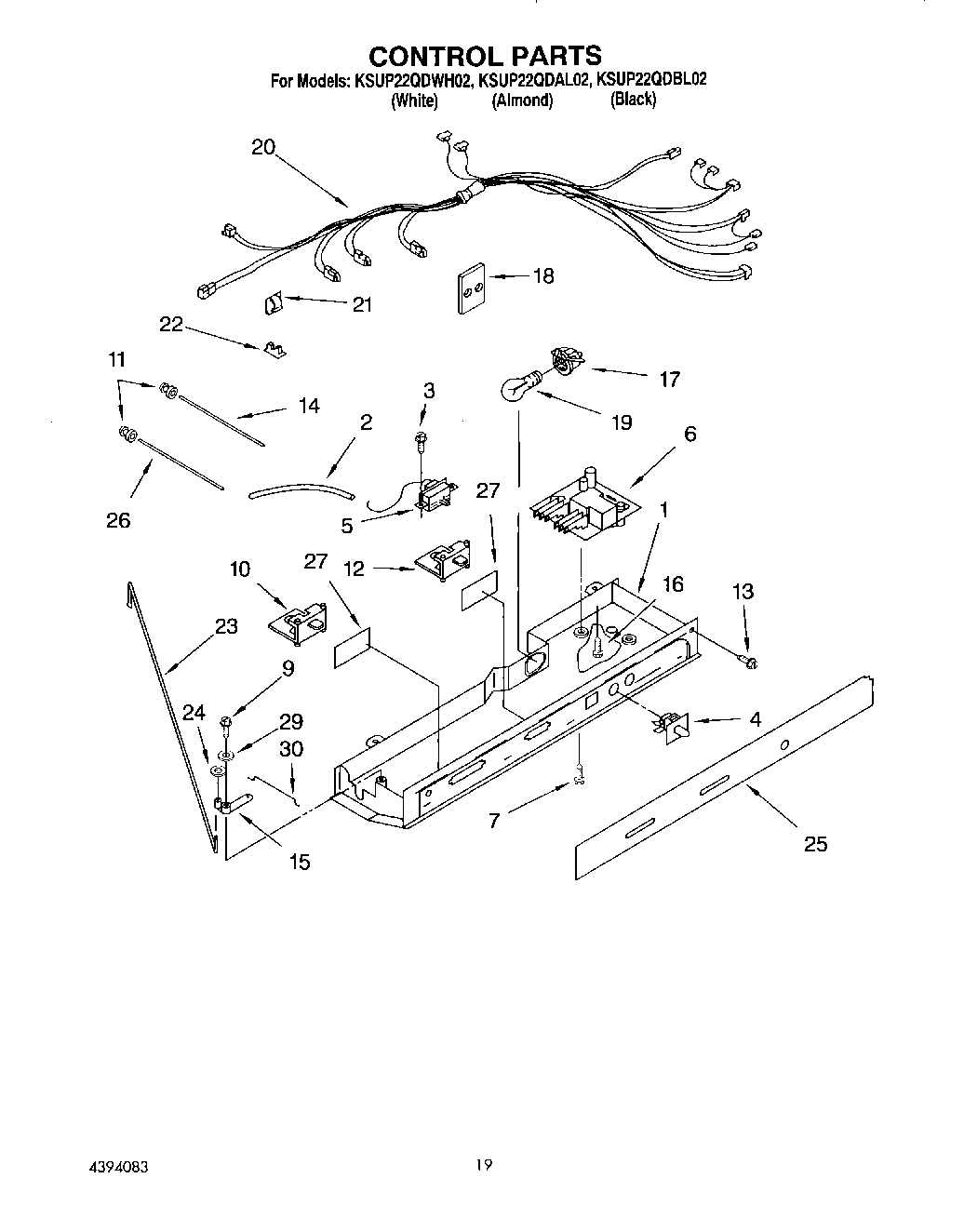

12 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool KSUP22QDAL02
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176079 WPL LIT2176079 Contact Us For Availability
WPL LIT2180062 WPL LIT2180062 Contact Us For Availability
WPL LIT2189603 WPL LIT2189603 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174033 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107949A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107950A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107952A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2189682 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2189683 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2194017 Contact Us For Availability
1
Control Box WPL 2181738 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Thermostat WPL 2175515 Contact Us For Availability
6
Insert, Handle (Black) WPL 2173832 Contact Us For Availability
6
Insert, Handle (White) WPL 2173830 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap, Handle WPL 2173826 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Insert, Air Baffle WPL 2176796 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Retainer, Insert WPL 2173827 Contact Us For Availability
11
Shelf (2) WPL 2174265 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Chute, Ice WPL 2156145 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
15
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
15
Relay (See Overload) WPL ARI107953A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
16
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
16
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
16
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
16
Trim Kit WPL 4318336 Contact Us For Availability
16
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
16
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
16
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Shelf Track (Left Side) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side) WPL 2181760 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155476 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Front, Basket WPL 2171768 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Cover WPL 2169935 Contact Us For Availability
25
Basket, Lower WPL 2181762 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175514 Contact Us For Availability
26
Harness, Intermediate WPL 2181709 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window (2) WPL 2175513 Contact Us For Availability
30
WPL 876029 WPL 876029 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
30
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
30
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
