Model Whirlpool KSUB27QDBL01 – Common Parts & Diagrams
01 - CABINET
06 - MOTOR AND ICE CONTAINER

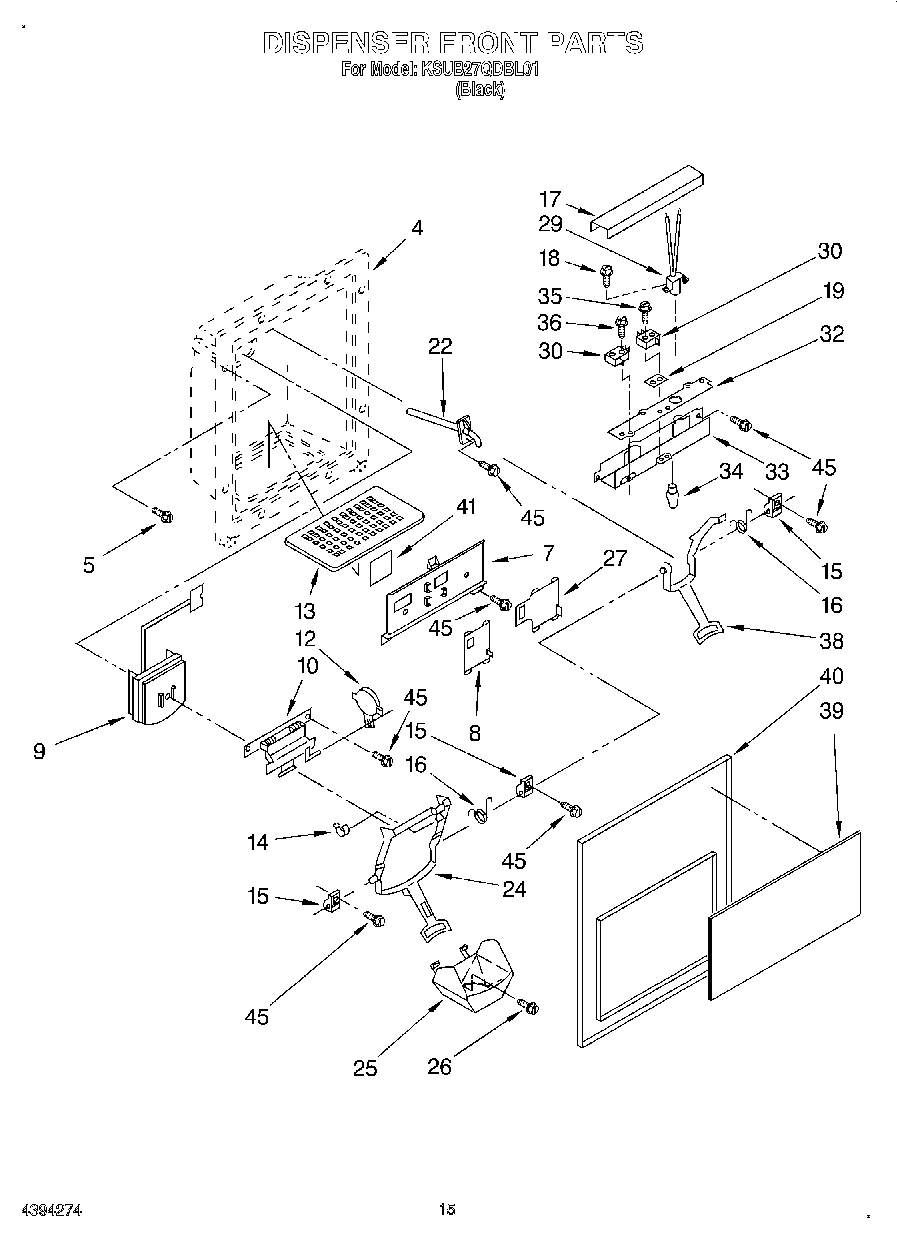

09 - DISPENSER FRONT

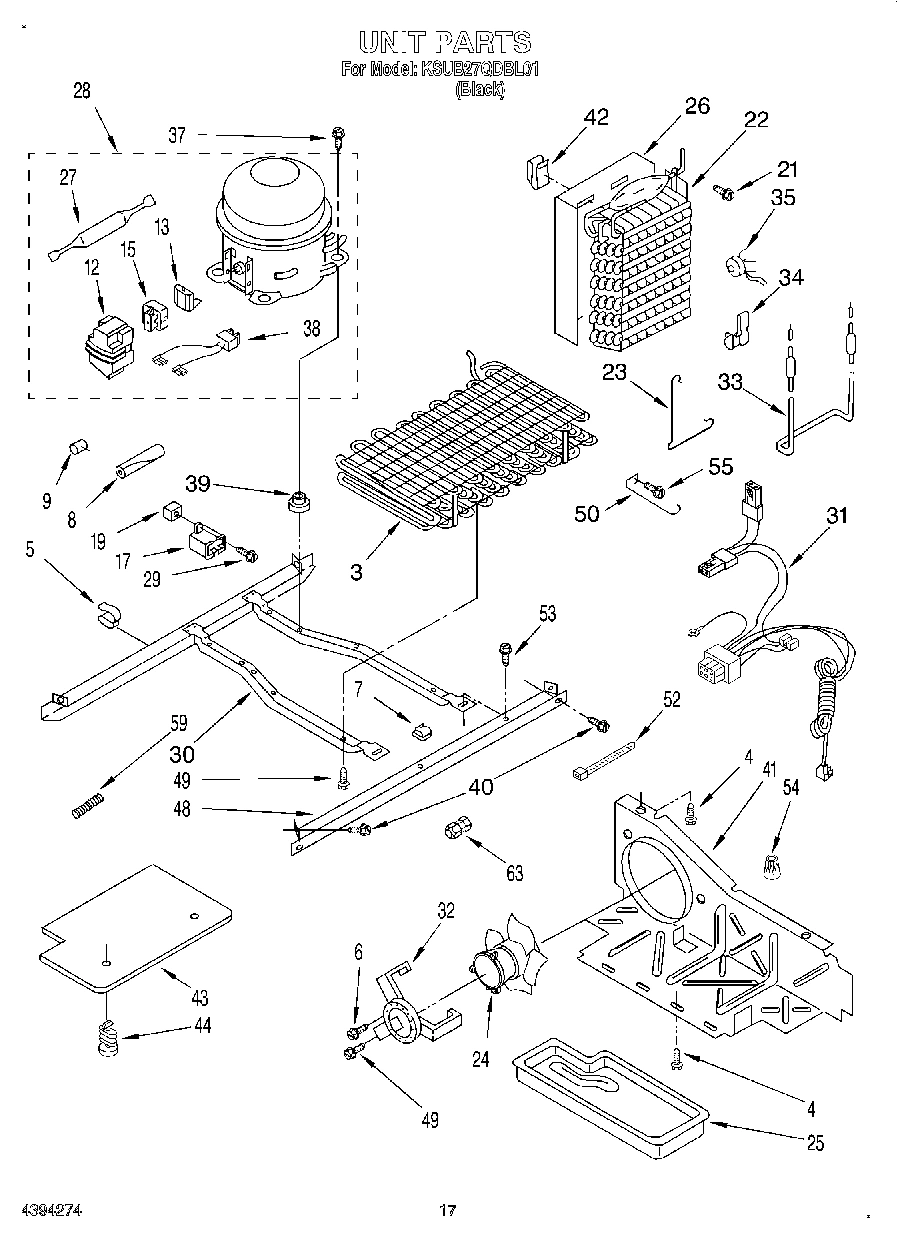

10 - UNIT

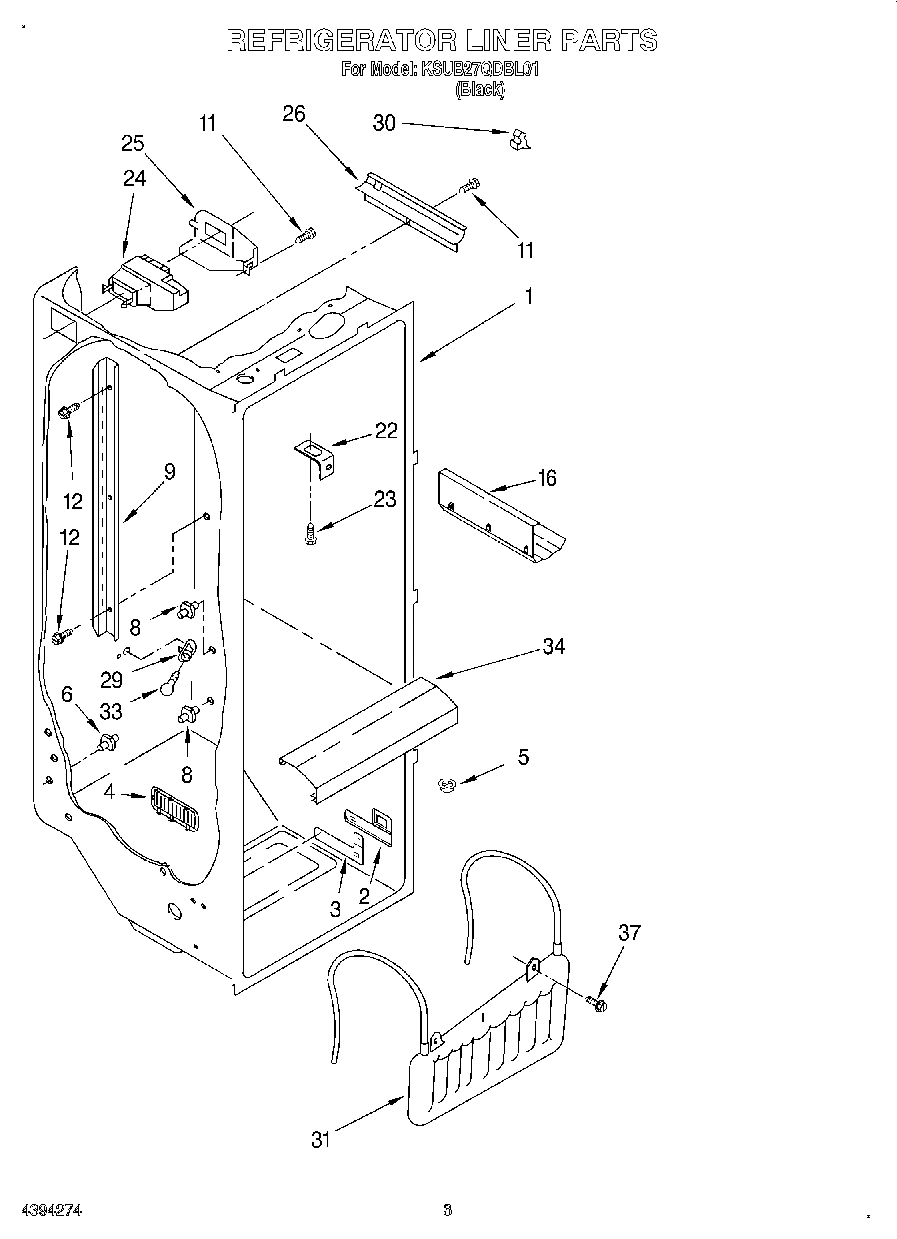

02 - REFRIGERATOR LINER

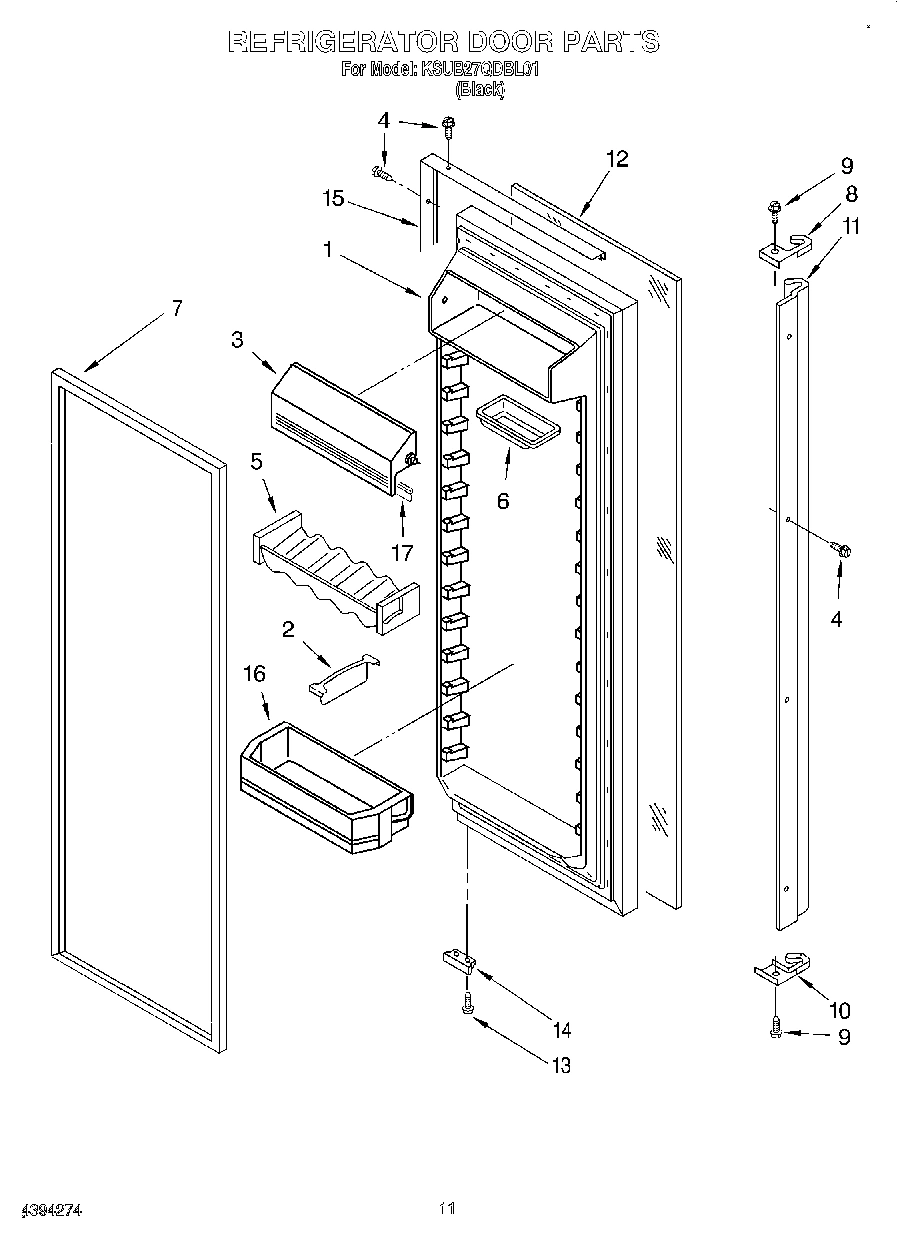

07 - REFRIGERATOR DOOR

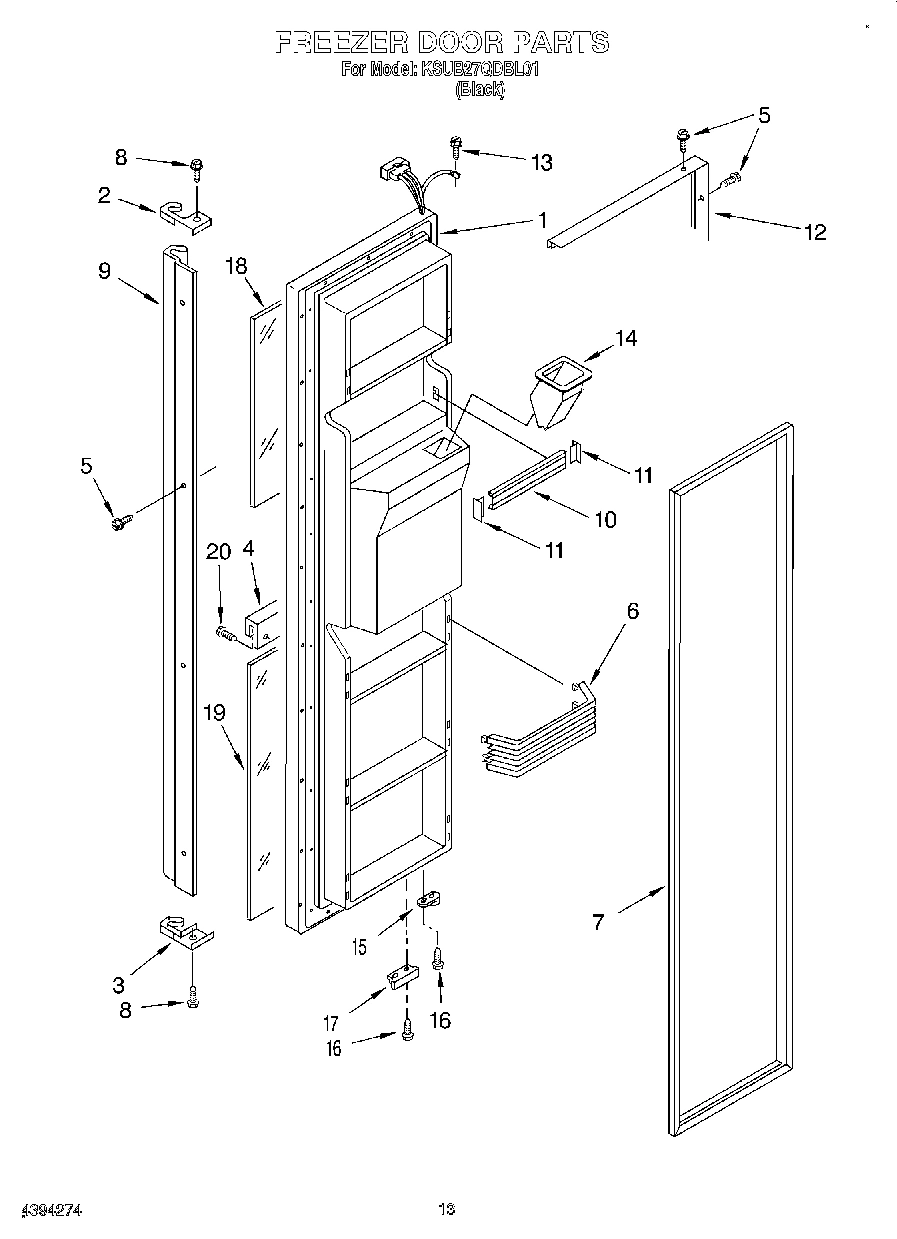

08 - FREEZER DOOR

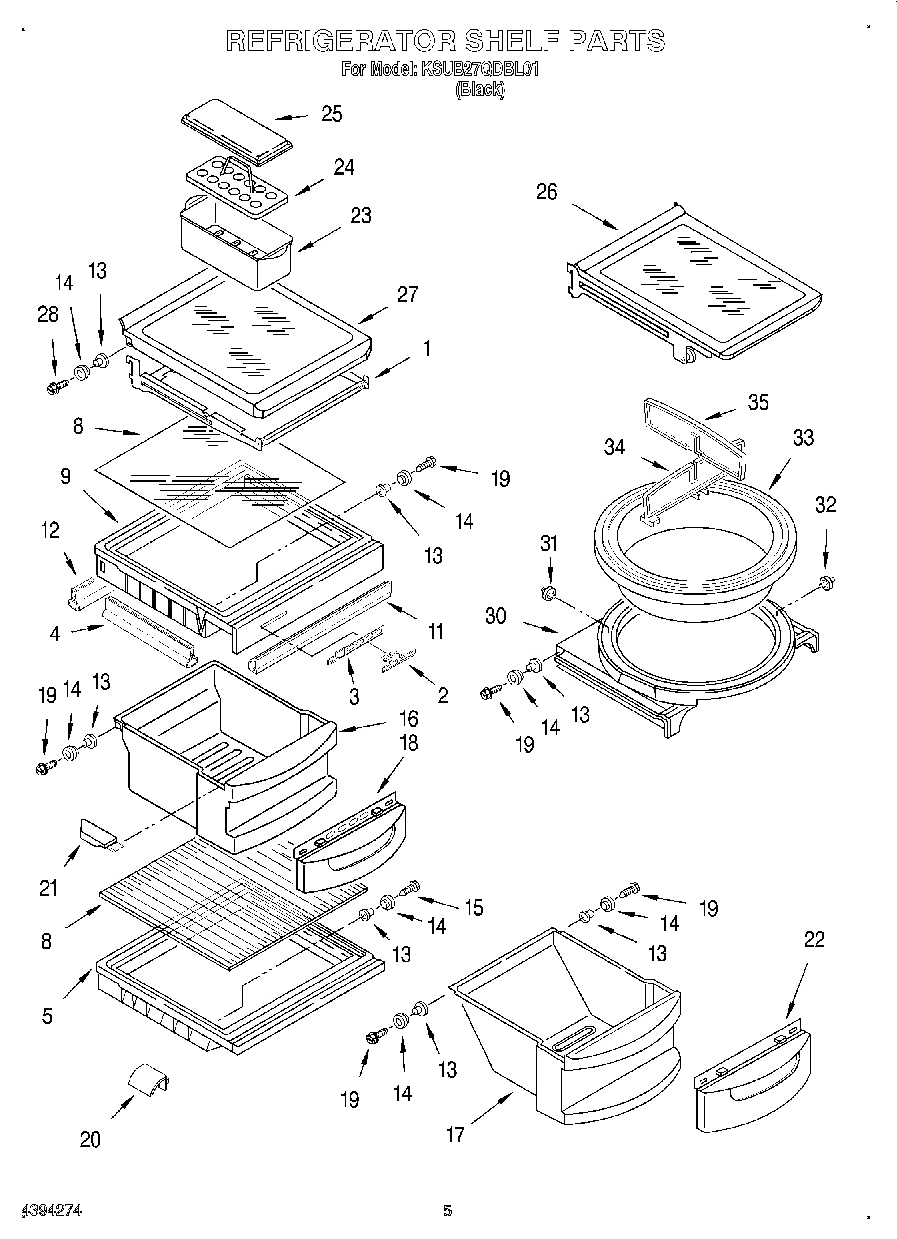

04 - REFRIGERATOR SHELF
11 - ICEMAKER

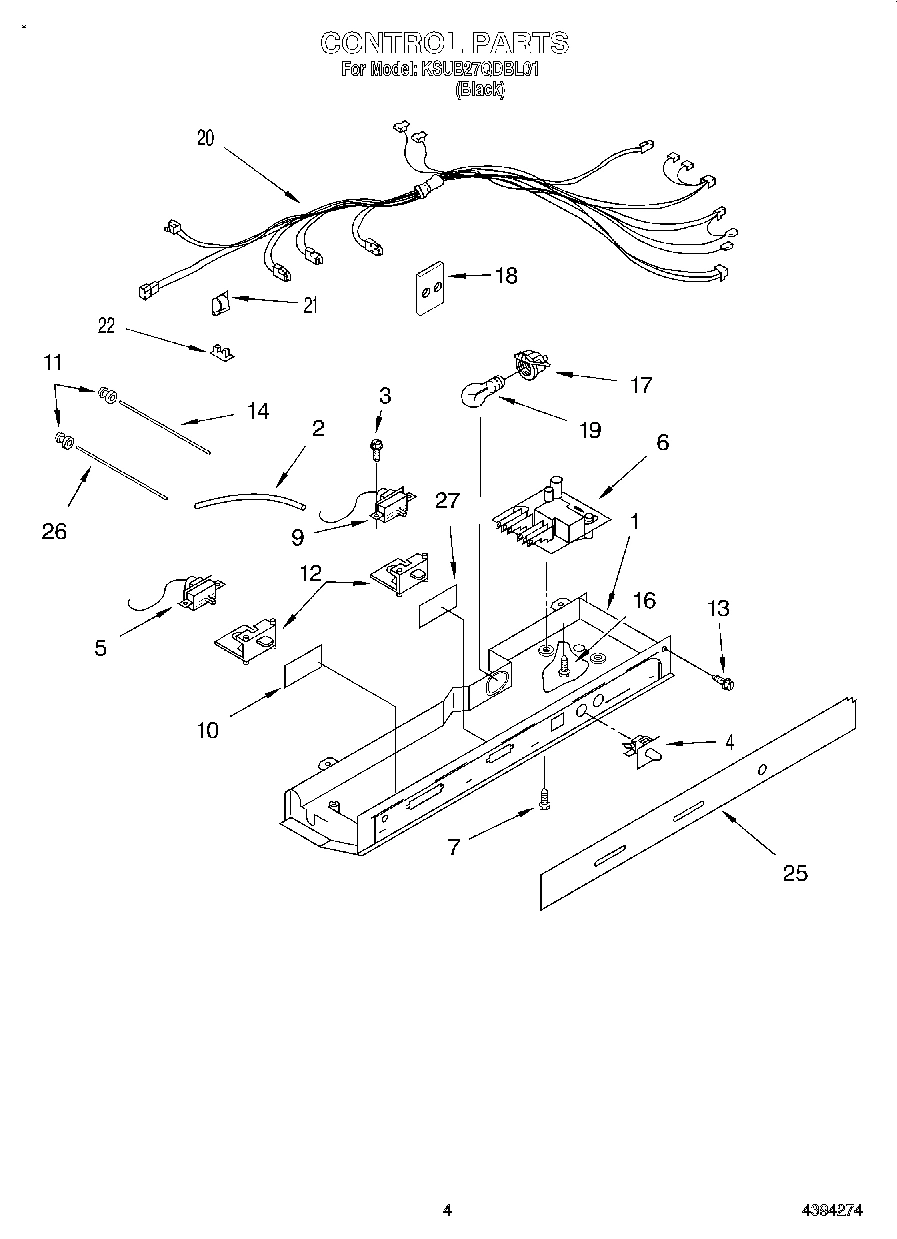

03 - CONTROL
05 - FREEZER LINER

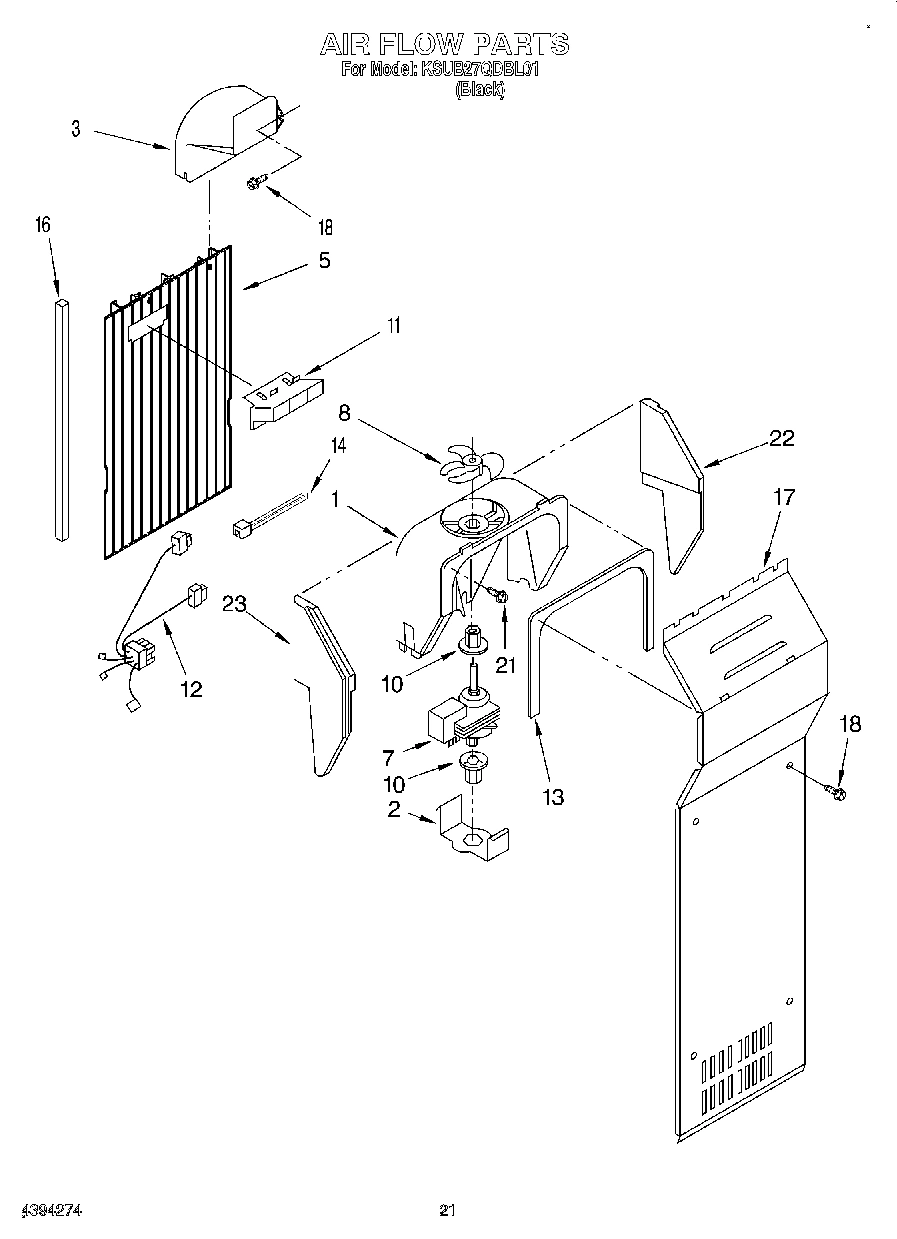

12 - AIR FLOW, LIT/OPTIONAL
Common parts from model Whirlpool KSUB27QDBL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2181963 WPL LIT2181963 Contact Us For Availability
WPL LIT2189551 WPL LIT2189551 Contact Us For Availability
WPL LIT2189603 WPL LIT2189603 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107940A Contact Us For Availability
1
Refrigerator Door (Includes Item 7) WPL 2189690 Contact Us For Availability
1
Freezer Door (Includes Item 7 And Dispenser F WPL 2189706 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2174023 Contact Us For Availability
1
Control Box WPL 2172930 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107941A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Load Lock WPL 2171283 Contact Us For Availability
2
End Cap WPL 1126073 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Door, Compartment WPL 2194092 Contact Us For Availability
3
End Cap WPL 1126074 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Louver WPL 1127161 Contact Us For Availability
4
Trim, Dispenser WPL 1125980 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Screw WPL 489376 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Screw WPL 489112 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Handle WPL 1126070 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Black Glass WPL 1126015 Contact Us For Availability
12
Trim, Door WPL 1126072 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Chute, Ice WPL 2156145 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Trim, Door WPL 1117901 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
17
Bracket, Door Stop WPL 2155331 Contact Us For Availability
17
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19 & 22) WPL 2194099 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Black Glass, Upper WPL 1126016 Contact Us For Availability
18
Window, Crisper WPL 2194093 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Black Glass, Lower WPL 1126017 Contact Us For Availability
20
Screw WPL 489374 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Basket, Square WPL 2181765 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
Window, Meat Pan WPL 2194098 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Shallow WPL 2181763 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
Enamel, Almond (1 Q WPL 978883 Contact Us For Availability
25
Cover WPL 2169935 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
