Model Whirlpool KSSS48QDW03 BUILT IN REFRIGERATOR – Common Parts & Diagrams

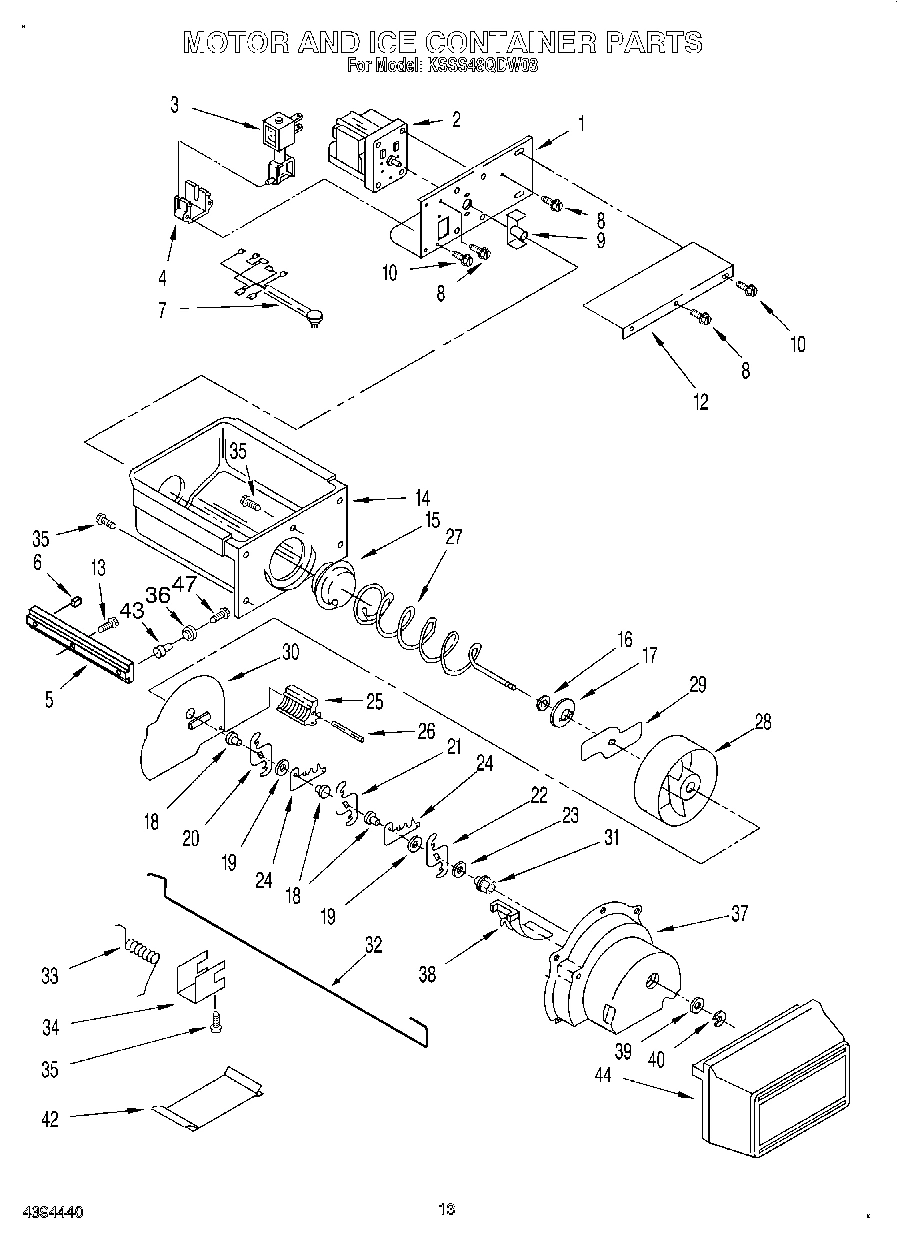

10 - MOTOR AND ICE CONTAINER

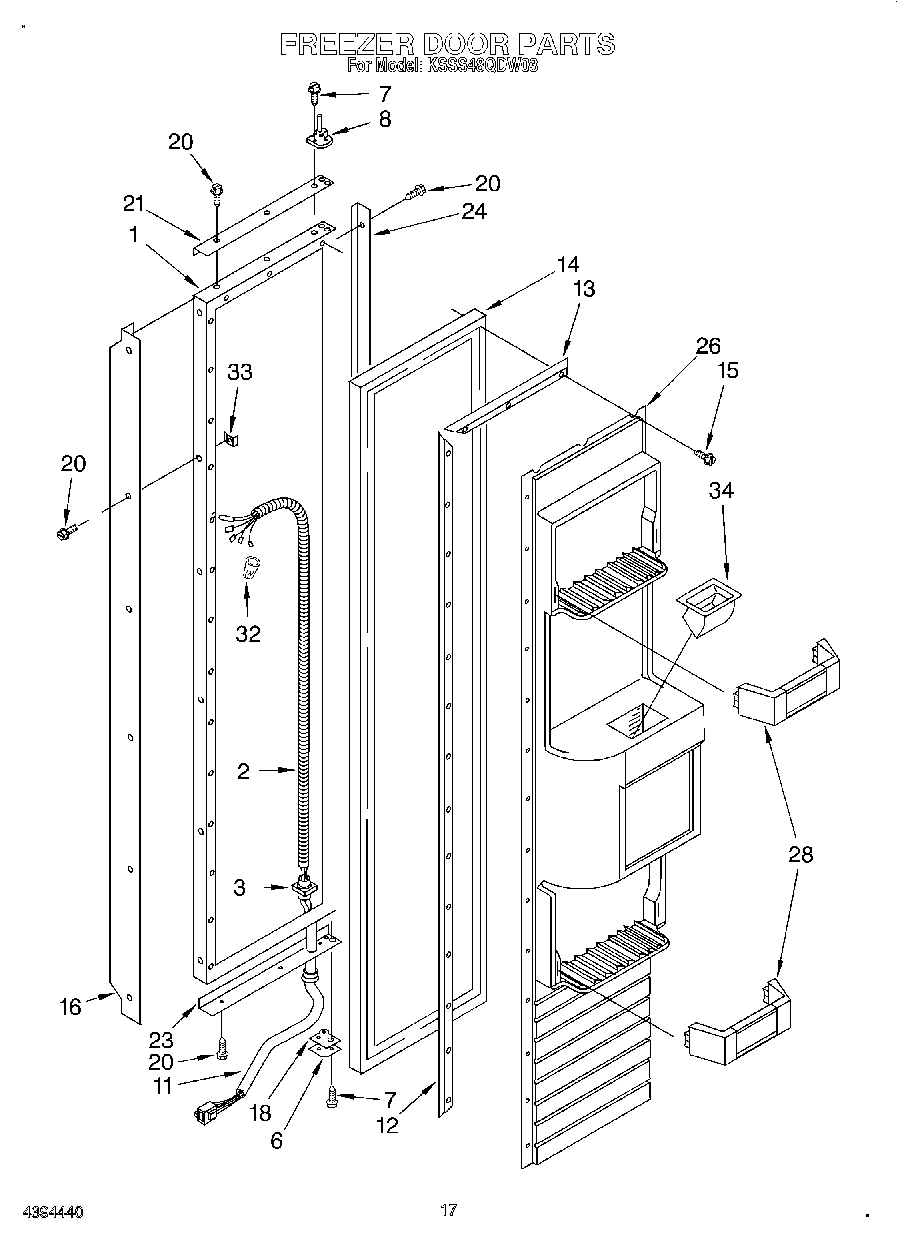

12 - FREEZER DOOR

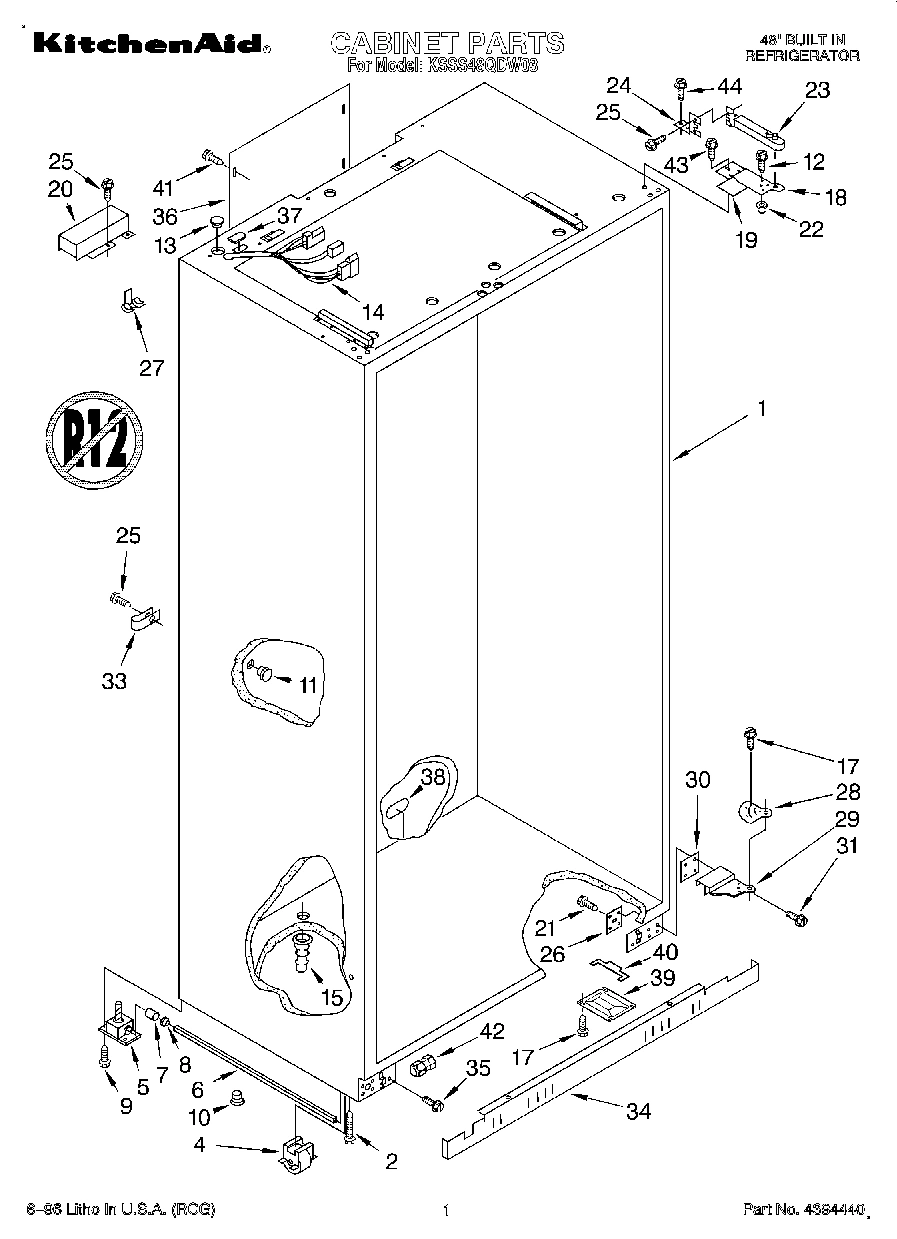

01 - CABINET

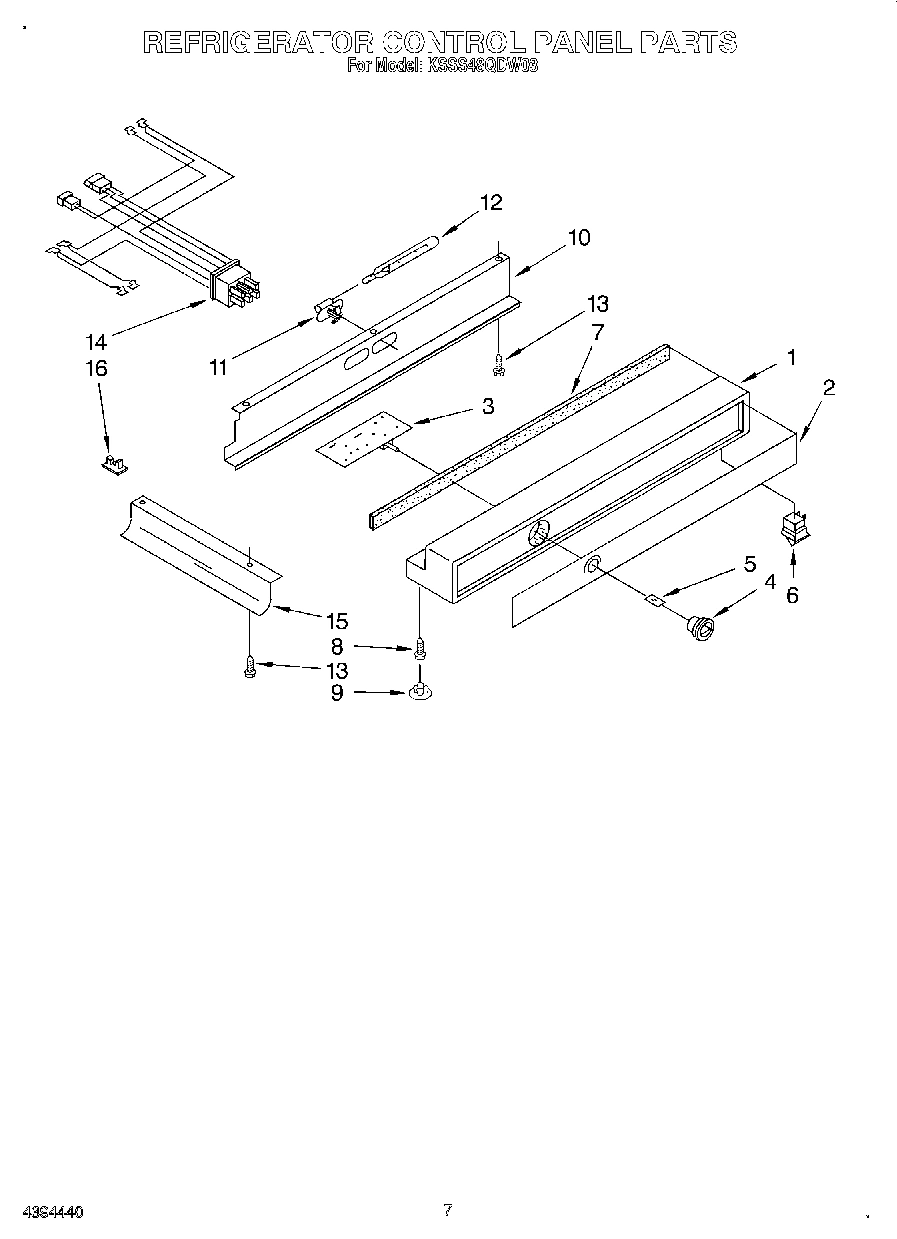

05 - REFRIGERATOR CONTROL PANEL
07 - REFRIGERATOR SHELF

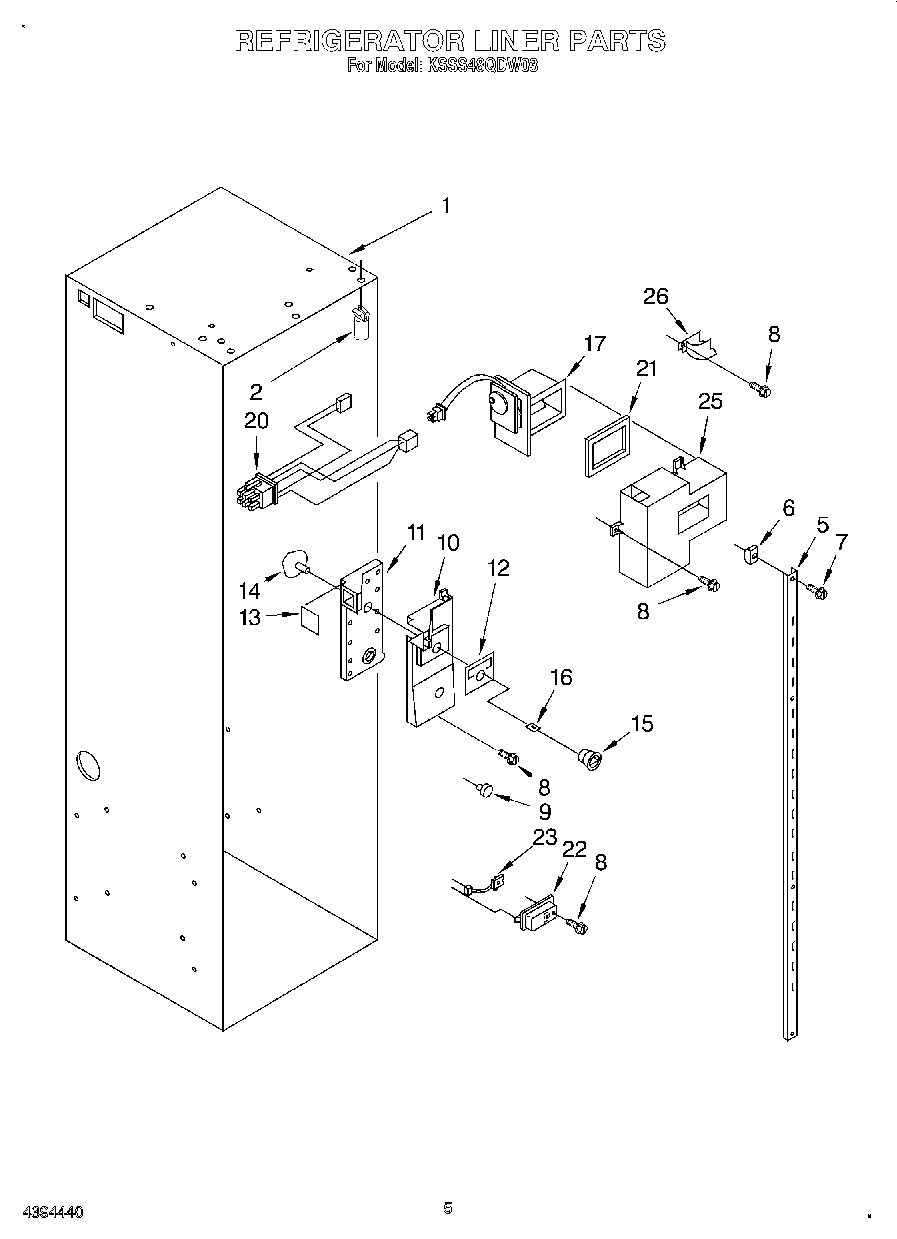

04 - REFRIGERATOR LINER

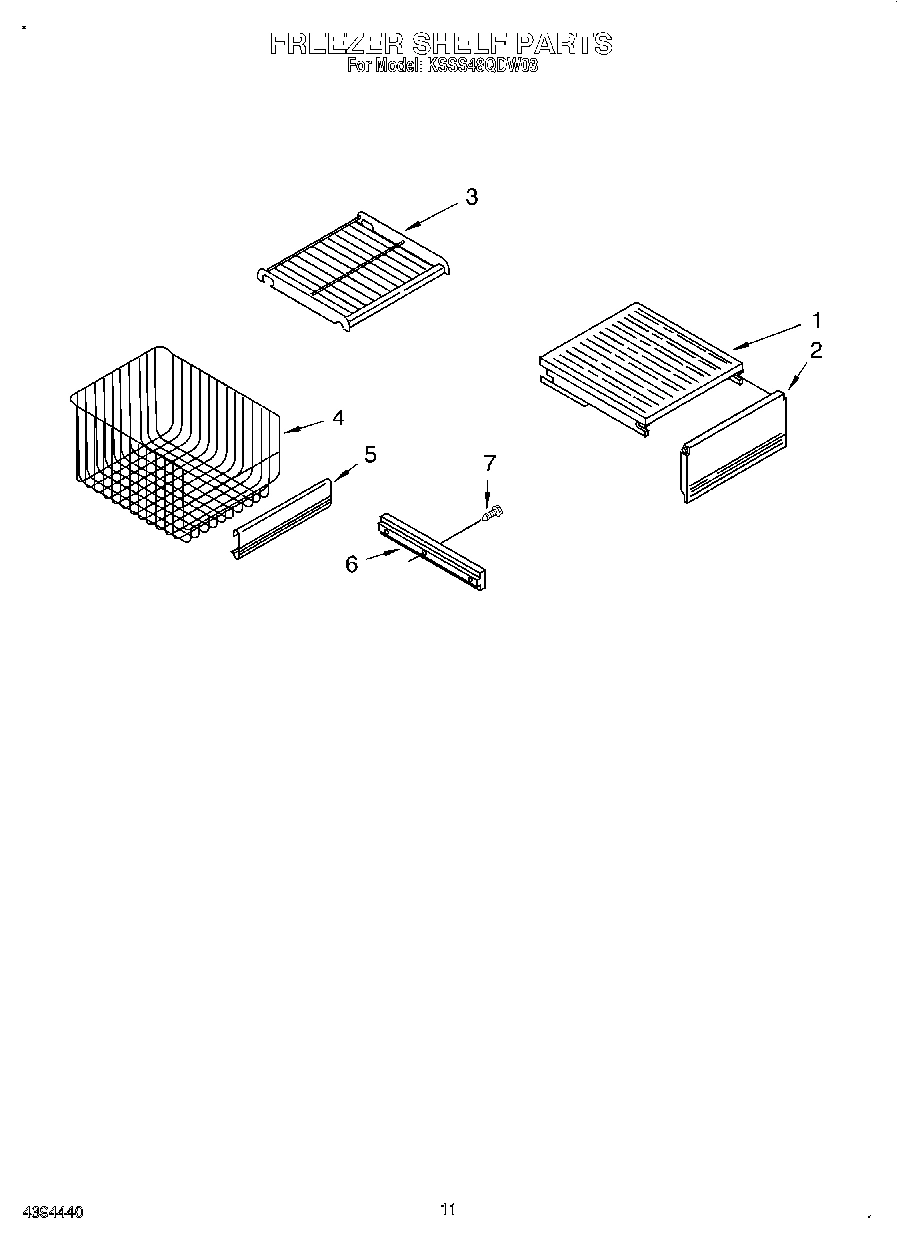

08 - FREEZER SHELF
15 - LOWER UNIT AND TUBE

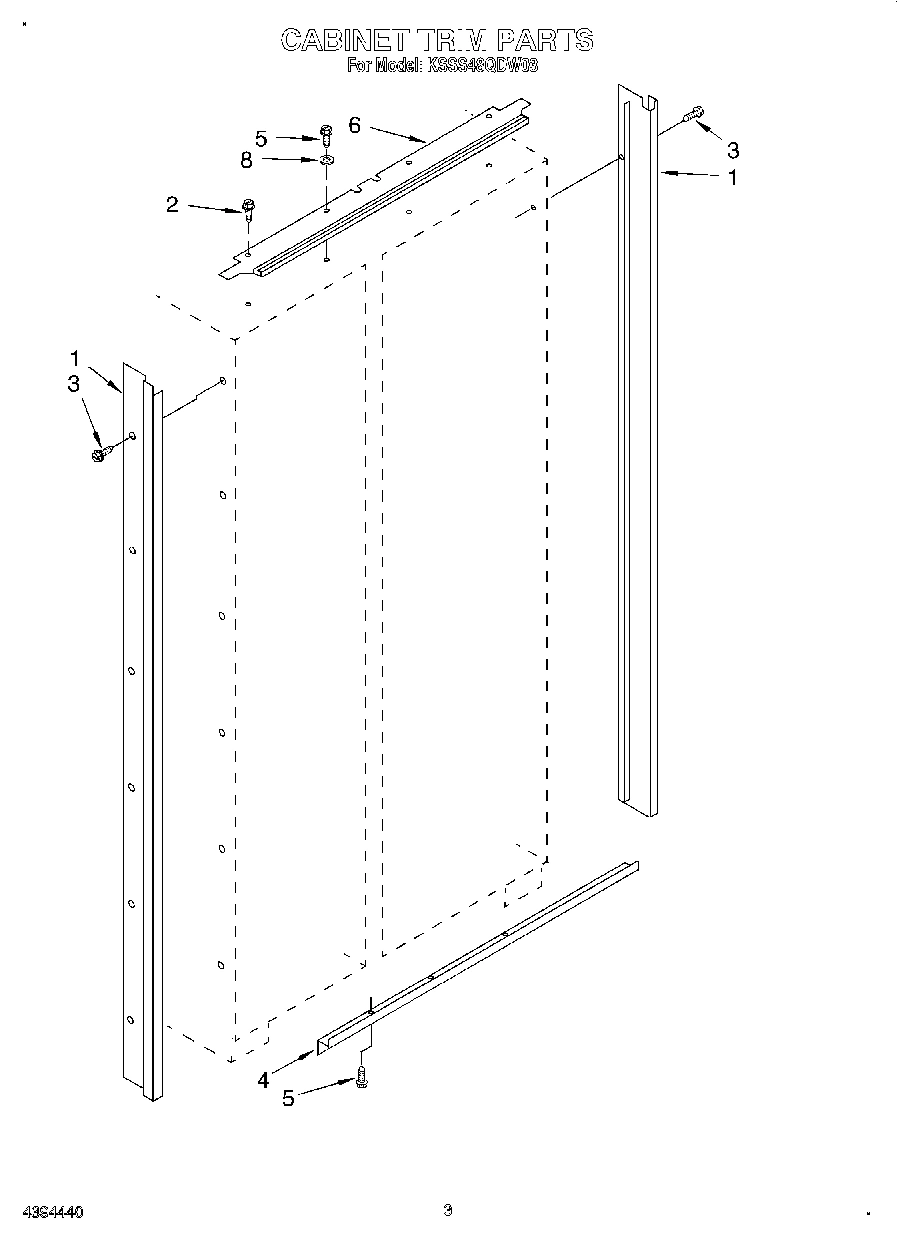

02 - CABINET TRIM

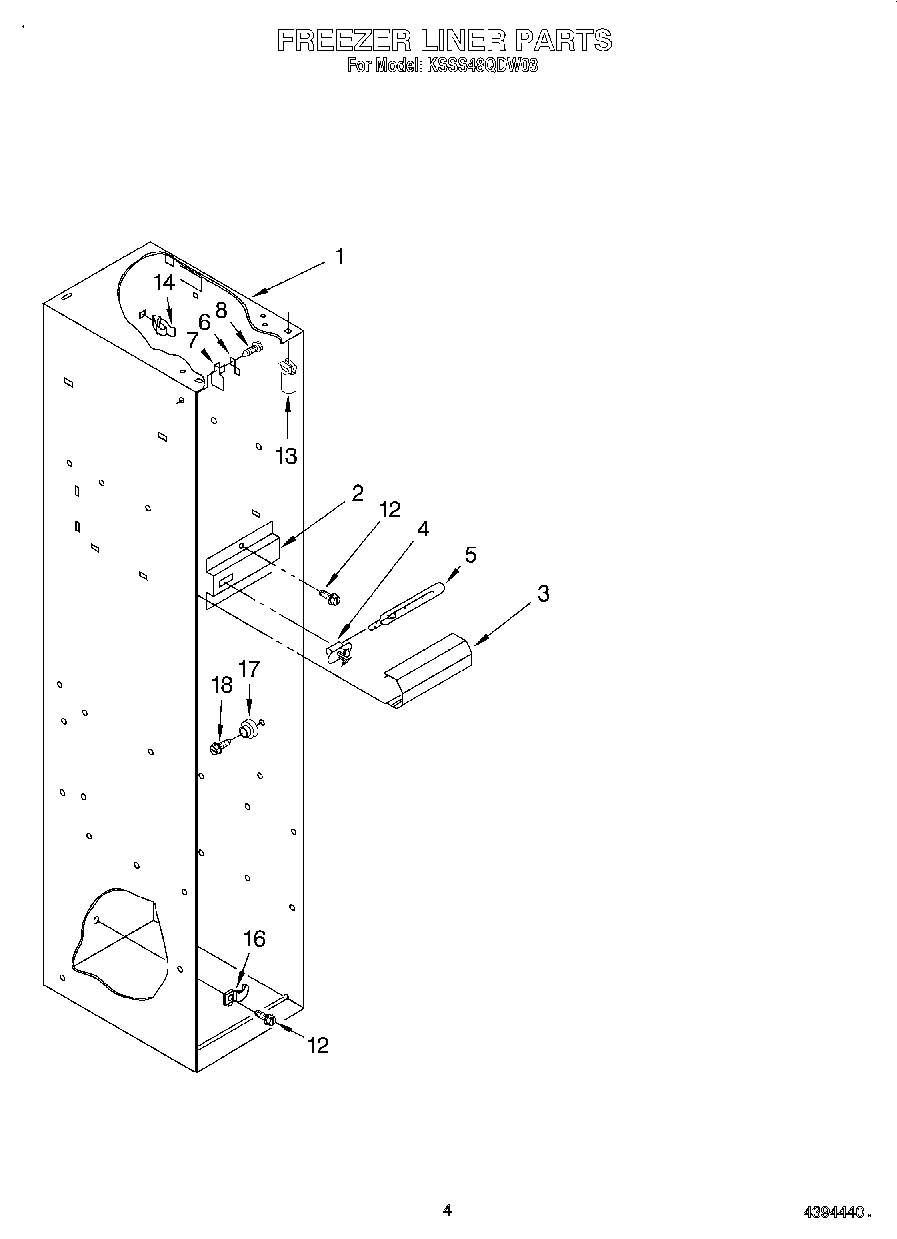

03 - FREEZER LINER

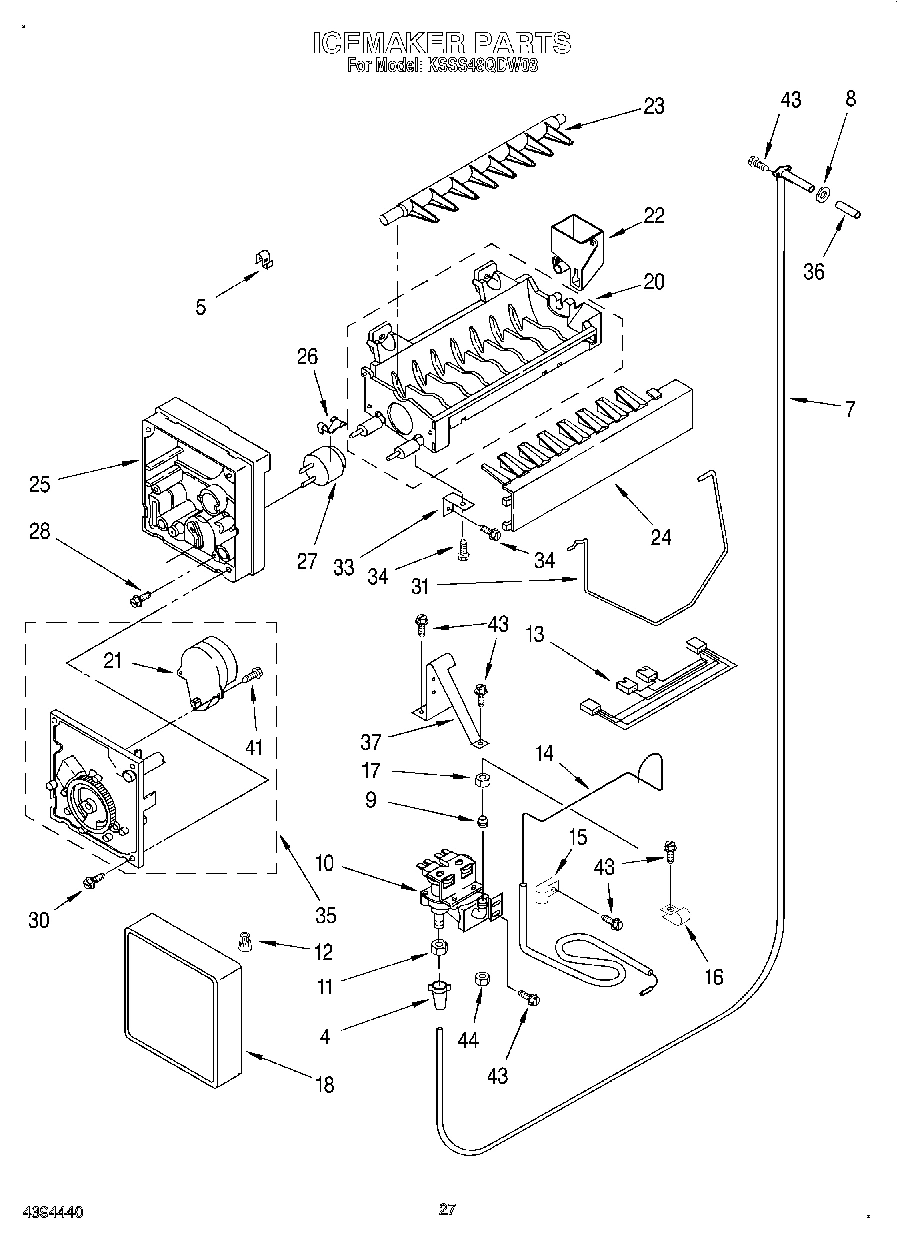

17 - ICEMAKER, LIT/OPTIONAL

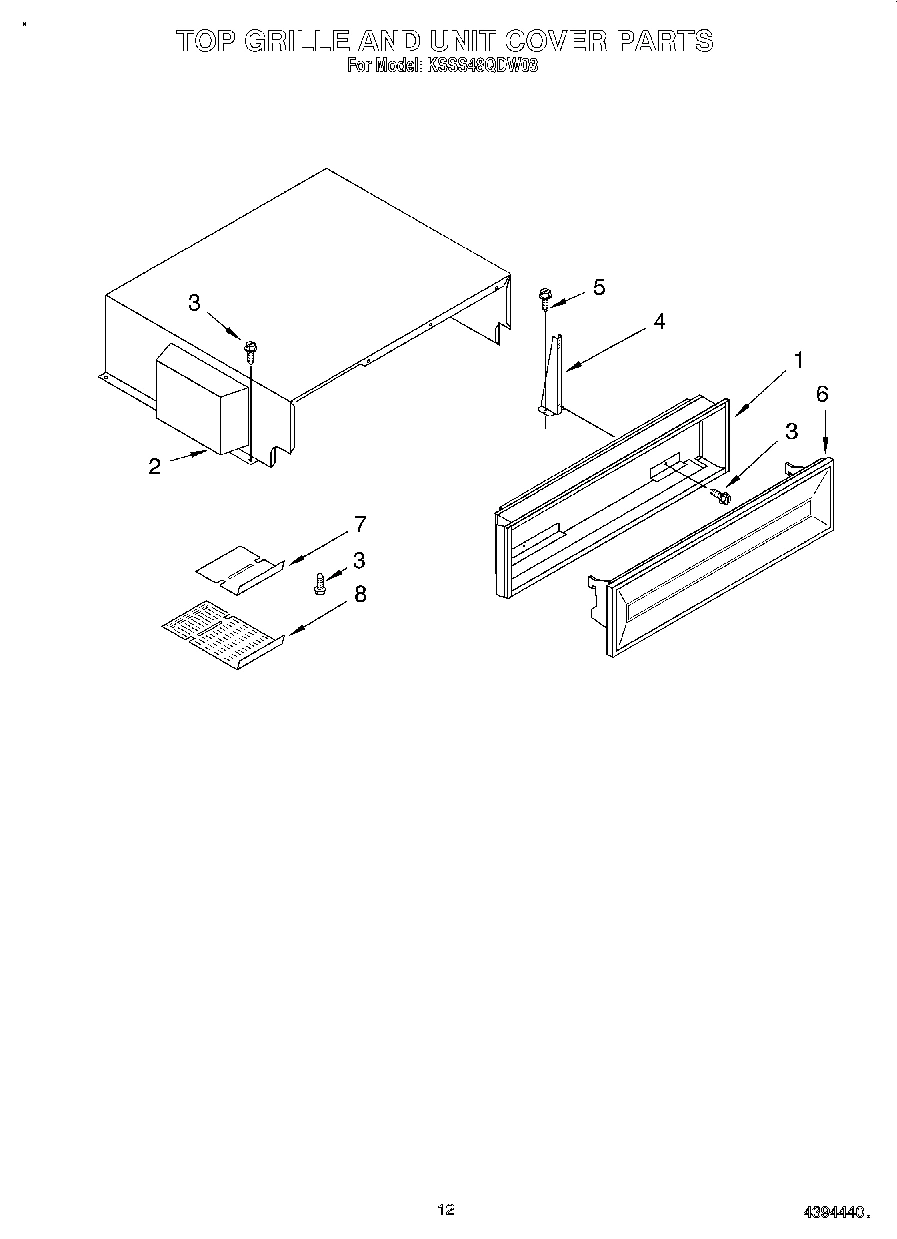

09 - TOP GRILLE AND UNIT COVER

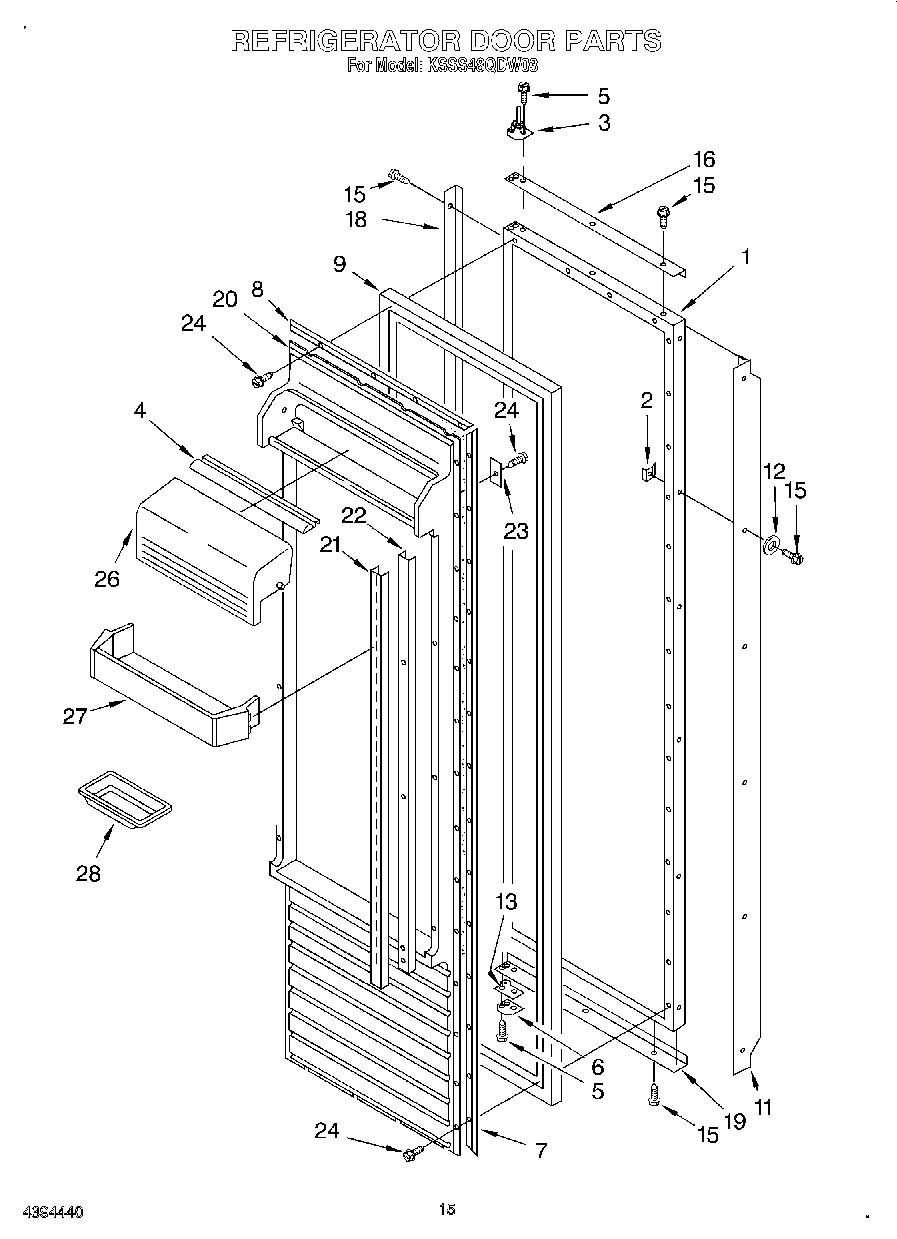

11 - REFRIGERATOR DOOR

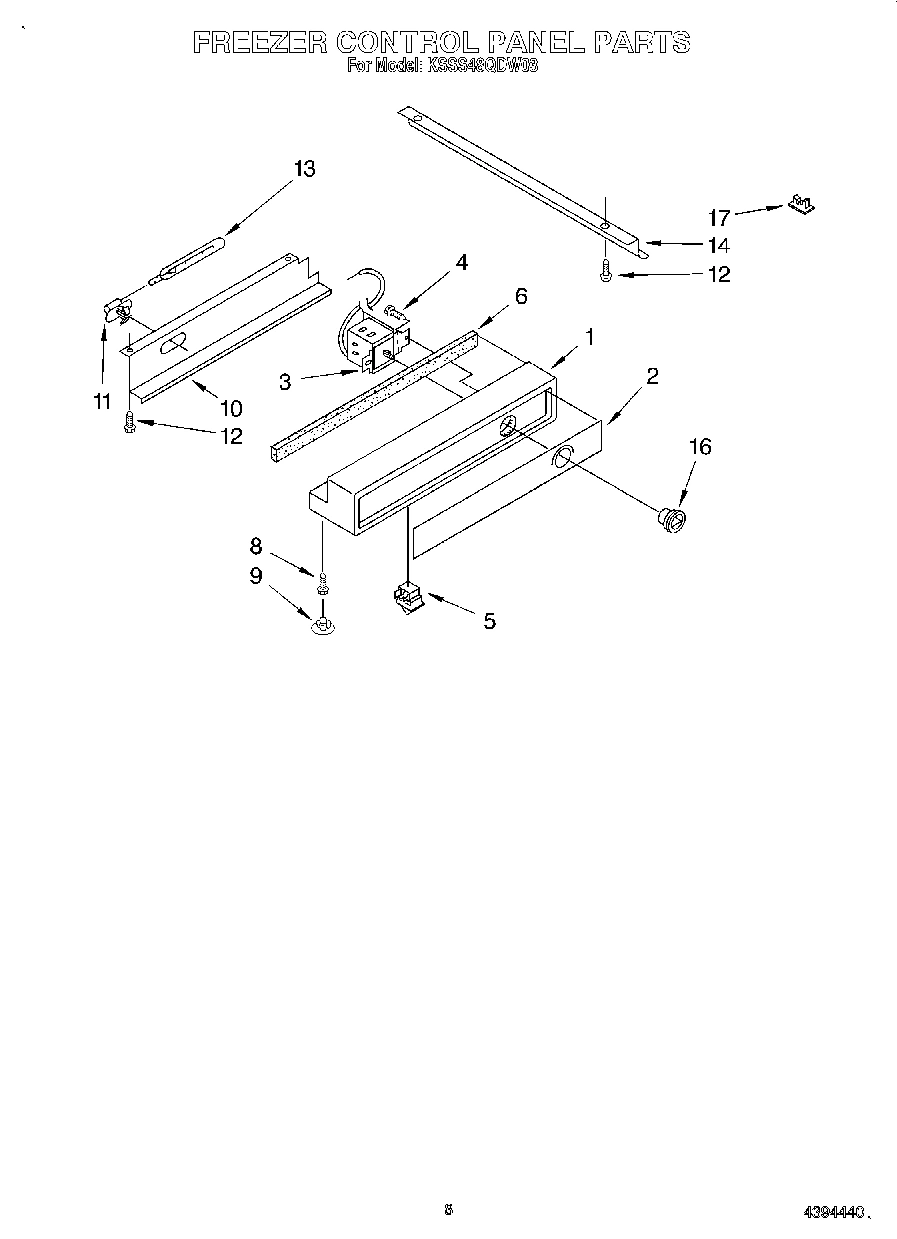

06 - FREEZER CONTROL PANEL

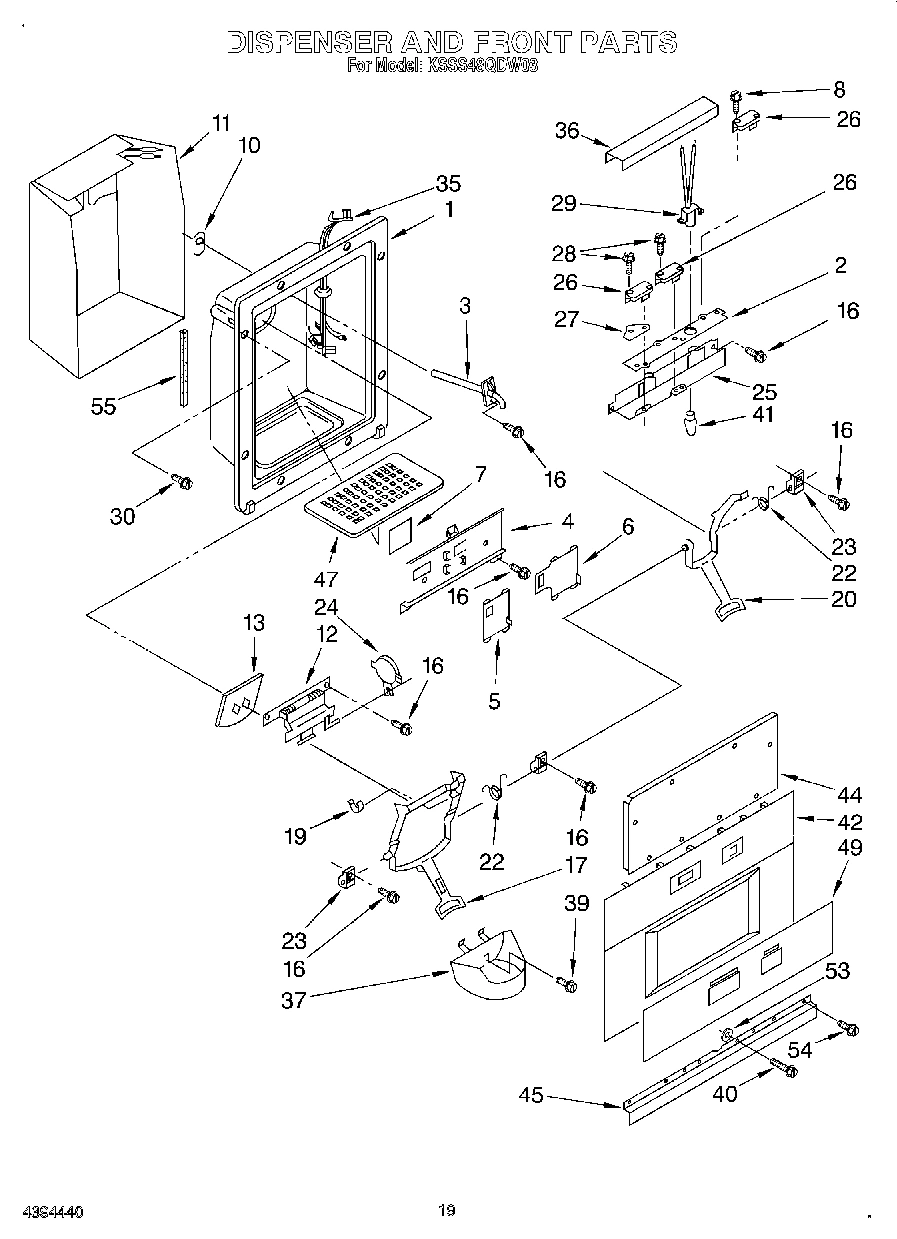

13 - DISPENSER FRONT

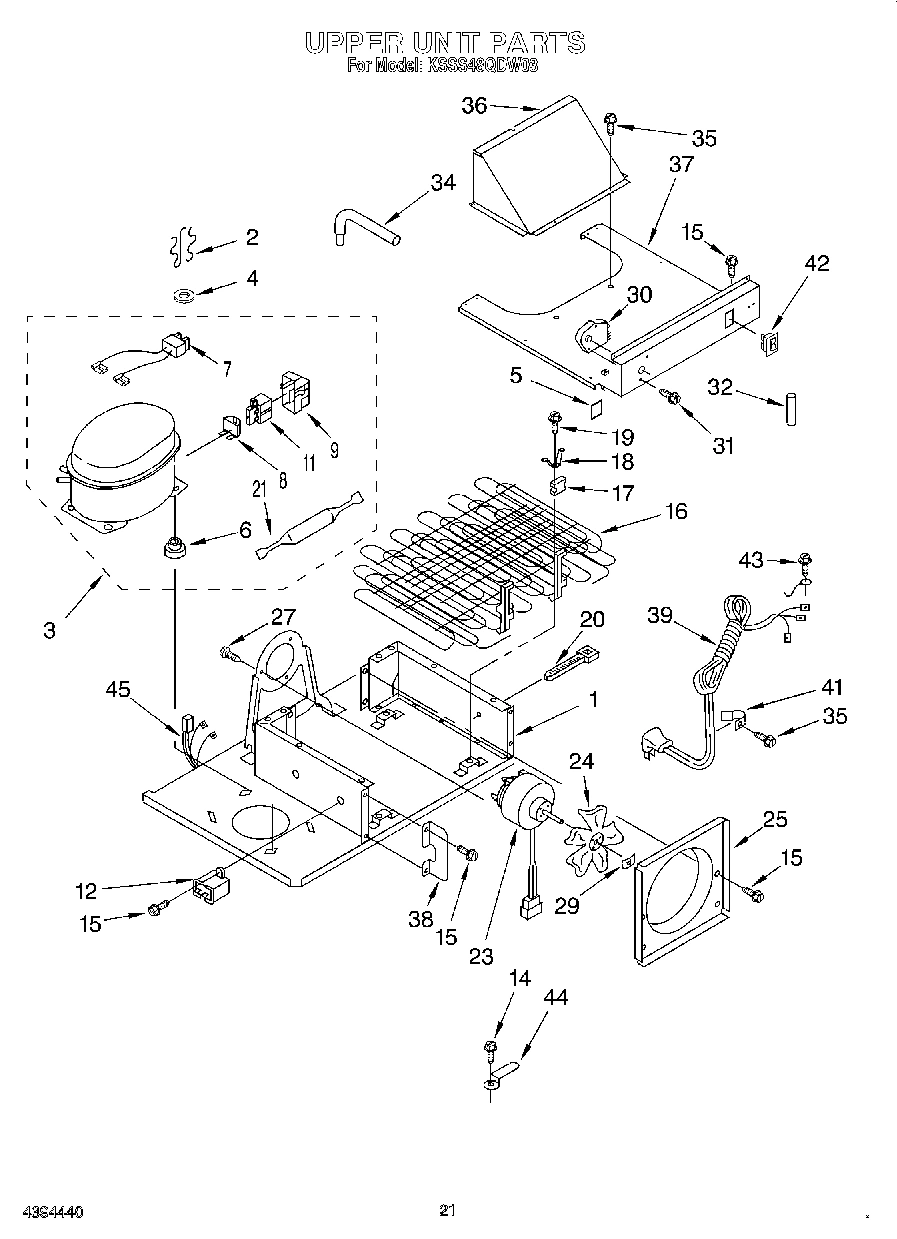

14 - UPPER UNIT

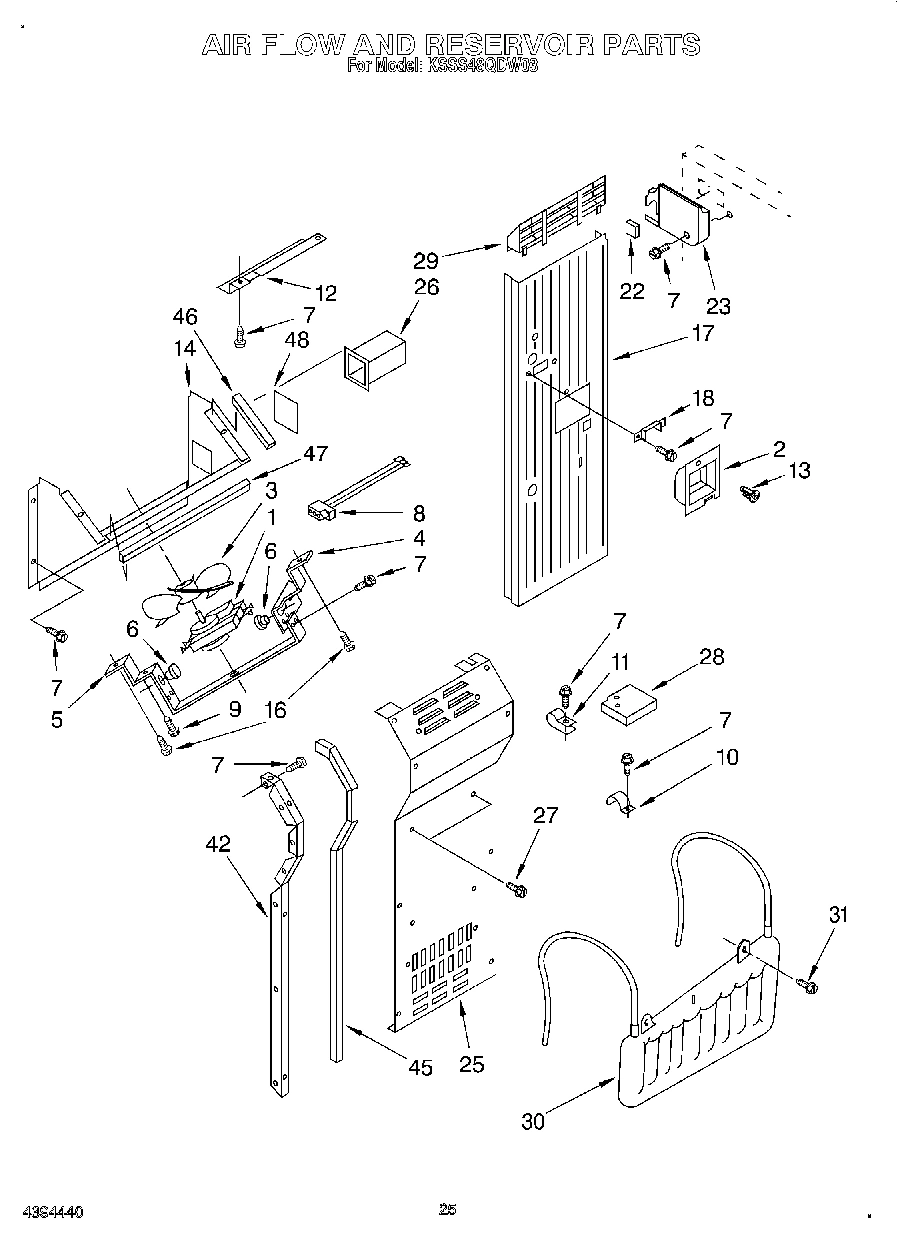

16 - AIRFLOW AND RESERVOIR
Common parts from model Whirlpool KSSS48QDW03 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2002934 Contact Us For Availability
Energy Label WPL LIT2003585 Contact Us For Availability
Use & Care Guide WPL LIT2003755 Contact Us For Availability
Installation Instructions WPL LIT2003757 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Control Panel WPL 1112642 Contact Us For Availability
1
Frame, Shelf WPL 2174404 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107827A Contact Us For Availability
1
Solid Shelf WPL 2003144 Contact Us For Availability
1
Cabinet, Trim (2) WPL 2003644 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107826A Contact Us For Availability
1
Top Grille Assembly WPL 2003718 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003872 Contact Us For Availability
1
Control Panel WPL 1113627 Contact Us For Availability
1
Housing, Dispenser WPL 1124715 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
2
Inlay, Control Panel WPL 2003303 Contact Us For Availability
2
Glass, Shelf WPL 2003377 Contact Us For Availability
2
Front, Ice Compartment WPL 2003135 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Cover, Unit WPL 2003267 Contact Us For Availability
2
Inlay, Control Panel WPL 2003309 Contact Us For Availability
2
Insulator, Bracket Control WPL 2147164 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Cup, Clearance WPL 2002732 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Reflector, Shelf WPL 1112006 Contact Us For Availability
3
Shelf, Deep WPL 1112052 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113638 Contact Us For Availability
3
Screw WPL 2001297 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Hinge Assembly, Top WPL 2001983 Contact Us For Availability
4
Control Knob WPL 2182110 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113792 Contact Us For Availability
4
Basket WPL 2004592 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2003592 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Gasket Utility Door WPL 1113955 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Frame, Slides WPL 2152717 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Trim, Basket WPL 2003114 Contact Us For Availability
5
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
5
Bushing, Foam WPL 2003389 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Stop, Roller WPL 1113169 Contact Us For Availability
6
Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003650 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Decortive Panel Assembly WPL 2003727 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2003986 Contact Us For Availability
6
Seal, Control Panel WPL 1113136 Contact Us For Availability
6
Slide, Light Switch WPL 2152726 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
7
Seal, Control Panel WPL 1113137 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2003327 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2003814 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2003480 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Heat Shield, Frame WPL 2147172 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Guard, Water Valve Wiring WPL 2003483 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112542 Contact Us For Availability
8
Screw WPL 488361 Contact Us For Availability
8
Overload (Includes Relay) WPL 2176858 Contact Us For Availability
8
Motor, Wiring WPL 2000618 Contact Us For Availability
9
Heater, Drain Pan WPL 2002994 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
10
Shield, Control Panel WPL 1113775 Contact Us For Availability
10
Glass, Crisper (Includes No.9) WPL 2003380 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Shield, Control Panel WPL 1113769 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
11
Socket, Light WPL 1112613 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Handle, Door WPL 2003680 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2149097 Contact Us For Availability
11
Relay (See Overload) WPL ARI107828A Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Channel, Wiring WPL 2001145 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
13
Water Valve, Harness WPL 2003477 Contact Us For Availability
13
Door, Spacer Bottom WPL 2003982 Contact Us For Availability
13
Fastner WPL 1112871 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Crisper Pan (2) WPL 2003317 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Channel, Wiring WPL 2001974 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
15
Heat Exchanger WPL 2003003 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Roller WPL 2174388 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
15
Screw WPL 2001208 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Trim (Top) WPL 2003656 Contact Us For Availability
16
Knob, Thermostat WPL 2182112 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
17
Lever, Ice Dispenser WPL 1124718 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Assembly, Air Duct WPL 2002962 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Trim (Side) WPL 2003676 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
19
Trim (Bottom) WPL 2003668 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
20
Meat Pan WPL 2003322 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Wire Tie (2) WPL 851095 Contact Us For Availability
20
Panel, Interior Door WPL 1113950 Contact Us For Availability
20
Lever, Water Dispenser WPL 2159197 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113949 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
23
Back Up Plate (6) WPL 1112514 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Cover, Air Outlet WPL 2003576 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Air Baffle Cover WPL 2003578 Contact Us For Availability
25
Bracket, Control WPL 2147163 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Cover, Evaporator WPL 2000342 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Door, Utility Bin WPL 2003465 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000796 Contact Us For Availability
27
Insulation, Switch WPL 625834 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Door Shelf (4) WPL 2003132 Contact Us For Availability
28
Shelf Bin (2) WPL 2003129 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Screw, WPL 489155 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112853 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
35
Wiring Harness, Door WPL 2147166 Contact Us For Availability
36
Extension Tube WPL 2003812 Contact Us For Availability
36
Shield, Wiring WPL 2147165 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
37
Guiding, Ice WPL 1124730 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Cover, Condenser WPL 2003355 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Air Vane WPL 2003263 Contact Us For Availability
39
Cup, Wiring WPL 2003472 Contact Us For Availability
39
Screw WPL 488892 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
40
Seal WPL 2003474 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Front Cover, Housing (Includes No.49) WPL 2002881 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
43
Eyelet, Roller WPL 2174478 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
44
Cover, Dispenser Opening WPL 2002730 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Trim, Front (2) WPL 2003598 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Grille, Overflow WPL 1126120 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
49
Overlay, Cover WPL 2002893 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
100
Front Panel Kit (White) WPL 4378652 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4378655 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4378658 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4378661 Contact Us For Availability
100
Black Acrylic Static Cleaner Part No. WPL 978849 Contact Us For Availability
× ![]()
