Model Whirlpool KSSS48MHW00 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

Defrost Bi-Metal WPL 2006755 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2006136 Contact Us For Availability

1

LITERATURE PARTS (Installation Instructions) WPL LIT2006137 Contact Us For Availability

1

LITERATURE PARTS (Energy Label) WPL LIT2006656 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2006748 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

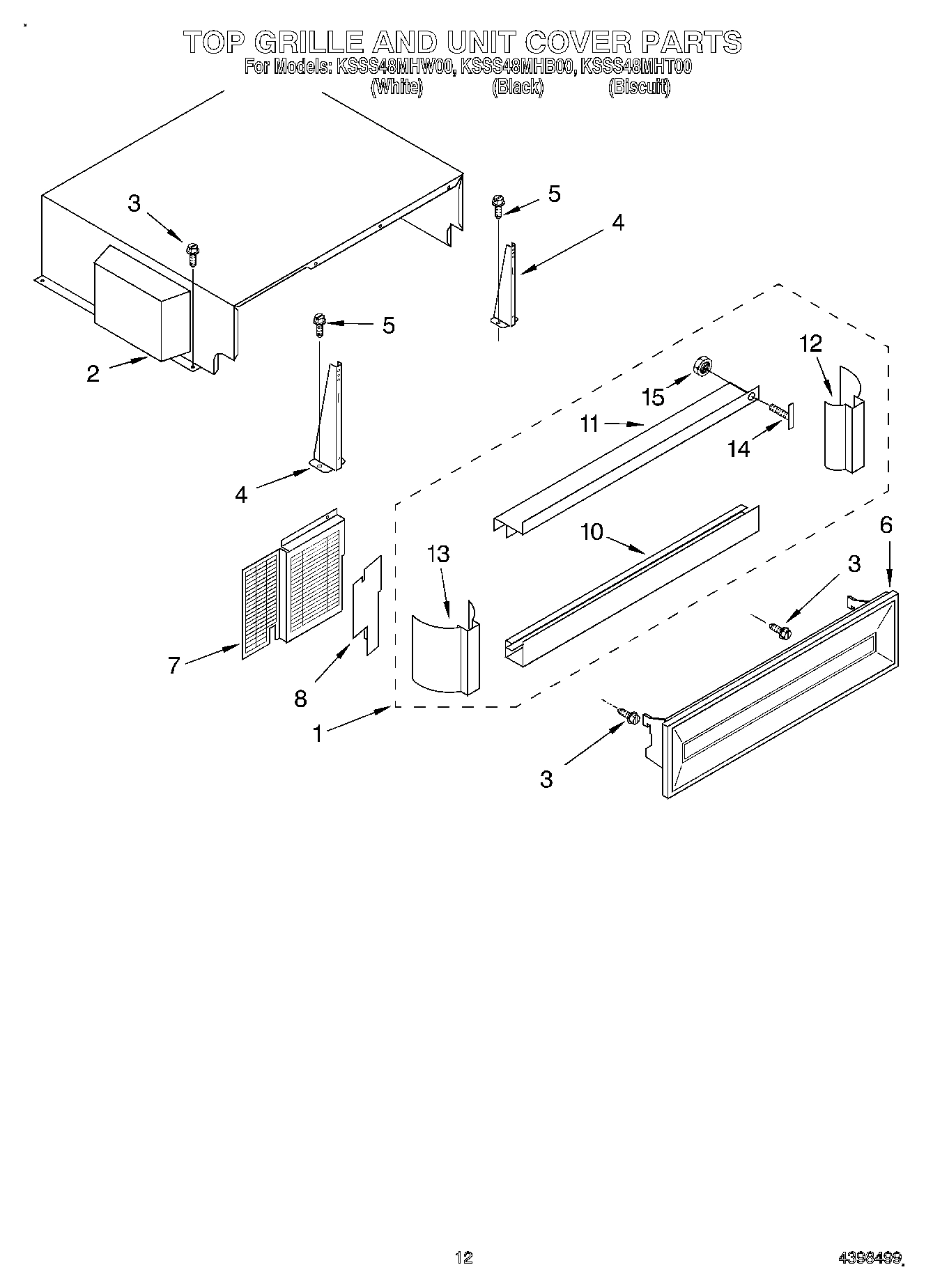

Top Grille Assembly (White) WPL 2003718 Contact Us For Availability

1

Top Grille Assembly (Black) WPL 2005903 Contact Us For Availability

1

Top Grille Assembly (Biscuit) WPL 2006397 Contact Us For Availability

1

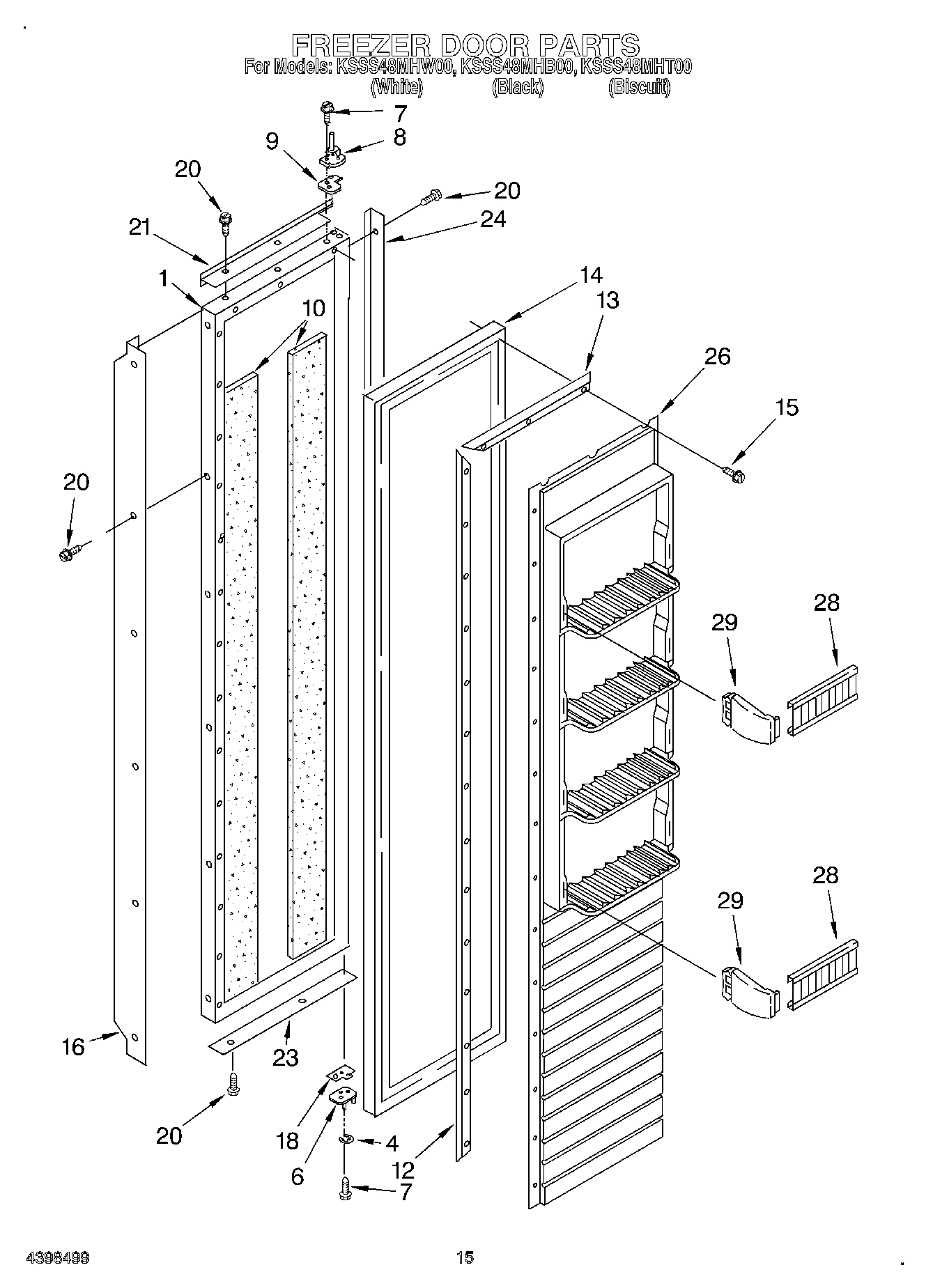

Freezer Door Panel (Includes Insulation) WPL 2003878 Contact Us For Availability

1

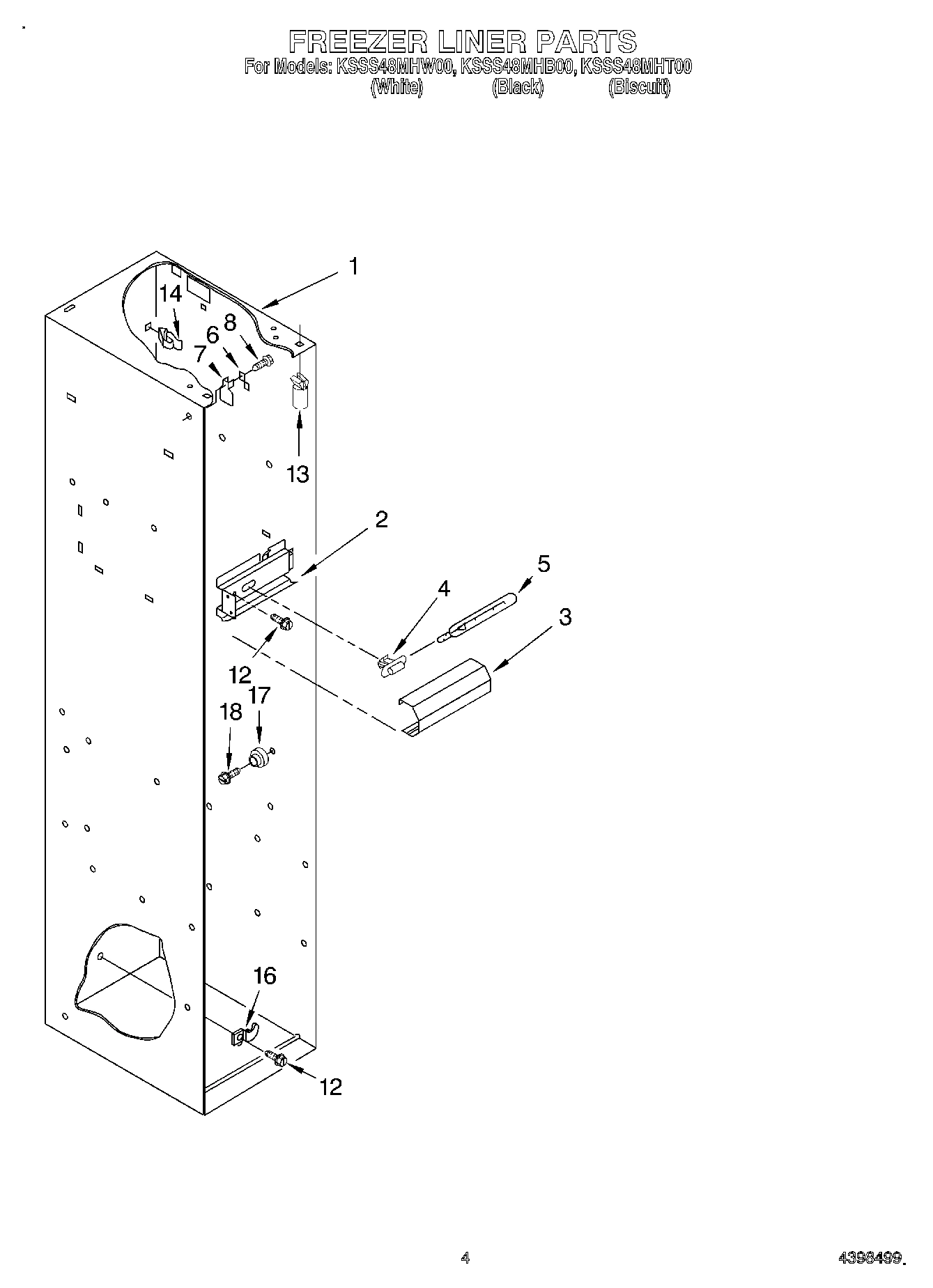

Liner (Not A Serviceable Part) WPL ARI107806A Contact Us For Availability

1

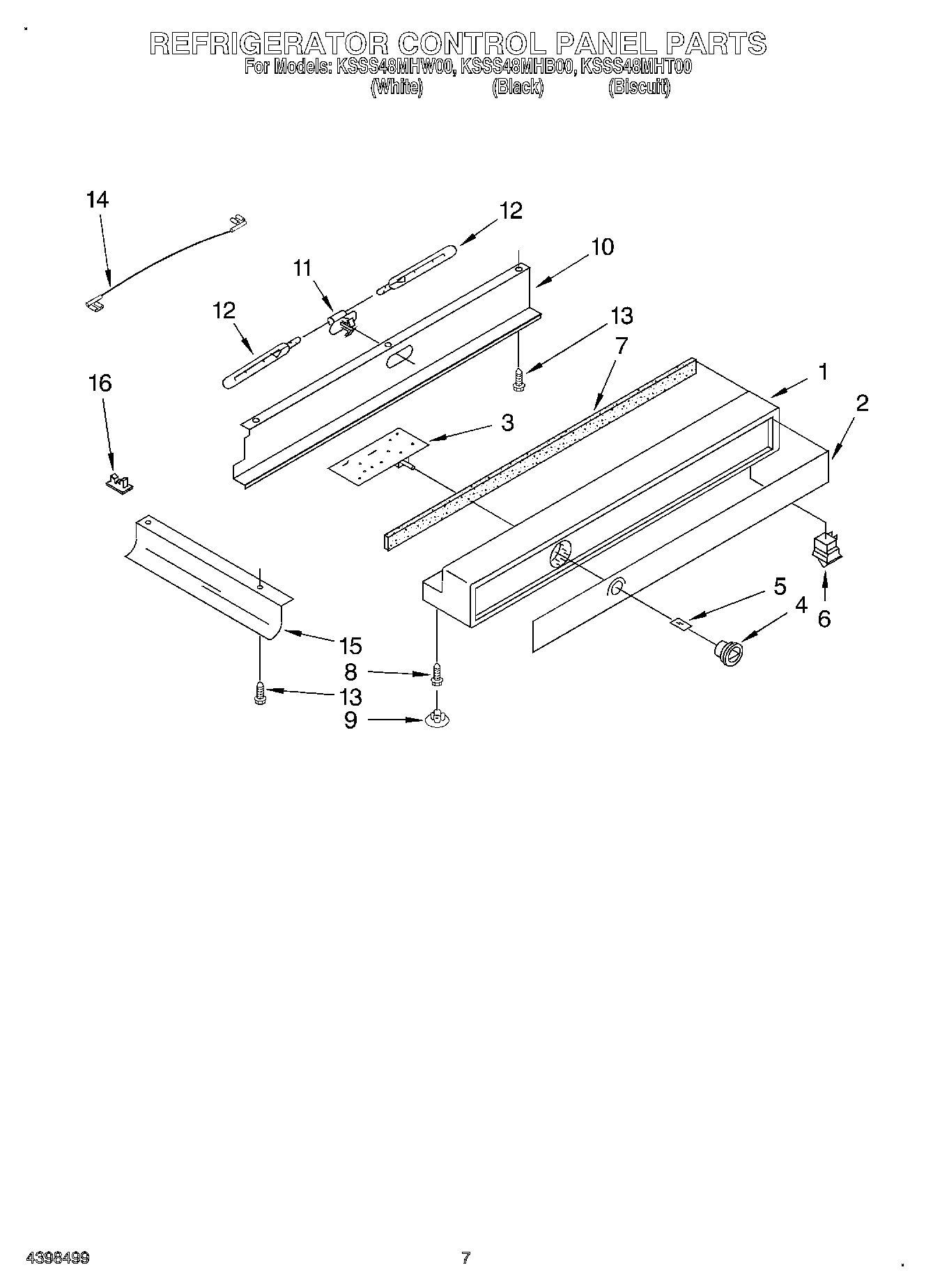

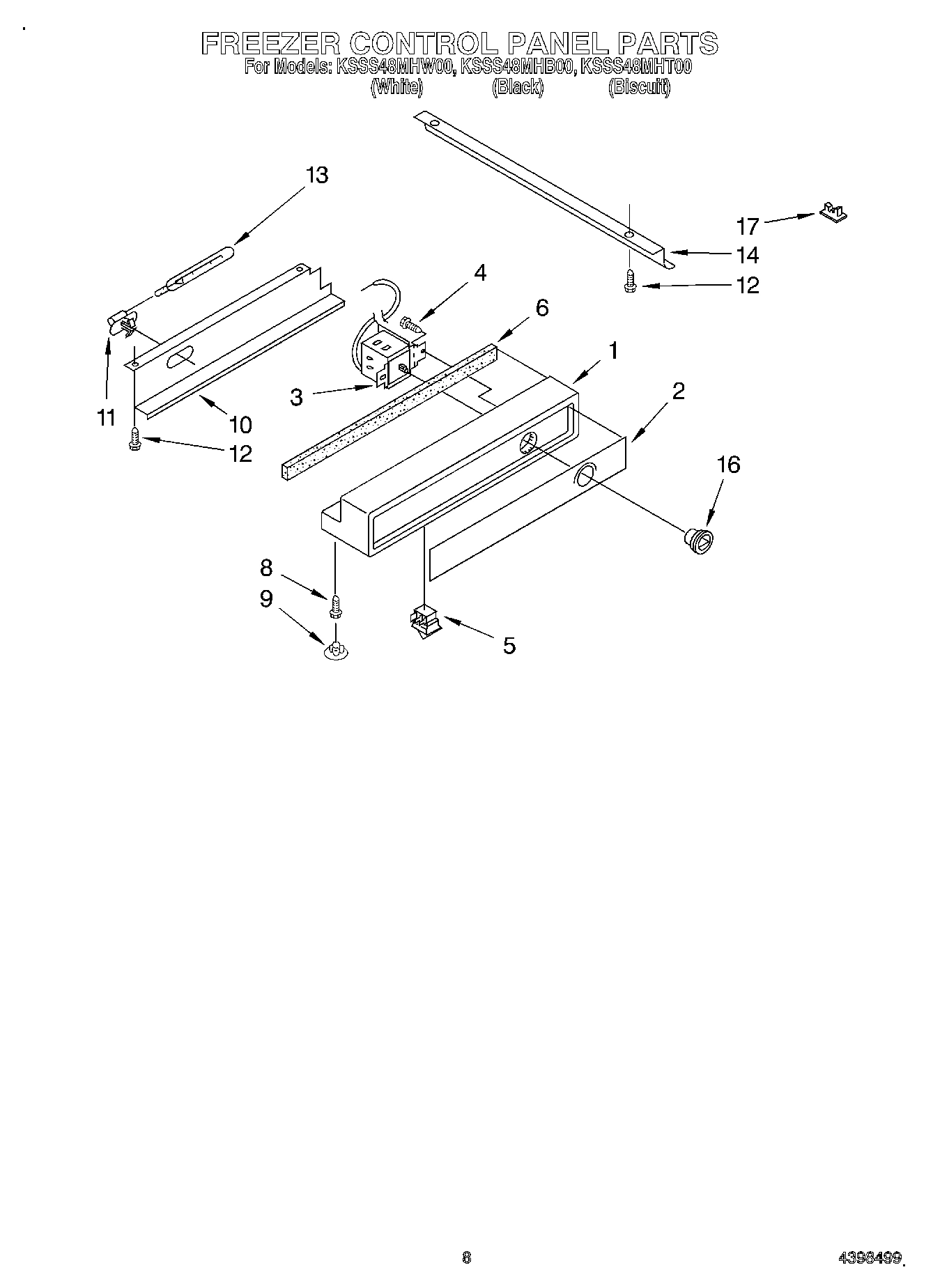

Control Panel WPL 1112642 Contact Us For Availability

1

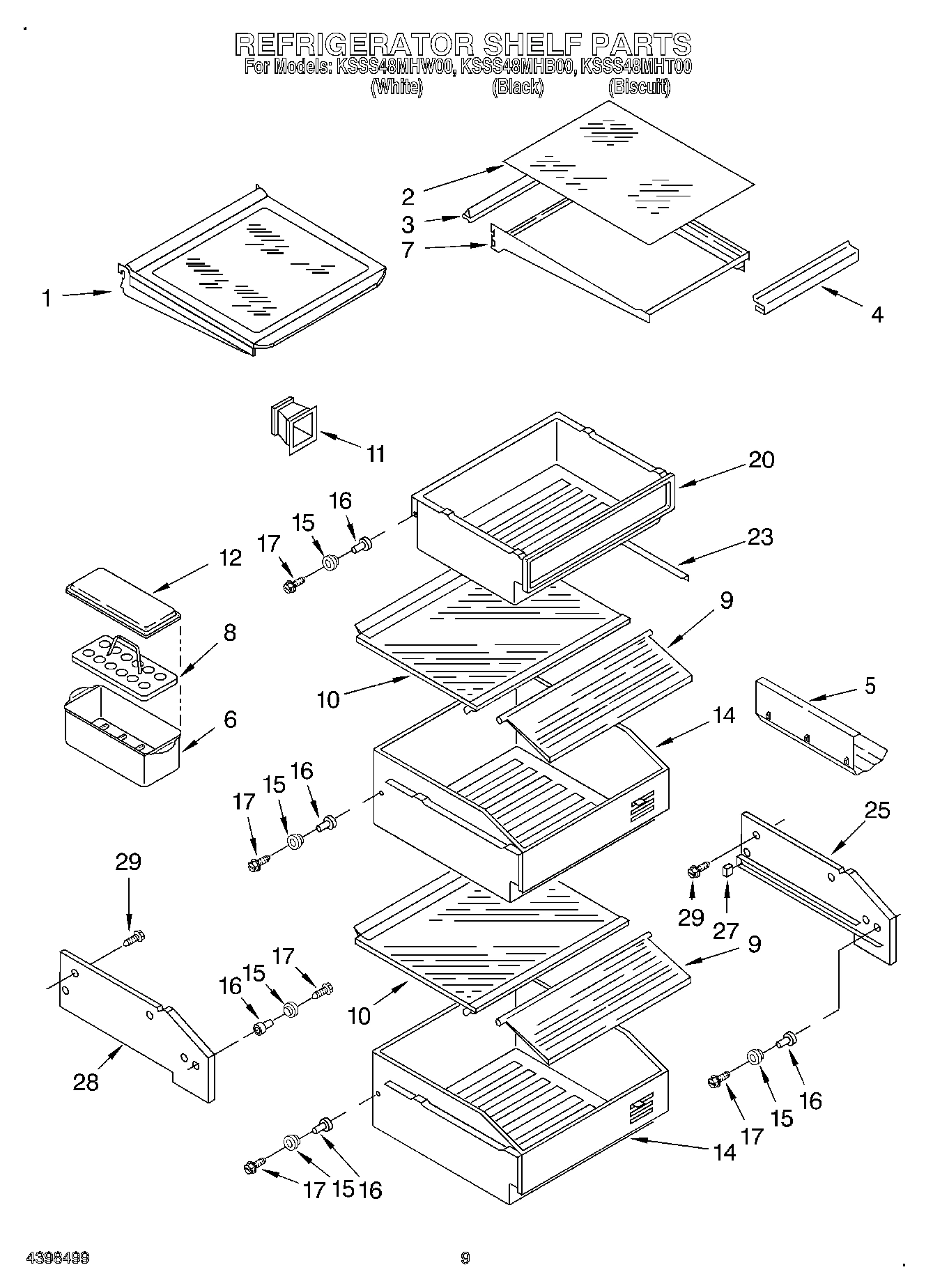

Frame, Shelf WPL 2174404 Contact Us For Availability

1

Control Panel WPL 1113627 Contact Us For Availability

1

Solid Shelf WPL 2003144 Contact Us For Availability

1

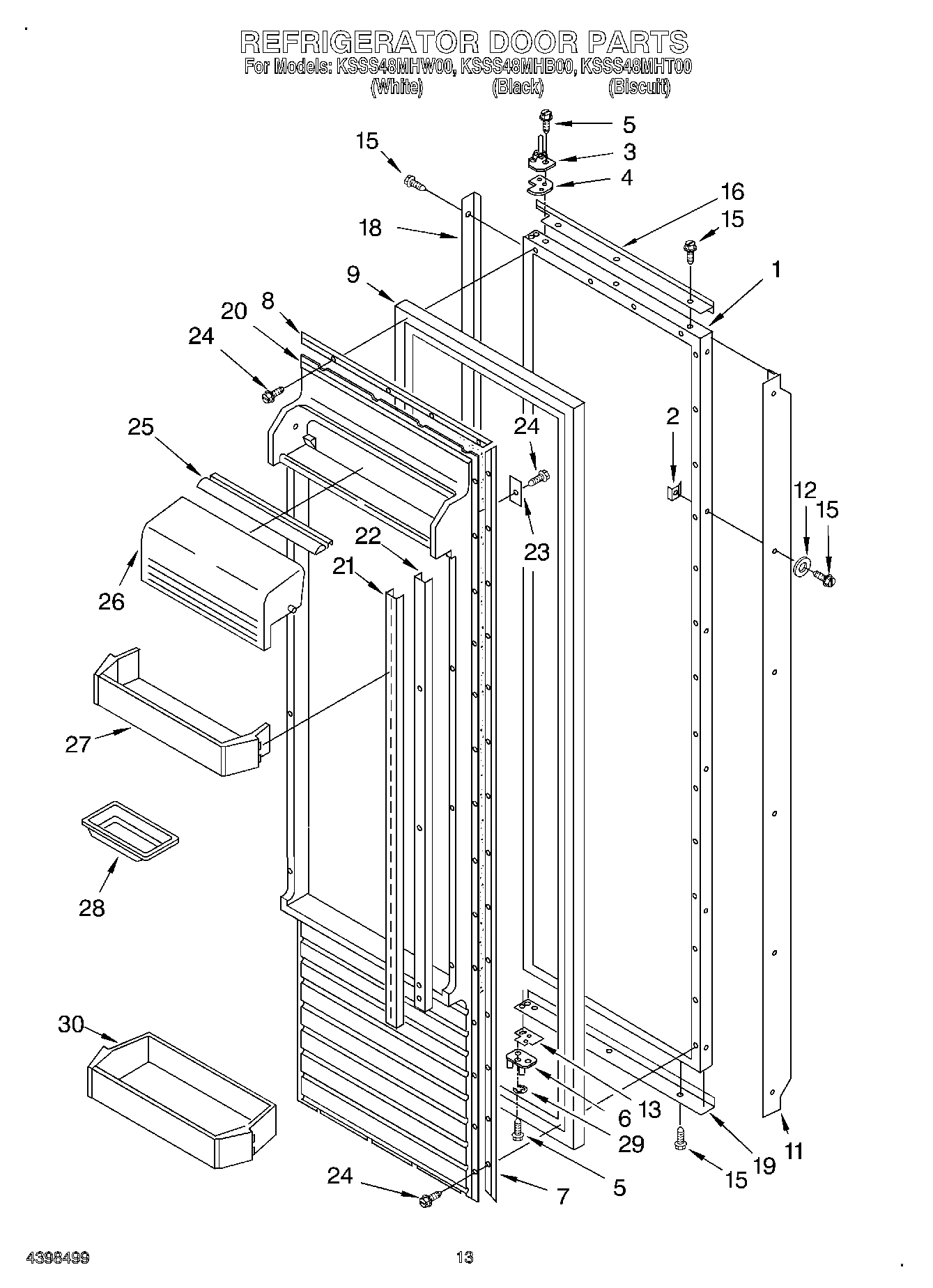

Refrigerator Door Panel (Includes Insulation) WPL 2003872 Contact Us For Availability

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

2

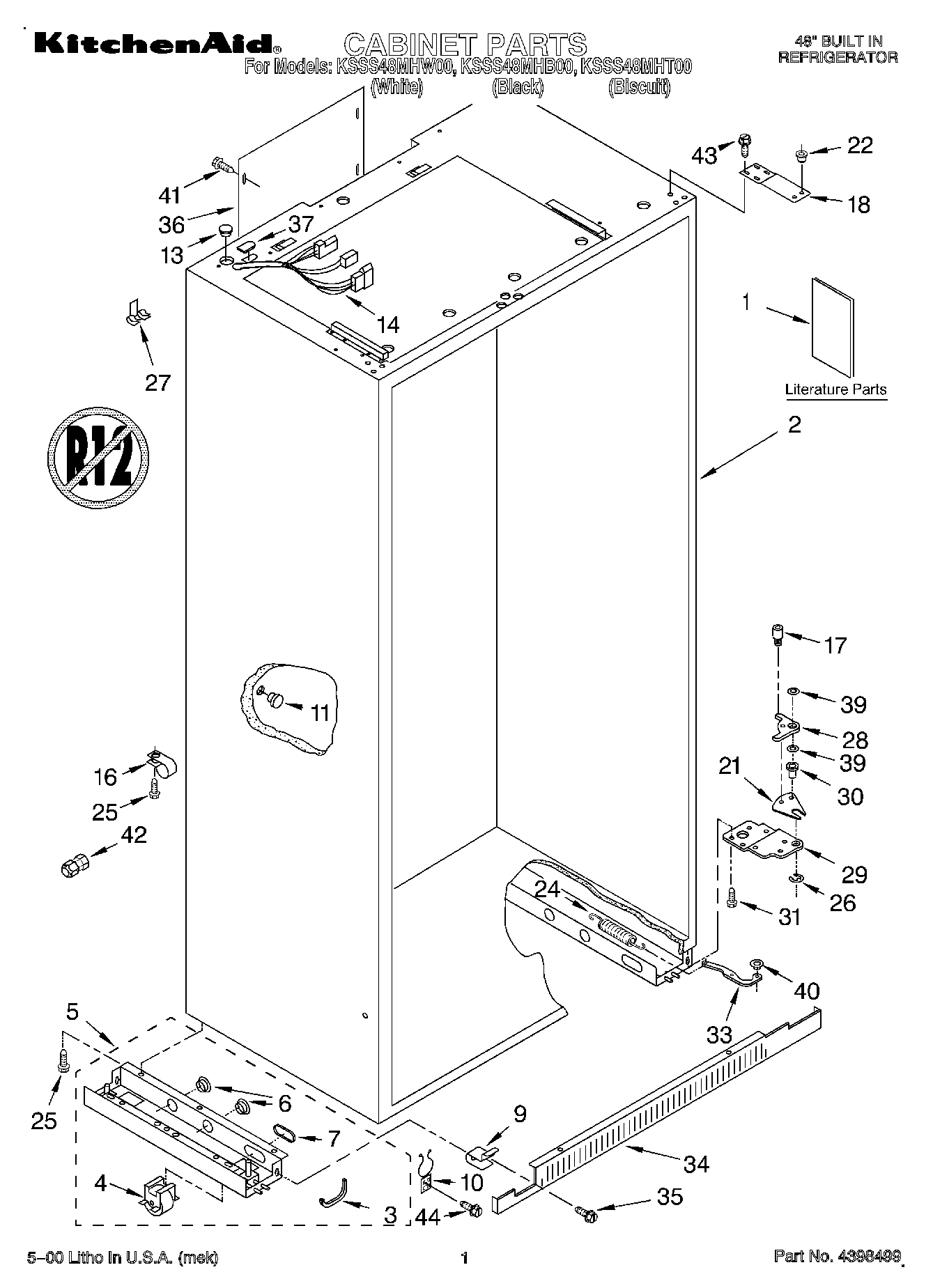

Cabinet (Not A Serviceable Part) WPL ARI107805A Contact Us For Availability

2

Cover, Unit WPL 2005549 Contact Us For Availability

2

Cup, Clearance WPL 2002732 Contact Us For Availability

2

Bracket, Light WPL 2005567 Contact Us For Availability

2

Inlay, Control Panel WPL 2003303 Contact Us For Availability

2

Glass, Shelf WPL 2003377 Contact Us For Availability

2

Inlay, Control Panel WPL 2003309 Contact Us For Availability

2

Front, Ice Compartment WPL 2188383 Contact Us For Availability

3

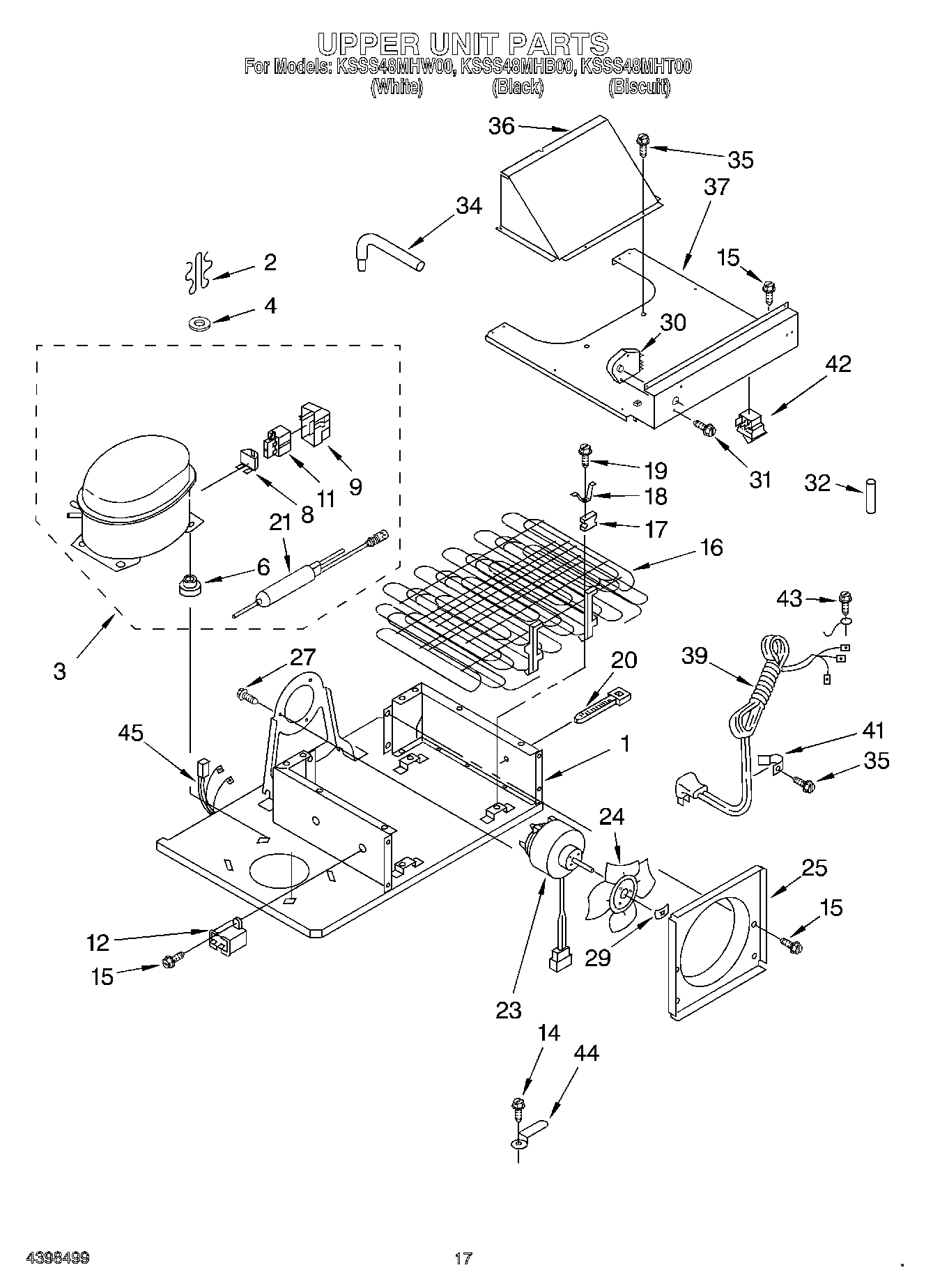

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

3

WP1113466 Whirlpool Refrigerator Thermostat Backorder WPL WP1113466 $125.12

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Circuit Board WPL 2208995 Contact Us For Availability

3

Grommet, Tube Crossover WPL 2005004 Contact Us For Availability

3

Hinge Assembly, Top WPL 2005329 Contact Us For Availability

3

Lens WPL 1113650 Contact Us For Availability

3

Reflector, Shelf WPL 1112006 Contact Us For Availability

3

Shelf, Deep WPL 1112052 Contact Us For Availability

3

Shelf, Fixed (2) WPL 1113638 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

4

Socket, Light WPL 2005042 Contact Us For Availability

4

Grille, Bracket WPL 2002484 Contact Us For Availability

4

Spacer-Door, Top WPL 2004520 Contact Us For Availability

4

Bracket (Double) WPL 548263 Contact Us For Availability

4

Control Knob WPL 2003842 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113792 Contact Us For Availability

4

Screw (2) WPL 488974 Contact Us For Availability

4

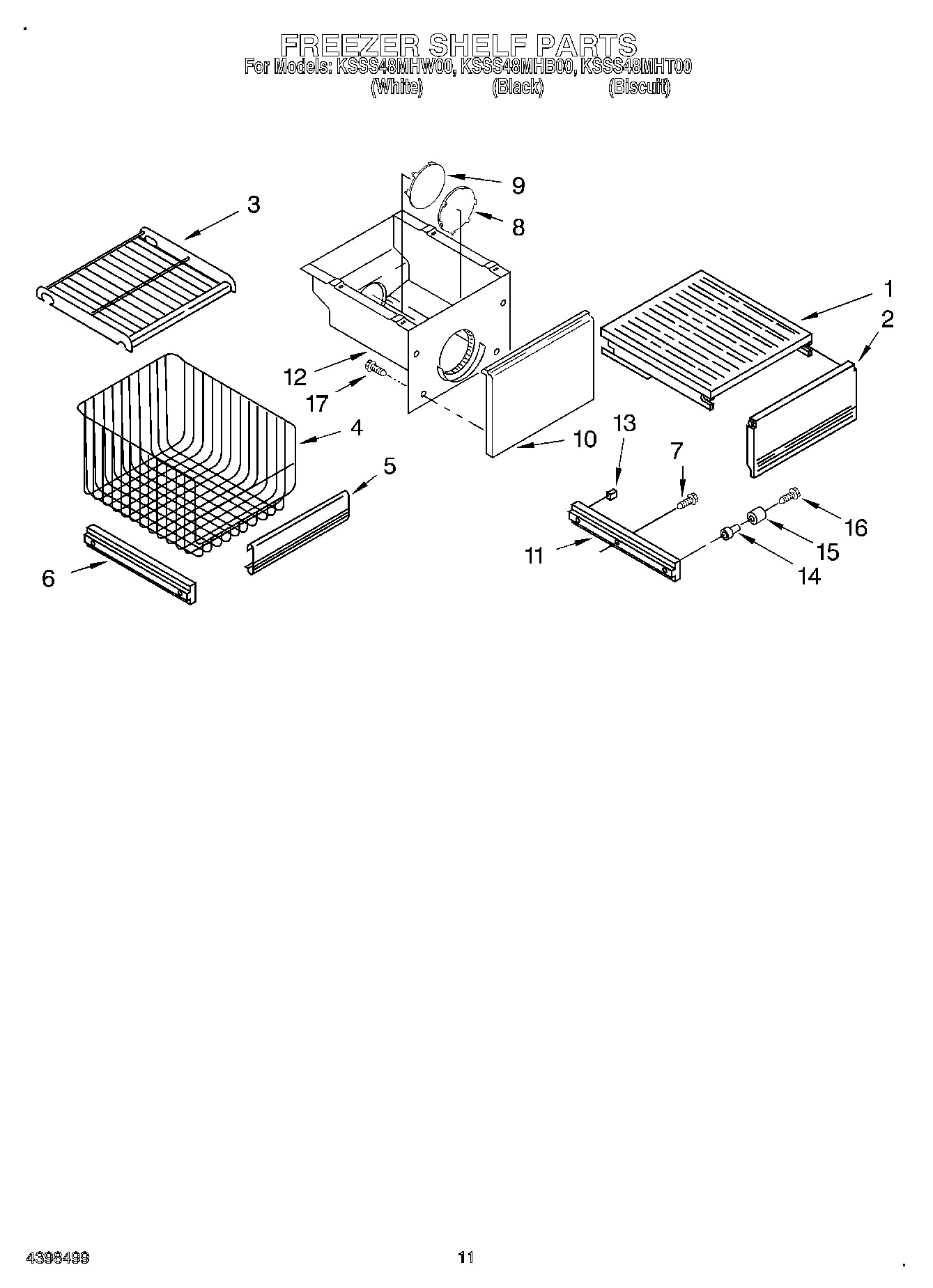

Basket WPL 2208196 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

5

Bracket (Single) WPL 938224 Contact Us For Availability

5

Retainer, Knob WPL 2003841 Contact Us For Availability

5

Trim, Basket WPL 2003114 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2004523 Whirlpool Refrigerator Door Hinge Backorder WPL WP2004523 $28.51

6

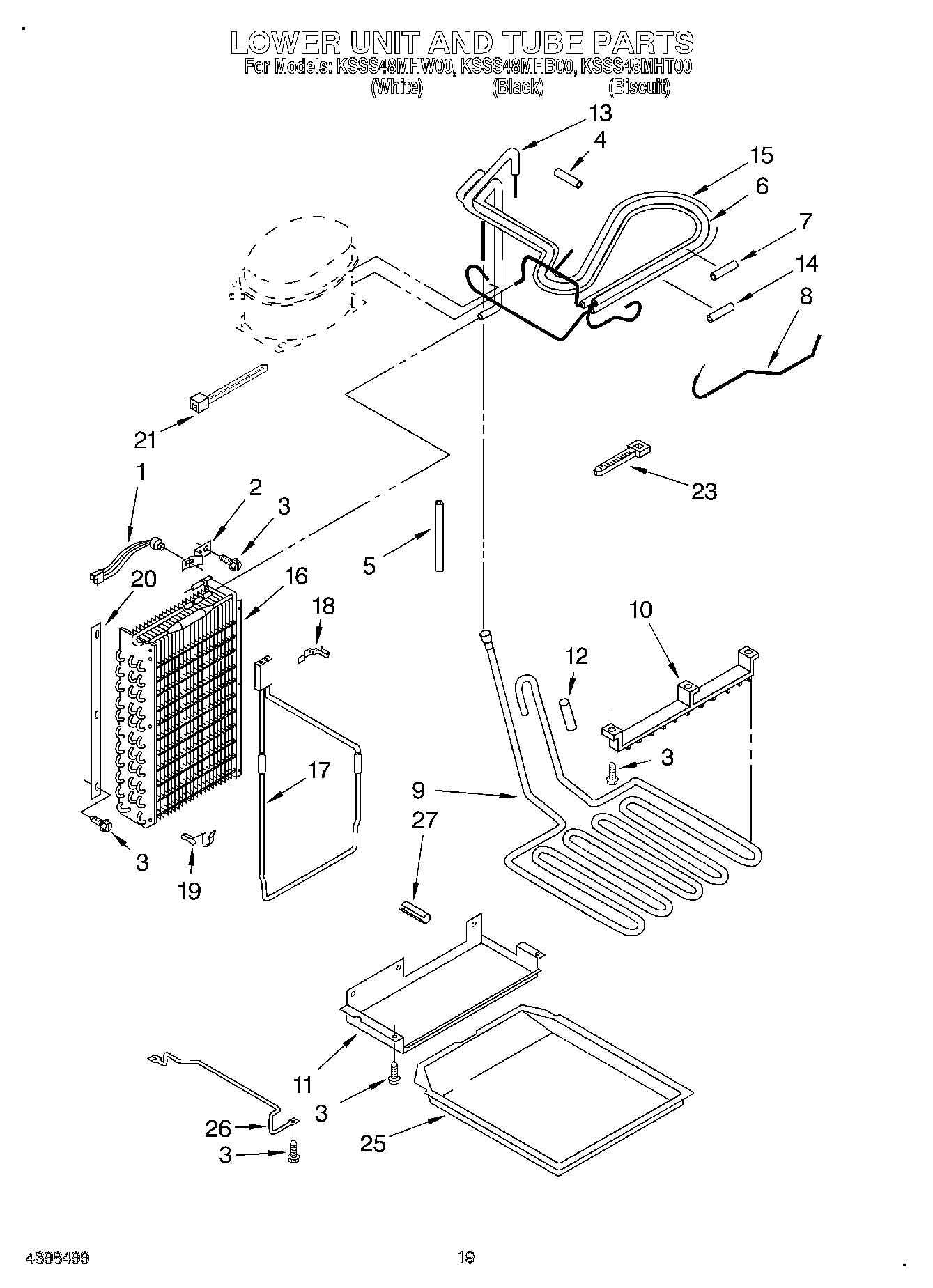

Condenser Inlet Tube WPL 2002999 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Decortive Panel Assembly (White) WPL 2003727 Contact Us For Availability

6

Decortive Panel Assembly (Black) WPL 2005906 Contact Us For Availability

6

Decortive Panel Assembly (Biscuit) WPL 2006400 Contact Us For Availability

6

Hinge, Bottom WPL 2004524 Contact Us For Availability

6

Grommet WPL 548268 Contact Us For Availability

6

Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability

6

Seal, Control Panel WPL 1113136 Contact Us For Availability

6

Slide, Basket (Left Side) WPL 2208197 Contact Us For Availability

6

Slide, Basket (Right Side) WPL 2208198 Contact Us For Availability

6

Plug, Water Valve WPL 2005038 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Guard, Compressor Wiring WPL 2005534 Contact Us For Availability

7

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

7

Grommet, Screw (2) WPL 2000193 Contact Us For Availability

7

Seal, Control Panel WPL 1113137 Contact Us For Availability

7

Frame, Assembly Meat Pan WPL 2006525 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $26.75

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

8

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

8

Tube, Connect (Drier) WPL 2003015 Contact Us For Availability

8

Baffle-Air, Condenser WPL 2006440 Contact Us For Availability

8

Deflector, Air Duct WPL 2003926 Contact Us For Availability

8

Screw (3) WPL 489260 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112542 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $12.81

9

2188321A Whirlpool Refrigerator Door Gasket Backorder WPL 2188321A $143.38

9

WP1112247 Whirlpool Refrigerator Cover Backorder WPL WP1112247 $54.09

9

WP2004545 Whirlpool Refrigerator Heater Pan In Stock WPL WP2004545 $177.02

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

9

Hole Plug (3) WPL 2000153 Contact Us For Availability

9

Connector WPL 2154472 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Clip, Wire WPL 2005237 Contact Us For Availability

Trim, Grille Bottom (White) WPL 2003616 Contact Us For Availability

Trim, Grille Bottom (Biscuit) WPL 2005764 Contact Us For Availability

Trim, Grille Bottom (Black) WPL 2005832 Contact Us For Availability

Seal WPL 2005610 Contact Us For Availability

Shield, Control Panel WPL 2005566 Contact Us For Availability

Glass, Crisper (Includes No.9) WPL 2003380 Contact Us For Availability

Shield, Control Panel WPL 2005563 Contact Us For Availability

Front Cover WPL 2003045 Contact Us For Availability

Valve, Solenoid WPL 2003791 Contact Us For Availability

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Cap, Grommet WPL 1112849 Contact Us For Availability

Trim, Grille Top (White) WPL 2003622 Contact Us For Availability

Trim, Grille Top (Biscuit) WPL 2005765 Contact Us For Availability

Trim, Grille Top (Black) WPL 2005829 Contact Us For Availability

Socket, Light WPL 2005043 Contact Us For Availability

Meat Pan, Connector WPL 2000742 Contact Us For Availability

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

Handle, Door (White) WPL 2005953 Contact Us For Availability

Handle, Door (Biscuit) WPL 2005955 Contact Us For Availability

Handle, Door (Black) WPL 2005956 Contact Us For Availability

Ice Container WPL 2208908 Contact Us For Availability

Trim, Grille Right Side (White) WPL 2003602 Contact Us For Availability

Trim, Grille Right Side (Biscuit) WPL 2005732 Contact Us For Availability

Trim, Grille Right Side (Black) WPL 2005821 Contact Us For Availability

Channel, Wiring WPL 2001145 Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

Washer WPL 2001230 Contact Us For Availability

Connector Wire WPL 227991 Contact Us For Availability

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $26.21

Grommet, Wiring WPL 1113122 Contact Us For Availability

Trim, Grille Left Side (White) WPL 2003608 Contact Us For Availability

Trim, Grille Left Side (Biscuit) WPL 2005733 Contact Us For Availability

Trim, Grille Left Side (Black) WPL 2005824 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability

Door, Spacer Bottom WPL 2004549 Contact Us For Availability

Fastner WPL 1112871 Contact Us For Availability

Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability

Water Valve, Harness WPL 2006738 Contact Us For Availability

2003347 Whirlpool Screw Backorder WPL 2003347 $9.35

2188319A Whirlpool Refrigerator Door Gasket In Stock WPL 2188319A $140.01

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

Wiring Harness, Cabinet WPL 2006754 Contact Us For Availability

Scroll, Fan WPL 2000783 Contact Us For Availability

Wire, Light WPL 2006223 Contact Us For Availability

Crisper Pan (2) WPL 2006546 Contact Us For Availability

Channel, Wiring WPL 2001974 Contact Us For Availability

Insert, Tube WPL 1129177 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

Heat Exchanger WPL 2003003 Contact Us For Availability

Deflector, Air Duct WPL 2003929 Contact Us For Availability

Screw (White) WPL 2001208 Contact Us For Availability

Screw (Biscuit) WPL 3400877 Contact Us For Availability

Screw (Black) WPL 3400878 Contact Us For Availability

Channel, Wiring WPL 2001141 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Eyelet, Roller WPL 2174478 Contact Us For Availability

Tube, Clamp WPL 488937 Contact Us For Availability

Handle, Door (Black) WPL 2005942 Contact Us For Availability

Handle, Door (White) WPL 2005943 Contact Us For Availability

Handle, Door (Biscuit) WPL 2005946 Contact Us For Availability

Knob, Thermostat WPL 2182112 Contact Us For Availability

Trim (Top) (White) WPL 2005015 Contact Us For Availability

Trim (Top) (Biscuit) WPL 2005769 Contact Us For Availability

Trim (Top) (Black) WPL 2005841 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw Backorder WPL WP2005378 $4.58

WP2006751 Whirlpool Refrigerator Heater Backorder WPL WP2006751 $58.25

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

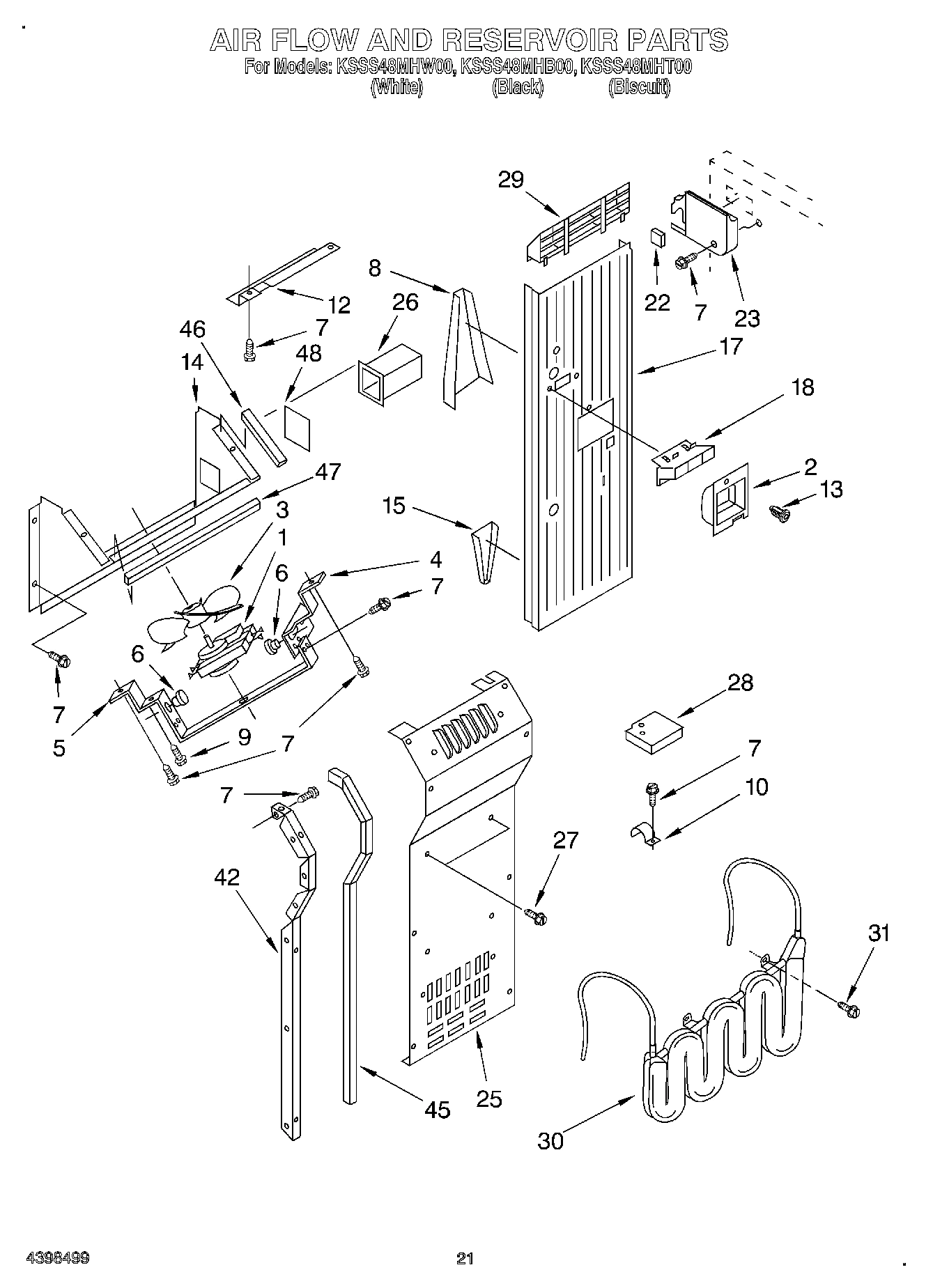

Assembly, Air Duct (Also Order Items 8 & 15) WPL 2208902 Contact Us For Availability

Stud, Shelf (20) WPL 2004068 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Screw WPL 487559 Contact Us For Availability

Trim (Side) (White) WPL 2005968 Contact Us For Availability

Trim (Side) (Biscuit) WPL 2005970 Contact Us For Availability

Trim, Side (Black) WPL 2005971 Contact Us For Availability

Screw WPL 487522 Contact Us For Availability

Trim (Bottom) (White) WPL 2003668 Contact Us For Availability

Trim (Bottom) (Biscuit) WPL 2005770 Contact Us For Availability

Trim (Bottom) (Black) WPL 2005882 Contact Us For Availability

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Meat Pan WPL 2006531 Contact Us For Availability

Panel, Interior Door WPL 1113950 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

Trim (Top) (White) WPL 2005024 Contact Us For Availability

Trim (Top) (Biscuit) WPL 2005772 Contact Us For Availability

Trim (Top) (Black) WPL 2005887 Contact Us For Availability

Ladder, Shelf (2) WPL 1113949 Contact Us For Availability

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Thermistor WPL 1116959 Contact Us For Availability

Trim (Bottom) (White) WPL 2004671 Contact Us For Availability

Trim (Bottom) (Biscuit) WPL 2005773 Contact Us For Availability

Trim (Bottom) (Black) WPL 2005890 Contact Us For Availability

Cover, Air Outlet WPL 2003576 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Blade, Fan WPL 2190685 Contact Us For Availability

Spring, Door Closure (Refrigerator Side) WPL 2004566 Contact Us For Availability

Spring, Door Closure (Freezer Side) WPL 2004567 Contact Us For Availability

Trim (Side) (White) WPL 2005963 Contact Us For Availability

Trim (Side) (Biscuit) WPL 2005965 Contact Us For Availability

Trim (Side) (Black) WPL 2005966 Contact Us For Availability

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Cover, Evaporator WPL 2005037 Contact Us For Availability

Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability

Gasket WPL 1113955 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Panel, Interior Door WPL 2209032 Contact Us For Availability

Connector, Meat Pan Duct WPL 2000796 Contact Us For Availability

Door, Utility Bin WPL 2003465 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stop, Roller WPL 1113169 Contact Us For Availability

Fastener (3) WPL 1113227 Contact Us For Availability

Door Shelf WPL 1113974 Contact Us For Availability

Cement Alumilastic) WPL 542639 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

Trim, Door Shelf WPL 2195934 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

Baffle, Evaporator WPL 1112840 Contact Us For Availability

Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability

Tray, Butter WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

End Cap WPL 2208954 Contact Us For Availability

Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability

Diffuser, Air Duct WPL 1112853 Contact Us For Availability

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Shelf, Gallon Door WPL 2006381 Contact Us For Availability

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

31

Screw WPL 488280 Contact Us For Availability

33

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

33

Linkage, Door Closure WPL 2004516 Contact Us For Availability

34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

Grille Base, Front (Black) WPL 2004532 Contact Us For Availability

34

Grille Base, Front (White) WPL 2004535 Contact Us For Availability

35

Screw WPL 489238 Contact Us For Availability

36

Cover, Rear WPL 2004512 Contact Us For Availability

36

Fitting, Water Tube WPL 2185988 Contact Us For Availability

37

Grommet, Wiring WPL 2207518 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

40

Bushing, Door Closure WPL 2004565 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

42

Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability

42

Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability

43

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

44

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

44

Compresion Nut WPL 1129179 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability

46

Gasket (2) WPL 2001079 Contact Us For Availability

47

Gasket WPL 2001080 Contact Us For Availability

48

Gasket WPL 2001081 Contact Us For Availability

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

Front Panel Kit (Black) WPL 4318634 Contact Us For Availability

Front Panel Kit (White) WPL 4318637 Contact Us For Availability

Front Panel Kit (Almond) WPL 4318640 Contact Us For Availability

Front Panel Kit (Stainless Steel) WPL 4318643 Contact Us For Availability

Front Panel Kit (Biscuit) WPL 4392881 Contact Us For Availability

Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
