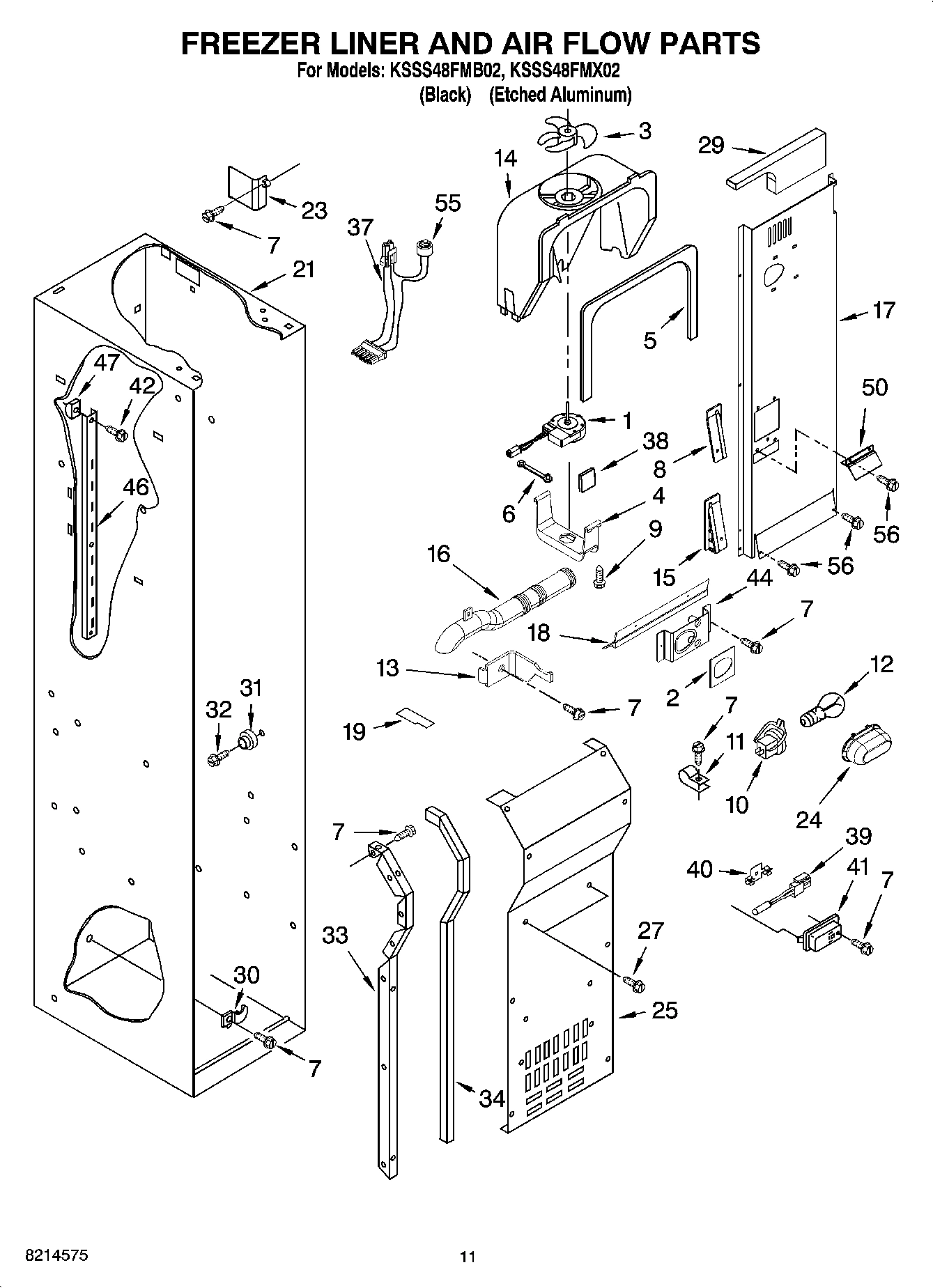

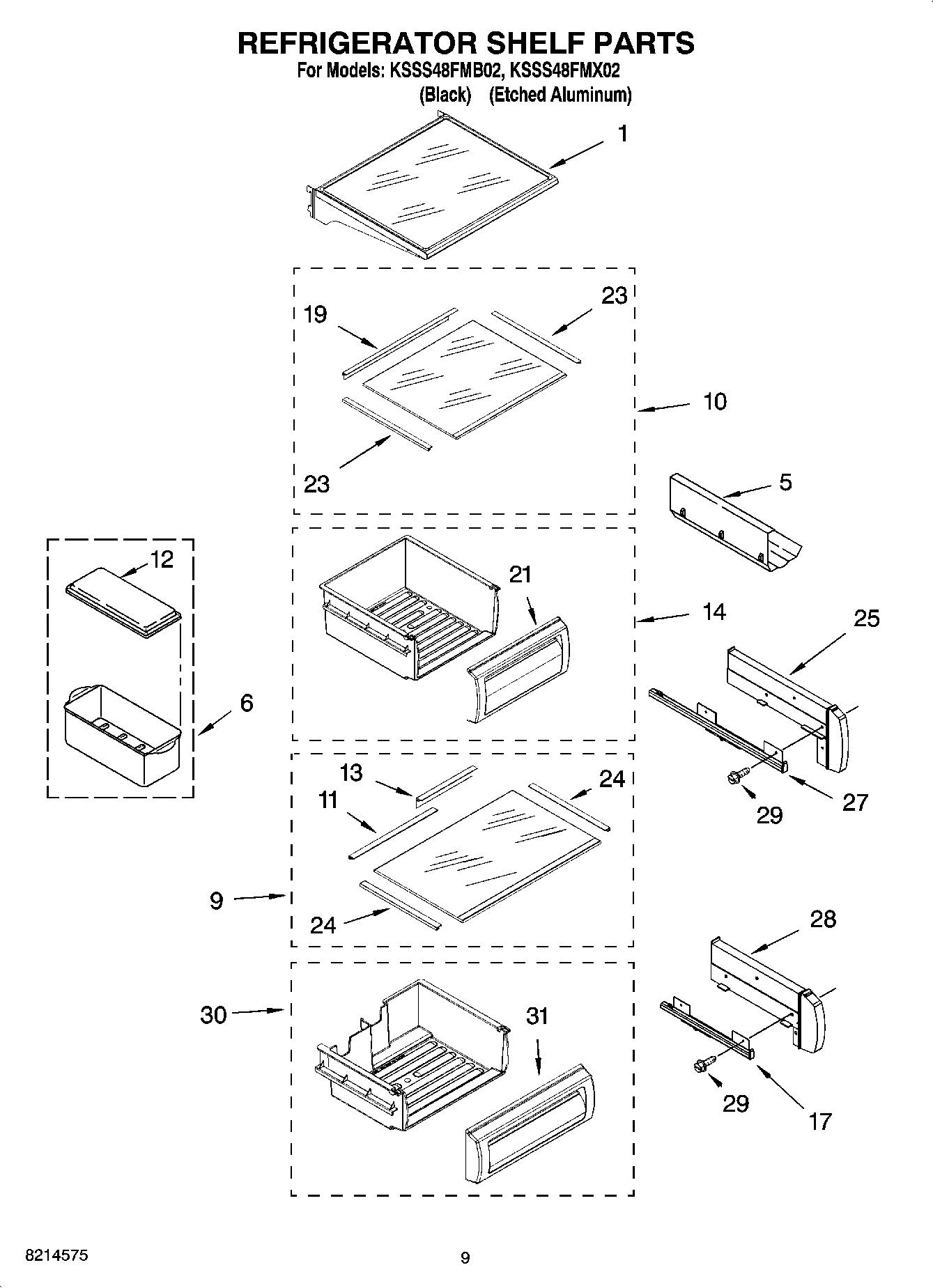

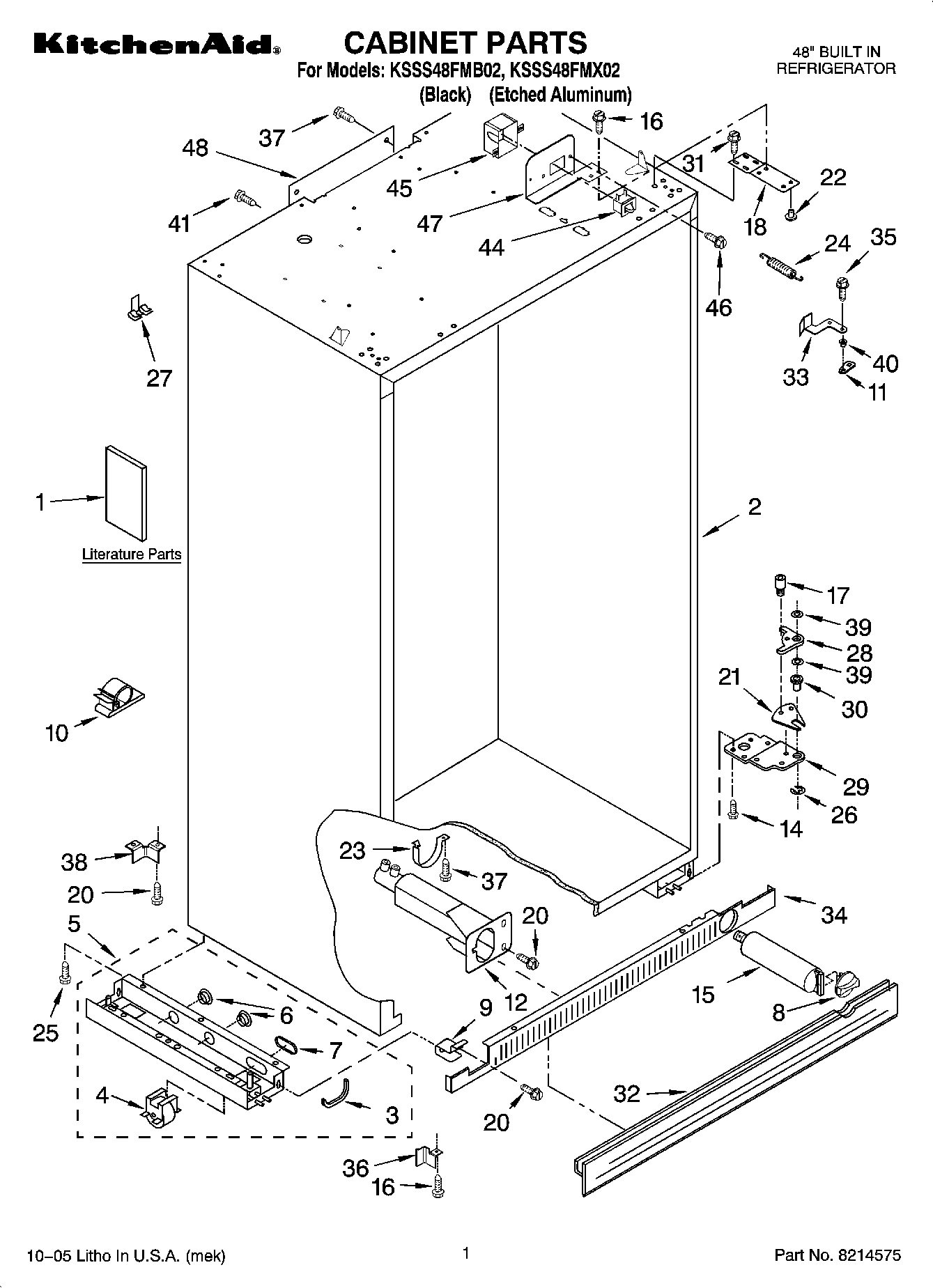

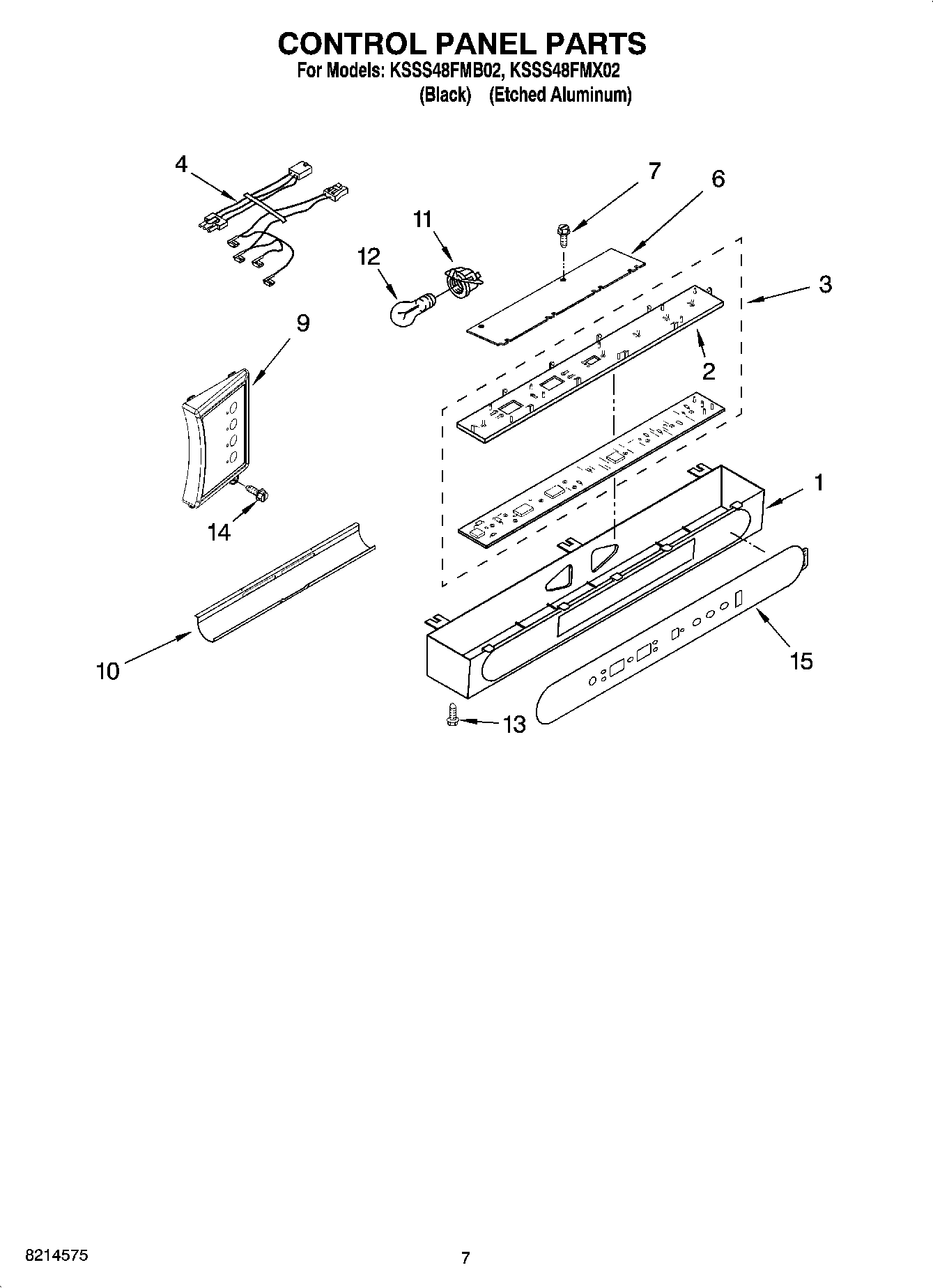

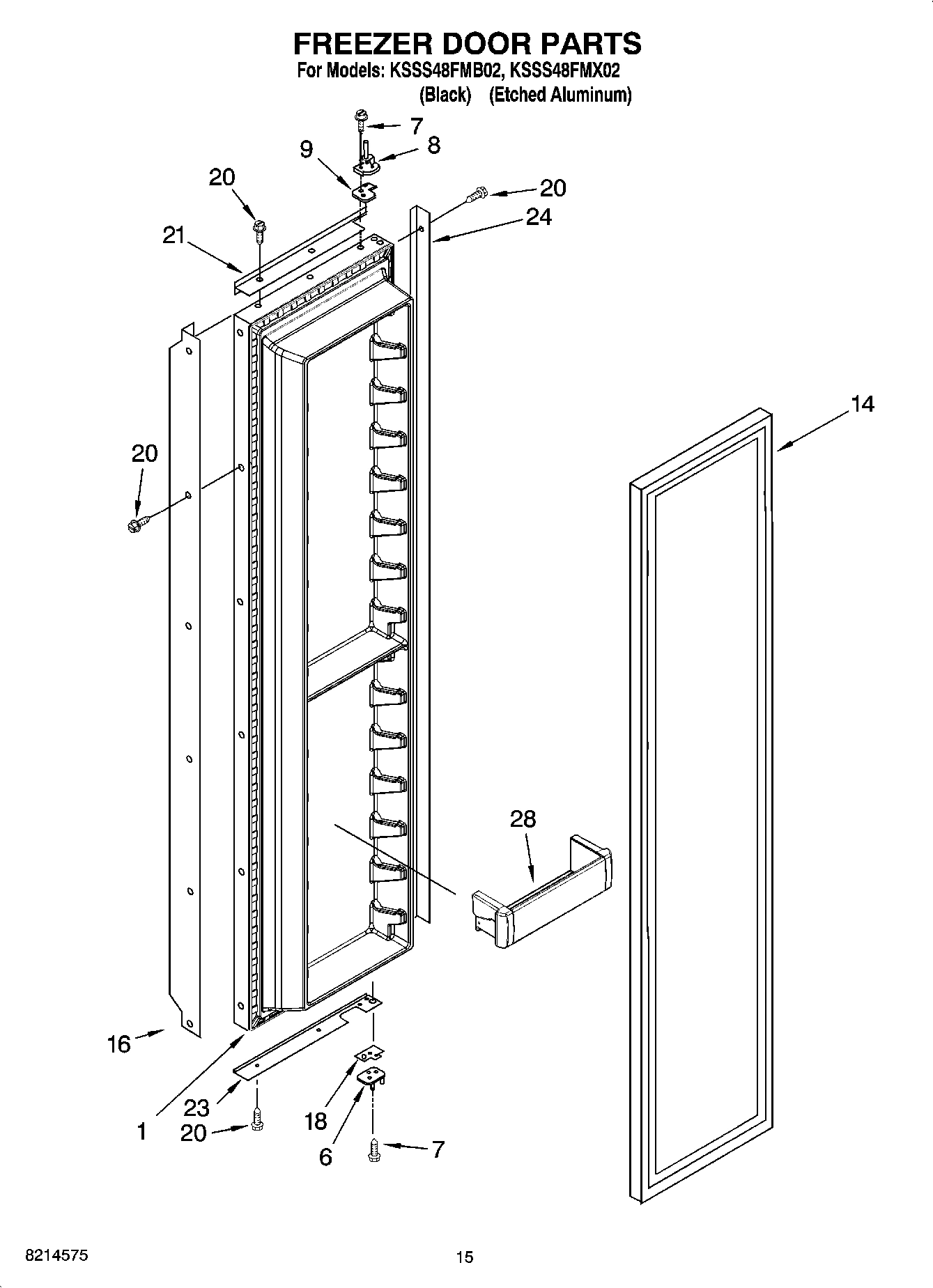

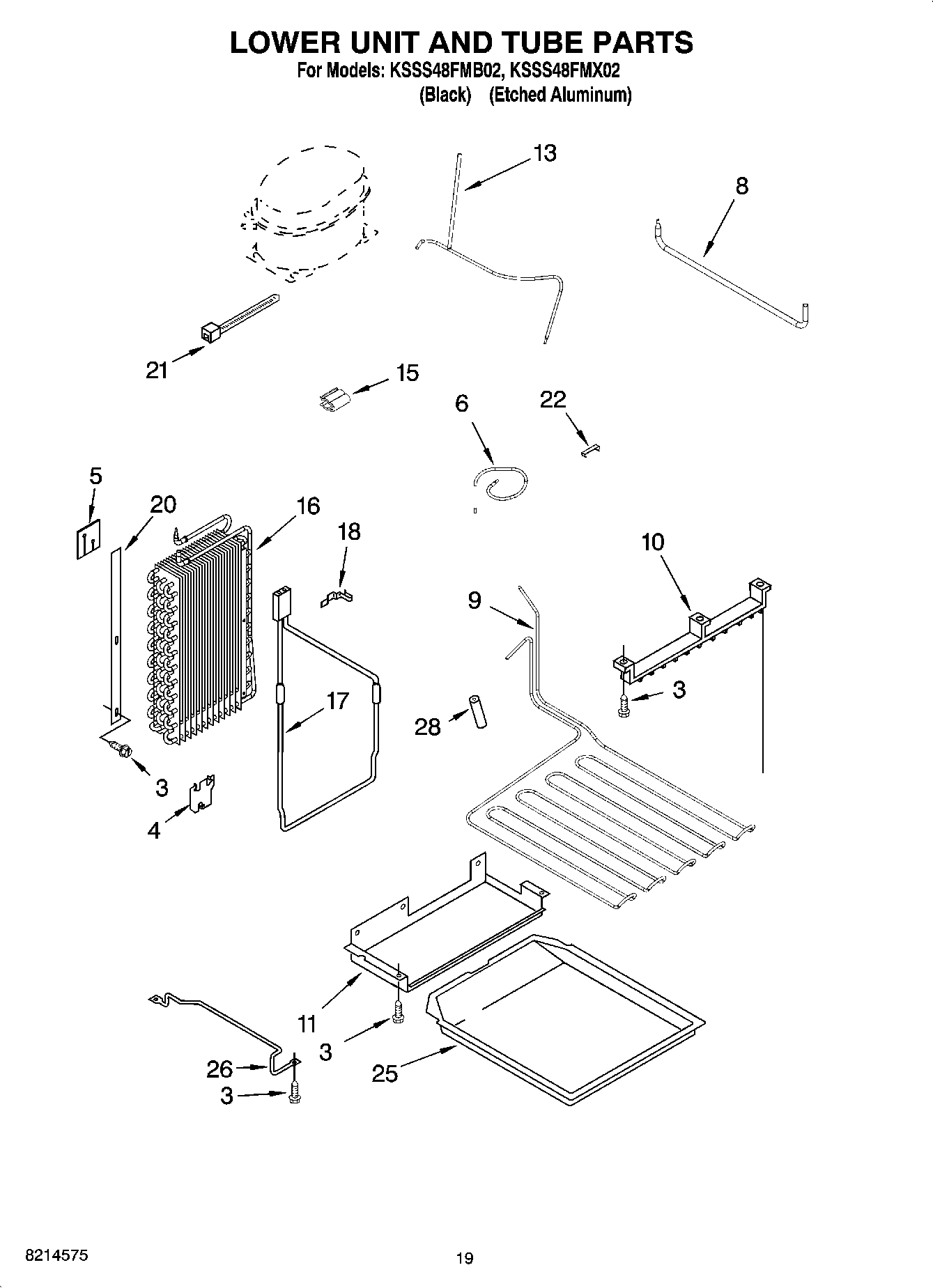

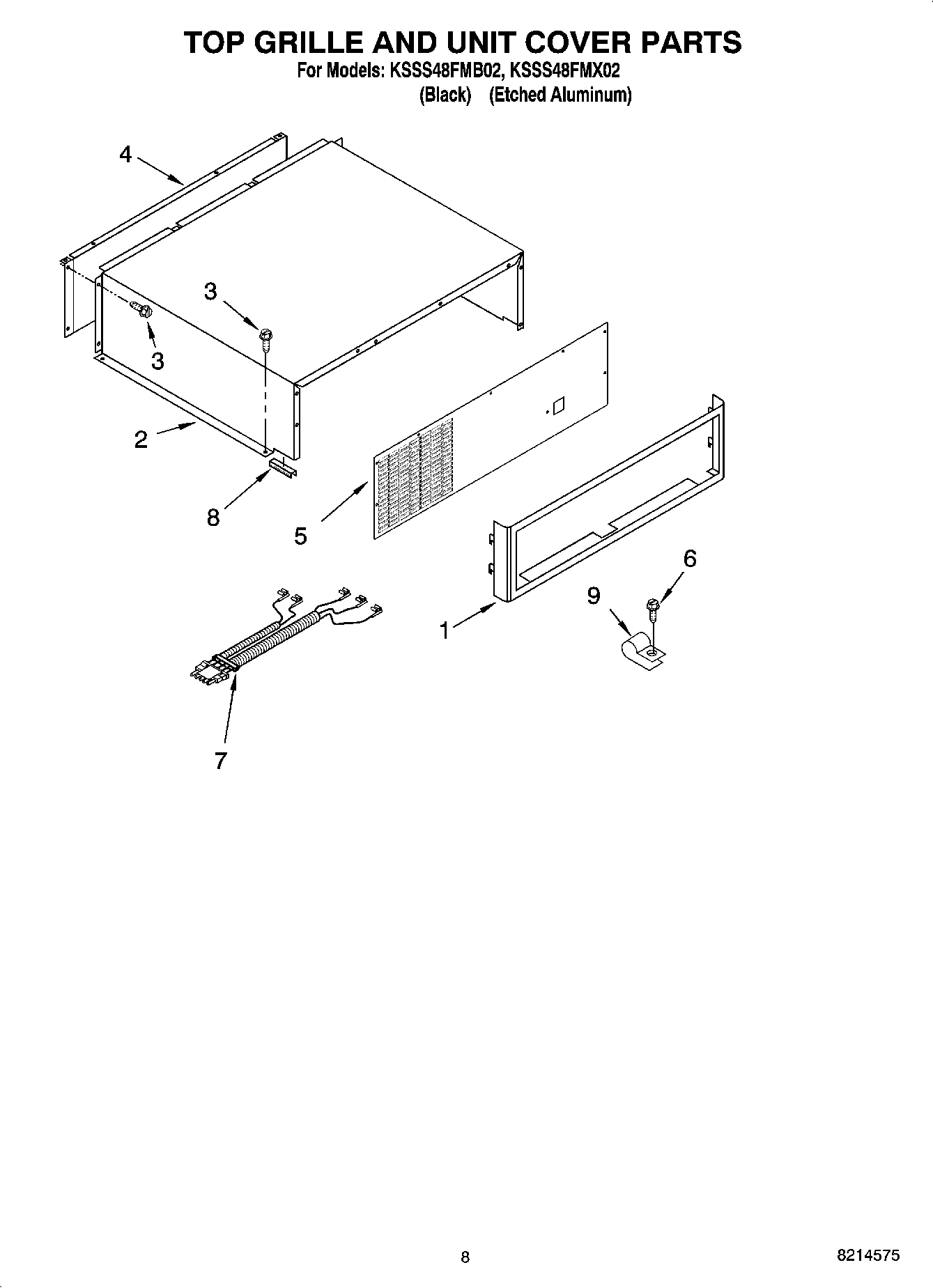

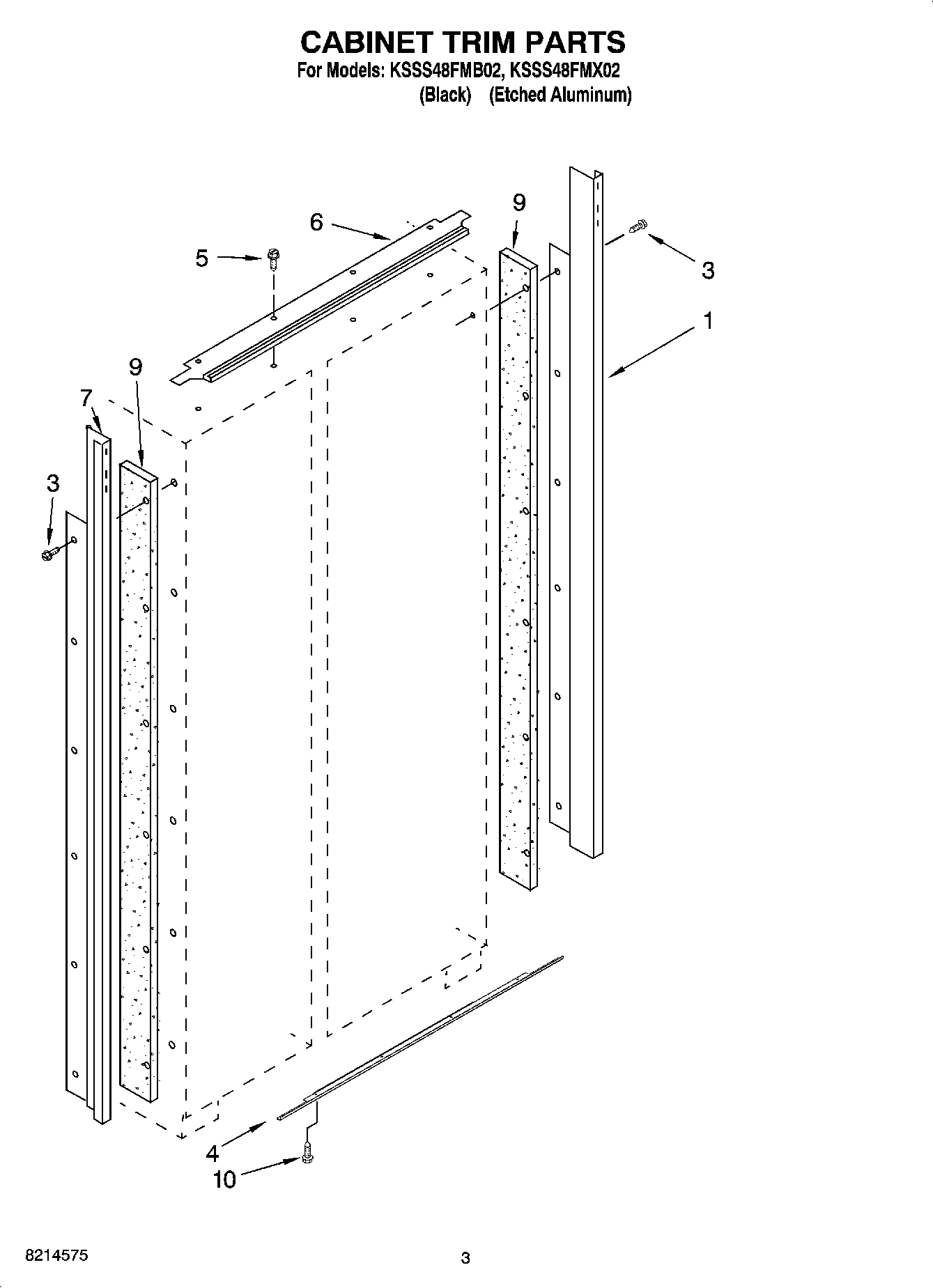

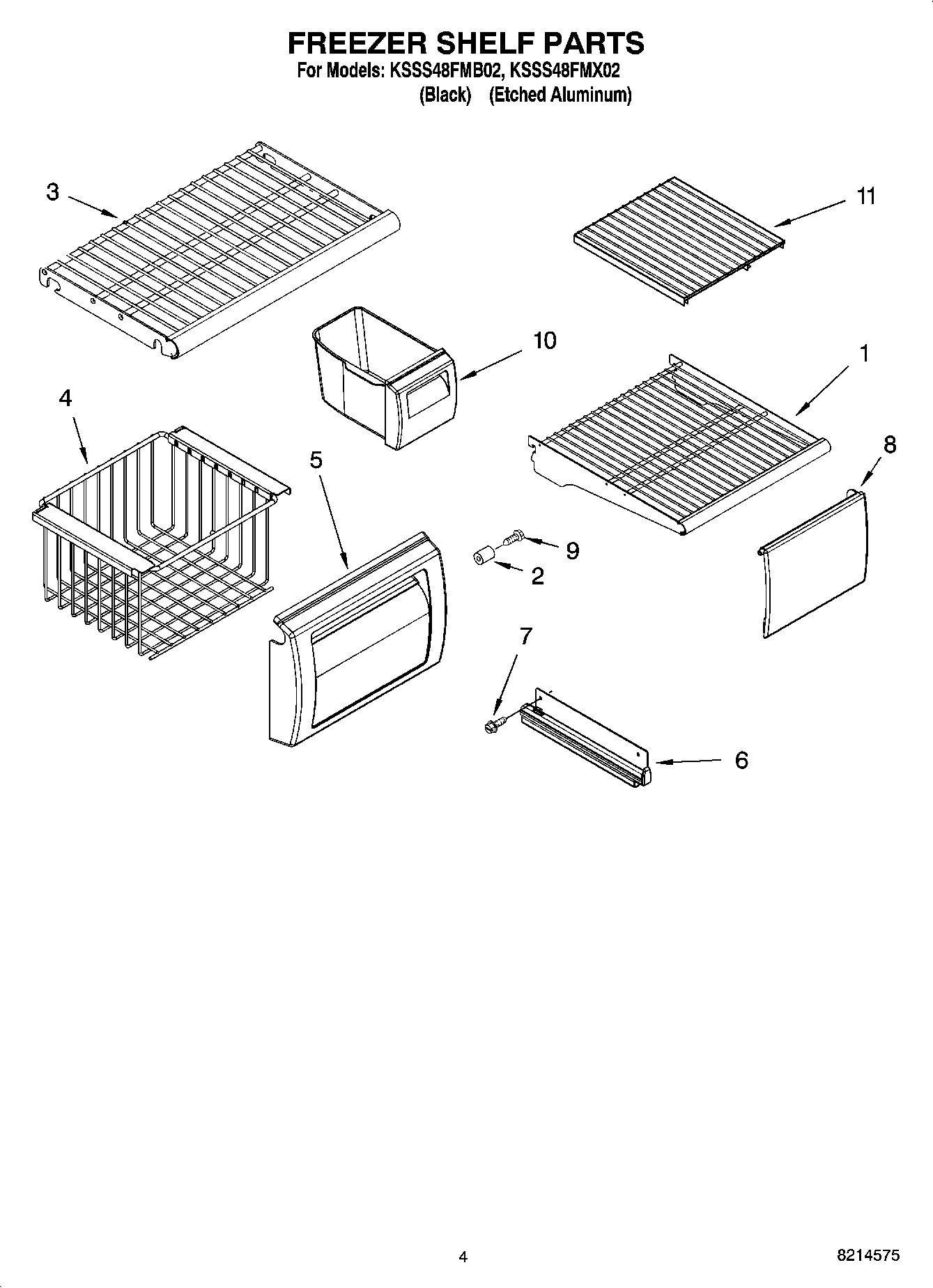

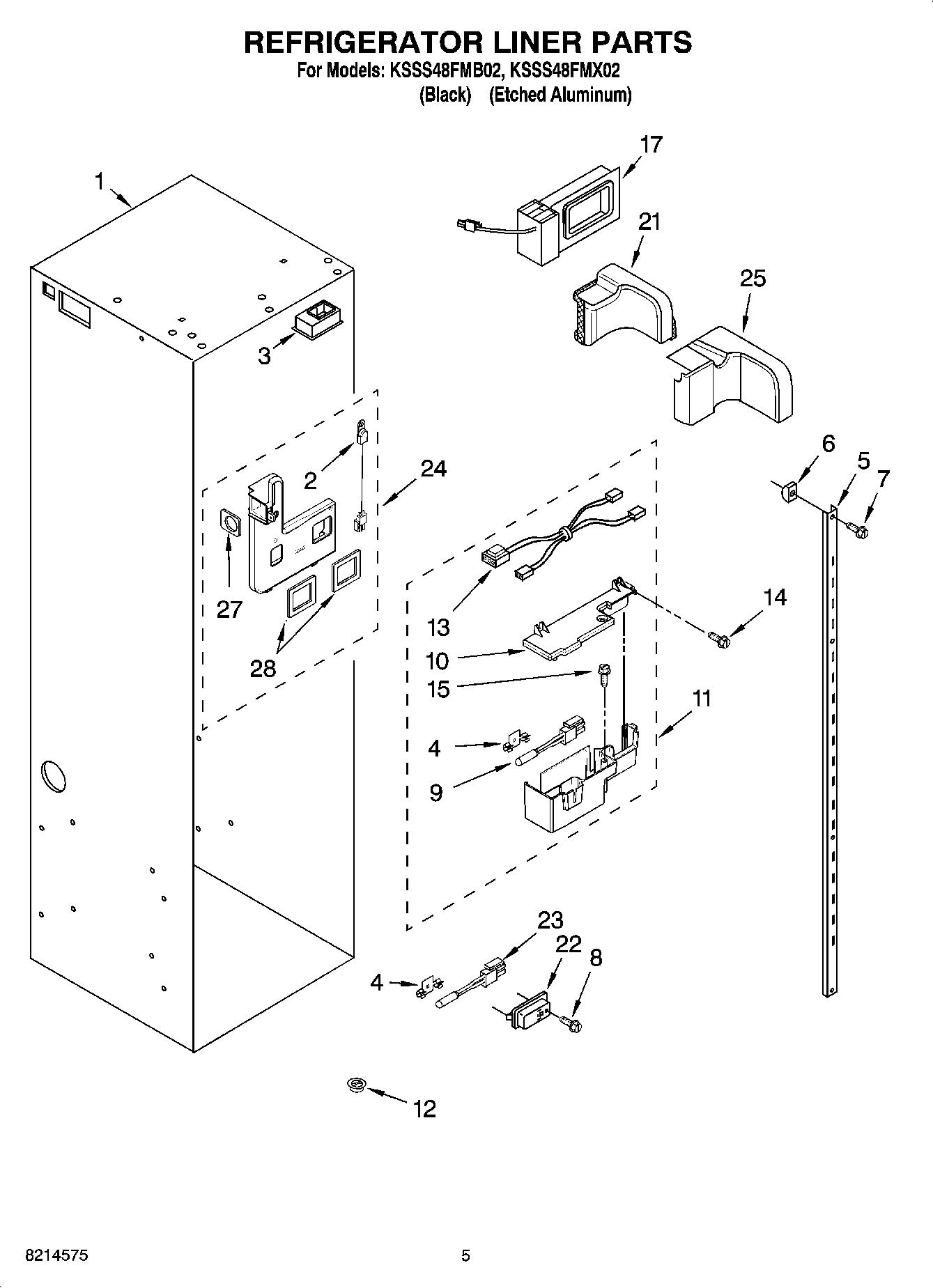

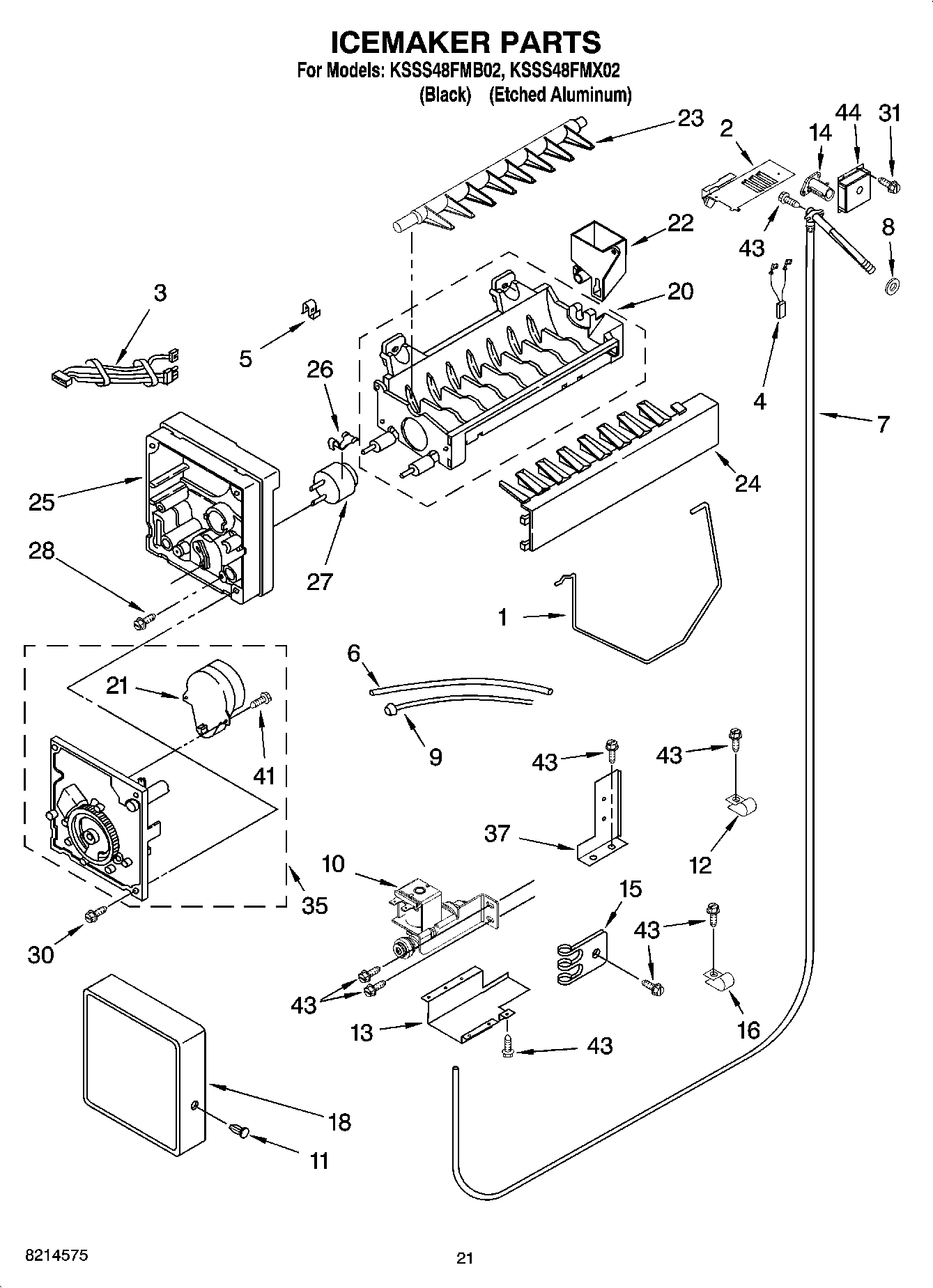

Model Whirlpool KSSS48FMX02 48`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

Main Control Service Sheet WPL 2302865 Contact Us For Availability

1

Service & Wiring Sheet WPL 2306324 Contact Us For Availability

1

Icemaker and Ingredient Care Center Service S WPL 2306337 Contact Us For Availability

1

Energy Label WPL 2307364 Contact Us For Availability

1

Installation Instructions WPL 2309069 Contact Us For Availability

1

Use & Care Guide WPL 2317086 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI155315A Contact Us For Availability

1

Control Box WPL 2302773 Contact Us For Availability

1

Top Grille Assembly (Black) WPL 2257403B Contact Us For Availability

1

Top Grille Assembly (Etched Aluminum) WPL 2257403X Contact Us For Availability

1

Freezer Door Panel (Includes Item 14) WPL 2252328 Contact Us For Availability

2

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $31.66

2

Cabinet (Not A Serviceable Part) WPL ARI155314A Contact Us For Availability

2

Insert, Control Box WPL 2303938 Contact Us For Availability

2

Cover, Unit WPL 2259320 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

2302884 Whirlpool Refrigerator Wire Shelf Backorder WPL 2302884 $125.19

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

Grommet, Crossover Tube WPL 2005004 Contact Us For Availability

3

Circuit Board, Housing Control WPL 2302913 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

W11318849 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318849 $97.74

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

4

Spacer-Door, Top WPL 2256381 Contact Us For Availability

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP2256271 Whirlpool Refrigerator Front Basket Backorder WPL WP2256271 $54.79

5

WP2259077 Whirlpool Ladder Assembly Backorder WPL WP2259077 $28.09

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Cover, Unit Front WPL 2302974 Contact Us For Availability

5

Side Support WPL 2302929 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $23.48

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Support, Control Box WPL 2221121 Contact Us For Availability

6

Egg Bin WPL 2221071 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

7

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

7

Water Inlet Tube Assembly WPL 2314048 Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

8

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $30.25

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $117.46

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $44.95

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Assembly, Meat Pan Cover (Includes- Front Tri WPL 2302843 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

9

Heater, Drain Pan WPL 2259329 Contact Us For Availability

2302986 Whirlpool Refrigerator Cover Backorder WPL 2302986 $35.67

WP2266932 Whirlpool Refrigerator Container Backorder WPL WP2266932 $99.73

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $94.37

Assembly, Crisper Cover (Includes- Front Trim WPL 2302836 Contact Us For Availability

Clamp, Tube WPL 2004514 Contact Us For Availability

Shield, Light WPL 2302716 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Cam, Door Closer WPL 2005783 Contact Us For Availability

Trim, Glass Rear Side WPL 2257611 Contact Us For Availability

Baffle, Control Assembly WPL 2302987 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $96.31

Cover WPL 2169935 Contact Us For Availability

Door Spacer, Bottom WPL 2257637 Contact Us For Availability

Trim, Glass Rear WPL 2257583 Contact Us For Availability

Jumper, Air Baffle WPL 2187619 Contact Us For Availability

Tube, Discharge WPL 2259354 Contact Us For Availability

W10407625 Whirlpool Refrigerator Crisper Pan Backorder WPL W10407625 $95.15

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

WP2266901 Whirlpool Door Gasket In Stock WPL WP2266901 $249.67

Screw WPL 3400525 Contact Us For Availability

Screw WPL 488357 Contact Us For Availability

15

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

15

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

15

OVERLAY WPL 2257520 Contact Us For Availability

WP2306094 Whirlpool Evaporator In Stock WPL WP2306094 $242.21

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

CONDENSER WPL 2259307 Contact Us For Availability

Handle, Door (Etched Aluminum) WPL 2256472 Contact Us For Availability

Handle, Door (Black) WPL 2256472B Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $127.84

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WP2306389 Whirlpool Refrigerator Heater In Stock WPL WP2306389 $71.95

18

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

18

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

18

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $39.49

19

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

19

Screw WPL 487522 Contact Us For Availability

19

Trim, Glass Rear WPL 2256255 Contact Us For Availability

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Gasket, Evaporator WPL 2220832 Contact Us For Availability

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2309222 Whirlpool Refrigerator Diffuser Backorder WPL WP2309222 $30.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Trim (Top) (Etched Aluminum) WPL 2005021 Contact Us For Availability

Trim (Top) (Black) WPL 2005887 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $30.25

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Bushing WPL 2300082 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

Trim, Glass Side Crisper WPL 2252255 Contact Us For Availability

Trim (Bottom) (Etched Aluminum) WPL 2215986 Contact Us For Availability

Trim (Bottom) (Black) WPL 2215986B Contact Us For Availability

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $31.04

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $129.41

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $32.39

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Trim (Side) (Etched Aluminum) WPL 2005962 Contact Us For Availability

Trim (Side) (Black) WPL 2005966 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $32.19

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $93.40

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

26

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

26

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

26

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Fastener (3) WPL 1113227 Contact Us For Availability

Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2256243 Whirlpool Refrigerator Track In Stock WPL 2256243 $29.10

2256244 Whirlpool Refrigerator Track Backorder WPL 2256244 $40.33

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11590561 Whirlpool Refrigerator Cantilever B Backorder WPL W11590561 $33.89

Tube, Heat Loop Transition WPL 2259341 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

F.C. (6) WPL ARI155317A Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

30

W10407628 Whirlpool Refrigerator Meat Pan Backorder WPL W10407628 $94.10

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $28.40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2256367 Whirlpool Refrigerator Front Pan Backorder WPL WP2256367 $72.33

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $70.57

32

SKIRT, GRILLE BOTTOM (BLACK) WPL 2209026B Contact Us For Availability

33

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

33

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Grille Bottom, Front (Black) WPL 2209431B Contact Us For Availability

35

Screw WPL 2005921 Contact Us For Availability

36

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $12.50

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

37

Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $4.59

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $23.70

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $30.25

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $30.89

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $30.89

48

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $33.31

55

WP2306462 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2306462 $71.46

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56
