Model Whirlpool KSSS48DAW03 BUILT IN REFRIGERATOR – Common Parts & Diagrams

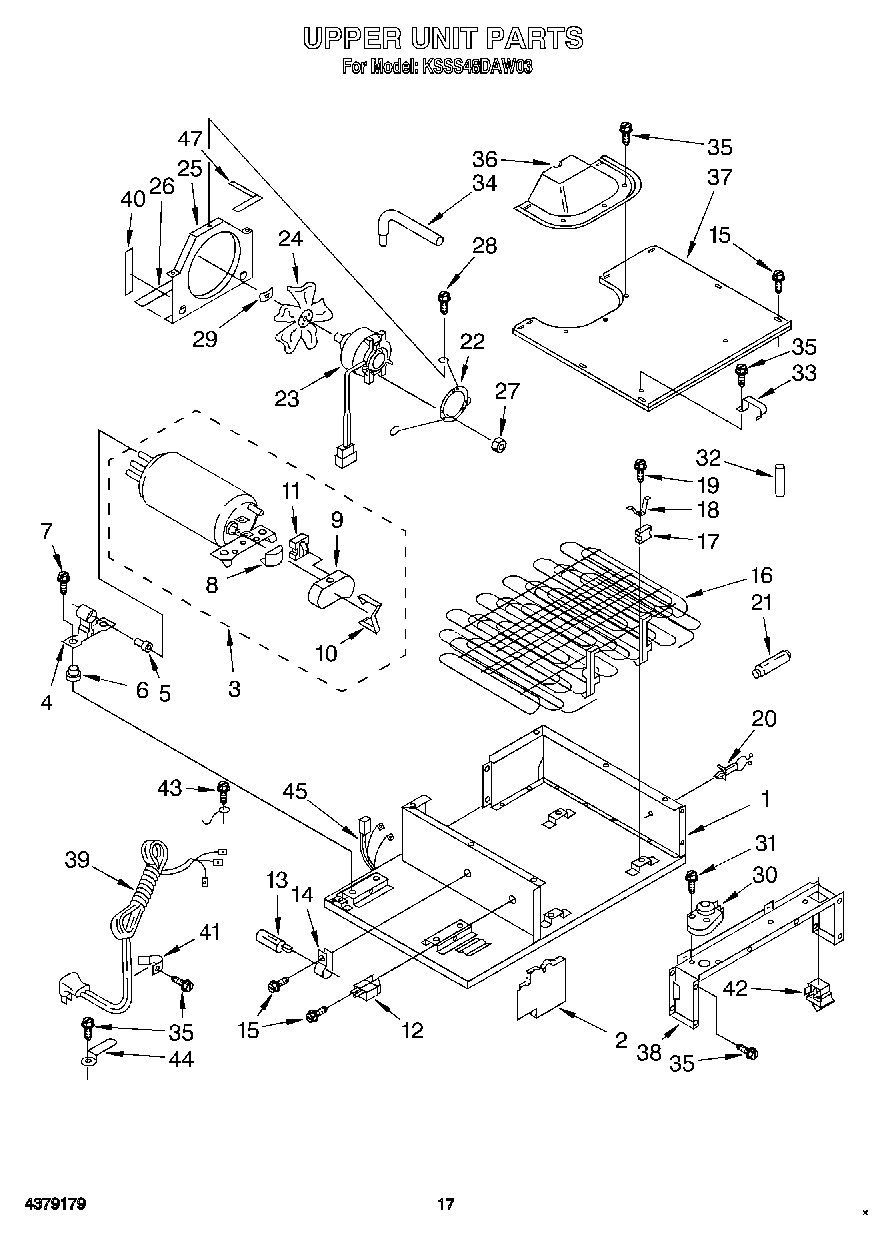

13 - UPPER UNIT

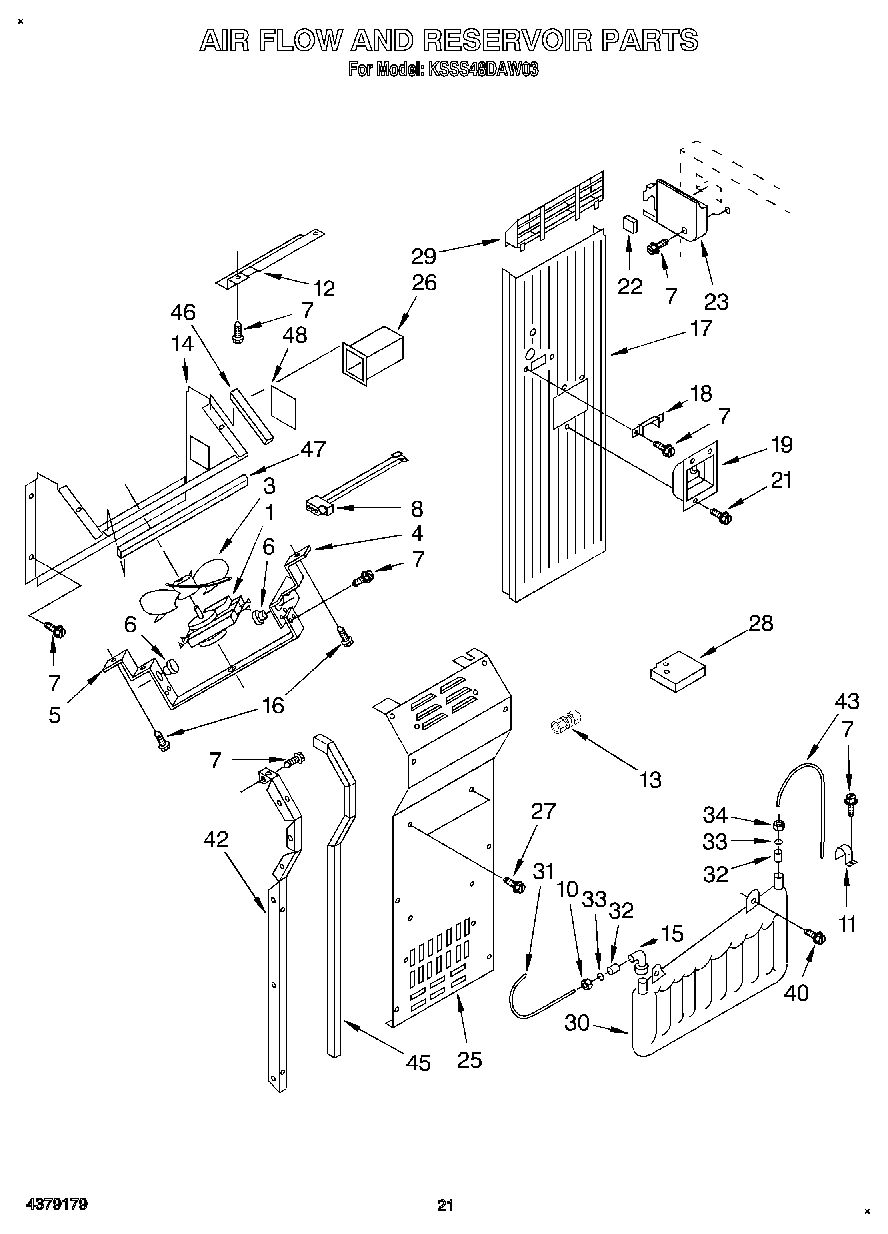

15 - AIR FLOW AND RESERVOIR
17 - TOP GRILLE AND UNIT COVER
07 - FREEZER SHELF
08 - REFRIGERATOR DOOR
01 - CABINET
03 - REFRIGERATOR LINER
10 - FREEZER DOOR
12 - DISPENSER AND FRONT
04 - FREEZER LINER
11 - FREEZER CONTROL PANEL
05 - ICE CONTAINER
06 - REFRIGERATOR SHELF
14 - LOWER UNIT AND TUBE
16 - ICEMAKER, LIT/OPTIONAL
02 - CABINET TRIMS AND BREAKER
09 - REFRIGERATOR CONTROL PANEL
Common parts from model Whirlpool KSSS48DAW03 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2000850 Contact Us For Availability
Installation Instructions WPL LIT2001094 Contact Us For Availability
Use & Care Guide WPL LIT2001362 Contact Us For Availability
Energy Label WPL LIT2001671 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Decorative Panel Assembly WPL 2001314 Contact Us For Availability
1
Solid Shelf WPL 1112367 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000695 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107714A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107715A Contact Us For Availability
1
Exterior Door Panel, Freezer (Includes Insula WPL 2001138 Contact Us For Availability
1
Housing, Dispenser WPL 1124715 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107716A Contact Us For Availability
1
Control Panel WPL 1112597 Contact Us For Availability
1
Spacer, Track (Right Side) WPL 1112281 Contact Us For Availability
1
Spacer, Track (Left Side) WPL 1112282 Contact Us For Availability
1
Frame, Shelf WPL 1112004 Contact Us For Availability
1
Breaker Trim & Retainer Assembly WPL 2000652 Contact Us For Availability
1
Control Panel WPL 1112642 Contact Us For Availability
2
Back Up Panel WPL 1113356 Contact Us For Availability
2
Front, Ice Compartment WPL 2000529 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Inlay, Control Panel WPL 1113959 Contact Us For Availability
2
Glass, Shelf WPL 1113956 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Fitting, Water Tube WPL 2000829 Contact Us For Availability
2
Inlay, Control Panel WPL 2000976 Contact Us For Availability
3
Top Grille Assembly WPL 2001582 Contact Us For Availability
3
Shelf, Fixed WPL 1112052 Contact Us For Availability
3
Hinge Assembly, Top WPL 2000696 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Grommet, Screw (3) WPL 843436 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
3
Reflector, Shelf WPL 1112006 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
4
Cover, Unit WPL 2001088 Contact Us For Availability
4
Shelf, Fixes (2) (Large) WPL 1113638 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113792 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113293 Contact Us For Availability
4
Control Knob WPL 2001738 Contact Us For Availability
5
Stop, Roller WPL 1113169 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Knob, Retainer WPL 837444 Contact Us For Availability
5
Water Tube (See Item No.3) WPL ARI107717A Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
6
Cover, Component Assembly WPL 1113300 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2000698 Contact Us For Availability
6
Adjusting Rod (2) WPL 2000670 Contact Us For Availability
6
Hinge, Bottom WPL 2000720 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Seal, Control Panel WPL 1113136 Contact Us For Availability
6
Retainer, Glass WPL 1112324 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112679 Contact Us For Availability
7
Brace WPL 1113317 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Frame Assembly WPL 1112014 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Tube, Water (To Ice Maker) WPL 2001260 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112681 Contact Us For Availability
7
Seal, Control Panel WPL 1113137 Contact Us For Availability
8
Motor, Wiring WPL 2000618 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112542 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Hinge, Top WPL 2000721 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Bracket, Motor WPL 1113127 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2001727 Contact Us For Availability
9
Spacer Plate WPL 2001396 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
9
Motor Assembly WPL 2155262 Contact Us For Availability
9
Heater, Drain Pan WPL 2000756 Contact Us For Availability
9
Cabinet, Trim R.S WPL 2001390 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
10
Door, Spacer Bottom WPL 2001395 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Meat Pan, Air Duct Cover (Also Order 12) WPL 2000740 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Shield, Control Panel WPL 1113769 Contact Us For Availability
10
Glass, Crisper WPL 1113238 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Cabinet, Trim L.S WPL 2001391 Contact Us For Availability
10
Shield, Control Panel WPL 1113775 Contact Us For Availability
11
Handle, Door WPL 2000388 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2001323 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2001334 Contact Us For Availability
11
Socket, Light (2) WPL 1112613 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Screw WPL 2001297 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Channel, Wiring WPL 2000113 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Gasket Utility Door WPL 1113955 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2001302 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Cabinet, Trim (Bottom) WPL 2001190 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Tap, Plate WPL 2000349 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
13
Cover, Motor WPL 1113130 Contact Us For Availability
13
Tube, Discharge WPL 2000857 Contact Us For Availability
13
Water Valve, Harness WPL 2000836 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
14
Trim, Basket WPL 1113644 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2000832 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Shroud WPL 1129333 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Pan, Crisper WPL 2000554 Contact Us For Availability
14
Cabinet, Trim Top WPL 2001389 Contact Us For Availability
15
Elbow WPL 2001791 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2001735 Contact Us For Availability
15
Ice Container WPL 1112287 Contact Us For Availability
15
Heat Exchanger WPL 2000724 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Trim (Top) WPL 2001399 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Right Side) WPL 2000304 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Left Side) WPL 2000305 Contact Us For Availability
16
Handle, Door WPL 2000389 Contact Us For Availability
16
Knob, Thermostat WPL 2001737 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Conveyor WPL 1112378 Contact Us For Availability
16
Clamp Tube WPL 1113066 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Assembly, Air Duct WPL 2000746 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Lever, Ice Dispenser WPL 2155815 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
17
Control Harness WPL 2001074 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Trim (Side) WPL 2000391 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2000306 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2000307 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Cup, Motor WPL 1112870 Contact Us For Availability
19
Basket WPL 2001626 Contact Us For Availability
19
Trim (Bottom) WPL 2001403 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Nut, Bearing WPL 946195 Contact Us For Availability
19
Utility Pan WPL 2000557 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
20
Screw WPL 2001208 Contact Us For Availability
20
Panel, Interior Door WPL 1113950 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Lever, Water Dispenser WPL 2159199 Contact Us For Availability
20
Meat Pan WPL 2000817 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
21
Fastener (3) WPL 1112871 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113949 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Trim (Top) WPL 2001408 Contact Us For Availability
21
Baffle WPL 946194 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Slide, Basket R.S. WPL 2000061 Contact Us For Availability
22
Slide, Basket L.S. WPL 2000062 Contact Us For Availability
22
Screw WPL 2001209 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability
22
Overlay, Cover WPL 2001034 Contact Us For Availability
22
Guard, Hook-Up WPL 1113070 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Trim (Bottom) WPL 2001411 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Front Cover WPL 1112382 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
24
Bracket, Door Closer WPL 2000333 Contact Us For Availability
24
Trim (Side) WPL 2000390 Contact Us For Availability
25
Cover, Evaporator WPL 2000342 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
25
Bracket, Control WPL 1107454 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000796 Contact Us For Availability
26
Door, Utility Bin WPL 1112737 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Panel, Interior Door WPL 1113947 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Door Shelf (4) WPL 2000622 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
28
Door Shelf, Assembly WPL 2000606 Contact Us For Availability
28
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
28
Lens, Dispenser WPL 1113140 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112853 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 2001732 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 2001733 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) Bottom (4) WPL 1112943 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
31
Screw, 1/4-28 x 3/4 WPL 2000490 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
32
Plunger, Extension WPL 1107457 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
33
``O`` Ring Seal WPL 488819 Contact Us For Availability
33
Tube clamp WPL 2001266 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
34
Compression Nut WPL 488795 Contact Us For Availability
34
Grille Base, Front WPL 2001961 Contact Us For Availability
34
Ice Chute WPL 2000798 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
35
Wiring Harness, Door WPL 2001350 Contact Us For Availability
36
Cover, Rear WPL 2000684 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Guiding, Ice WPL 2147479 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Glass Stop WPL 2147480 Contact Us For Availability
38
Water Inlet Tube WPL 2001098 Contact Us For Availability
39
Grommet, Tube WPL 1112926 Contact Us For Availability
39
Screw WPL 488892 Contact Us For Availability
40
Screw WPL 488775 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
42
Grommet WPL 2000530 Contact Us For Availability
42
Front Cover, Housing (Includes Item 49) WPL 2001174 Contact Us For Availability
44
Compression Nut WPL 1129179 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
44
Cover, Dispenser Opening WPL 1112836 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
45
Trim, Front (2) WPL 2001161 Contact Us For Availability
45
Insert, Tube WPL 1129177 Contact Us For Availability
46
Water, Tube (From Water Reservior) WPL 2001152 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
47
Grille, Overflow WPL 1126120 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
48
Switch WPL 934316 Contact Us For Availability
49
Overlay, Cover WPL 2001177 Contact Us For Availability
52
``O`` RING SEAL WPL 488794 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318423 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318424 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318425 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4318426 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
