Model Whirlpool KSSS48DAW01 BUILT IN REFRIGERATOR – Common Parts & Diagrams
15 - AIR FLOW AND RESERVOIR
17 - TOP GRILLE AND UNIT COVER

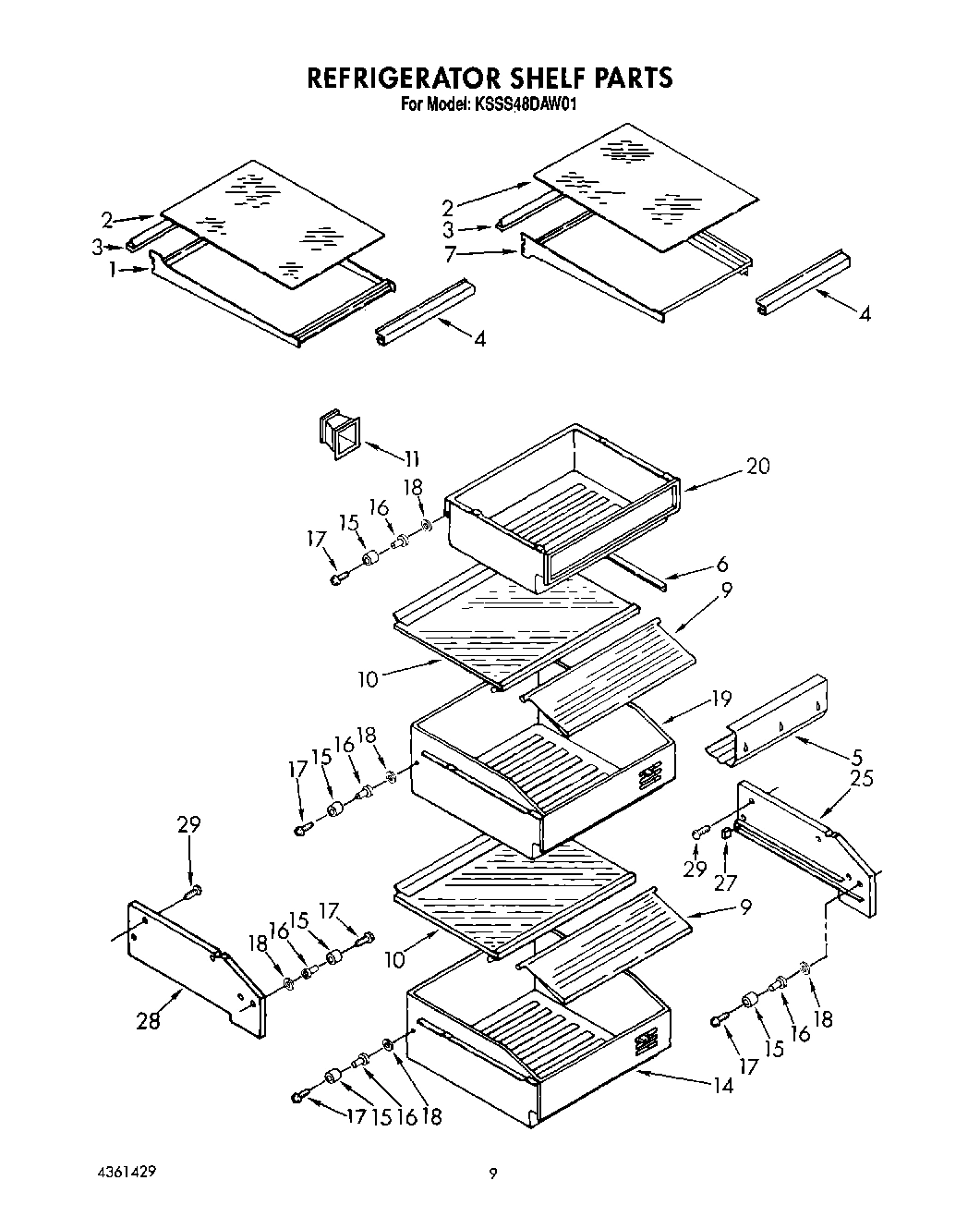

06 - REFRIGERATOR SHELF

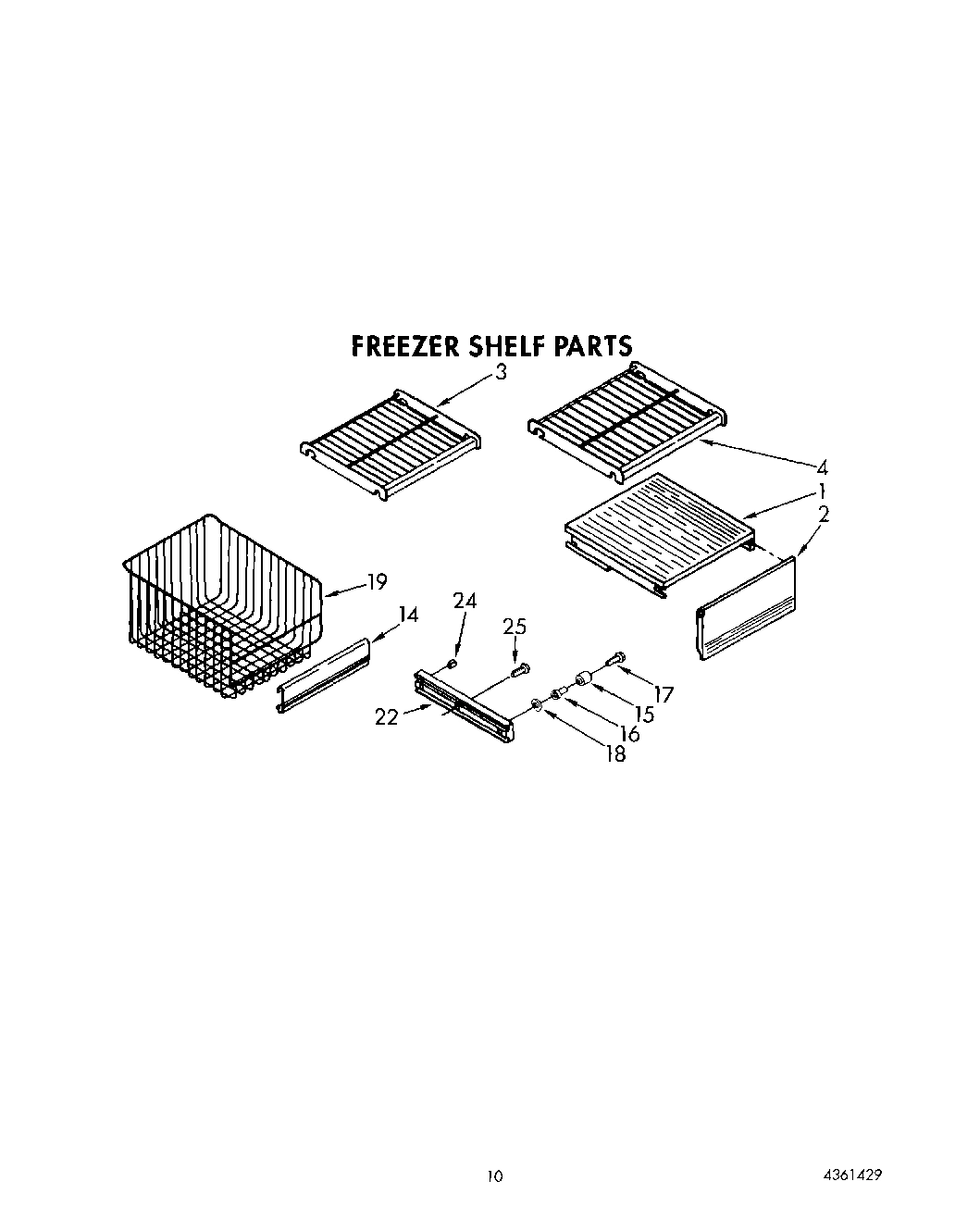

07 - FREEZER SHELF

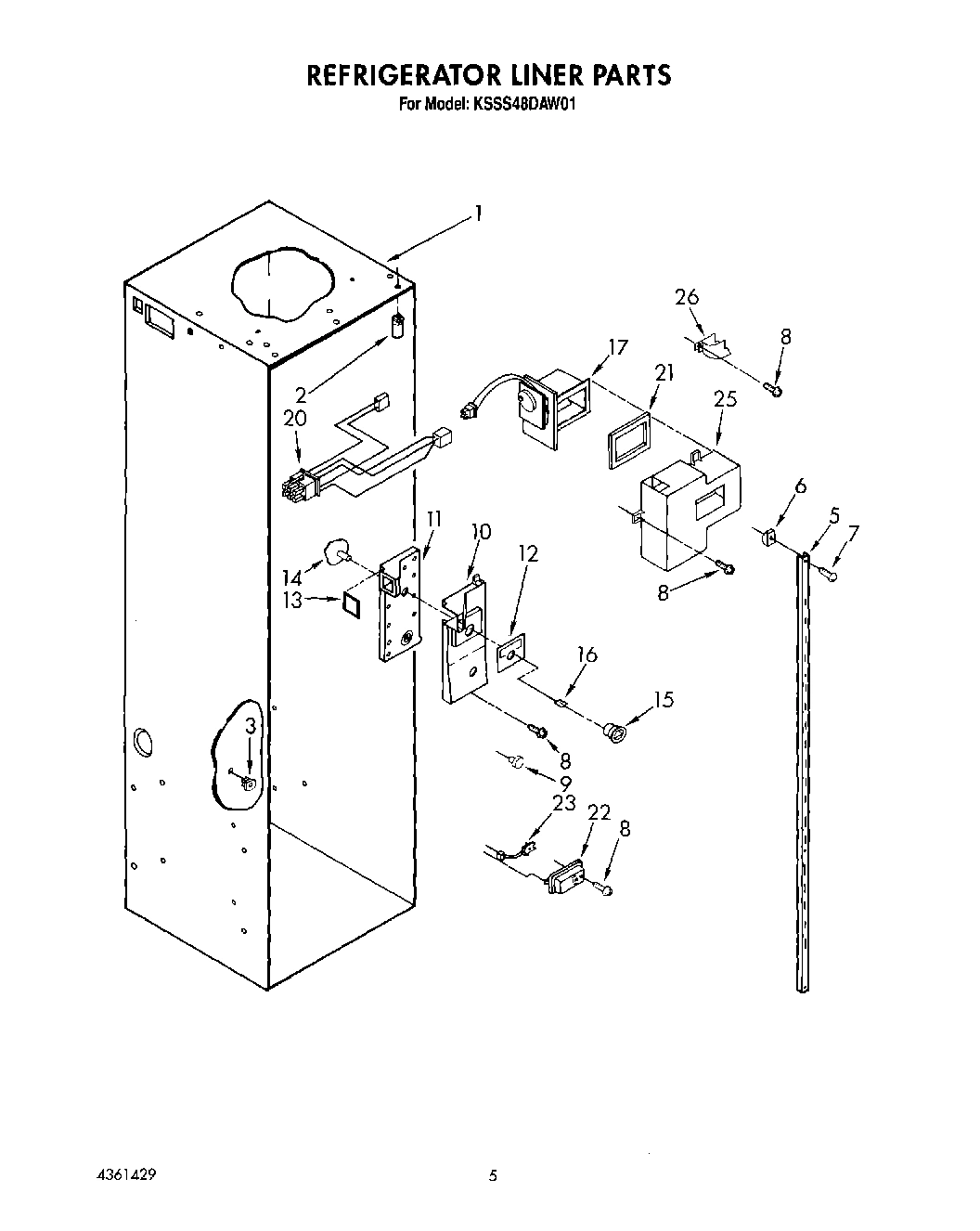

03 - REFRIGERATOR LINER

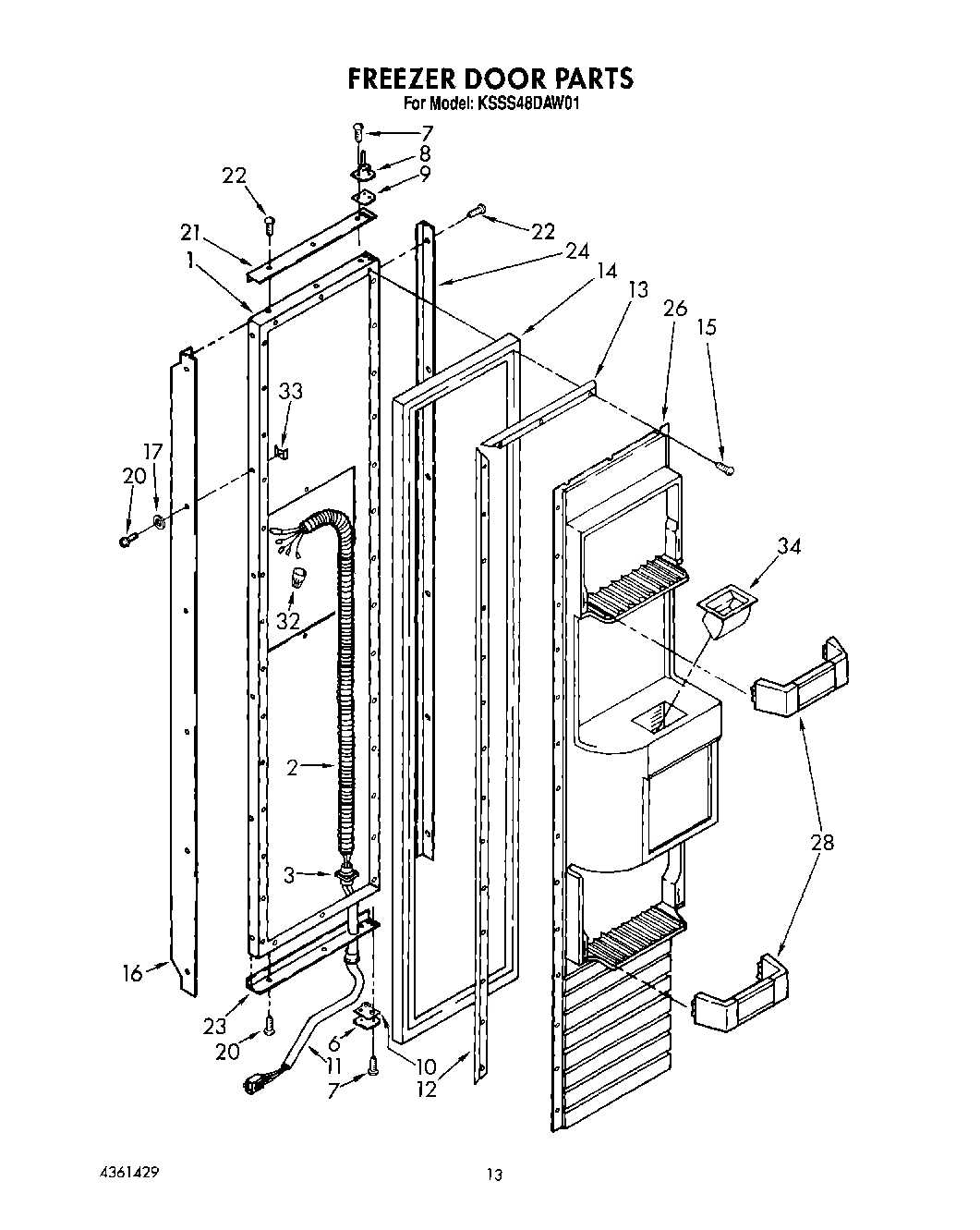

10 - FREEZER DOOR

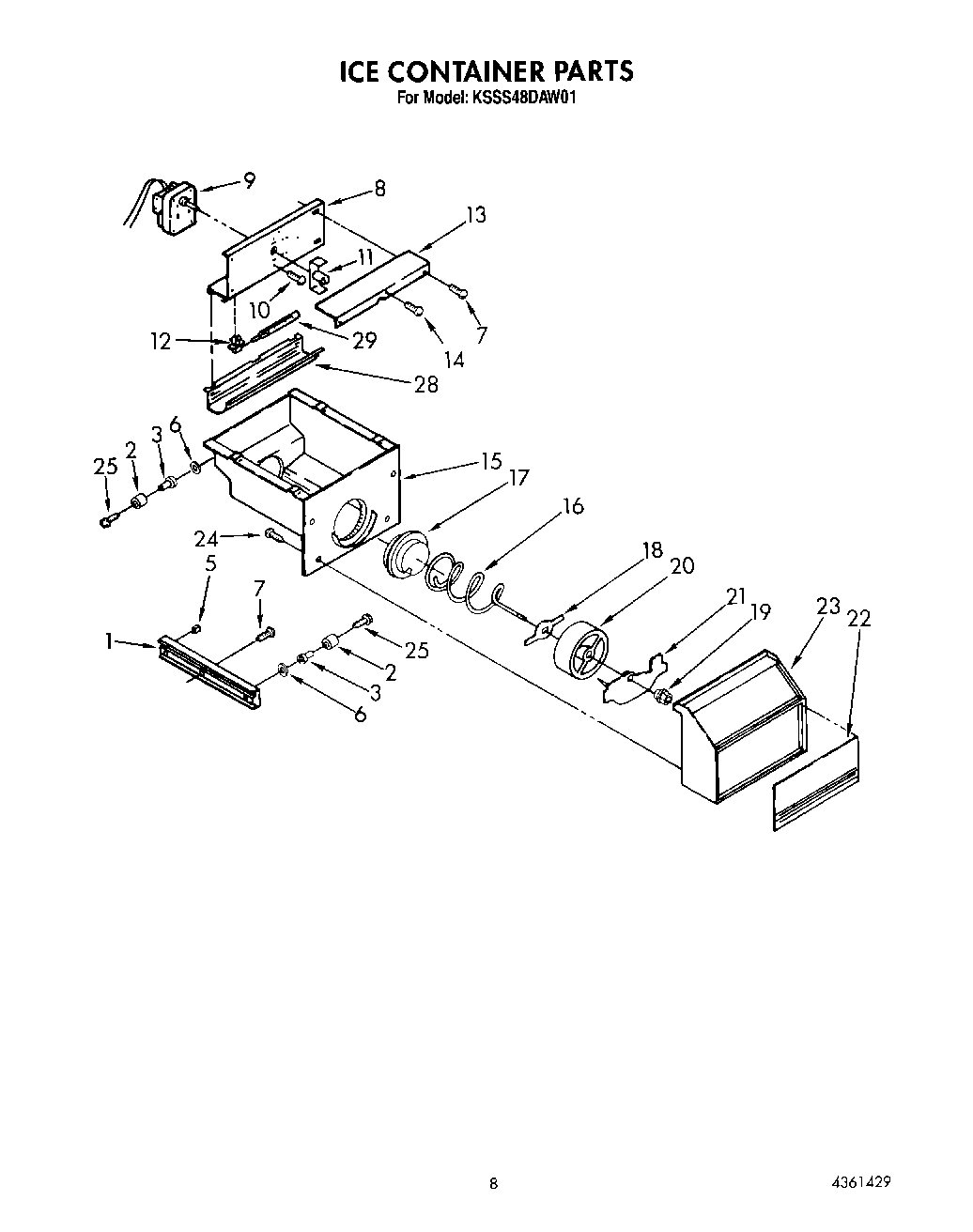

05 - ICE CONTAINER

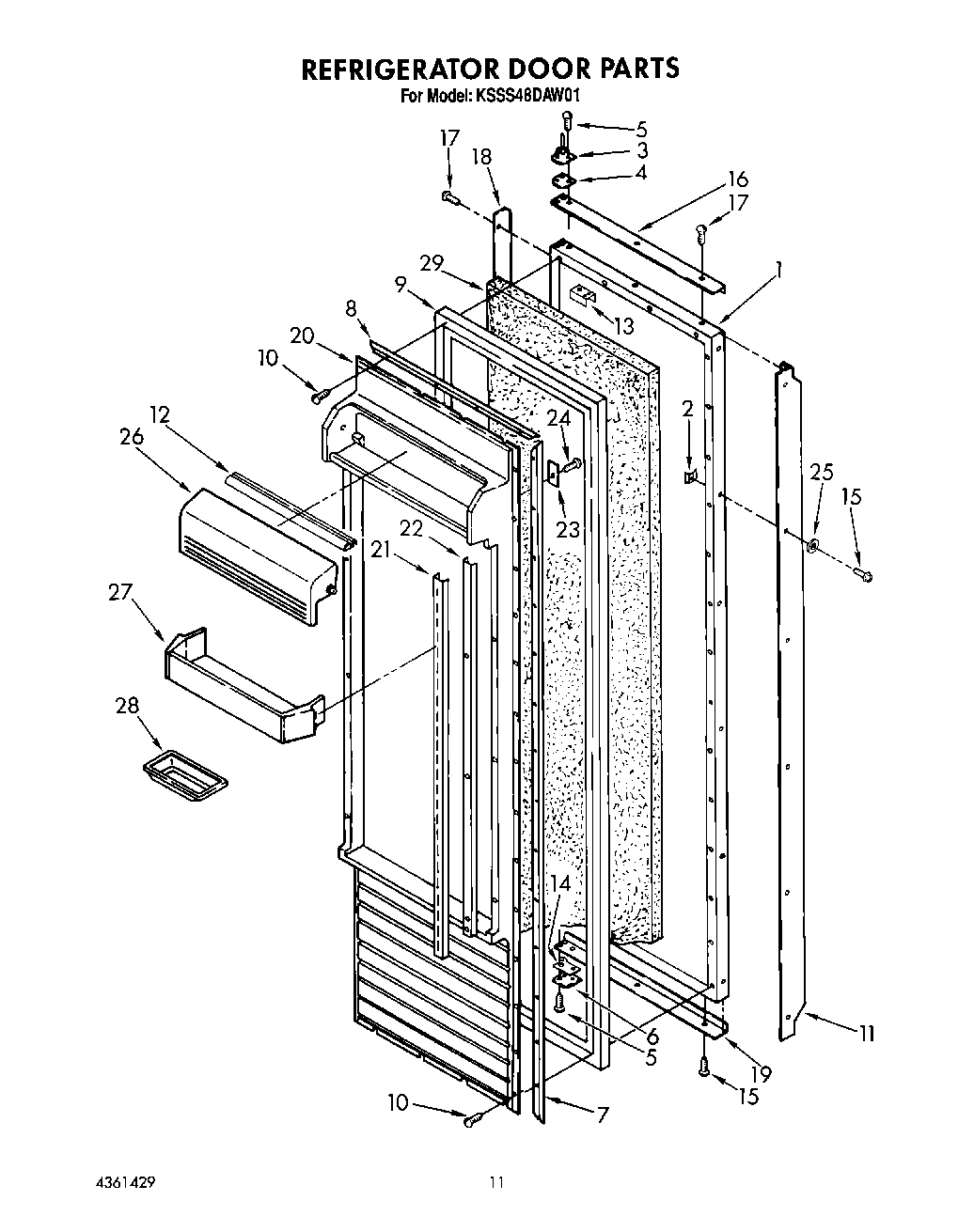

08 - REFRIGERATOR DOOR

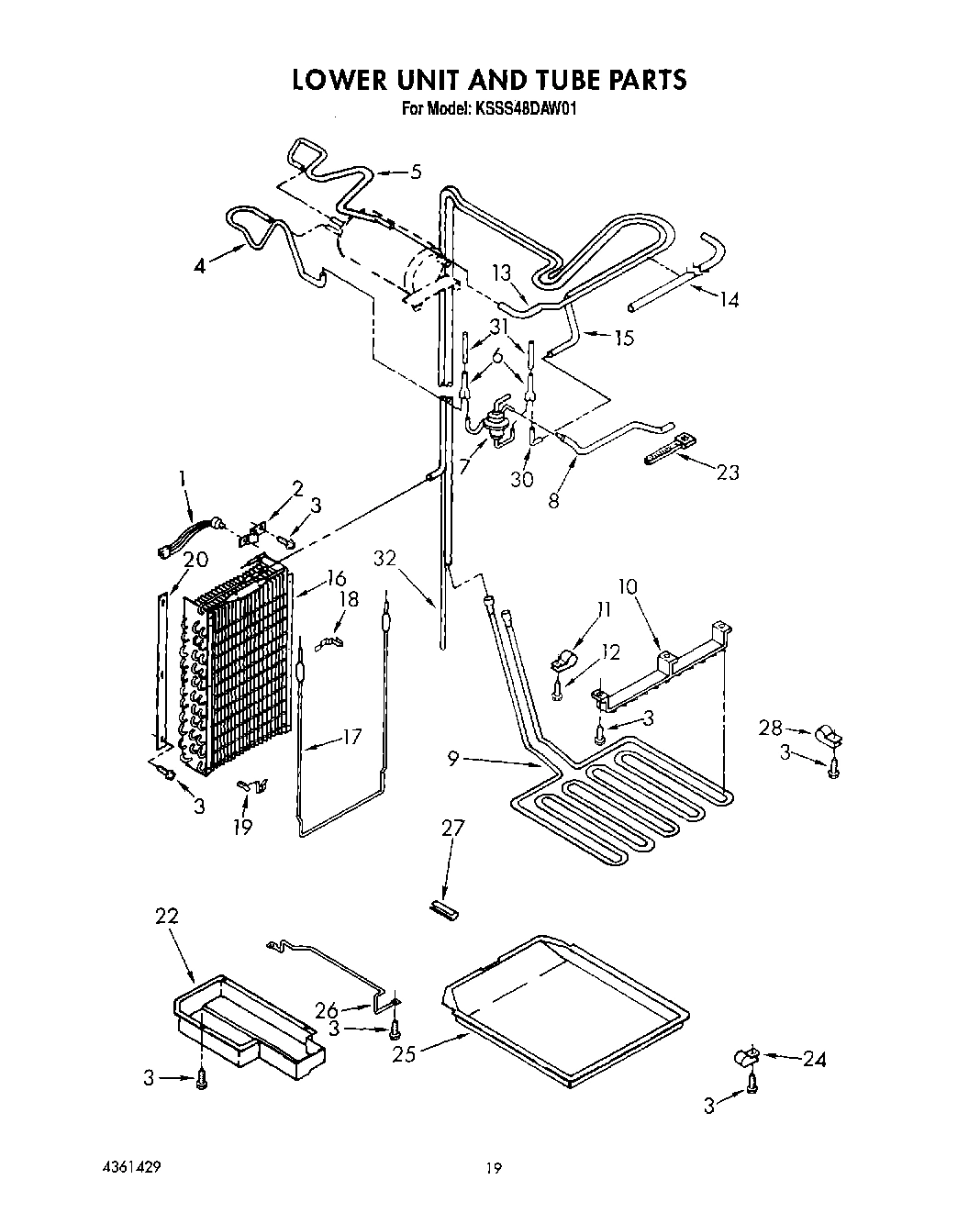

14 - LOWER UNIT AND TUBE

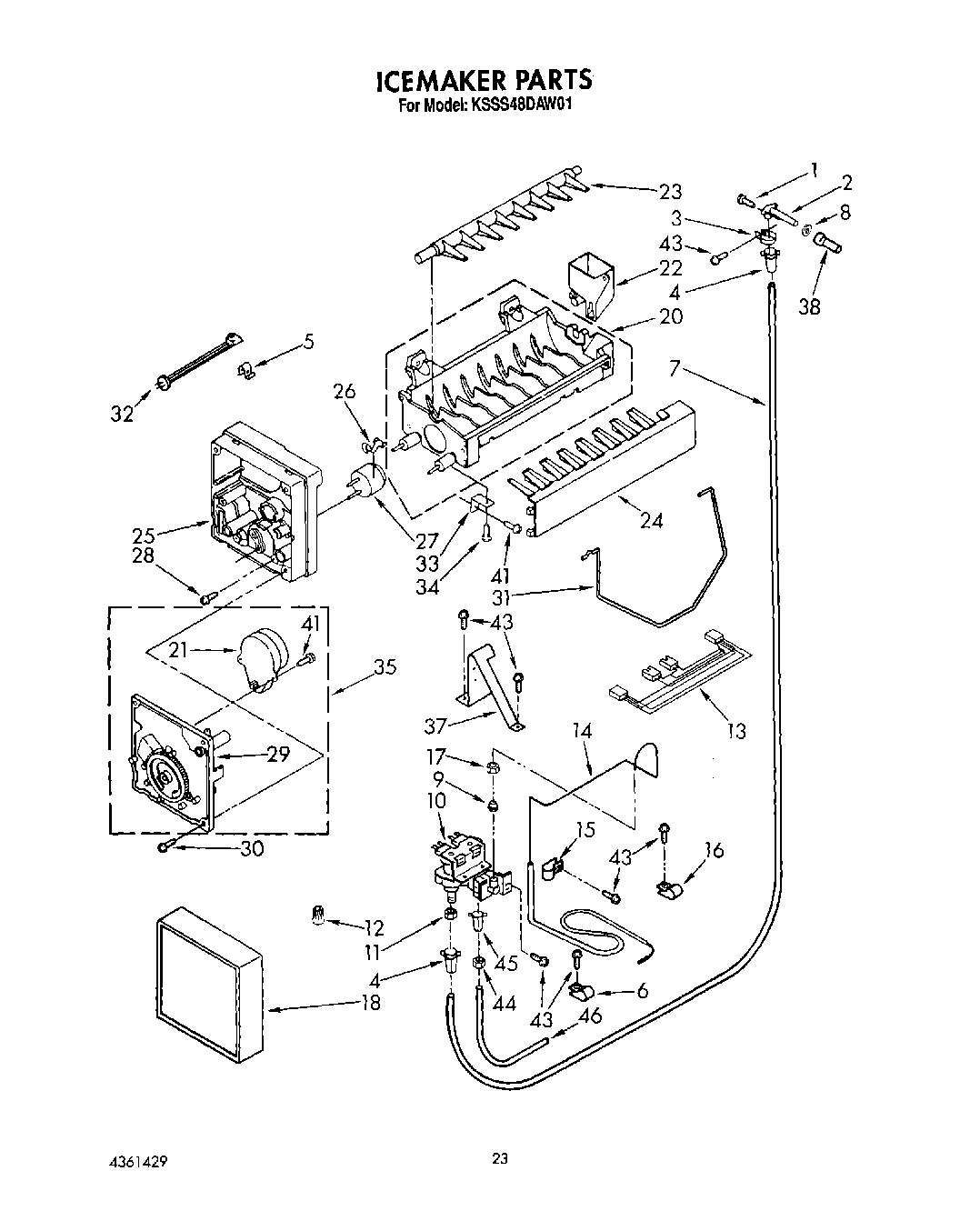

16 - ICEMAKER, LIT/OPTIONAL

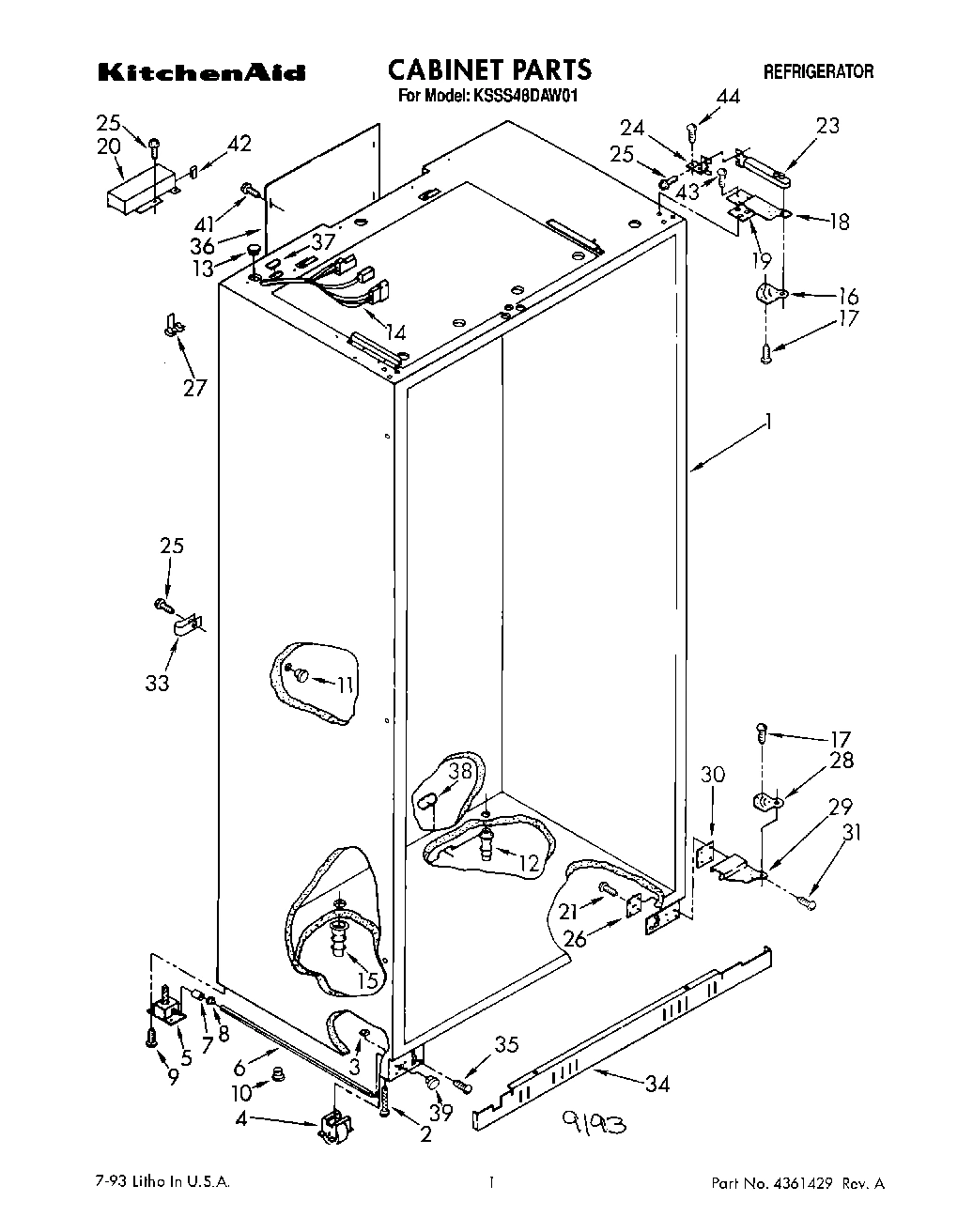

01 - CABINET

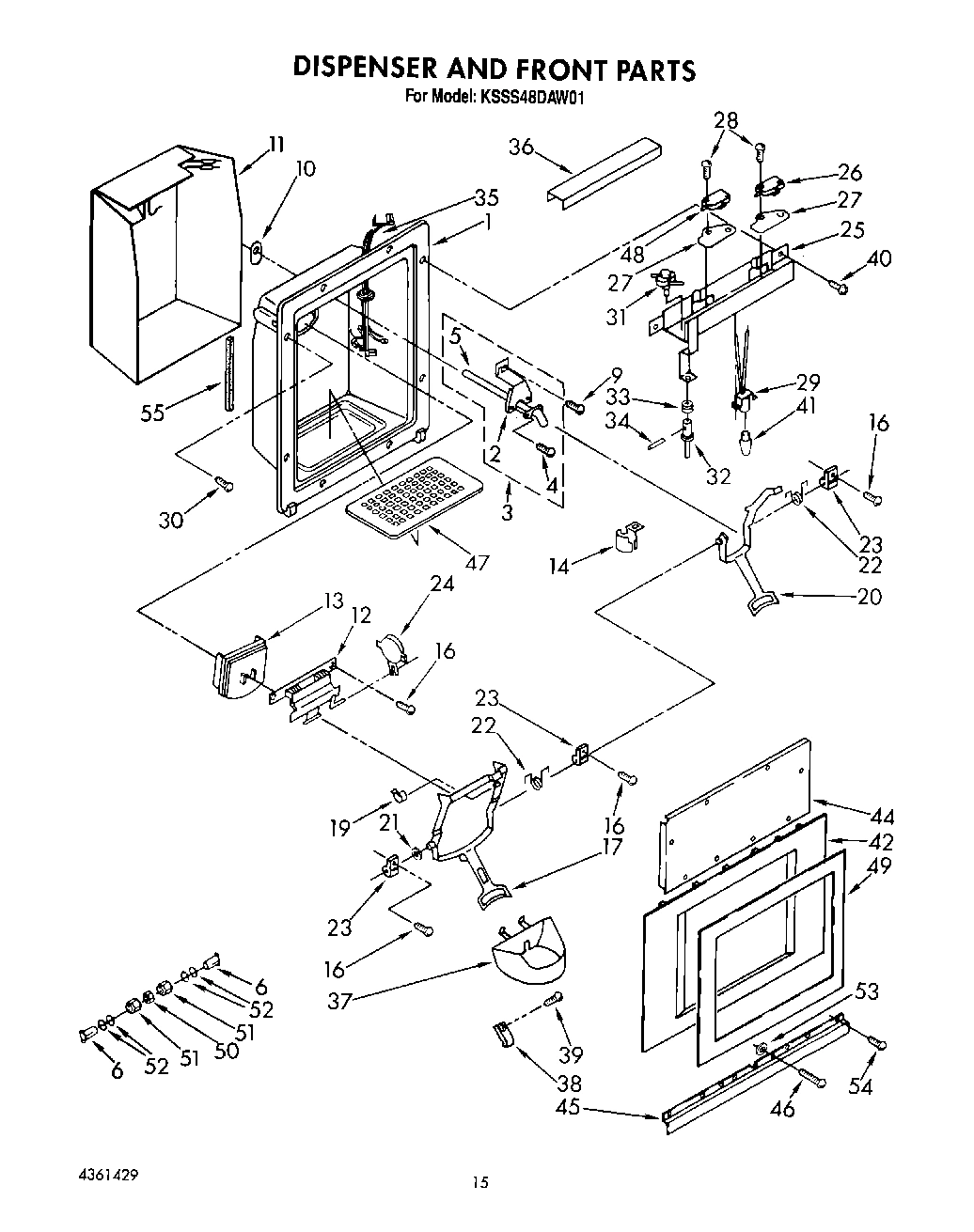

12 - DISPENSER AND FRONT

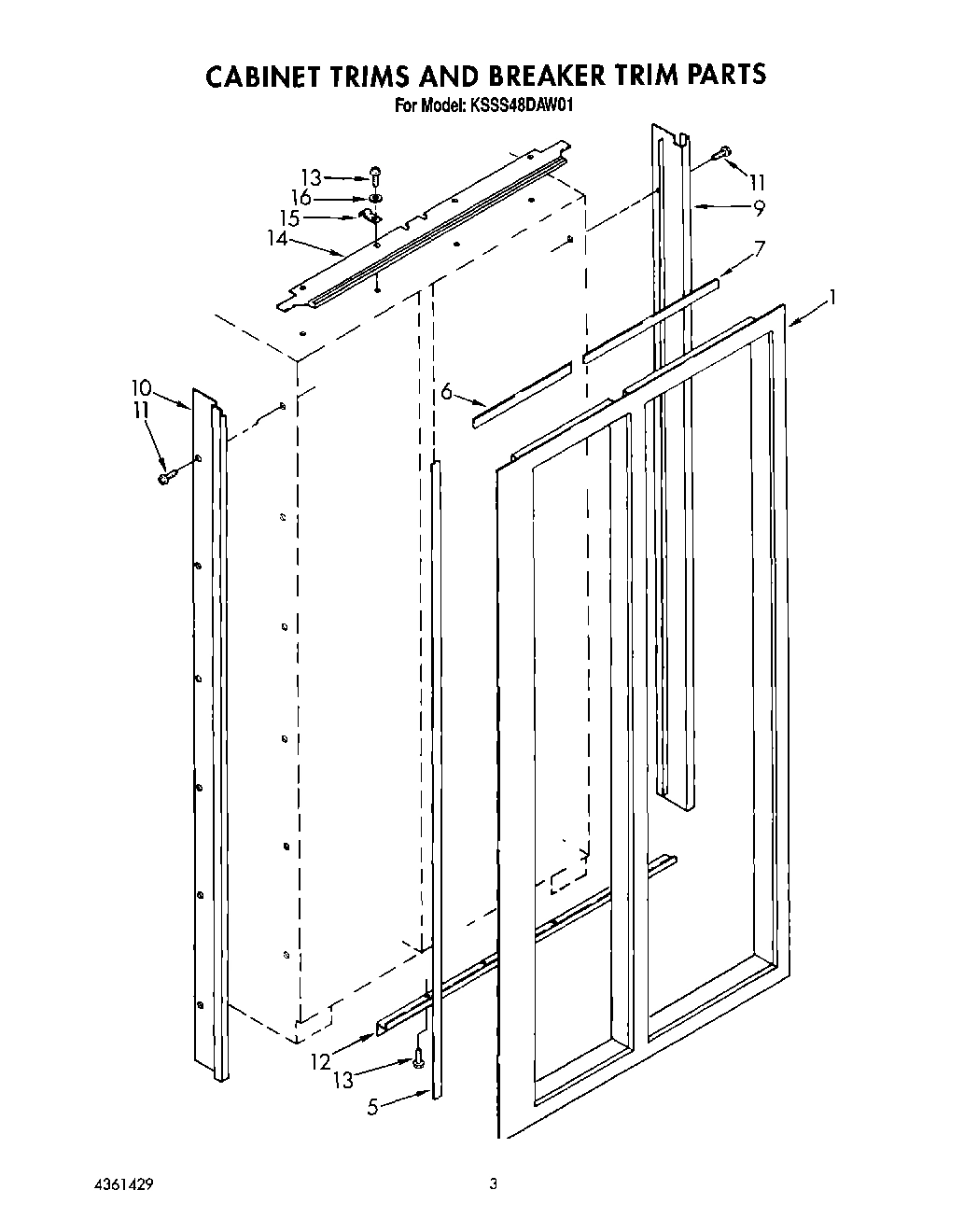

02 - CABINET TRIMS AND BREAKER TRIM

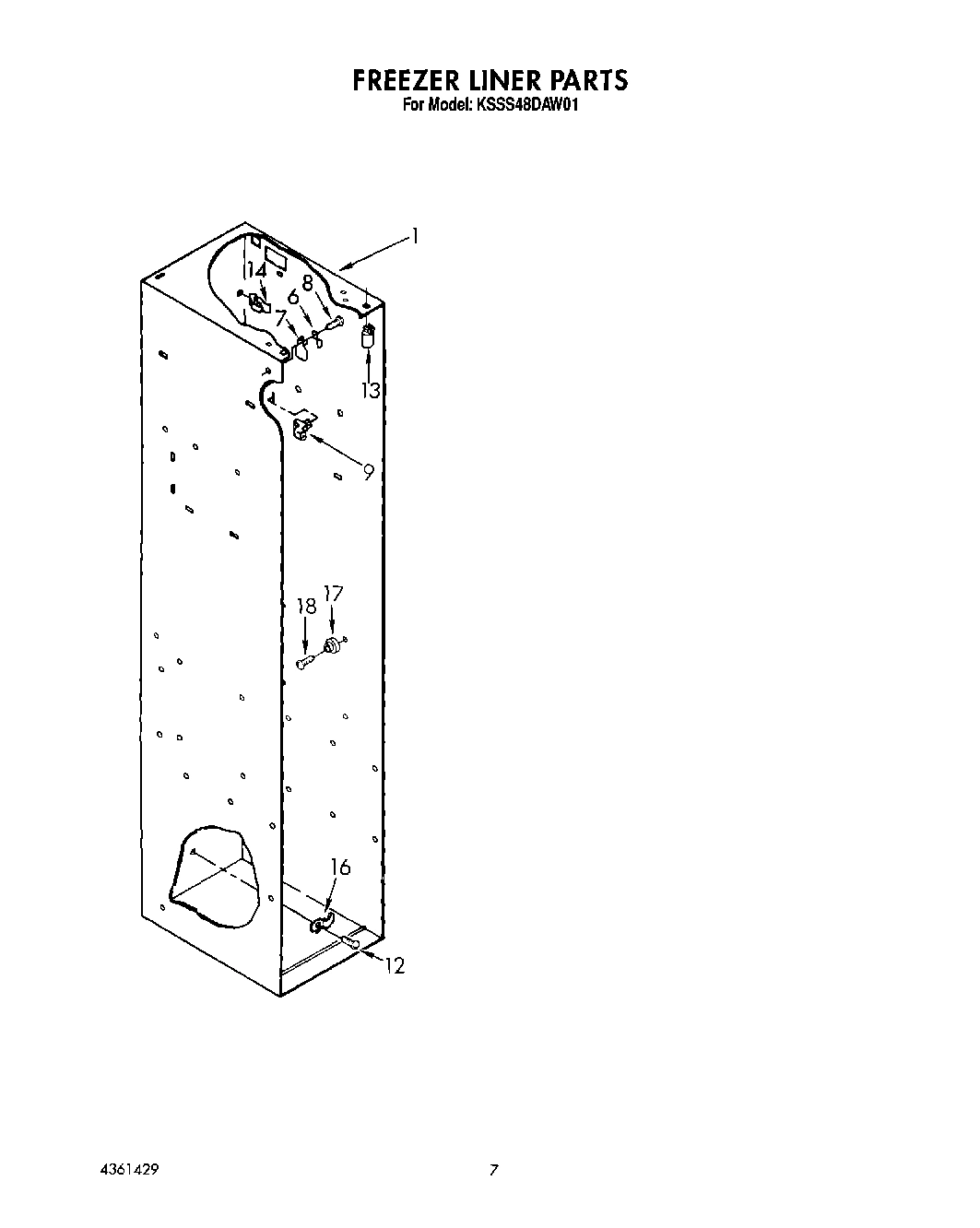

04 - FREEZER LINER

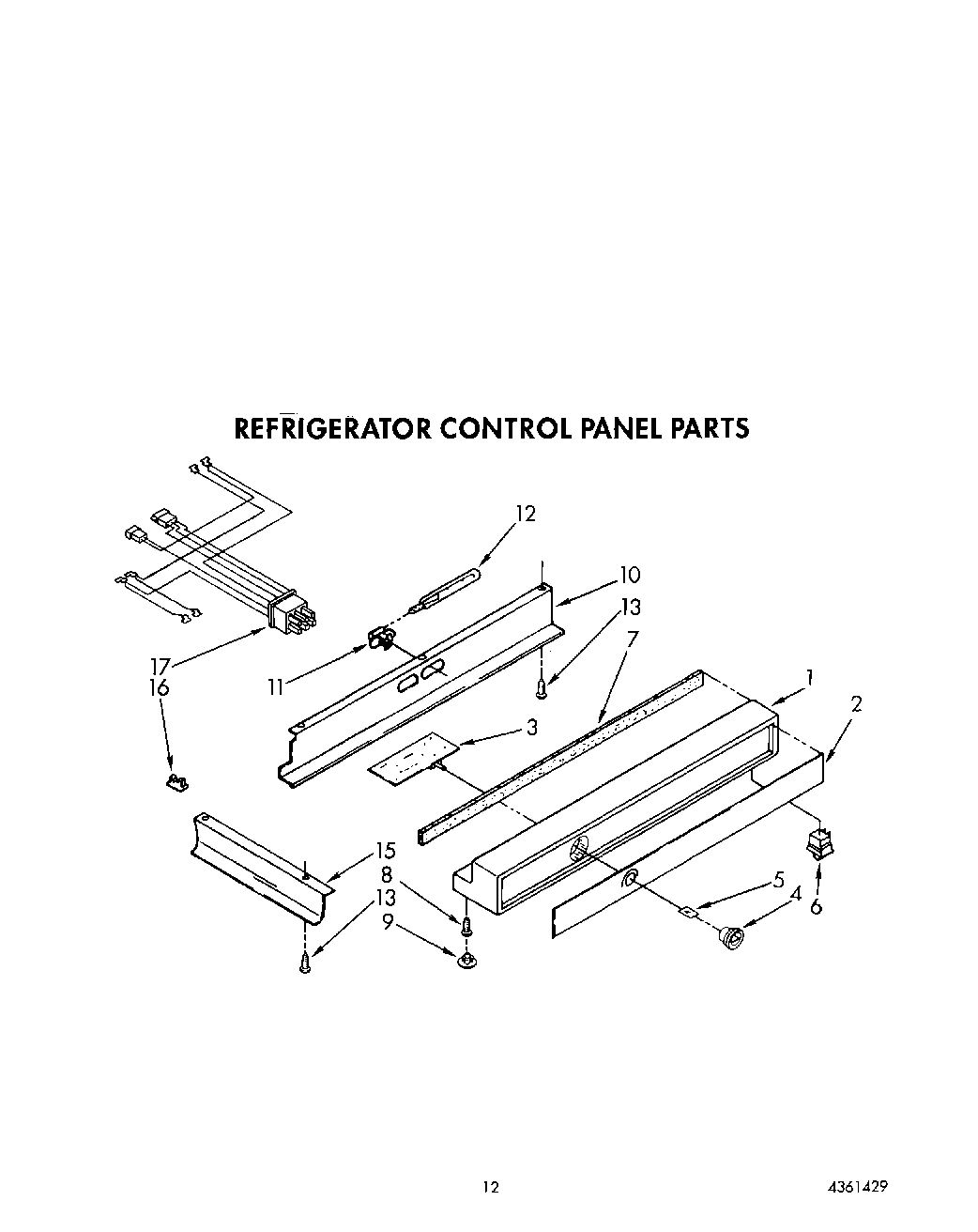

09 - REFRIGERATOR CONTROL PANEL

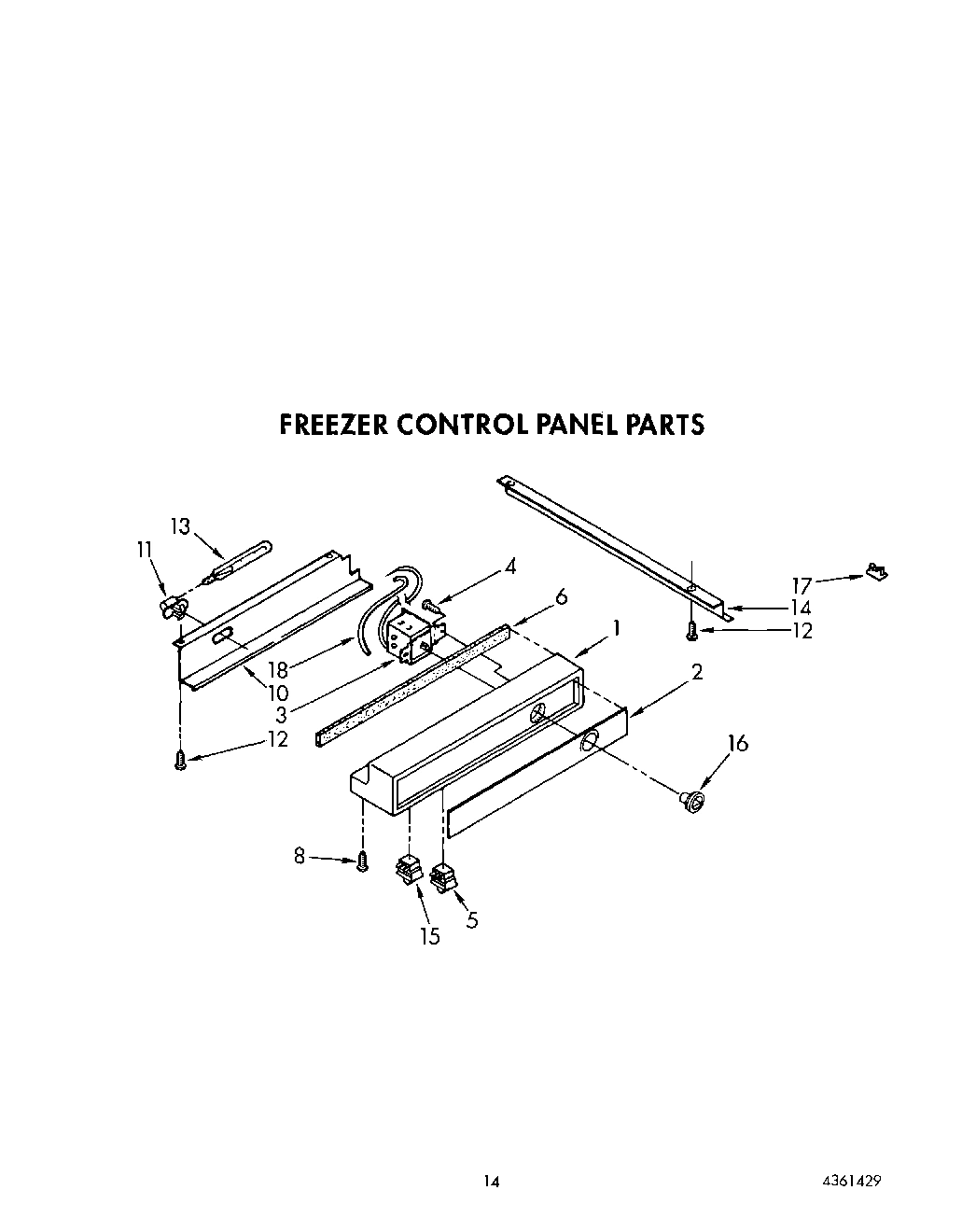

11 - FREEZER CONTROL PANEL

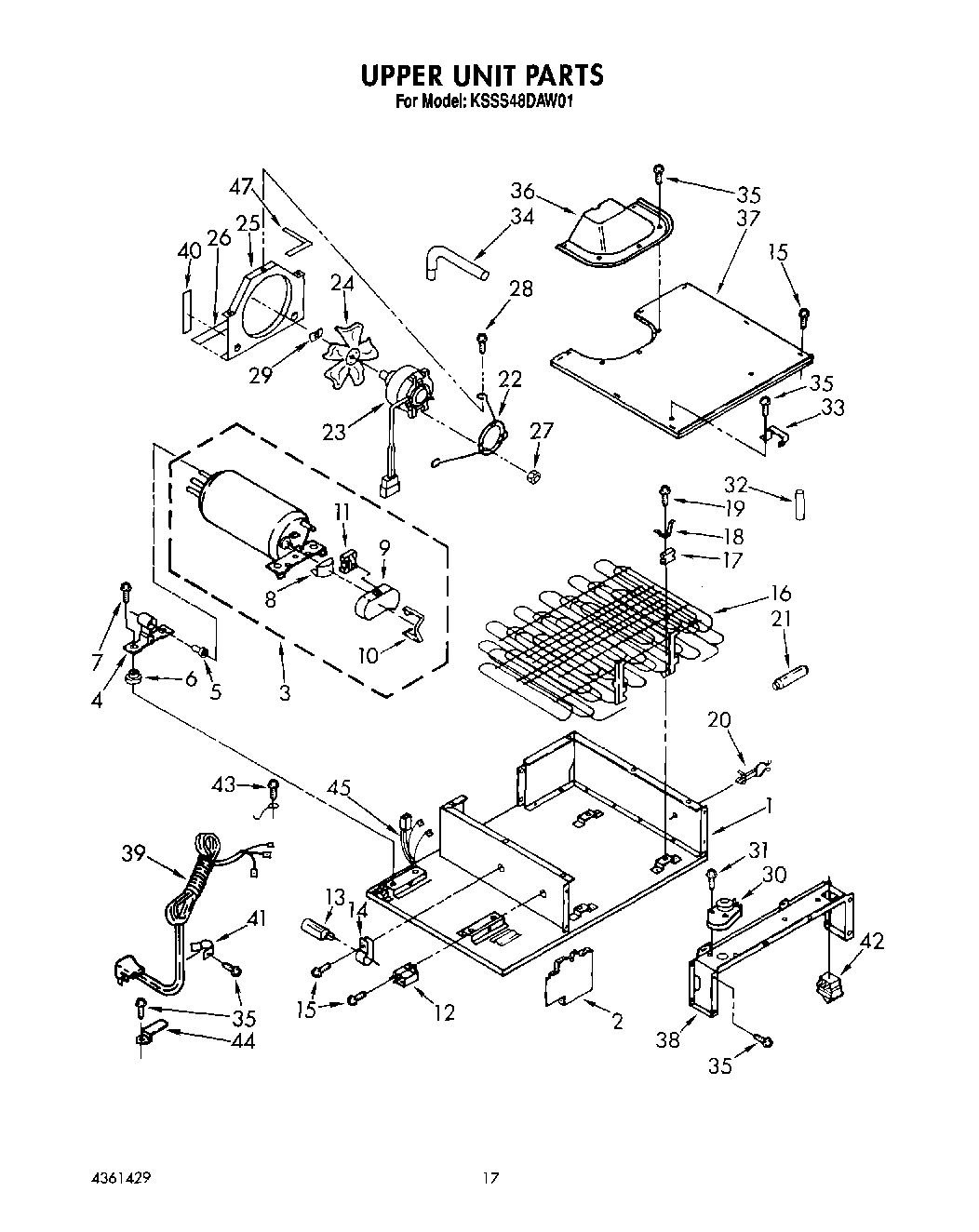

13 - UPPER UNIT
Common parts from model Whirlpool KSSS48DAW01 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2000850 Contact Us For Availability
Installation Instructions WPL LIT2001094 Contact Us For Availability
Energy Label WPL LIT2001348 Contact Us For Availability
Use & Care Guide WPL LIT2001362 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Solid Shelf WPL 1112367 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107711A Contact Us For Availability
1
Exterior Door Panel, Freezer (Includes Insula WPL 2001138 Contact Us For Availability
1
Spacer, Track (Right Side) WPL 1112281 Contact Us For Availability
1
Spacer, Track (Left Side) WPL 1112282 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000695 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107710A Contact Us For Availability
1
Housing, Dispenser WPL 1124715 Contact Us For Availability
1
Breaker Trim & Retainer Assembly WPL 2000652 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107712A Contact Us For Availability
1
Control Panel WPL 1112642 Contact Us For Availability
1
Control Panel WPL 1112597 Contact Us For Availability
1
Assembly, Unit Base WPL 2001123 Contact Us For Availability
2
Roller WPL 1113870 Contact Us For Availability
2
Front, Ice Compartment WPL 2000529 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Fitting, Water Tube WPL 2000829 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Inlay, Control Panel WPL 2000976 Contact Us For Availability
2
Inlay, Control Panel WPL 1113959 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
3
Eyelet, Roller WPL 1113871 Contact Us For Availability
3
Shelf, Fixed WPL 1112052 Contact Us For Availability
3
Grommet, Screw (3) WPL 843436 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
3
Hinge Assembly, Top WPL 2000696 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10, 11, 13) WPL 2154923 Contact Us For Availability
4
Shelf, Fixes (2) (Large) WPL 1113638 Contact Us For Availability
4
Spacer WPL 2001396 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113293 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Knob, Retainer WPL 837444 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Water Tube (See Item No.3) WPL ARI107713A Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
6
Retainer, Glass WPL 1112324 Contact Us For Availability
6
Hinge, Bottom WPL 2000720 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2000698 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Adjusting Rod (2) WPL 2000670 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112679 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Seal, Control Panel WPL 1113136 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
7
Frame Assembly WPL 1112014 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Tube, Water (To Ice Maker) WPL 2001336 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112681 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Seal, Control Panel WPL 1113137 Contact Us For Availability
7
Screw WPL 489334 Contact Us For Availability
8
Hinge, Top WPL 2000721 Contact Us For Availability
8
Bracket, Motor WPL 1113127 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112542 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2001727 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Overload WPL 2154948 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Motor Assembly WPL 2155271 Contact Us For Availability
9
Heater, Drain Pan WPL 2000756 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
9
Cabinet, Trim R.S WPL 2001390 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Terminal Cover WPL 2154452 Contact Us For Availability
10
Glass, Crisper WPL 1113238 Contact Us For Availability
10
Meat Pan, Air Duct Cover (Also Order 12) WPL 2000740 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Cabinet, Trim L.S WPL 2001391 Contact Us For Availability
10
Shield, Control Panel WPL 1113775 Contact Us For Availability
10
Shield, Control Panel WPL 1113769 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 2001323 Contact Us For Availability
11
Socket, Light WPL 1112613 Contact Us For Availability
11
Handle, Door WPL 2000388 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2001334 Contact Us For Availability
11
Screw WPL 2001297 Contact Us For Availability
11
Relay WPL 1118797 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2001302 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Gasket Utility Door WPL 1113955 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
12
Cabinet, Trim (Bottom) WPL 2001190 Contact Us For Availability
12
Running Capacitor WPL 2149684 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
13
Cover, Motor WPL 1113130 Contact Us For Availability
13
Tap, Plate WPL 2000349 Contact Us For Availability
13
Tube, Discharge WPL 2000857 Contact Us For Availability
13
Water Valve, Harness WPL 2000836 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Starting Capacitor WPL 2154949 Contact Us For Availability
14
Pan, Crisper WPL 2000554 Contact Us For Availability
14
Trim, Basket WPL 1113644 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Door, Spacer Bottom WPL 2001395 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2000832 Contact Us For Availability
14
Shroud WPL 1129333 Contact Us For Availability
14
Cabinet, Trim Top WPL 2001389 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
15
Screw WPL 2001208 Contact Us For Availability
15
Ice Container WPL 1112287 Contact Us For Availability
15
Heat Exchanger WPL 2000724 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
16
Handle, Door WPL 2000389 Contact Us For Availability
16
Conveyor WPL 1112378 Contact Us For Availability
16
Trim (Top) WPL 2001399 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Right Side) WPL 2000304 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Left Side) WPL 2000305 Contact Us For Availability
16
Washer (2) WPL 487944 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Screw WPL 2001209 Contact Us For Availability
17
Lever, Ice Dispenser WPL 2155815 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Control Harness WPL 2001074 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
18
Trim (Side) WPL 2000391 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2000306 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2000307 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
18
Thermostat Barrier WPL 1105570 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Utility Pan WPL 2000557 Contact Us For Availability
19
Basket WPL 2001626 Contact Us For Availability
19
Nut, Bearing WPL 946195 Contact Us For Availability
19
Trim (Bottom) WPL 2001403 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
20
Meat Pan WPL 2000817 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Panel, Interior Door WPL 1113950 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Lever, Water Dispenser WPL 2159199 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
21
Washer WPL 488307 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Trim (Top) WPL 2001408 Contact Us For Availability
21
Baffle WPL 946194 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113949 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Slide, Basket R.S. WPL 2000061 Contact Us For Availability
22
Slide, Basket L.S. WPL 2000062 Contact Us For Availability
22
Overlay, Cover WPL 2001034 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability
22
Guard, Hook-Up WPL 1113070 Contact Us For Availability
22
Mounting Bracket, Motor WPL 2000358 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Trim (Bottom) WPL 2001411 Contact Us For Availability
23
Front Cover WPL 1112382 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
24
Stop, Roller WPL 1113169 Contact Us For Availability
24
Trim (Side) WPL 2000390 Contact Us For Availability
24
Bracket, Door Closer WPL 2000333 Contact Us For Availability
24
Blade, Fan WPL 2000352 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
25
Washer WPL 2001230 Contact Us For Availability
25
Bracket, Control WPL 1107454 Contact Us For Availability
25
Orifice, Fan WPL 2000351 Contact Us For Availability
26
Panel, Interior Door WPL 1113947 Contact Us For Availability
26
Door, Utility Bin WPL 1112737 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
27
Door Shelf (4) WPL 2000622 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability
28
Door Shelf, Assembly WPL 2000606 Contact Us For Availability
28
Lens, Dispenser WPL 1113140 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
28
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
28
Screw, 8 x 1/2 (3) WPL 489368 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 2000308 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 2000309 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) Bottom (4) WPL 1112943 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
31
Screw, 1/4-28 x 3/4 WPL 2000490 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
32
Plunger, Extension WPL 1107457 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
33
Clamp, Tube (2) WPL 1113066 Contact Us For Availability
33
Tube clamp WPL 2001266 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
34
Ice Chute WPL 2000798 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Grille Base, Front WPL 2001219 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
Process, Tube WPL 1113059 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
35
Wiring Harness, Door WPL 2001350 Contact Us For Availability
36
Cover, Rear WPL 2000684 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
36
Cover, Fan WPL 2000853 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Guiding, Ice WPL 2147479 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
38
Water Inlet Tube WPL 2001098 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Glass Stop WPL 2147480 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
39
Grommet, Tube WPL 1112926 Contact Us For Availability
39
Screw WPL 488892 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
40
Seal Strip (2) WPL 2001503 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Grommet WPL 2000530 Contact Us For Availability
42
Front Cover, Housing (Includes Item 49) WPL 2001174 Contact Us For Availability
44
Compression Nut WPL 1129179 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
44
Cover, Dispenser Opening WPL 1112836 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
45
Insert, Tube WPL 1129177 Contact Us For Availability
45
Trim, Front (2) WPL 2001161 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2001078 Contact Us For Availability
46
Water, Tube (From Water Reservior) WPL 2001152 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
Grille, Overflow WPL 1126120 Contact Us For Availability
47
Gasket (2) WPL 2001079 Contact Us For Availability
47
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
48
Switch WPL 934316 Contact Us For Availability
49
Overlay, Cover WPL 2001177 Contact Us For Availability
52
``O`` RING SEAL WPL 488794 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318423 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318424 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318425 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4318426 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
