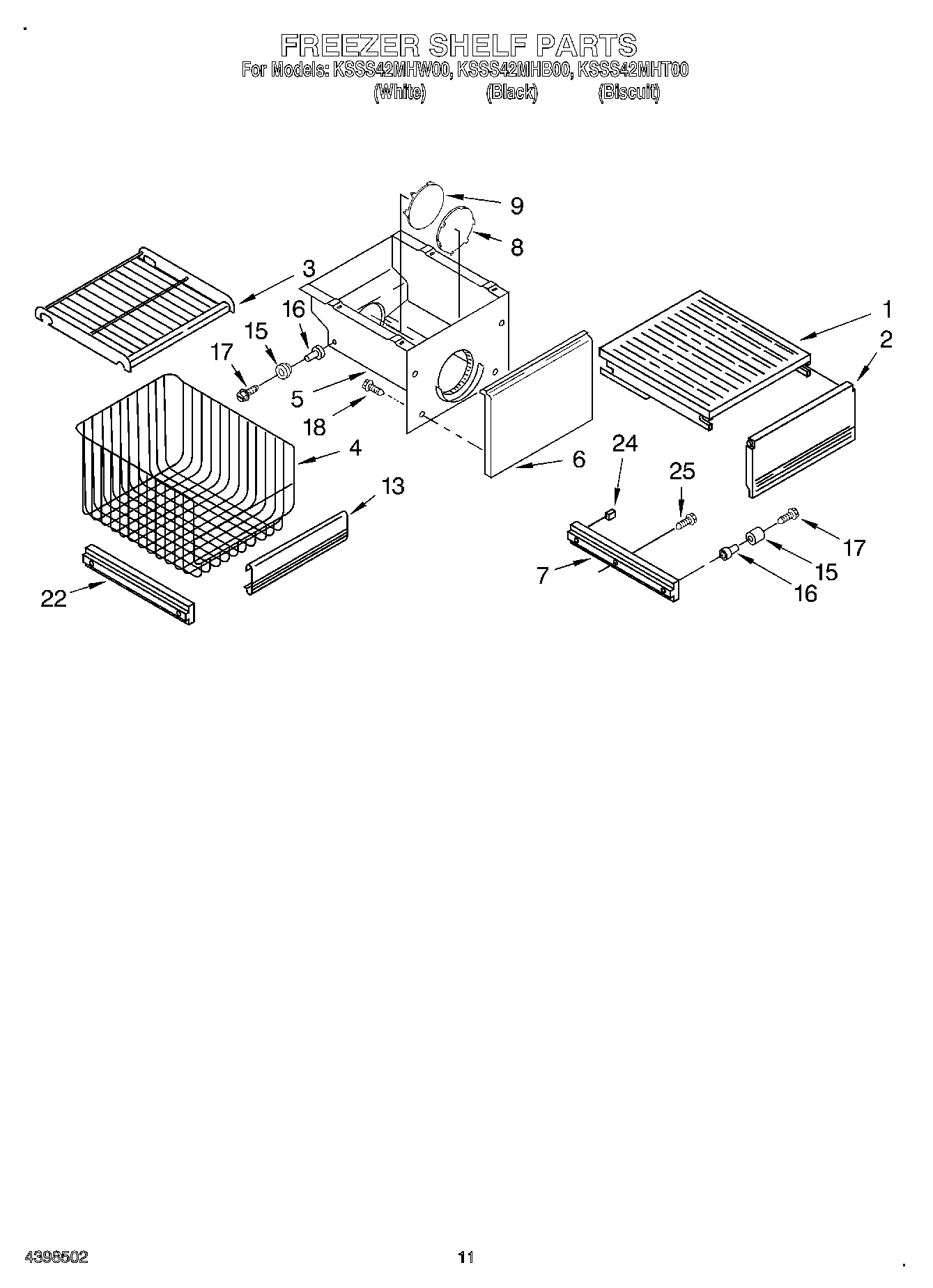

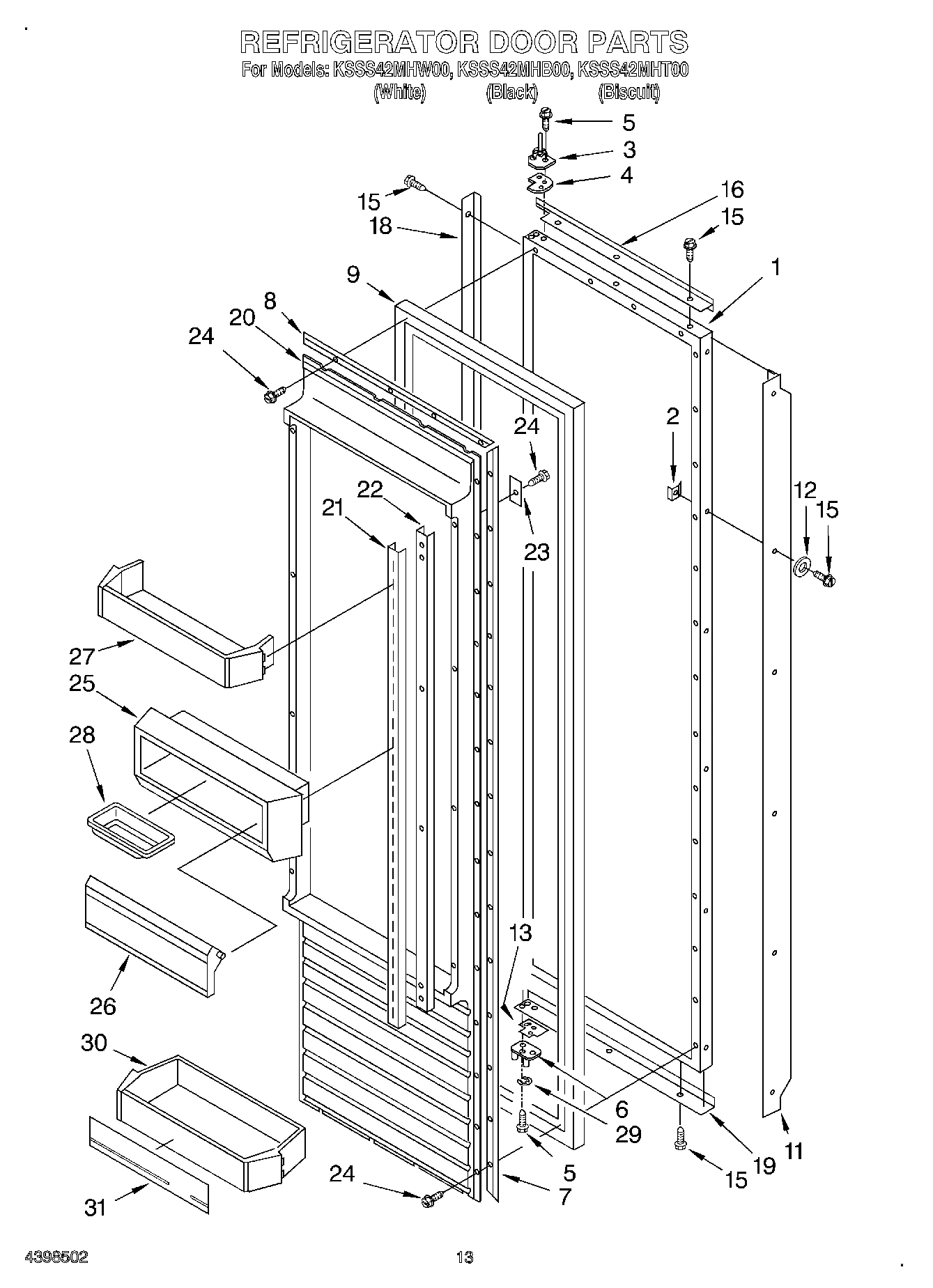

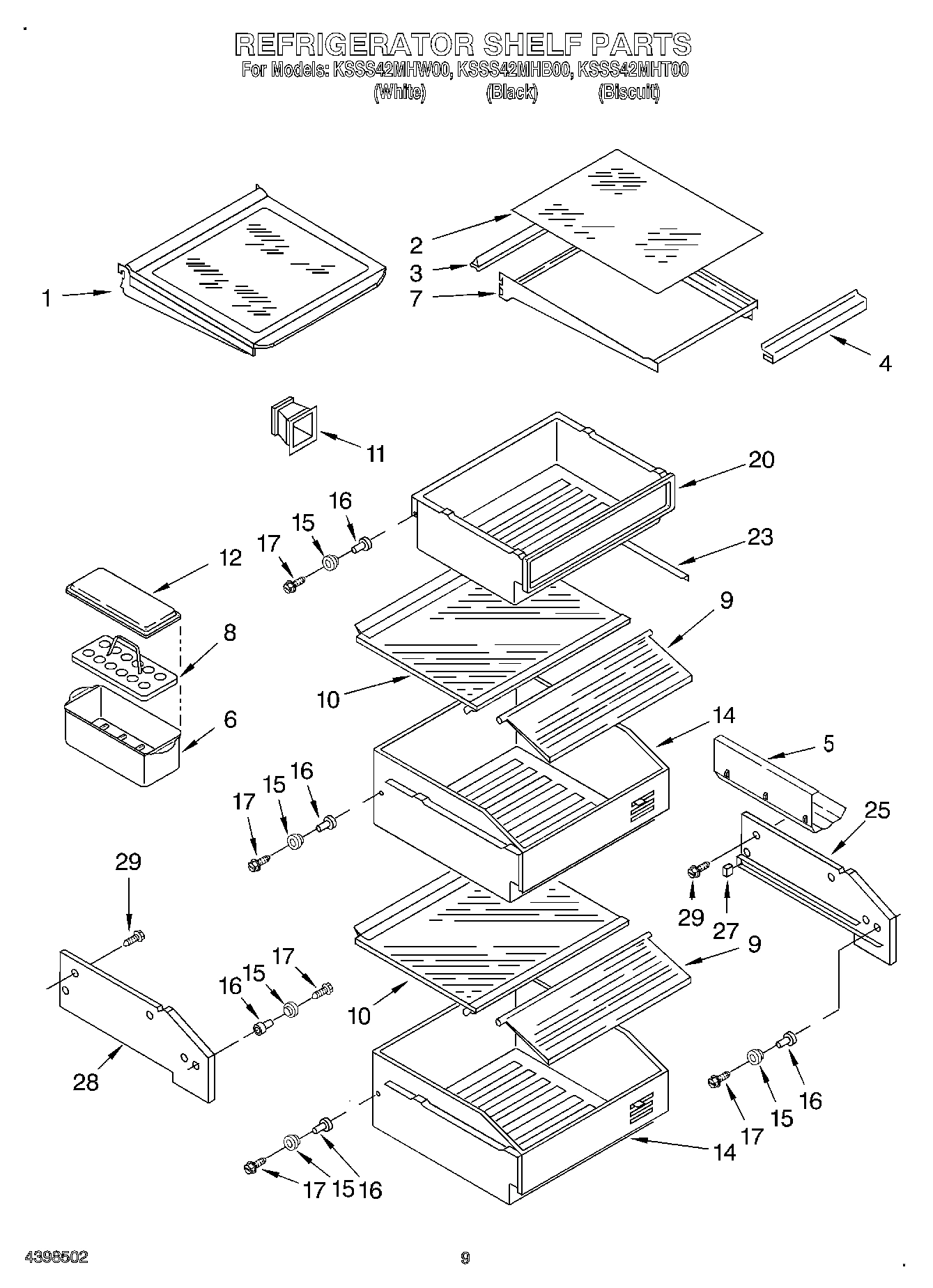

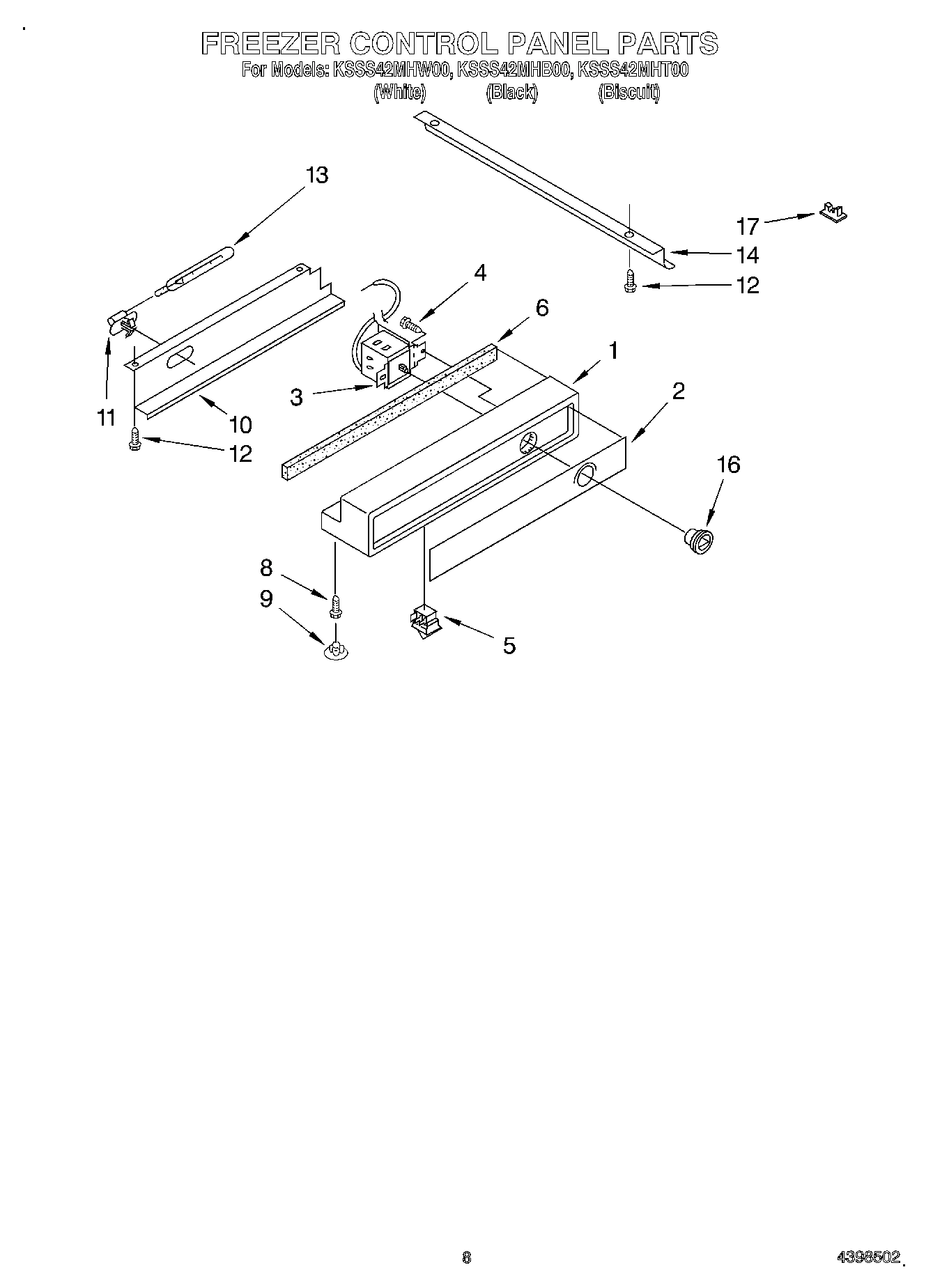

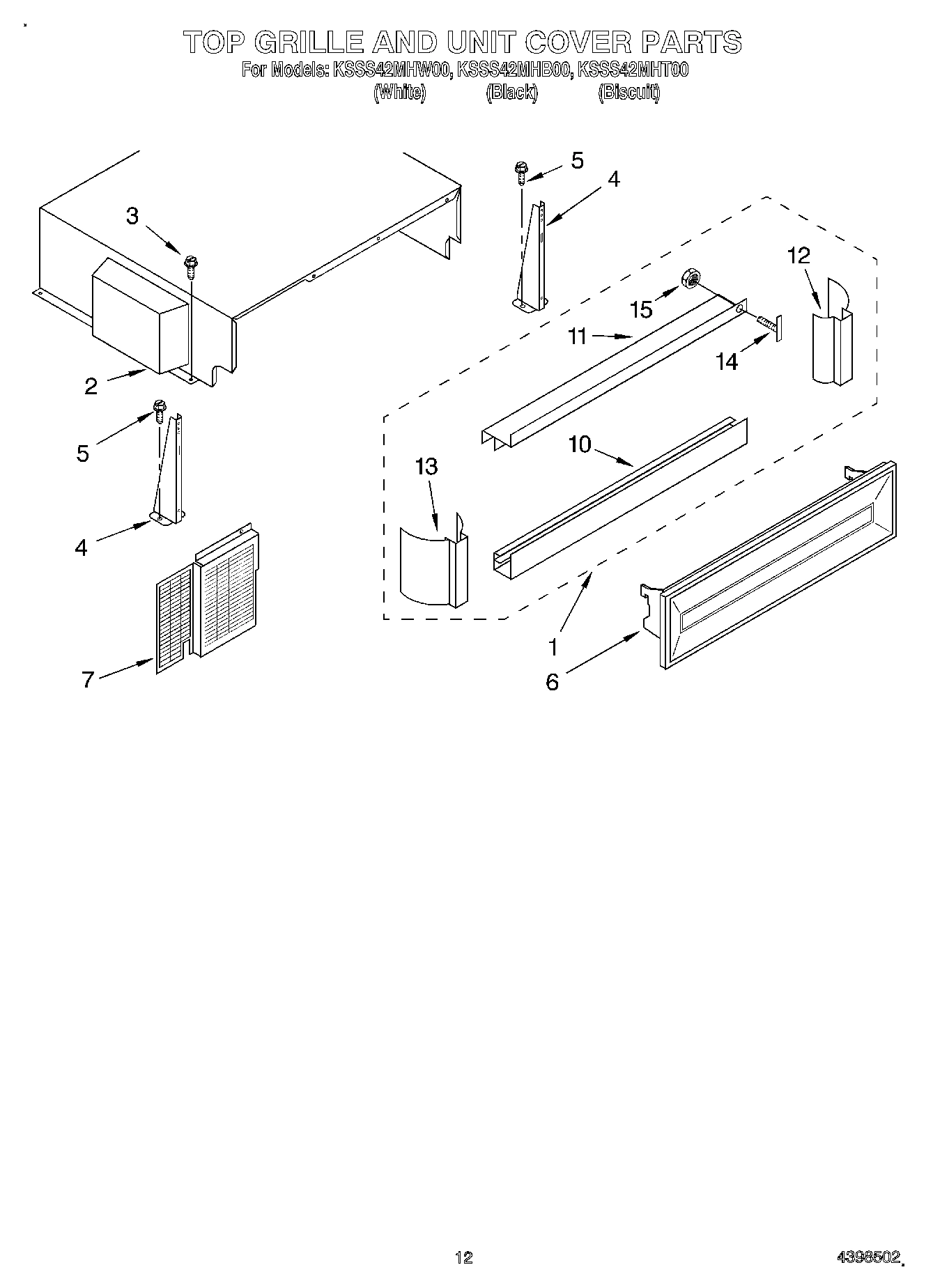

Model Whirlpool KSSS42MHB00 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

Defrost Bi-Metal WPL 2006755 Contact Us For Availability

1

Assembly, Unit Base WPL 2003398 Contact Us For Availability

1

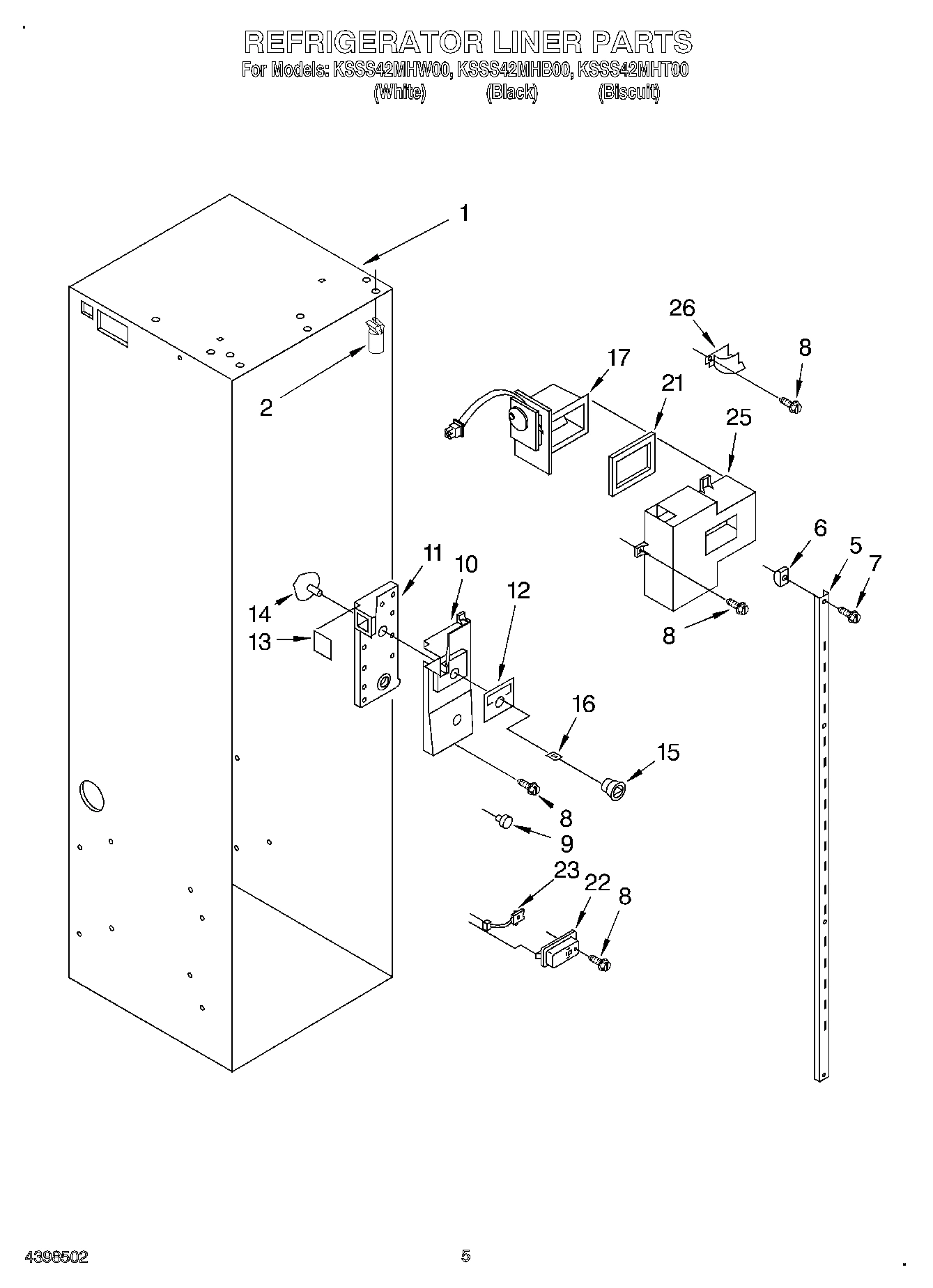

Liner (Not A Serviceable Part) WPL ARI107323A Contact Us For Availability

1

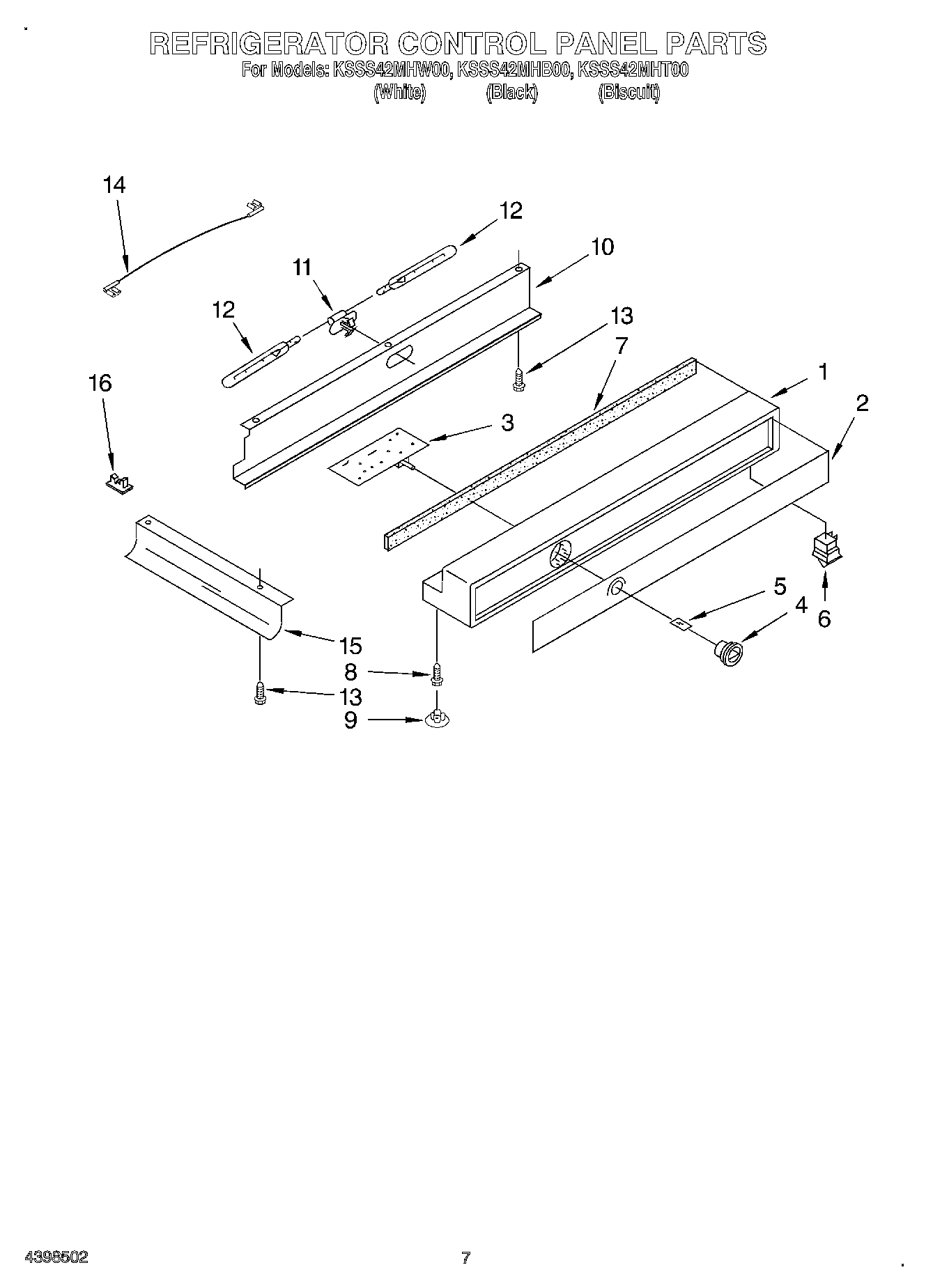

Control Panel WPL 1113626 Contact Us For Availability

1

Solid Shelf WPL 2003143 Contact Us For Availability

1

Control Panel WPL 1112641 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 2003871 Contact Us For Availability

1

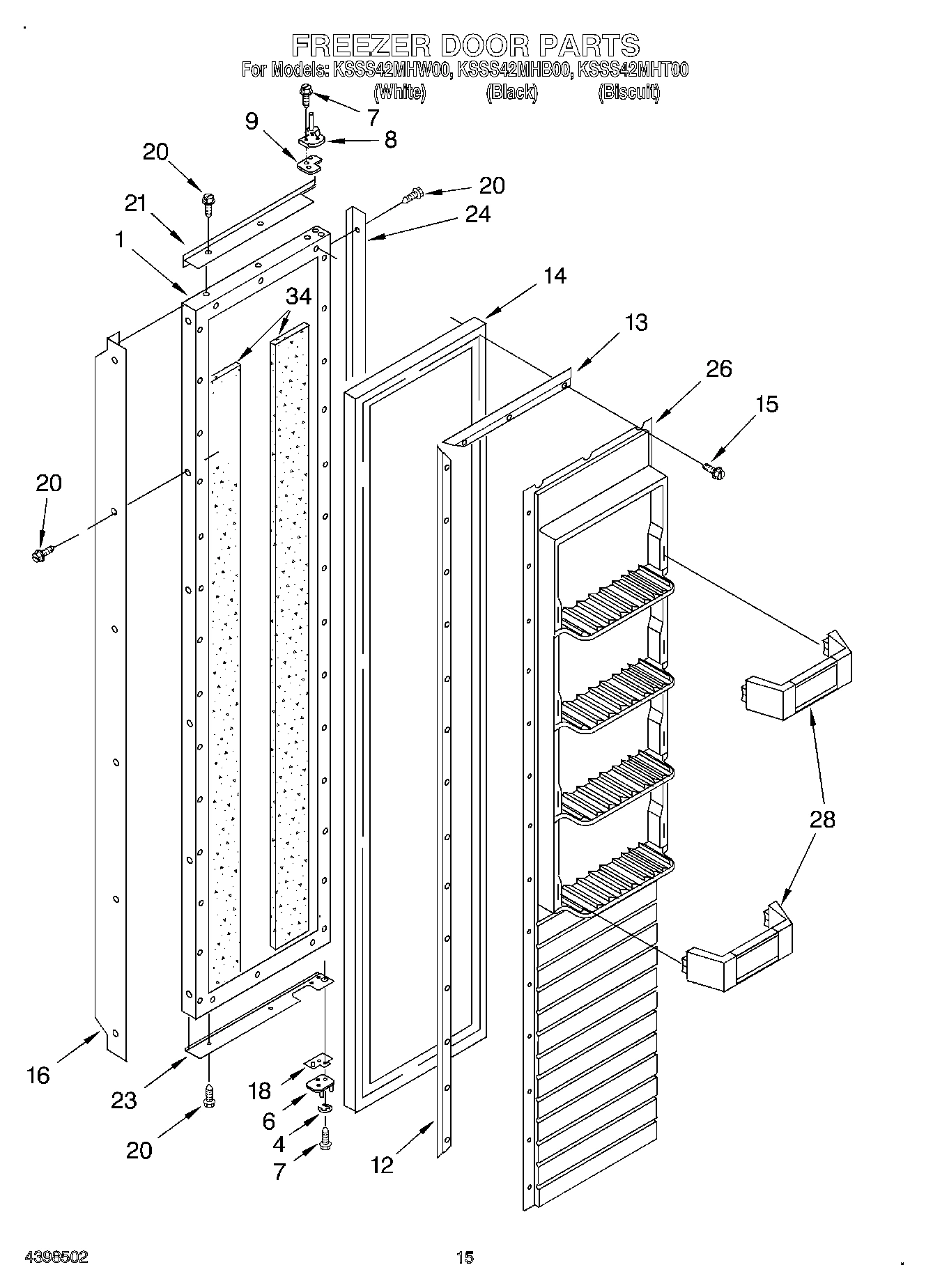

Freezer Door Panel (Includes Insulation) WPL 2003877 Contact Us For Availability

1

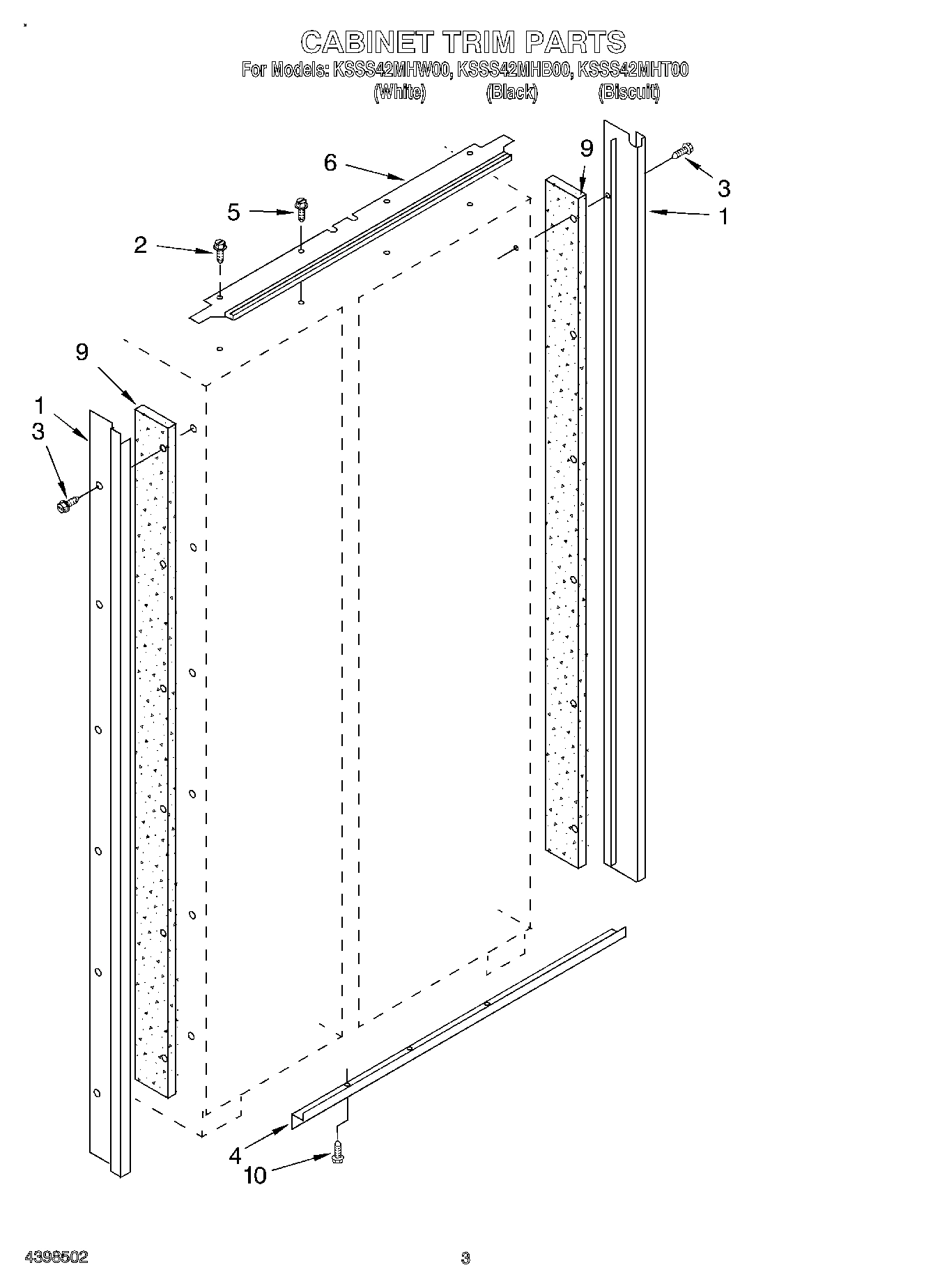

Cabinet, Trim (2) (White) WPL 2004668 Contact Us For Availability

1

Cabinet, Trim (2) (Biscuit) WPL 2005730 Contact Us For Availability

1

Cabinet, Trim (2) (Black) WPL 2005820 Contact Us For Availability

1

Frame, Shelf WPL 2174403 Contact Us For Availability

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

2

Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability

2

Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability

2

Inlay, Control Panel WPL 2003308 Contact Us For Availability

2

Front, Ice Compartment WPL 2003134 Contact Us For Availability

2

Clamp, Bi-Metal WPL 1113043 Contact Us For Availability

2

Inlay, Control Panel WPL 2003302 Contact Us For Availability

2

Screw WPL 2003857 Contact Us For Availability

2

Glass, Shelf WPL 2003376 Contact Us For Availability

2

Cup, Clearance WPL 2002732 Contact Us For Availability

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

3

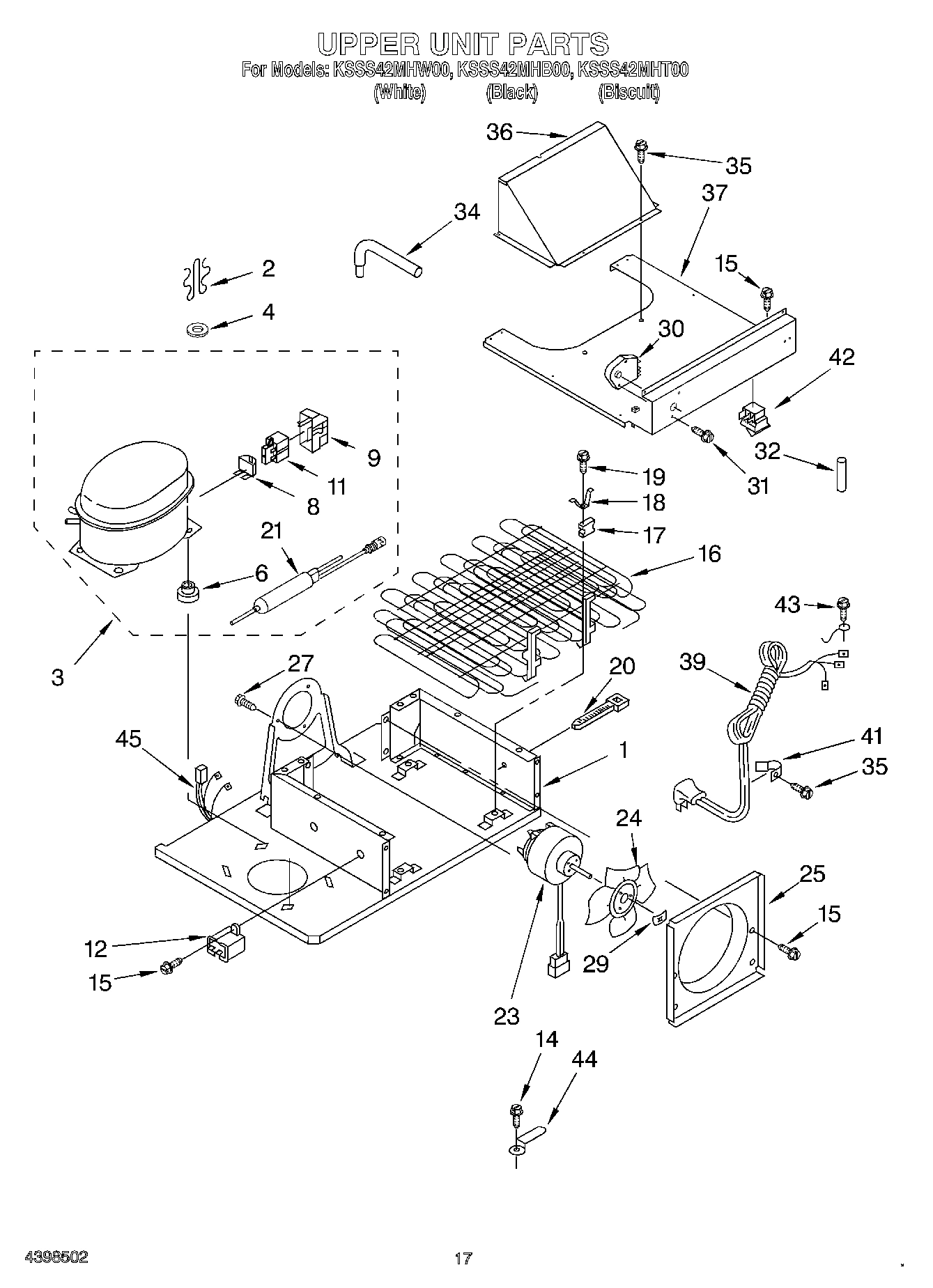

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

3

WP1113466 Whirlpool Refrigerator Thermostat Backorder WPL WP1113466 $125.12

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Shelf, Deep WPL 1113565 Contact Us For Availability

3

Shelf, Fixed (2) WPL 1113637 Contact Us For Availability

3

Circuit Board WPL 2004005 Contact Us For Availability

3

Reflector, Shelf WPL 1113547 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

Washer WPL 680975 Contact Us For Availability

4

Screw (2) WPL 488974 Contact Us For Availability

4

Basket (2) WPL 2208194 Contact Us For Availability

4

Control Knob WPL 2003842 Contact Us For Availability

4

Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2004537 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113791 Contact Us For Availability

4

Bracket (Double) WPL 548263 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

5

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

5

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Ice Container WPL 2208907 Contact Us For Availability

5

Ladder, Shelf (2) WPL 2001117 Contact Us For Availability

5

Retainer, Knob WPL 2003841 Contact Us For Availability

5

Bracket (Single) WPL 938224 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2004523 Whirlpool Refrigerator Door Hinge Backorder WPL WP2004523 $28.51

6

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

6

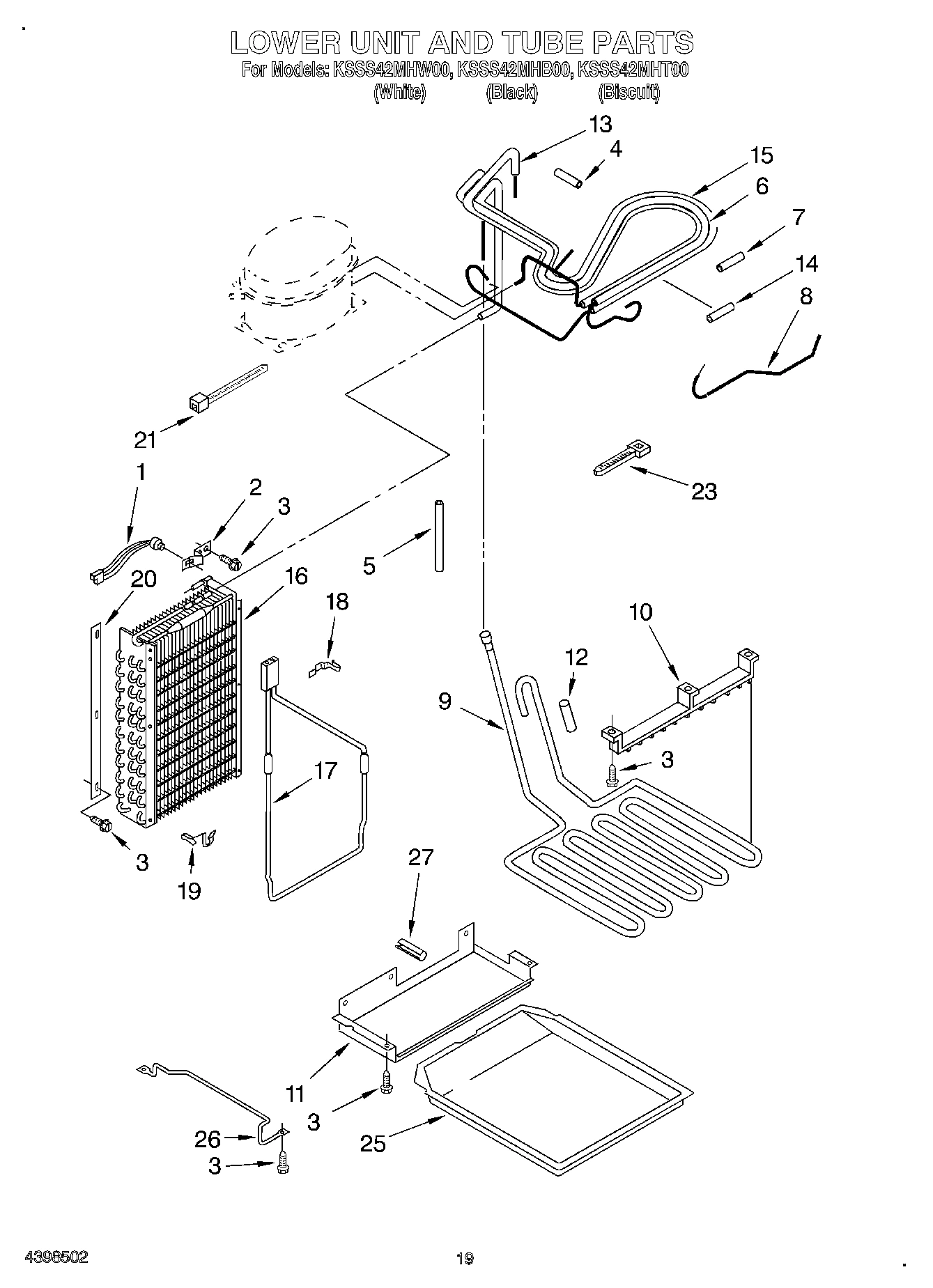

Condenser Inlet Tube WPL 2002999 Contact Us For Availability

6

Seal, Control Panel WPL 1113134 Contact Us For Availability

6

Front Cover WPL 2003044 Contact Us For Availability

6

Hinge, Bottom WPL 2004524 Contact Us For Availability

6

Trim, Cabinet Top WPL 2003646 Contact Us For Availability

6

Grommet WPL 548268 Contact Us For Availability

7

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

7

Screw WPL 488357 Contact Us For Availability

7

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

7

Seal, Control Panel WPL 1113135 Contact Us For Availability

7

Frame, Assembly Meat Pan WPL 2006524 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $26.75

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

8

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

8

Tube, Connect (Drier) WPL 2003015 Contact Us For Availability

8

Screw (3) WPL 489260 Contact Us For Availability

8

Hinge, Top WPL 2005329 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability

8

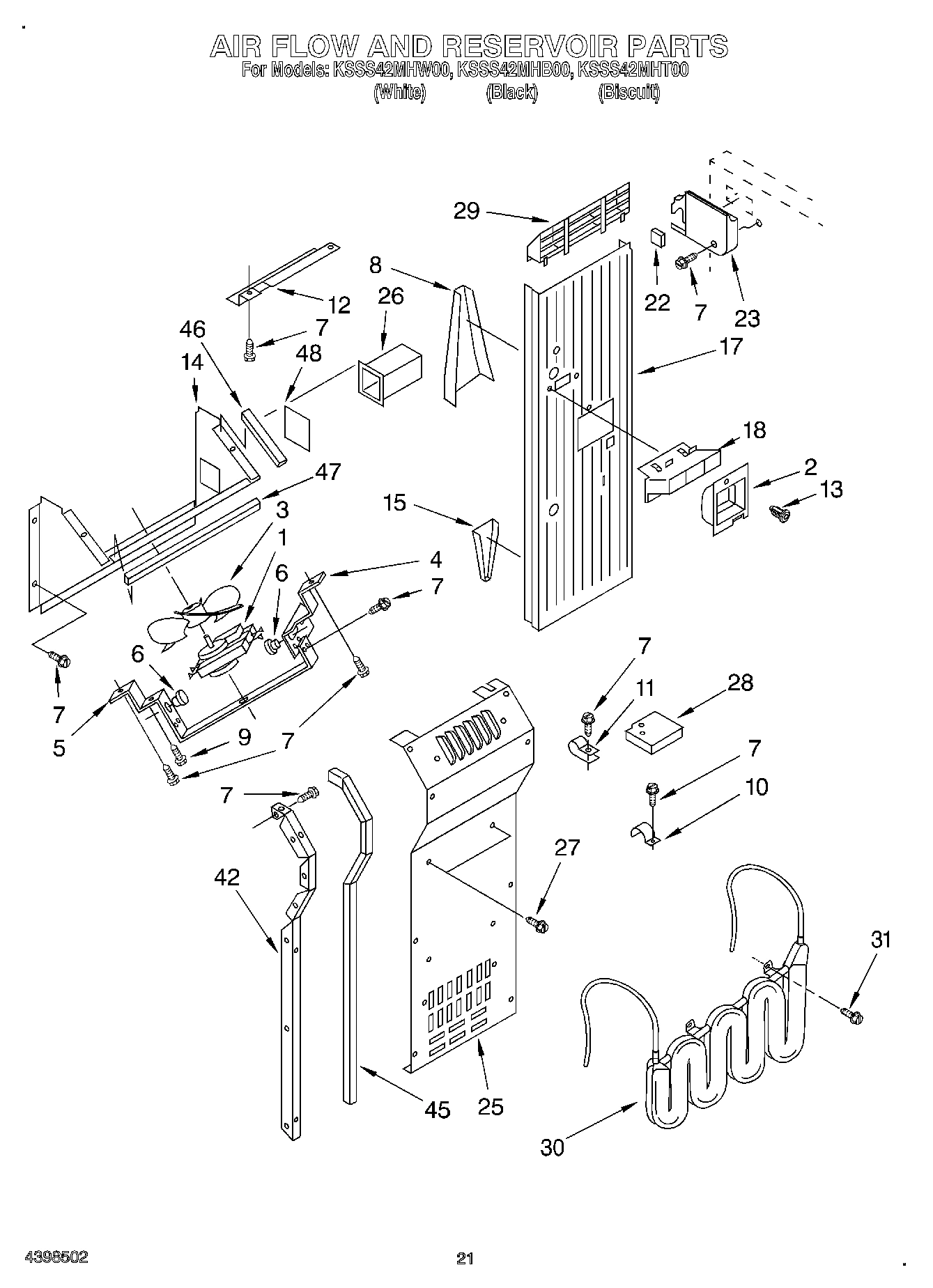

Deflector, Air Duct WPL 2003925 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $12.81

9

2188320A Whirlpool Refrigerator Door Gasket Backorder WPL 2188320A $130.17

9

WP1113894 Whirlpool Refrigerator Cover Backorder WPL WP1113894 $43.11

9

WP2004545 Whirlpool Refrigerator Heater Pan In Stock WPL WP2004545 $177.02

9

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Hole Plug (3) WPL 2000153 Contact Us For Availability

9

Plug, Water Valve WPL 2005038 Contact Us For Availability

9

Spacer-Door, Top WPL 2004520 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability

Shield, Control Panel WPL 2005562 Contact Us For Availability

Hanger, Heater WPL 1113062 Contact Us For Availability

Valve, Solenoid WPL 2003791 Contact Us For Availability

Shield, Control Panel WPL 2005565 Contact Us For Availability

Glass, Crisper (Includes No.9) WPL 2003379 Contact Us For Availability

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Socket, Light WPL 2005042 Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Socket, Light WPL 2005043 Contact Us For Availability

Handle, Door (White) WPL 2005953 Contact Us For Availability

Handle, Door (Biscuit) WPL 2005955 Contact Us For Availability

Handle, Door (Black) WPL 2005956 Contact Us For Availability

Meat Pan, Connector WPL 2000742 Contact Us For Availability

Trim, Grille Right Side (Biscuit) WPL 2005732 Contact Us For Availability

Trim, Grille Right Side (Black) WPL 2005821 Contact Us For Availability

Capacitor WPL 2169137 Contact Us For Availability

Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability

Sleeve WPL 2002448 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

Washer WPL 2001230 Contact Us For Availability

Cover WPL 2169935 Contact Us For Availability

Channel, Wiring WPL 2001145 Contact Us For Availability

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $26.21

Trim, Grille Left Side (White) WPL 2003608 Contact Us For Availability

Trim, Grille Left Side (Biscuit) WPL 2005733 Contact Us For Availability

Trim, Grille Left Side (Black) WPL 2005824 Contact Us For Availability

Seal, Air Duct WPL 2001326 Contact Us For Availability

Trim, Basket WPL 2003113 Contact Us For Availability

Tube, Discharge WPL 2002995 Contact Us For Availability

Water Valve, Harness WPL 2006738 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability

Fastner WPL 1112871 Contact Us For Availability

2003347 Whirlpool Screw Backorder WPL 2003347 $9.35

2188318A Whirlpool Refrigerator Door Gasket Backorder WPL 2188318A $140.51

Screw WPL 486899 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Channel, Wiring WPL 2001973 Contact Us For Availability

Insert, Tube WPL 1129177 Contact Us For Availability

Wire, Light WPL 2006223 Contact Us For Availability

Crisper Pan (2) WPL 2006545 Contact Us For Availability

Scroll, Fan WPL 2000783 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Heat Exchanger WPL 2003002 Contact Us For Availability

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Channel, Wiring WPL 2001141 Contact Us For Availability

Deflector, Air Duct WPL 2003928 Contact Us For Availability

4388574 Whirlpool Refrigerator Evaporator In Stock WPL 4388574 $250.18

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

Eyelet, Roller WPL 2174478 Contact Us For Availability

Condenser WPL 2003392 Contact Us For Availability

Knob, Thermostat WPL 2182112 Contact Us For Availability

Clip, Wiring (2) WPL 1115375 Contact Us For Availability

Trim (Top) (White) WPL 2005014 Contact Us For Availability

Trim (Top) (Biscuit) WPL 2005757 Contact Us For Availability

Trim (Top) (Black) WPL 2005840 Contact Us For Availability

Handle, Door (White) WPL 2005943 Contact Us For Availability

Handle, Door (Biscuit) WPL 2005945 Contact Us For Availability

Handle, Door (Black) WPL 2005946 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw Backorder WPL WP2005378 $4.58

WP2006750 Whirlpool Refrigerator Heater In Stock WPL WP2006750 $48.56

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Grommet (4) WPL 943447 Contact Us For Availability

Air Baffle Assembly WPL 2004484 Contact Us For Availability

Assembly, Air Duct WPL 2208901 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Clamp (4) WPL 1113019 Contact Us For Availability

Door, Spacer WPL 2004549 Contact Us For Availability

Trim (Side) (White) WPL 2005968 Contact Us For Availability

Trim (Side) (Biscuit) WPL 2005970 Contact Us For Availability

Trim, Side (Black) WPL 2005971 Contact Us For Availability

Screw WPL 487522 Contact Us For Availability

Clamp, Heater (2) WPL 1108431 Contact Us For Availability

Trim (Bottom) (White) WPL 2003667 Contact Us For Availability

Trim (Bottom) (Biscuit) WPL 2005758 Contact Us For Availability

Trim (Bottom) (Black) WPL 2005881 Contact Us For Availability

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

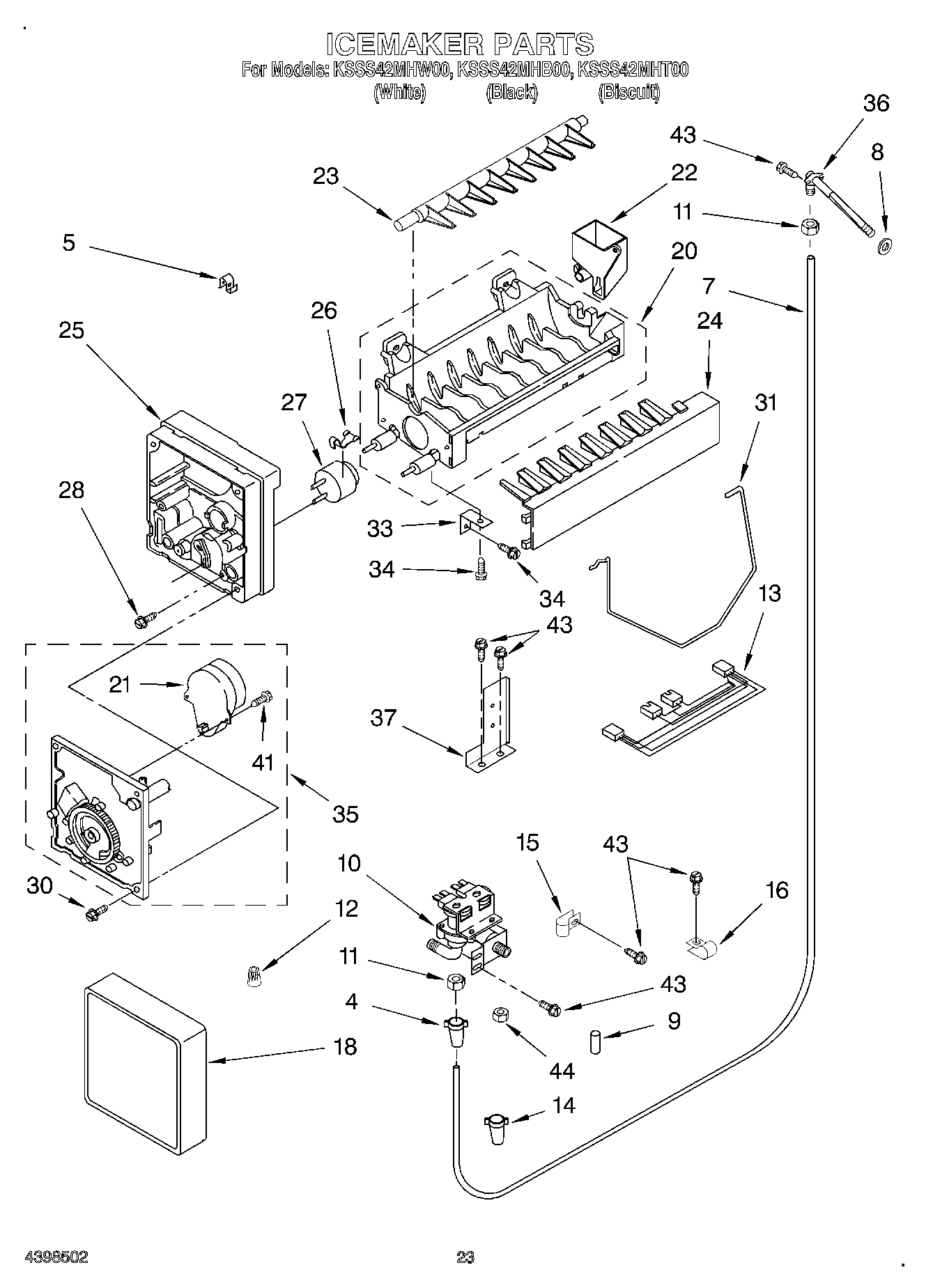

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Gasket, Evaporator WPL 1112844 Contact Us For Availability

Screw (White) WPL 2001208 Contact Us For Availability

Screw (Biscuit) WPL 3400877 Contact Us For Availability

Screw (Black) WPL 3400878 Contact Us For Availability

Panel, Interior Door WPL 1113953 Contact Us For Availability

Meat Pan WPL 2006530 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Seal WPL 2001146 Contact Us For Availability

Ladder, Shelf (2) WPL 1113951 Contact Us For Availability

Trim (Top) (White) WPL 2005023 Contact Us For Availability

Trim (Top) (Biscuit) WPL 2005760 Contact Us For Availability

Trim (Top) (Black) WPL 2005886 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Basket Slide (Left Side) WPL 2208197 Contact Us For Availability

Basket Slide (Right Side) WPL 2208198 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Thermistor WPL 1116959 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

Motor, Fan WPL 2208903 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

Trim (Bottom) (White) WPL 2004670 Contact Us For Availability

Trim (Bottom) (Biscuit) WPL 2005761 Contact Us For Availability

Trim (Bottom) (Black) WPL 2005889 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

Cover, Air Outlet WPL 2003576 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Blade, Fan WPL 2190685 Contact Us For Availability

Trim (Side) (White) WPL 2005963 Contact Us For Availability

Trim (Side) (Biscuit) WPL 2005965 Contact Us For Availability

Trim (Side) (Black) WPL 2005966 Contact Us For Availability

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Orifice, Fan WPL 2003169 Contact Us For Availability

Air Baffle Cover WPL 2003578 Contact Us For Availability

Bin, Utility WPL 1112721 Contact Us For Availability

Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability

Cover, Evaporator WPL 2005036 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Door, Utility Bin WPL 2003464 Contact Us For Availability

Panel, Interior Door WPL 2000178 Contact Us For Availability

Connector, Meat Pan Duct WPL 2000795 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stop, Roller WPL 1113169 Contact Us For Availability

Cement Alumilastic) WPL 542639 Contact Us For Availability

Door Shelf (4) WPL 2003131 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2003128 Whirlpool Shelf Bin Backorder WPL WP2003128 $137.81

Tray, Butter WPL 2165792 Contact Us For Availability

Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability

Baffle, Evaporator WPL 1112840 Contact Us For Availability

29

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

29

Diffuser, Air Duct WPL 1112852 Contact Us For Availability

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Shelf, Gallon Door WPL 2006423 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

Overlay WPL 2006420 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

Process, Tube WPL 2003011 Contact Us For Availability

34

Seal WPL 2005610 Contact Us For Availability

36

Cover, Fan WPL 2003174 Contact Us For Availability

36

Fitting, Water Tube WPL 2185988 Contact Us For Availability

37

Cover, Condenser WPL 2005535 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

39

Service Cord WPL 2003381 Contact Us For Availability

40

Bushing, Door Closure WPL 2004565 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

41

Clamp, Cord (2) WPL 1113162 Contact Us For Availability

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

42

Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability

42

Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability

43

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

44

Compresion Nut WPL 1129179 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2006753 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability

46

Gasket (2) WPL 2001079 Contact Us For Availability

47

Gasket WPL 2001080 Contact Us For Availability

48

Gasket WPL 2001081 Contact Us For Availability

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

Front Panel Kit (White) WPL 4378651 Contact Us For Availability

Front Panel Kit (Black) WPL 4378654 Contact Us For Availability

Front Panel Kit (Almond) WPL 4378657 Contact Us For Availability

Front Panel Kit (Stainless Steel) WPL 4378660 Contact Us For Availability

Front Panel Kit (Biscuit) WPL 4392880 Contact Us For Availability

Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
