Model Whirlpool KSSS42MDX03 BUILT IN REFRIGERATOR – Common Parts & Diagrams

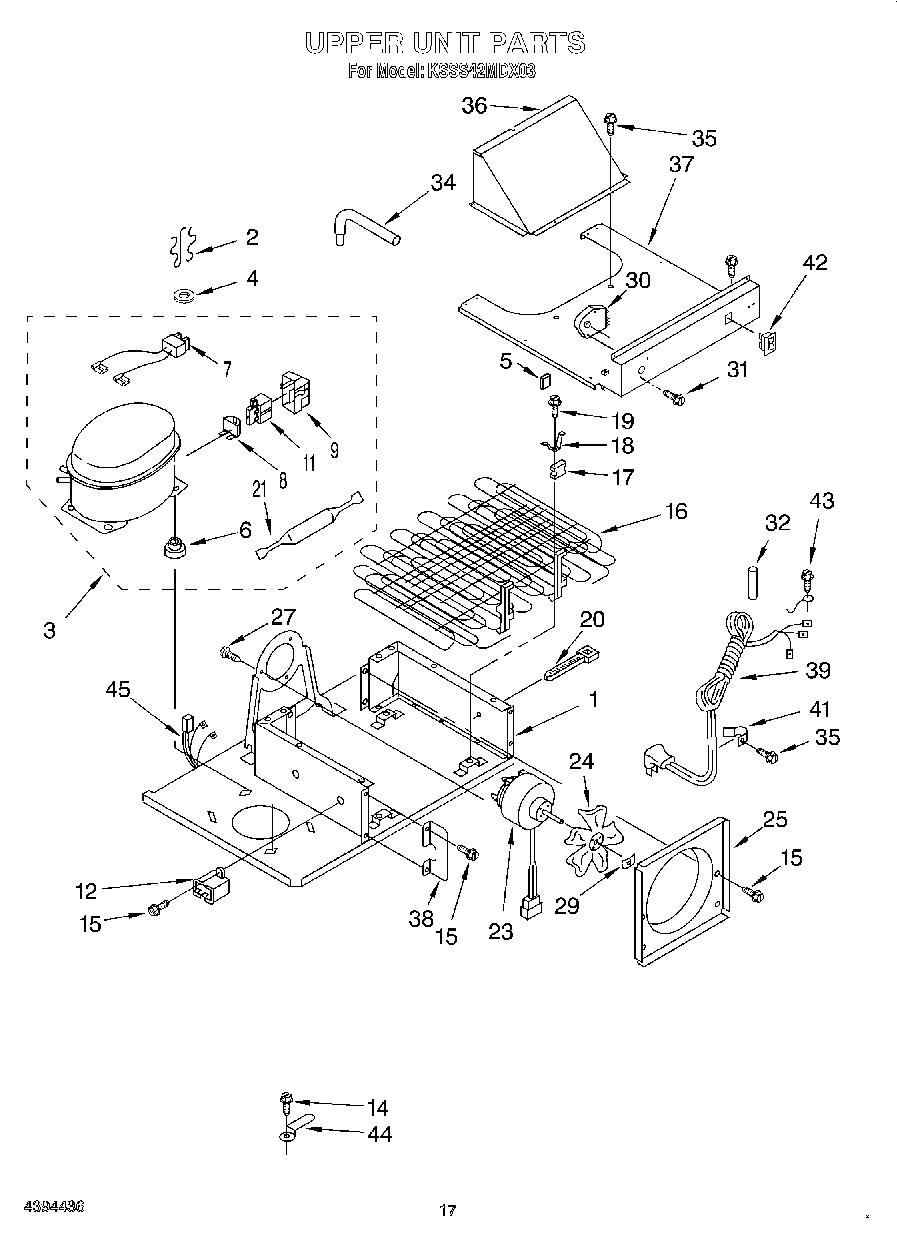

12 - UPPER UNIT

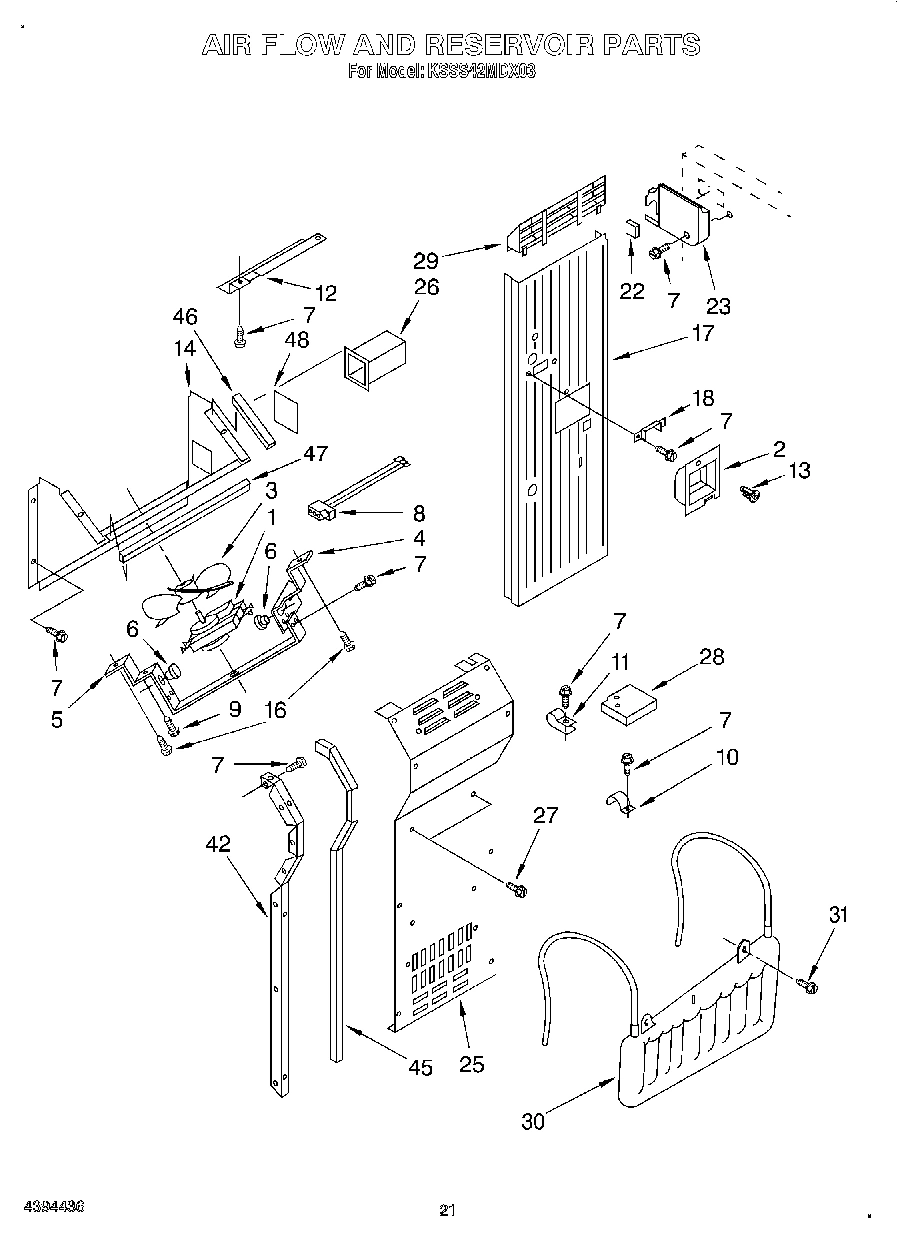

14 - AIRFLOW AND RESERVOIR

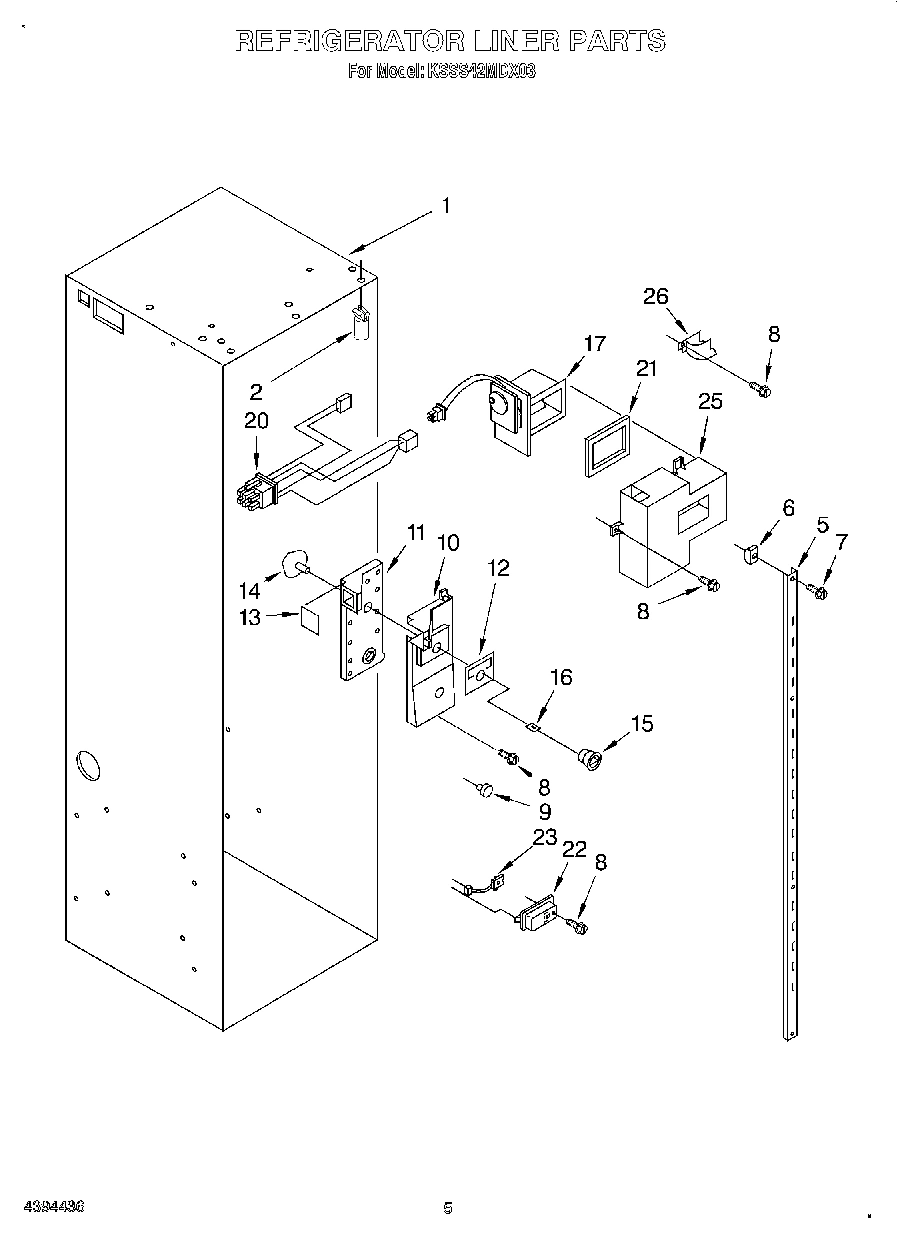

04 - REFRIGERATOR LINER
07 - REFRIGERATOR SHELF

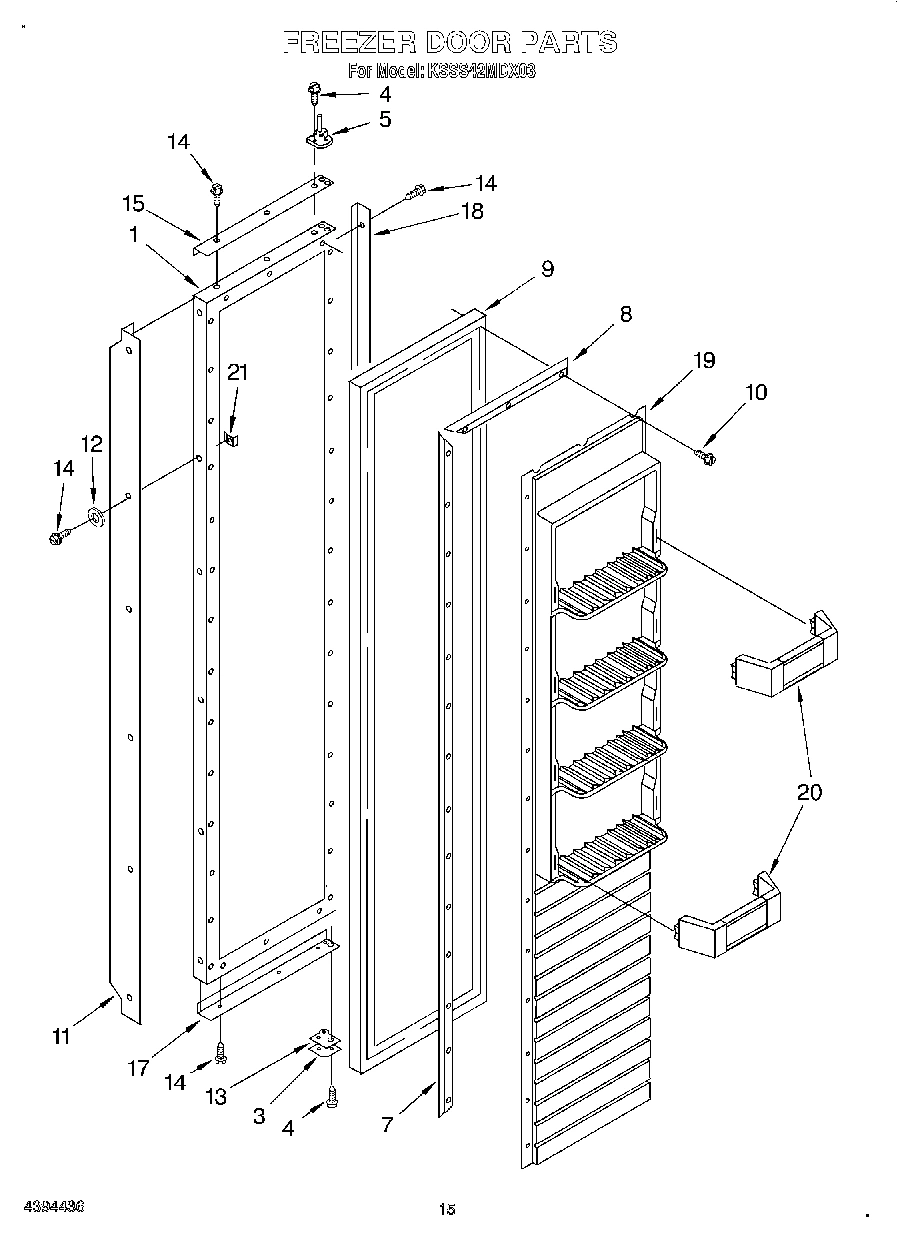

11 - FREEZER DOOR

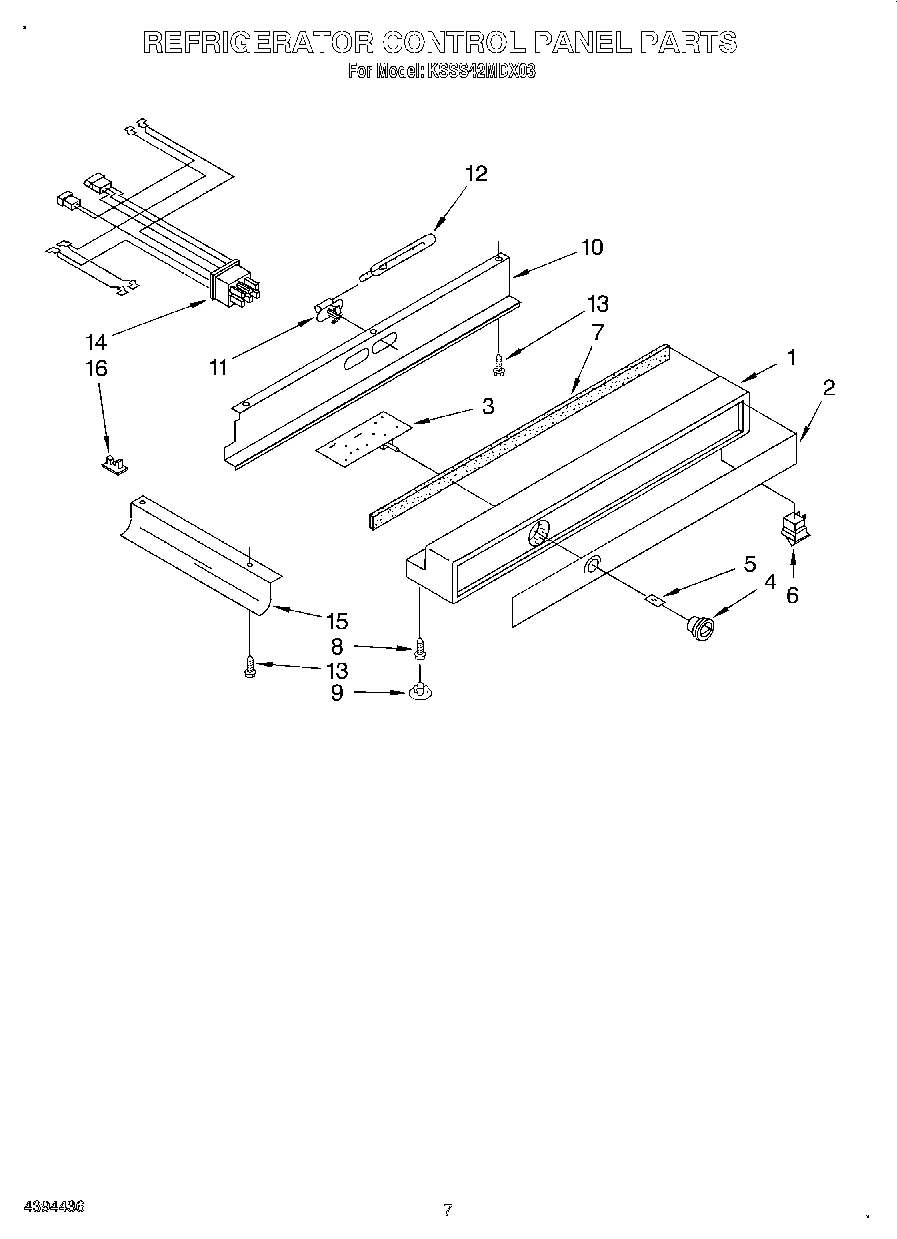

05 - REFRIGERATOR CONTROL PANEL

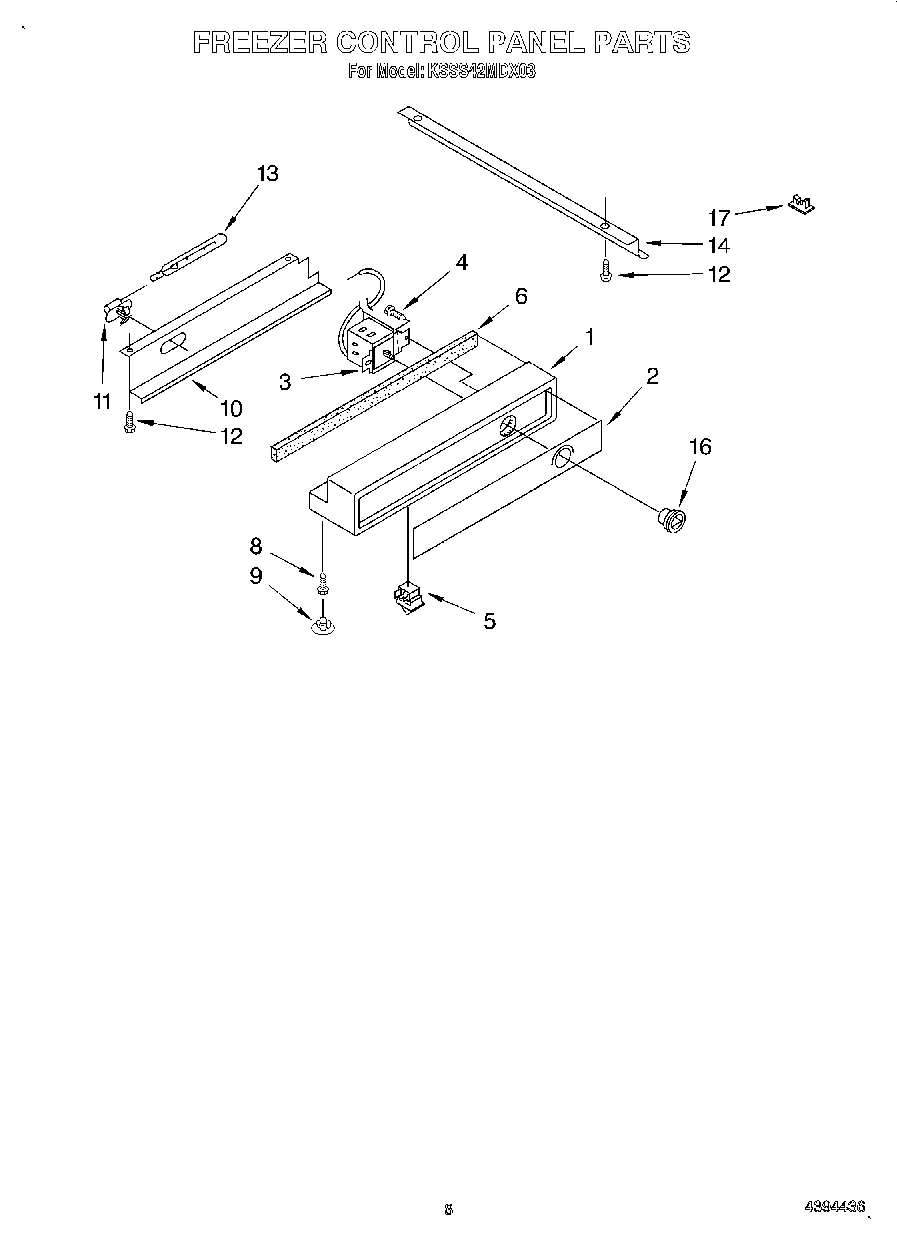

06 - FREEZER CONTROL PANEL
13 - LOWER UNIT AND TUBE

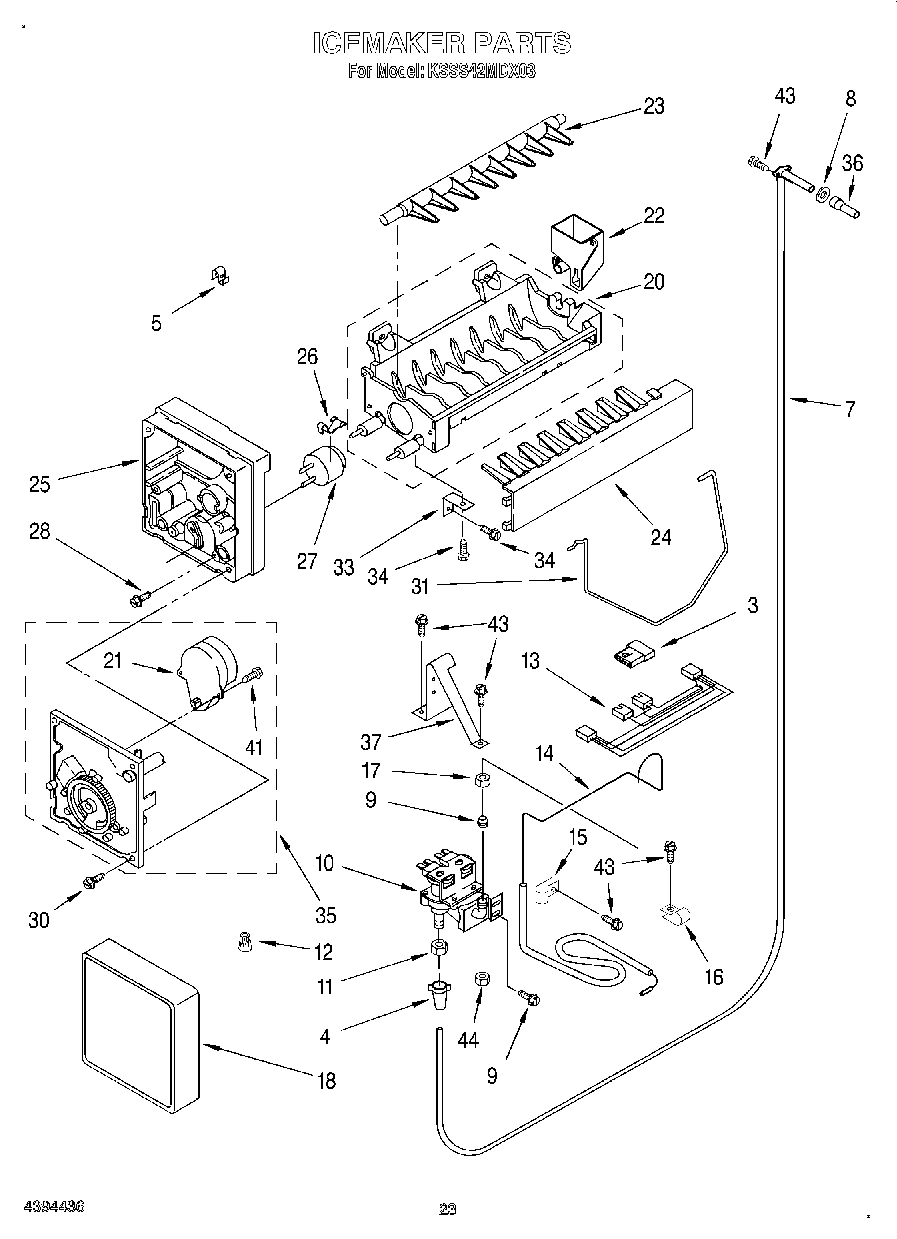

15 - ICEMAKER, LIT/OPTIONAL

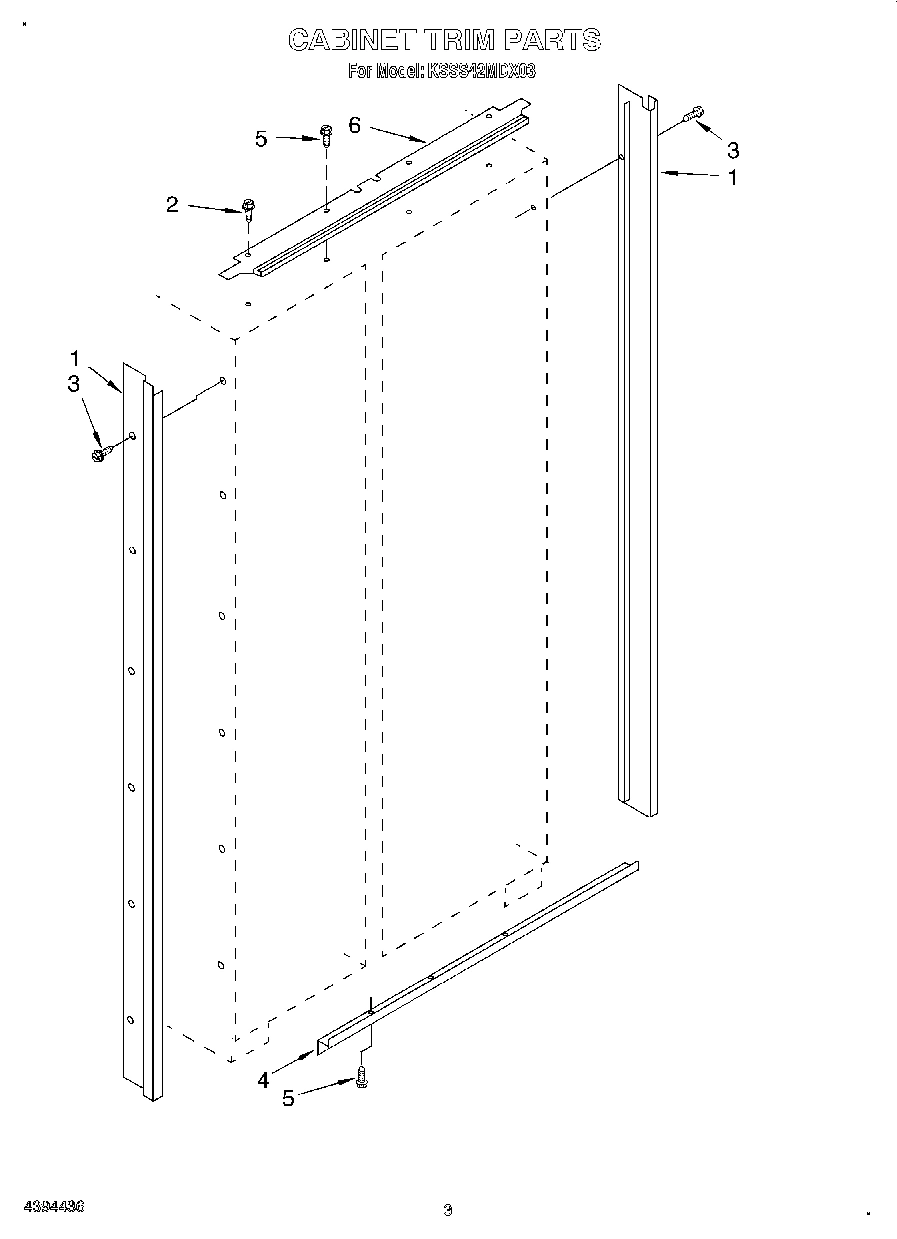

02 - CABINET TRIM

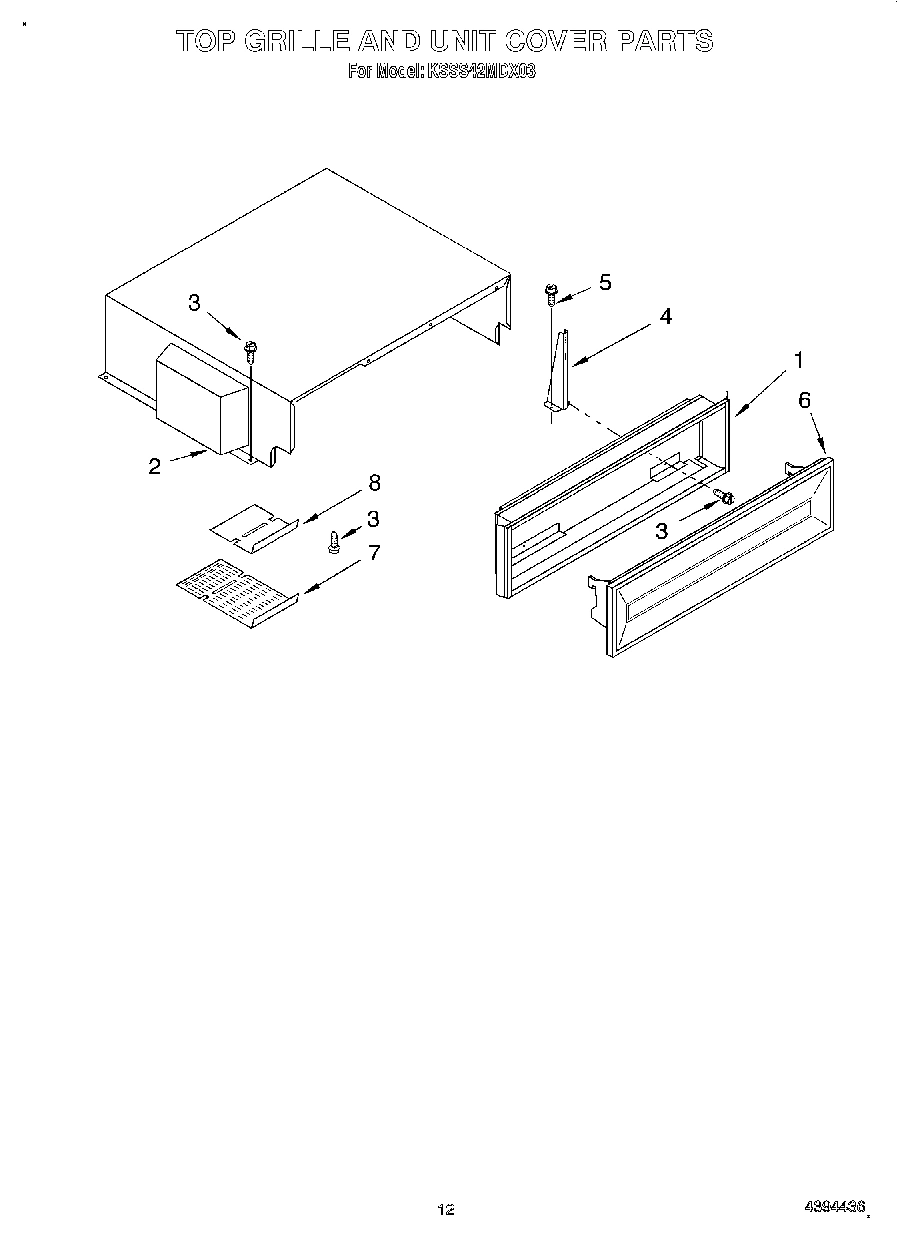

09 - TOP GRILLE AND UNIT COVER

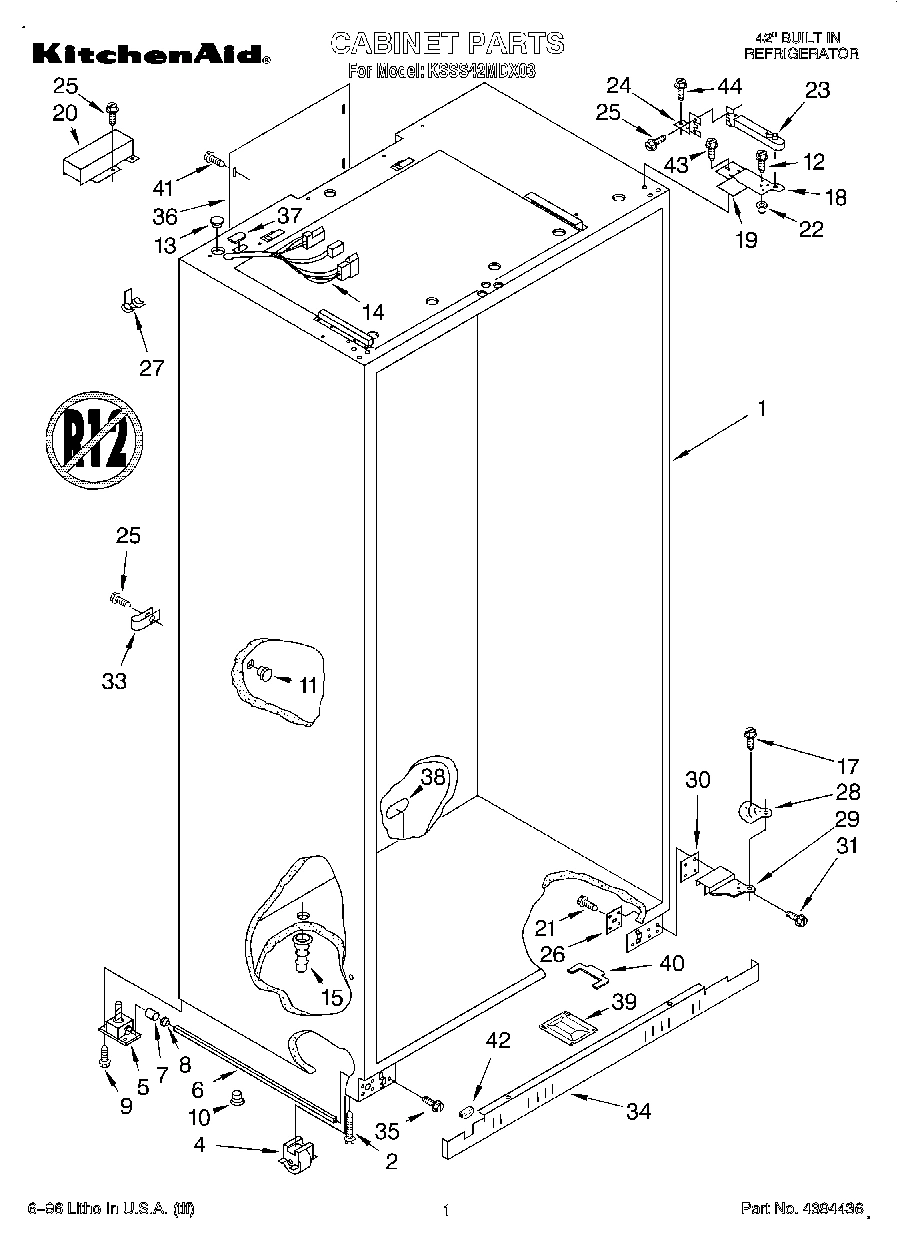

01 - CABINET

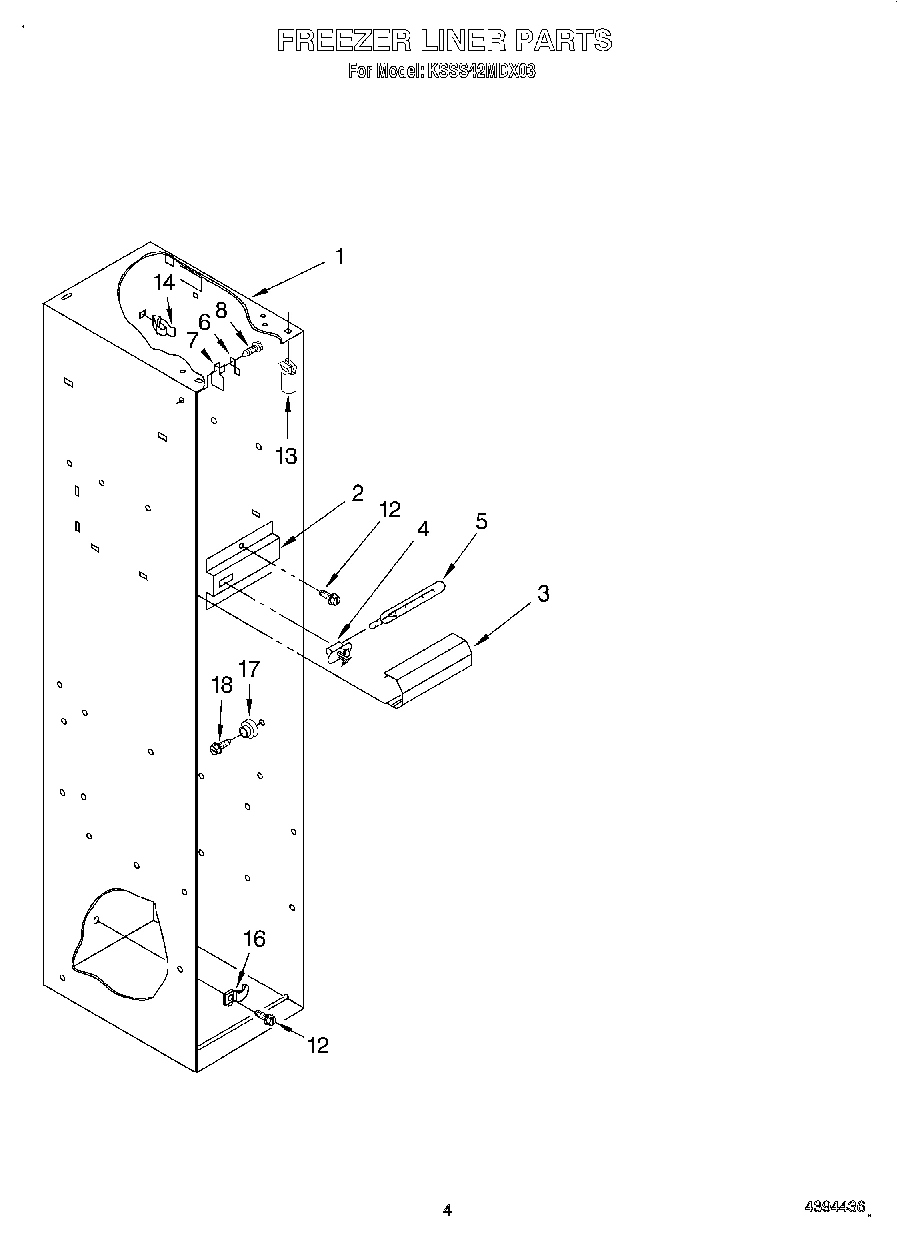

03 - FREEZER LINER

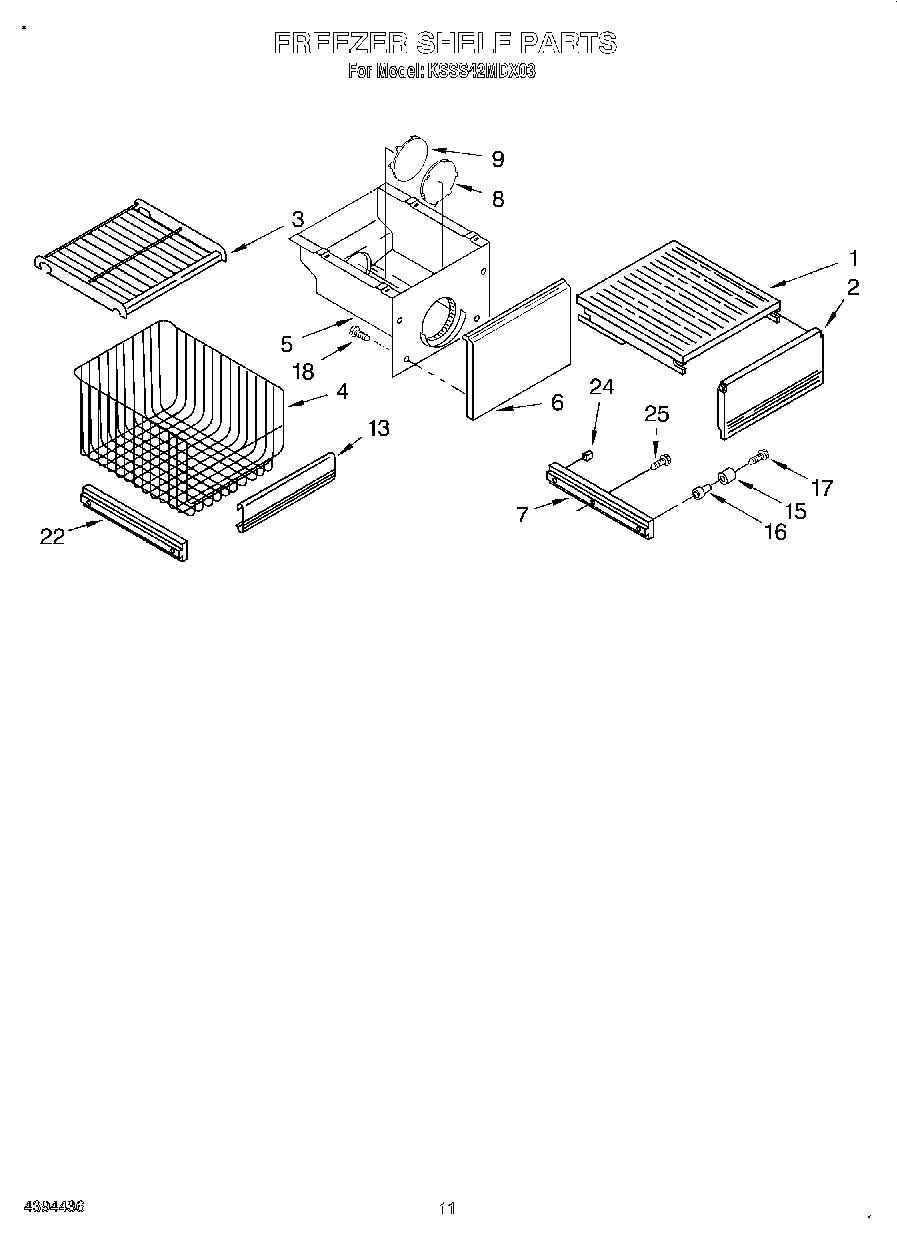

08 - FREEZER SHELF

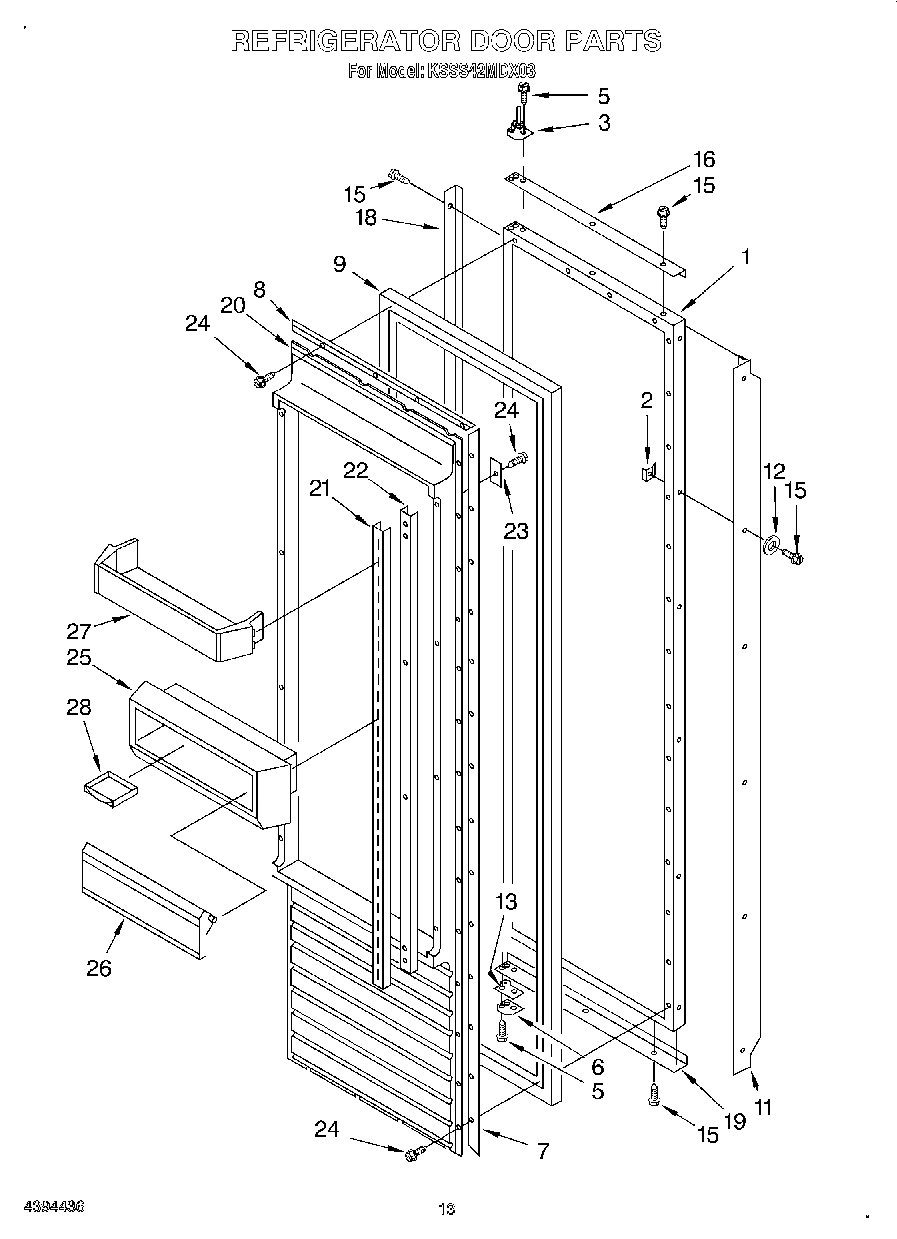

10 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSSS42MDX03 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2002934 Contact Us For Availability
Energy Label WPL LIT2003581 Contact Us For Availability
Use & Care Guide WPL LIT2003755 Contact Us For Availability
Installation Instructions WPL LIT2003757 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107311A Contact Us For Availability
1
Frame, Shelf WPL 2174403 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 2003877 Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Control Panel WPL 1113626 Contact Us For Availability
1
Cabinet, Trim (2) WPL 2003643 Contact Us For Availability
1
Top Grille Assembly WPL 2003714 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107309A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107310A Contact Us For Availability
1
Solid Shelf WPL 2003143 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003871 Contact Us For Availability
2
Glass, Shelf WPL 2003376 Contact Us For Availability
2
Inlay, Control Panel WPL 2003302 Contact Us For Availability
2
Inlay, Control Panel WPL 2003308 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Cover, Unit WPL 2003267 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Front, Ice Compartment WPL 2003134 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
3
Hinge, Bottom WPL 2003985 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Connector WPL 2154472 Contact Us For Availability
3
Screw WPL 2001297 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Shelf, Fixed-Deep WPL 1113565 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113637 Contact Us For Availability
3
Hinge Assembly, Top WPL 2001983 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113791 Contact Us For Availability
4
Control Knob WPL 2182110 Contact Us For Availability
4
Light, Socket WPL 1112613 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2003591 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Basket (2) WPL 2004591 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Knob, Retainer WPL 837444 Contact Us For Availability
5
Hinge, Top WPL 2001984 Contact Us For Availability
5
Sleeve WPL 2002171 Contact Us For Availability
5
Ice Container WPL 2002726 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Trim, Cabinet Top WPL 2003646 Contact Us For Availability
6
Decortive Panel Assembly WPL 2003723 Contact Us For Availability
6
Adjusting Rod (2) WPL 2000670 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Front Cover WPL 2003044 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2003986 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2003326 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2003814 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2003480 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Guard, Water Valve Wiring WPL 2003482 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
9
Heater, Drain Pan WPL 2002993 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
10
Glass, Crisper (Includes No.9) WPL 2003379 Contact Us For Availability
10
Shield, Control Panel WPL 1113774 Contact Us For Availability
10
Shield, Control Panel WPL 1113768 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Handle, Door WPL 2003681 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Handle, Door WPL 2003679 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Stop Screw WPL 2002902 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Door, Spacer Bottom WPL 2003982 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
13
Water Valve, Harness WPL 2003477 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Trim, Basket WPL 2003113 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Crisper Pan (2) WPL 2003316 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Channel, Wiring WPL 2001973 Contact Us For Availability
14
Inlet Water Line WPL 2001354 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2002804 Contact Us For Availability
15
Heat Exchanger WPL 2003002 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
15
Roller WPL 2174388 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
16
Eyelet, Roller WPL 2174478 Contact Us For Availability
16
Knob, Thermostat WPL 2182112 Contact Us For Availability
16
Trim (Top) WPL 2003652 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Trim (Bottom) WPL 2003670 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
18
Trim (Side) WPL 2003677 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2001975 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2001976 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Trim (Side) WPL 2003675 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Panel, Interior Door WPL 2000178 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Trim (Bottom) WPL 2003664 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Meat Pan WPL 2003321 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Basket Slide (Left Side Right Side (2)) WPL 2181759 Contact Us For Availability
22
Basket Slide (Right Side) WPL 2181760 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
Bracket, Door Closer WPL 2000333 Contact Us For Availability
25
Air Baffle Cover WPL 2003578 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Door, Utility Bin WPL 2003464 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Door Shelf (4) WPL 2003131 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2003386 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2003387 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 2001977 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 2001978 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) WPL 1112943 Contact Us For Availability
31
Screw WPL 2000490 Contact Us For Availability
33
Tube clamp WPL 2001266 Contact Us For Availability
34
Grille Base, Front WPL 2001963 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
36
Water Inlet Tube WPL 2003812 Contact Us For Availability
36
Cover, Rear WPL 2000684 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
39
Cup, Wiring WPL 2003472 Contact Us For Availability
40
Seal WPL 2003474 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
42
Grommet WPL 2003473 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318633 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318636 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318639 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4318642 Contact Us For Availability
100
Black Acrylic Static Cleaner Part No. WPL 978849 Contact Us For Availability
× ![]()
