Model Whirlpool KSSS42MBX01 BUILT IN REFRIGERATOR – Common Parts & Diagrams
08 - REFRIGERATOR DOOR
02 - CABINET TRIM

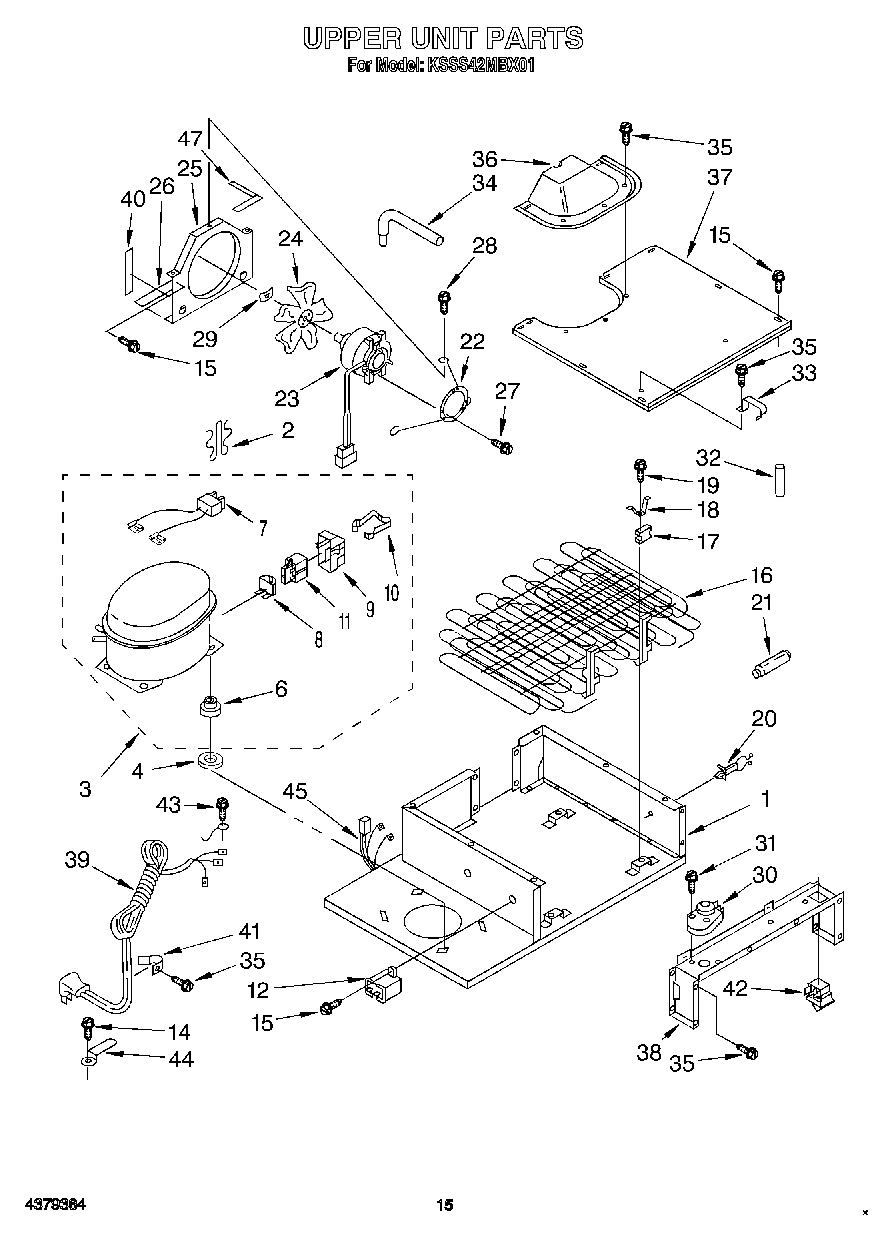

10 - UPPER UNIT

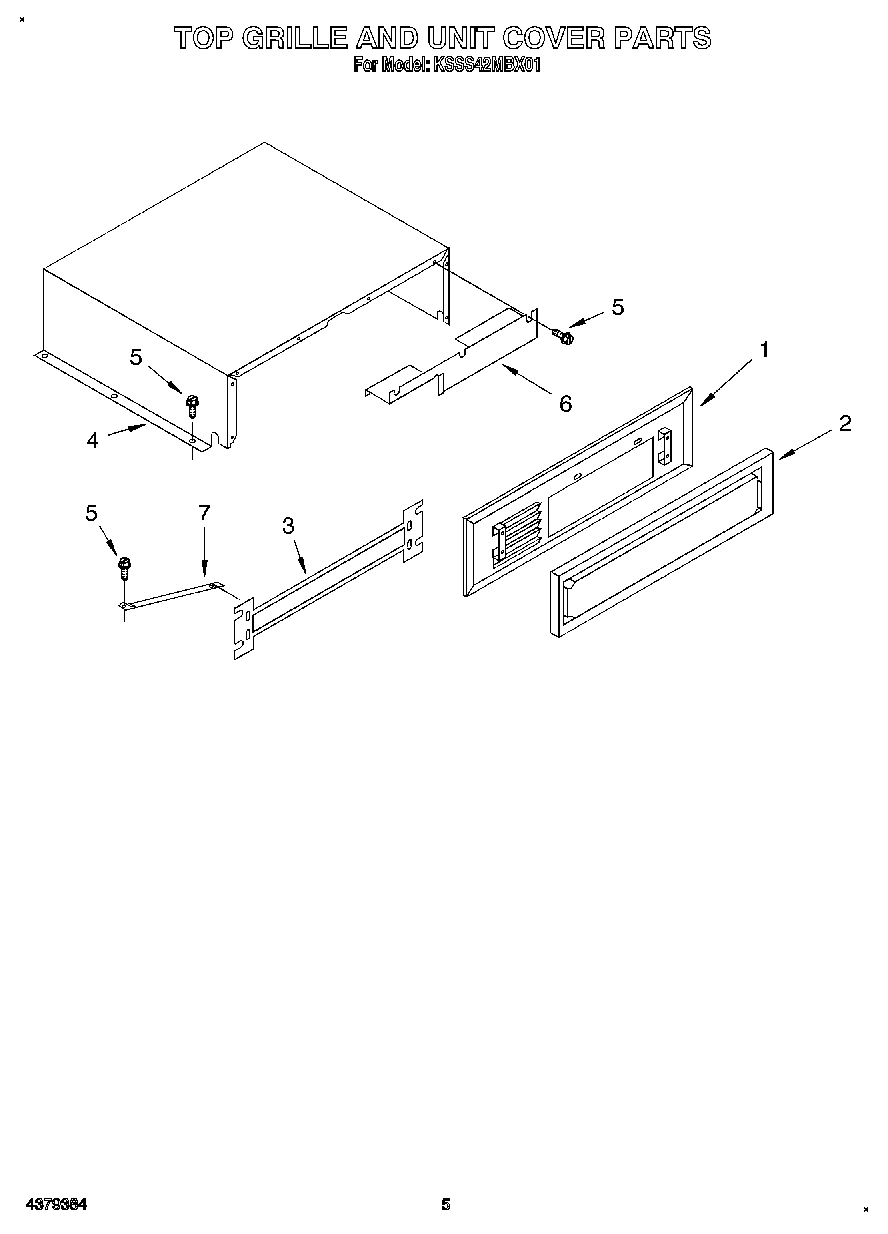

03 - TOP GRILLE AND UNIT COVER

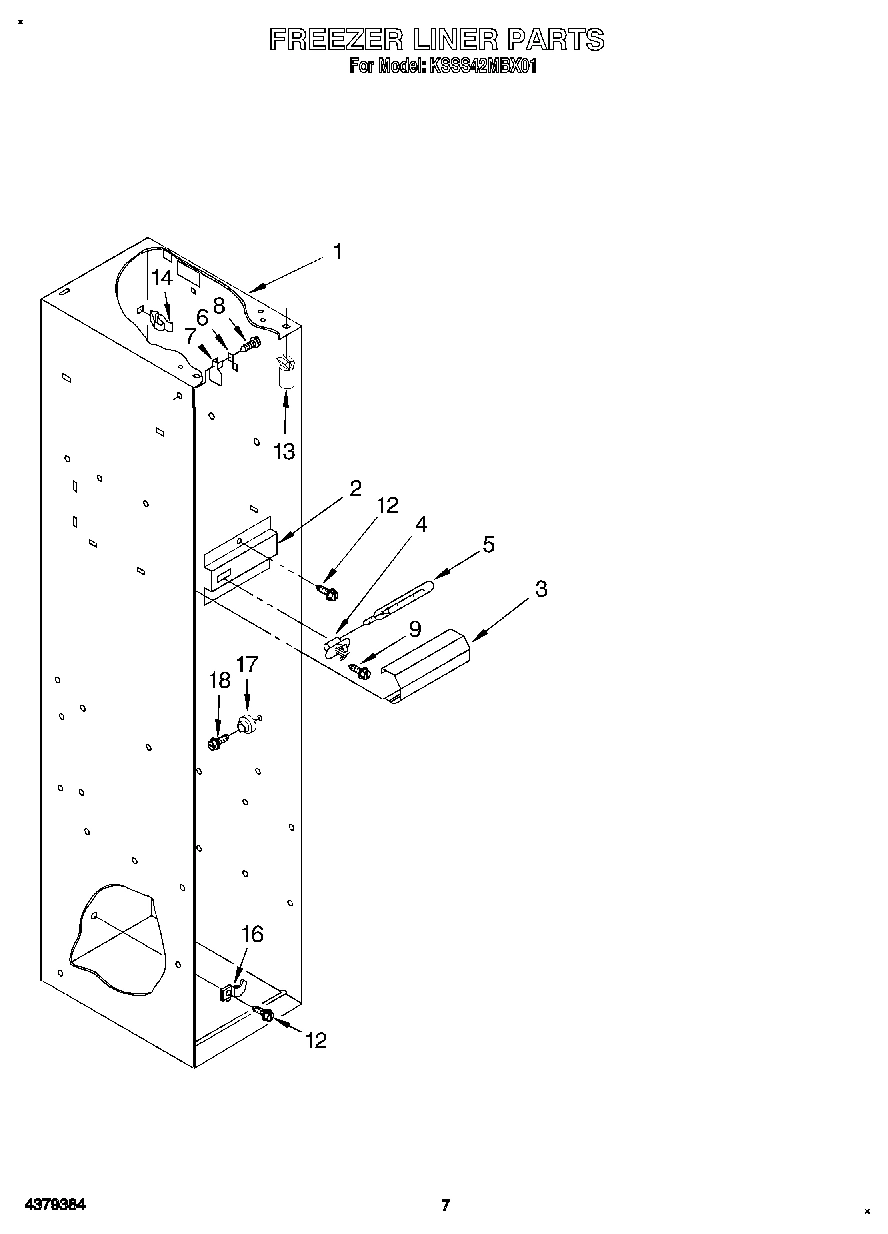

05 - FREEZER LINER

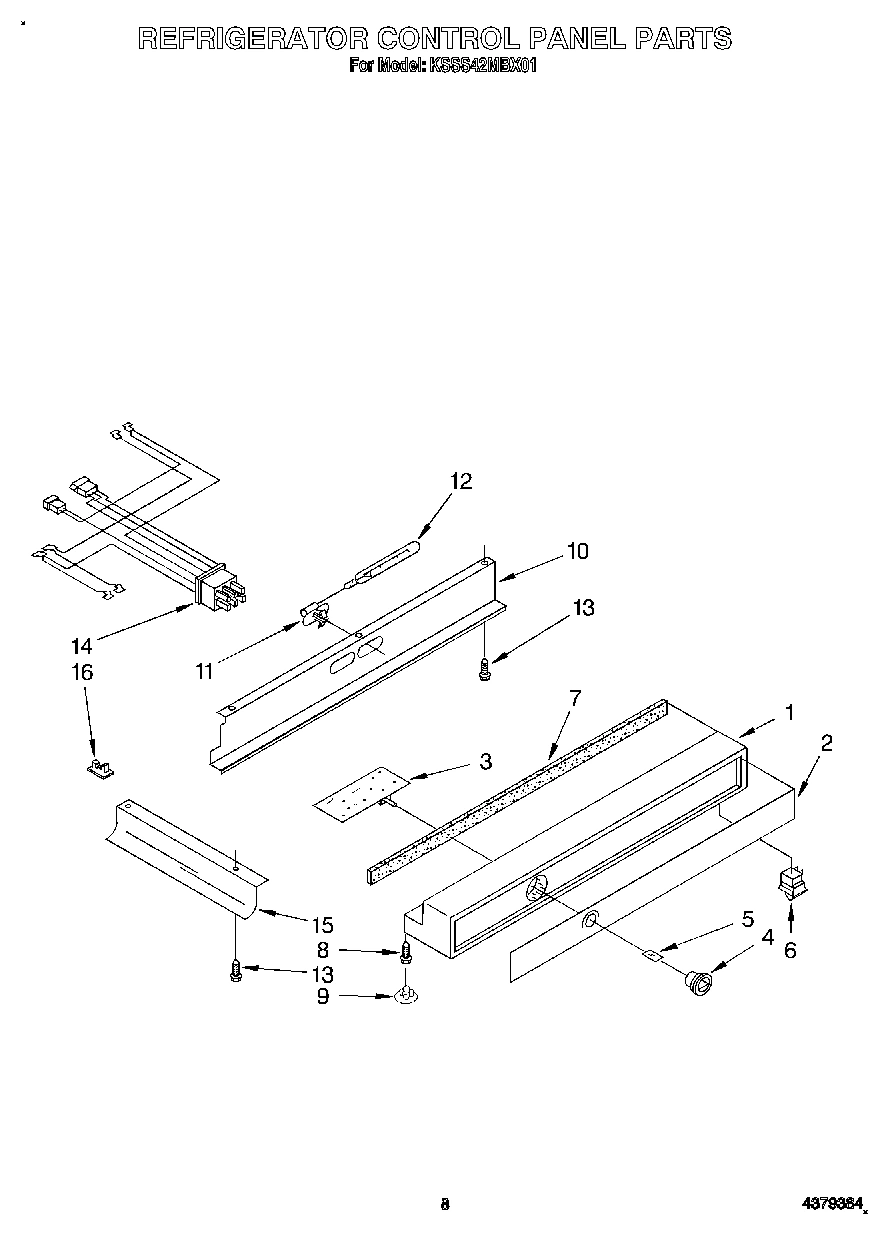

06 - REFRIGERATOR CONTROL PANEL

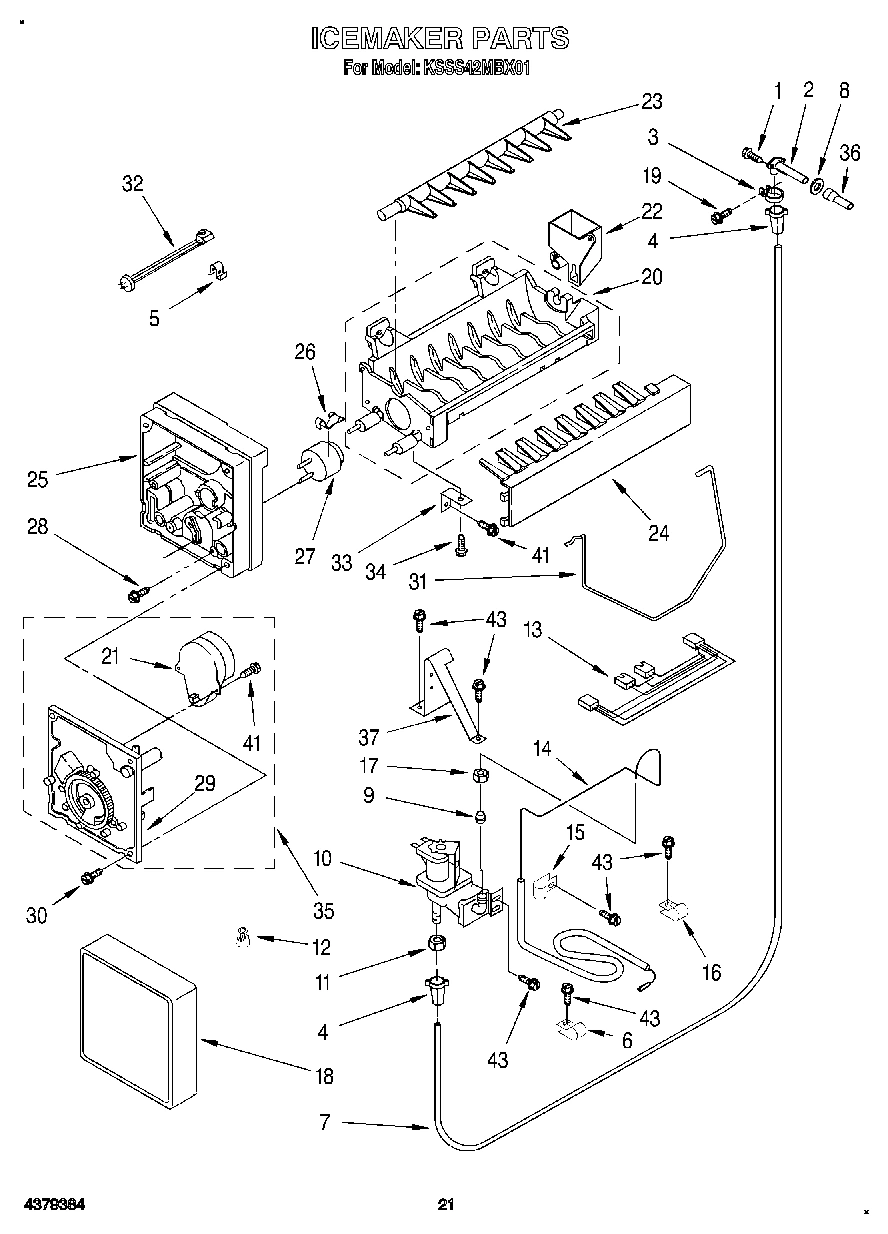

13 - ICEMAKER, LITERATURE

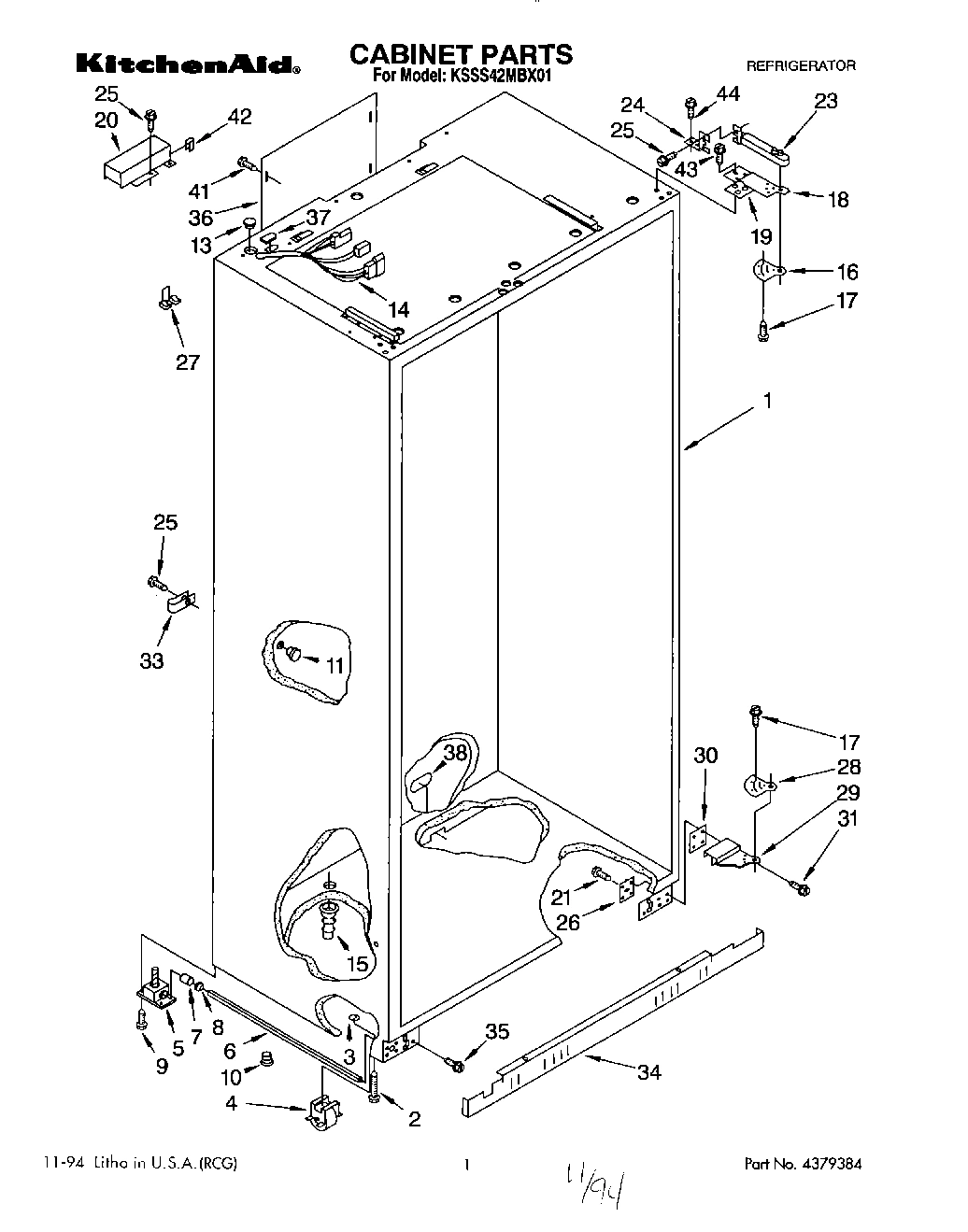

01 - CABINET

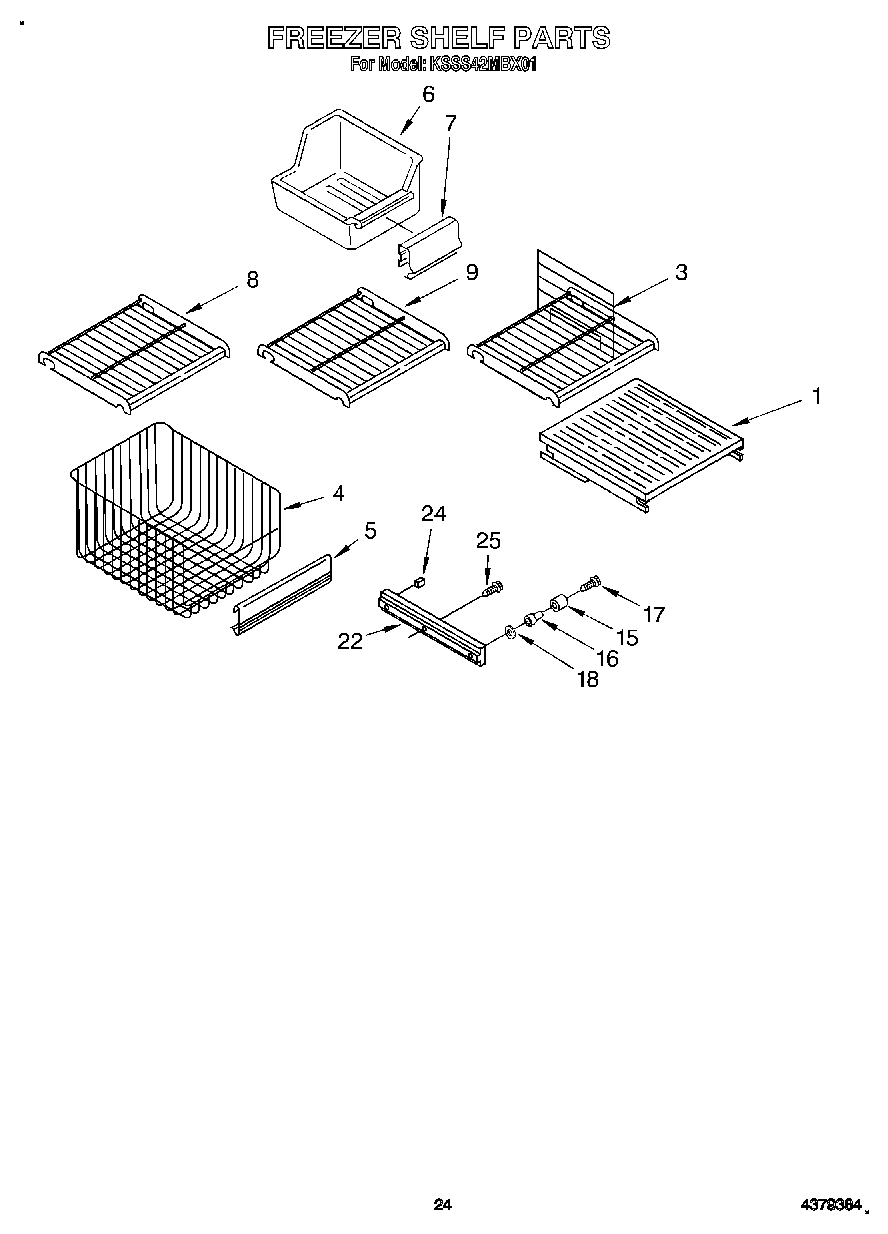

15 - FREEZER SHELF

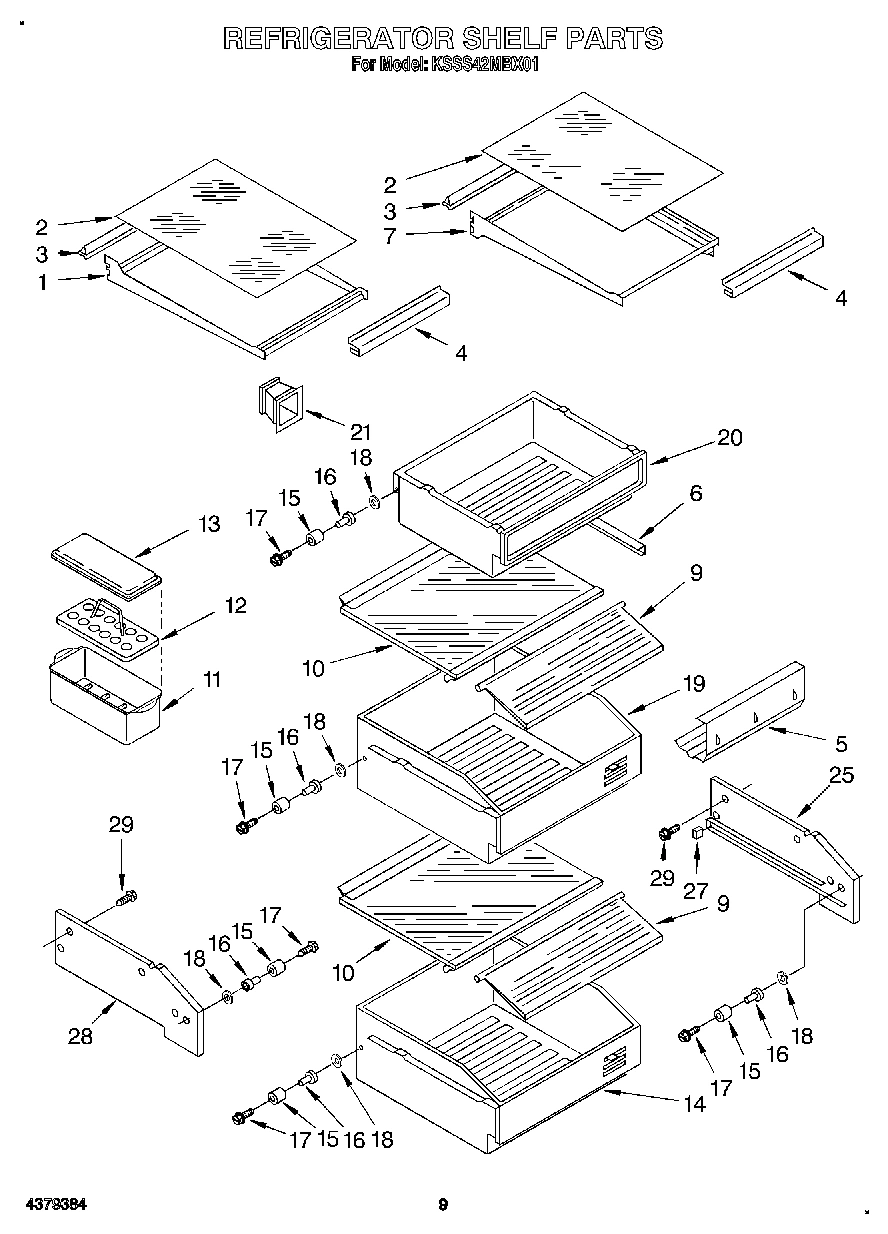

07 - REFRIGERATOR SHELF

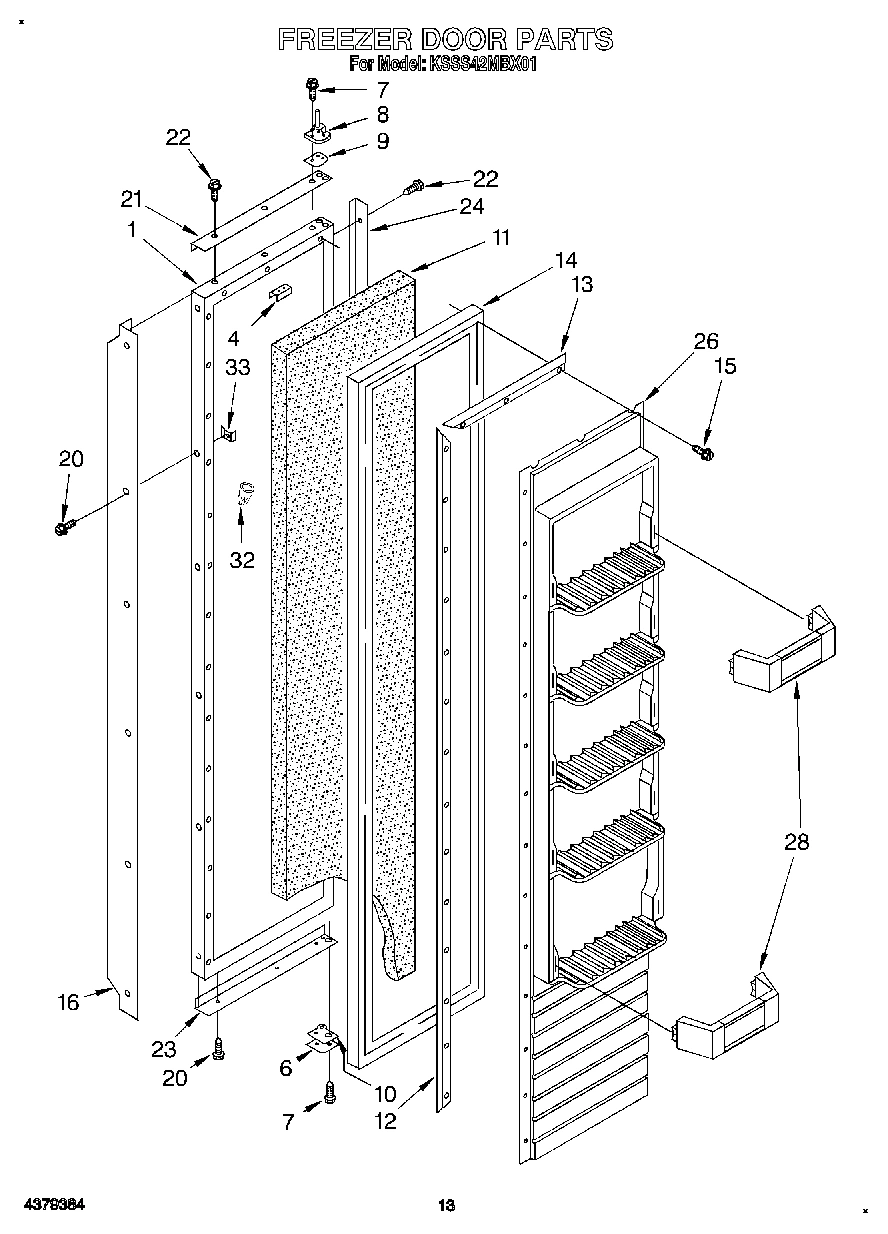

09 - FREEZER DOOR

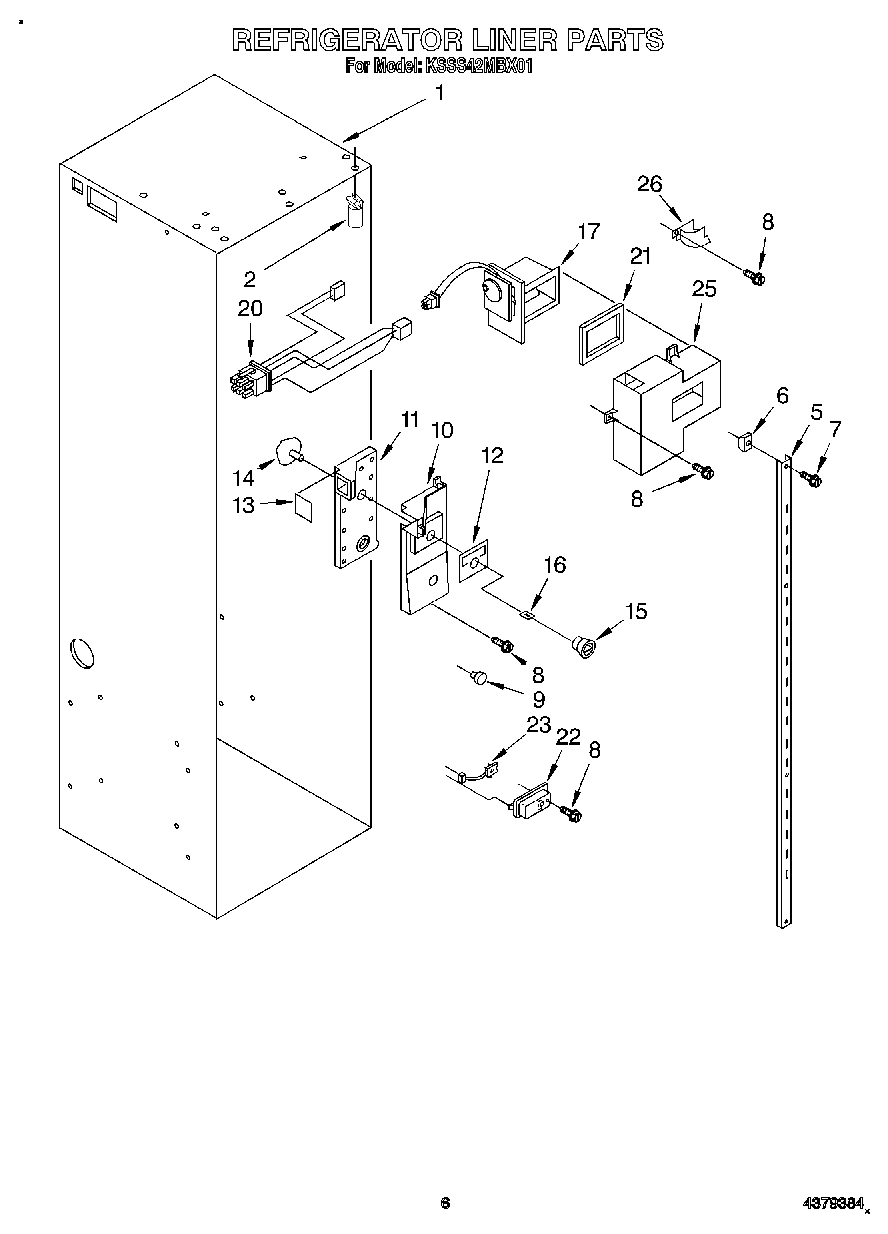

04 - REFRIGERATOR LINER

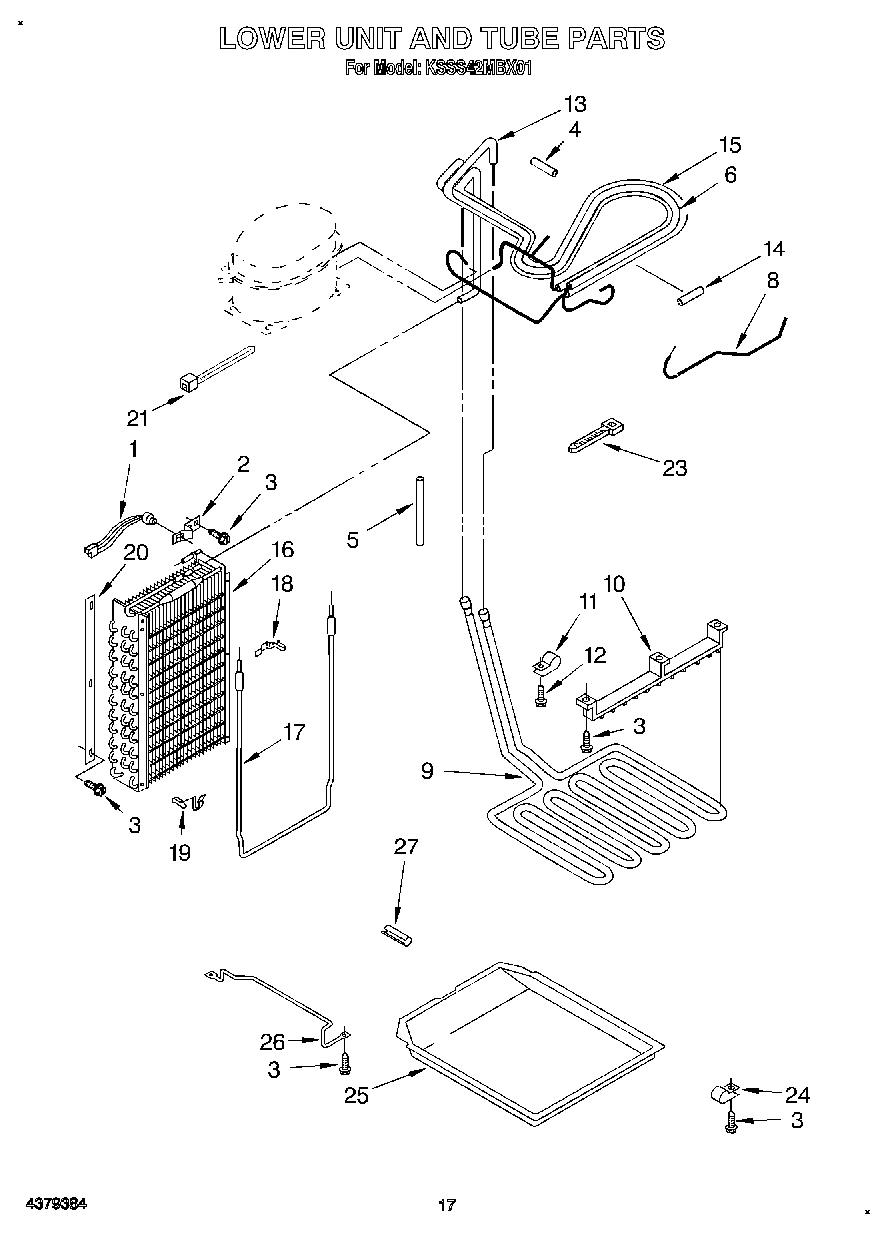

11 - LOWER UNIT AND TUBE

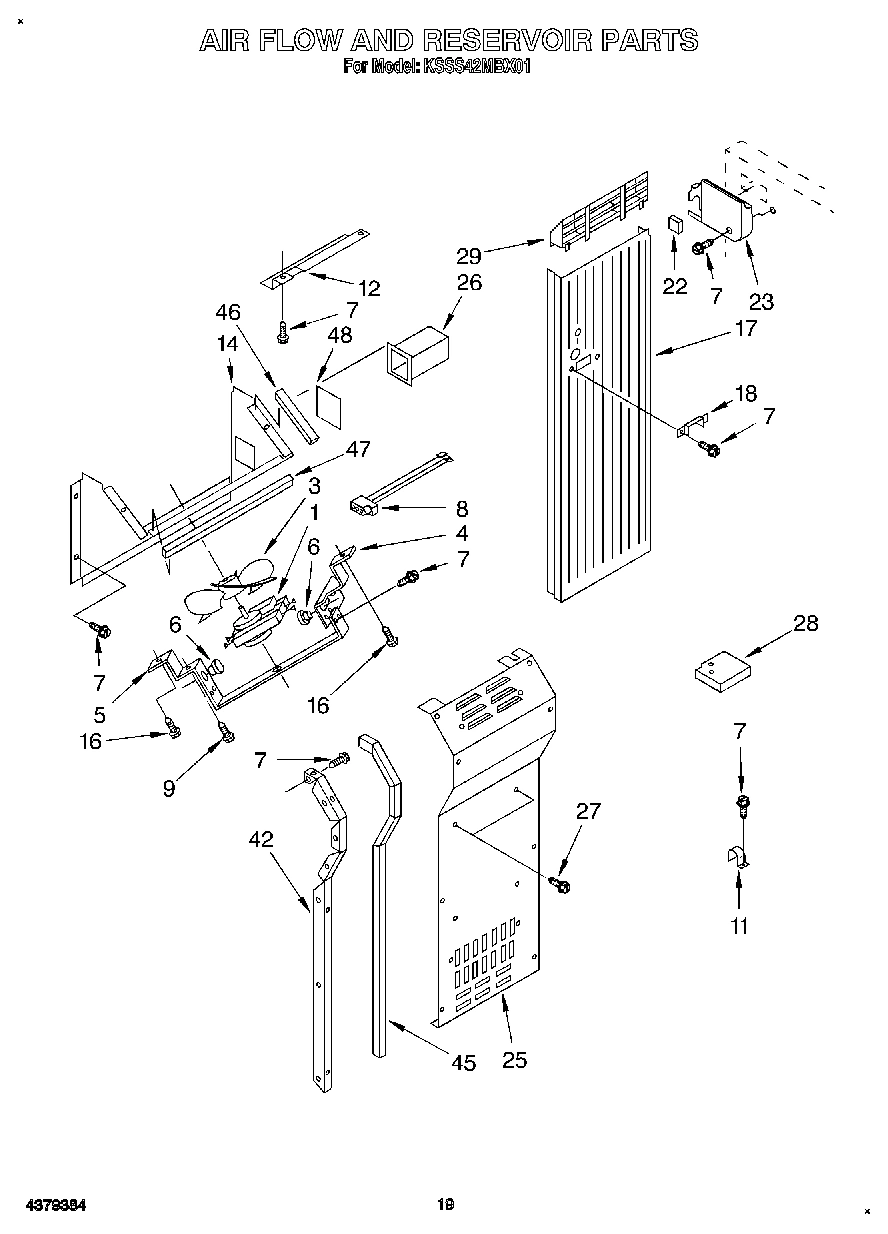

12 - AIR FLOW AND RESERVOIR

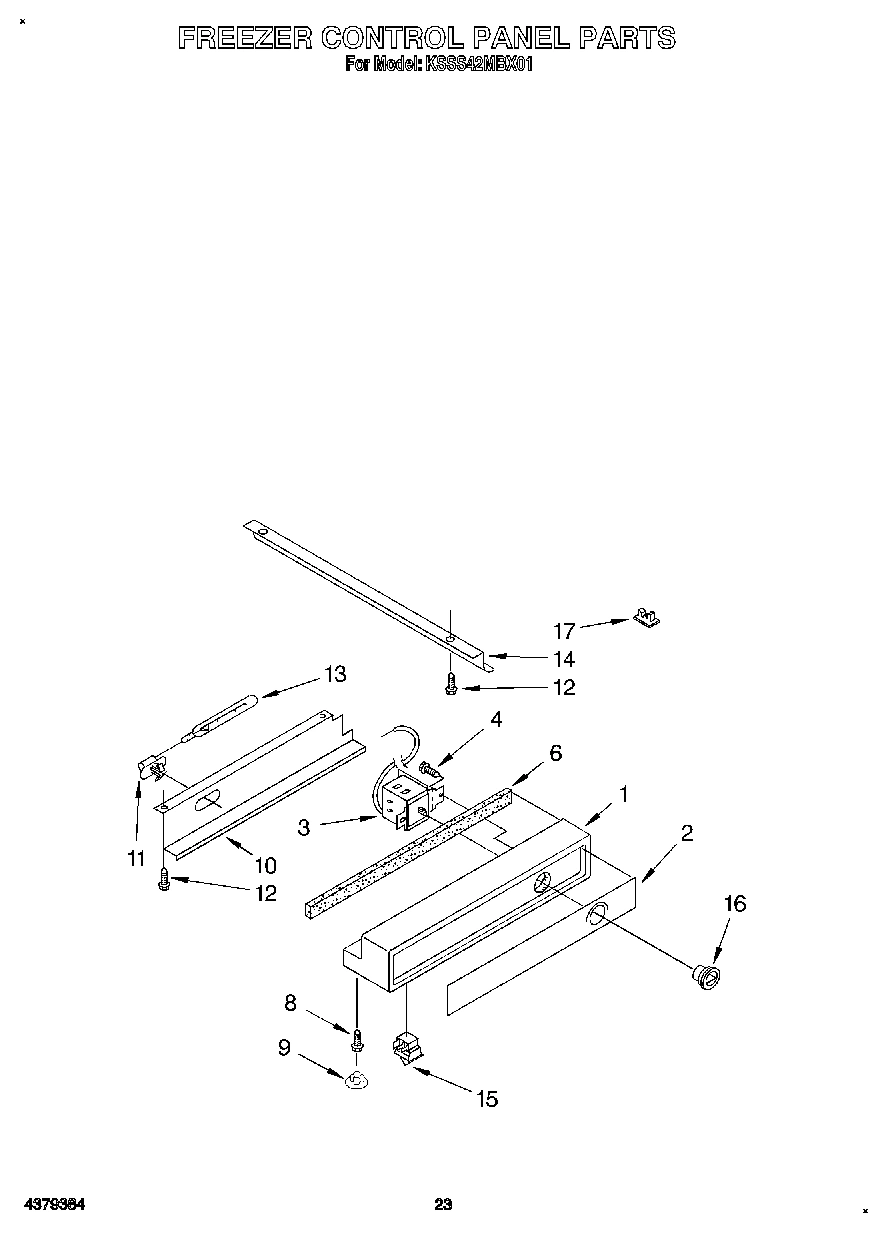

14 - FREEZER CONTROL PANEL
Common parts from model Whirlpool KSSS42MBX01 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2002160 Contact Us For Availability
Use & Care Guide WPL LIT2002424 Contact Us For Availability
Energy Label WPL LIT2002436 Contact Us For Availability
Installation Instructions WPL LIT2002469 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Top Grille Assembly WPL 2002674 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107299A Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107297A Contact Us For Availability
1
Solid Shelf WPL 1113629 Contact Us For Availability
1
Frame, Shelf WPL 1113543 Contact Us For Availability
1
Exterior Door Panel, Freezer (Also Order Item WPL 2000715 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107298A Contact Us For Availability
1
Control Panel WPL 1113626 Contact Us For Availability
2
Decorative Panel Assembly WPL 2001316 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Inlay, Control Panel WPL 2000975 Contact Us For Availability
2
Fitting, Water Tube WPL 2000829 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Glass, Shelf WPL 1112318 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Inlay, Control Panel WPL 1113964 Contact Us For Availability
3
Back Up Panel WPL 1113355 Contact Us For Availability
3
Light, Lens WPL 1113650 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Shelf, (Top) WPL 1113634 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
4
Cover, Unit WPL 2001883 Contact Us For Availability
4
Control Knob WPL 2001738 Contact Us For Availability
4
Basket WPL 2001625 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113791 Contact Us For Availability
4
Tap, Plate WPL 2002314 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
5
Trim, Basket WPL 1113643 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Sleeve WPL 2002171 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
6
Cover, Component Assembly WPL 2001874 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Adjusting Rod (2) WPL 2000670 Contact Us For Availability
6
Retainer, Glass WPL 2002181 Contact Us For Availability
6
Hinge, Bottom WPL 2000720 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002184 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
7
Brace WPL 1113317 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Tube, Water (To Ice Maker) WPL 2001260 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Trim, Ice Pan WPL 1122530 Contact Us For Availability
7
Frame Assembly WPL 1113551 Contact Us For Availability
7
Screw (8) WPL 488357 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Shelf, (Middle) WPL 1113565 Contact Us For Availability
8
Hinge, Top WPL 2000721 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2002408 Contact Us For Availability
8
Motor, Wiring WPL 2000618 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Shelf, Bottom (2) WPL 1113637 Contact Us For Availability
9
Spacer Plate WPL 2000303 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Heater, Drain Pan WPL 2000755 Contact Us For Availability
10
Shield, Control Panel WPL 1113774 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Glass, Crisper WPL 2002147 Contact Us For Availability
10
Spacer, Bottom WPL 2000697 Contact Us For Availability
10
Meat Pan, Air Duct Cover (Also Order 12) WPL 2000740 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Shield, Control Panel WPL 1113768 Contact Us For Availability
11
Socket, Light WPL 1112613 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
12
Capacitor (Production) WPL 2169137 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2001302 Contact Us For Availability
12
Channel, Wiring WPL 2001257 Contact Us For Availability
13
Water Valve, Harness WPL 2000837 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Cover WPL 2164374 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Tube, Discharge WPL 2002381 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Copper, Water Line WPL 2001354 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2002002 Contact Us For Availability
14
Pan, Crisper WPL 2000888 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2001735 Contact Us For Availability
15
Heat Exchanger WPL 2001814 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Clamp Tube WPL 1113066 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Right Side) WPL 2000304 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Left Side) WPL 2000305 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Handle, Door WPL 2000324 Contact Us For Availability
16
Knob, Thermostat WPL 2001737 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Stud, Shelf (20) WPL 658944 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Assembly, Air Duct WPL 2000748 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Screw (20) WPL 487559 Contact Us For Availability
18
Cover WPL 1113703 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2000306 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2000307 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Utility Pan WPL 2000892 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Meat Pan WPL 2000816 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Meat Pan, Connector WPL 2000742 Contact Us For Availability
21
Trim (Top) WPL 2000327 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
22
Mounting Bracket, Motor WPL 2000358 Contact Us For Availability
22
Slide, Basket R.S. WPL 2000061 Contact Us For Availability
22
Slide, Basket L.S. WPL 2000062 Contact Us For Availability
22
Screw WPL 489112 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Motor, Fan WPL 2002409 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Trim (Bottom) WPL 2000330 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
24
Stop, Roller WPL 1113169 Contact Us For Availability
24
Blade, Fan WPL 2000352 Contact Us For Availability
24
Bracket, Door Closer WPL 2000333 Contact Us For Availability
24
Trim (Side) WPL 2000325 Contact Us For Availability
25
Orifice, Fan WPL 2000351 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
25
Cover, Evaporator WPL 2000341 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Panel, Interior Door WPL 2000178 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000795 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Screw WPL 489368 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2002180 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 2001732 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 2001733 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112852 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) Bottom (4) WPL 1112943 Contact Us For Availability
31
Screw WPL 2000490 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Wire Connector WPL 227991 Contact Us For Availability
32
Harness, Wiring WPL 2002006 Contact Us For Availability
33
Tube clamp WPL 2001266 Contact Us For Availability
34
Process, Tube WPL 1113059 Contact Us For Availability
34
Grille Base, Front WPL 2001963 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
36
Cover, Fan WPL 2000853 Contact Us For Availability
36
Water Inlet Tube WPL 2001098 Contact Us For Availability
36
Cover, Rear WPL 2000684 Contact Us For Availability
37
Cover, Condenser WPL 2001878 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
40
Seal Strip (2) WPL 2001503 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
42
Grommet WPL 2000530 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2001078 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318633 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318636 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318639 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4318642 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
