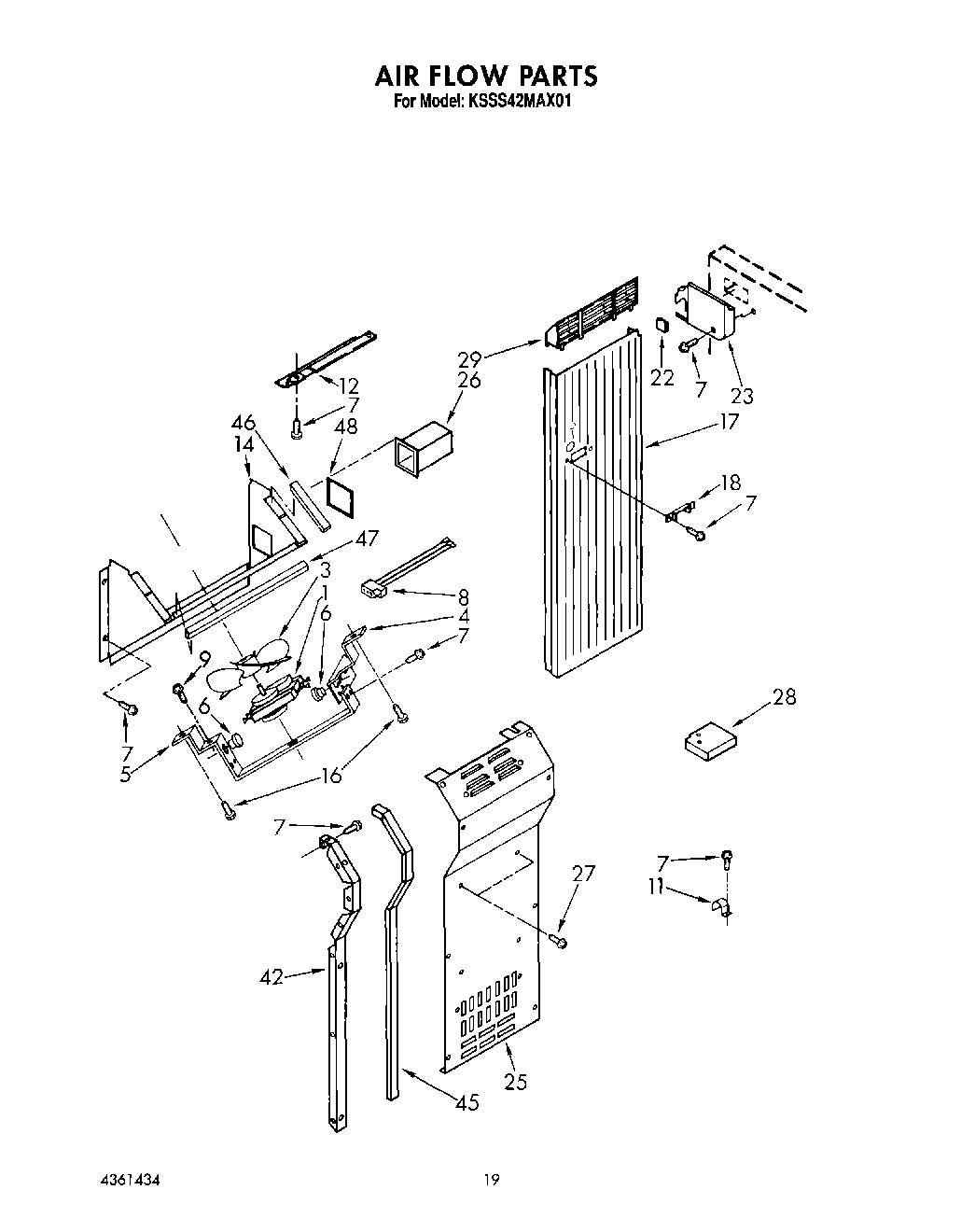

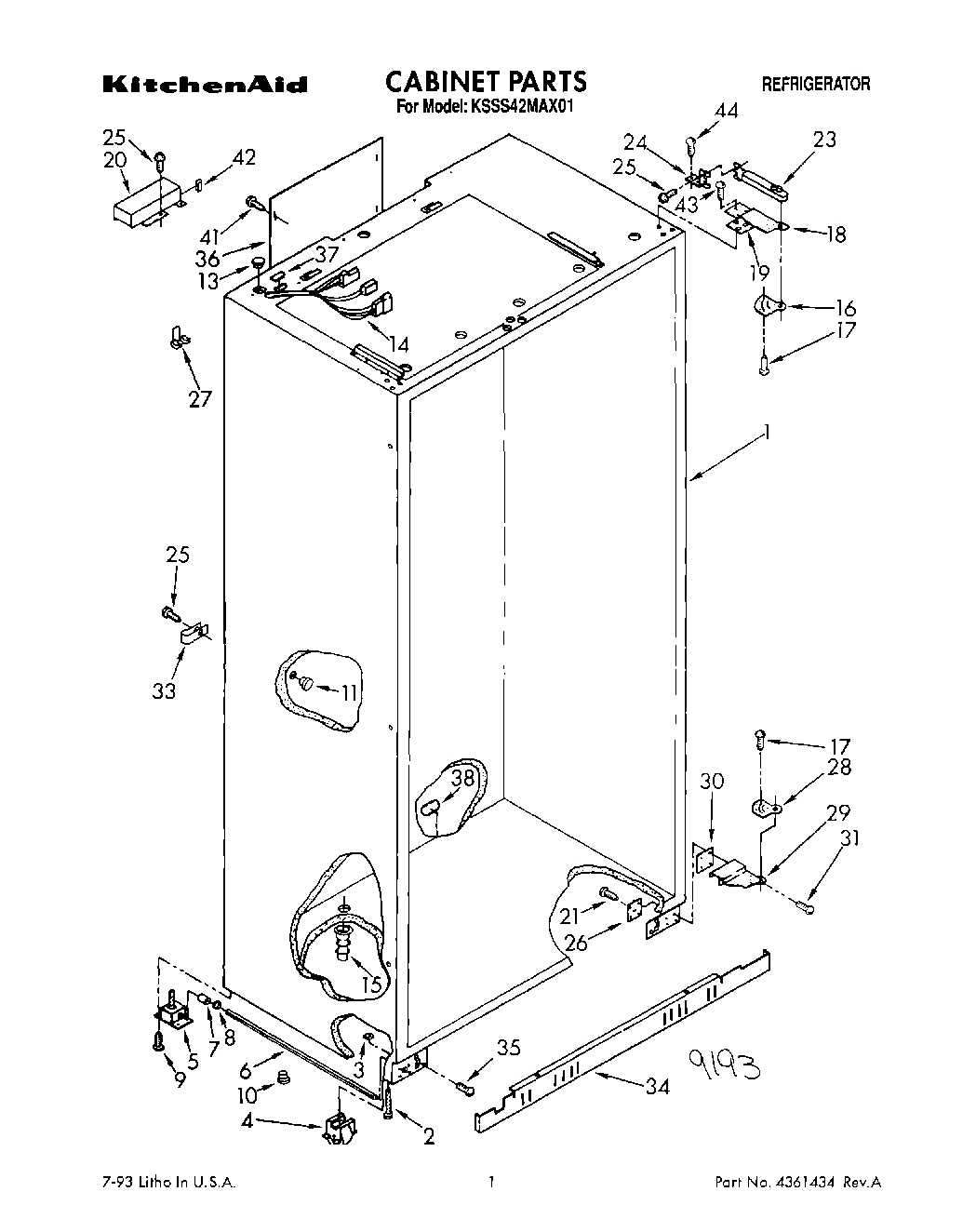

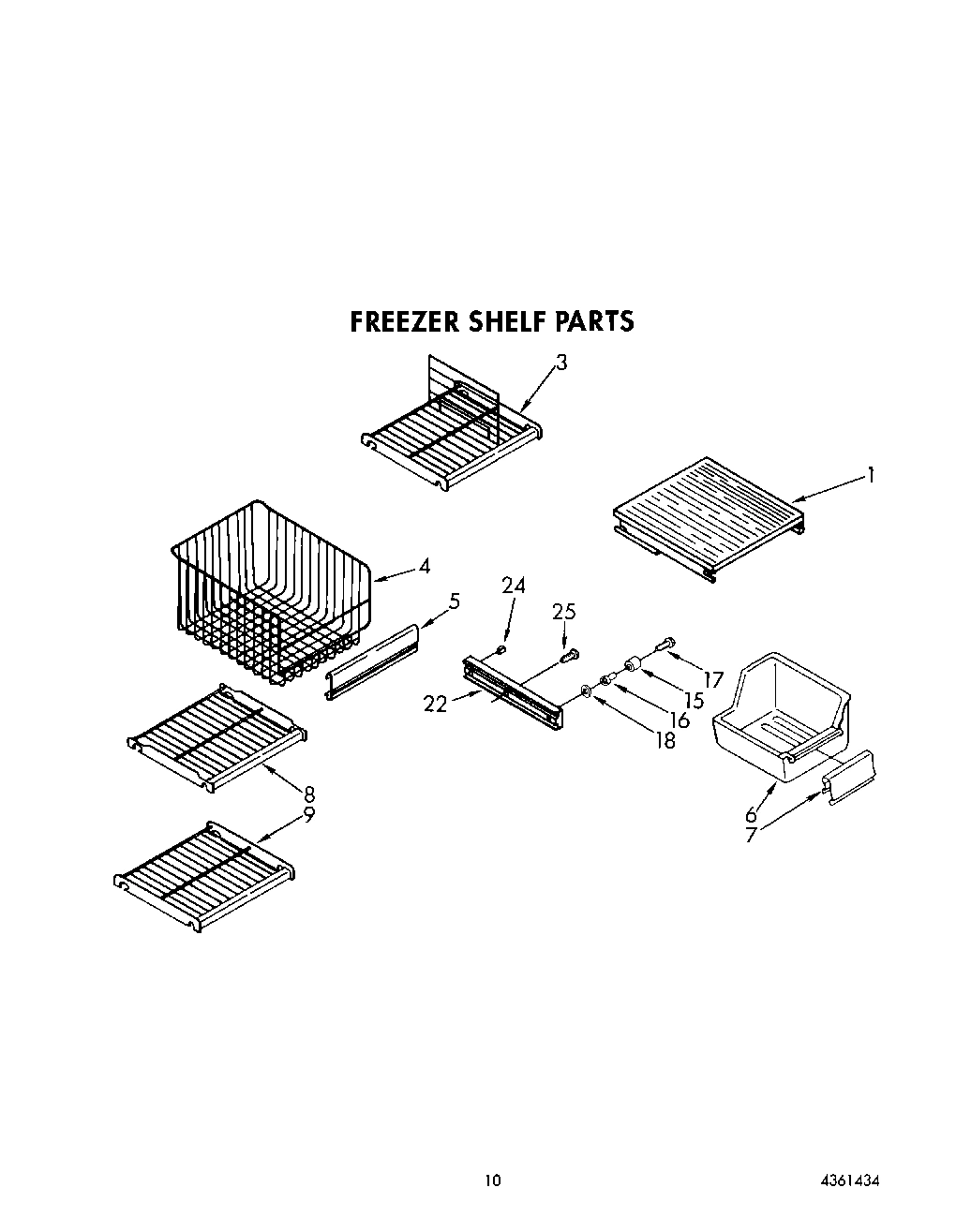

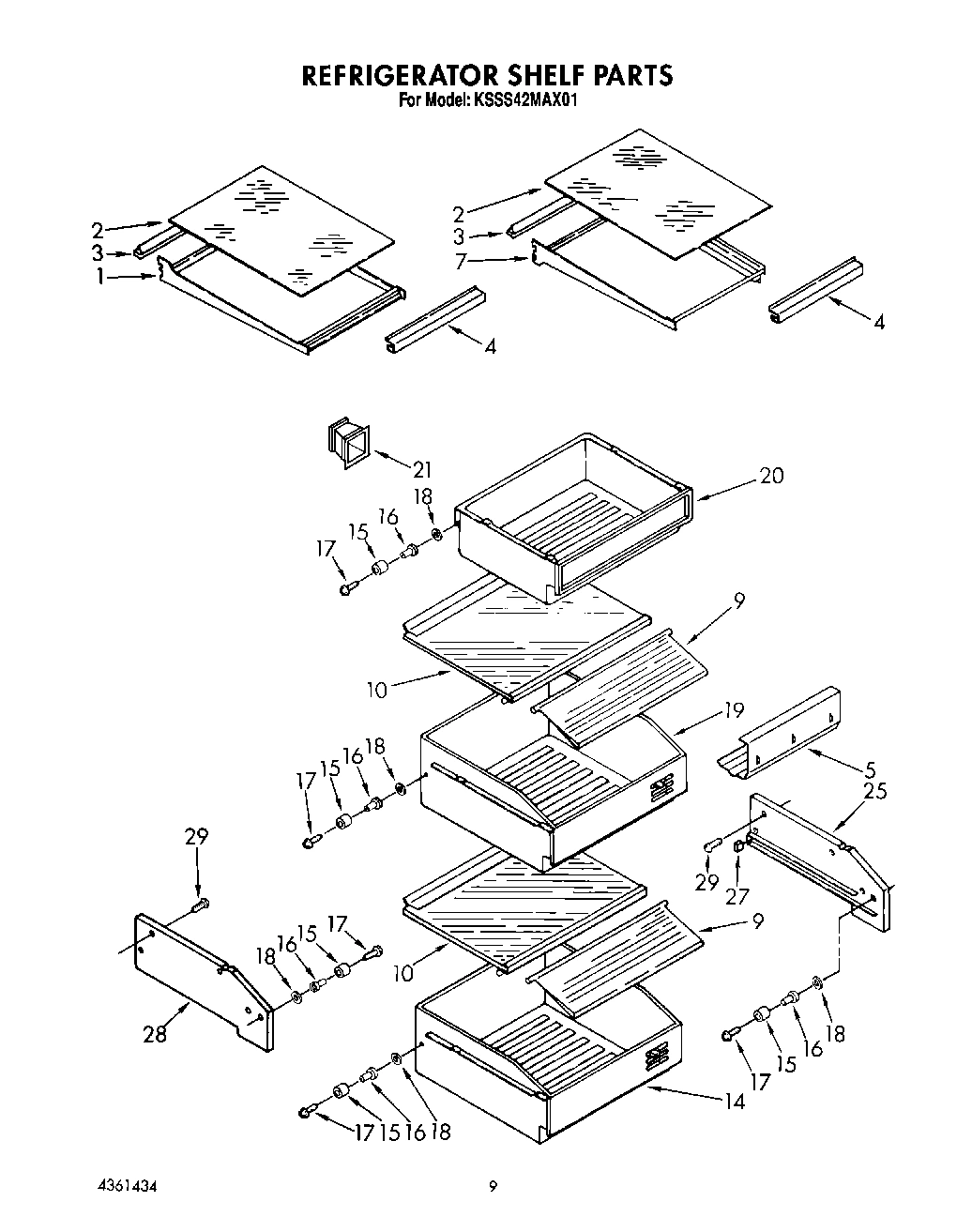

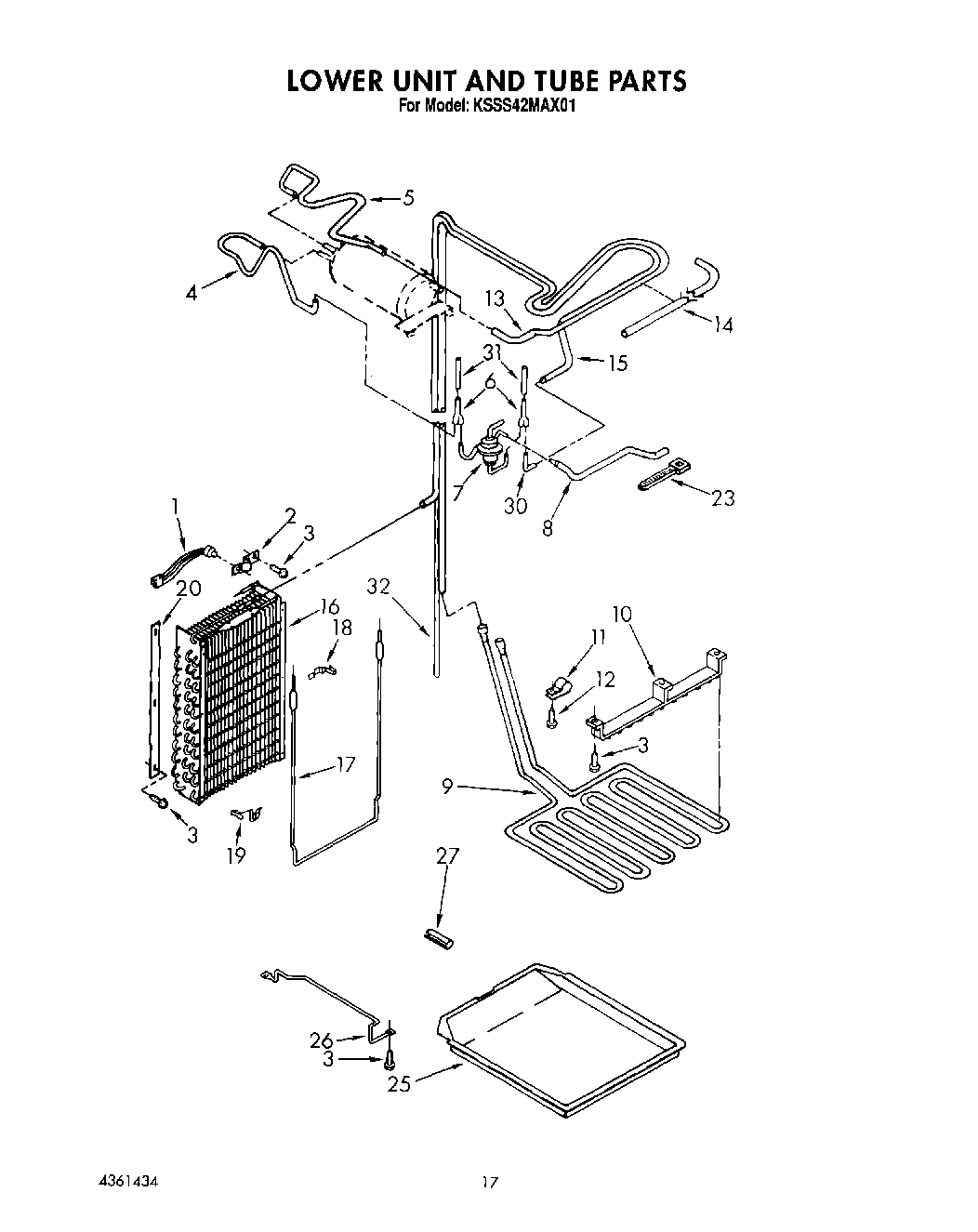

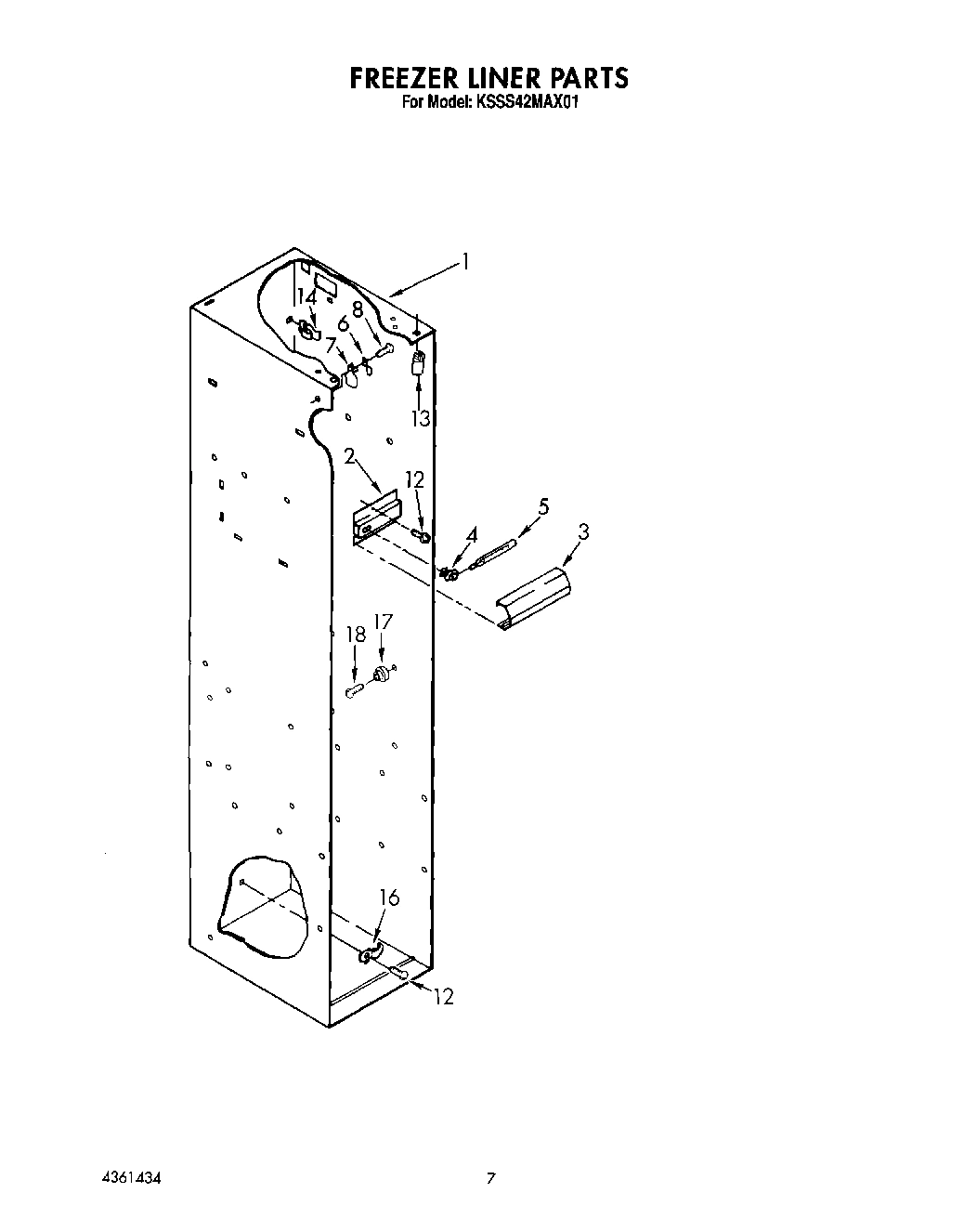

Model Whirlpool KSSS42MAX01 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP4389155 Whirlpool Refrigerator Evaporator M In Stock WPL WP4389155 $107.57

1

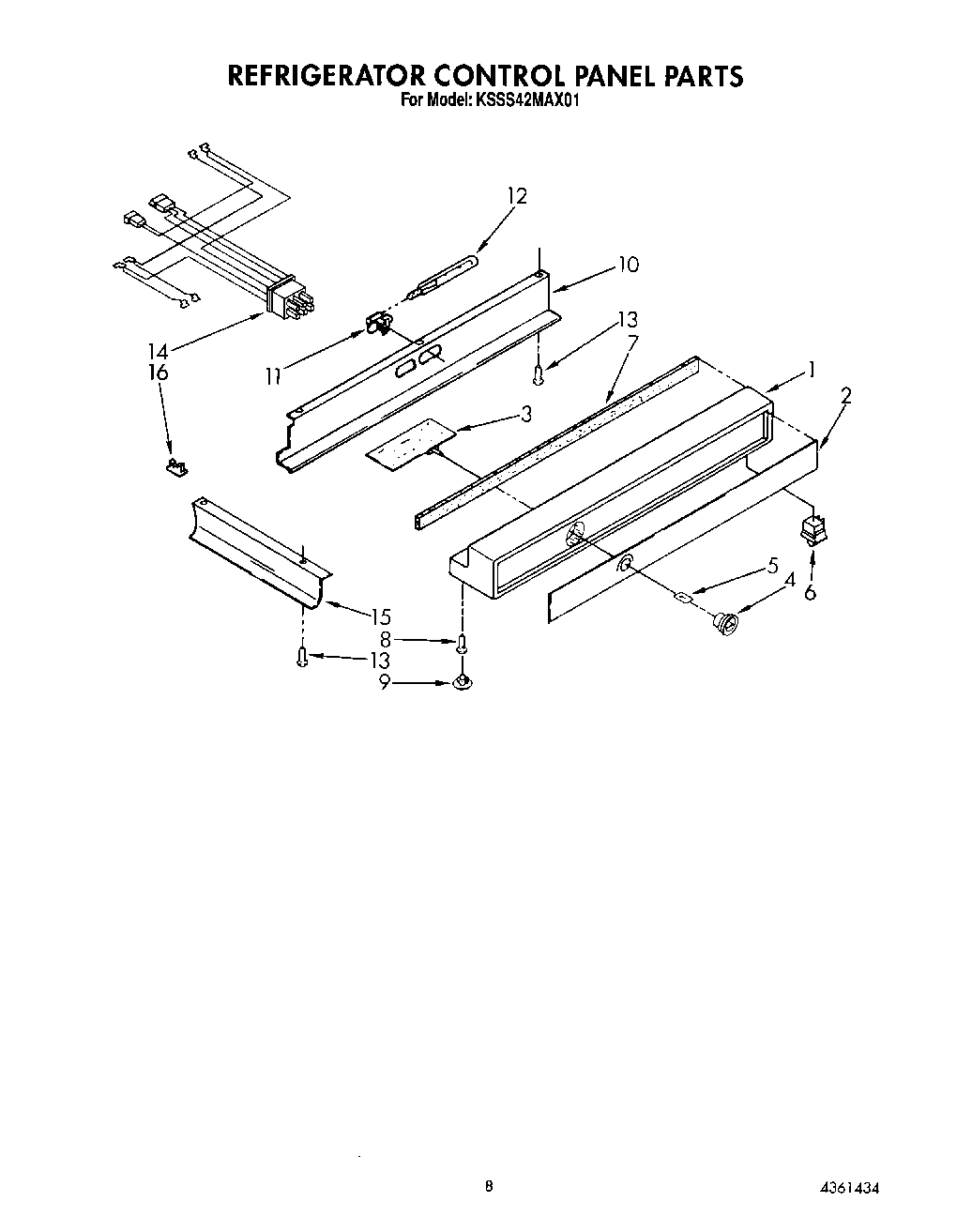

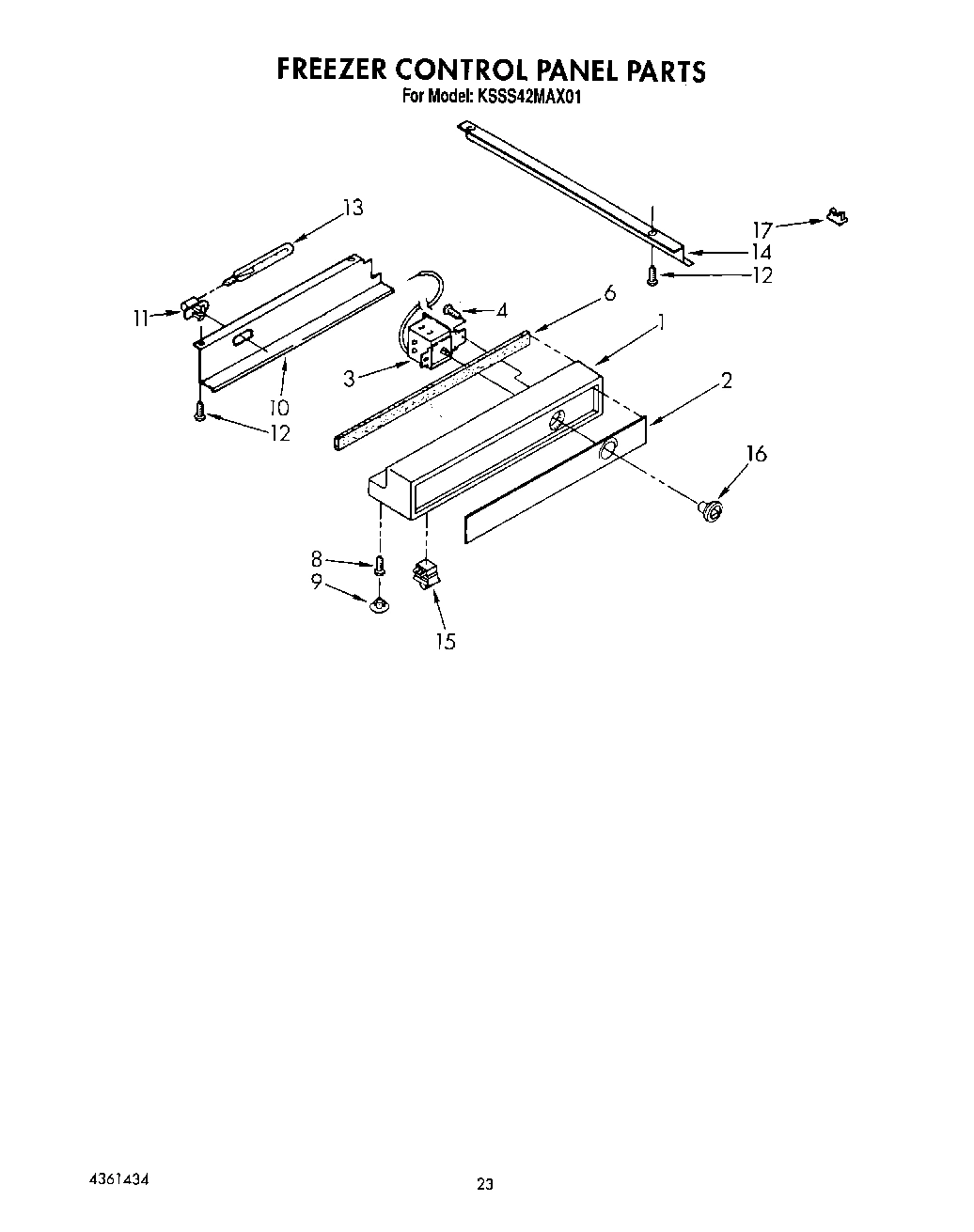

Control Panel WPL 1113626 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI107291A Contact Us For Availability

1

Frame, Shelf WPL 1113543 Contact Us For Availability

1

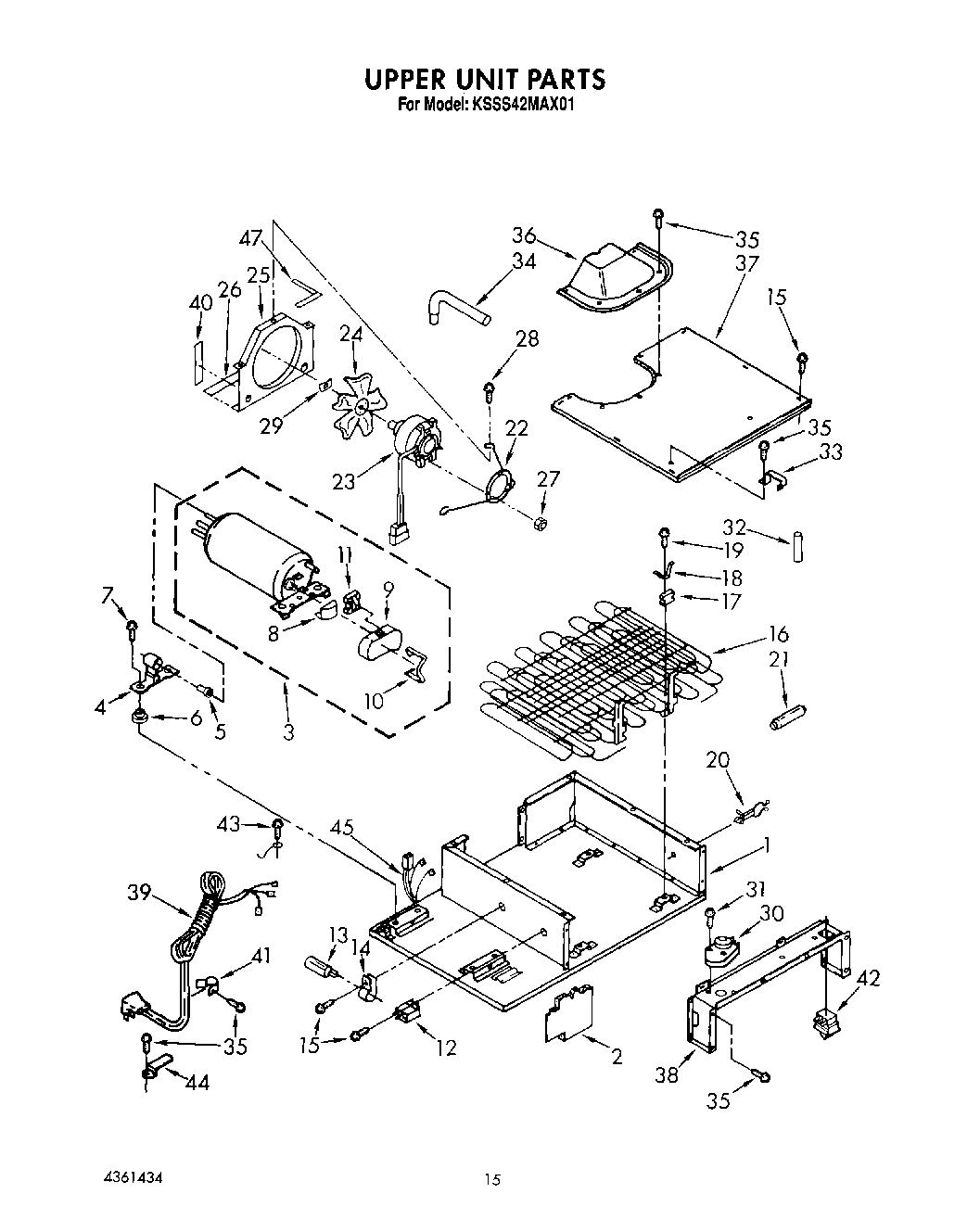

Assembly, Unit Base WPL 2001127 Contact Us For Availability

1

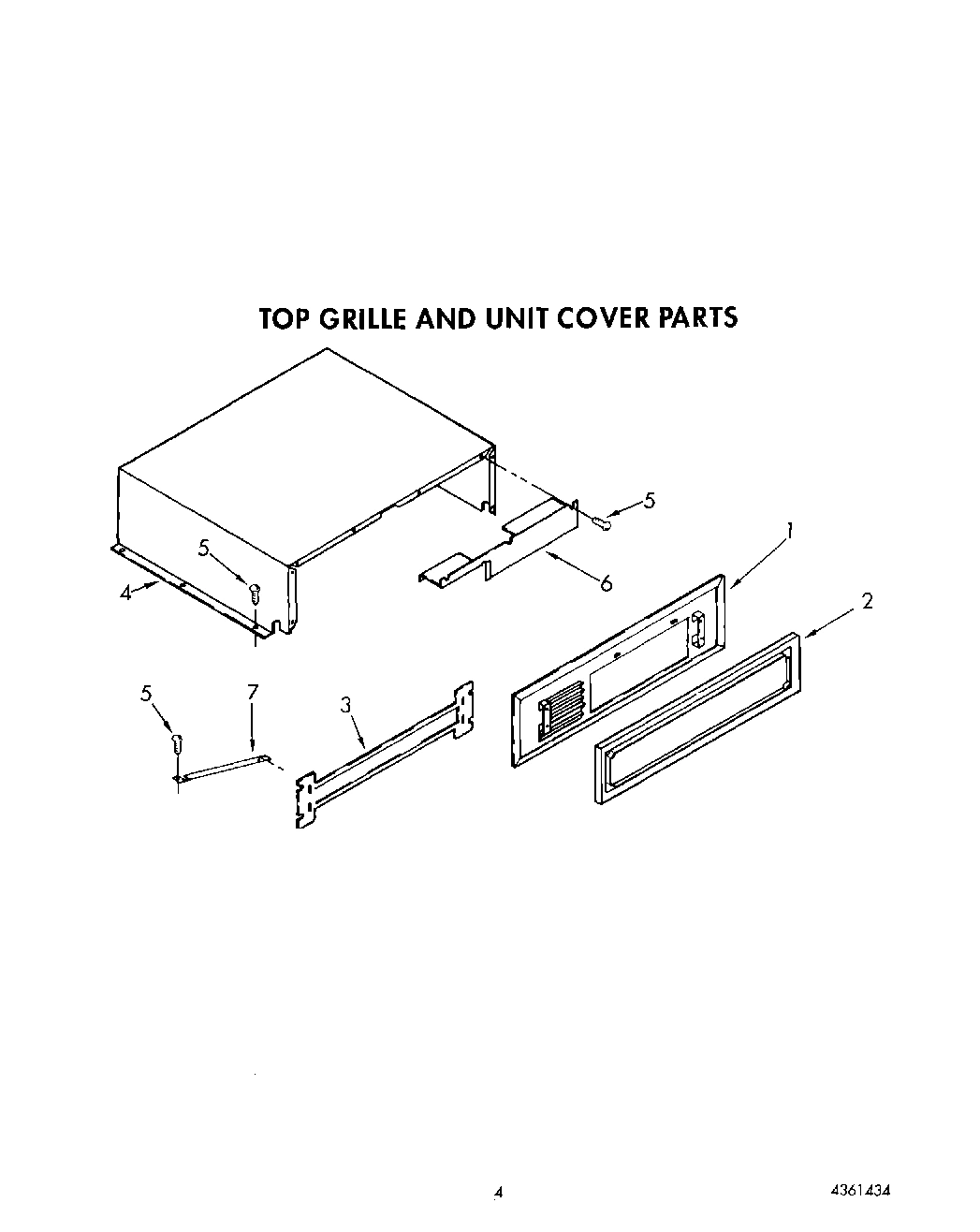

Top Grille Assembly WPL 2001578 Contact Us For Availability

1

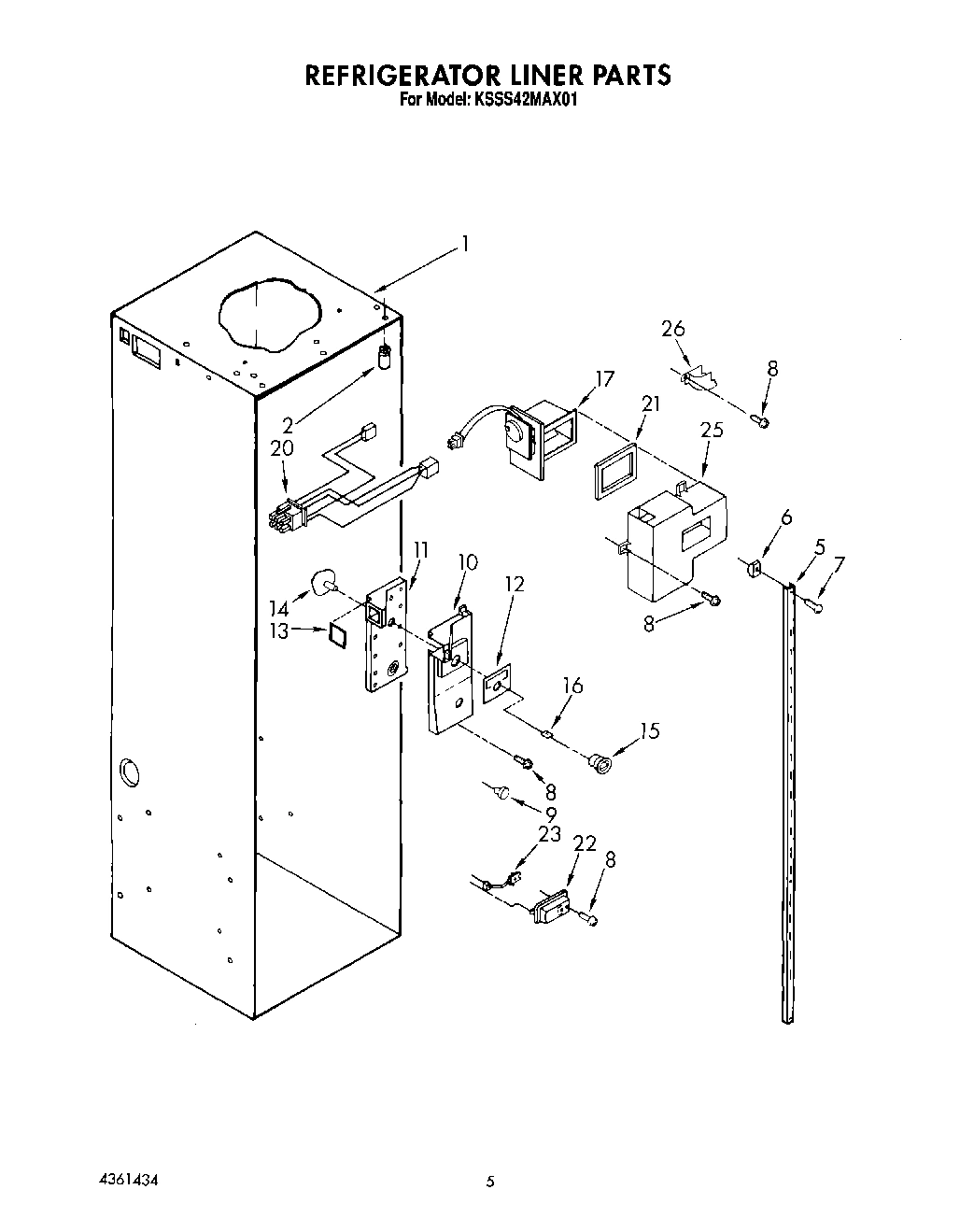

Liner (Not A Serviceable Part) WPL ARI107293A Contact Us For Availability

1

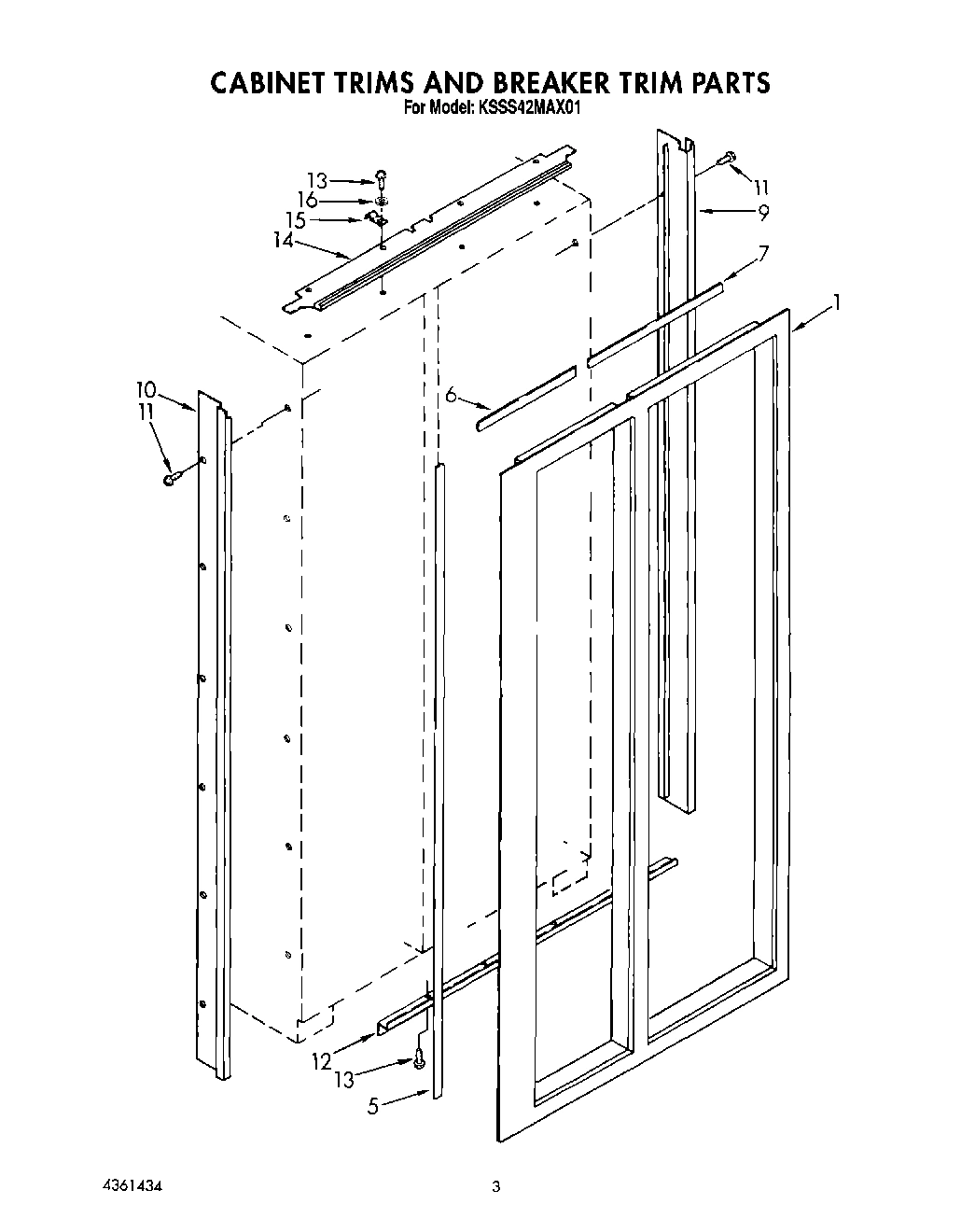

Breaker Trim & Retainer Assembly WPL 2000651 Contact Us For Availability

1

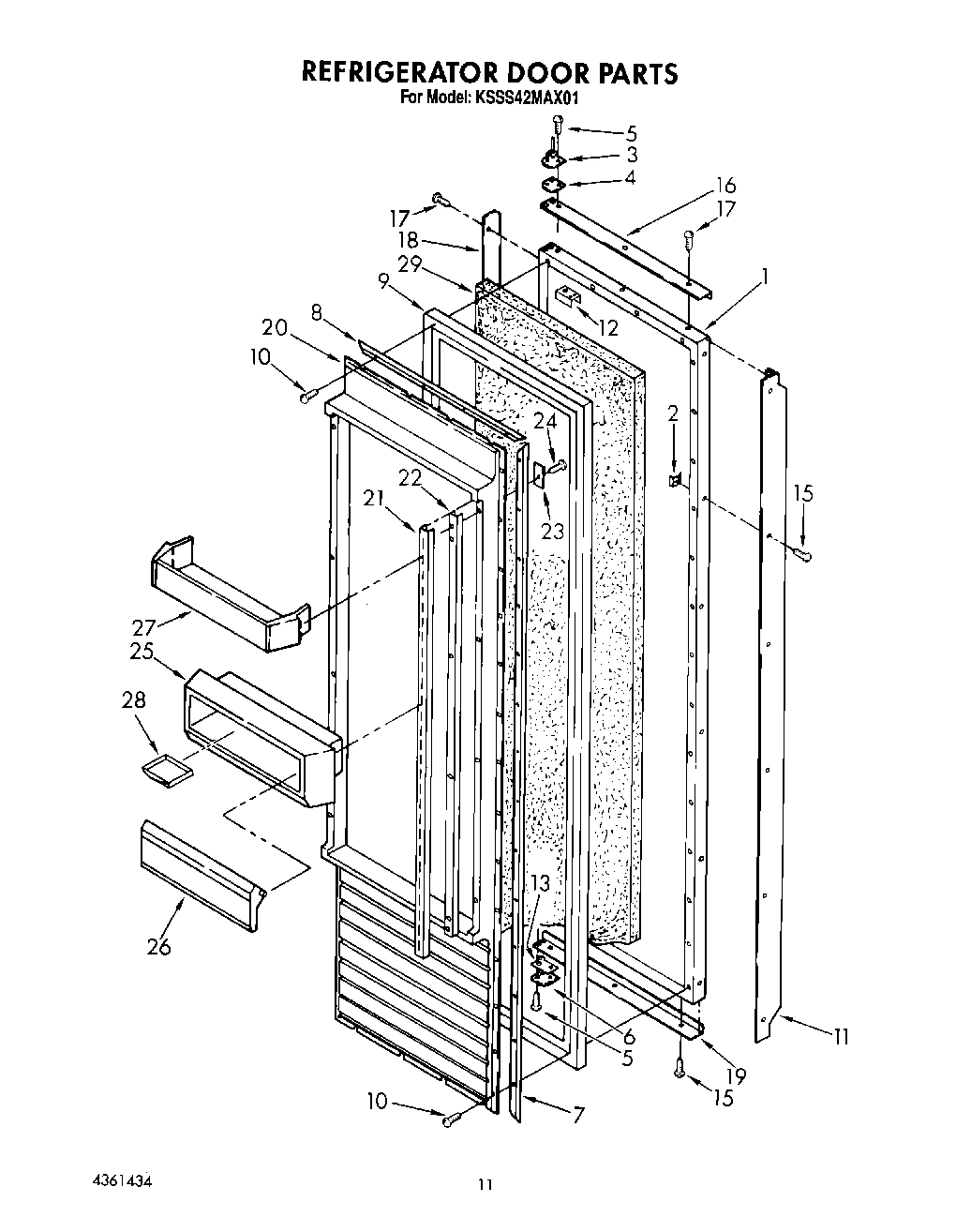

Door Panel, Refrigerator (Also Order Item 29) WPL 2000694 Contact Us For Availability

1

Solid Shelf WPL 1113629 Contact Us For Availability

1

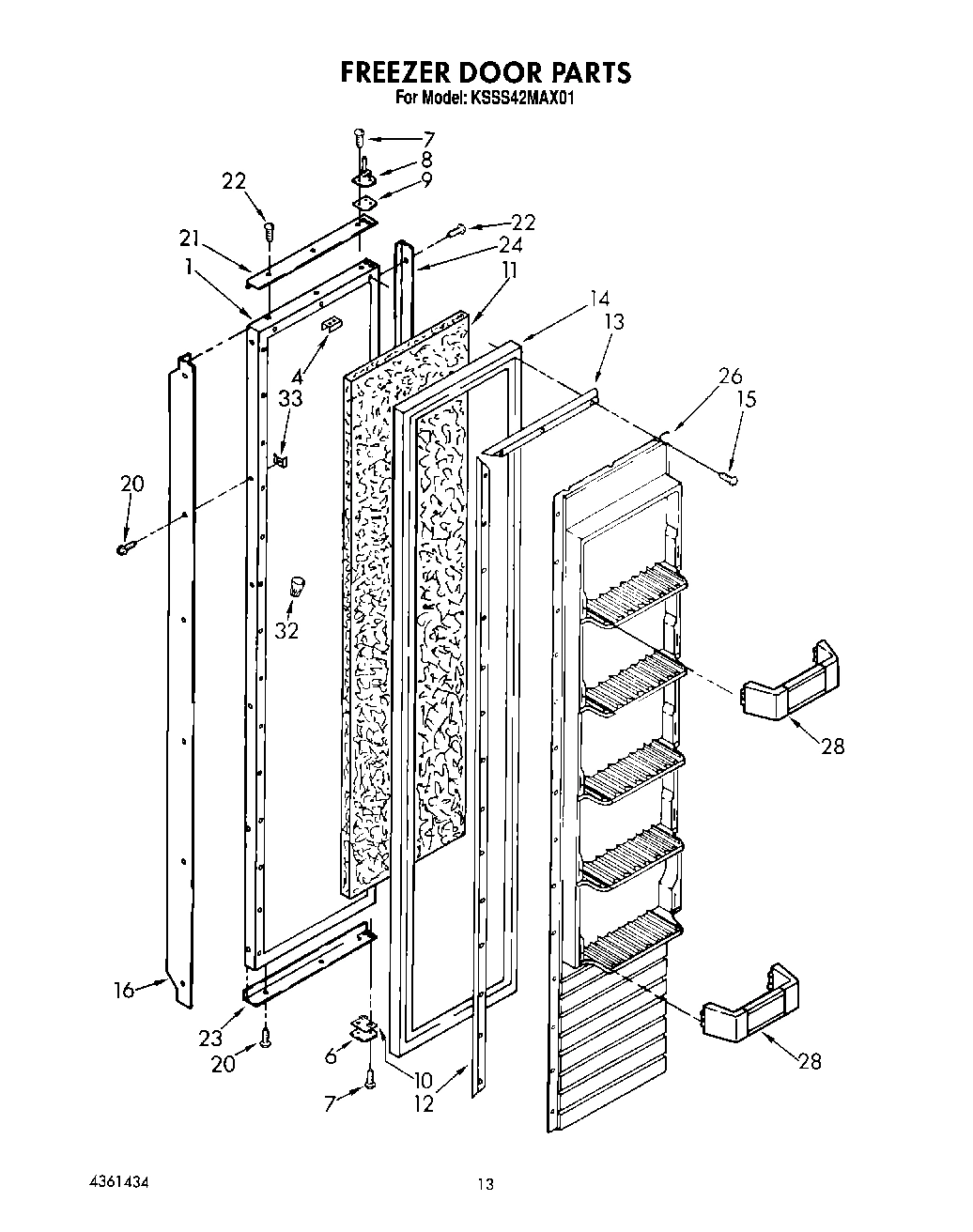

Exterior Door Panel, Freezer (Also Order Item WPL 2000715 Contact Us For Availability

2

Inlay, Control Panel WPL 1113964 Contact Us For Availability

2

Leveler, Front (2) WPL 1112019 Contact Us For Availability

2

Glass, Shelf WPL 1112318 Contact Us For Availability

2

Assembly, Sound Barrier WPL 1113386 Contact Us For Availability

2

Clamp, Bi-Metal WPL 1113043 Contact Us For Availability

2

Decorative Panel Assembly WPL 2001316 Contact Us For Availability

2

Bracket, Light WPL 1113649 Contact Us For Availability

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

3

WP1113466 Whirlpool Refrigerator Thermostat Backorder WPL WP1113466 $131.36

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Retainer (2) WPL 1113249 Contact Us For Availability

3

Reflector, Shelf WPL 1113547 Contact Us For Availability

3

Compressor (Includes Items 8, 9, 10, 11, 13) WPL 2154922 Contact Us For Availability

3

Back Up Panel WPL 1113355 Contact Us For Availability

3

Light, Lens WPL 1113650 Contact Us For Availability

3

Hinge Assembly, Top WPL 2000696 Contact Us For Availability

3

Shelf, (Top) WPL 1113634 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

4

Screw (2) WPL 488974 Contact Us For Availability

4

Light, Socket WPL 1112613 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113791 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Tube, Connect (Suction) WPL 1113293 Contact Us For Availability

4

Bracket (Double) WPL 548263 Contact Us For Availability

4

Cover, Unit WPL 2001088 Contact Us For Availability

4

Tap, Plate WPL 2000349 Contact Us For Availability

4

Basket WPL 2001625 Contact Us For Availability

5

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $68.35

5

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $27.52

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Rack, Wine WPL 1125913 Contact Us For Availability

5

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

5

Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability

5

Bracket (Single) WPL 938224 Contact Us For Availability

5

Magnet, Side (4) WPL 1112682 Contact Us For Availability

5

Trim, Basket WPL 1113643 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $25.46

6

Wire Clip WPL 2000392 Contact Us For Availability

6

Seal, Control Panel WPL 1113134 Contact Us For Availability

6

Adjusting Rod (2) WPL 2000670 Contact Us For Availability

6

Grommet, Mounting WPL 1105200 Contact Us For Availability

6

Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability

6

Grommet WPL 548268 Contact Us For Availability

6

Cover, Component Assembly WPL 1113300 Contact Us For Availability

6

Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability

6

Magnet, Freezer (2) WPL 1112684 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2000698 Contact Us For Availability

6

Hinge, Bottom WPL 2000720 Contact Us For Availability

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

Tube, Water (To Ice Maker) WPL 2001336 Contact Us For Availability

7

Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability

7

Frame Assembly WPL 1113551 Contact Us For Availability

7

Screw WPL 489334 Contact Us For Availability

7

Valve, Fluid Control WPL 1113292 Contact Us For Availability

7

Brace WPL 1113317 Contact Us For Availability

7

Grommet, Screw (2) WPL 2000193 Contact Us For Availability

7

Magnet, Refrigerator (2) WPL 1112680 Contact Us For Availability

7

Trim, Ice Pan WPL 1122530 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

8

Screw (3) WPL 489260 Contact Us For Availability

8

Bushing, Rod (2) WPL 1112937 Contact Us For Availability

8

Overload WPL 2154947 Contact Us For Availability

8

Tube, Connect (Drier) WPL 2001727 Contact Us For Availability

8

Motor, Wiring WPL 2000618 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability

8

Shelf, (Middle) WPL 1113565 Contact Us For Availability

8

Hinge, Top WPL 2000721 Contact Us For Availability

9

2188320A Whirlpool Refrigerator Door Gasket Backorder WPL 2188320A $136.69

9

WP1113894 Whirlpool Refrigerator Cover Backorder WPL WP1113894 $45.27

9

WP487627 Whirlpool Refrigerator Sleeve Backorder WPL WP487627 $4.81

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Hole Plug (3) WPL 2000153 Contact Us For Availability

9

Terminal Cover WPL 2154452 Contact Us For Availability

9

Heater, Drain Pan WPL 2000755 Contact Us For Availability

9

Cabinet, Trim R.S WPL 2000321 Contact Us For Availability

9

Spacer Plate WPL 2000303 Contact Us For Availability

9

Shelf, Bottom (2) WPL 1113637 Contact Us For Availability

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

Shield, Control Panel WPL 1113768 Contact Us For Availability

Hole Plug, Leveler WPL 1112939 Contact Us For Availability

Glass, Crisper WPL 2000155 Contact Us For Availability

Strap, Cover WPL 1105222 Contact Us For Availability

Hanger, Heater WPL 1113062 Contact Us For Availability

Cabinet, Trim L.S WPL 2000322 Contact Us For Availability

Spacer, Bottom WPL 2000697 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Cap, Grommet WPL 1112849 Contact Us For Availability

Relay WPL 1118797 Contact Us For Availability

Bracket, Heater WPL 1113105 Contact Us For Availability

Screw WPL 2001297 Contact Us For Availability

Handle, Door WPL 2000323 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Running Capacitor WPL 2149684 Contact Us For Availability

Channel, Wiring WPL 2001257 Contact Us For Availability

Cabinet, Trim (Bottom) WPL 1112801 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Water Valve, Harness WPL 2000837 Contact Us For Availability

Grommet, Wiring WPL 1113122 Contact Us For Availability

Starting Capacitor WPL 2154949 Contact Us For Availability

Tube, Discharge WPL 2000857 Contact Us For Availability

Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability

2188318A Whirlpool Refrigerator Door Gasket Backorder WPL 2188318A $140.51

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

Copper, Water Line WPL 2001354 Contact Us For Availability

Channel, Wiring WPL 1112707 Contact Us For Availability

Wiring Harness, Cabinet WPL 2000834 Contact Us For Availability

Pan, Crisper WPL 2000888 Contact Us For Availability

Clamp WPL 1108033 Contact Us For Availability

Scroll, Fan WPL 2000783 Contact Us For Availability

Cabinet, Trim Top WPL 2001310 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Drain Fitting WPL 1112848 Contact Us For Availability

Roller WPL 1113870 Contact Us For Availability

Heat Exchanger WPL 2000723 Contact Us For Availability

Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

4388574 Whirlpool Refrigerator Evaporator In Stock WPL 4388574 $224.55

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Knob, Thermostat WPL 1112592 Contact Us For Availability

Gap, Cover Assembly (Top) (Right Side) WPL 2000304 Contact Us For Availability

Gap, Cover Assembly (Top) (Left Side) WPL 2000305 Contact Us For Availability

Eyelet, Roller WPL 1113871 Contact Us For Availability

Condenser WPL 1113015 Contact Us For Availability

Washer (2) WPL 487944 Contact Us For Availability

Trim (Top) WPL 2000316 Contact Us For Availability

Handle, Door WPL 2000324 Contact Us For Availability

WP2000631 Whirlpool Refrigerator Heater In Stock WPL WP2000631 $96.64

WP245183 Whirlpool Nut Backorder WPL WP245183 $2.51

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Shoulder Screw WPL 2001295 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

Assembly, Air Duct WPL 2000748 Contact Us For Availability

Stud, Shelf (20) WPL 658944 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

Cover WPL 1113703 Contact Us For Availability

Hinge (Top) (Left Side) WPL 2000306 Contact Us For Availability

Hinge (Top) (Right Side) WPL 2000307 Contact Us For Availability

Washer WPL 488307 Contact Us For Availability

Clamp (4) WPL 1113019 Contact Us For Availability

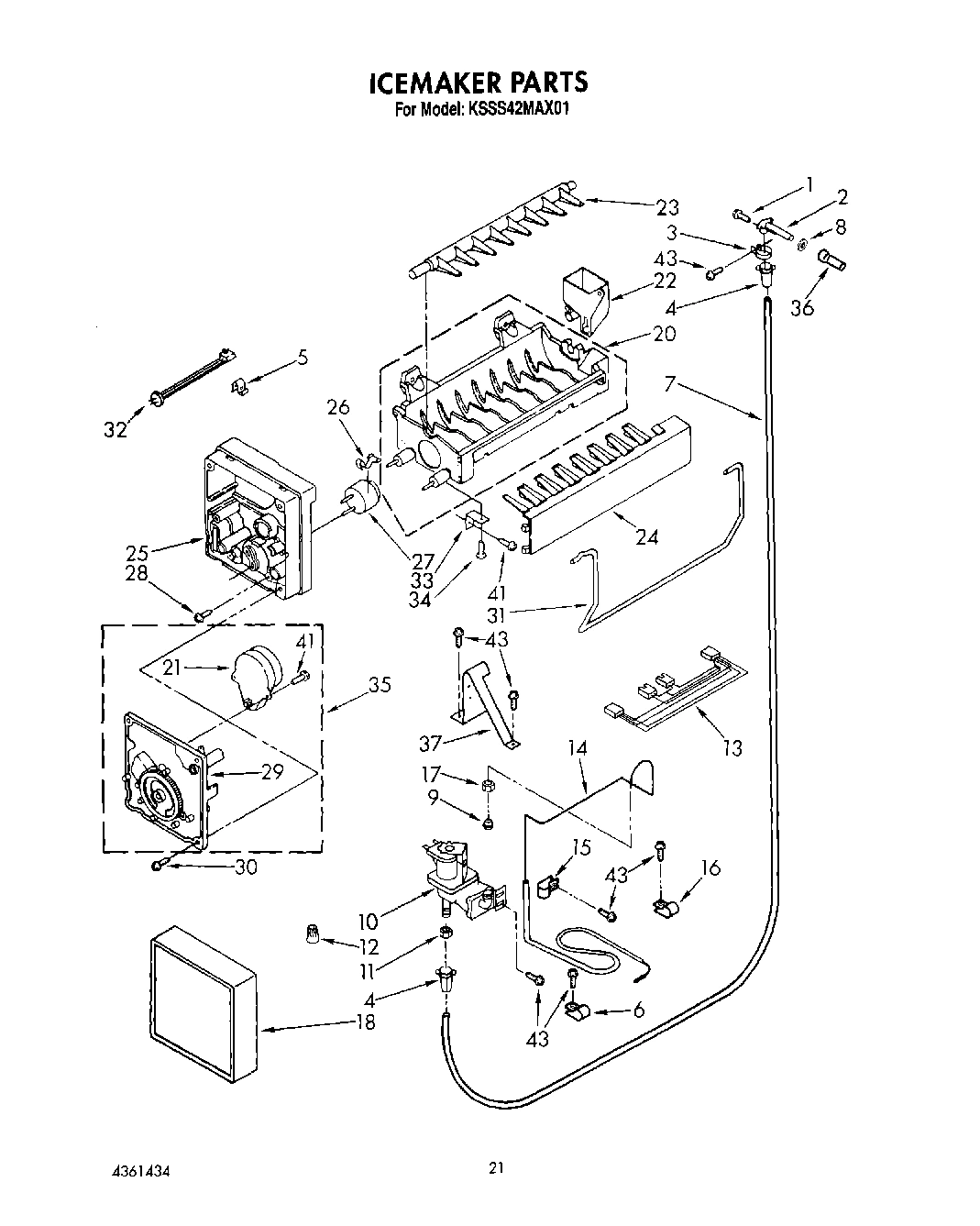

Air Deflector, Icemaker WPL 2000048 Contact Us For Availability

Screw, 8-15 x 1-1/4 (20) WPL 487559 Contact Us For Availability

Trim (Side) WPL 2000314 Contact Us For Availability

Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability

Shim, Hinge Top WPL 2000770 Contact Us For Availability

Utility Pan WPL 2000892 Contact Us For Availability

Clamp, Heater (2) WPL 1108431 Contact Us For Availability

Trim (Bottom) WPL 2000319 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Guard, Wiring WPL 1112805 Contact Us For Availability

Meat Pan WPL 2000816 Contact Us For Availability

Wire Tie (2) WPL 1113228 Contact Us For Availability

Gasket, Evaporator WPL 1112844 Contact Us For Availability

Panel, Interior Door WPL 1113953 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

Meat Pan, Connector WPL 2000742 Contact Us For Availability

Drier WPL 1108023 Contact Us For Availability

Ladder, Shelf (2) WPL 1113951 Contact Us For Availability

Trim (Top) WPL 2000327 Contact Us For Availability

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Mounting Bracket, Motor WPL 2000358 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

Screw, 6-32 x 1/2 WPL 489112 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability

Slide, Basket R.S. WPL 2000061 Contact Us For Availability

Slide, Basket L.S. WPL 2000062 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Thermistor WPL 1116959 Contact Us For Availability

Door Closer Assembly (2) WPL 1112992 Contact Us For Availability

Motor, Fan WPL 1113081 Contact Us For Availability

Strap (7) WPL 851095 Contact Us For Availability

Cover, Air Outlet WPL 1113942 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

Trim (Bottom) WPL 2000330 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Stop, Roller WPL 1113169 Contact Us For Availability

Bracket, Door Closer WPL 2000333 Contact Us For Availability

Blade, Fan WPL 2000352 Contact Us For Availability

Trim (Side) WPL 2000325 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $93.40

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability

Orifice, Fan WPL 2000351 Contact Us For Availability

Cover, Evaporator WPL 2000341 Contact Us For Availability

Bin, Utility WPL 1112721 Contact Us For Availability

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability

Gasket, Orifice WPL 1113303 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Connector, Meat Pan Duct WPL 2000795 Contact Us For Availability

Door, Utility Bin WPL 1112736 Contact Us For Availability

Panel, Interior Door WPL 2000178 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Cement Alumilastic) WPL 542639 Contact Us For Availability

Fastener (3) WPL 1113227 Contact Us For Availability

Door Shelf (4) WPL 2000912 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2003128 Whirlpool Shelf Bin Backorder WPL WP2003128 $144.70

Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability

Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability

Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability

Screw, 8 x 1/2 (3) WPL 489368 Contact Us For Availability

Baffle, Evaporator WPL 1112840 Contact Us For Availability

Butter, Tray WPL 1125936 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Hinge (Bottom) (Left Side) WPL 2000308 Contact Us For Availability

Hinge (Bottom) (Right Side) WPL 2000309 Contact Us For Availability

Diffuser, Air Duct WPL 1112852 Contact Us For Availability

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $38.88

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Shim, Hinge (1) WPL 1112942 Contact Us For Availability

Shim, Hinge (2) Bottom (4) WPL 1112943 Contact Us For Availability

Tube, Connect (Suction) WPL 1113384 Contact Us For Availability

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

Screw, 1/4-28 x 3/4 WPL 2000490 Contact Us For Availability

Tube (2) WPL 1113297 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

Harness, Wiring WPL 1113403 Contact Us For Availability

Sleeve, Condenser WPL 2000645 Contact Us For Availability

Tube, Condenser Inlet WPL 1113096 Contact Us For Availability

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $30.25

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Clamp, Tube (2) WPL 1113066 Contact Us For Availability

Tube clamp WPL 2001266 Contact Us For Availability

34

Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability

34

Grille Base, Front WPL 1112138 Contact Us For Availability

34

Process, Tube WPL 1113059 Contact Us For Availability

35

Screw (6) WPL 489238 Contact Us For Availability

36

Water Inlet Tube WPL 2001098 Contact Us For Availability

36

Cover, Rear WPL 2000684 Contact Us For Availability

36

Cover, Fan WPL 2000853 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability

37

Grommet, Wiring WPL 1113123 Contact Us For Availability

37

Cover, Condenser WPL 1113028 Contact Us For Availability

38

Grommet, Flexible WPL 1113079 Contact Us For Availability

38

Extension, Housing WPL 1113076 Contact Us For Availability

39

Cord, Service WPL 937360 Contact Us For Availability

40

Seal Strip (2) WPL 2001503 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

Screw WPL 2001377 Contact Us For Availability

41

Clamp, Cord (2) WPL 1113162 Contact Us For Availability

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

Grommet WPL 2000530 Contact Us For Availability

Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability

Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability

43

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

43

WP8204624 Whirlpool Bolt In Stock WPL WP8204624 $8.82

44

Screw WPL 489359 Contact Us For Availability

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

45

Wiring Harness, Unit Compartment WPL 2001077 Contact Us For Availability

45

Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability

46

Gasket (2) WPL 2001079 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Gasket WPL 2001080 Contact Us For Availability

48

Gasket WPL 2001081 Contact Us For Availability

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

Front Panel Kit (Black) WPL 4318633 Contact Us For Availability

Front Panel Kit (White) WPL 4318636 Contact Us For Availability

Front Panel Kit (Almond) WPL 4318639 Contact Us For Availability

Front Panel Kit (Stainless Steel) WPL 4318642 Contact Us For Availability

Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
