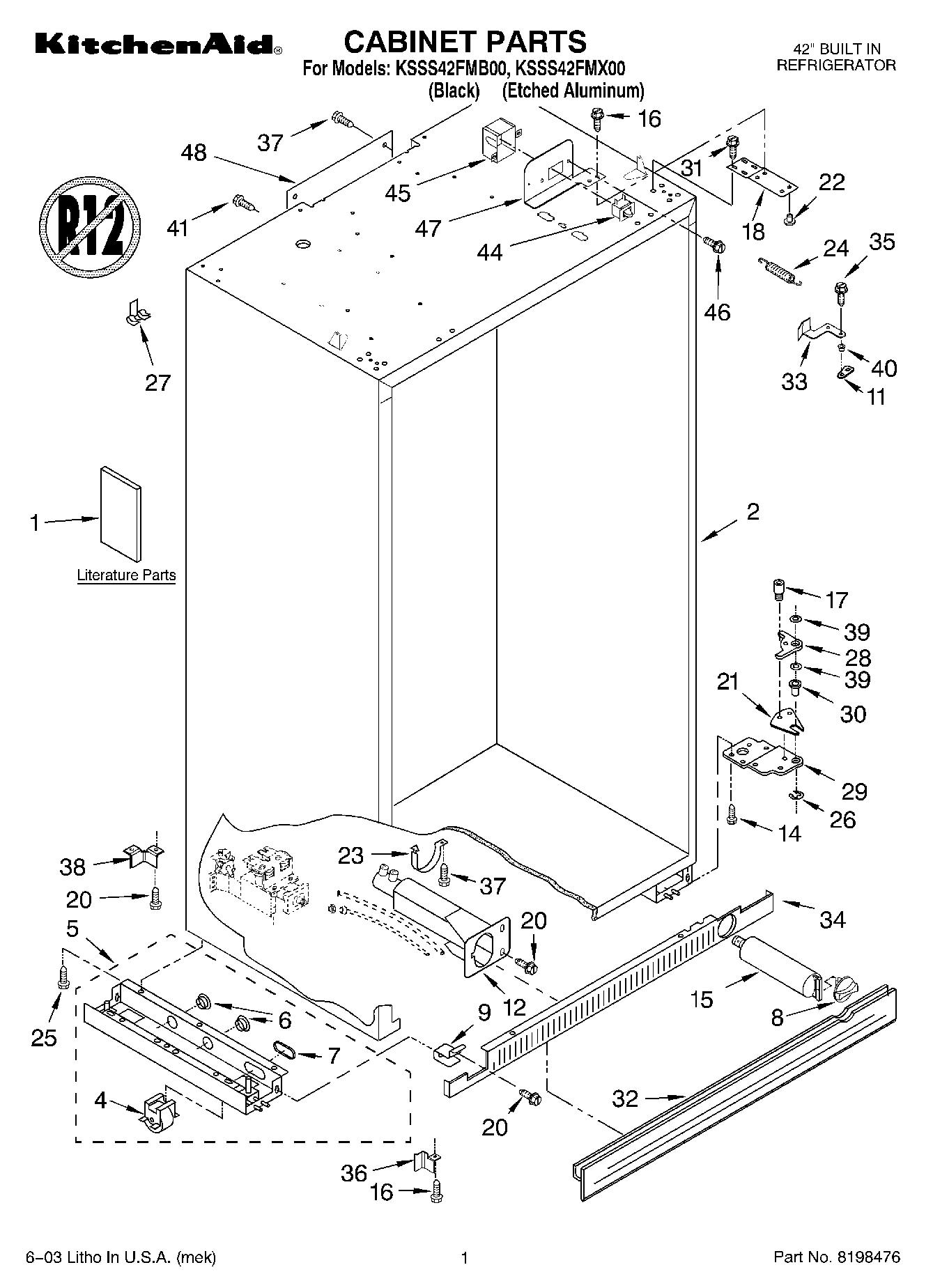

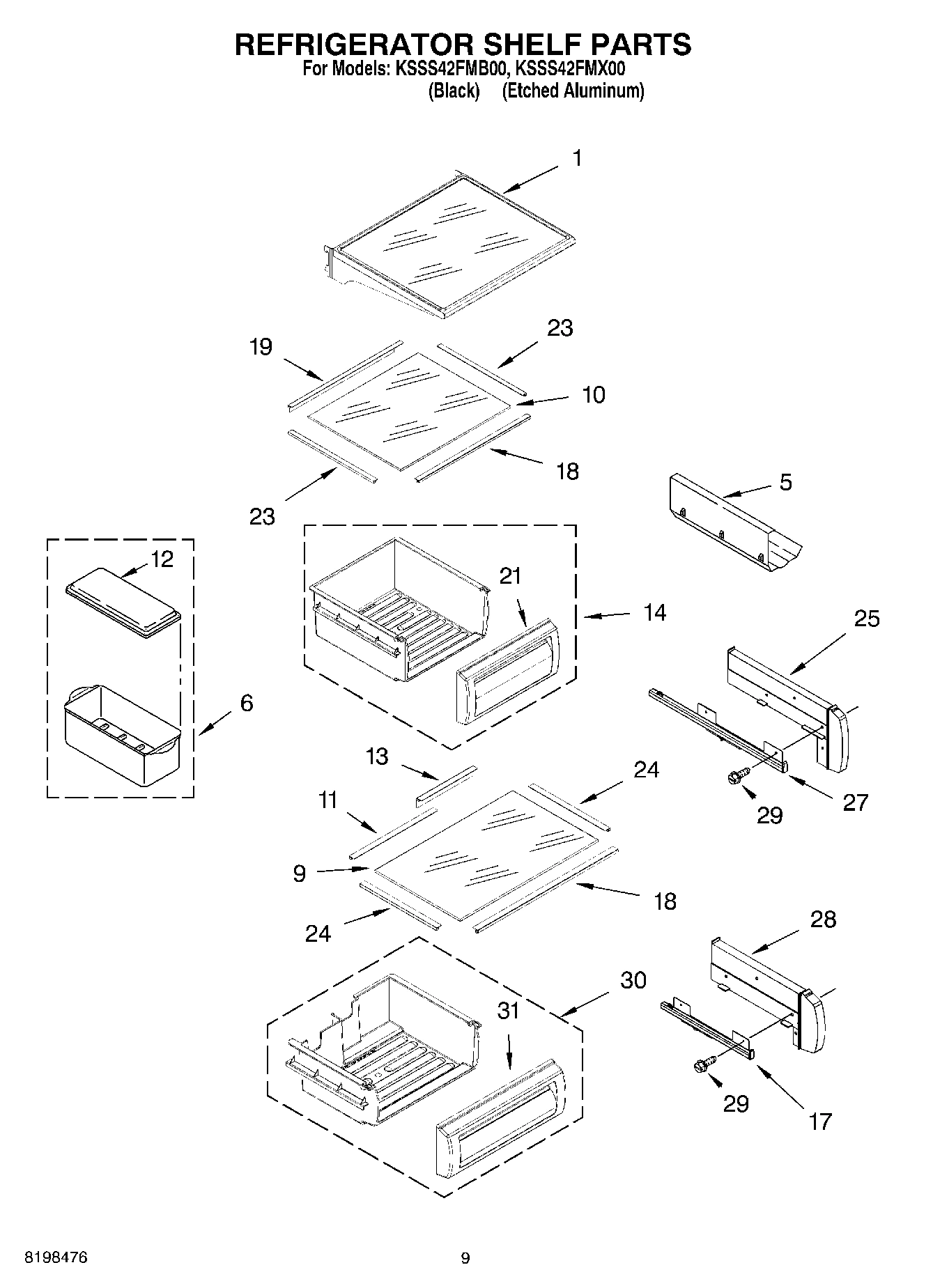

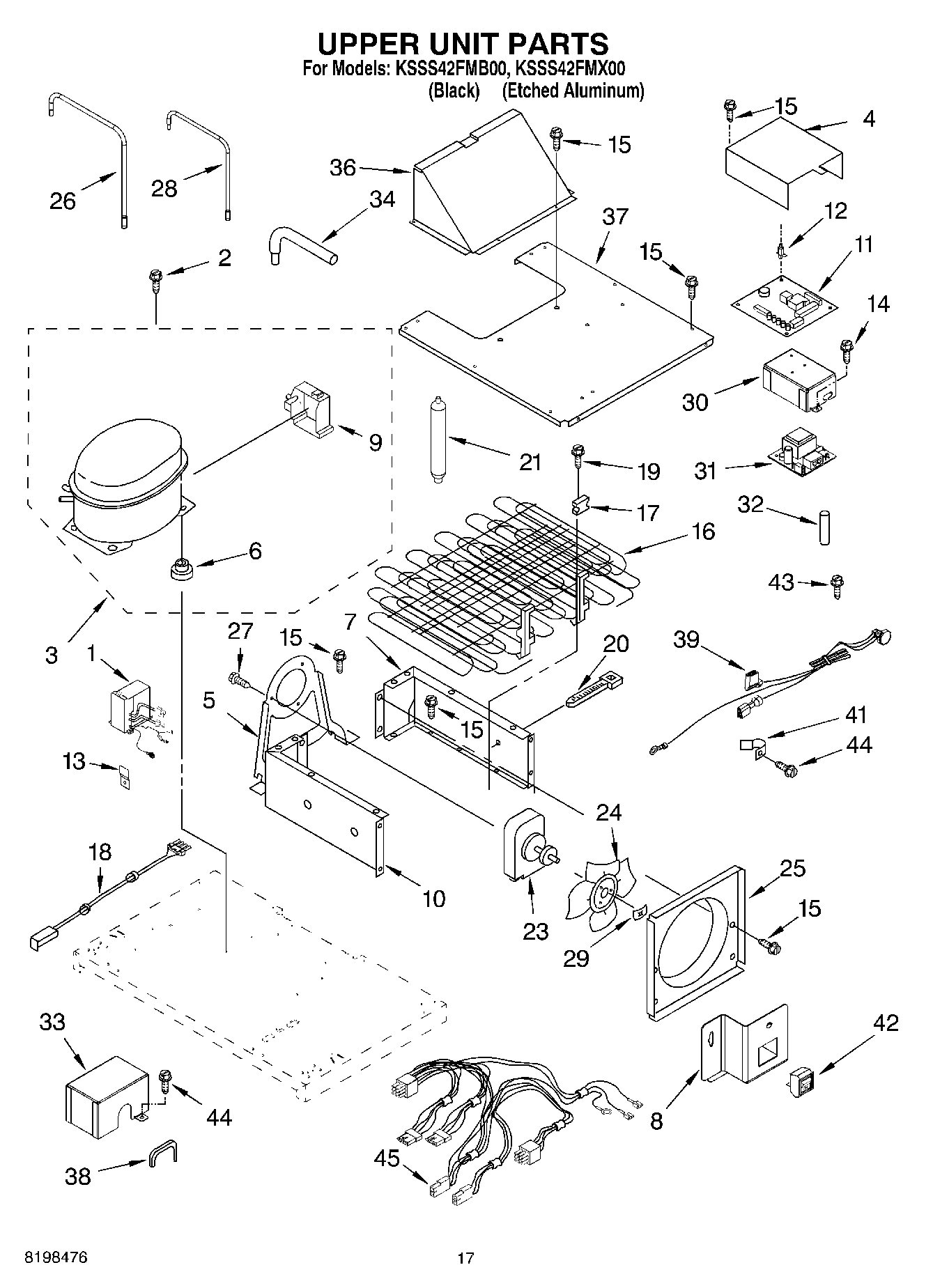

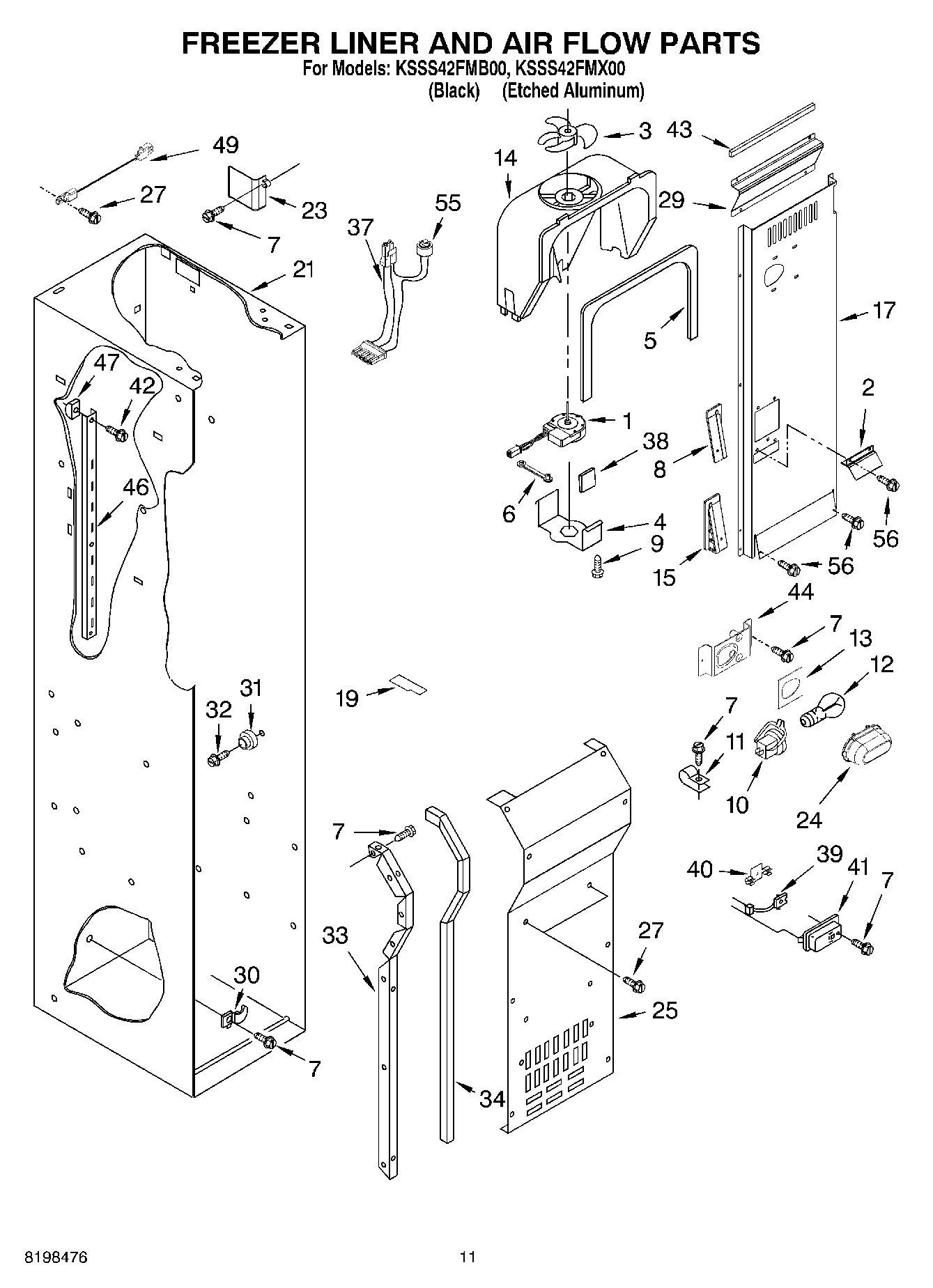

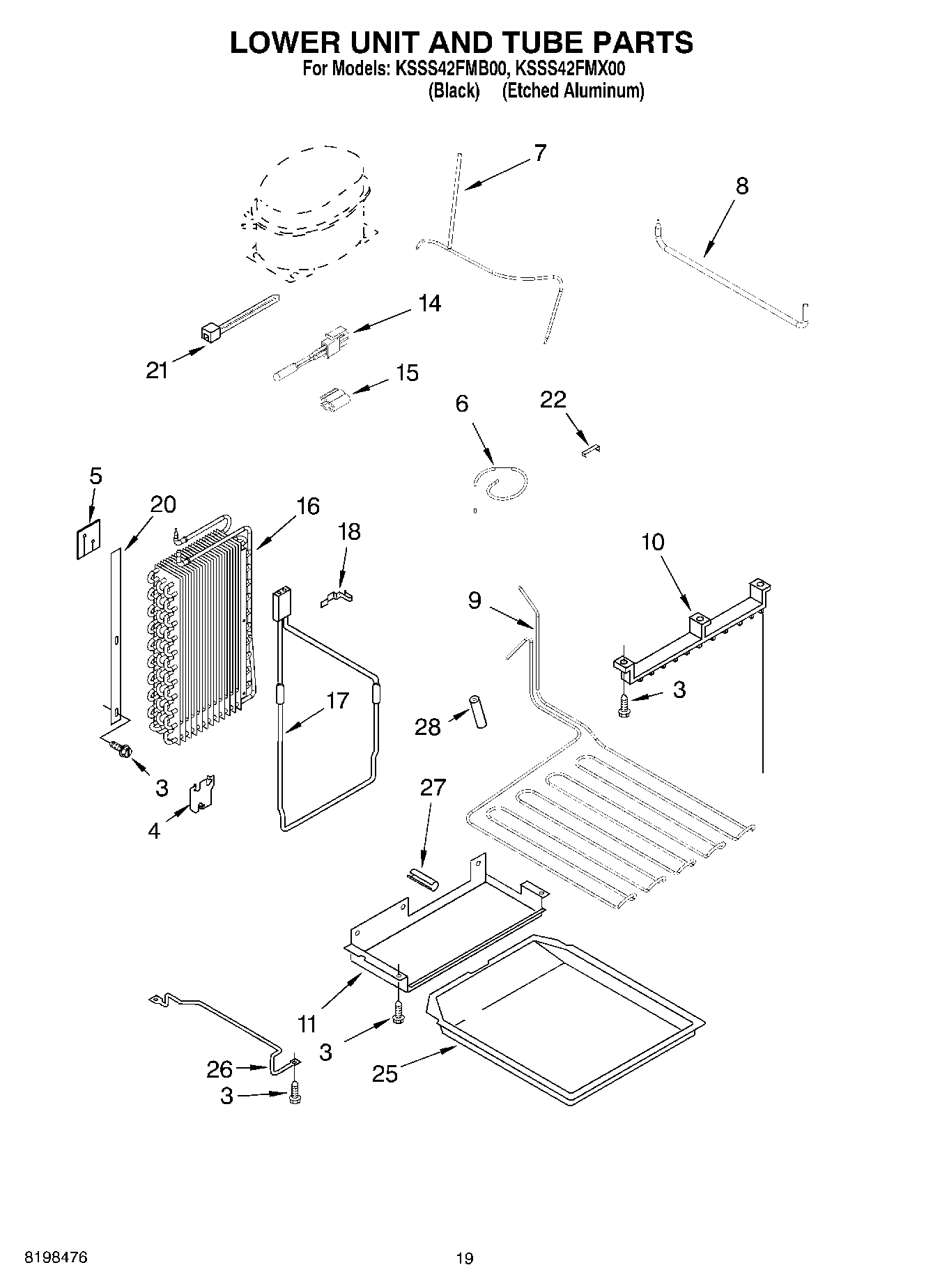

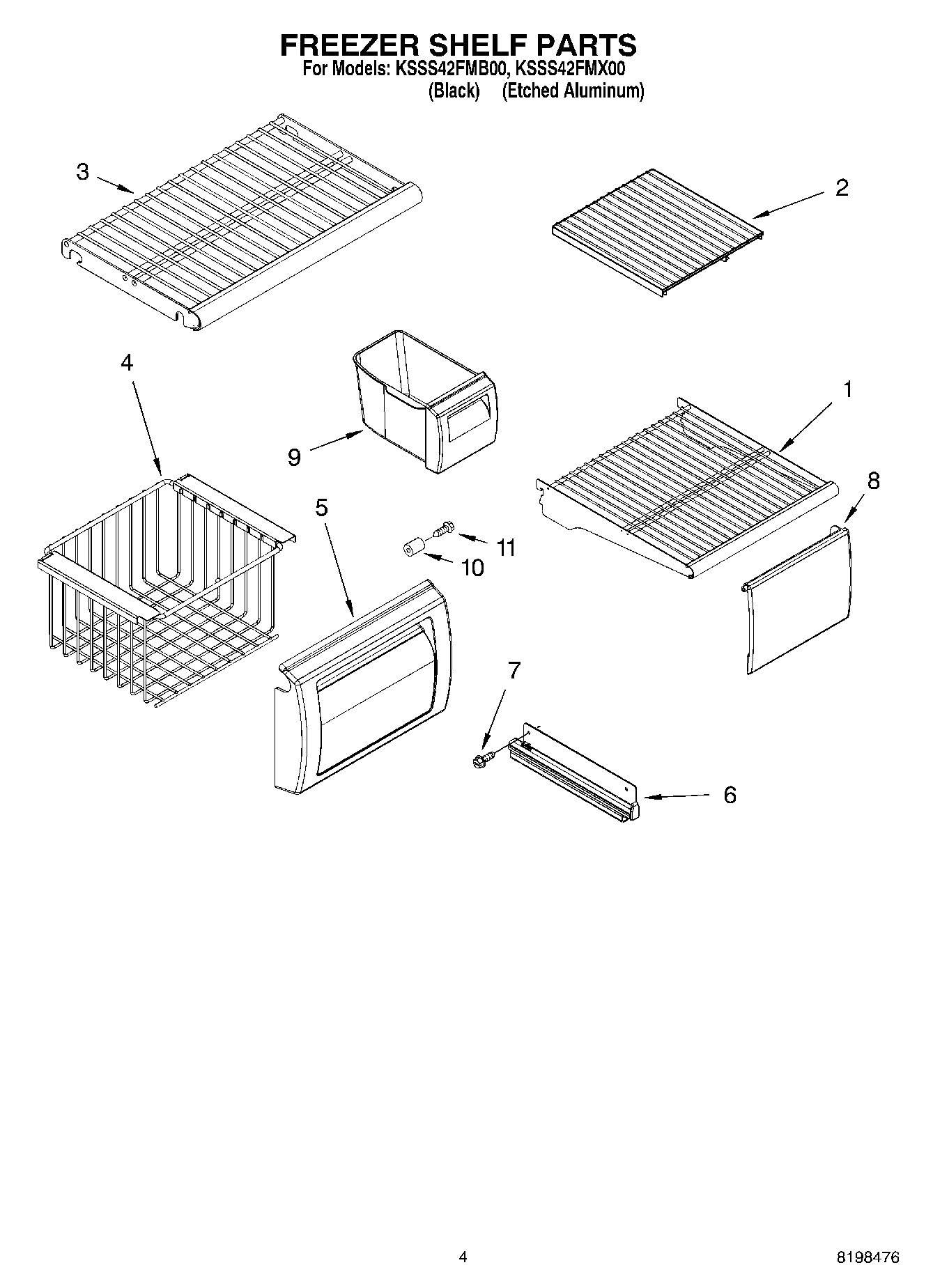

Model Whirlpool KSSS42FMB00 42`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

1

Fan Motor WPL 2259385 Contact Us For Availability

1

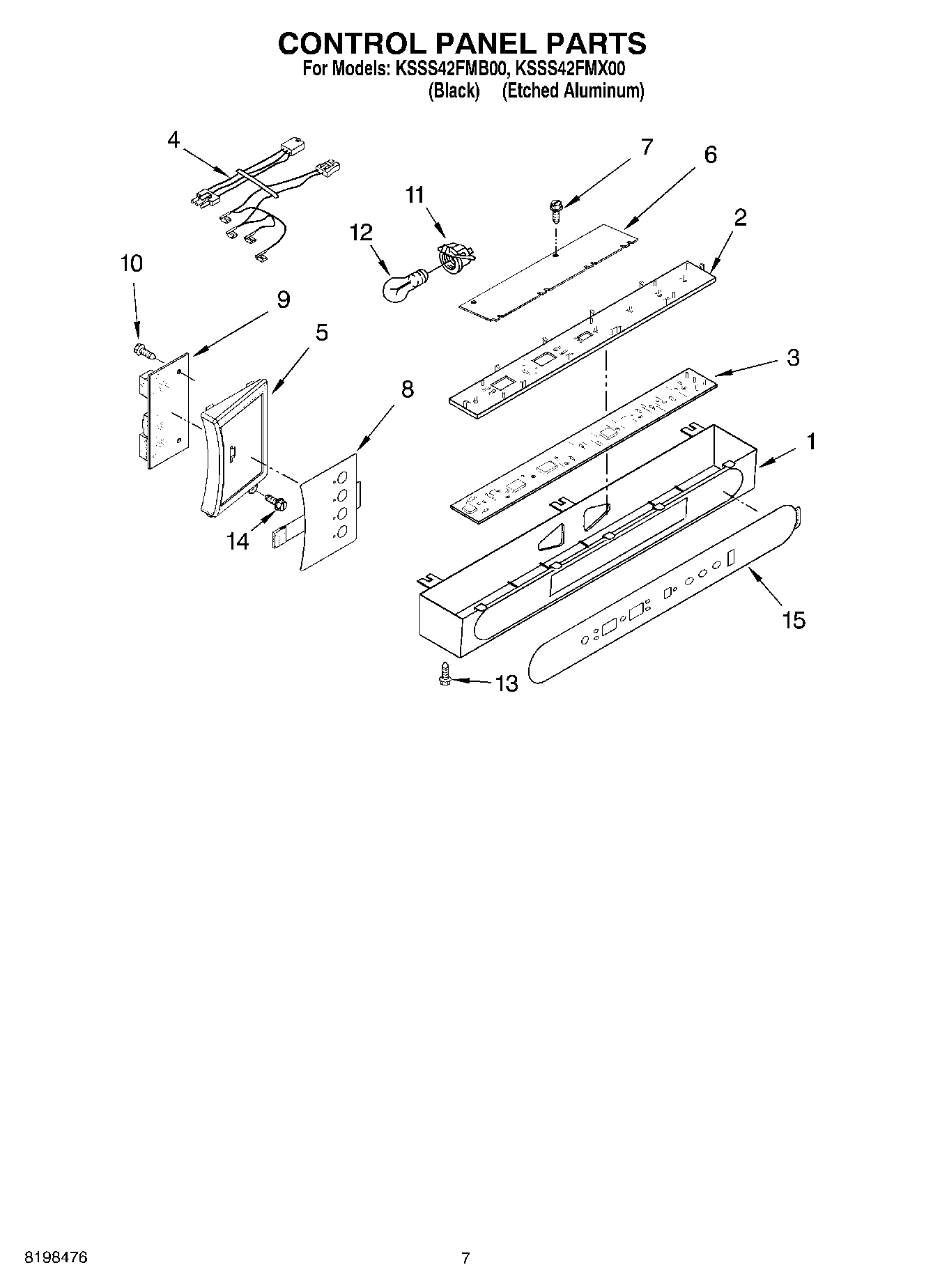

Control Box WPL 2215716 Contact Us For Availability

1

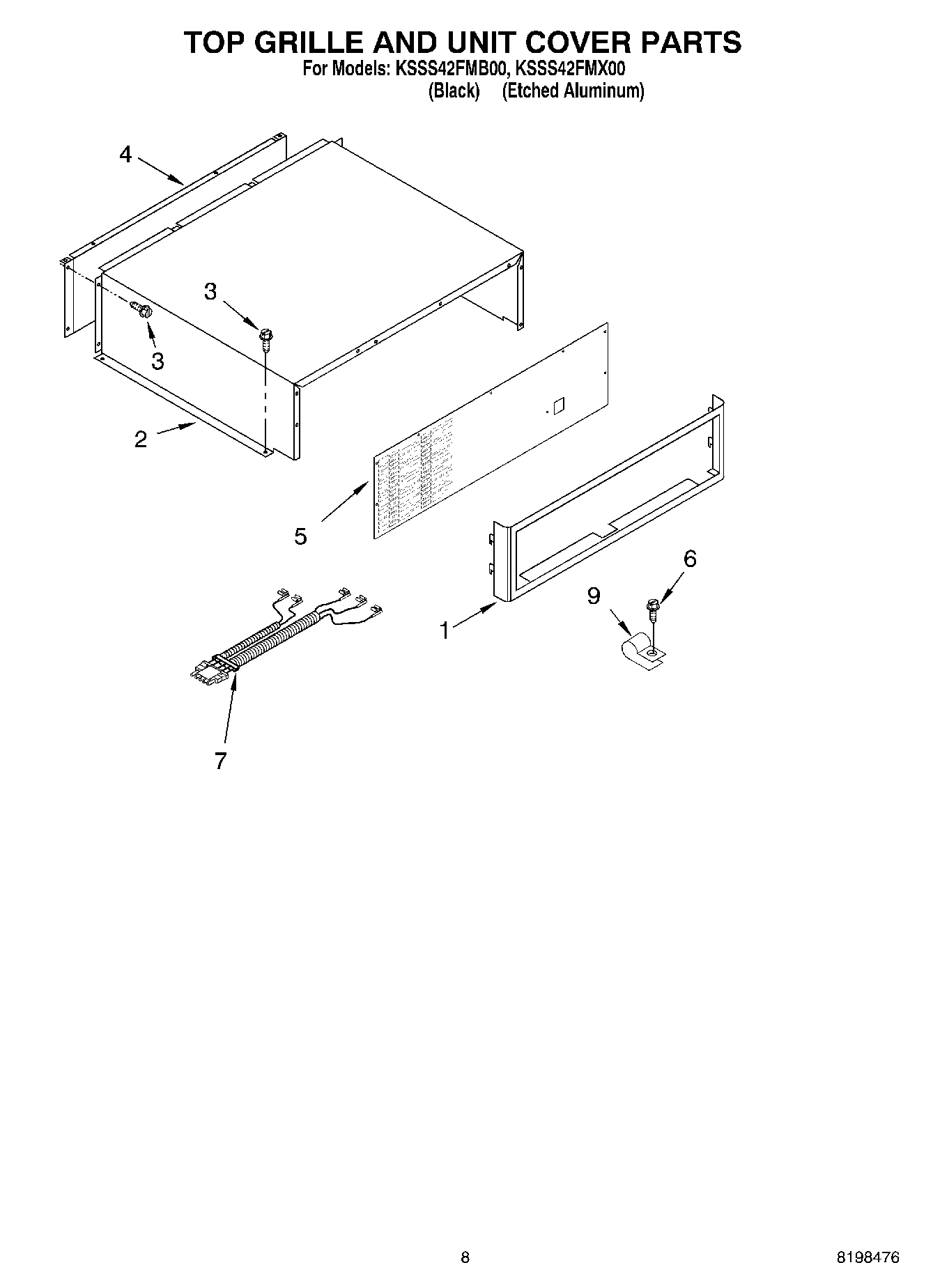

Top Grille Assembly (Black) WPL 2257402B Contact Us For Availability

1

Top Grille Assembly (Etched Aluminum) WPL 2257402X Contact Us For Availability

1

Cabinet, Trim (Right Side) (Black) WPL 2222552B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Etched Aluminum) WPL 2222552X Contact Us For Availability

1

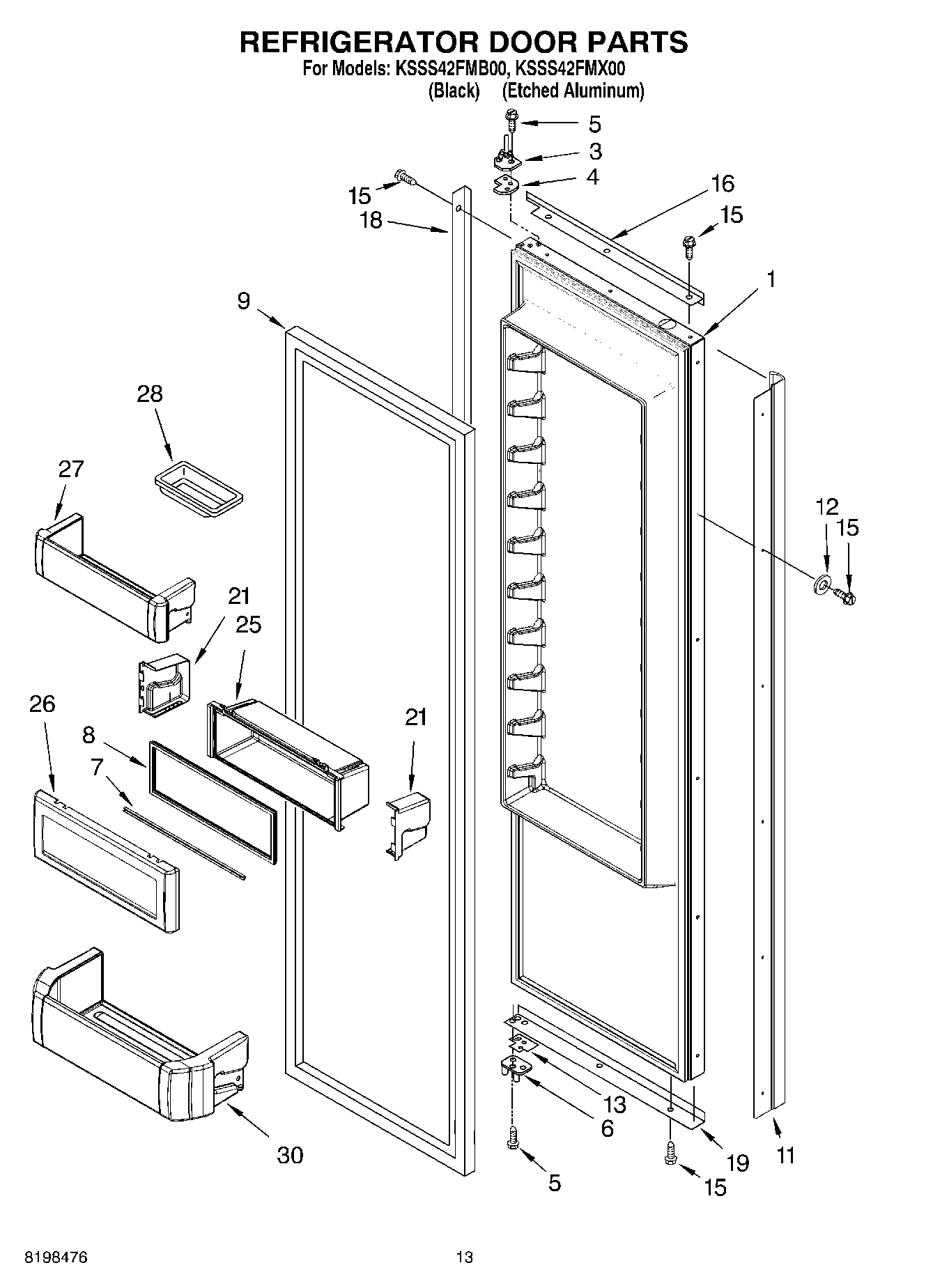

Refrigerator Door Panel (Includes Item 9) WPL 2252330 Contact Us For Availability

2

Deflector, Air WPL 2266801 Contact Us For Availability

2

Insert, Control Box WPL 2215670 Contact Us For Availability

2

Cover, Unit WPL 2259320 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $335.53

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

Circuit Board, Housing Control WPL 2252110 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

W11318848 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318848 $97.74

4

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

4

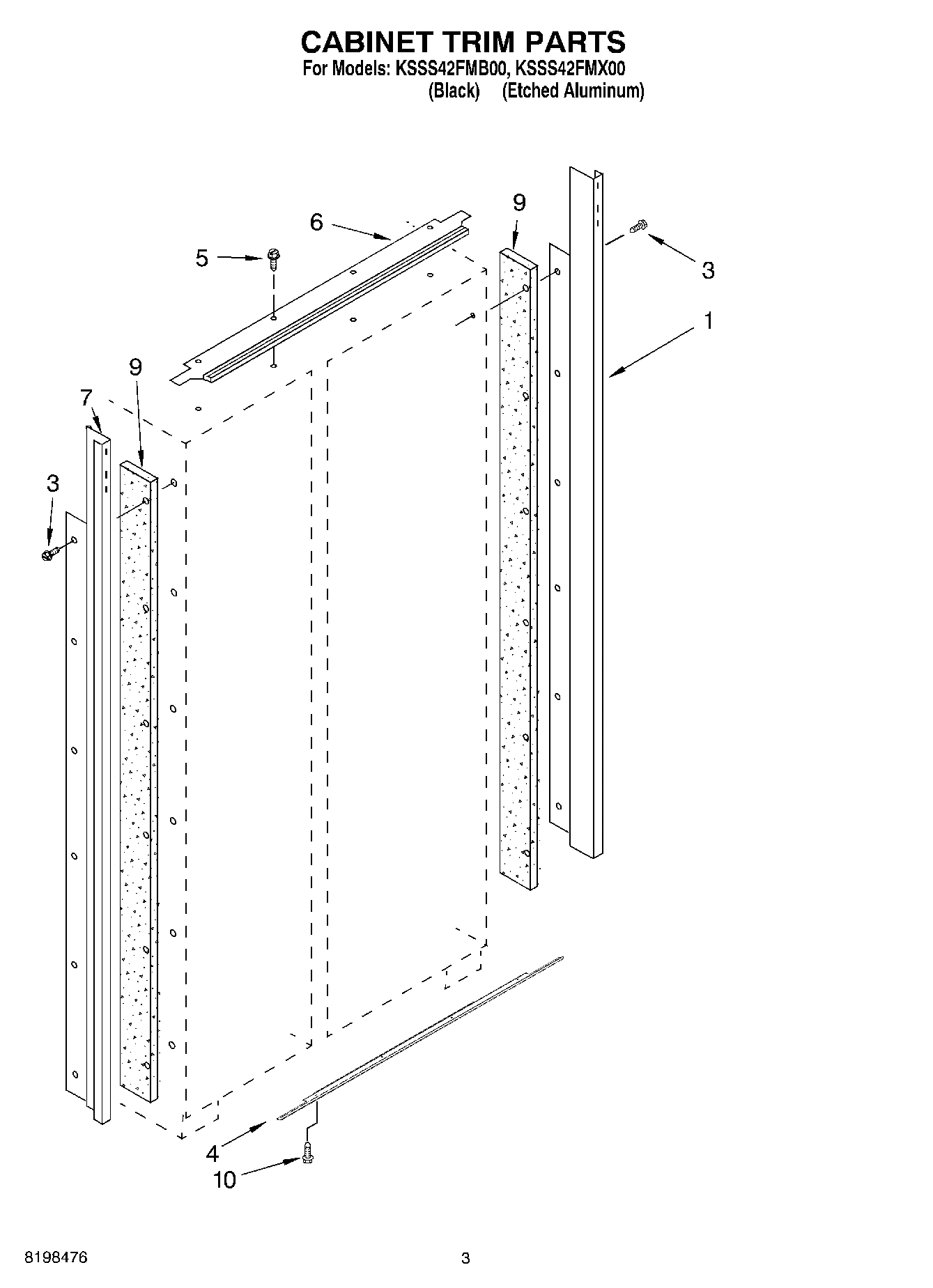

Cabinet, Trim (Bottom) WPL 2254725 Contact Us For Availability

5

W10839856 Whirlpool Refrigerator Front Drawer Backorder WPL W10839856 $70.77

5

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Side Support WPL 2259244 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

5

Panel Control, Meat Pan WPL 2258914 Contact Us For Availability

5

Cover-Unit, Front WPL 2259095 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $23.48

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Support, Control Box WPL 2221121 Contact Us For Availability

6

Cabinet, Trim Top WPL 2257367 Contact Us For Availability

7

W10624429 Whirlpool Refrigerator Tube Backorder WPL W10624429 $46.74

7

W11448696 Whirlpool Refrigerator Bin Backorder WPL W11448696 $95.66

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

7

Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability

7

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

7

Cabinet Trim (Left Side) (Black) WPL 2222553B Contact Us For Availability

7

Cabinet Trim (Left Side) (Etched Aluminum) WPL 2222553X Contact Us For Availability

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $117.46

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

8

Gasket, Utility Bin WPL 2222982 Contact Us For Availability

8

Bracket, Switch WPL 2259096 Contact Us For Availability

8

Touch Pad, Meat Pan WPL 2252067 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

2266931 Whirlpool Refrigerator Container Backorder WPL 2266931 $104.40

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

WP2266902 Whirlpool Refrigerator Door Gasket In Stock WPL WP2266902 $215.02

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

Spacer-Door, Top WPL 2256381 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Heater, Drain Pan WPL 2259329 Contact Us For Availability

2266955 Whirlpool Spacer Backorder WPL 2266955 $8.00

Hanger, Heater WPL 2209450 Contact Us For Availability

Shroud, Condenser (Left) WPL 2259369 Contact Us For Availability

Clip, Retainer WPL 2302712 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

W10823805-includeCORE Whirlpool W10823805 Ref Backorder WPL W10823805-includeCORE $326.94

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Cam, Door Closer WPL 2005783 Contact Us For Availability

Trim, Glass Rear Side WPL 2257611 Contact Us For Availability

Clamp, Nylon WPL 488937 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

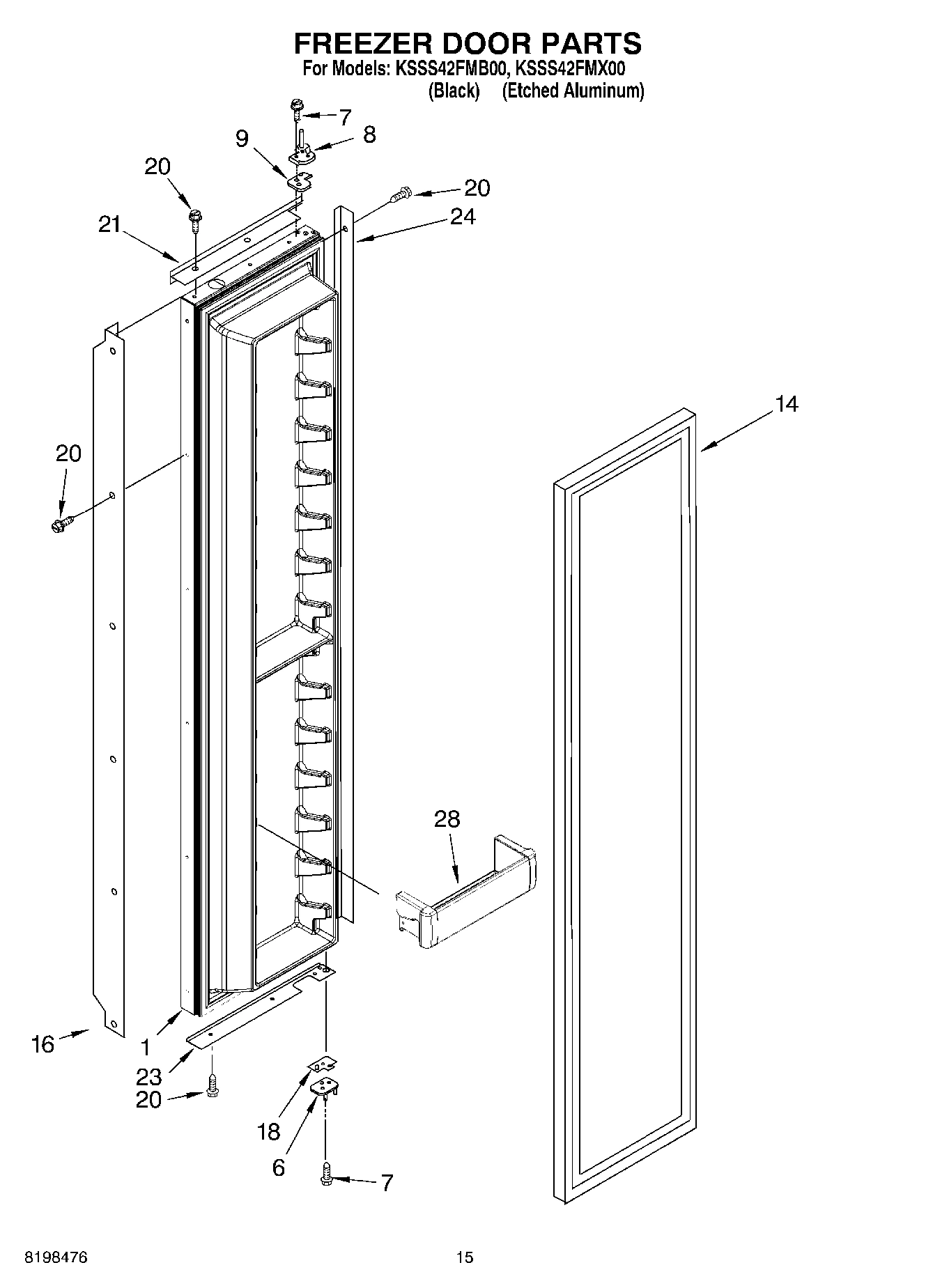

Handle, Door (Etched Aluminum) WPL 2256473 Contact Us For Availability

Handle, Door (Black) WPL 2256473B Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $96.31

Washer WPL 2001230 Contact Us For Availability

13

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $29.61

13

Seal-Light, Socket WPL 2302777 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

WP2266905 Whirlpool Refrigerator Door Gasket In Stock WPL WP2266905 $214.56

Screw WPL 3400525 Contact Us For Availability

2259465 Whirlpool Refrigerator Wedge Backorder WPL 2259465 $36.07

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Clip, Thermistor WPL 2257639 Contact Us For Availability

OVERLAY WPL 2257519 Contact Us For Availability

WP2306093 Whirlpool Evaporator In Stock WPL WP2306093 $237.23

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

CONDENSER WPL 2259307 Contact Us For Availability

Handle, Door (Etched Aluminum) WPL 2256472 Contact Us For Availability

Handle, Door (Black) WPL 2256472B Contact Us For Availability

Trim (Top) (Etched Aluminum) WPL 2005011 Contact Us For Availability

Trim (Top) (Black) WPL 2005840 Contact Us For Availability

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2006750 Whirlpool Refrigerator Heater In Stock WPL WP2006750 $51.54

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

Air Duct WPL 2259019 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

Door, Spacer WPL 2257637 Contact Us For Availability

Wire, Jumper WPL 2187679 Contact Us For Availability

Trim, Side (Etched Aluminum) WPL 2005967 Contact Us For Availability

Trim, Side (Black) WPL 2005971 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $83.71

Screw WPL 487522 Contact Us For Availability

Trim (Bottom) (Etched Aluminum) WPL 2215994 Contact Us For Availability

Trim (Bottom) (Black) WPL 2215994B Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Gasket, Evaporator WPL 2220832 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $3.70

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $3.70

Liner (Not A Serviceable Part) WPL ARI107211A Contact Us For Availability

Trim (Top) (Etched Aluminum) WPL 2005020 Contact Us For Availability

Trim (Top) (Black) WPL 2005886 Contact Us For Availability

22

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $30.25

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

22

Bushing WPL 2002903 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $137.10

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Trim (Bottom) (Etched Aluminum) WPL 2215985 Contact Us For Availability

Trim (Bottom) (Black) WPL 2215985B Contact Us For Availability

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $31.04

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $32.39

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Light Shield WPL 2259367 Contact Us For Availability

Trim (Side) (Etched Aluminum) WPL 2005962 Contact Us For Availability

Trim (Side) (Black) WPL 2005966 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $32.19

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

W10323042 Whirlpool Cantilever Bin Backorder WPL W10323042 $87.01

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $93.40

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Cover, Evaporator WPL 2221105 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

W11553221 Whirlpool Refrigerator Door Compres Backorder WPL W11553221 $37.37

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Tube, Drier Transition WPL 2259302 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

W10323599 Whirlpool Refrigerator Cantilever B Backorder WPL W10323599 $59.28

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10323602 Whirlpool Refrigerator Cantilever B Backorder WPL W10323602 $54.70

Tube, Heat Loop Transition WPL 2259340 Contact Us For Availability

F.C. (6) WPL ARI107212A Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

Deflector, Air Duct WPL 2259055 Contact Us For Availability

30

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

30

W10323747 Whirlpool Refrigerator Cantilever B Backorder WPL W10323747 $60.98

30

Housing, Power Supply WPL 2259349 Contact Us For Availability

31

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

31

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

31

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $70.57

32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

32

Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

2259355 Whirlpool Refrigerator Evaporator Rai Backorder WPL 2259355 $47.78

33

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

33

Cover, Electrical WPL 2259463 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

35

Screw WPL 2005921 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

36

Cover, Fan WPL 2209495 Contact Us For Availability

37

Harness, Evap Fan WPL 2187520 Contact Us For Availability

37

Cover, Condenser WPL 2259092 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

38

Grommet, Flexible WPL 2266857 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $4.59

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

39

Service Cord WPL 2259197 Contact Us For Availability

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

43

Gasket, Air Duct WPL 2259058 Contact Us For Availability

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

44

Bracket, Light WPL 2257571 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187625 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI107213A Contact Us For Availability

and Optional Parts Not Included WPL ARI107214A Contact Us For Availability

REFRIGERANT CHARGE 7.50 oz. (R-134A) WPL ARI107215A Contact Us For Availability

46

WP2259032 Whirlpool Ladder Backorder WPL WP2259032 $27.52

47

2259445 Whirlpool Support Assembly Backorder WPL 2259445 $27.52

49

THERMISTOR WPL 2266949 Contact Us For Availability

55

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
