Model Whirlpool KSSS42DWX02 BUILT IN REFRIGERATOR – Common Parts & Diagrams
13 - DISPENSER AND FRONT
15 - LOWER UNIT AND TUBE

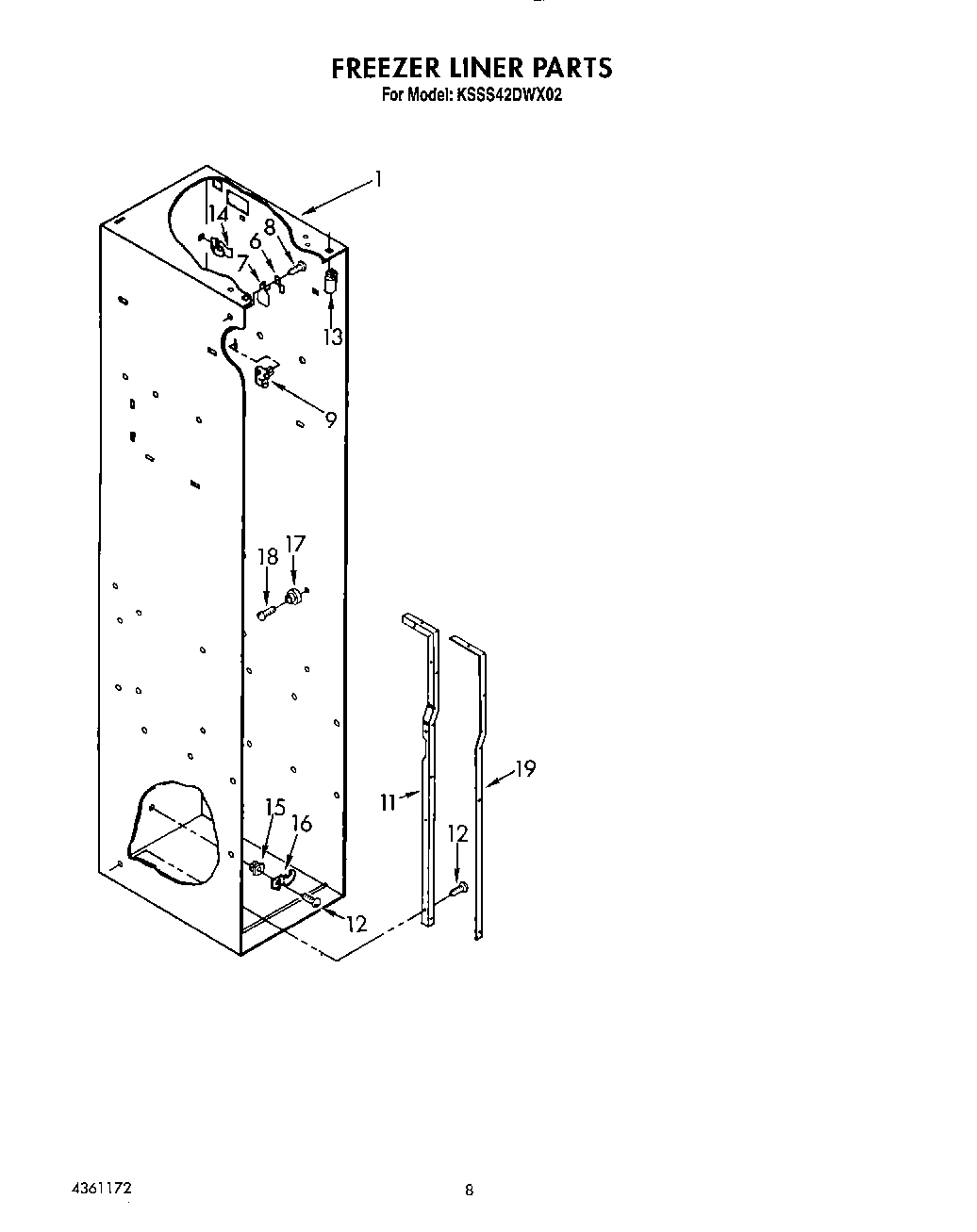

05 - FREEZER LINER

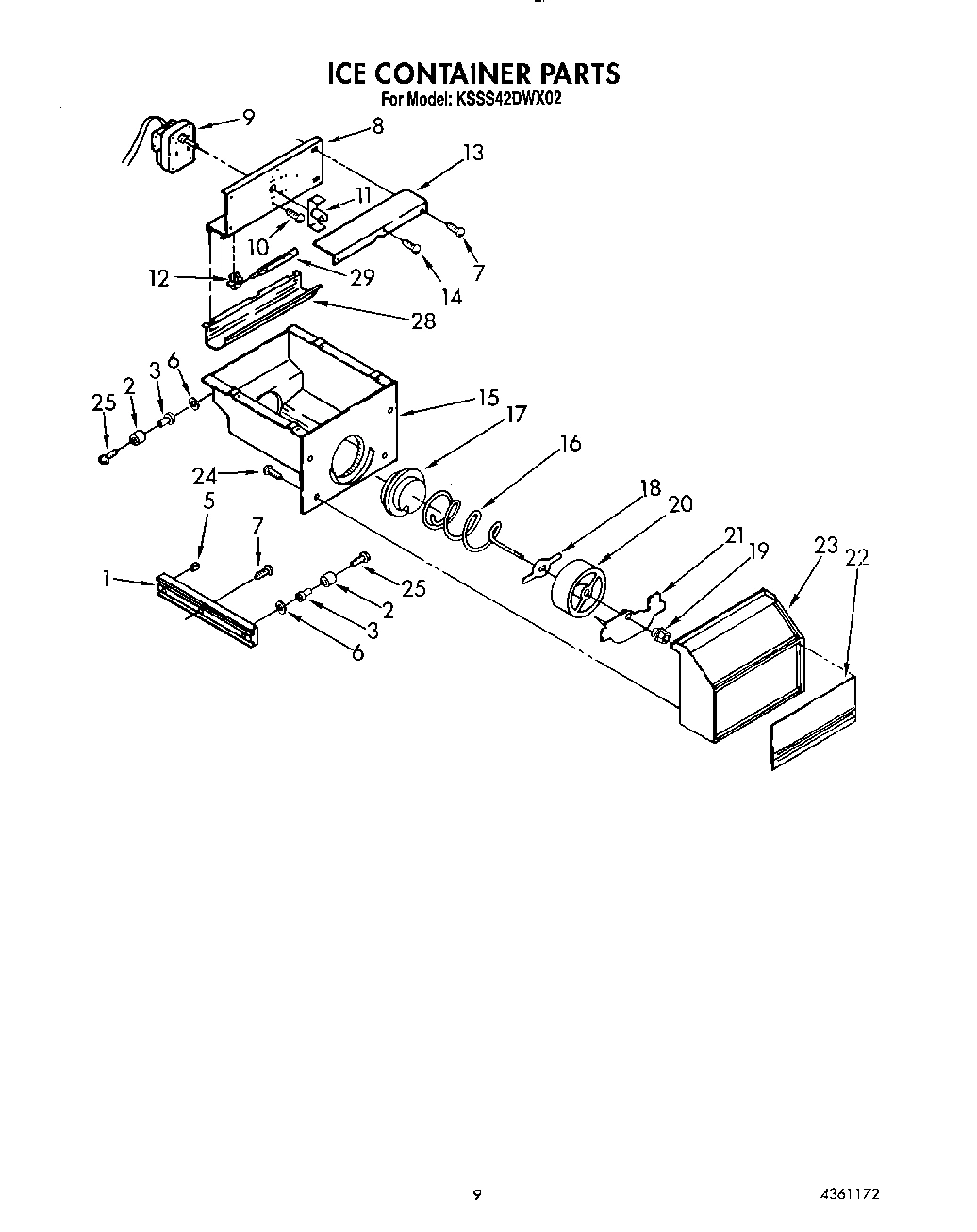

06 - ICE CONTAINER

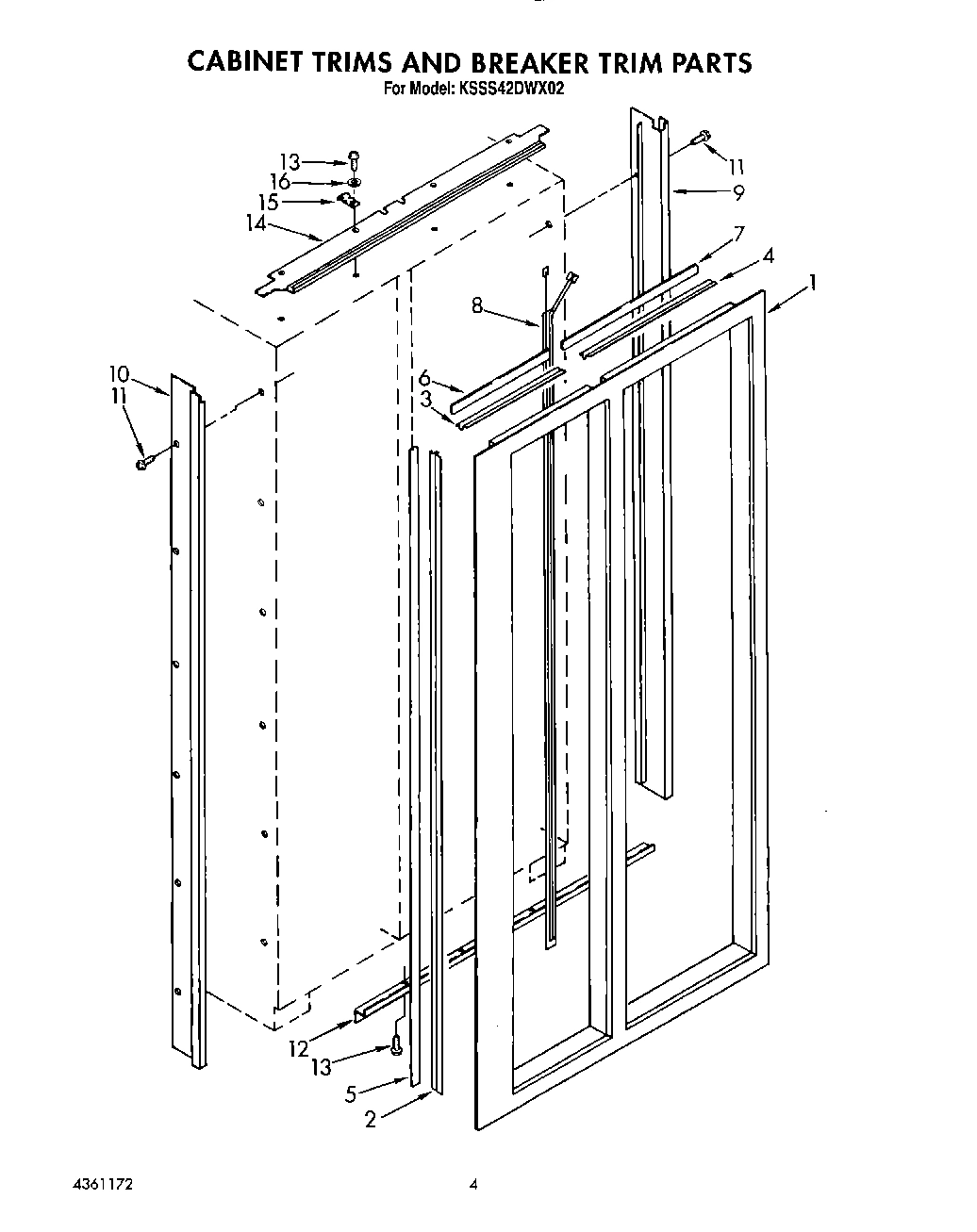

03 - CABINET TRIMS AND BREAKER TRIM

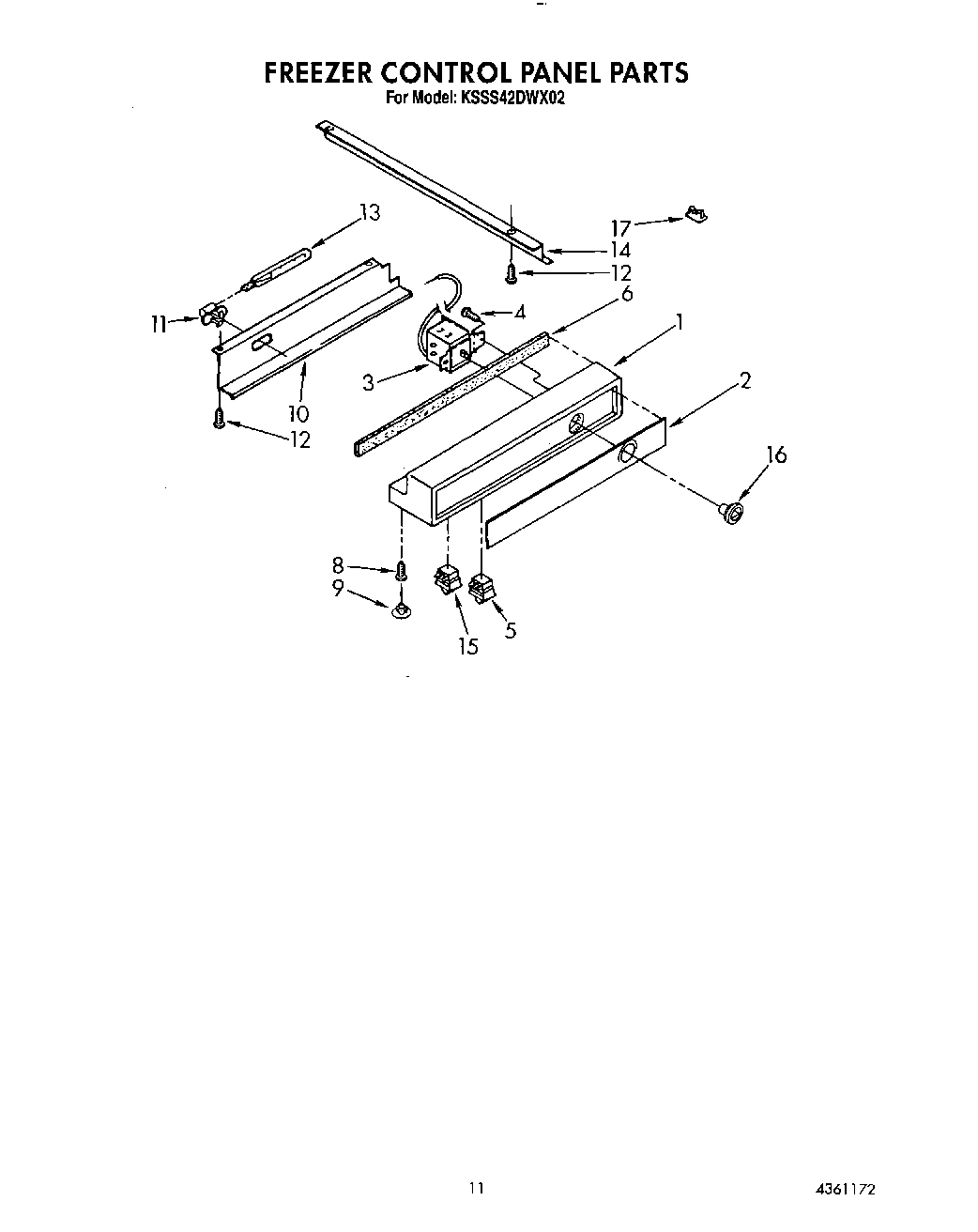

08 - FREEZER CONTROL PANEL

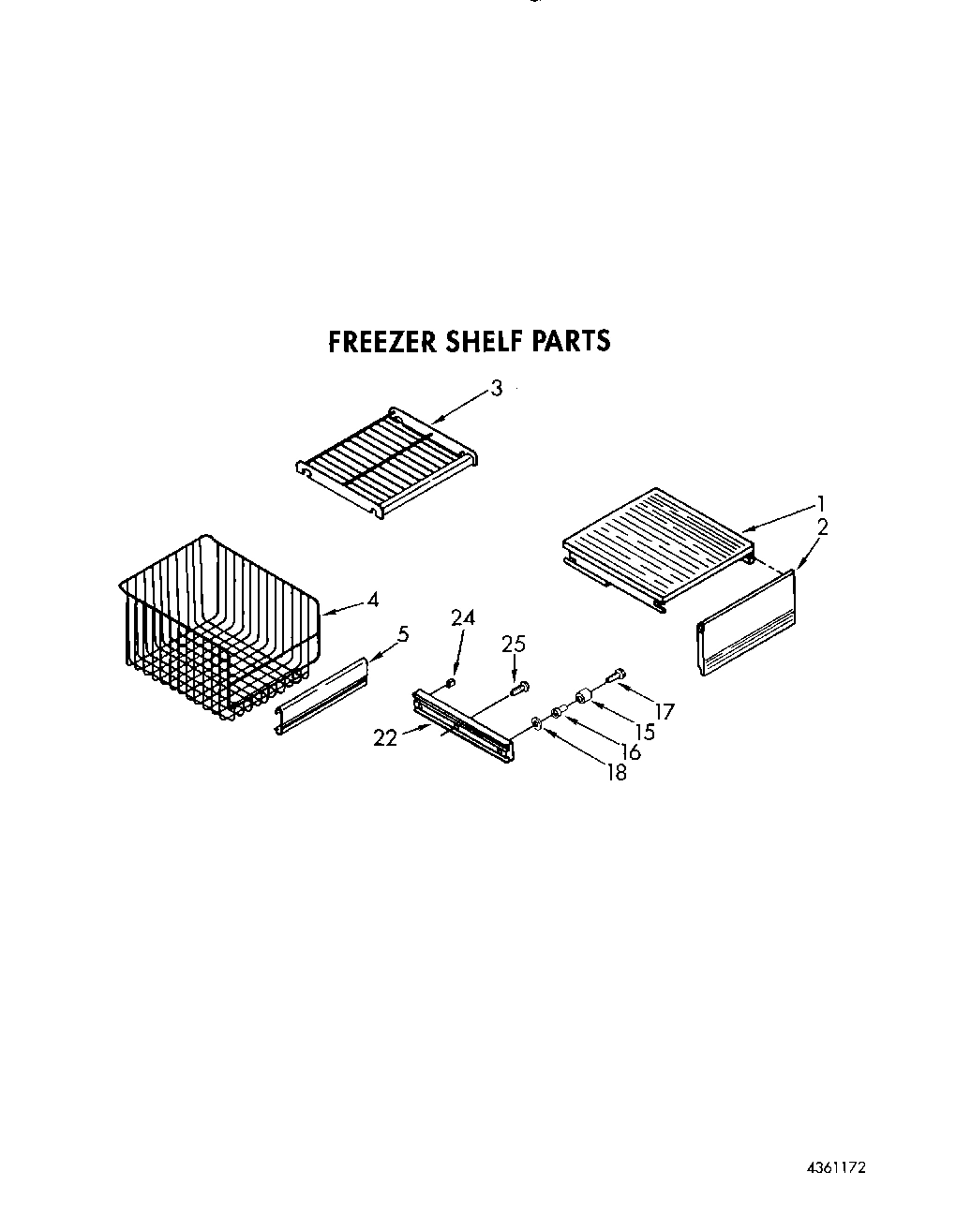

10 - FREEZER SHELF

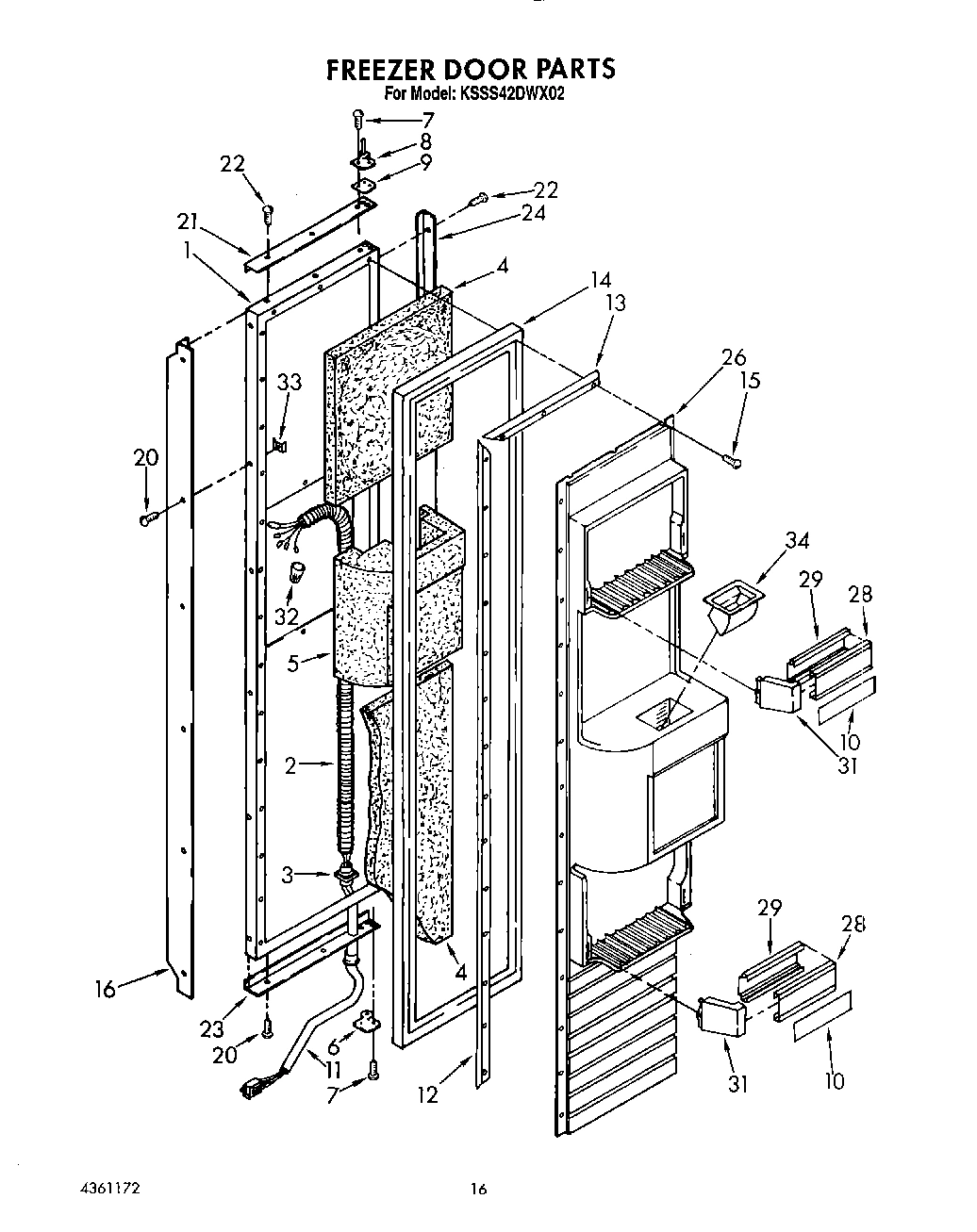

12 - FREEZER DOOR

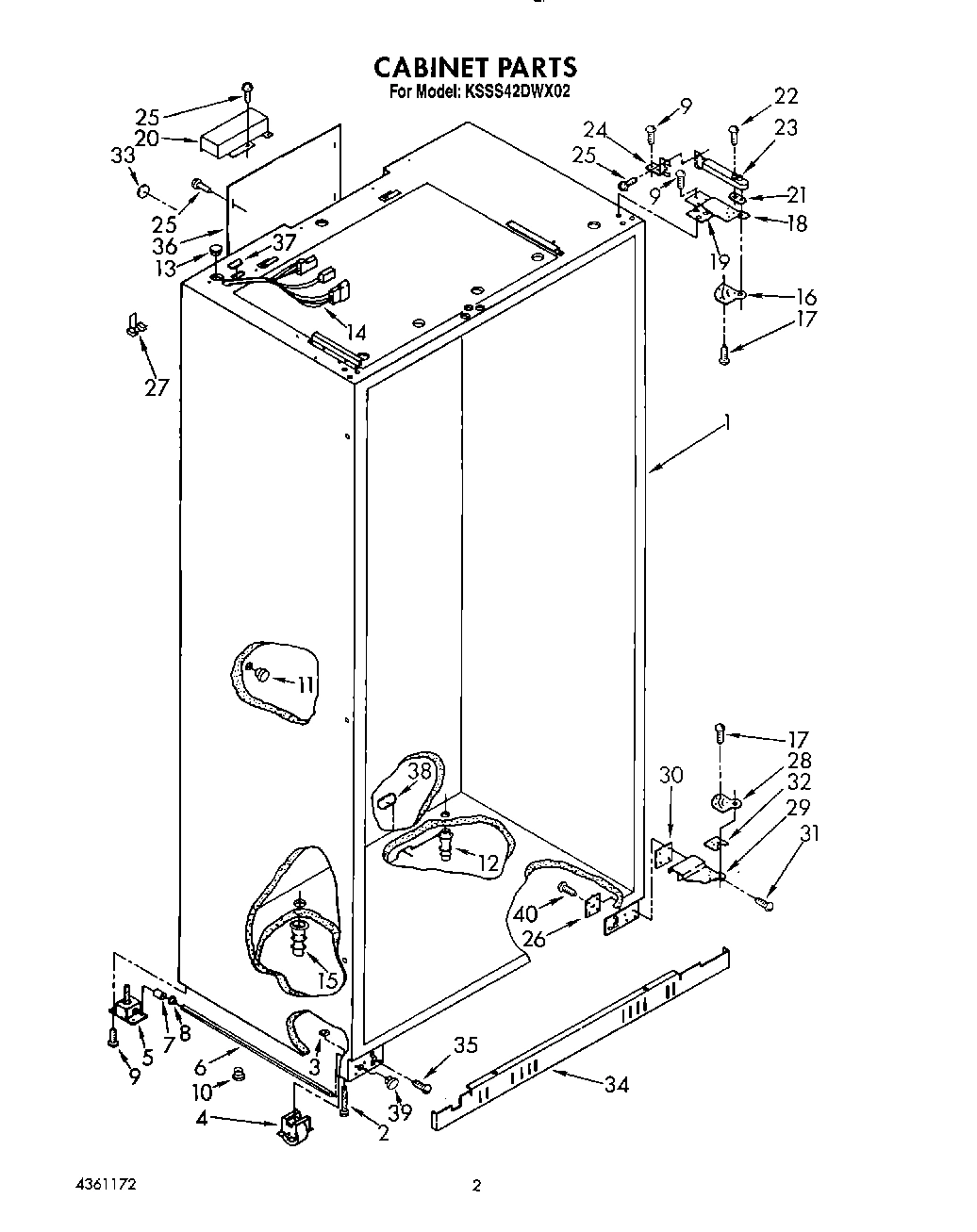

02 - CABINET

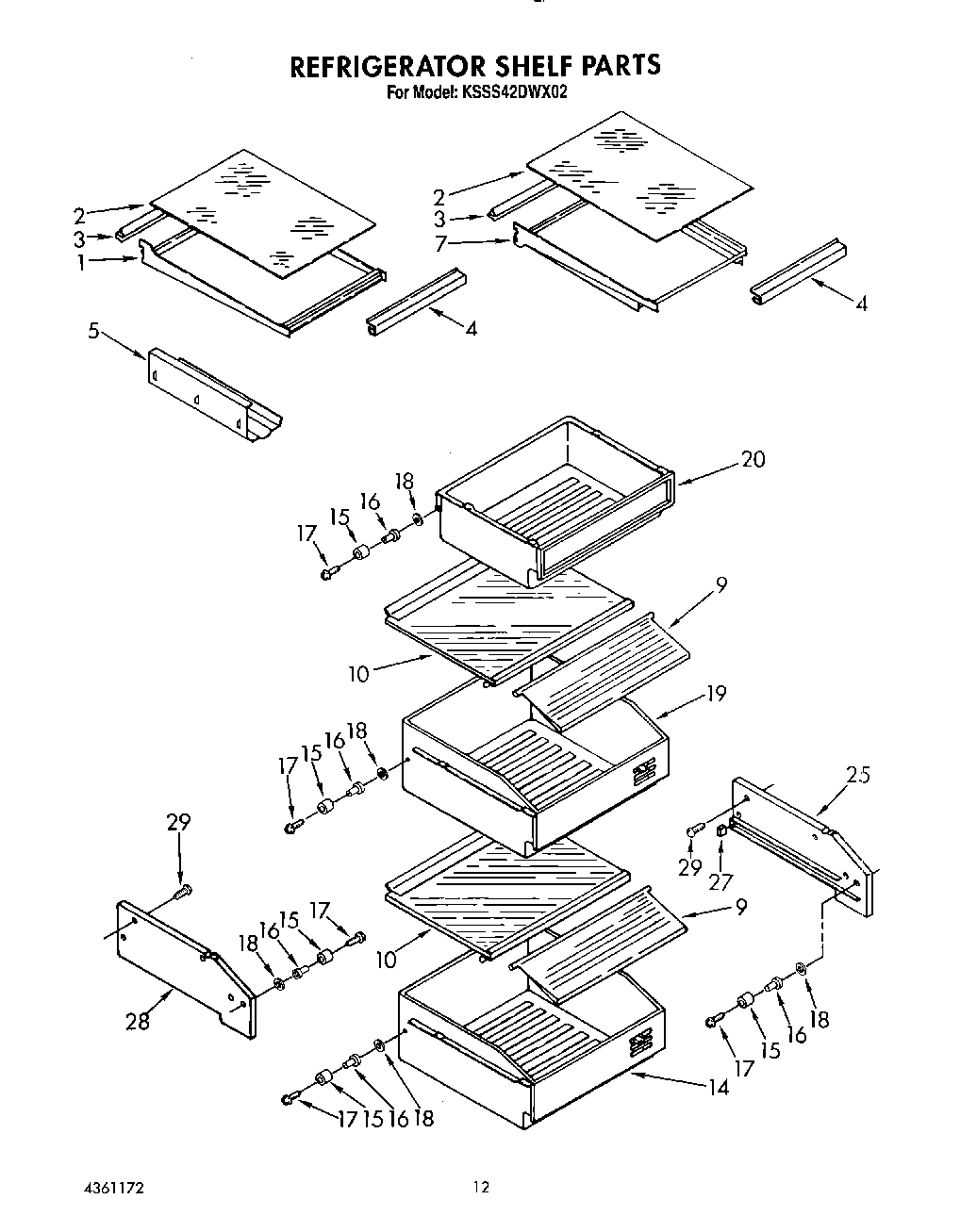

09 - REFRIGERATOR SHELF

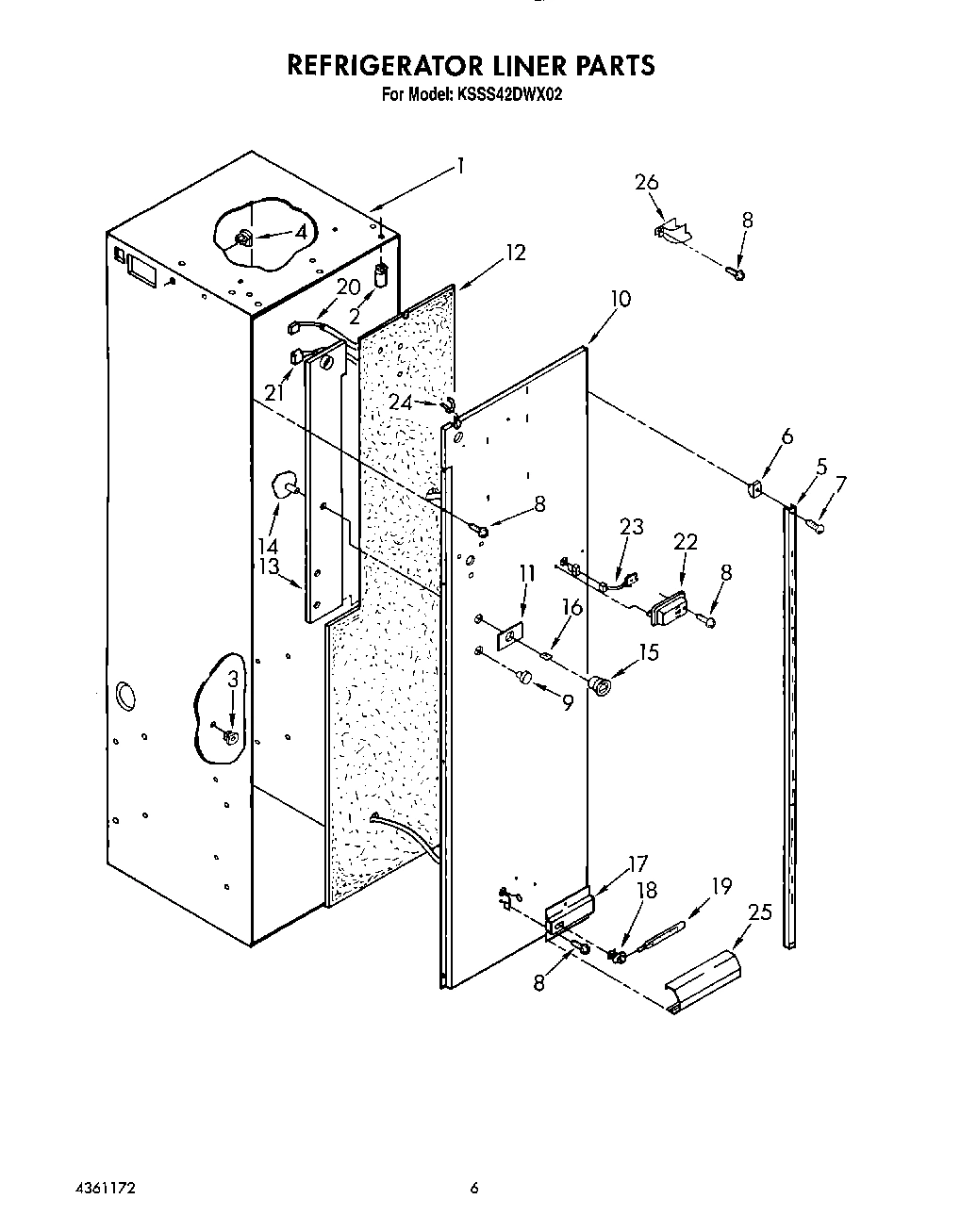

04 - REFRIGERATOR LINER

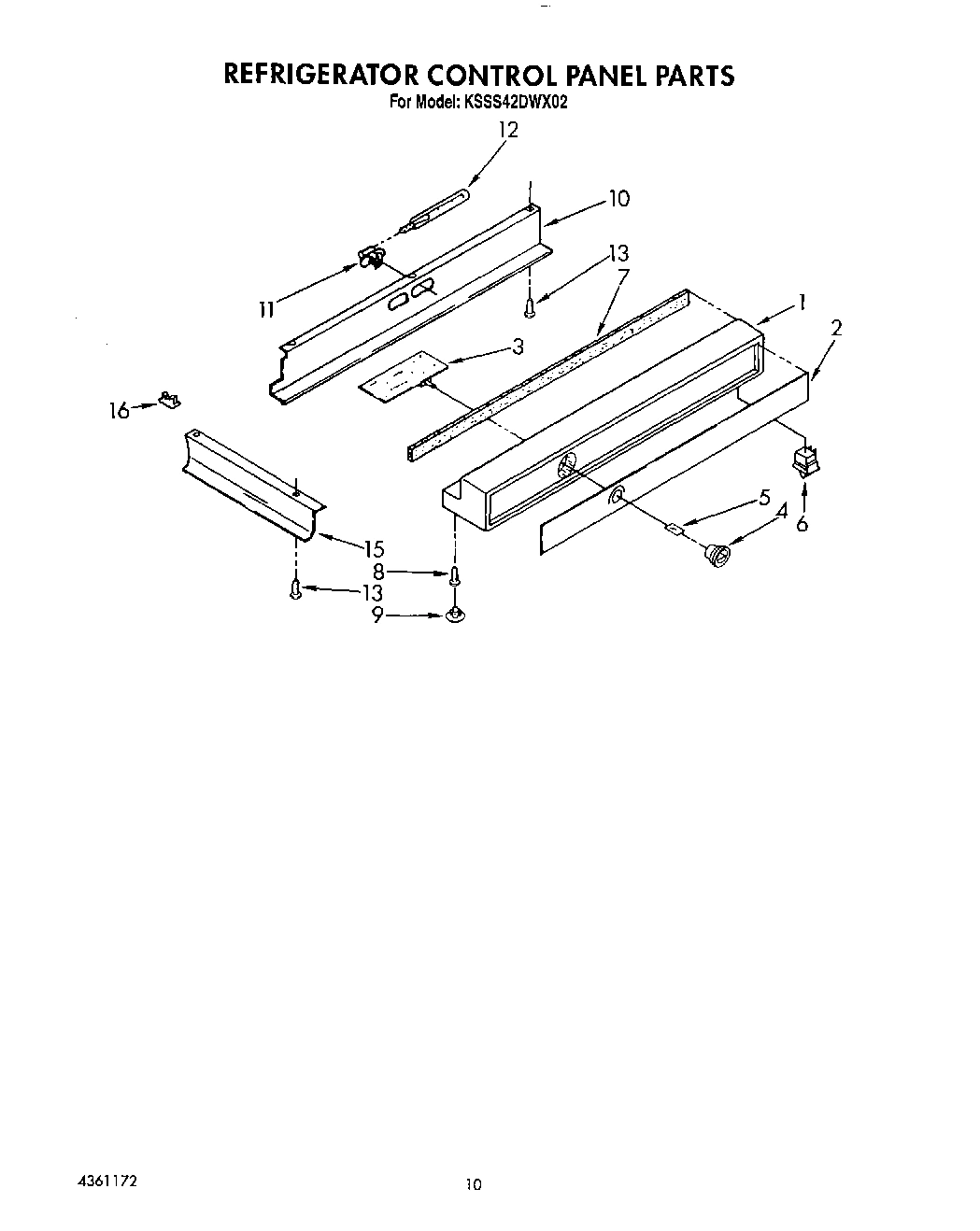

07 - REFRIGERATOR CONTROL PANEL

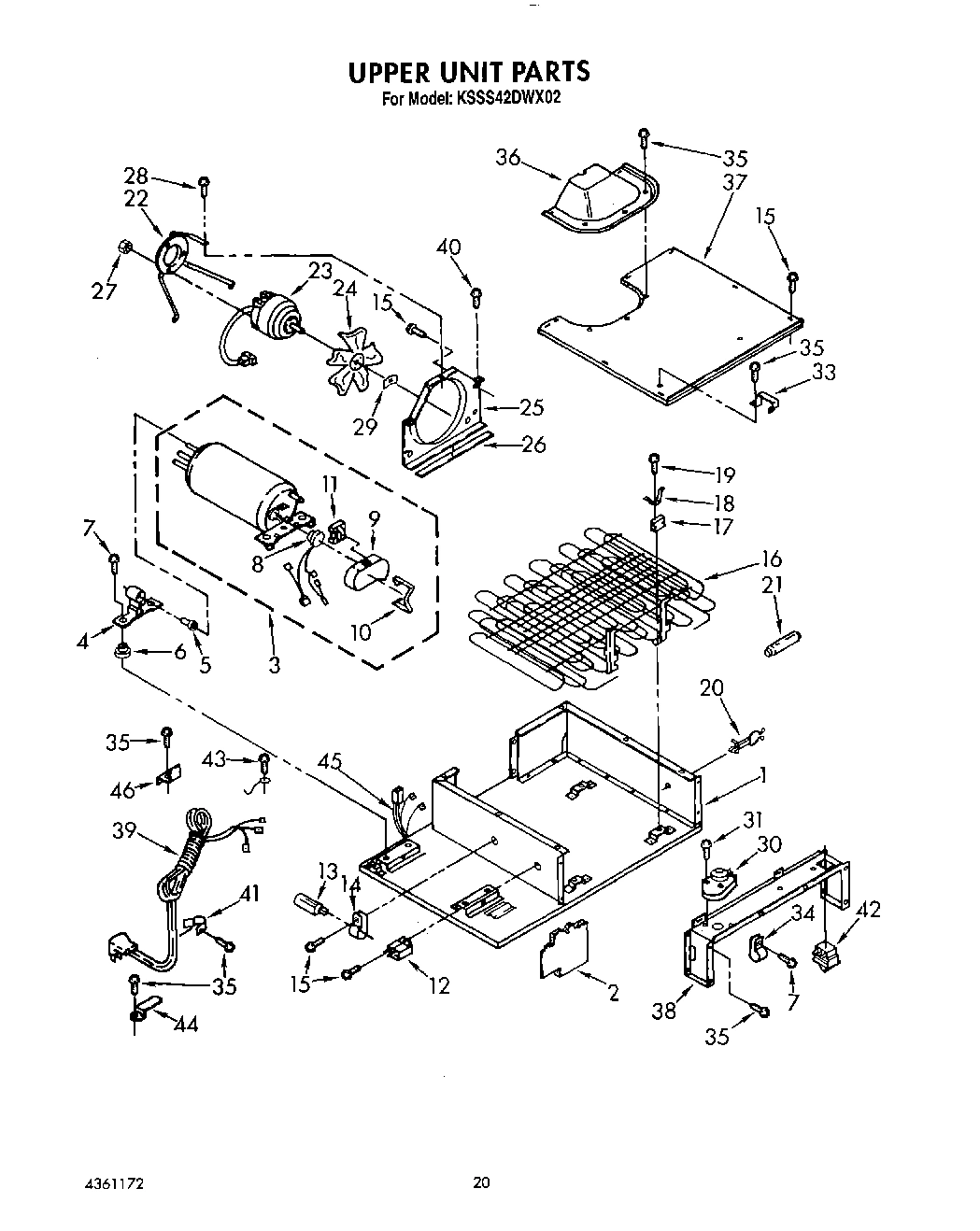

14 - UPPER UNIT, LIT/OPTIONAL

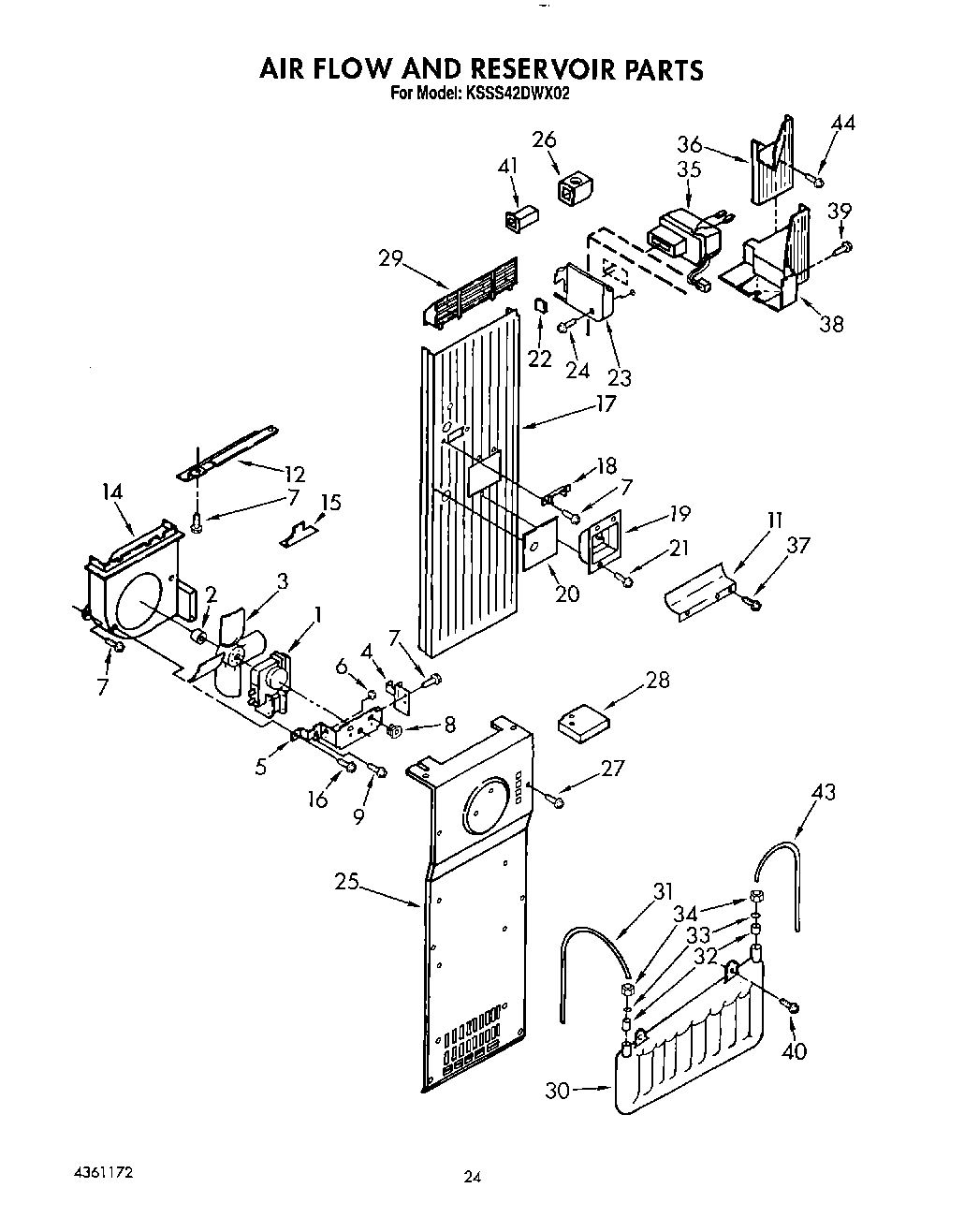

16 - AIR FLOW AND RESERVOIR

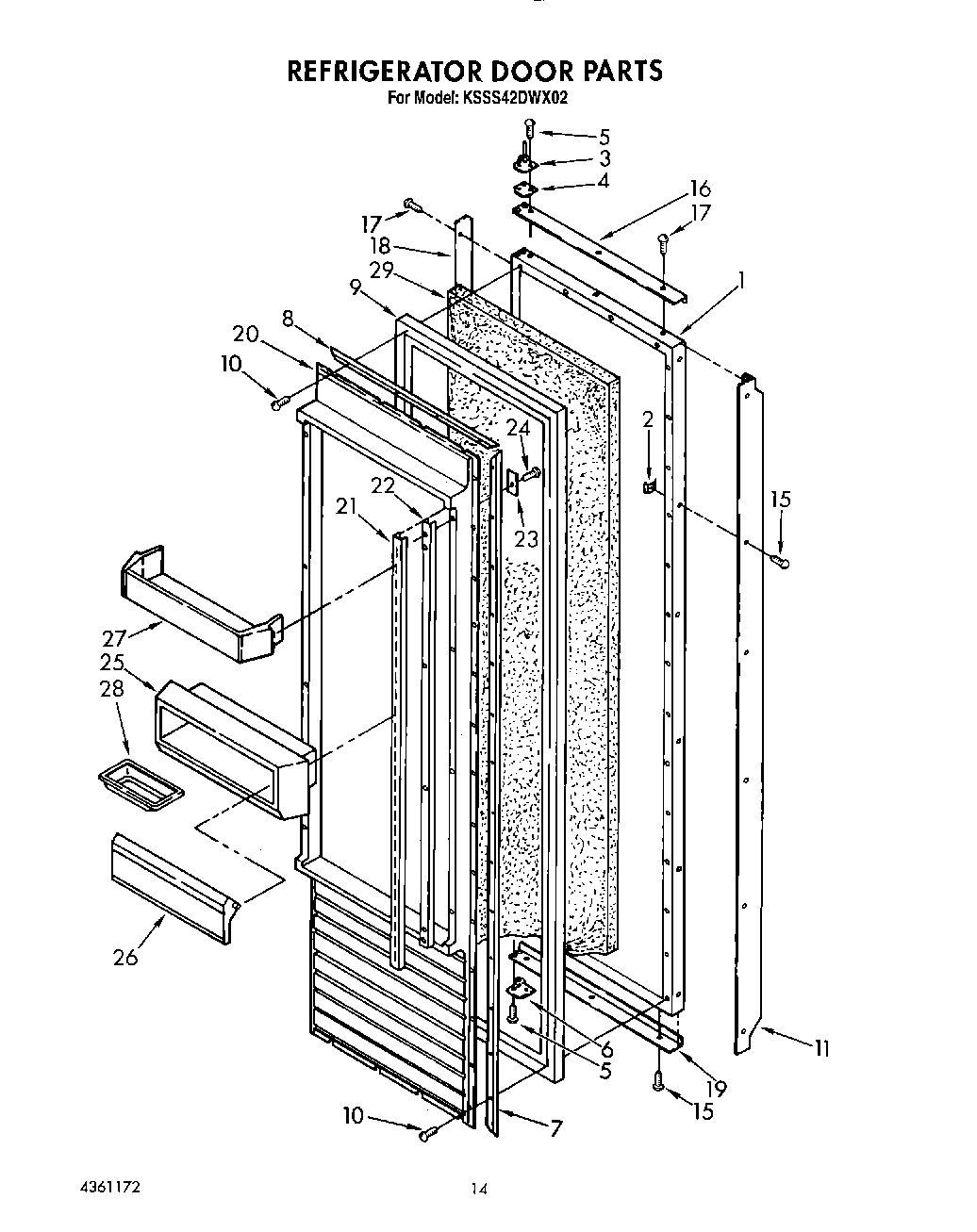

11 - REFRIGERATOR DOOR

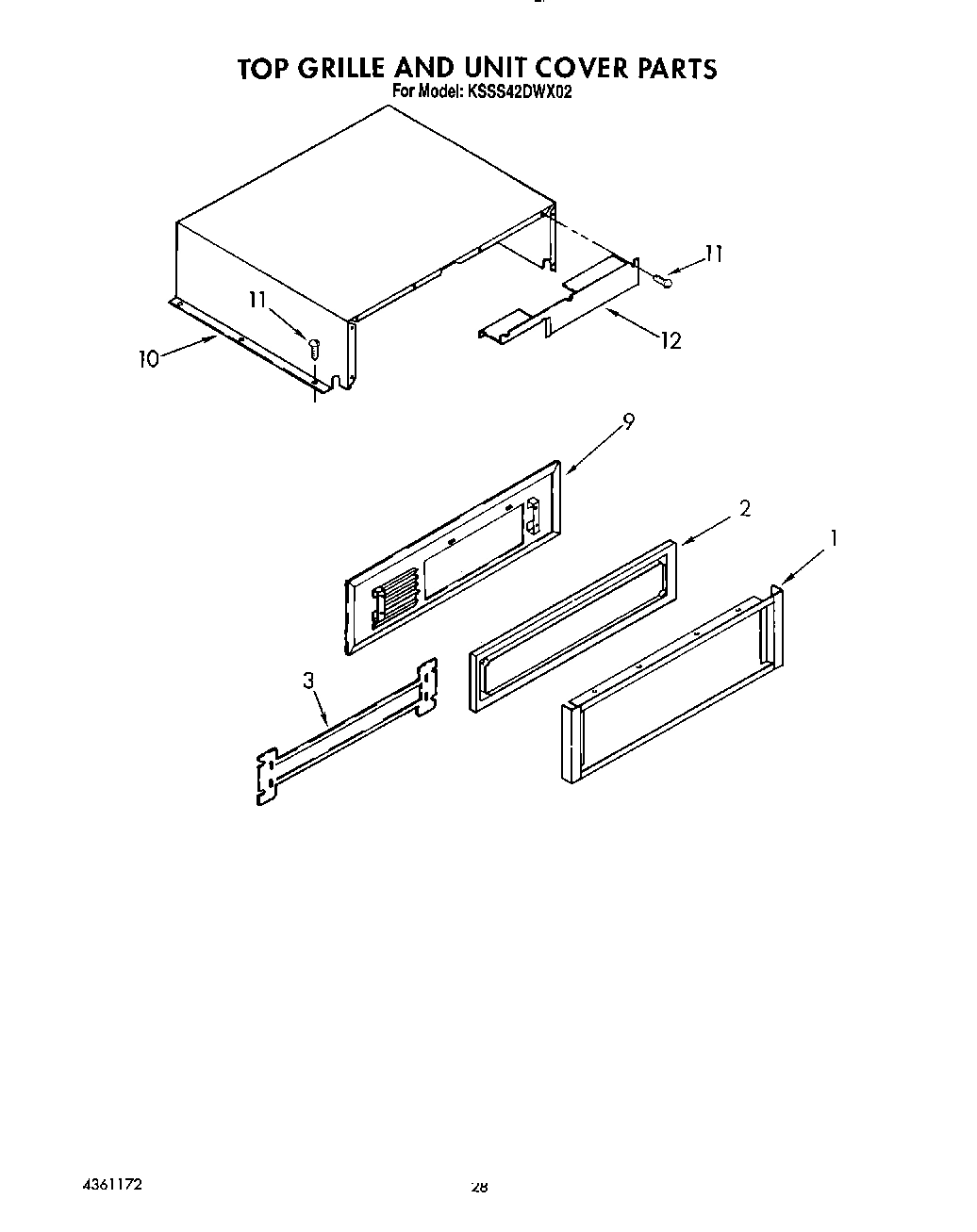

18 - TOP GRILLE AND UNIT COVER

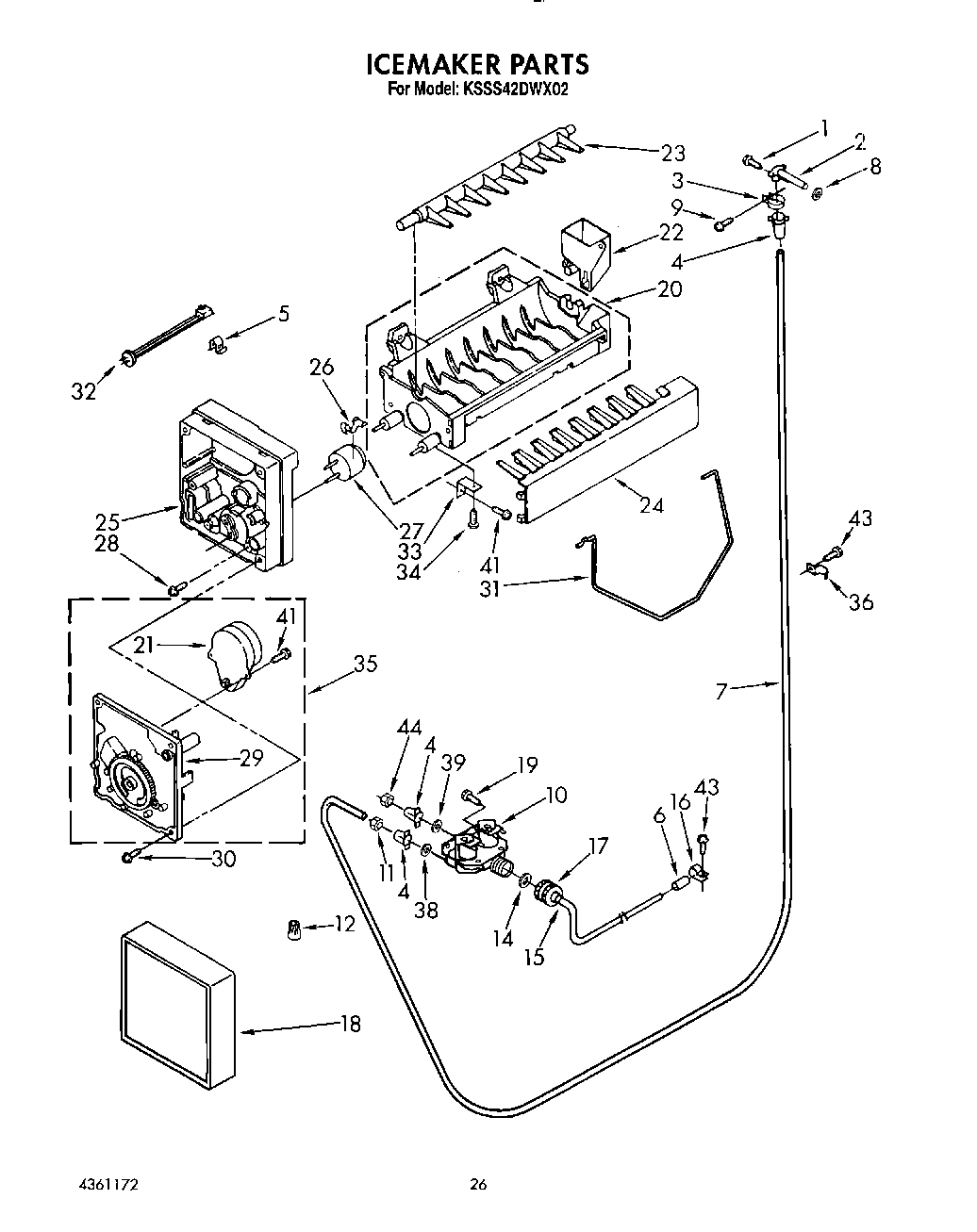

17 - ICEMAKER
Common parts from model Whirlpool KSSS42DWX02 BUILT IN REFRIGERATOR
WPL LIT1113982 WPL LIT1113982 Contact Us For Availability
WPL LIT2000144 WPL LIT2000144 Contact Us For Availability
WPL LIT2000492 WPL LIT2000492 Contact Us For Availability
WPL LIT2000936 WPL LIT2000936 Contact Us For Availability
WPL LIT4361172 WPL LIT4361172 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107140A Contact Us For Availability
1
Spacer, Track (Right Side) WPL 1112281 Contact Us For Availability
1
Spacer, Track (Left Side) WPL 1112282 Contact Us For Availability
1
Breaker Trim, One Piece WPL 1112676 Contact Us For Availability
1
Control Panel WPL 1112596 Contact Us For Availability
1
Solid Shelf WPL 1112366 Contact Us For Availability
1
Exterior Door Panel, Freezer (Also Order Item WPL 2000599 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107138A Contact Us For Availability
1
Frame, Shelf WPL 1113543 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107139A Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Assembly, Unit Base WPL 1113005 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000573 Contact Us For Availability
1
Grille, Frame Assembly WPL 1113867 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Retainer, Side (4) WPL 1113277 Contact Us For Availability
2
Inlay, Control Panel WPL 1113964 Contact Us For Availability
2
Front, Ice Compartment WPL 2000886 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Glass, Shelf WPL 1112318 Contact Us For Availability
2
Inlay, Control Panel WPL 2000975 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
2
Ring, Compression WPL 992953 Contact Us For Availability
2
Decorative Panel Assembly WPL 1113864 Contact Us For Availability
3
Blade, Fan WPL 992920 Contact Us For Availability
3
Retainer Trim Freezer (2) WPL 1112690 Contact Us For Availability
3
Shelf, Bottom (2) WPL 1113565 Contact Us For Availability
3
Shelf, Top (1) WPL 1113637 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
3
Grommet, Screw (3) WPL 843436 Contact Us For Availability
3
Circuit Board WPL 1113390 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10 & 11) (Al WPL 4210577 Contact Us For Availability
3
Hinge Assembly, Top WPL 1112945 Contact Us For Availability
3
Back Up Panel WPL 1113355 Contact Us For Availability
4
Grommet WPL 842339 Contact Us For Availability
4
Retainer Trim Refrigerator (2) WPL 1112686 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Basket (2) WPL 1113640 Contact Us For Availability
4
Spacer WPL 1112940 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113791 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Trim, Basket WPL 1113643 Contact Us For Availability
5
Insulation, Dispenser WPL 1112978 Contact Us For Availability
5
Wine & Egg Rack WPL 1125913 Contact Us For Availability
5
Ladder, Shelf (2) WPL 1112115 Contact Us For Availability
5
Knob, Retainer WPL 837444 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112684 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Hinge, Bottom WPL 1112916 Contact Us For Availability
6
Adjusting Rod (2) WPL 1112936 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 1112921 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112680 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Frame Assembly WPL 1113551 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Screw WPL 489334 Contact Us For Availability
7
Tube, Water WPL 1112956 Contact Us For Availability
8
Tube, Connect (Drier) WPL 1113294 Contact Us For Availability
8
Bracket, Motor WPL 1113126 Contact Us For Availability
8
Heater, Mullion WPL 1112711 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Hinge, Top WPL 1112944 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
For Service Compressor Only WPL 1113273 Contact Us For Availability
8
Overload WPL 2001232 Contact Us For Availability
8
Grommet, Screw WPL 538449 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
9
Heater, Drain Pan WPL 1113061 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
9
Motor Assembly WPL 1113960 Contact Us For Availability
9
Trim (R.S.) WPL 1113836 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Screw, 10-32 x 5/8 WPL 2000489 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Terminal Cover WPL 1105221 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2000446 Contact Us For Availability
9
Top Grille Assembly WPL 2000932 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Trim (L.S.) WPL 1113835 Contact Us For Availability
10
Shield, Control Panel WPL 1113768 Contact Us For Availability
10
Overlay, Shelf Freezer Door WPL 2001032 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Glass, Crisper WPL 2000155 Contact Us For Availability
10
Cover, Liner Back WPL 2000951 Contact Us For Availability
10
Shield, Control Panel WPL 1113774 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Cover, Unit WPL 1113490 Contact Us For Availability
10
Valve, Solenoid WPL 1113103 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Rail, Evaporator Cover (Left Side) WPL 2000956 Contact Us For Availability
11
Rail, Evaporator Cover (Right Side) WPL 2000957 Contact Us For Availability
11
Socket, Light (2) WPL 1112613 Contact Us For Availability
11
Screw, (Repair) WPL 487246 Contact Us For Availability
11
Wiring Harness, WPL 1112488 Contact Us For Availability
11
Handle, Door WPL 2000182 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Control Panel Assembly (Meat) WPL 1112219 Contact Us For Availability
11
Relay WPL 1108066 Contact Us For Availability
11
Baffle, Evap. WPL 1112529 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Trim (Bottom) WPL 1112801 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
12
Insulation, Liner Back Cover WPL 1112134 Contact Us For Availability
12
Channel, Wiring WPL 2001257 Contact Us For Availability
12
Cover, Component Assembly WPL 1113300 Contact Us For Availability
13
Tube, Discharge WPL 1113256 Contact Us For Availability
13
Cover, Motor WPL 1113129 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Duct, Meat Pan WPL 1112132 Contact Us For Availability
13
Capacitor, Start WPL 1108065 Contact Us For Availability
14
Spacer Trim, Grille WPL 1113843 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2000613 Contact Us For Availability
14
Pan, Crisper WPL 2000888 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Scroll, Fan (Also Order Item 15) WPL 1111212 Contact Us For Availability
15
Door, Ice WPL 2147168 Contact Us For Availability
15
Heat Exchanger WPL 1113109 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Ice Container WPL 1112286 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 1113604 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
15
Channel, Wiring WPL 1112708 Contact Us For Availability
15
Shield, Scroll WPL 1112976 Contact Us For Availability
15
Tube, Inlet Valve WPL 1113106 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Conveyor WPL 1112378 Contact Us For Availability
16
Washer (2) WPL 487944 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Clamp Tube WPL 1113066 Contact Us For Availability
16
Trim (Top) WPL 2000082 Contact Us For Availability
17
Stud, Shelf (20) WPL 658944 Contact Us For Availability
17
Screw, 6-32 x 1/2 WPL 489112 Contact Us For Availability
17
Shoulder, Screw WPL 1112906 Contact Us For Availability
17
Bracket, Light WPL 1112789 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Assembly, Air Duct WPL 2000056 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (20) WPL 487559 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Trim (Side) WPL 1113820 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 1112901 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 1112912 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Clamp, Heater (2) WPL 549419 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1112843 Contact Us For Availability
19
Nut, Bearing WPL 946195 Contact Us For Availability
19
Shim, Hinge Top (4) WPL 1112988 Contact Us For Availability
19
Utility Pan WPL 2000892 Contact Us For Availability
19
Cup, Motor WPL 1112870 Contact Us For Availability
19
Trim (Bottom) WPL 2000088 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Meat Pan WPL 2000896 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 1112994 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Shield WPL 1112883 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
21
Clip, Connector WPL 1112713 Contact Us For Availability
21
Baffle WPL 946194 Contact Us For Availability
21
Trim (Top) WPL 2000078 Contact Us For Availability
21
Door Closer, Fixed Cam WPL 1112907 Contact Us For Availability
21
Wiring Harness, Light Socket WPL 1112709 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Fastener (3) WPL 1112871 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Guard, Hook-Up WPL 1113070 Contact Us For Availability
22
Overlay, Cover WPL 2001034 Contact Us For Availability
22
Slide, Basket R.S. WPL 2000061 Contact Us For Availability
22
Slide, Basket L.S. WPL 2000062 Contact Us For Availability
22
Mounting Bracket, Motor WPL 1113083 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Front Cover WPL 1112381 Contact Us For Availability
23
Trim (Bottom) WPL 2000085 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
24
Stop, Roller WPL 1113169 Contact Us For Availability
24
Bracket, Door Closer (Left Side) WPL 1112947 Contact Us For Availability
24
Bracket, Door Closer (Right Side) WPL 1112948 Contact Us For Availability
24
Flexible Grommet WPL 2000530 Contact Us For Availability
24
Blade, Fan WPL 1113082 Contact Us For Availability
24
Screw, 8-32 x 1-1/2 WPL 488748 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
25
Shield, Light WPL 1112788 Contact Us For Availability
25
Orifice, Fan WPL 2000190 Contact Us For Availability
25
Cover, Evaporator WPL 2000486 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Panel, Interior Door WPL 1113946 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 1112565 Contact Us For Availability
26
Door, Utility Bin WPL 1112736 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Door Shelf (4) WPL 2000912 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
28
Lens, Dispenser WPL 1113140 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Wiring Harness, Water Valve WPL 1112444 Contact Us For Availability
29
Door Shelf, Inner Trim WPL 1112771 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 1112919 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 1112923 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112852 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
30
Shim, Hinge Bottom (1 Each) WPL 1112942 Contact Us For Availability
30
Shim, Hinge Bottom (2 Each) WPL 1112943 Contact Us For Availability
30
Defrost Timer (10 Hour) WPL 1127570 Contact Us For Availability
31
Support, Trim Ends WPL 1112763 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
31
Screw (4) 1/4-28 x 3/4 WPL 2000490 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
32
Spacer, Lower Door Hinge WPL 1113809 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
33
Seal, Hole WPL 1105408 Contact Us For Availability
34
Ice Chute WPL 1112554 Contact Us For Availability
34
Grille Base, Front WPL 1112138 Contact Us For Availability
34
Clamp, Tube WPL 1113067 Contact Us For Availability
34
Clamp, Tube WPL 488888 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
35
Assembly, Air Baffle WPL 1112875 Contact Us For Availability
36
Cover, Rear WPL 1112835 Contact Us For Availability
36
Cover, Fan WPL 1113075 Contact Us For Availability
36
Insulation, Air Diffuser WPL 1113147 Contact Us For Availability
36
Tube Clamp (4) WPL 1112847 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
38
Glass Top WPL 1119056 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Cover, Air Diffuser WPL 1112878 Contact Us For Availability
38
``O`` Ring WPL 488794 Contact Us For Availability
39
Grommet, Tube WPL 1112926 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
39
``O`` Ring WPL 488819 Contact Us For Availability
40
Screw (3) WPL 489368 Contact Us For Availability
40
Screw WPL 488775 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Tube, Meat Pan WPL 1112265 Contact Us For Availability
43
Water Tube (Outlet) WPL 2001260 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compression Nut WPL 488795 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 1113748 Contact Us For Availability
46
WPL 978029 WPL 978029 Contact Us For Availability
46
Stop WPL 1113039 Contact Us For Availability
46
Front Panel Kit (Black) WPL 4210569 Contact Us For Availability
46
Front Panel Kit (White) WPL 4210570 Contact Us For Availability
46
Front Panel Kit (Stainless Steel) WPL 4210594 Contact Us For Availability
46
Front Panel Kit (Almond) WPL 4211160 Contact Us For Availability
46
Top Grille Trim Kit (7-1/2``) WPL 4318418 Contact Us For Availability
46
Top Grille Trim Kit (8``) WPL 4318419 Contact Us For Availability
46
WPL 978028 WPL 978028 Contact Us For Availability
47
Grille, Overflow WPL 983900 Contact Us For Availability
× ![]()
