Model Whirlpool KSSS42DWW00 BUILT IN REFRIGERATOR – Common Parts & Diagrams

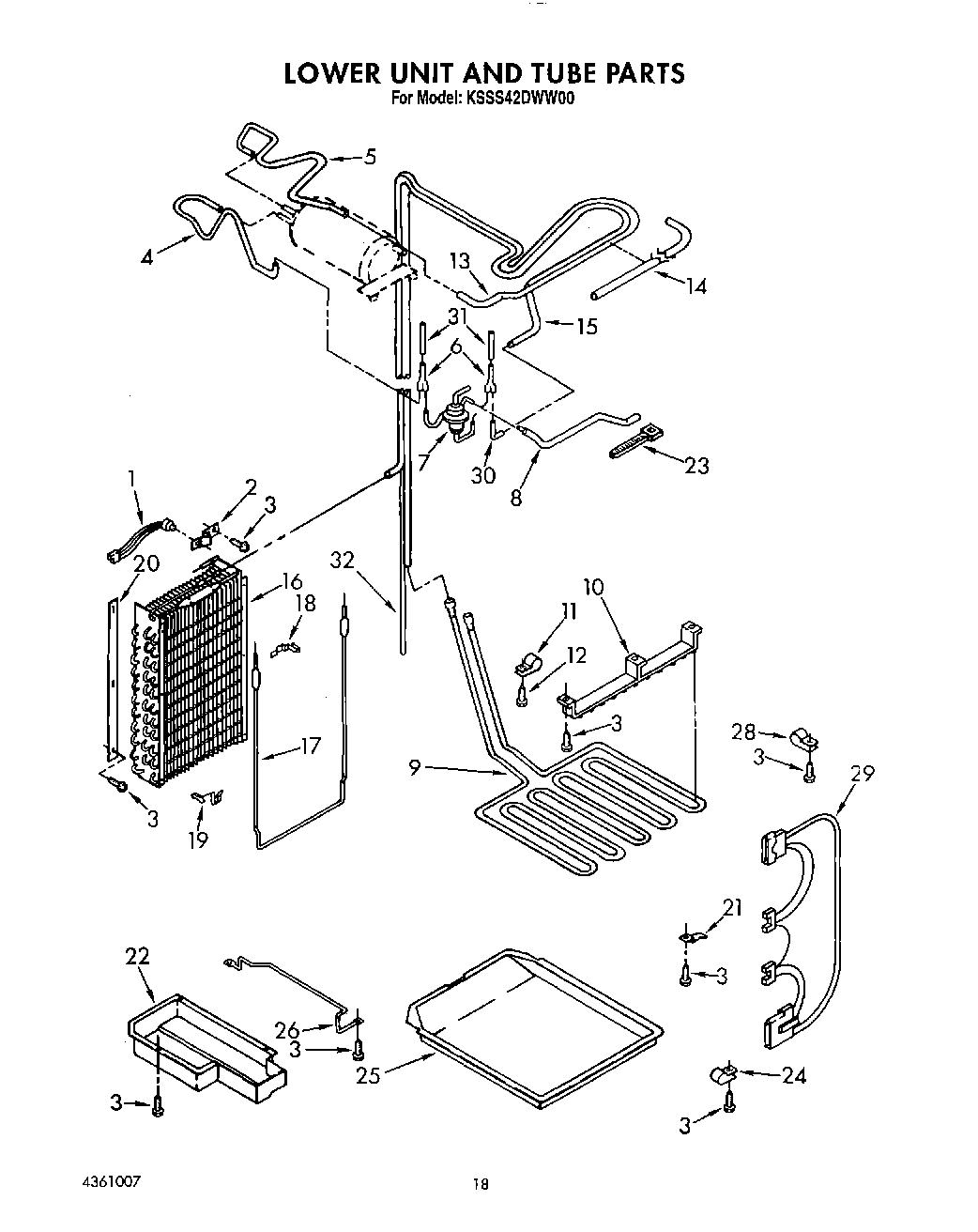

15 - LOWER UNIT AND TUBE

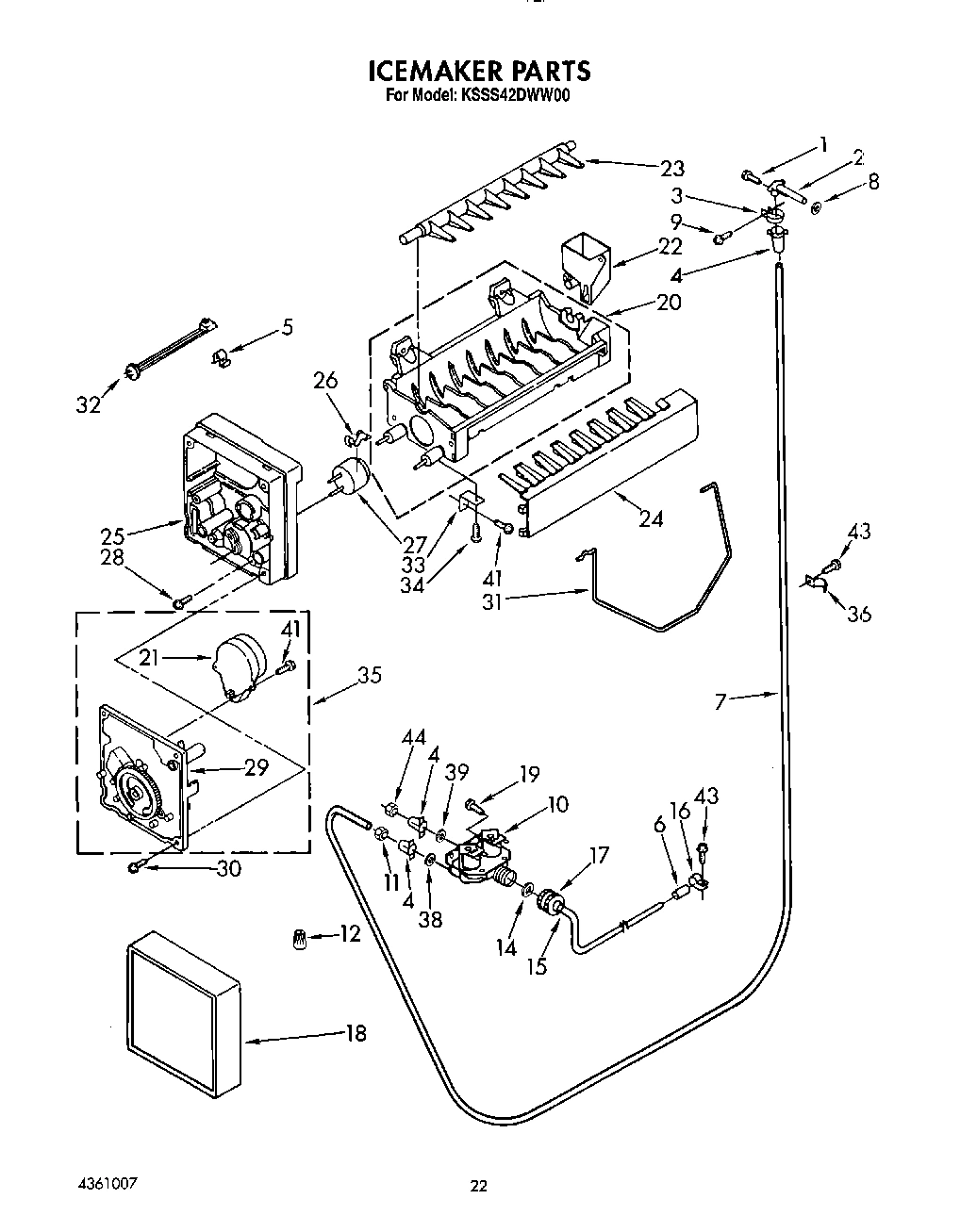

17 - ICEMAKER
08 - FREEZER SHELF
09 - REFRIGERATOR DOOR
18 - TOP GRILLE AND UNIT COVER
05 - REFRIGERATOR LINER
12 - FREEZER CONTROL PANEL
06 - ICE CONTAINER
07 - REFRIGERATOR SHELF
14 - UPPER UNIT, LIT/OPTIONAL
16 - AIR FLOW AND RESERVOIR
03 - CABINET TRIMS AND BREAKER TRIM
10 - REFRIGERATOR CONTROL PANEL
02 - CABINET
04 - FREEZER LINER
11 - FREEZER DOOR
13 - DISPENSER AND FRONT
Common parts from model Whirlpool KSSS42DWW00 BUILT IN REFRIGERATOR
WPL LIT1113586 WPL LIT1113586 Contact Us For Availability
WPL LIT1113589 WPL LIT1113589 Contact Us For Availability
WPL LIT2000144 WPL LIT2000144 Contact Us For Availability
WPL LIT2000492 WPL LIT2000492 Contact Us For Availability
WPL LIT4361007 WPL LIT4361007 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Solid Shelf WPL 1112366 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 1113937 Contact Us For Availability
1
Grille, Frame Assembly WPL 1113867 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107125A Contact Us For Availability
1
Control Panel WPL 1112596 Contact Us For Availability
1
Spacer, Track (Right Side) WPL 1112281 Contact Us For Availability
1
Spacer, Track (Left Side) WPL 1112282 Contact Us For Availability
1
Frame, Shelf WPL 1113543 Contact Us For Availability
1
Assembly, Unit Base WPL 1113005 Contact Us For Availability
1
Breaker Trim, One Piece WPL 1112676 Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107123A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107124A Contact Us For Availability
1
Exterior Door Panel, Freezer (Also Order Item WPL 1113927 Contact Us For Availability
1
Housing, Dispenser WPL 1124715 Contact Us For Availability
2
Front, Ice Compartment WPL 1112394 Contact Us For Availability
2
Decorative Panel Assembly WPL 1113864 Contact Us For Availability
2
Inlay, Control Panel WPL 1113964 Contact Us For Availability
2
Glass, Shelf WPL 1113545 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
2
Ring, Compression WPL 992953 Contact Us For Availability
2
Retainer, Side (4) WPL 1113277 Contact Us For Availability
2
Inlay, Control Panel WPL 1113962 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Ladder, Shelf (2) WPL 1112272 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
3
Blade, Fan WPL 992920 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113565 Contact Us For Availability
3
Hinge Assembly, Top WPL 1112288 Contact Us For Availability
3
Back Up Panel WPL 1113355 Contact Us For Availability
3
Grommet, Screw (3) WPL 843436 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10 & 11) (Al WPL 4210577 Contact Us For Availability
3
Retainer Trim Freezer (2) WPL 1112690 Contact Us For Availability
3
Circuit Board WPL 1113390 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Spacer, Ladder (4) WPL 1112271 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
4
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113791 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Retainer Trim Refrigerator (2) WPL 1112686 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
5
Ladder, Shelf (2) WPL 1112115 Contact Us For Availability
5
Knob, Retainer WPL 837444 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Insulation, Dispenser WPL 1112978 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 1112067 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112684 Contact Us For Availability
6
Adjusting Rod (2) WPL 1112936 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Hinge, Bottom WPL 1112063 Contact Us For Availability
7
Shelf, Cantilever WPL 1113567 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
7
Lens WPL 1112616 Contact Us For Availability
7
Frame Assembly WPL 1113551 Contact Us For Availability
7
Screw WPL 489334 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112680 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Grommet, Screw (2) WPL 538532 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Bracket, Motor WPL 1113126 Contact Us For Availability
8
Overload WPL 1113273 Contact Us For Availability
8
Grommet, Screw WPL 538449 Contact Us For Availability
8
Heater, Mullion WPL 1112711 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Hinge, Top WPL 1112164 Contact Us For Availability
9
Spacer Plate Expansion (2) WPL 1112940 Contact Us For Availability
9
Door Gasket, Magnetic WPL 1112548 Contact Us For Availability
9
Top Grille Assembly WPL 1113861 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Hole Plug (3) WPL 534927 Contact Us For Availability
9
Motor Assembly WPL 1113960 Contact Us For Availability
9
Terminal Cover WPL 1105221 Contact Us For Availability
9
Trim (R.S.) WPL 1113836 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Screw, 10-32 x 5/8 WPL 489359 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
10
Cover, Unit WPL 1113490 Contact Us For Availability
10
Cover, Liner Back WPL 1112127 Contact Us For Availability
10
Shield, Control Panel WPL 1113768 Contact Us For Availability
10
Glass, Crisper WPL 1113563 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Terminal Block WPL 942842 Contact Us For Availability
10
Trim (L.S.) WPL 1113835 Contact Us For Availability
10
Shield, Control Panel WPL 1113774 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
11
Control Panel Assembly (Meat) WPL 1112219 Contact Us For Availability
11
Socket, Light (2) WPL 1112613 Contact Us For Availability
11
Relay WPL 1108066 Contact Us For Availability
11
Shield, Electric WPL 1112976 Contact Us For Availability
11
Screw, (Repair) WPL 487246 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Rail, Evaporator Cover (Left Side) WPL 1112841 Contact Us For Availability
11
Rail, Evaporator Cover (Right Side) WPL 1112842 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 1112951 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2149097 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Cover, Component Assembly WPL 1113300 Contact Us For Availability
12
Insulation, Liner Back Cover WPL 1112134 Contact Us For Availability
12
Channel, Wiring WPL 1112734 Contact Us For Availability
12
Trim (Bottom) WPL 1112801 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
12
Ice Door Mechanism WPL 938669 Contact Us For Availability
13
Gasket, Ice Door WPL 983691 Contact Us For Availability
13
Front, Basket WPL 1112316 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Duct, Meat Pan WPL 1112132 Contact Us For Availability
13
Cover, Motor WPL 1113129 Contact Us For Availability
13
Capacitor, Start WPL 1108065 Contact Us For Availability
13
Wiring Harness, Fan Motor WPL 1112703 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
14
Shield, Impact WPL 987121 Contact Us For Availability
14
Overlay, Front WPL 1112321 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Pan, Crisper WPL 1113883 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Scroll, Fan (Also Order Item 15) WPL 1111212 Contact Us For Availability
14
Spacer Trim, Grille WPL 1113843 Contact Us For Availability
14
Lens WPL 1112661 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 1113460 Contact Us For Availability
15
Door, Ice WPL 983690 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Grommet (15) WPL 842339 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
15
Ice Container WPL 1112286 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 1113604 Contact Us For Availability
15
Channel, Wiring WPL 1112708 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Handle, Door WPL 1113816 Contact Us For Availability
16
Trim (Top) WPL 1113818 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Conveyor WPL 1112378 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Screw, 9-12 x 1/2 WPL 488892 Contact Us For Availability
17
Bracket, Light WPL 1112789 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Assembly, Air Duct WPL 1112856 Contact Us For Availability
17
Shoulder, Screw WPL 1112906 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
17
Lever, Ice Dispenser WPL 1124719 Contact Us For Availability
18
End Cap (Bottom) WPL 1113831 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Air Deflector, Icemaker WPL 1112868 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 1112094 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 1112095 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Basket (Small) WPL 1112336 Contact Us For Availability
19
End Cap (Top) WPL 1113830 Contact Us For Availability
19
Trim (Bottom) WPL 1113822 Contact Us For Availability
19
Nut, Bearing WPL 946195 Contact Us For Availability
19
Utility Pan WPL 1113885 Contact Us For Availability
19
Cup, Motor WPL 1112870 Contact Us For Availability
19
Shim, Hinge Top (4) WPL 1112988 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1112843 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
20
Side, Basket (Left Side) WPL 1112312 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 1112994 Contact Us For Availability
20
Meat Pan WPL 1113555 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Shield WPL 1112883 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Lever, Water Dispenser WPL 1124722 Contact Us For Availability
21
Washer WPL 488307 Contact Us For Availability
21
Side, Basket (Right Side) WPL 1112313 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Wiring Harness, Light Socket WPL 1112709 Contact Us For Availability
21
Baffle WPL 946194 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Fastener (3) WPL 1112871 Contact Us For Availability
21
Door Closer, Fixed Cam WPL 1112907 Contact Us For Availability
21
Trim (Top) WPL 1113825 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Basket Spacer, Right Side (2) WPL 1112296 Contact Us For Availability
22
Screw, 6-32 x 1/2 WPL 489112 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Overlay, Cover WPL 1112385 Contact Us For Availability
22
Mounting Bracket, Motor WPL 1113083 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Front Cover WPL 1112381 Contact Us For Availability
23
Retainer, Glass WPL 1112324 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Trim (Bottom) WPL 1113828 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
24
Trim (Side) WPL 1113820 Contact Us For Availability
24
Flexible Grommet WPL 1113078 Contact Us For Availability
24
Blade, Fan WPL 1113082 Contact Us For Availability
24
Screw, 8-32 x 1-1/2 WPL 488748 Contact Us For Availability
24
Bracket, Door Closer (Left Side) WPL 1112947 Contact Us For Availability
24
Bracket, Door Closer (Right Side) WPL 1112948 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
25
Shield, Light WPL 1112788 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1113872 Contact Us For Availability
25
Clamp, Tube (3) WPL 488888 Contact Us For Availability
25
Orifice, Fan WPL 1113011 Contact Us For Availability
25
Cover, Evaporator WPL 1112276 Contact Us For Availability
25
Bracket, Control WPL 1107454 Contact Us For Availability
26
Basket Spacer, Left Side (2) WPL 1112295 Contact Us For Availability
26
Door, Utility Bin WPL 1112736 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 1112565 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Panel, Interior Door WPL 1113946 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Door Shelf (4) WPL 1112741 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Lens, Dispenser WPL 1113140 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113873 Contact Us For Availability
28
Screw, 8 x 1/2 (3) WPL 489368 Contact Us For Availability
28
Baffle, Evaporator WPL 1112529 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 1113216 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 1113217 Contact Us For Availability
28
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112852 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 1112130 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 1112154 Contact Us For Availability
29
Door Shelf, Inner Trim WPL 1112771 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
30
Defrost Timer (10 Hour) WPL 1127570 Contact Us For Availability
30
Shim, Hinge Bottom (4) WPL 1112942 Contact Us For Availability
31
Support, Trim Ends WPL 1112763 Contact Us For Availability
31
Screw, 1/4-28 x 3/4 WPL 489237 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
32
Harness, Wiring WPL 1112980 Contact Us For Availability
32
Spacer, Lower Door Hinge WPL 1113809 Contact Us For Availability
32
Wire Connector WPL 227991 Contact Us For Availability
32
Plunger, Extension WPL 1107457 Contact Us For Availability
33
``O`` Ring Seal WPL 488819 Contact Us For Availability
33
Clamp, Tube (2) WPL 1113066 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Compression Nut WPL 488795 Contact Us For Availability
34
Grille Base, Front WPL 1112138 Contact Us For Availability
34
Ice Chute WPL 1112554 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
35
Assembly, Air Baffle WPL 1112875 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
35
Wiring Harness, Door WPL 934302 Contact Us For Availability
36
Tube Clamp (4) WPL 1112847 Contact Us For Availability
36
Cover, Fan WPL 1113075 Contact Us For Availability
36
Insulation, Air Diffuser WPL 1113147 Contact Us For Availability
36
Cover, Rear WPL 1112835 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Guiding, Ice WPL 2147479 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Cover, Air Diffuser WPL 1112878 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Glass Stop WPL 2147480 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
39
Grommet, Tube WPL 1112926 Contact Us For Availability
39
Screw WPL 489197 Contact Us For Availability
40
Clamp, Tube (1) WPL 1113067 Contact Us For Availability
40
Screw WPL 488775 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Tube, Meat Pan WPL 1112265 Contact Us For Availability
41
Seal, Hole WPL 1105408 Contact Us For Availability
42
Front Cover, Housing WPL 1113987 Contact Us For Availability
44
Nut, Compression WPL 1108005 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Cover, Dispenser Opening WPL 1112836 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 1113785 Contact Us For Availability
45
Trim, Front (2) WPL 1113833 Contact Us For Availability
46
VALVE, ACC WPL 978029 Contact Us For Availability
46
Stop WPL 1113039 Contact Us For Availability
46
Front Panel Kit (Black) WPL 4210569 Contact Us For Availability
46
Front Panel Kit (White) WPL 4210570 Contact Us For Availability
46
Front Panel Kit (Almond) WPL 4211160 Contact Us For Availability
46
Top Grille Trim Kit (7-1/2``) WPL 4318418 Contact Us For Availability
46
Top Grille Trim Kit (8``) WPL 4318419 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
WPL 978849 WPL 978849 Contact Us For Availability
47
Grille, Overflow WPL 1126120 Contact Us For Availability
48
Switch WPL 934316 Contact Us For Availability
49
Overlay, Cover WPL 1113382 Contact Us For Availability
52
``O`` RING SEAL WPL 488794 Contact Us For Availability
53
Washer (2) WPL 487944 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
× ![]()
