Model Whirlpool KSSS36MDX02 BUILT IN REFRIGERATOR – Common Parts & Diagrams

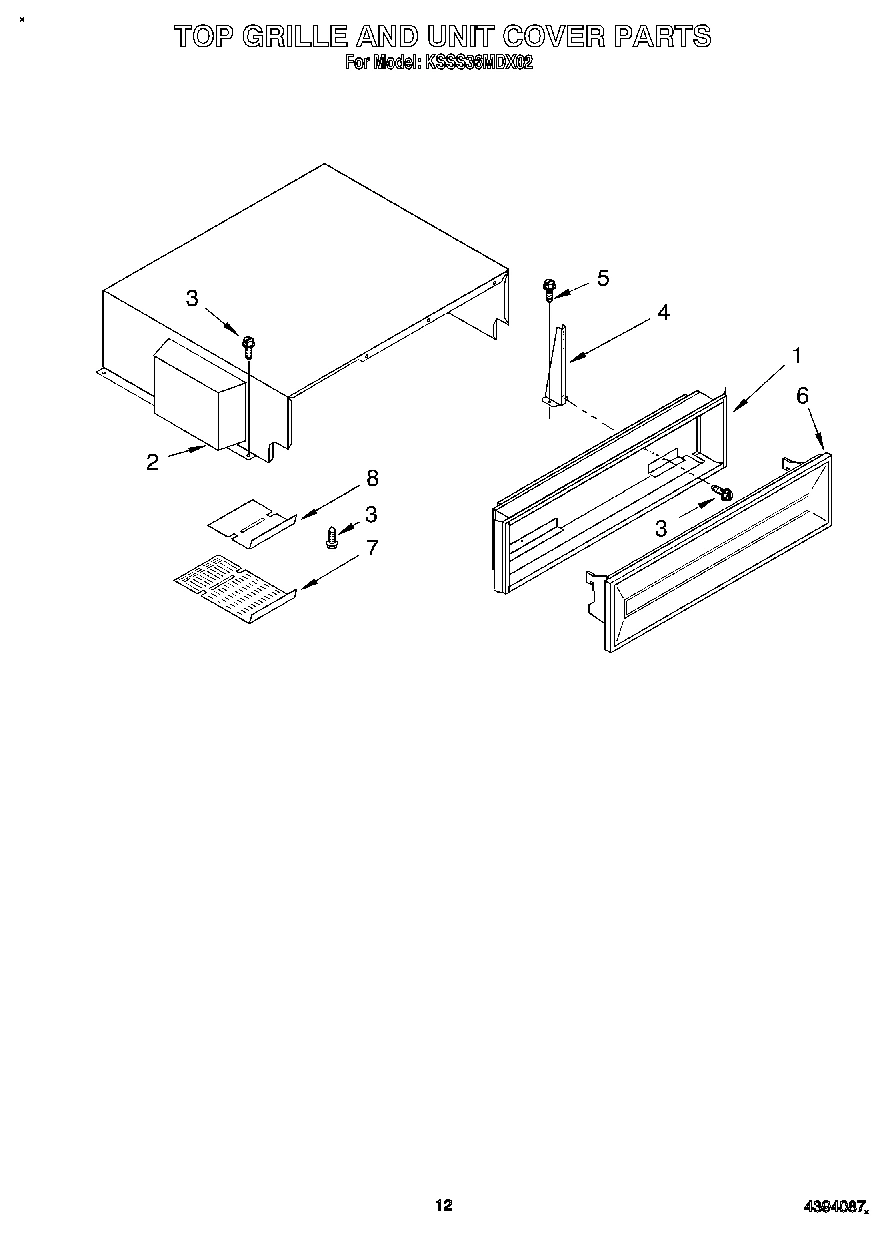

09 - TOP GRILLE AND UNIT COVER

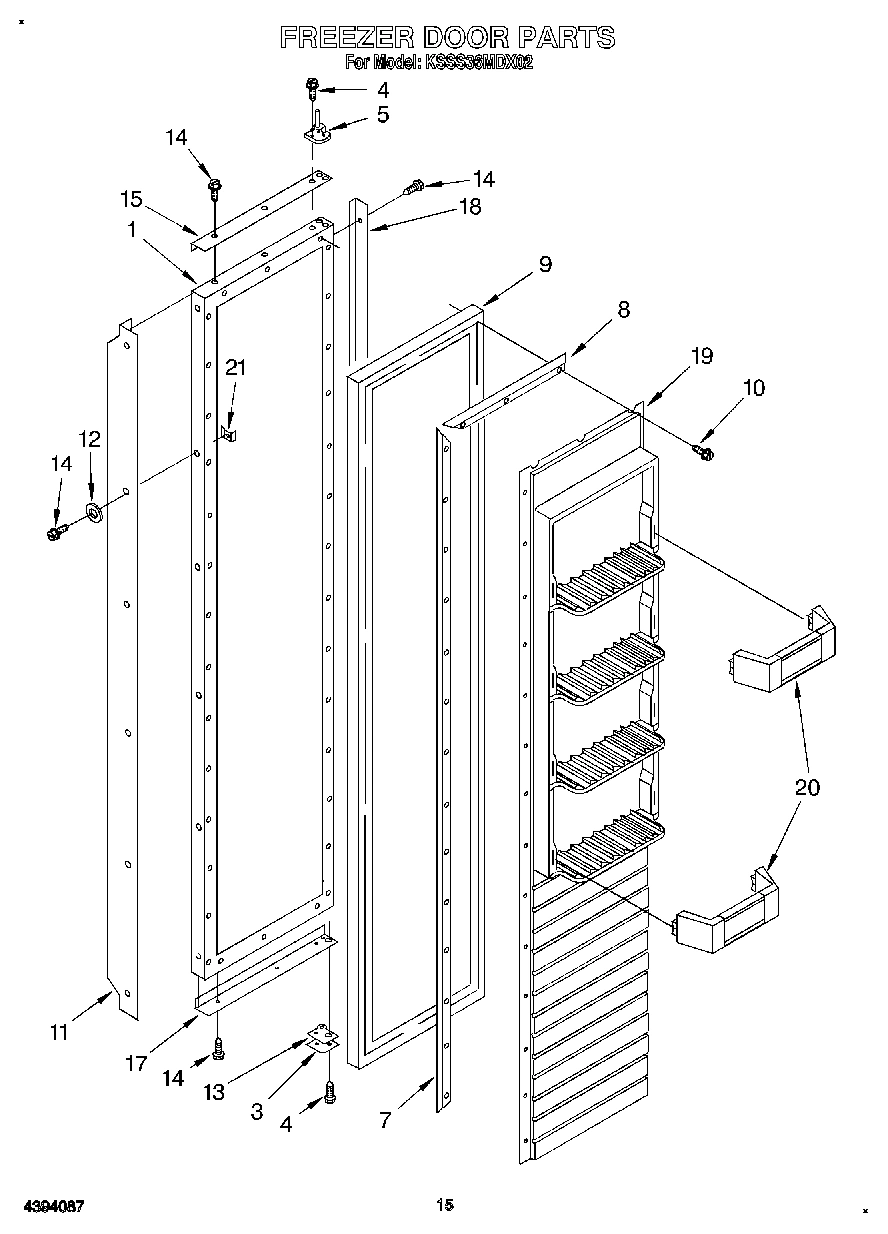

11 - FREEZER DOOR
13 - LOWER UNIT AND TUBE
01 - CABINET
02 - CABINET TRIM
06 - FREEZER CONTROL PANEL
08 - FREEZER SHELF
05 - REFRIGERATOR CONTROL PANEL
03 - FREEZER LINER
04 - REFRIGERATOR LINER
10 - REFRIGERATOR DOOR
12 - UPPER UNIT
07 - REFRIGERATOR SHELF
14 - AIR FLOW AND RESERVOIR
15 - ICEMAKER, LITERATURE
Common parts from model Whirlpool KSSS36MDX02 BUILT IN REFRIGERATOR
Use & Care Guide WPL LIT2002906 Contact Us For Availability
Energy Label WPL LIT2002913 Contact Us For Availability
Service & Wiring Sheet WPL LIT2002934 Contact Us For Availability
Installation Instructions WPL LIT2002941 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Cabinet, Trim (2) WPL 2002194 Contact Us For Availability
1
Control Panel WPL 1113625 Contact Us For Availability
1
Solid Shelf WPL 2003142 Contact Us For Availability
1
Control Panel WPL 1112640 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106660A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106661A Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003870 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Frame, Shelf WPL 2174402 Contact Us For Availability
2
Inlay, Control Panel WPL 2003307 Contact Us For Availability
2
Front, Ice Compartment WPL 2003133 Contact Us For Availability
2
Inlay, Control Panel WPL 2003301 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Glass, Shelf WPL 2003375 Contact Us For Availability
2
Cup, Clearance WPL 2002732 Contact Us For Availability
3
Screw WPL 2001297 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113564 Contact Us For Availability
3
Shelf, Fixed-Deep WPL 1113636 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Hinge Assembly, Top WPL 2001983 Contact Us For Availability
3
Reflector, Shelf WPL 1113546 Contact Us For Availability
3
Connector WPL 2154472 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 1112800 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Light, Socket WPL 1112613 Contact Us For Availability
4
Basket (2) WPL 2001551 Contact Us For Availability
4
Control Knob WPL 2001738 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113790 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
5
Ice Container WPL 2002725 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Cabinet, Trim Top WPL 2002228 Contact Us For Availability
6
Seal, Control Panel WPL 1113132 Contact Us For Availability
6
Front Cover WPL 2003043 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2002073 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
7
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
7
Seal, Control Panel WPL 1113133 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2003325 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2001606 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Motor, Wiring WPL 2000618 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Cover, Crisper WPL 1113893 Contact Us For Availability
10
Shield, Control Panel WPL 1113767 Contact Us For Availability
10
Shield, Control Panel WPL 1113773 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2000740 Contact Us For Availability
10
Glass, Crisper WPL 2003378 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Handle, Door WPL 2002224 Contact Us For Availability
11
Relay (See Overload) WPL ARI106662A Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Channel, Wiring WPL 2001145 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Trim, Basket WPL 2003112 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Door, Spacer Bottom WPL 2002007 Contact Us For Availability
13
Fastner WPL 1112871 Contact Us For Availability
13
Water Valve, Harness WPL 2003477 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2002803 Contact Us For Availability
14
Channel, Wiring WPL 2001142 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Crisper Pan (2) WPL 2003315 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
15
Heat Exchanger WPL 2003001 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Roller WPL 2174388 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2001735 Contact Us For Availability
16
Knob, Thermostat WPL 2001737 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Trim (Top) WPL 2002200 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Heater, Defrost WPL 2000630 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Assembly, Air Duct WPL 2002960 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2001975 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2001976 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Trim (Side) WPL 2002196 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Trim (Bottom) WPL 2002841 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Panel, Interior Door WPL 1113952 Contact Us For Availability
20
Wire Tie (2) WPL 851095 Contact Us For Availability
20
Meat Pan WPL 2003320 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Basket Slide (Right Side) WPL 2000061 Contact Us For Availability
22
Basket Slide (Left Side Right Side (2)) WPL 2000062 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
Bracket, Door Closer WPL 2000333 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Cover, Evaporator WPL 2000339 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Door, Utility Bin WPL 2003463 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000797 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Door Shelf (4) WPL 2003130 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2003386 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2003387 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 2001977 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 2001978 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) WPL 1112943 Contact Us For Availability
31
Screw WPL 2000490 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
33
Tube clamp WPL 2001266 Contact Us For Availability
34
Grille Base, Front WPL 2001962 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
36
Cover, Rear WPL 2000727 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
36
Water Inlet Tube WPL 2001098 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Cover, Condenser WPL 2003355 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Air Vane WPL 2003263 Contact Us For Availability
39
Cup, Wiring WPL 2003472 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
40
Seal WPL 2003474 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Grommet WPL 2003473 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318632 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318635 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318638 Contact Us For Availability
100
FRONT PANEL KIT (STAINLESS STEEL) WPL 4318641 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
NI
Bushing, Foam WPL 2003389 Contact Us For Availability
× ![]()
