Model Whirlpool KSSS36MAX01 BUILT IN REFRIGERATOR – Common Parts & Diagrams

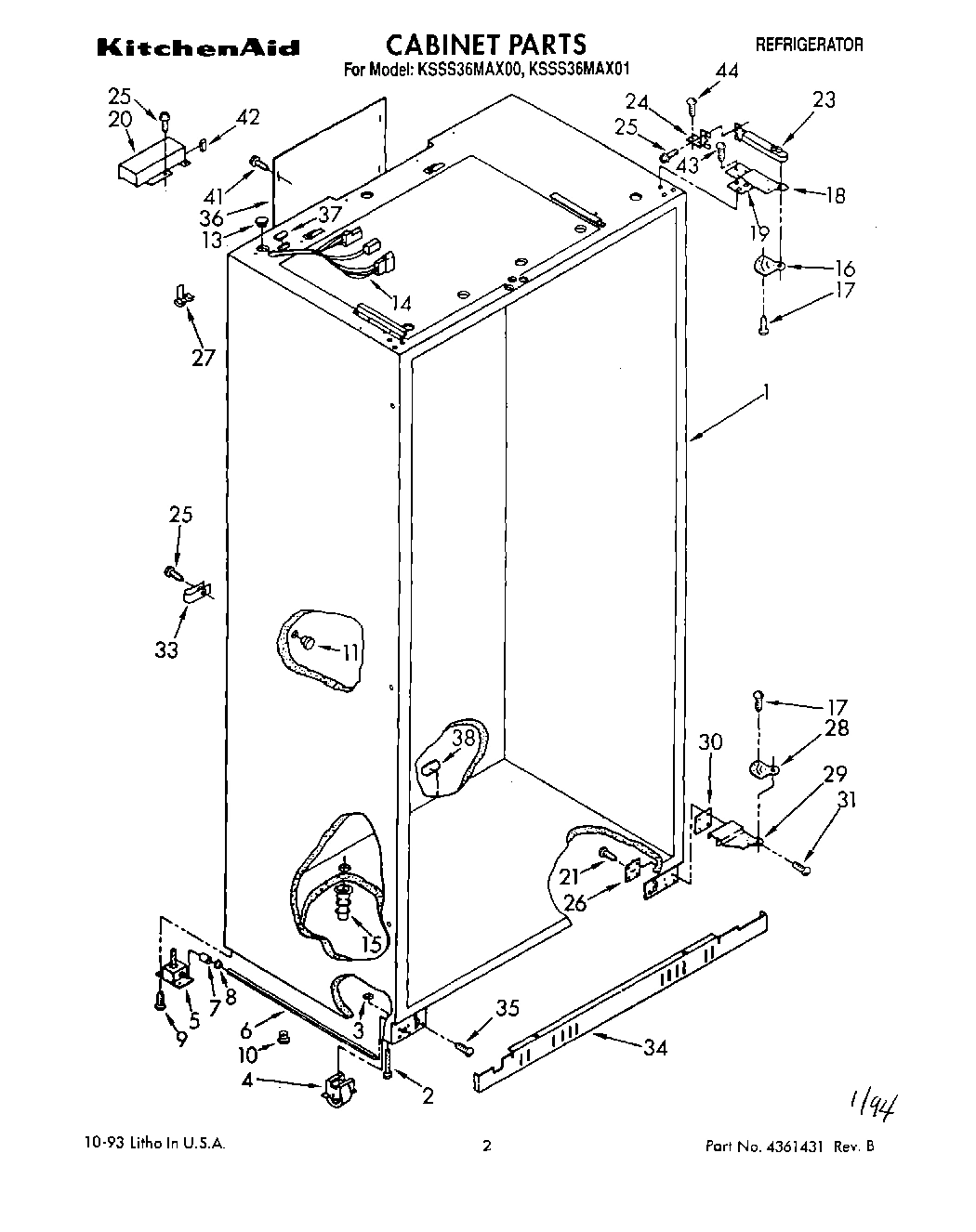

01 - CABINET

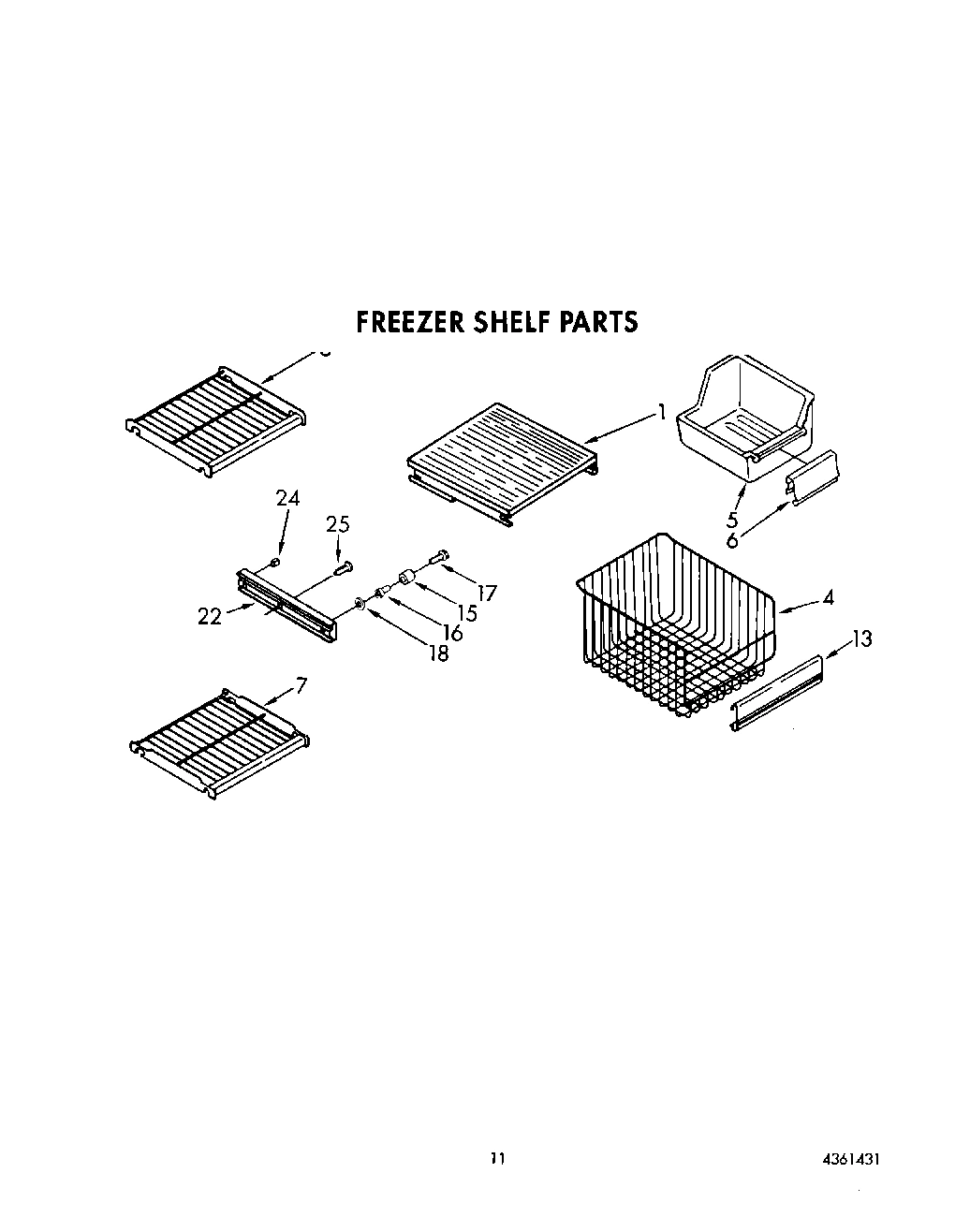

09 - FREEZER SHELF

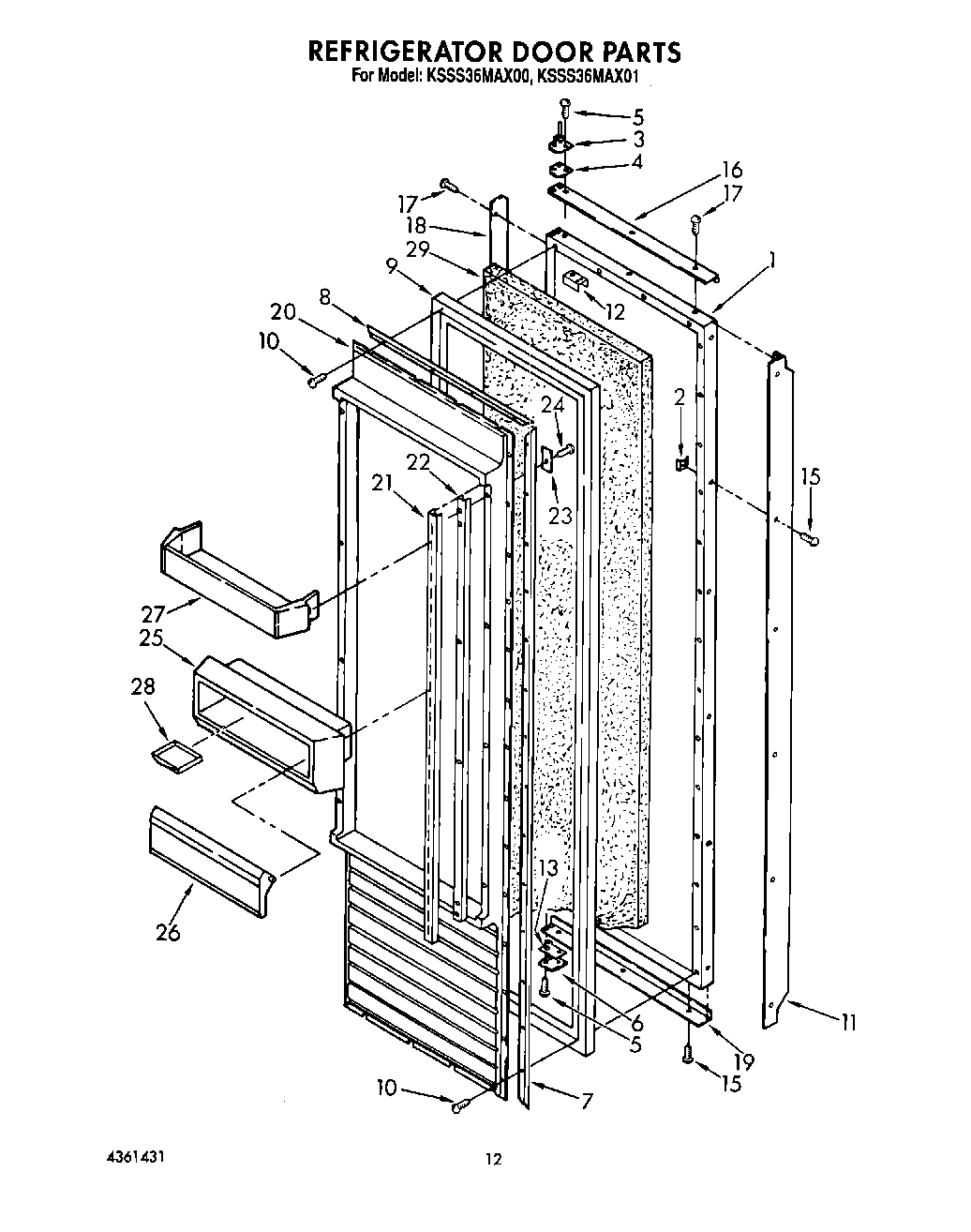

10 - REFRIGERATOR DOOR

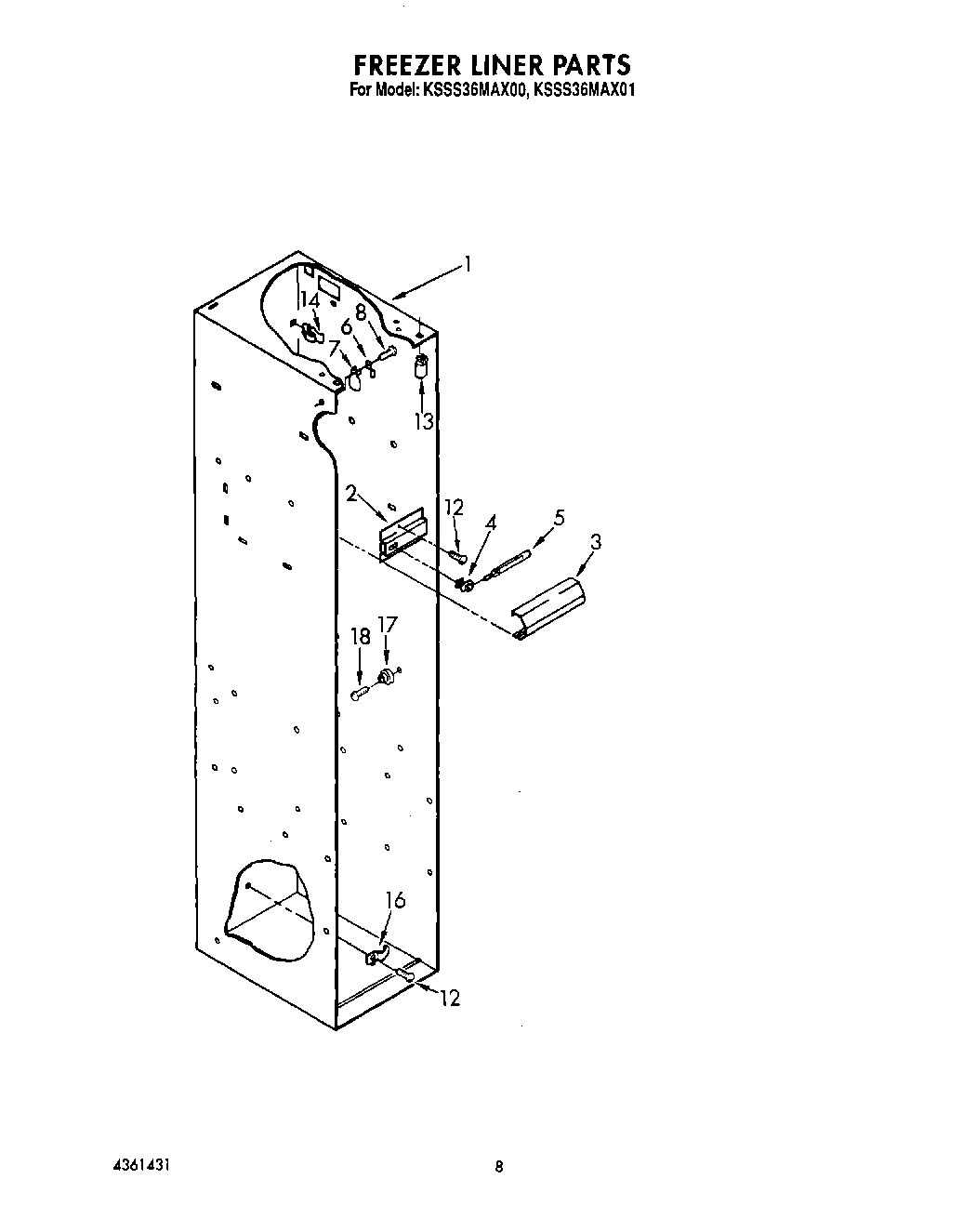

06 - FREEZER LINER

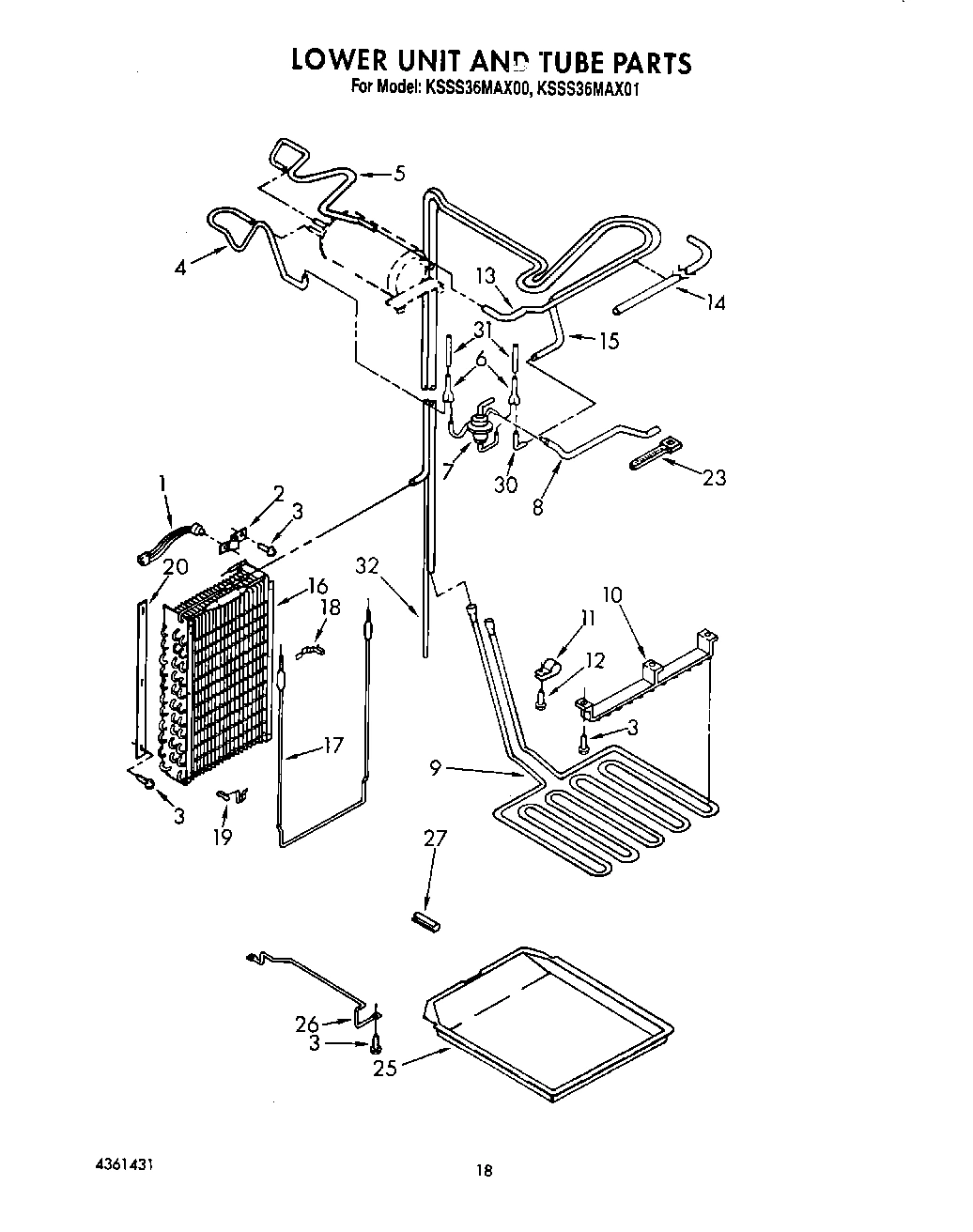

13 - LOWER UNIT AND TUBE

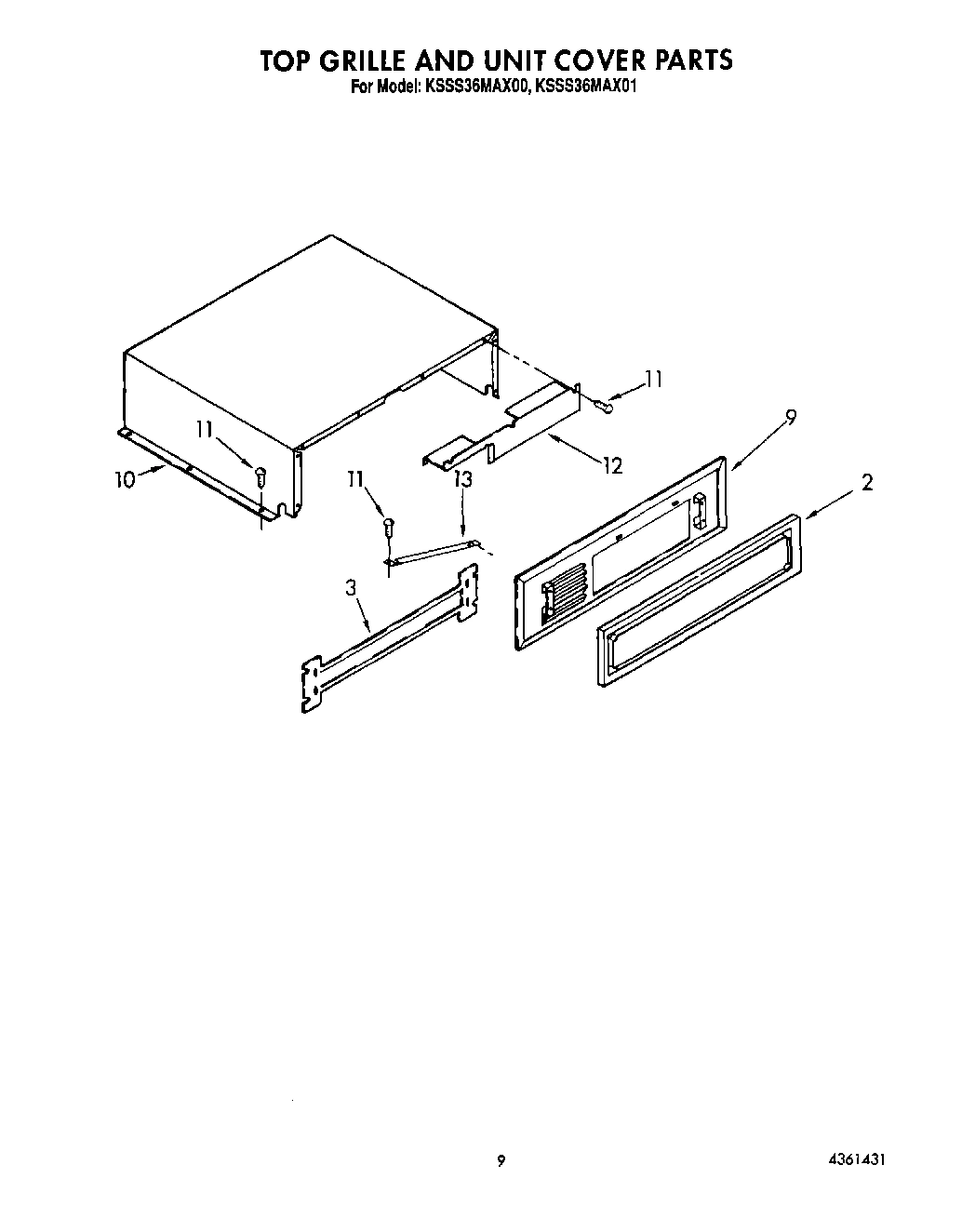

07 - TOP GRILLE AND UNIT COVER

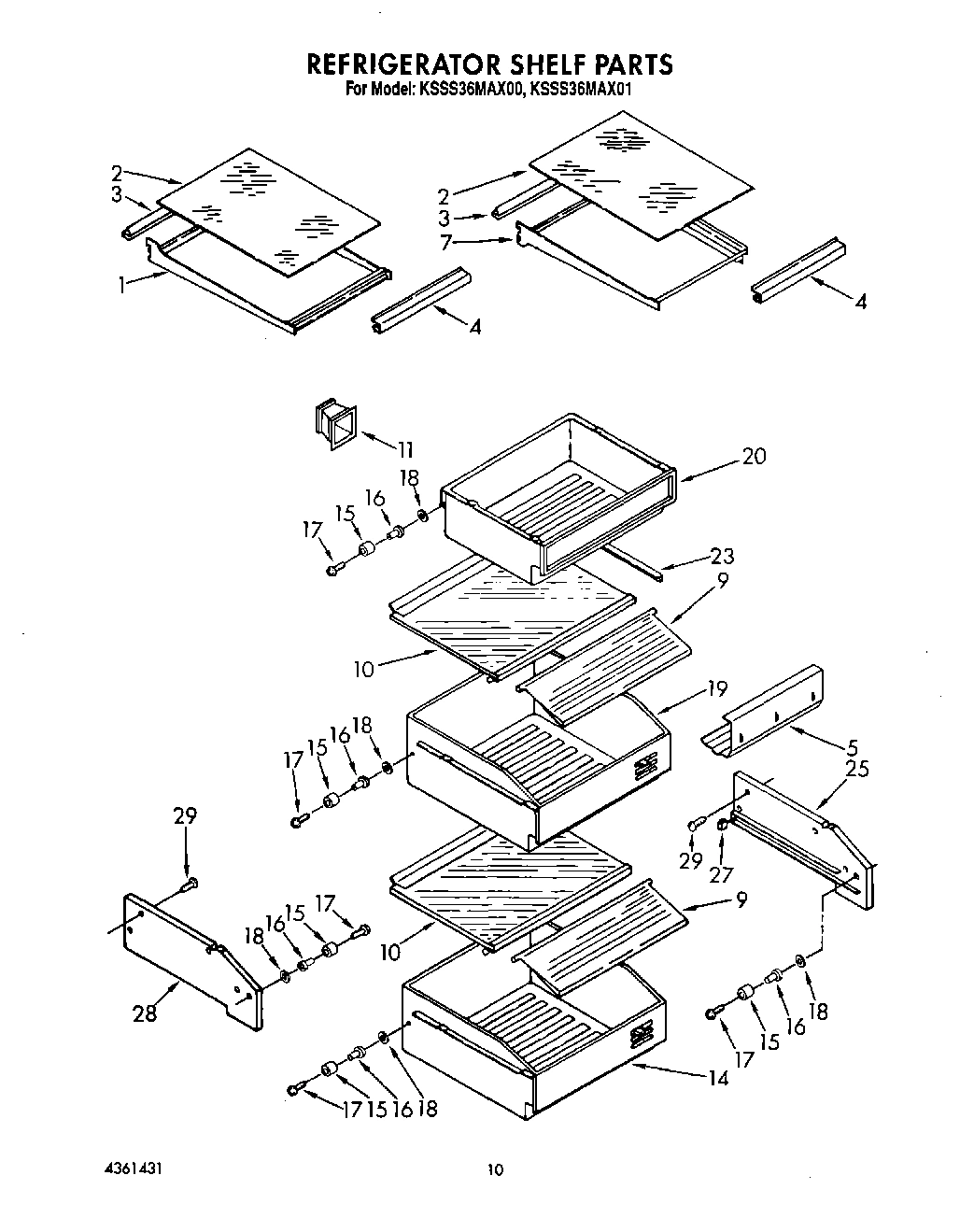

08 - REFRIGERATOR SHELF

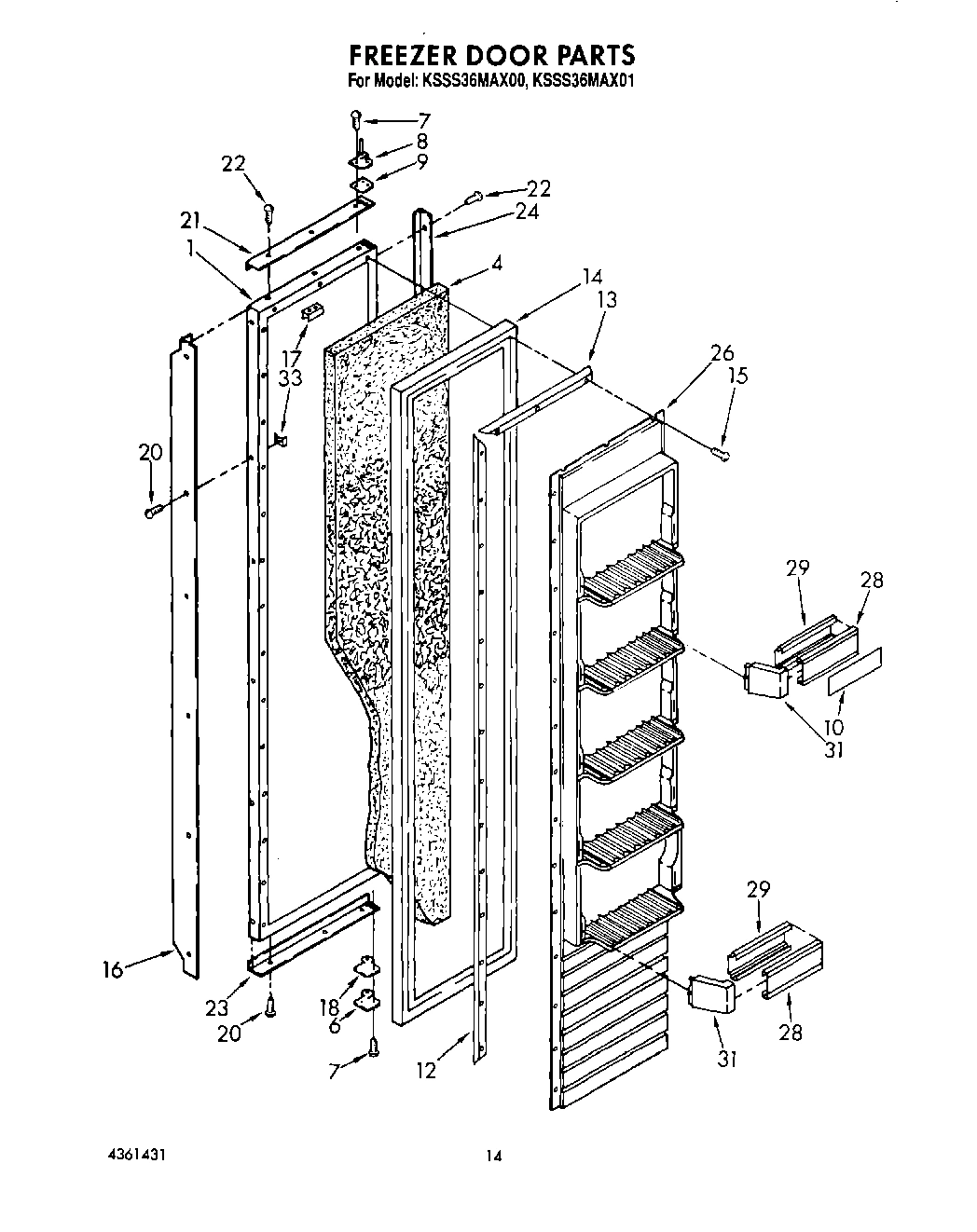

11 - FREEZER DOOR

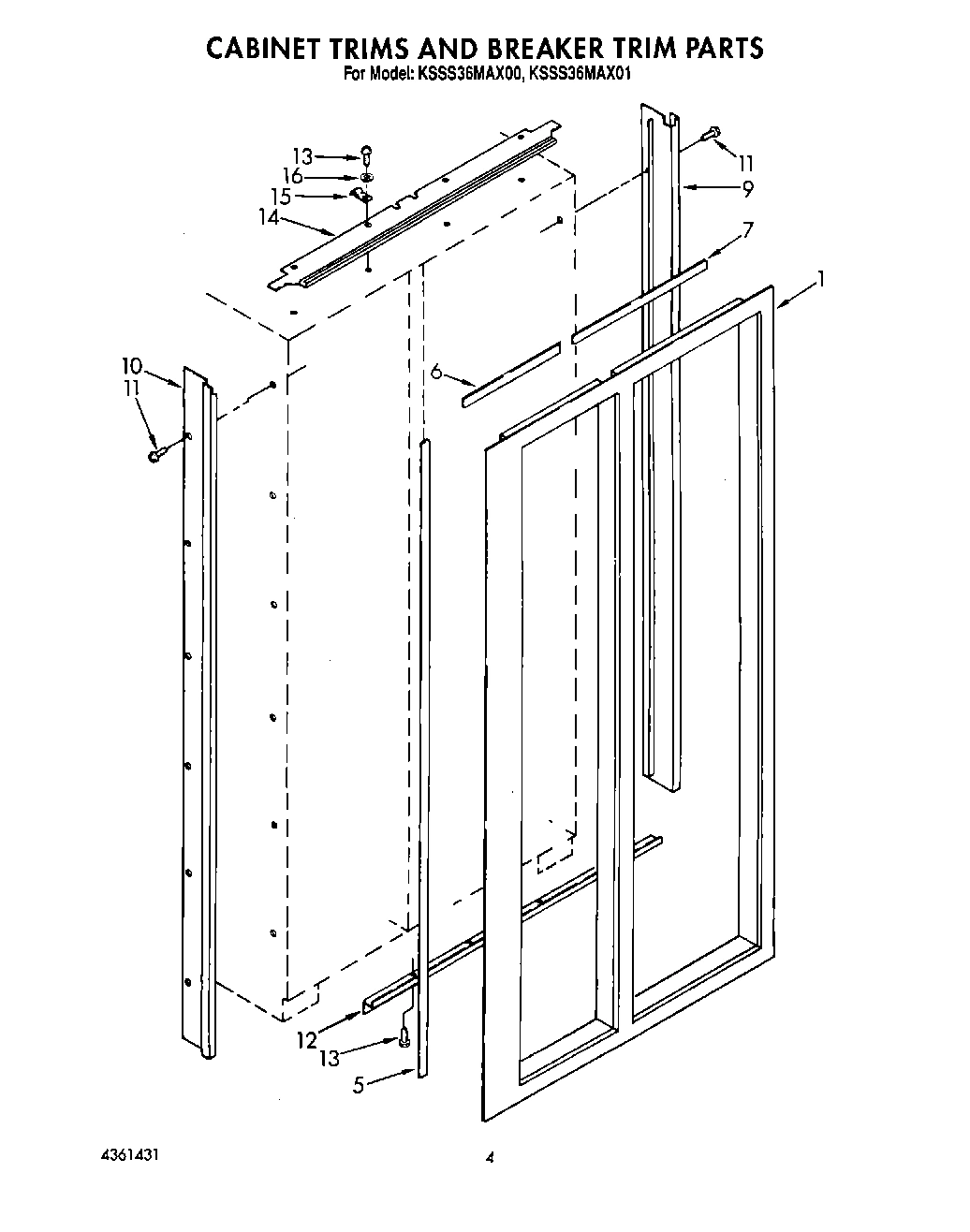

02 - CABINET TRIMS AND BREAKER TRIM

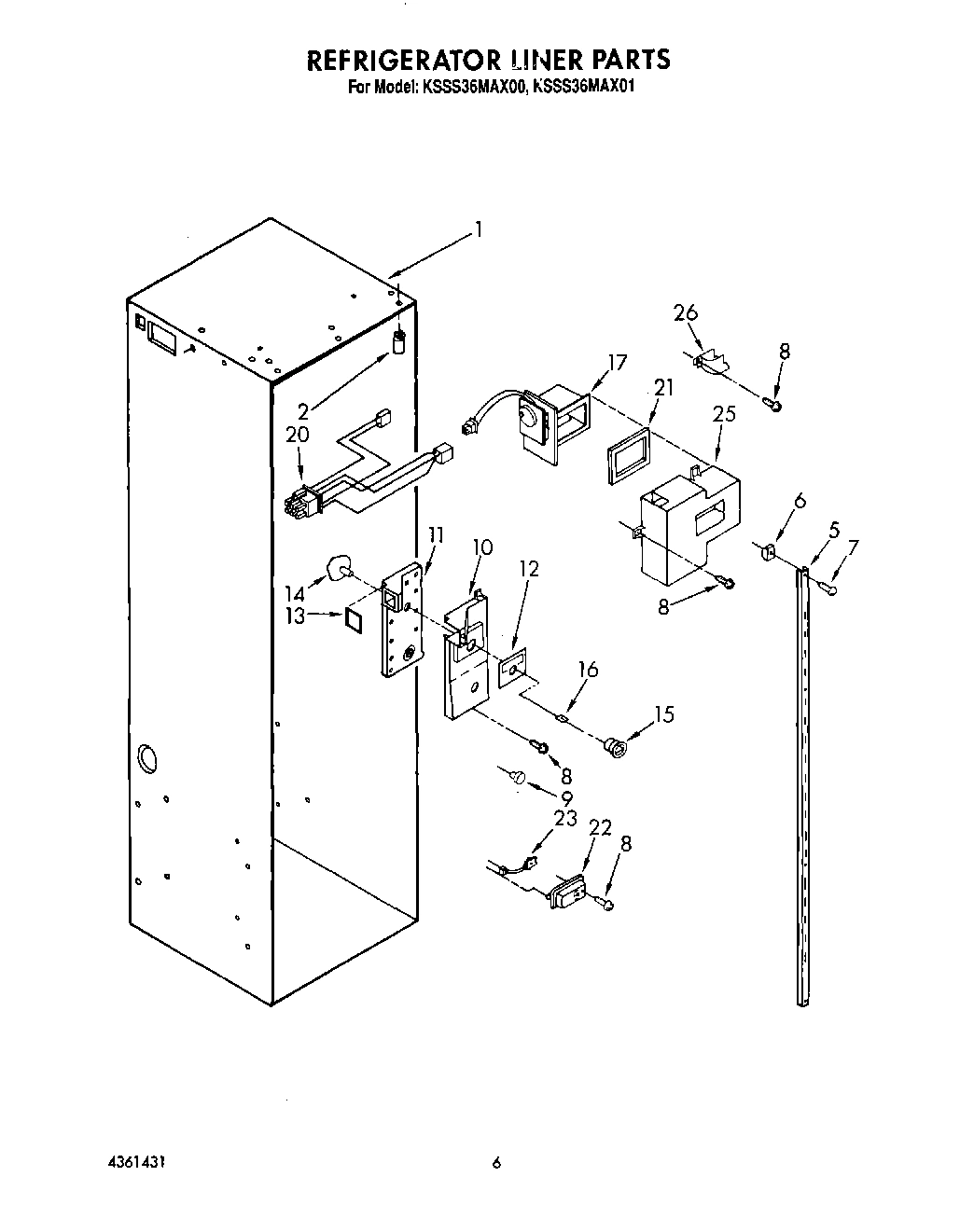

04 - REFRIGERATOR LINER

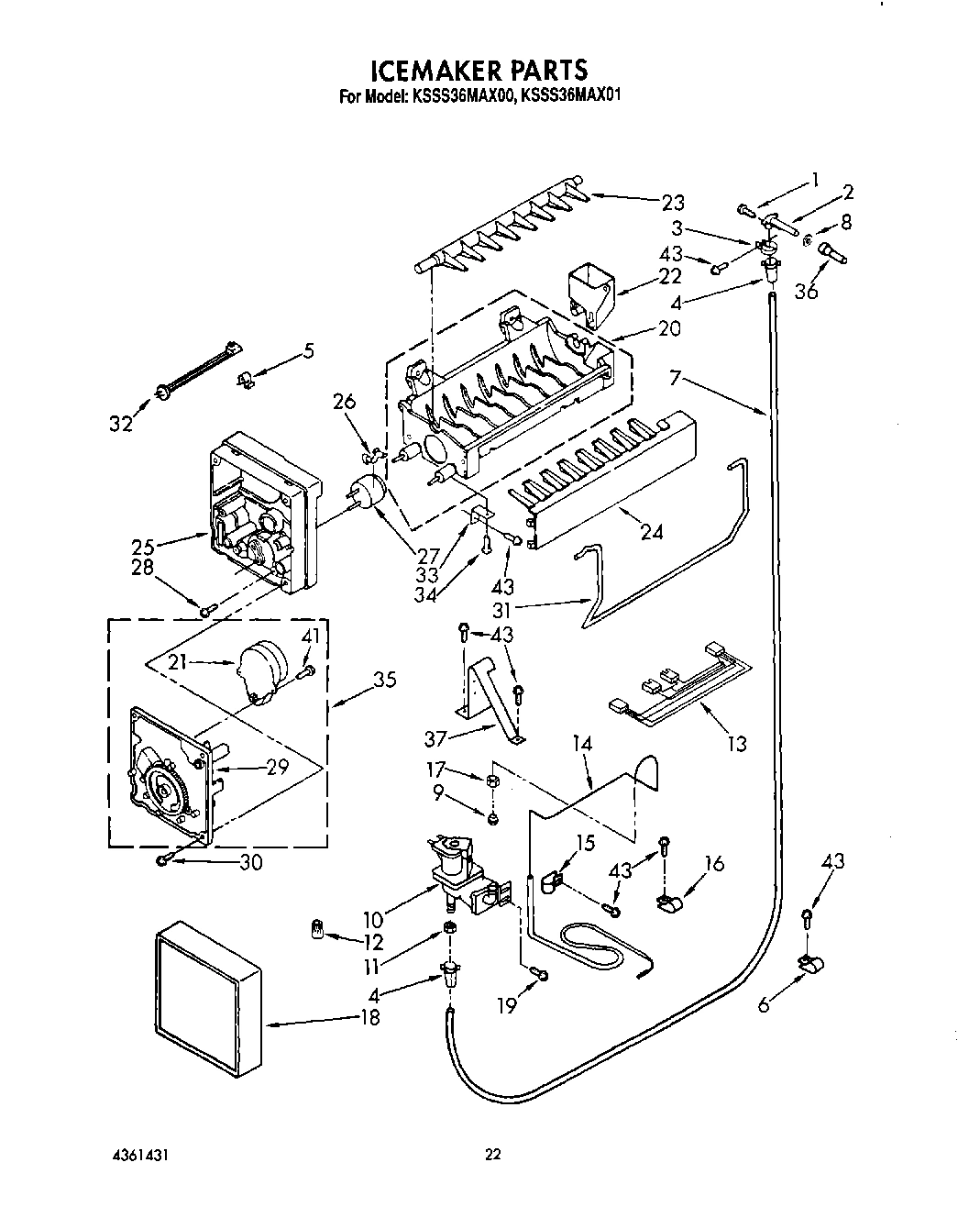

15 - ICEMAKER, LIT/OPTIONAL

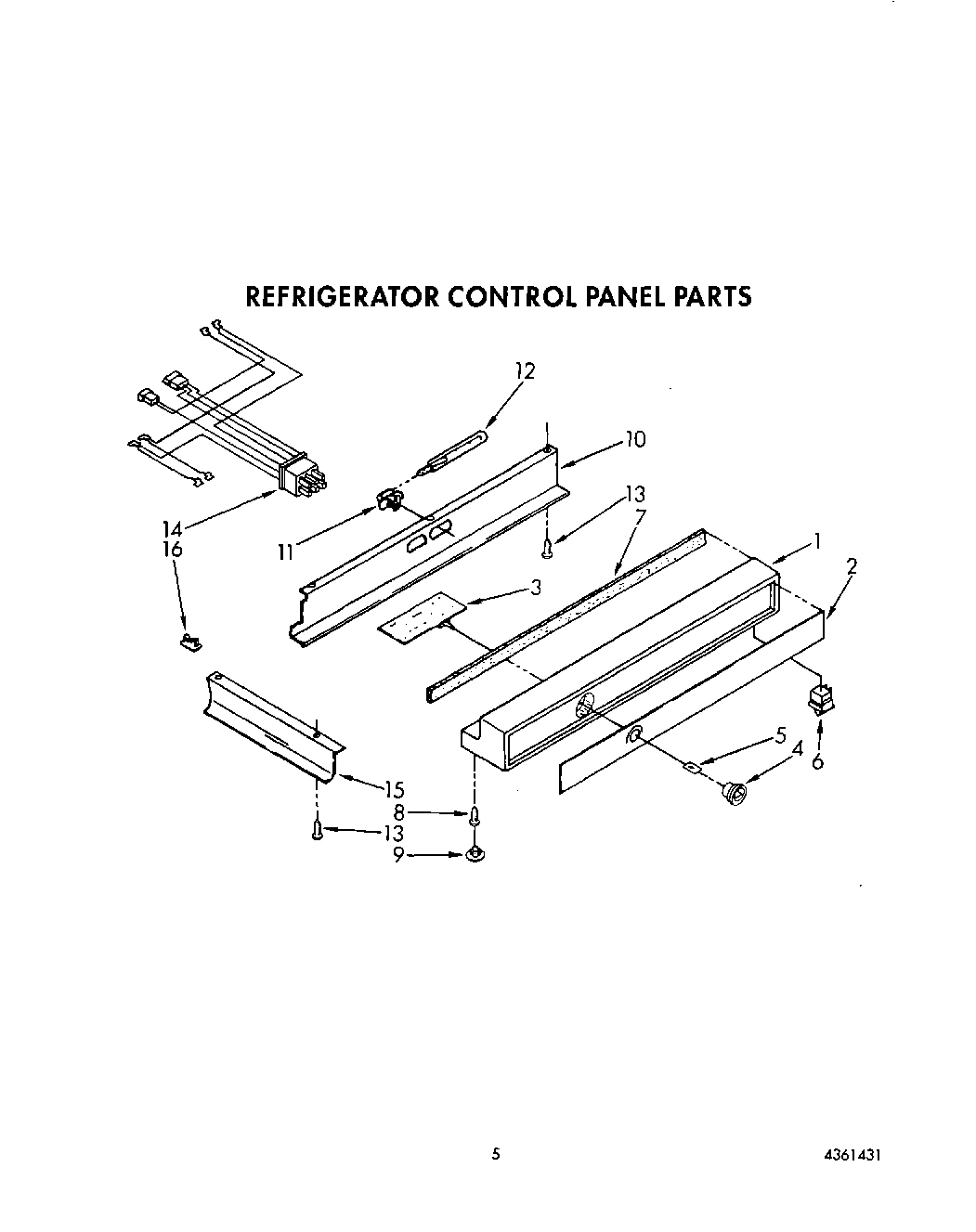

03 - REFRIGERATOR CONTROL PANEL

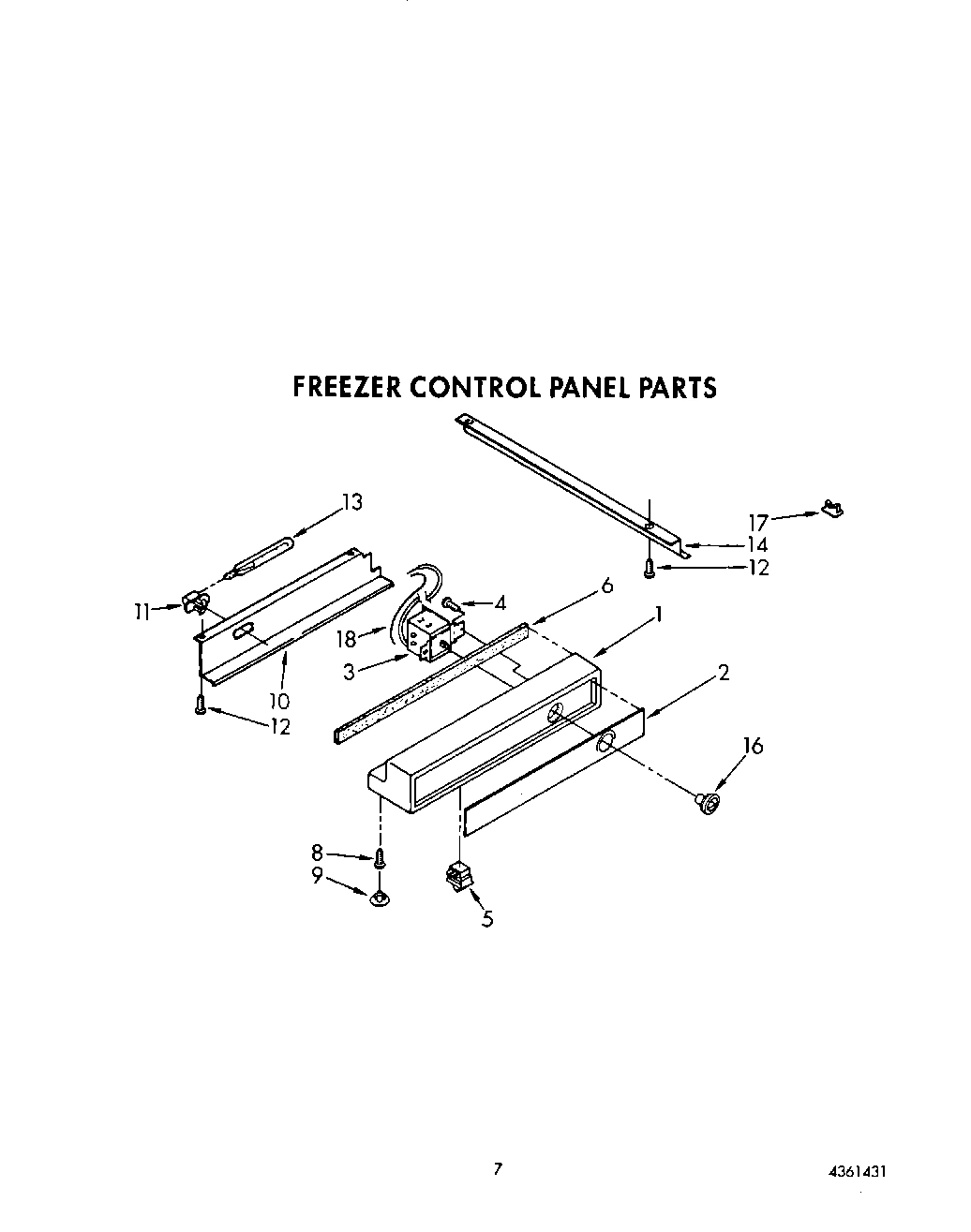

05 - FREEZER CONTROL PANEL

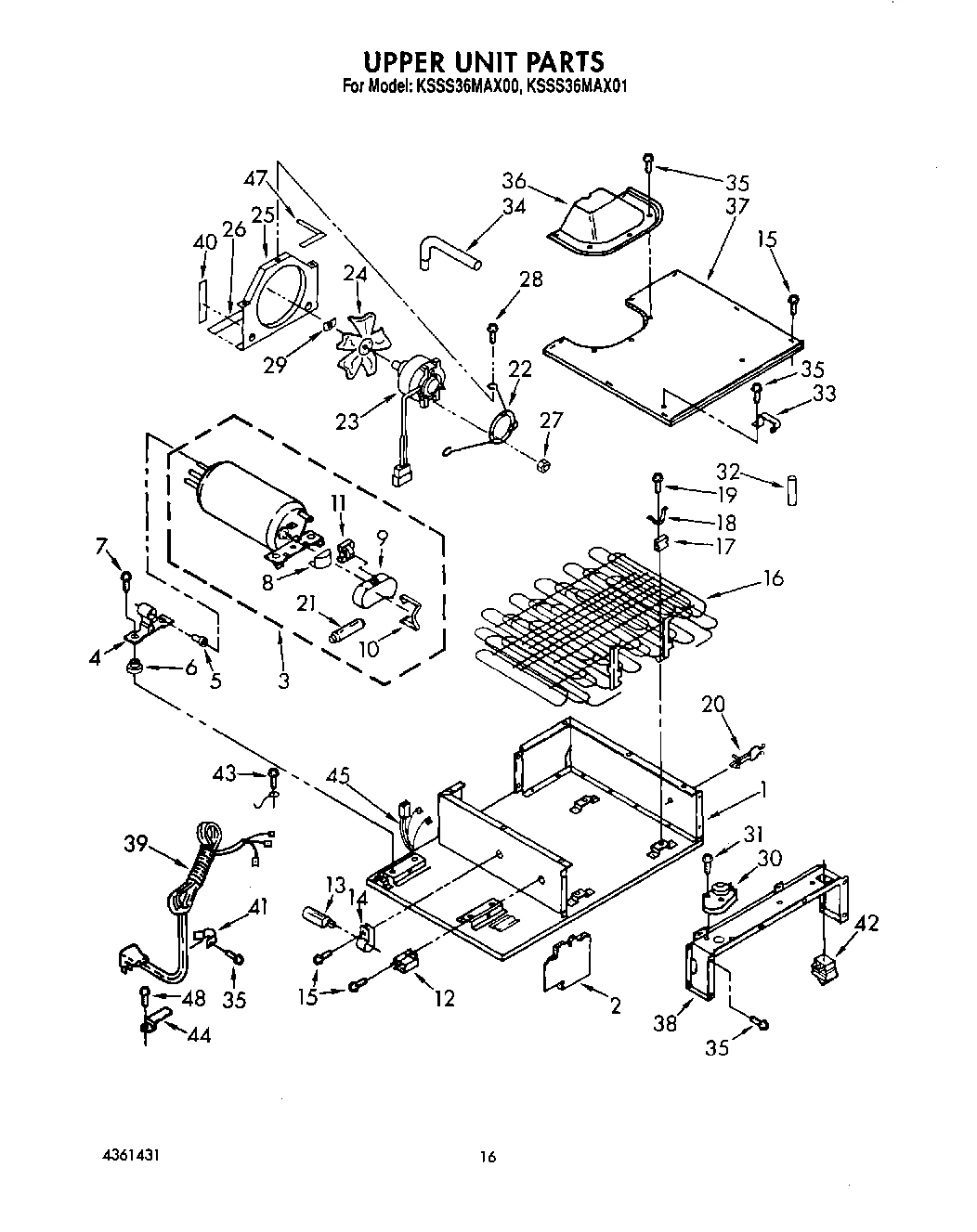

12 - UPPER UNIT

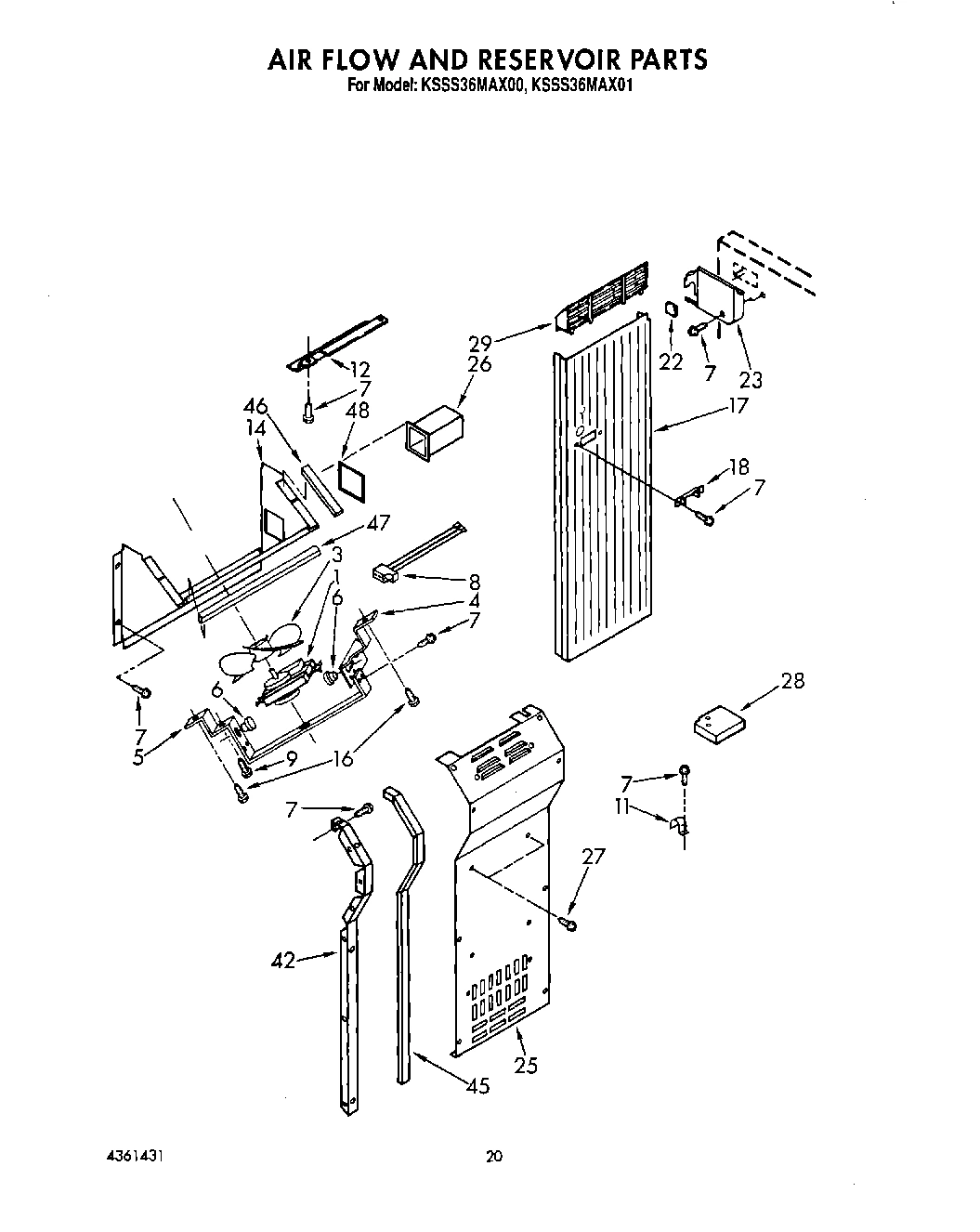

14 - AIR FLOW AND RESERVOIR
Common parts from model Whirlpool KSSS36MAX01 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2000850 Contact Us For Availability
Installation Instructions WPL LIT2001094 Contact Us For Availability
Use & Care Guide WPL LIT2001362 Contact Us For Availability
Energy Label WPL LIT2001676 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Solid Shelf WPL 1113628 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000693 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106637A Contact Us For Availability
1
Frame, Shelf WPL 1113542 Contact Us For Availability
1
Exterior Door Panel, Freezer (Also Order Item WPL 2000714 Contact Us For Availability
1
Breaker Trim & Retainer Assembly WPL 2000650 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106636A Contact Us For Availability
1
Control Panel WPL 1112640 Contact Us For Availability
1
Control Panel WPL 1113625 Contact Us For Availability
1
Assembly, Unit Base WPL 2000681 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Decorative Panel Assembly WPL 2001053 Contact Us For Availability
2
Decorative Panel Assembly (For Model KSSS36MA WPL 2001315 Contact Us For Availability
2
Glass, Shelf WPL 1112297 Contact Us For Availability
2
Fitting, Water Tube WPL 2000829 Contact Us For Availability
2
Inlay, Control Panel WPL 2000974 Contact Us For Availability
2
Inlay, Control Panel WPL 1113963 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113564 Contact Us For Availability
3
Shelf, Fixed-Deep WPL 1113636 Contact Us For Availability
3
Hinge Assembly, Top WPL 2000696 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Back Up Panel WPL 1113313 Contact Us For Availability
3
Reflector, Shelf WPL 1113546 Contact Us For Availability
3
Circuit Board WPL 2000789 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10, 11, 12, WPL 4318252 Contact Us For Availability
4
Basket WPL 2001551 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113293 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113790 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Knob, Retainer WPL 837444 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
6
Trim, Ice Pan WPL 1122530 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2000698 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Hinge, Bottom WPL 2000720 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112683 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Seal, Control Panel WPL 1113132 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
7
Shelf, Fixed Ice Pan WPL 1113633 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 1113550 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112679 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
7
Tube, Water (To Ice Maker) WPL 2001336 Contact Us For Availability
7
Seal, Control Panel WPL 1113133 Contact Us For Availability
7
Screw WPL 489334 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2001727 Contact Us For Availability
8
Hinge, Top WPL 2000721 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Overload (Service) (Includes Relay) WPL 1101000 Contact Us For Availability
8
Overload (Replacement Compressor Only) WPL 2149961 Contact Us For Availability
8
Overload (Production) (Includes Relay) WPL 2154946 Contact Us For Availability
8
Motor, Wiring WPL 2000618 Contact Us For Availability
9
Door Spacer WPL 2000303 Contact Us For Availability
9
Heater, Drain Pan WPL 2000754 Contact Us For Availability
9
Top Grille Assembly WPL 2000844 Contact Us For Availability
9
Top Grille Assembly (For Model KSSS36MAX01) WPL 2001577 Contact Us For Availability
9
Cover, Crisper WPL 1113893 Contact Us For Availability
9
Cabinet, Trim R.S WPL 2000321 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Terminal Cover WPL 2154452 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Cover, Unit WPL 2001088 Contact Us For Availability
10
Glass, Crisper WPL 2000154 Contact Us For Availability
10
Overlay, Shelf WPL 2001031 Contact Us For Availability
10
Cabinet, Trim L.S WPL 2000322 Contact Us For Availability
10
Meat Pan, Air Duct Cover (Also Order 12) WPL 2000740 Contact Us For Availability
10
Shield, Control Panel WPL 1113773 Contact Us For Availability
10
Shield, Control Panel WPL 1113767 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
11
Handle, Door WPL 2000323 Contact Us For Availability
11
Socket, Light WPL 1112613 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Screw WPL 2001297 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Relay (See Overload) WPL ARI106638A Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Cover, Component Assembly WPL 1113300 Contact Us For Availability
12
Cabinet, Trim (Bottom) WPL 1112800 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2001302 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Running Capacitor (Service) WPL 1105212 Contact Us For Availability
12
Channel, Wiring WPL 2001256 Contact Us For Availability
13
Trim, Basket WPL 1113642 Contact Us For Availability
13
Tube, Discharge WPL 2000857 Contact Us For Availability
13
Brace WPL 1113317 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Water Valve, Harness WPL 2000837 Contact Us For Availability
13
Capacitor, Start WPL 1108065 Contact Us For Availability
14
Pan, Crisper WPL 2000887 Contact Us For Availability
14
Door Gasket, Magnetic WPL 2000877 Contact Us For Availability
14
Cabinet, Trim Top WPL 2001309 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Control Harness WPL 2001074 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Heat Exchanger WPL 2000722 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Trim (Top) WPL 2000315 Contact Us For Availability
16
Handle, Door WPL 2000324 Contact Us For Availability
16
Washer (2) WPL 487944 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Heater, Defrost WPL 2000630 Contact Us For Availability
17
Tap, Plate WPL 2000349 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Assembly, Air Duct WPL 2000747 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Door, Spacer WPL 2000697 Contact Us For Availability
18
Trim (Side) WPL 2000314 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
18
Cover WPL 1113703 Contact Us For Availability
18
Thermostat Barrier WPL 1105570 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Trim (Bottom) WPL 2000318 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
19
Utility Pan WPL 2000891 Contact Us For Availability
20
Panel, Interior Door WPL 1113952 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Meat Pan WPL 2000815 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Trim (Top) WPL 2000326 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
22
Basket Slide (Right Side) WPL 2000061 Contact Us For Availability
22
Basket Slide (Left Side Right Side (2)) WPL 2000062 Contact Us For Availability
22
Screw WPL 489112 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Mounting Bracket, Motor WPL 2000358 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Retainer, Glass WPL 1112324 Contact Us For Availability
23
Trim (Bottom) WPL 2000329 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
24
Trim (Side) WPL 2000325 Contact Us For Availability
24
Blade, Fan WPL 2000352 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
25
Orifice, Fan WPL 2000351 Contact Us For Availability
25
Cover, Evaporator WPL 2000339 Contact Us For Availability
26
Door, Utility Bin WPL 1112735 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Panel, Interior Door WPL 2000177 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000797 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Door Shelf (4) WPL 2000911 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability
28
Door Shelf, Outer Trim WPL 1112765 Contact Us For Availability
28
Screw, 8 x 1/2 (3) WPL 489368 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Door Shelf, Inner Trim WPL 1112770 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
31
Support, Trim Ends WPL 1112763 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
33
Clamp, Tube (2) WPL 1113066 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Process, Tube WPL 1113059 Contact Us For Availability
36
Water Inlet Tube WPL 2001098 Contact Us For Availability
36
Cover, Fan WPL 2000853 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
40
Seal Strip (2) WPL 2001503 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2001077 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
WPL 978029 WPL 978029 Contact Us For Availability
48
Screw WPL 486899 Contact Us For Availability
48
VALVE, ACCE WPL 978028 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318632 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318635 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318638 Contact Us For Availability
100
FRONT PANEL KIT (STAINLESS STEEL) WPL 4318641 Contact Us For Availability
100
Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
