Model Whirlpool KSSS36DWX02 BUILT IN REFRIGERATOR – Common Parts & Diagrams
15 - LOWER UNIT AND TUBE
16 - AIR FLOW AND RESERVOIR

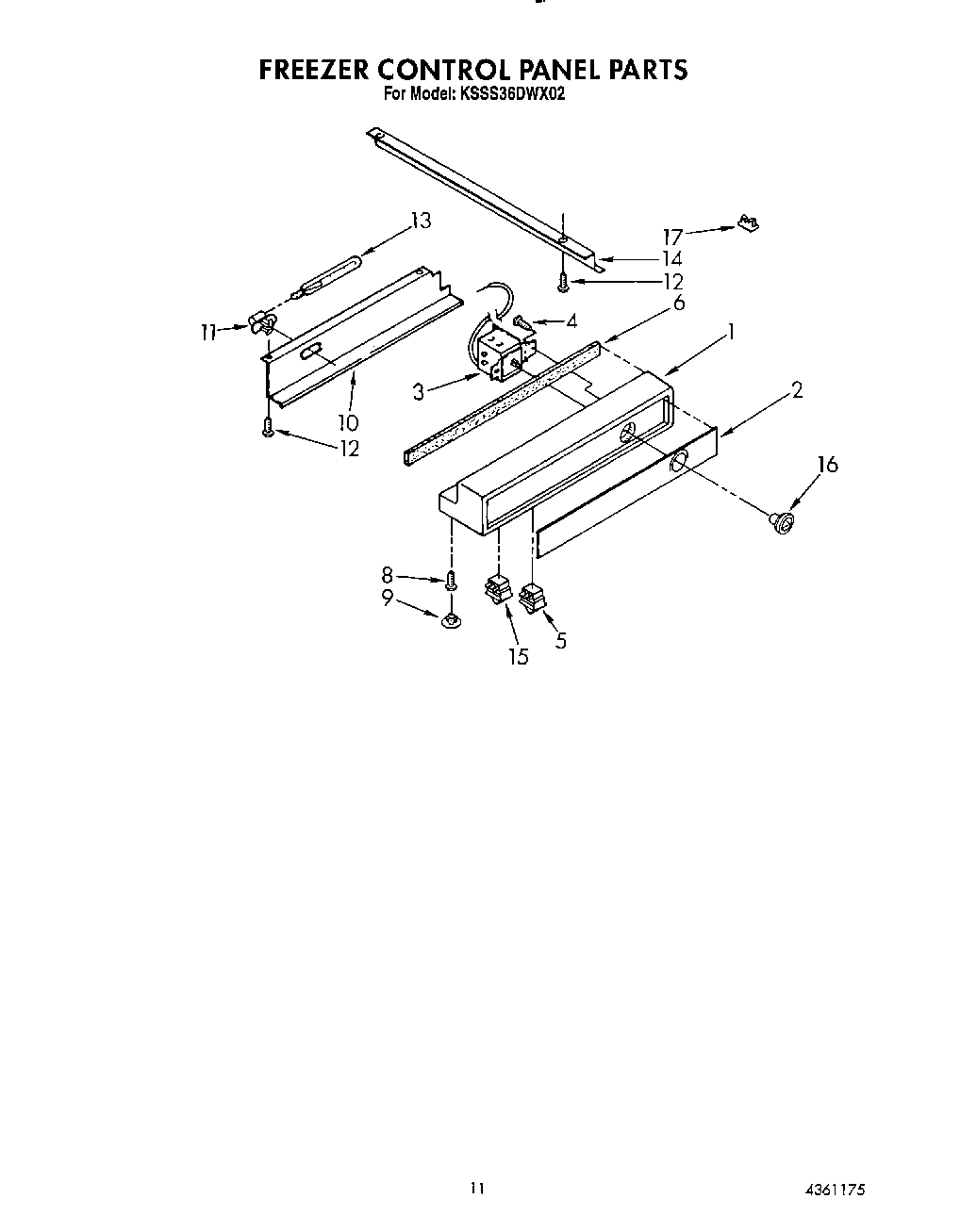

08 - FREEZER CONTROL PANEL

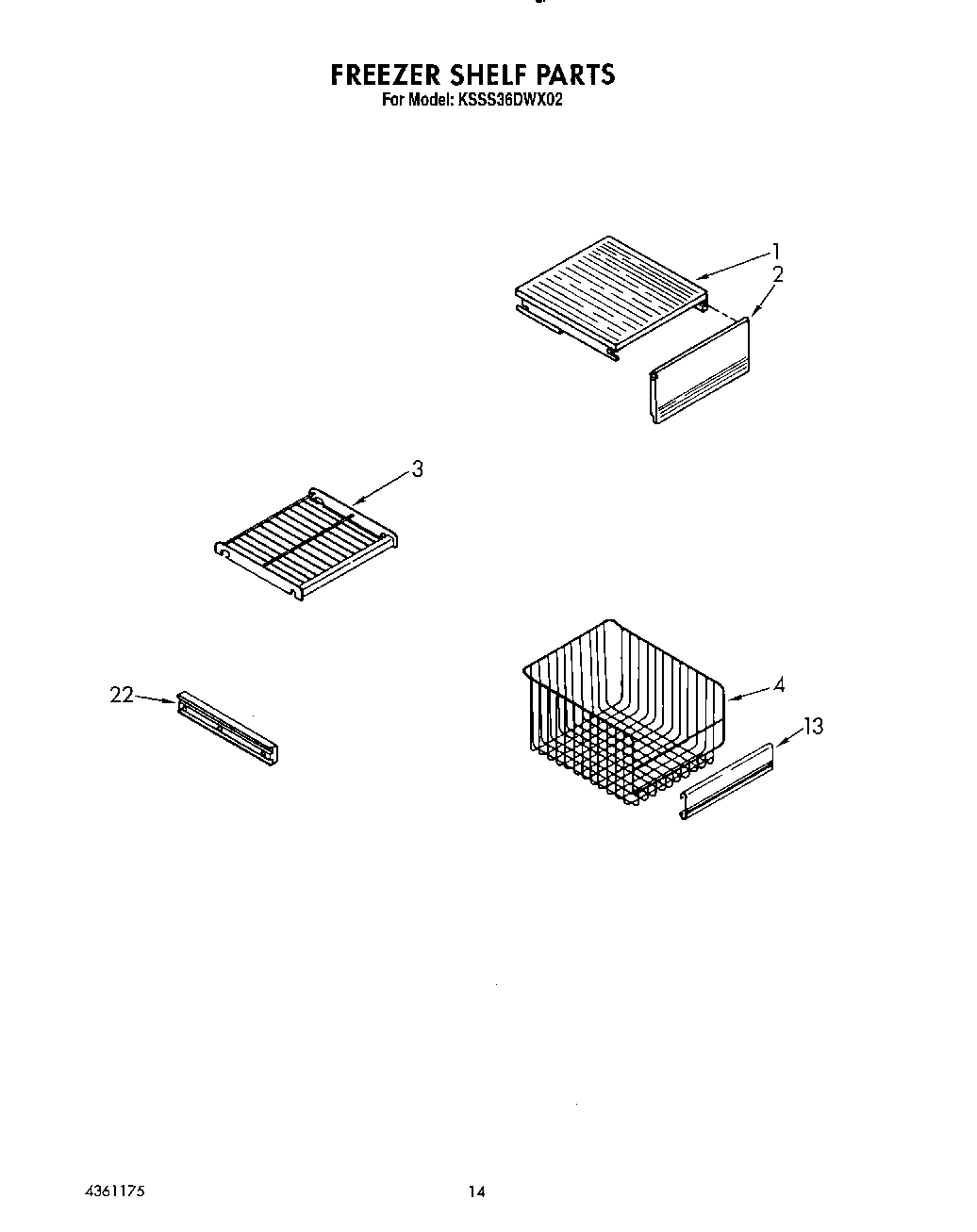

10 - FREEZER SHELF

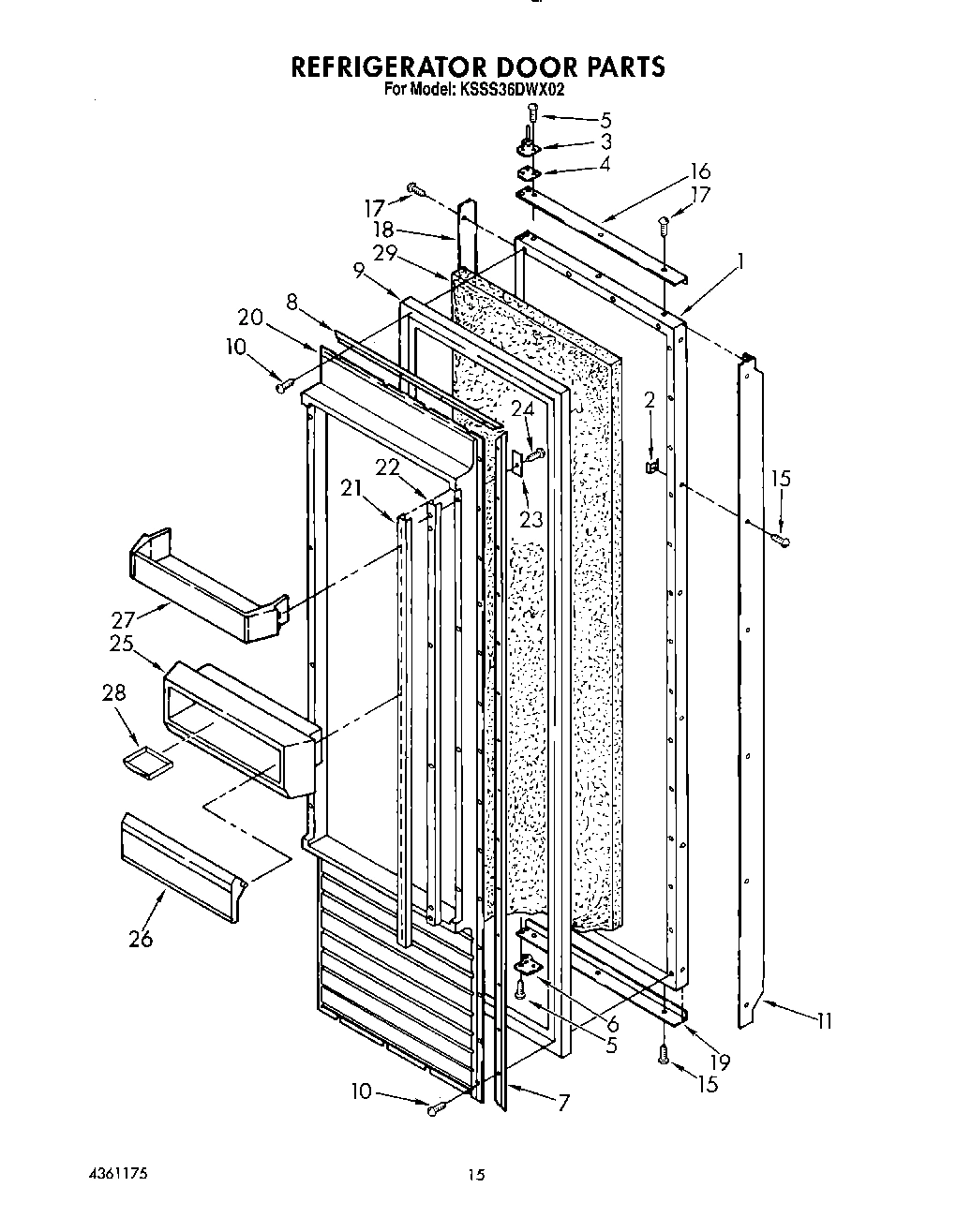

11 - REFRIGERATOR DOOR

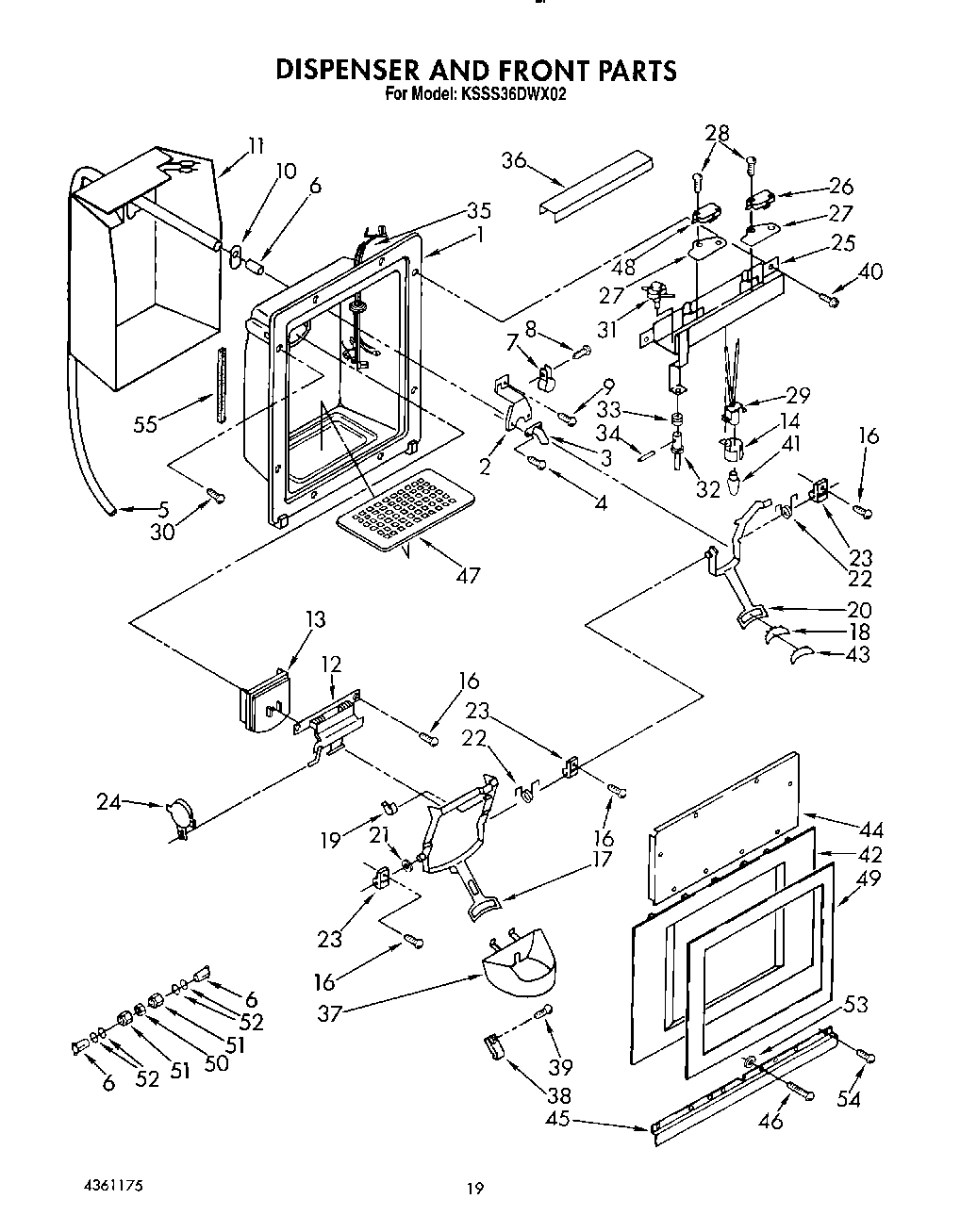

13 - DISPENSER AND FRONT

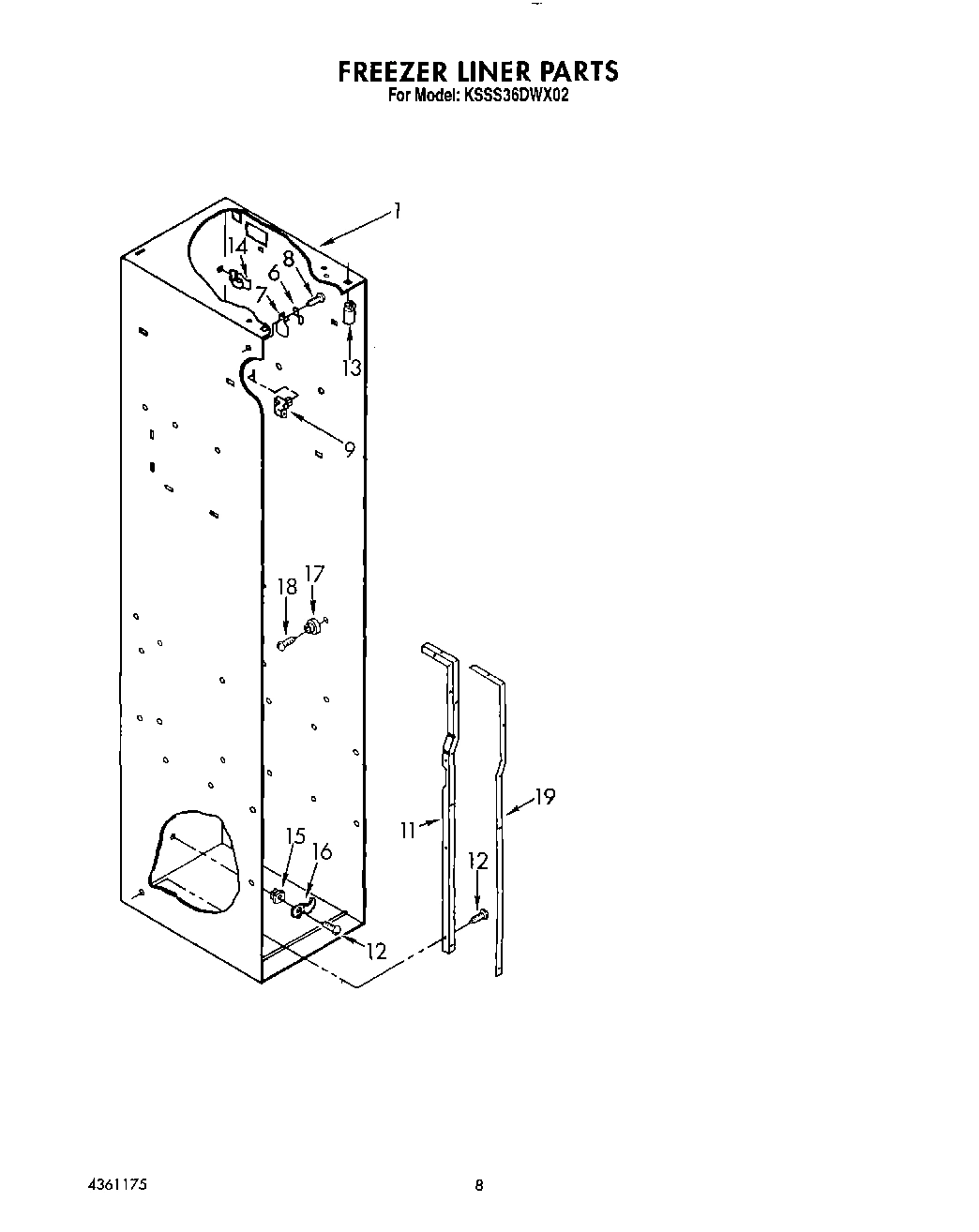

05 - FREEZER LINER

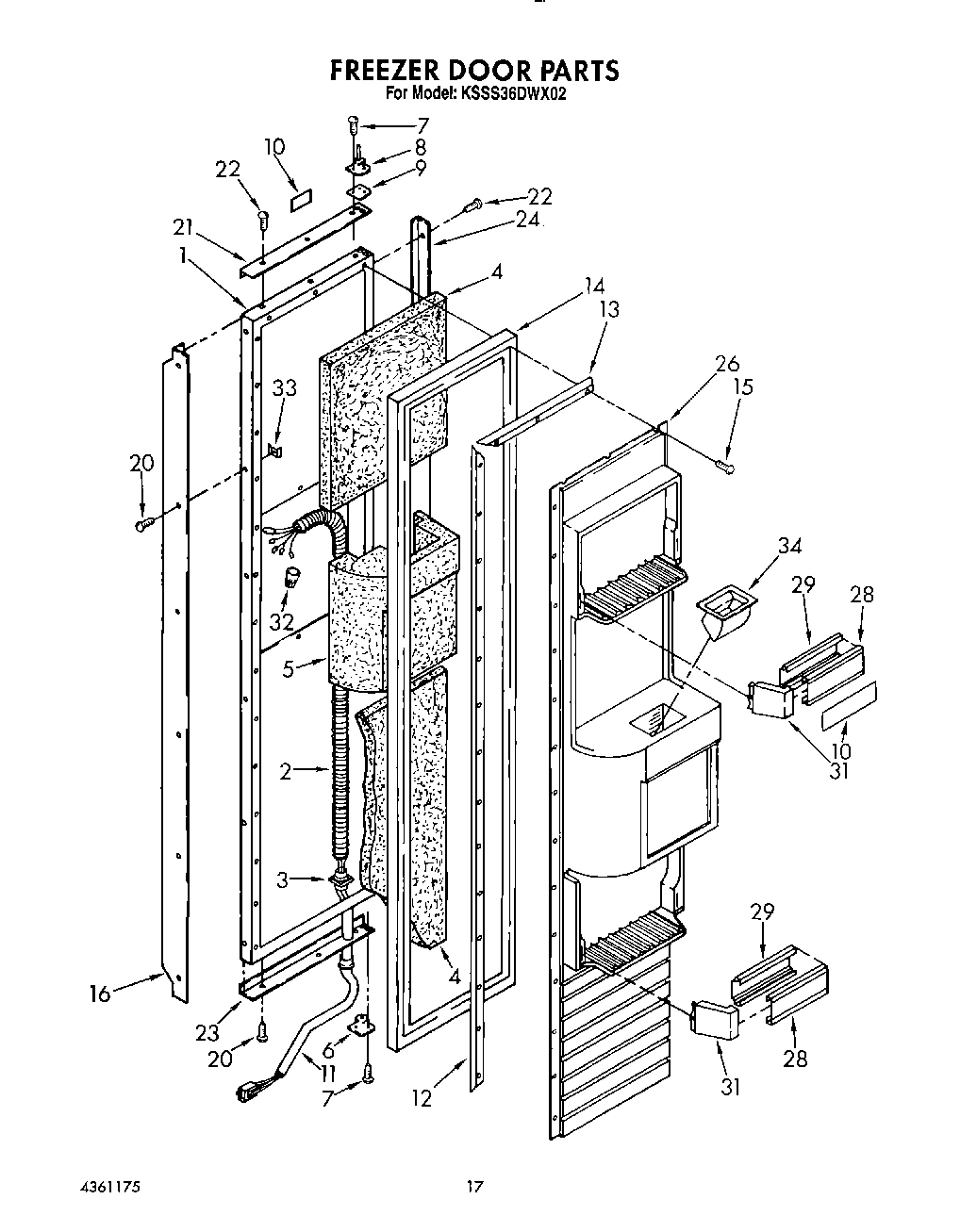

12 - FREEZER DOOR

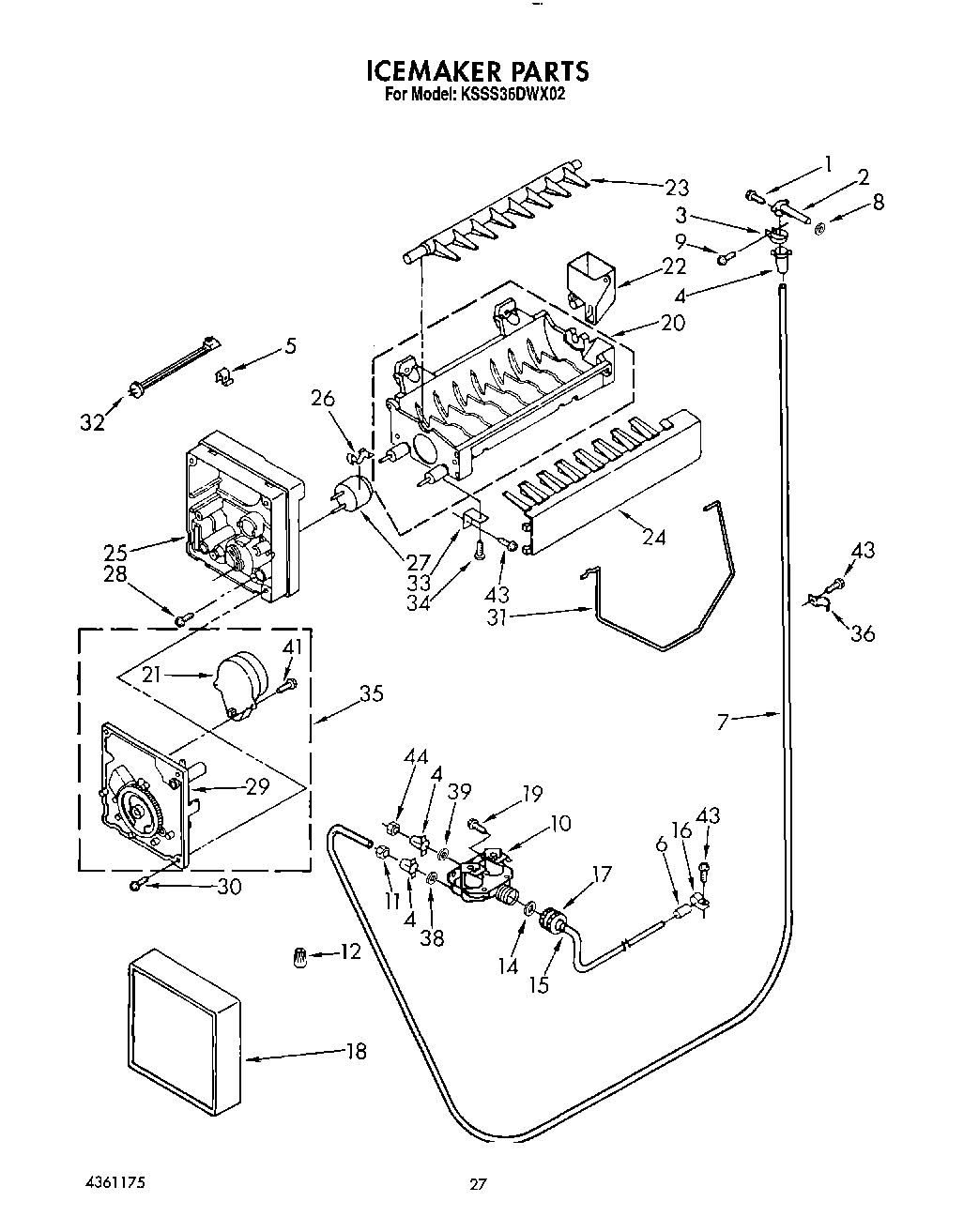

17 - ICEMAKER, LIT/OPTIONAL

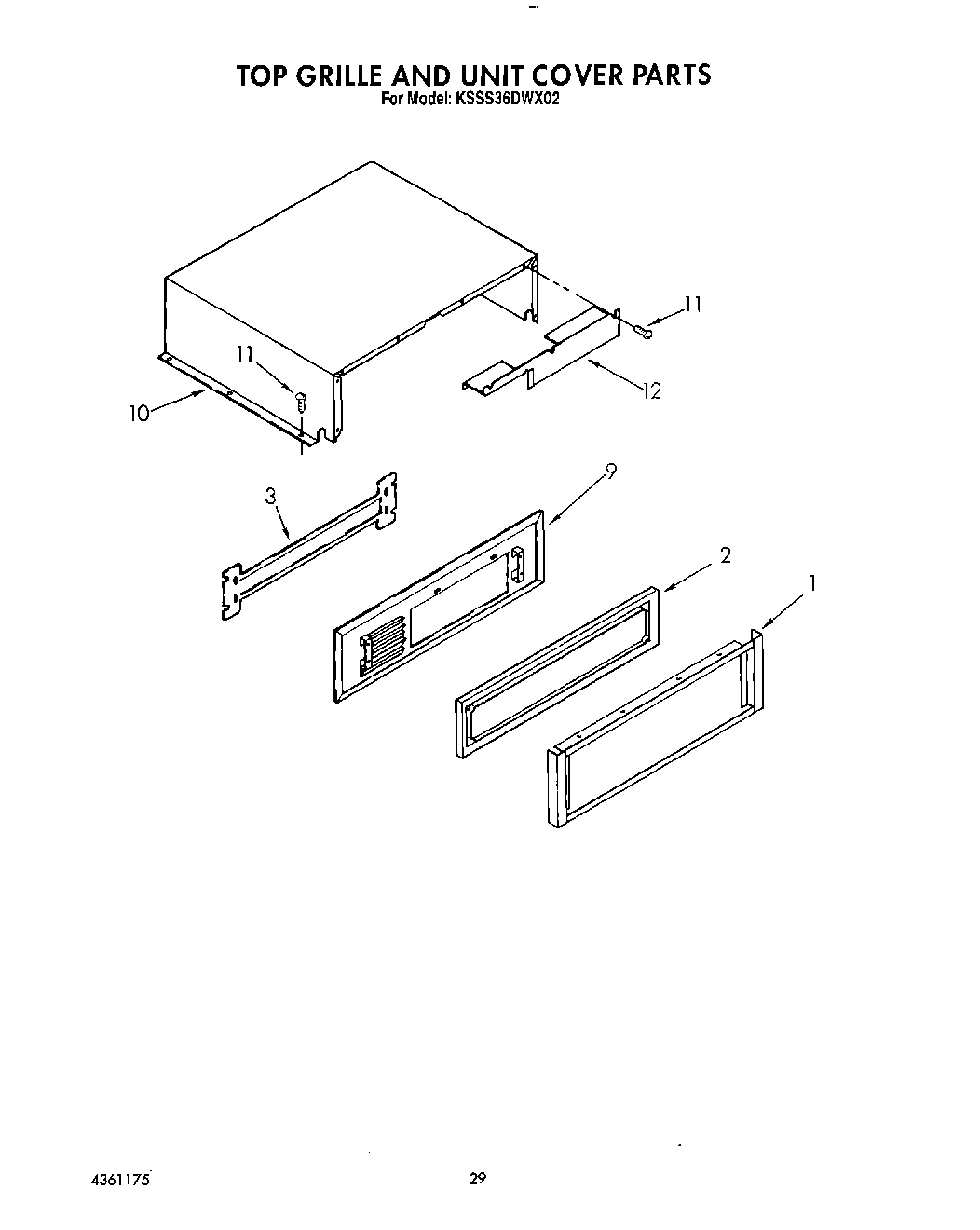

18 - TOP GRILLE AND UNIT COVER

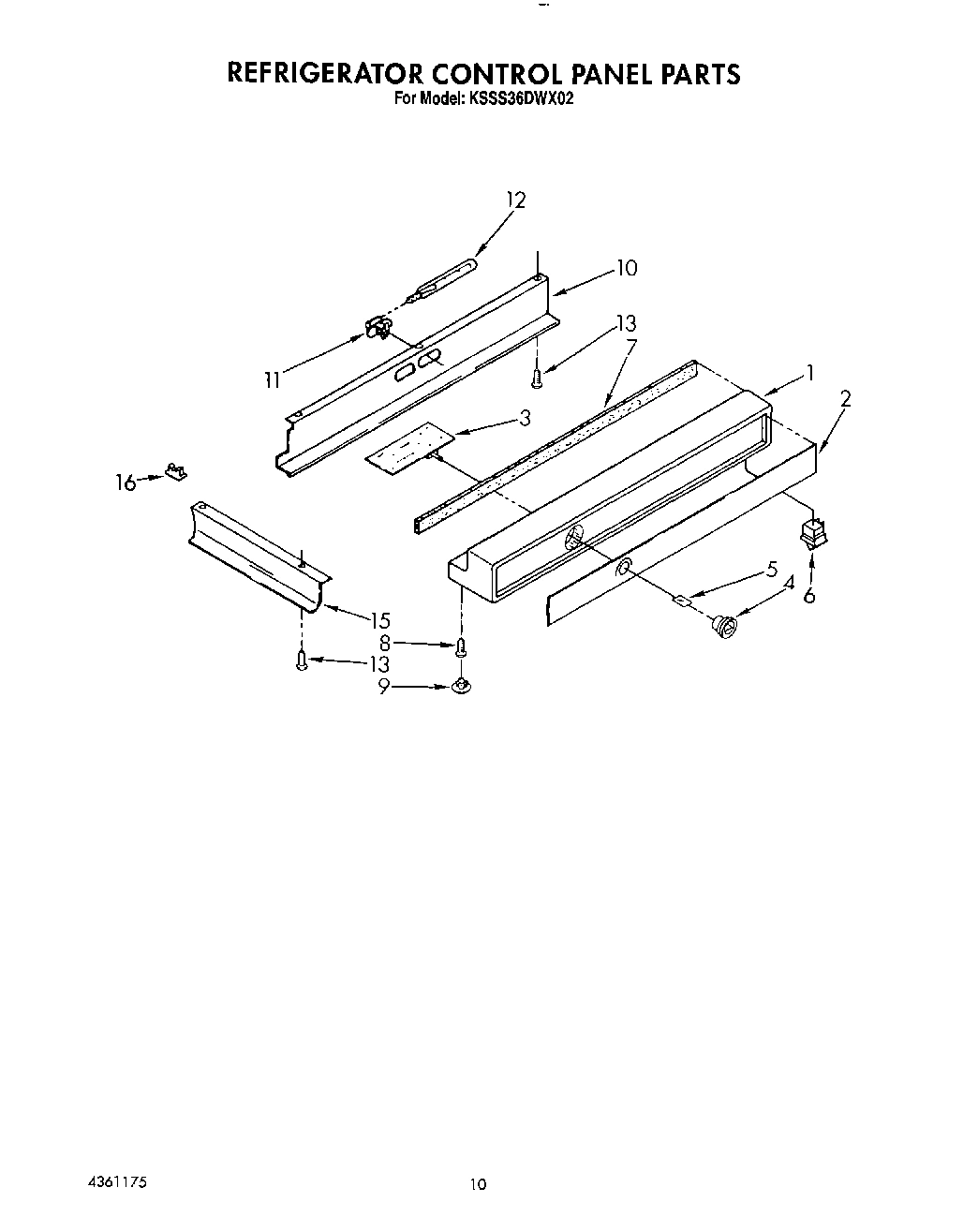

07 - REFRIGERATOR CONTROL PANEL

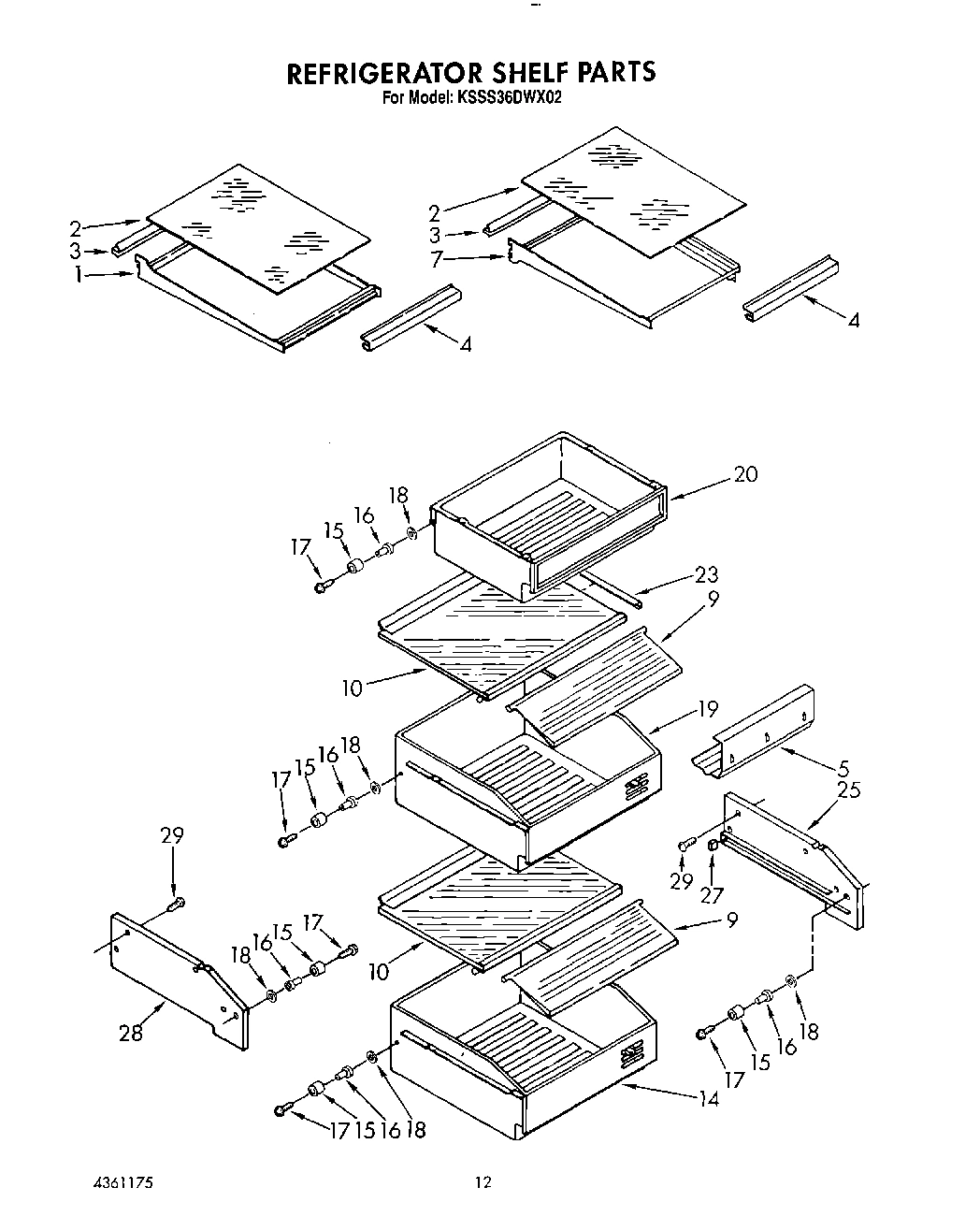

09 - REFRIGERATOR SHELF

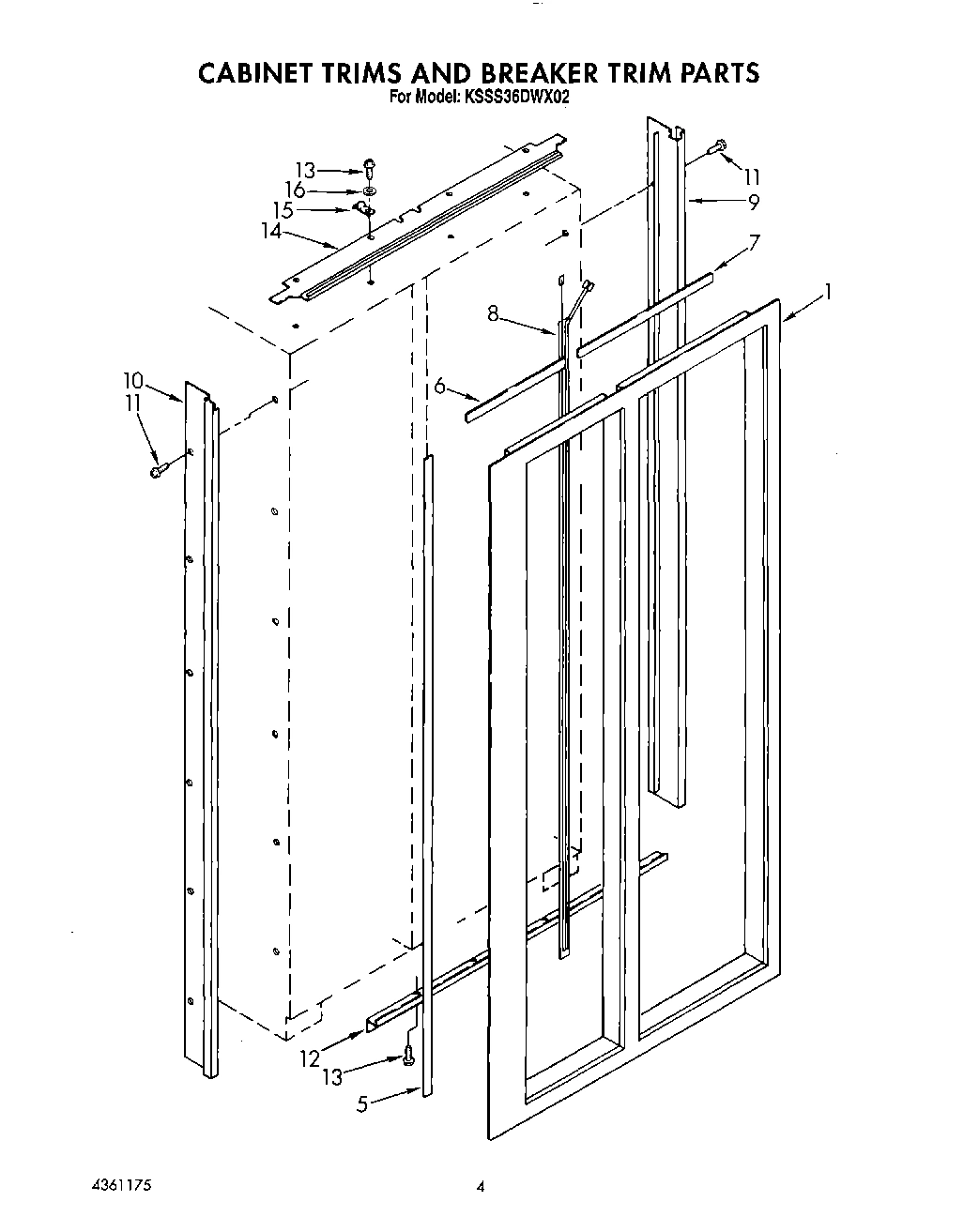

03 - CABINET TRIMS AND BREAKER TRIM
14 - UPPER UNIT

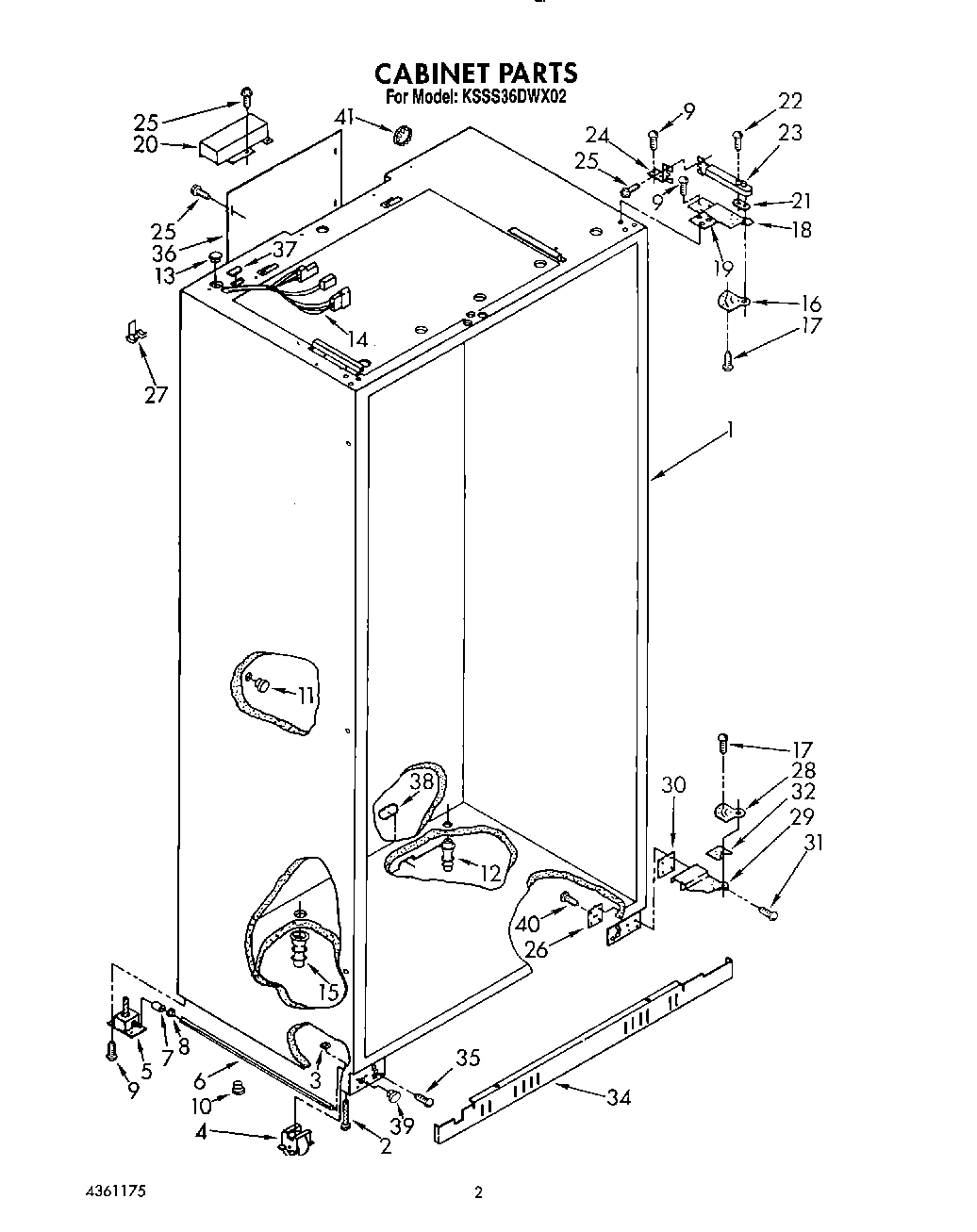

02 - CABINET

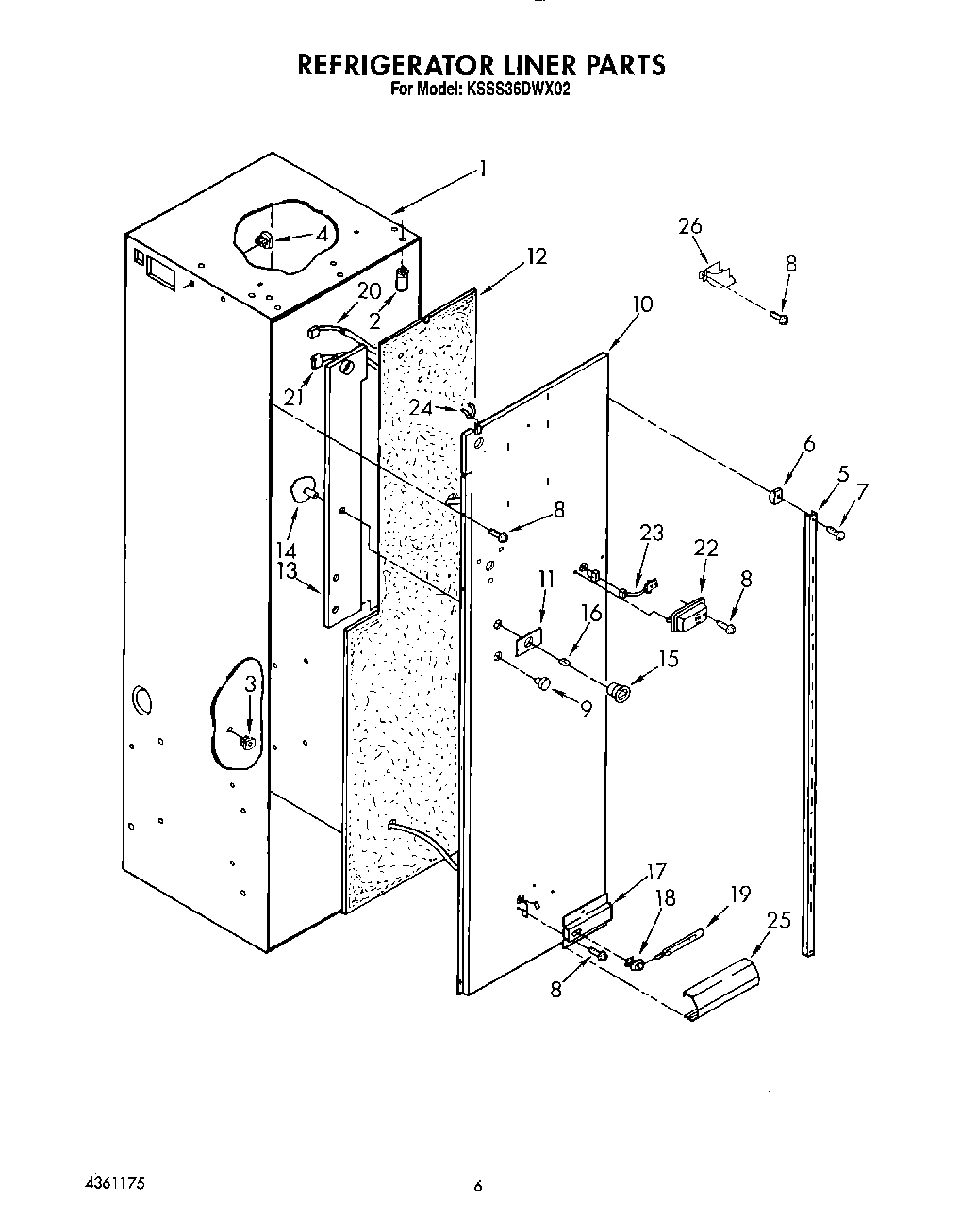

04 - REFRIGERATOR LINER
06 - ICE CONTAINER
Common parts from model Whirlpool KSSS36DWX02 BUILT IN REFRIGERATOR
Use & Care Guide WPL LIT1113982 Contact Us For Availability
Energy Label WPL LIT2000142 Contact Us For Availability
Installation Instructions WPL LIT2000491 Contact Us For Availability
Service & Wiring Sheet WPL LIT2000936 Contact Us For Availability
Parts List WPL LIT4361175 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628107 Contact Us For Availability
1
Control Panel WPL 1112595 Contact Us For Availability
1
Solid Shelf WPL 1112365 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000572 Contact Us For Availability
1
Housing, Dispenser WPL 1107943 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106502A Contact Us For Availability
1
Exterior Door Panel, Freezer (Also Order Item WPL 2000598 Contact Us For Availability
1
Grille, Frame Assembly WPL 1113866 Contact Us For Availability
1
Control Panel WPL 1112640 Contact Us For Availability
1
Frame, Shelf WPL 1113542 Contact Us For Availability
1
Breaker Trim & Retainer Assembly WPL 1112665 Contact Us For Availability
1
Assembly, Unit Base WPL 1113005 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI106500A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106501A Contact Us For Availability
1
Spacer, Track (Right Side) WPL 1112281 Contact Us For Availability
1
Spacer, Track (Left Side) WPL 1112282 Contact Us For Availability
2
Inlay, Control Panel WPL 1113963 Contact Us For Availability
2
Front, Ice Compartment WPL 2000885 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
2
Decorative Panel Assembly WPL 1113863 Contact Us For Availability
2
Inlay, Control Panel WPL 2000974 Contact Us For Availability
2
Glass, Shelf WPL 1112297 Contact Us For Availability
2
Roller WPL 1113870 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
3
Blade, Fan WPL 992920 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1113564 Contact Us For Availability
3
Shelf, Fixed-Deep WPL 1113636 Contact Us For Availability
3
Hinge Assembly, Top WPL 1112945 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
3
Back Up Panel WPL 1113313 Contact Us For Availability
3
Circuit Board WPL 1113390 Contact Us For Availability
3
Reflector, Shelf WPL 1113546 Contact Us For Availability
3
Eyelet, Roller WPL 1113871 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10 & 11) (Al WPL 4317834 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Grommet, Screw (3) WPL 843436 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Basket WPL 1113639 Contact Us For Availability
4
Grommet WPL 842339 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113790 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Insulation, Dispenser WPL 1112977 Contact Us For Availability
5
Rack, Wine WPL 1126137 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Ladder, Shelf (2) WPL 1112115 Contact Us For Availability
6
Seal, Control Panel WPL 1113132 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 1112921 Contact Us For Availability
6
Washer WPL 488307 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Hinge, Bottom WPL 1112916 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112683 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Adjusting Rod (2) WPL 1112936 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Seal, Control Panel WPL 1113133 Contact Us For Availability
7
Frame, Assembly WPL 1113550 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112679 Contact Us For Availability
7
Screw WPL 489334 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Hinge, Top WPL 1112944 Contact Us For Availability
8
Heater, Mullion WPL 1112710 Contact Us For Availability
8
Overload (Replacement Compressor Only) WPL 1108067 Contact Us For Availability
8
Overload (Production Compressor Only) WPL 2149961 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Bracket, Motor WPL 1112291 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Spacer Plate Expansion (2) WPL 1112940 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2000444 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
9
Top Grille Assembly WPL 2000931 Contact Us For Availability
9
Cover, Crisper WPL 1113893 Contact Us For Availability
9
Trim (R.S.) WPL 1113836 Contact Us For Availability
9
For Replacement Compressor Only WPL 1105221 Contact Us For Availability
9
Terminal Cover WPL 2154452 Contact Us For Availability
9
Screw, 10-32 x 5/8 WPL 2000489 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Motor Assembly WPL 1113960 Contact Us For Availability
10
Shield, Control Panel WPL 1113767 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Overlay, Shelf WPL 2001031 Contact Us For Availability
10
Valve, Solenoid WPL 1113103 Contact Us For Availability
10
Cover, Unit WPL 1113490 Contact Us For Availability
10
Shield, Control Panel WPL 1113773 Contact Us For Availability
10
Glass, Crisper WPL 2000154 Contact Us For Availability
10
Trim (L.S.) WPL 1113835 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Cover, Liner Back WPL 2000950 Contact Us For Availability
11
Heater, Ice Dispenser WPL 2149097 Contact Us For Availability
11
Rail, Evaporator Cover (Left Side) WPL 2000956 Contact Us For Availability
11
Rail, Evaporator Cover (Right Side) WPL 2000957 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 1112488 Contact Us For Availability
11
Screw, (Repair) WPL 487246 Contact Us For Availability
11
Relay WPL 1108066 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Control Panel Assembly (Meat) WPL 1112219 Contact Us For Availability
12
Ice Door Mechanism WPL 2147167 Contact Us For Availability
12
Socket, Light WPL 1112613 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Cover, Component Assembly WPL 1113300 Contact Us For Availability
12
Trim (Bottom) WPL 1112800 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
12
Insulation, Liner Back Cover WPL 1112133 Contact Us For Availability
13
Door, Ice WPL 2147168 Contact Us For Availability
13
Trim, Basket WPL 1113642 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability
13
Capacitor, Start WPL 1108065 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Duct, Meat Pan WPL 1112132 Contact Us For Availability
13
Cover, Motor WPL 1113128 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Shroud, Control WPL 1129333 Contact Us For Availability
14
Door Gasket, Magnetic WPL 2000443 Contact Us For Availability
14
Pan, Crisper WPL 2000887 Contact Us For Availability
14
Spacer Trim, Grille WPL 1113842 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2000612 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
15
Tube, Inlet Valve WPL 1113106 Contact Us For Availability
15
Channel, Wiring WPL 1112708 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 1113604 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
15
Ice Container WPL 1112285 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Handle, Door WPL 2000182 Contact Us For Availability
16
Trim (Top) WPL 2000081 Contact Us For Availability
16
Washer (2) WPL 487944 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Conveyor WPL 1112378 Contact Us For Availability
17
Heater, Defrost WPL 2000630 Contact Us For Availability
17
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
17
Stud, Shelf WPL 658944 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Shoulder, Screw WPL 1112906 Contact Us For Availability
17
Bracket, Light WPL 1112789 Contact Us For Availability
18
Pad, Lever WPL 1115310 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 1112901 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 1112912 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Trim (Bottom) WPL 2000087 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1112843 Contact Us For Availability
19
Utility Pan WPL 2000891 Contact Us For Availability
19
Shim, Hinge Top (4) WPL 1112988 Contact Us For Availability
19
Nut, Bearing WPL 946195 Contact Us For Availability
20
Panel, Interior Door WPL 1113952 Contact Us For Availability
20
Lever, Water Dispenser WPL 1115349 Contact Us For Availability
20
Meat Pan WPL 2000895 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 1112993 Contact Us For Availability
21
Fastener (3) WPL 1112871 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Trim (Top) WPL 2000077 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Door Closer, Fixed Cam WPL 1112907 Contact Us For Availability
21
Wiring Harness, Light Socket WPL 1112709 Contact Us For Availability
21
Baffle WPL 946194 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Basket Slide (Right Side) WPL 2000061 Contact Us For Availability
22
Basket Slide (Left Side) WPL 2000062 Contact Us For Availability
22
Screw, 6-32 x 1/2 WPL 489112 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Mounting Bracket, Motor WPL 1113083 Contact Us For Availability
22
Overlay, Cover WPL 2001034 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Trim (Bottom) WPL 2000084 Contact Us For Availability
23
Retainer, Glass WPL 1112324 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Front Cover WPL 1112380 Contact Us For Availability
24
Screw, 8-32 x 1-1/2 WPL 488748 Contact Us For Availability
24
Trim (Side) WPL 1113820 Contact Us For Availability
24
Blade, Fan WPL 1113082 Contact Us For Availability
24
Bracket, Door Closer (Left Side) WPL 1112947 Contact Us For Availability
24
Bracket, Door Closer (Right Side) WPL 1112948 Contact Us For Availability
24
Flexible Grommet WPL 2000530 Contact Us For Availability
25
Cover, Evaporator WPL 2000485 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Bracket, Control WPL 1107454 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1113872 Contact Us For Availability
25
Orifice, Fan WPL 2000190 Contact Us For Availability
25
Shield, Light WPL 1112788 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 1112565 Contact Us For Availability
26
Door, Utility Bin WPL 1112735 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Panel, Interior Door WPL 1113945 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Door Shelf (4) WPL 2000911 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
28
Door Shelf, Outer Trim WPL 1112765 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113873 Contact Us For Availability
28
Screw, 8 x 1/2 (3) WPL 489368 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
28
Lens, Dispenser WPL 1113140 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
29
Door Shelf, Inner Trim WPL 1112770 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 1112919 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 1112923 Contact Us For Availability
30
Defrost Timer (10 Hour) WPL 1127570 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) WPL 1112943 Contact Us For Availability
31
Support, Trim Ends WPL 1112763 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
31
Screw, 1/4-28 x 3/4 WPL 2000490 Contact Us For Availability
32
Plunger, Extension WPL 1107457 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
32
Spacer, Lower Door Hinge WPL 1113809 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
33
Clamp, Tube (2) WPL 1113066 Contact Us For Availability
34
Compression Nut WPL 488795 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
Ice Chute WPL 1112554 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Grille Base, Front WPL 1112137 Contact Us For Availability
35
Assembly, Air Baffle WPL 1112875 Contact Us For Availability
35
Wiring Harness, Door WPL 934302 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
36
Insulation, Air Diffuser WPL 1113147 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
36
Tube Clamp (4) WPL 1112847 Contact Us For Availability
36
Cover, Fan WPL 1113075 Contact Us For Availability
36
Cover, Rear WPL 1112835 Contact Us For Availability
37
Guiding, Ice WPL 1118269 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Glass Stop WPL 1119056 Contact Us For Availability
38
Cover, Air Diffuser WPL 1112878 Contact Us For Availability
38
``O`` Ring WPL 488794 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
39
``O`` Ring WPL 488819 Contact Us For Availability
39
Screw WPL 489197 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
39
Grommet, Tube WPL 1112926 Contact Us For Availability
40
Screw WPL 488775 Contact Us For Availability
41
Tube, Meat Pan WPL 1112265 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Seal, Hole WPL 1105408 Contact Us For Availability
42
Front Cover, Housing WPL 1112888 Contact Us For Availability
43
Water Tube (Outlet) WPL 2001260 Contact Us For Availability
43
Saddle, Lever WPL 1119000 Contact Us For Availability
44
Cover, Dispenser Opening WPL 1112836 Contact Us For Availability
44
Nut, Compression WPL 1108005 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
45
Trim, Front WPL 2000067 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 1113748 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Stop WPL 1113039 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
Grille, Overflow WPL 983900 Contact Us For Availability
48
Switch WPL 934316 Contact Us For Availability
49
Overlay, Cover WPL 1113381 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
100
Front Panel Kit (White) WPL 4210464 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4210469 Contact Us For Availability
100
Top Grille Trim Kit (8``) WPL 4210545 Contact Us For Availability
100
Top Grille Trim Kit (7-1/2``) WPL 4210546 Contact Us For Availability
100
Stainless Steel WPL 4210593 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4211168 Contact Us For Availability
× ![]()
