Model Whirlpool KSSO48FMX02 48`` BUILT IN REFRIGERATOR – Common Parts & Diagrams
07 - REFRIGERATOR SHELF PARTS
10 - FREEZER DOOR PARTS

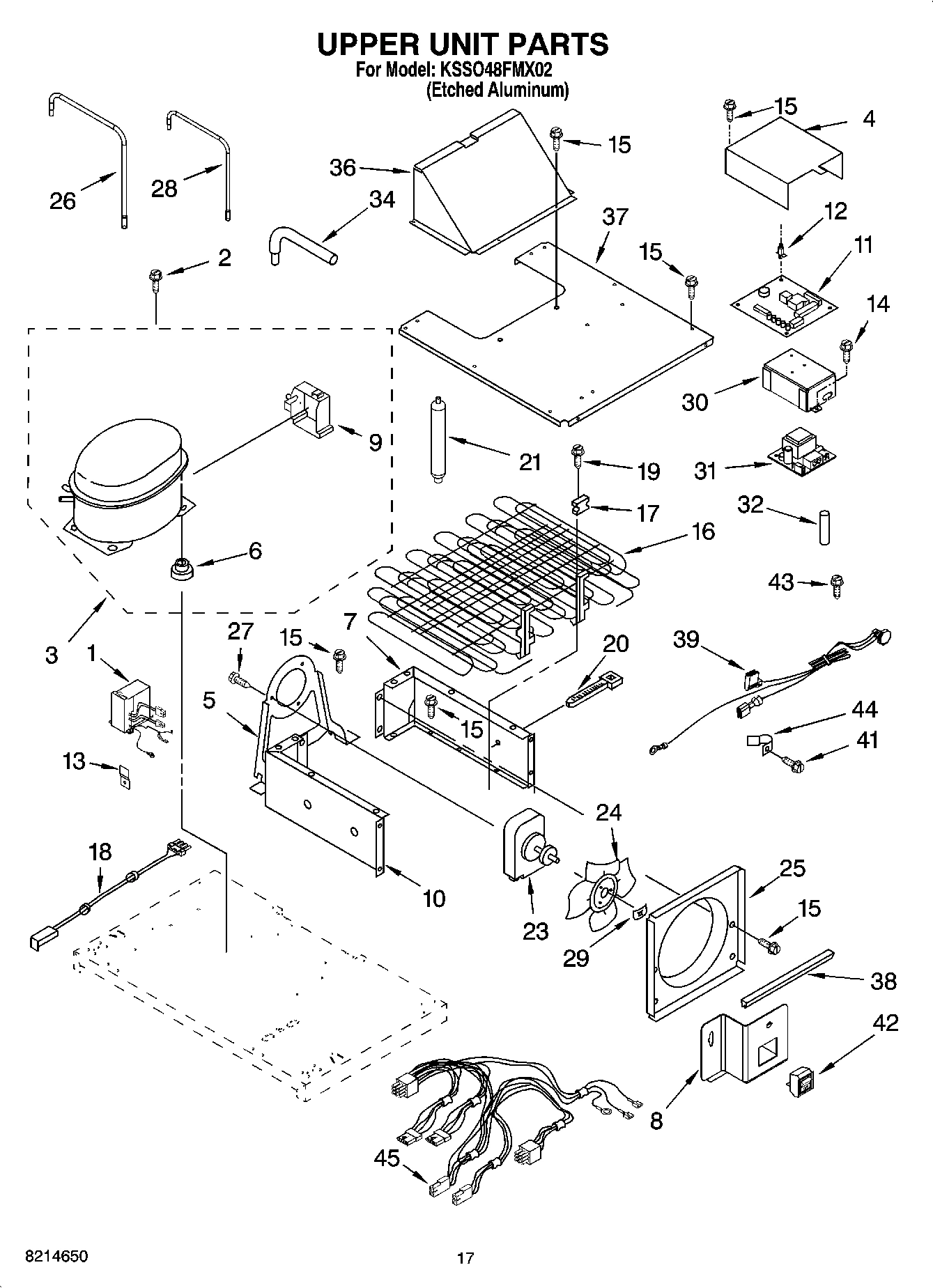

11 - UPPER UNIT PARTS

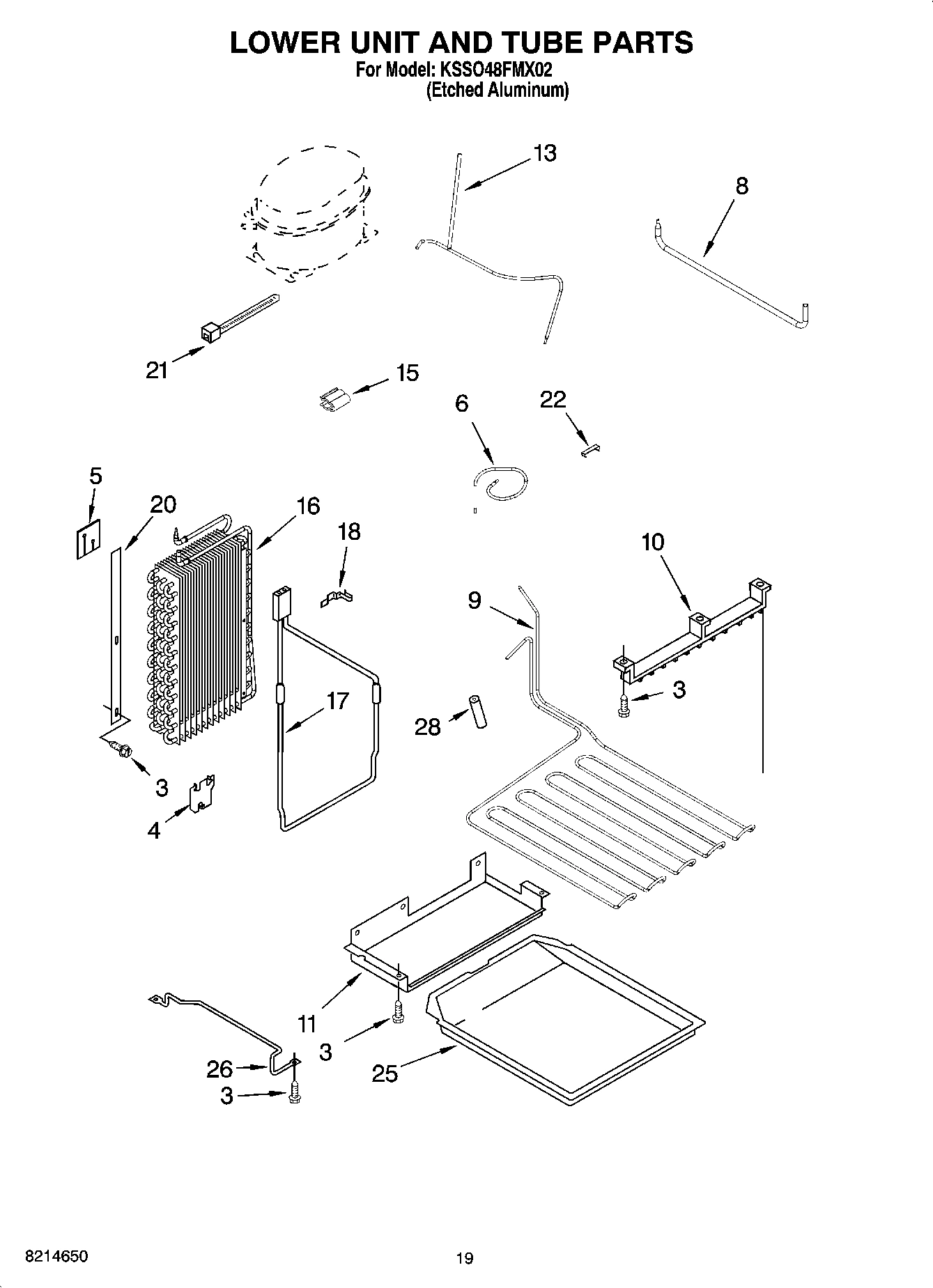

12 - LOWER UNIT AND TUBE PARTS

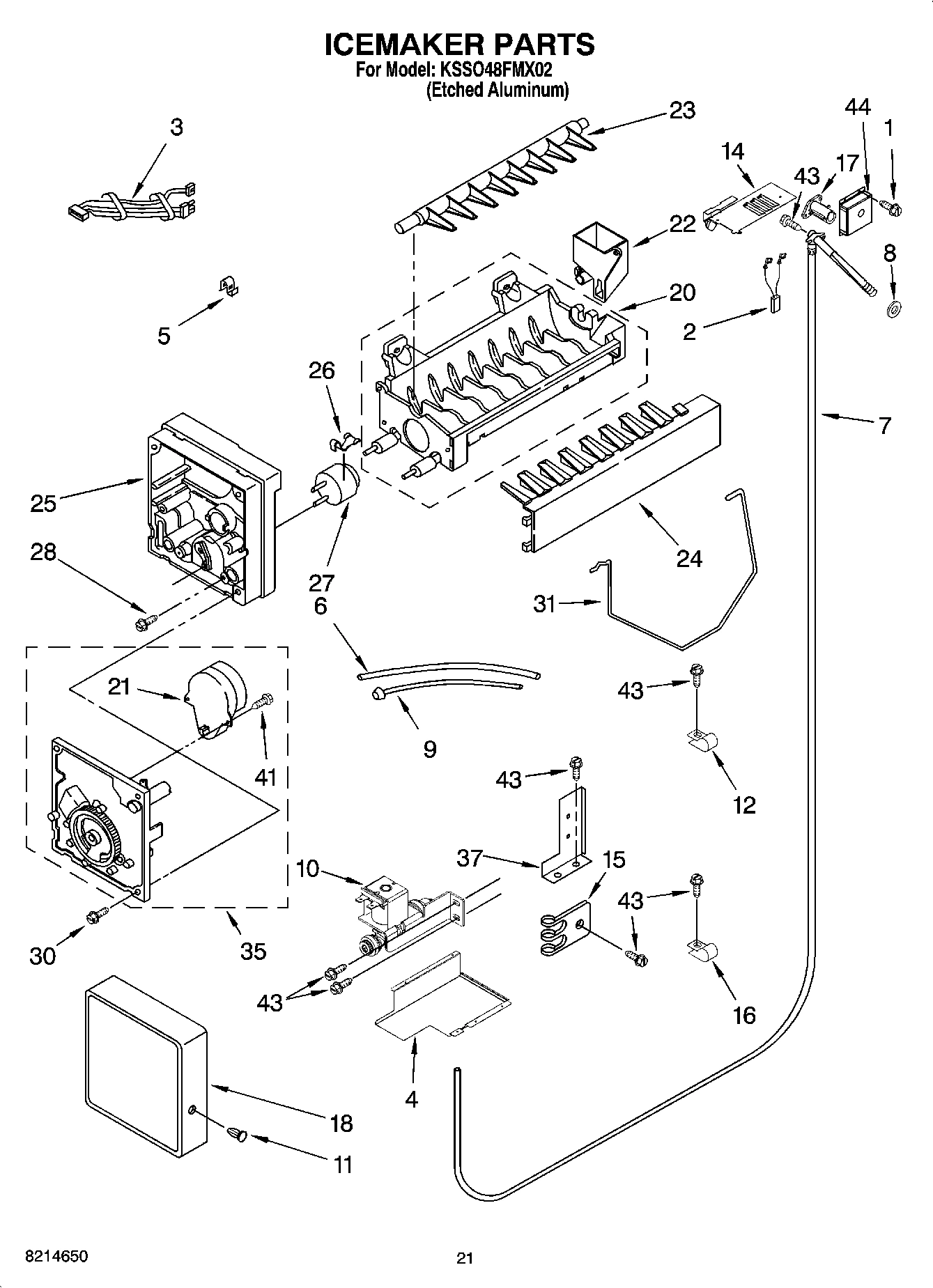

13 - ICEMAKER PARTS

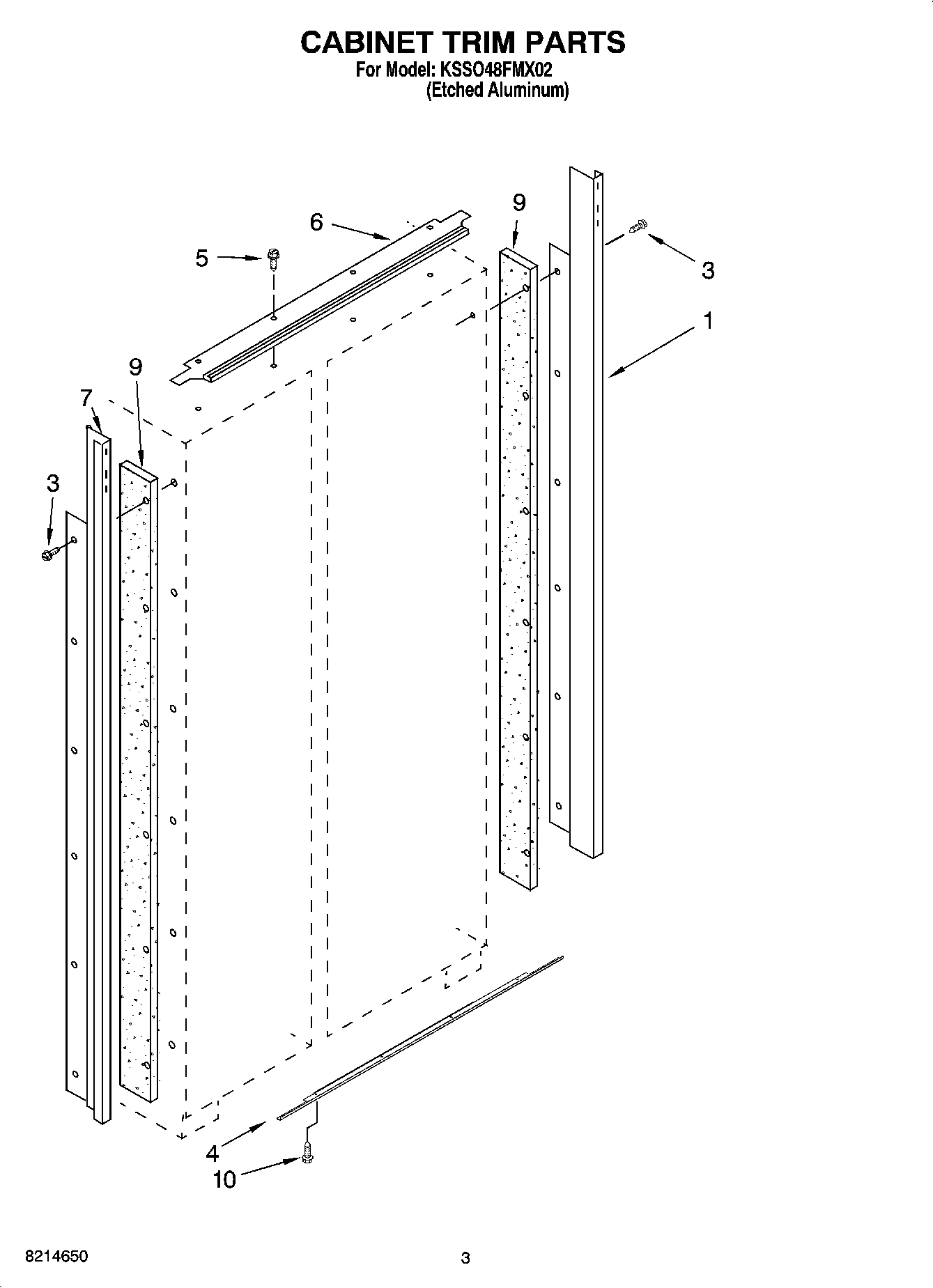

02 - CABINET TRIM PARTS

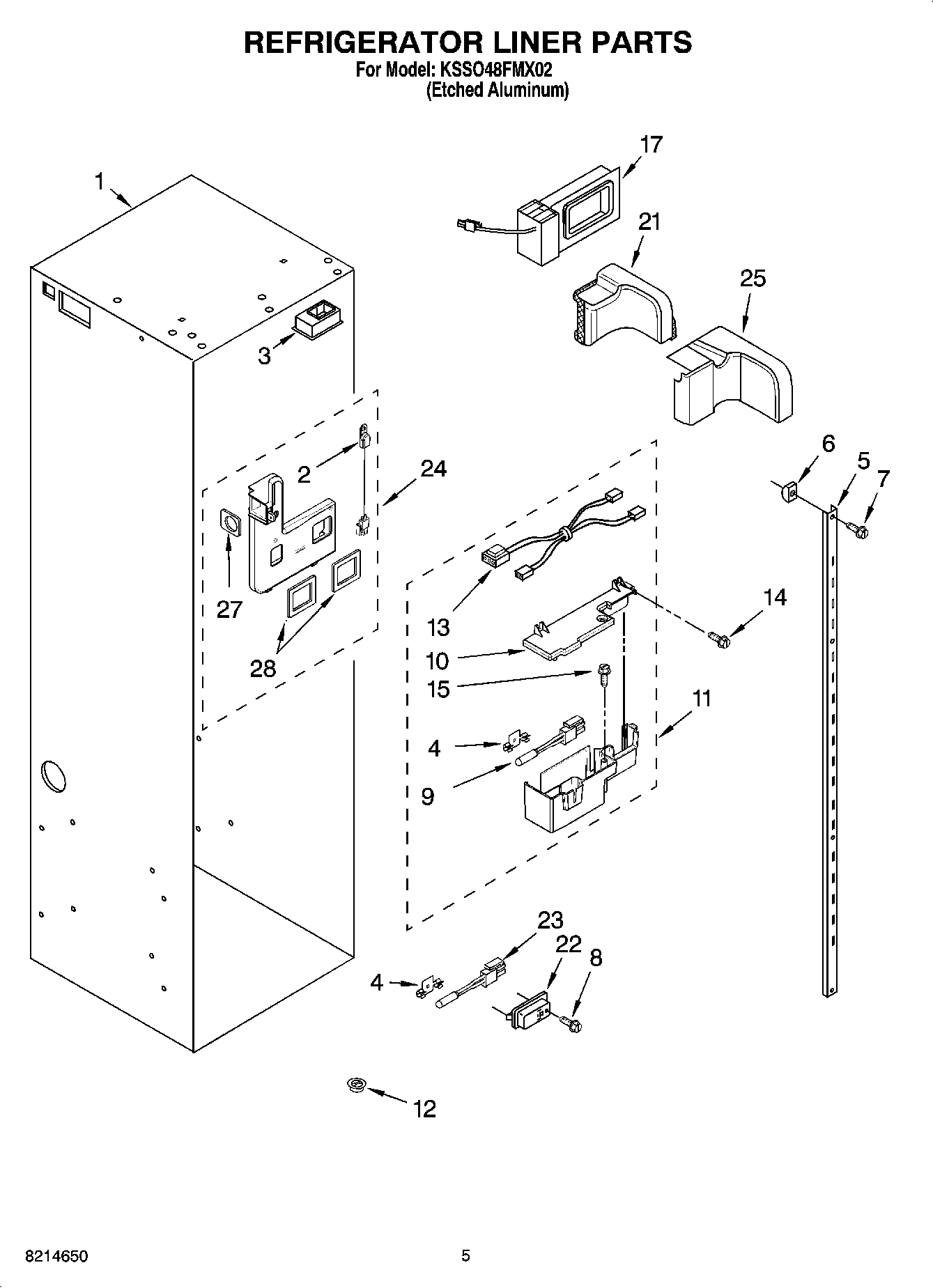

04 - REFRIGERATOR LINER PARTS

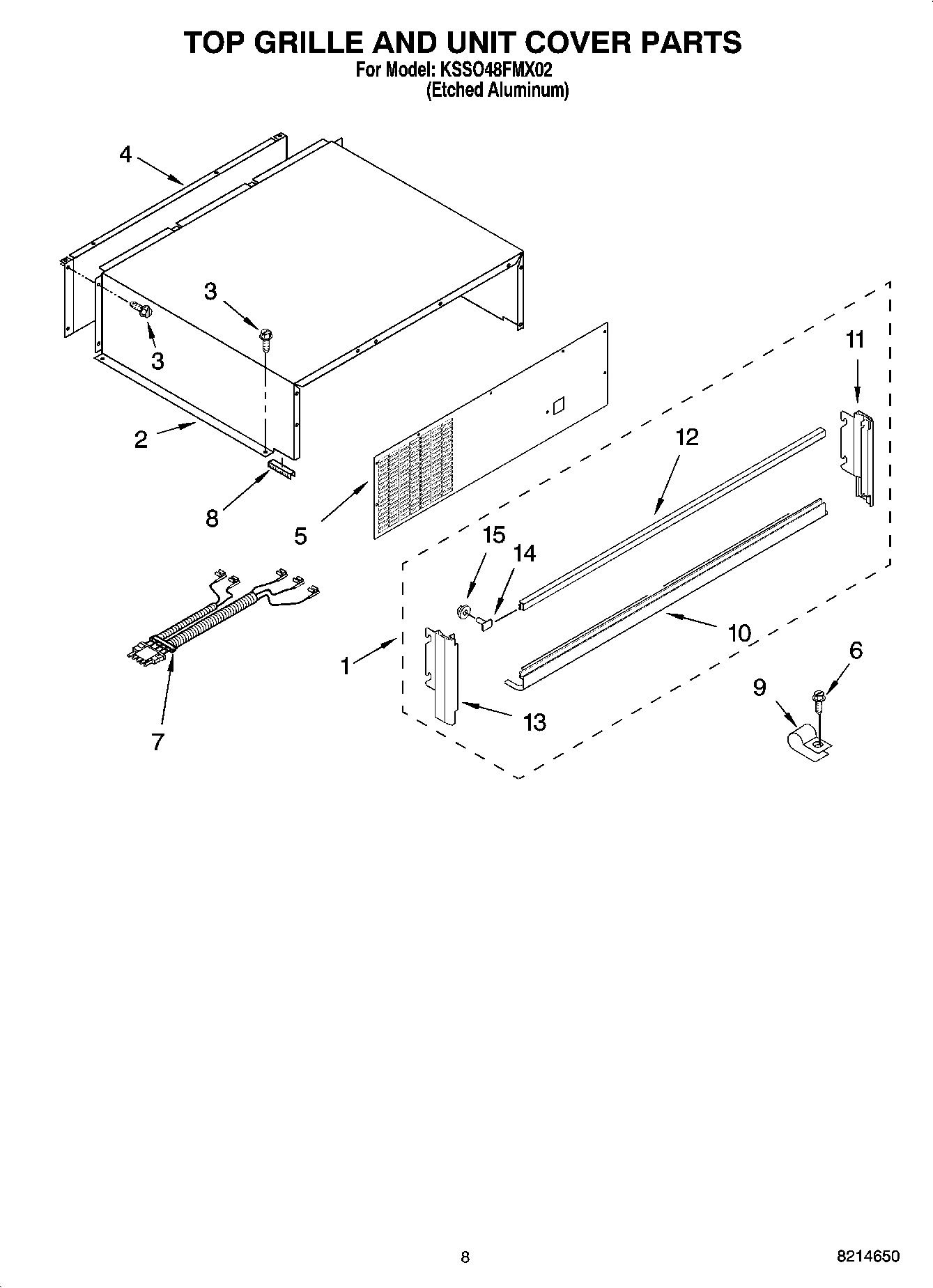

06 - TOP GRILLE AND UNIT COVER PARTS

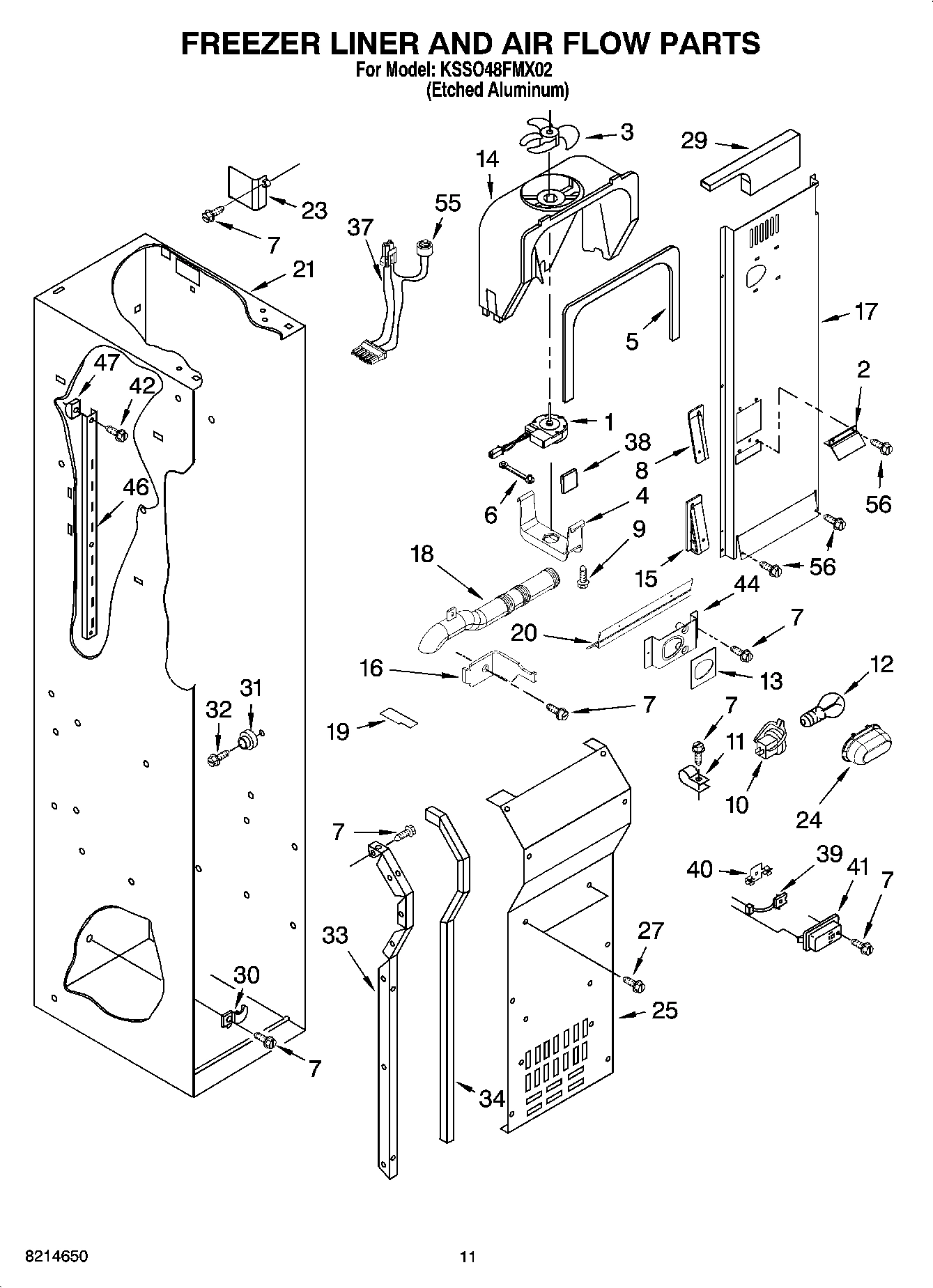

08 - FREEZER LINER AND AIR FLOW PARTS

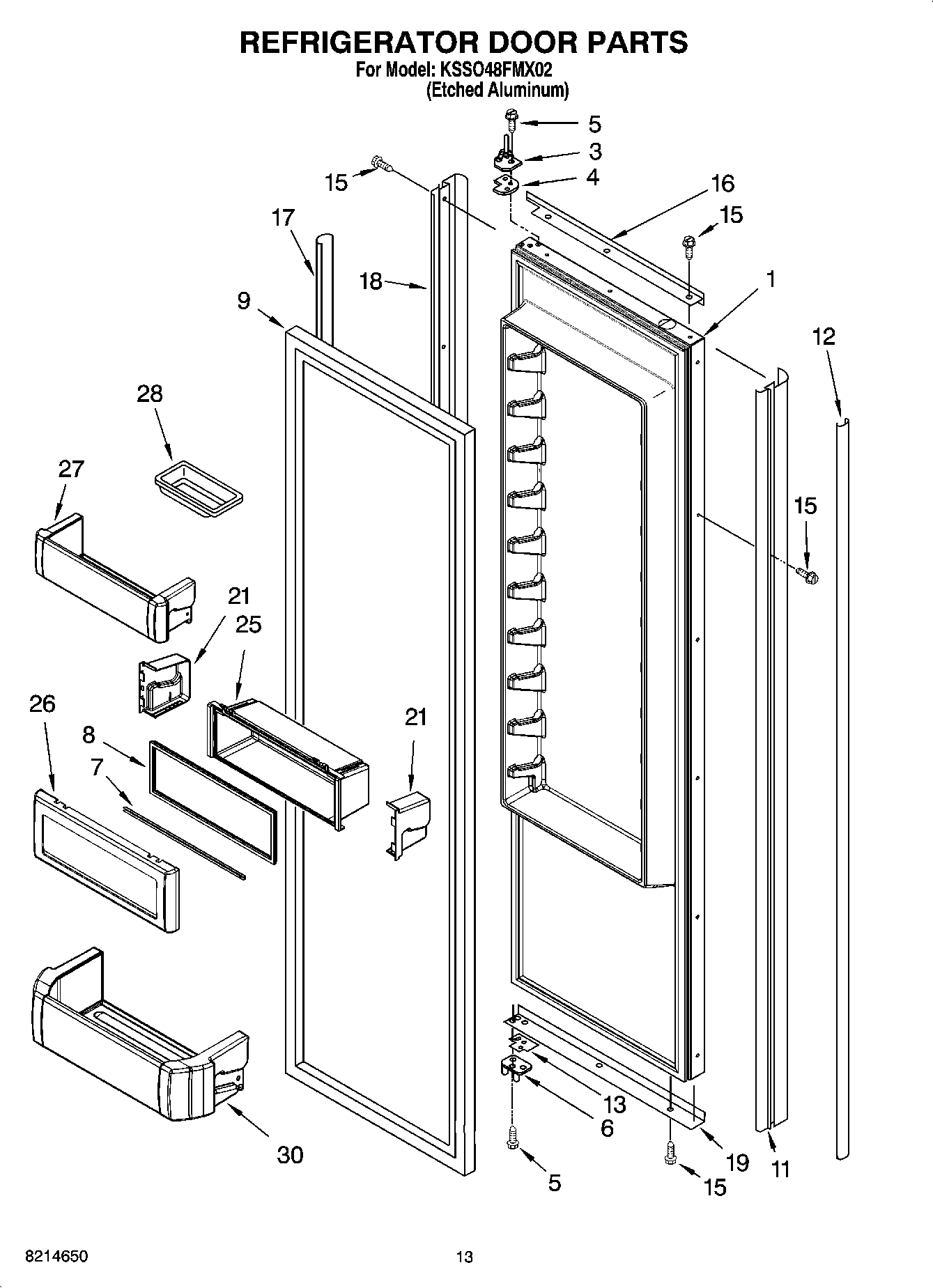

09 - REFRIGERATOR DOOR PARTS

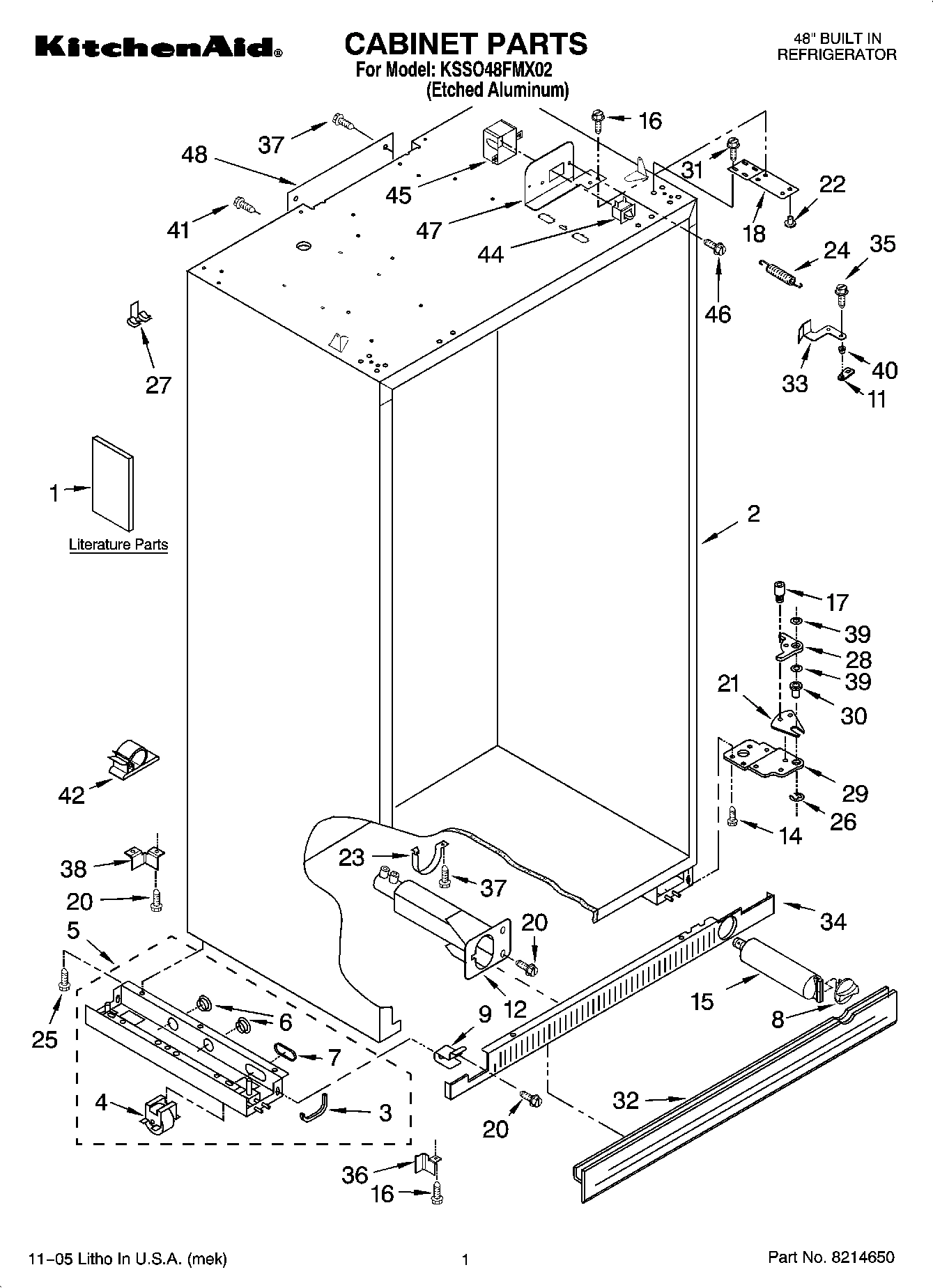

01 - CABINET PARTS

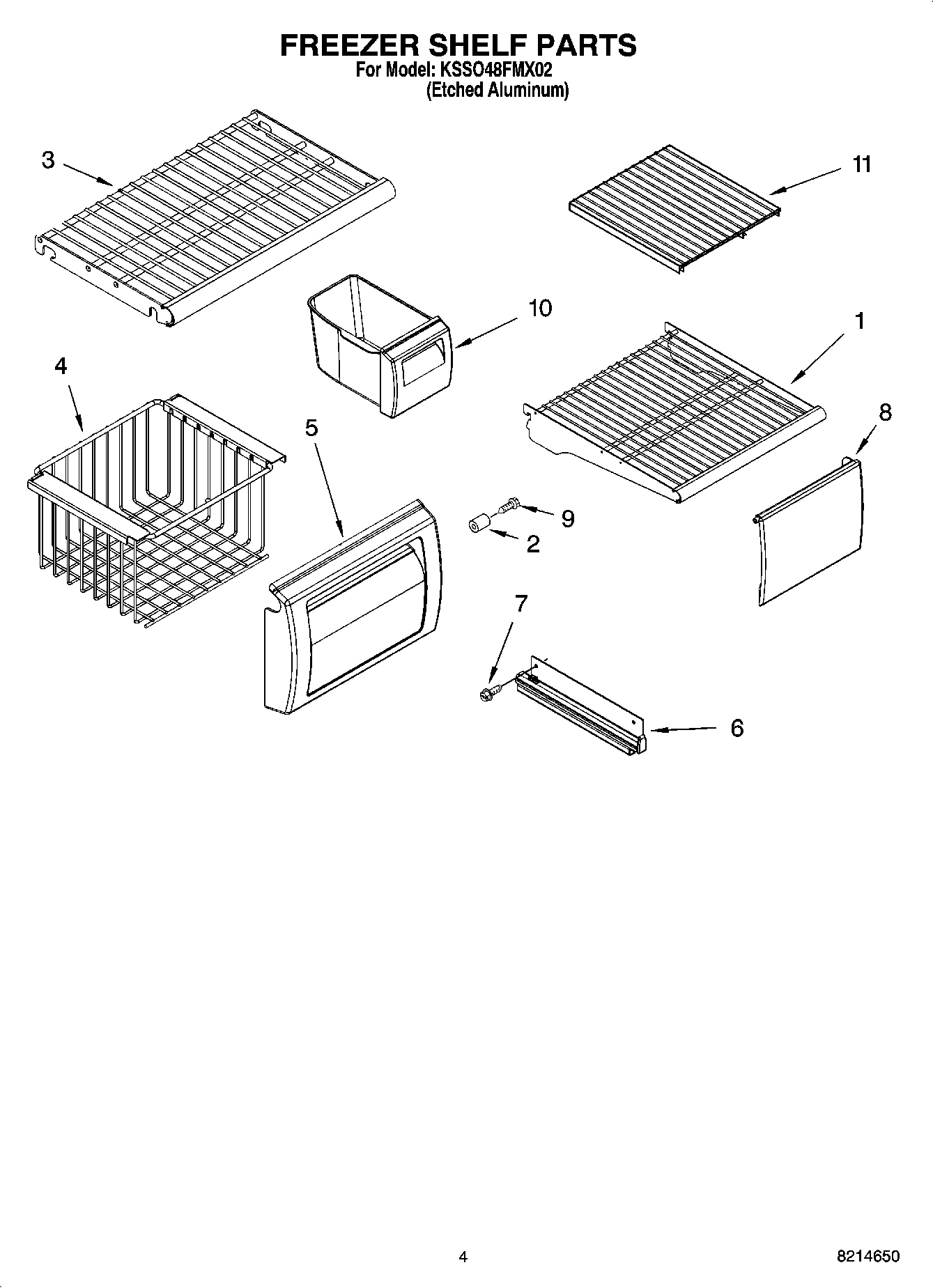

03 - FREEZER SHELF PARTS

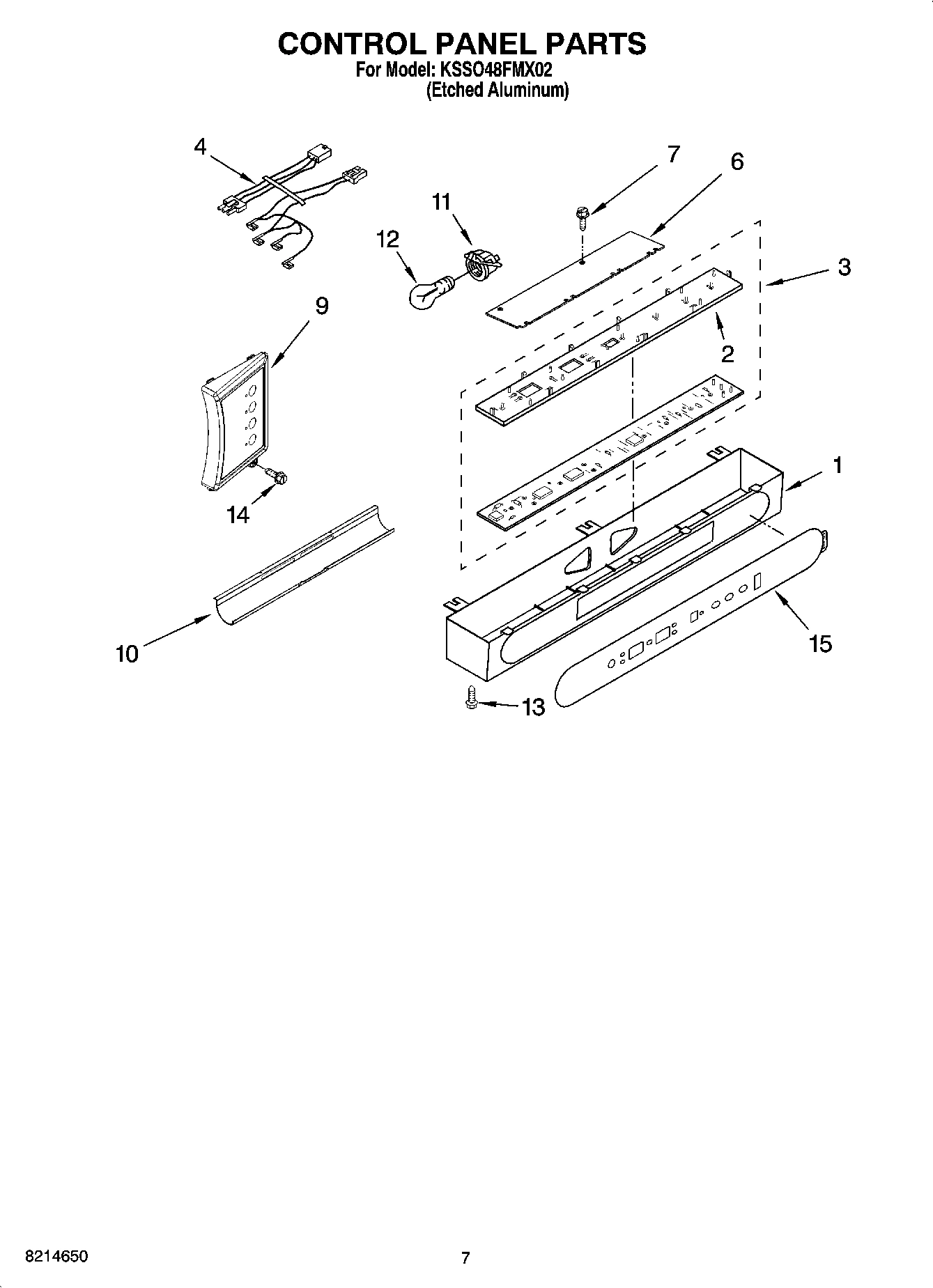

05 - CONTROL PANEL PARTS
Common parts from model Whirlpool KSSO48FMX02 48`` BUILT IN REFRIGERATOR
1
Fan Motor WPL 2259385 Contact Us For Availability
1
Refrigerator Door Panel (Includes Item 9) WPL 2252331 Contact Us For Availability
1
Main Control Service Sheet WPL 2302865 Contact Us For Availability
1
Service & Wiring Sheet WPL 2306324 Contact Us For Availability
1
Icemaker and Ingredient Care Center Service S WPL 2306337 Contact Us For Availability
1
Energy Label WPL 2307364 Contact Us For Availability
1
Installation Instructions WPL 2309069 Contact Us For Availability
1
Use & Care Guide WPL 2317086 Contact Us For Availability
1
Wire, Shelf (2) WPL 2302869 Contact Us For Availability
1
Control Box WPL 2302773 Contact Us For Availability
2
Deflector, Air WPL 2266801 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI154937A Contact Us For Availability
2
Insert, Control Box WPL 2303938 Contact Us For Availability
3
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
3
Circuit Board, Housing Control WPL 2302913 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
Control Box Wire Harness WPL 2187424 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Support, Control Box WPL 2221121 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2314048 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
8
Door, Ice WPL 2266935 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Meat Pan Cover Assembly WPL 2302843 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
10
Crisper Cover Assembly WPL 2302836 Contact Us For Availability
10
Shield, Light WPL 2302716 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Trim, Glass Rear Side WPL 2257611 Contact Us For Availability
11
Clamp, Nylon WPL 488937 Contact Us For Availability
11
Trim, Door (Handle Side) (Etched Aluminum) WPL 2259040X Contact Us For Availability
12
Cover, Screw (Handle Side) (Etched Aluminum) WPL 2259365X Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
13
Trim, Glass Rear WPL 2257583 Contact Us For Availability
13
Seal-Light, Socket WPL 2302777 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
15
OVERLAY WPL 2257520 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Bracket, Vent Tube WPL 2302925 Contact Us For Availability
16
Trim, Door (Top) (Etched Aluminum) WPL 2005012 Contact Us For Availability
17
Air Duct WPL 2306044 Contact Us For Availability
17
Cover, Screw (Hinge Side) (Etched Aluminum) WPL 2259448X Contact Us For Availability
18
Tube, Vent WPL 2302924 Contact Us For Availability
18
Trim, Door (Hinge Side) (Etched Aluminum) WPL 2257686X Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim (Bottom) (Etched Aluminum) WPL 2215995 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
21
Liner (Not A Serviceable Part) WPL ARI154940A Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Light Shield WPL 2259367 Contact Us For Availability
25
Cover, Evaporator WPL 2314044 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Tube, Heat Loop Transition WPL 2259341 Contact Us For Availability
28
Butter Tray WPL 2165792 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
29
Deflector, Air Duct WPL 2309284 Contact Us For Availability
32
SKIRT, GRILLE BOTTOM (BLACK) WPL 2209026B Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability
34
Grille Bottom, Front (Black) WPL 2209431B Contact Us For Availability
35
Screw WPL 2005921 Contact Us For Availability
37
Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability
40
Clip, Thermistor WPL 2209204 Contact Us For Availability
42
WPL 2004514 WPL 2004514 Contact Us For Availability
44
Bracket, Light WPL 2257571 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
