Model Whirlpool KSSC48MFS05 BUILT IN REFRIGERATOR – Common Parts & Diagrams

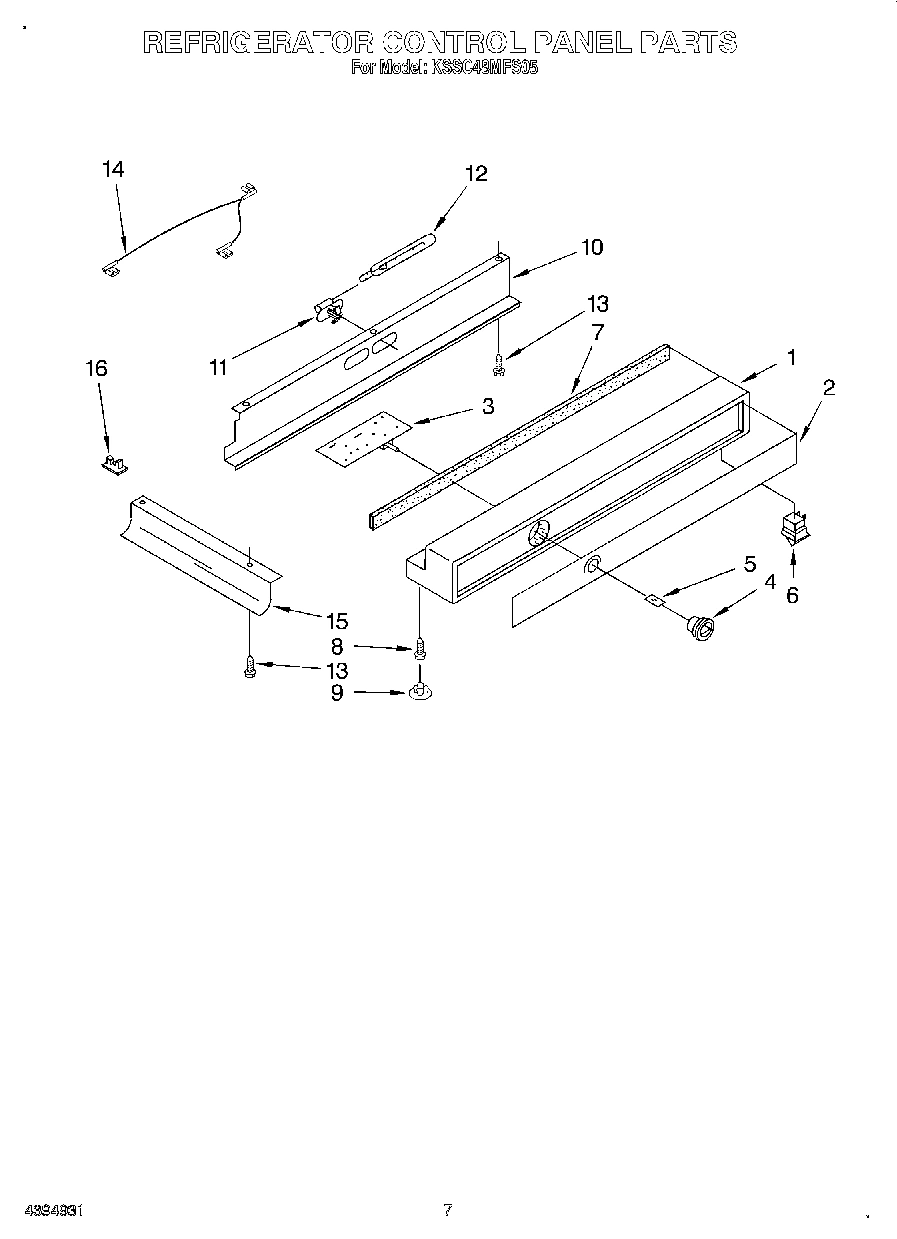

05 - REFRIGERATOR CONTROL PANEL

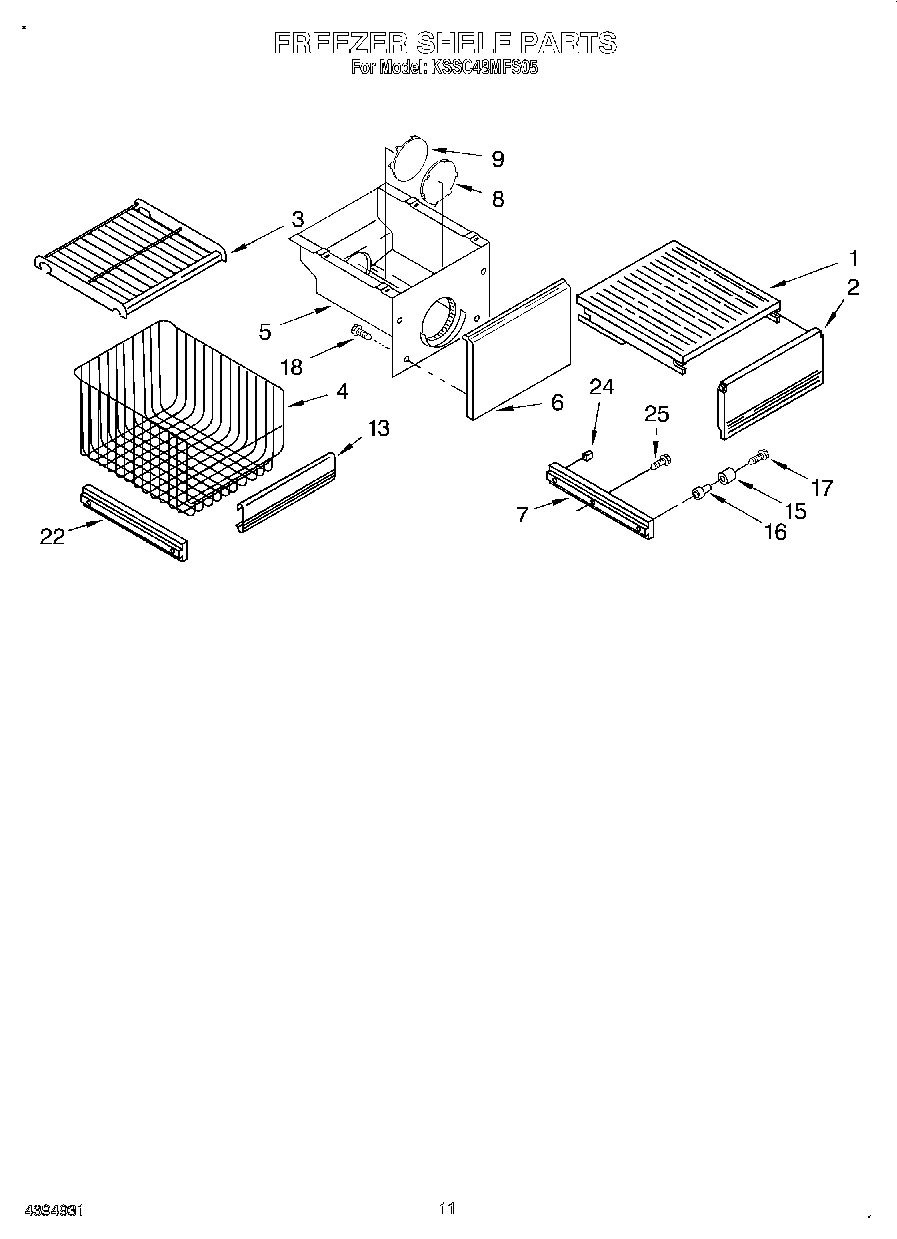

08 - FREEZER SHELF
14 - AIR FLOW AND RESERVOIR
02 - CABINET TRIM
04 - REFRIGERATOR LINER
09 - TOP GRILLE AND UNIT COVER
11 - FREEZER DOOR
01 - CABINET
12 - UPPER UNIT
06 - FREEZER CONTROL PANEL
07 - REFRIGERATOR SHELF
13 - LOWER UNIT AND TUBE
15 - ICEMAKER, LITERATURE
03 - FREEZER LINER
10 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSSC48MFS05 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2005002 Contact Us For Availability
Energy Label WPL LIT2005275 Contact Us For Availability
Installation Instructions WPL LIT2005277 Contact Us For Availability
Use & Care Guide WPL LIT2005291 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105606A Contact Us For Availability
1
Top Grille Assembly WPL 2005314 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) WPL 2003878 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI105604A Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Control Panel WPL 1113627 Contact Us For Availability
1
Frame, Shelf WPL 2174404 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI105605A Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003872 Contact Us For Availability
2
Cover, Unit WPL 2005549 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Inlay, Control Panel WPL 2003309 Contact Us For Availability
2
Glass, Shelf WPL 2003377 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Door Skin WPL 2005283 Contact Us For Availability
3
Hinge, Bottom WPL 2004524 Contact Us For Availability
3
Hinge Assembly, Top WPL 2005329 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
3
Reflector, Shelf WPL 1112006 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Spacer-Door, Top WPL 2004520 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Light, Socket WPL 1112613 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113792 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
5
Bushing, Foam WPL 2003389 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003647 Contact Us For Availability
6
Nameplate WPL 2005292 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Seal, Control Panel WPL 1113136 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
7
Cabinet, Trim Left Side WPL 2005493 Contact Us For Availability
7
Screw WPL 488357 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2005534 Contact Us For Availability
7
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2003327 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2005009 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Overload (Includes Relay) WPL 2176858 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112542 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Mounting Stud, Grill WPL 2004852 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Connector WPL 2154472 Contact Us For Availability
10
Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability
10
Bracket, Trim Panel WPL 2005485 Contact Us For Availability
10
Brace, Door Corner WPL 2004447 Contact Us For Availability
10
Clip, Wire WPL 2005237 Contact Us For Availability
10
Shield, Control Panel WPL 1113769 Contact Us For Availability
10
Glass, Crisper (Includes No.9) WPL 2003380 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Valve, Solenoid WPL 2003791 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
11
Louver, Bracket WPL 2005483 Contact Us For Availability
11
Handle, Door WPL 2005290 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability
12
Vent, Louver WPL 2005259 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Sleeve WPL 2002448 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Spacer, Handle Side WPL 2005320 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
13
Door, Spacer Bottom WPL 2004549 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
13
Water Valve, Harness WPL 2004547 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2004913 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Channel, Wiring WPL 2001974 Contact Us For Availability
14
Crisper Pan (2) WPL 2003317 Contact Us For Availability
14
Plug, Water Valve WPL 2005038 Contact Us For Availability
14
Filler, Door WPL 2005327 Contact Us For Availability
15
Heat Exchanger WPL 2003003 Contact Us For Availability
15
Deflector, Air Duct WPL 2003929 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2003811 Contact Us For Availability
15
Roller WPL 2174388 Contact Us For Availability
16
Eyelet, Roller WPL 2174478 Contact Us For Availability
16
Retainer, Knob WPL 2003841 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
16
Knob, Thermostat WPL 2182112 Contact Us For Availability
17
Air Baffle Assembly WPL 2004484 Contact Us For Availability
17
Spacer, Hinge Side WPL 2005030 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Insulation, Encapsulated WPL 2005058 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Panel, Interior Door WPL 2000179 Contact Us For Availability
19
Shim, Hinge Top WPL 2005294 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
20
Shelf Bin (4) WPL 2003129 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Meat Pan WPL 2003322 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Panel, Interior Door WPL 1113950 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113949 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Insulation, Encapsulated WPL 2005054 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability
23
Motor, Fan WPL 2169135 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Filler, Door WPL 2005323 Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
24
Blade, Fan WPL 1108179 Contact Us For Availability
24
Door Skin WPL 2005289 Contact Us For Availability
24
Spring, Door Closure (Refrigerator Side) WPL 2004566 Contact Us For Availability
24
Spring, Door Closure (Freezer Side) WPL 2004567 Contact Us For Availability
25
Air Baffle Cover WPL 2003578 Contact Us For Availability
25
Spacer, Handle Side WPL 2005330 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
25
Gasket WPL 1113955 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Door, Utility Bin WPL 2003465 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Door Shelf (4) WPL 2003132 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2004867 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
28
Tray, Butter WPL 2165792 Contact Us For Availability
29
Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
33
Linkage, Door Closure WPL 2004516 Contact Us For Availability
34
Grille Base, Front (Black) WPL 2004532 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
35
Screw WPL 489238 Contact Us For Availability
36
Heater, Fill Tube WPL 2004594 Contact Us For Availability
36
Cover, Rear WPL 2004512 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Cover, Condenser WPL 2005535 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
38
Air Vane WPL 2003263 Contact Us For Availability
39
Cup, Wiring WPL 2004595 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
40
Bushing, Door Closure WPL 2004565 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
43
Screw (4) WPL 3400207 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318634 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318637 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318640 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4318643 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
