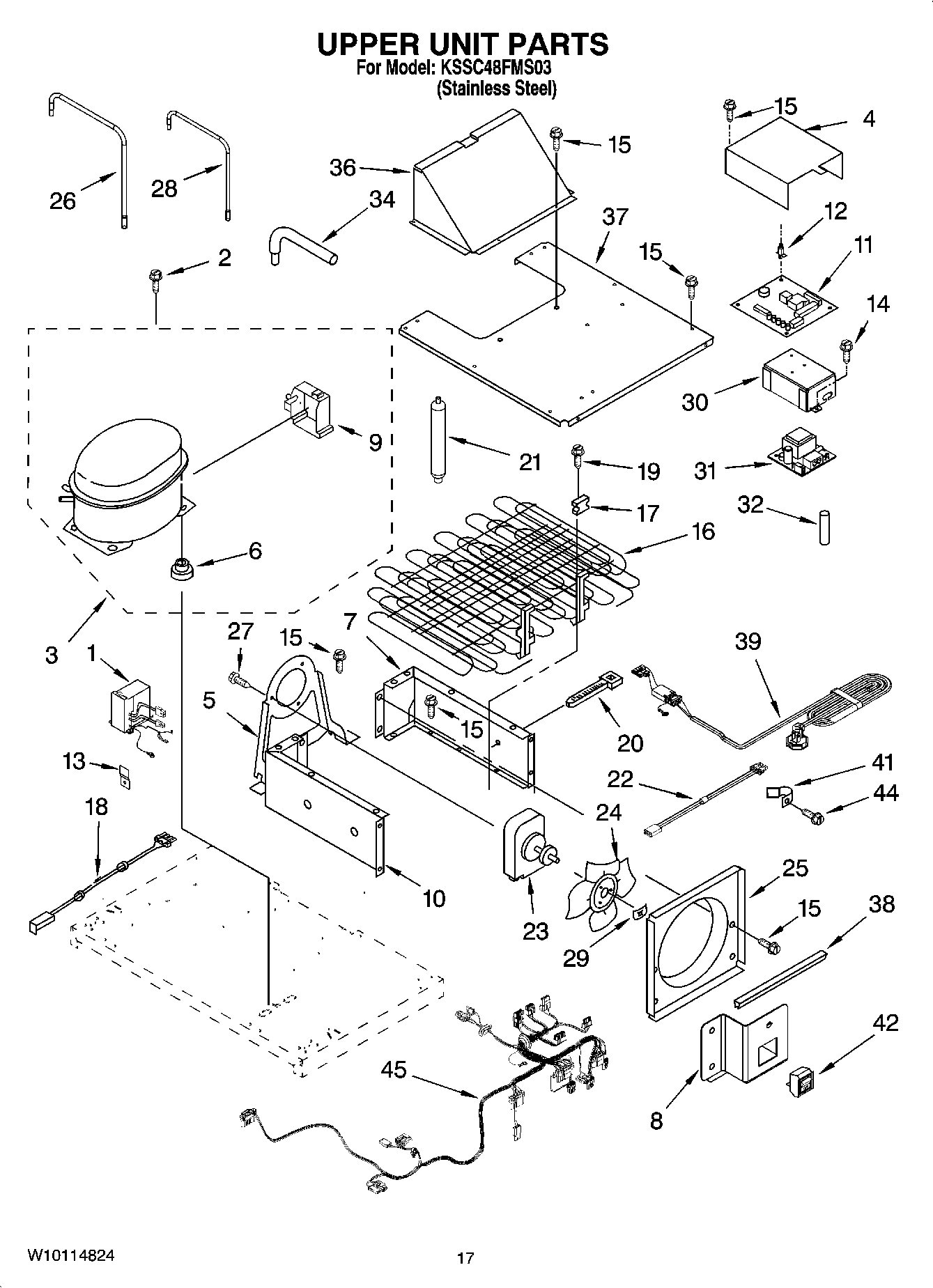

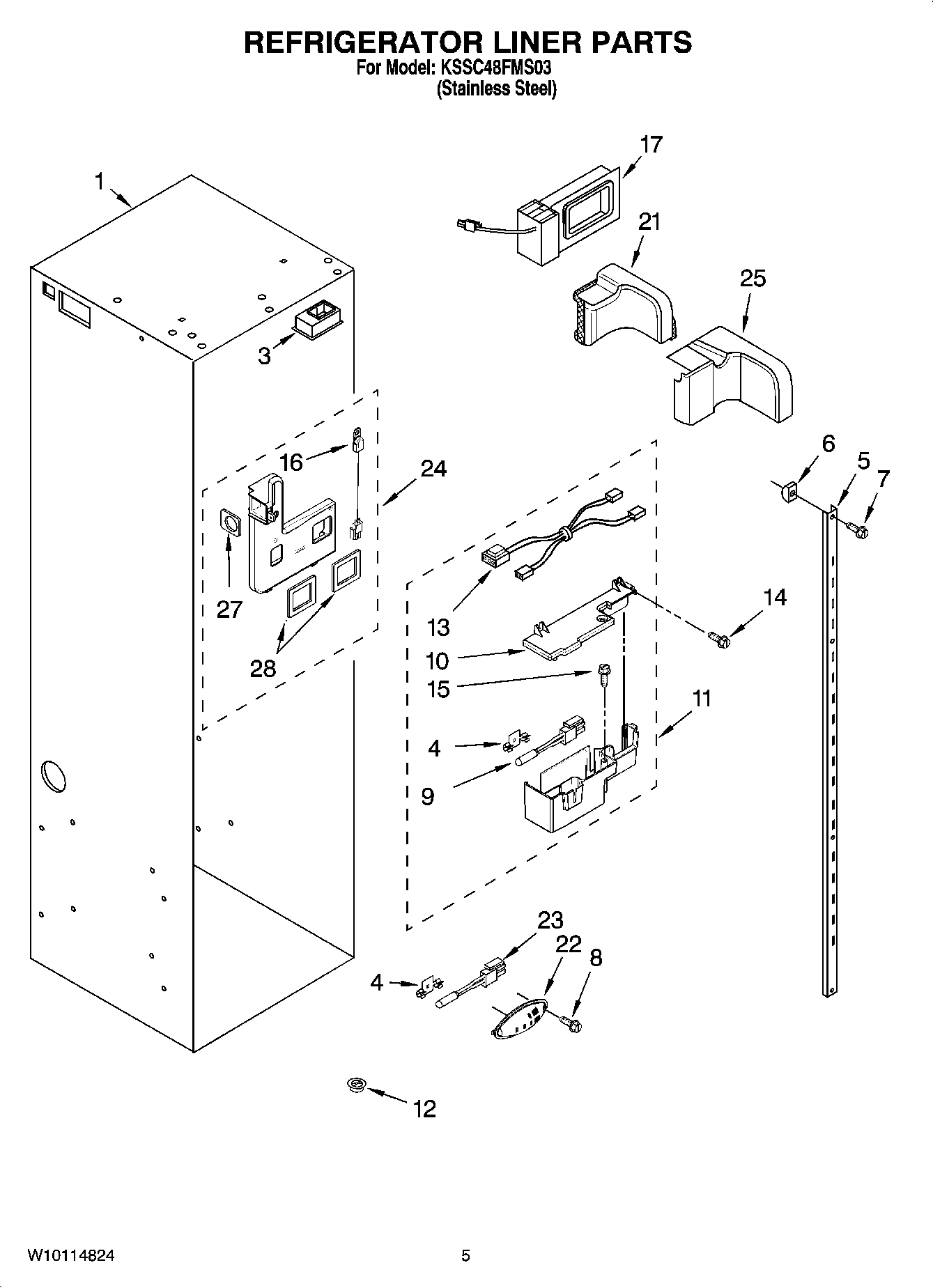

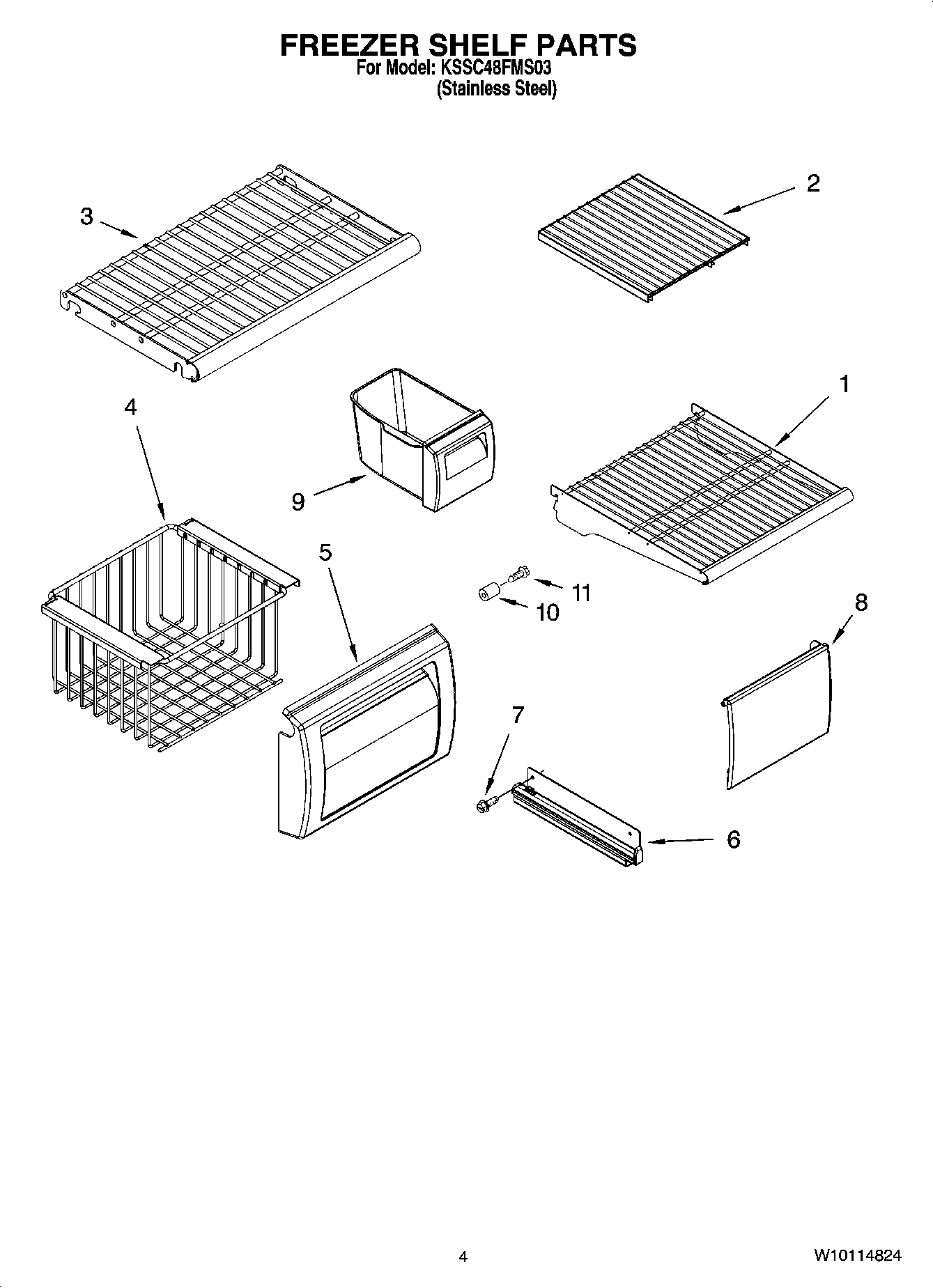

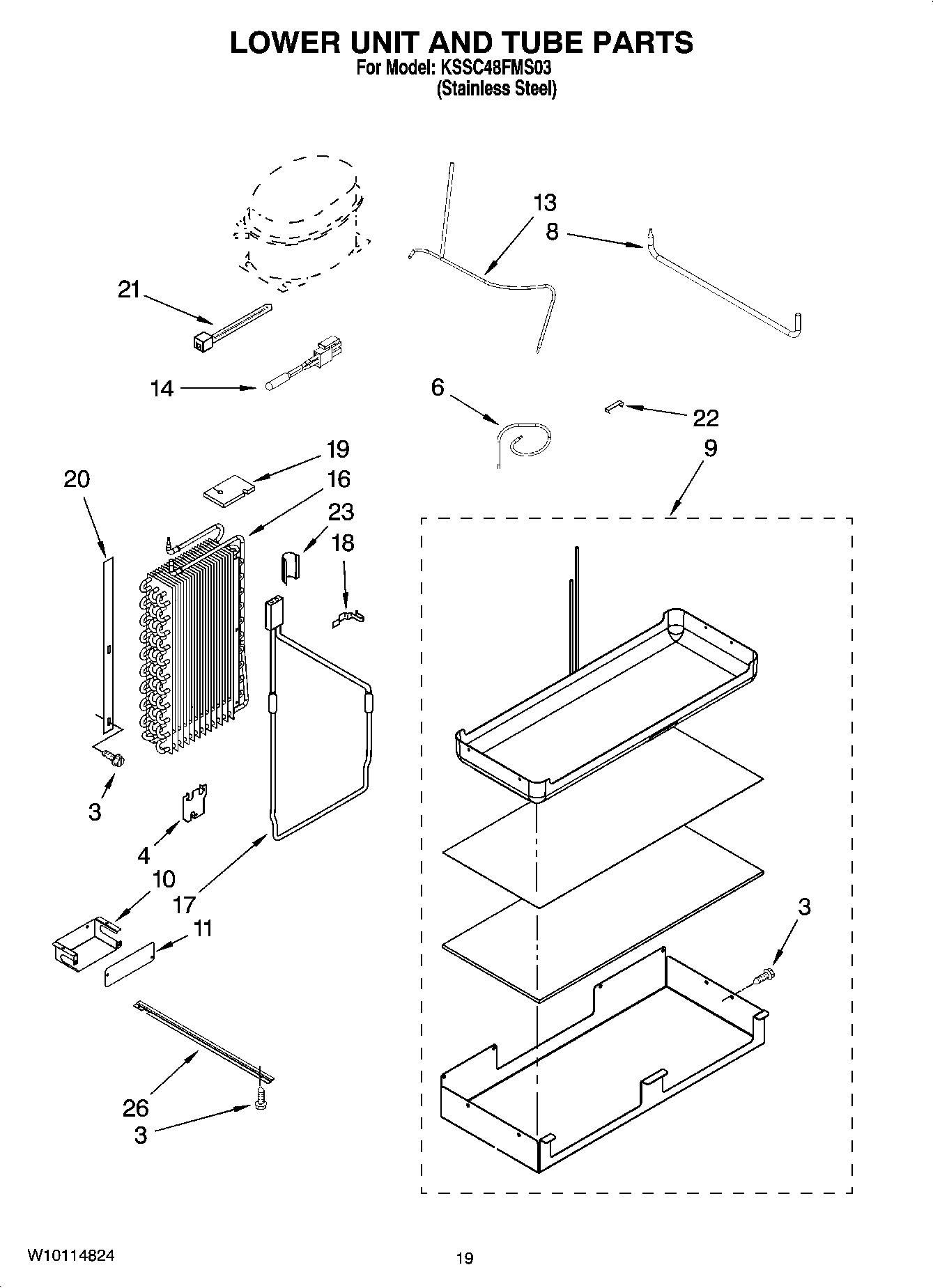

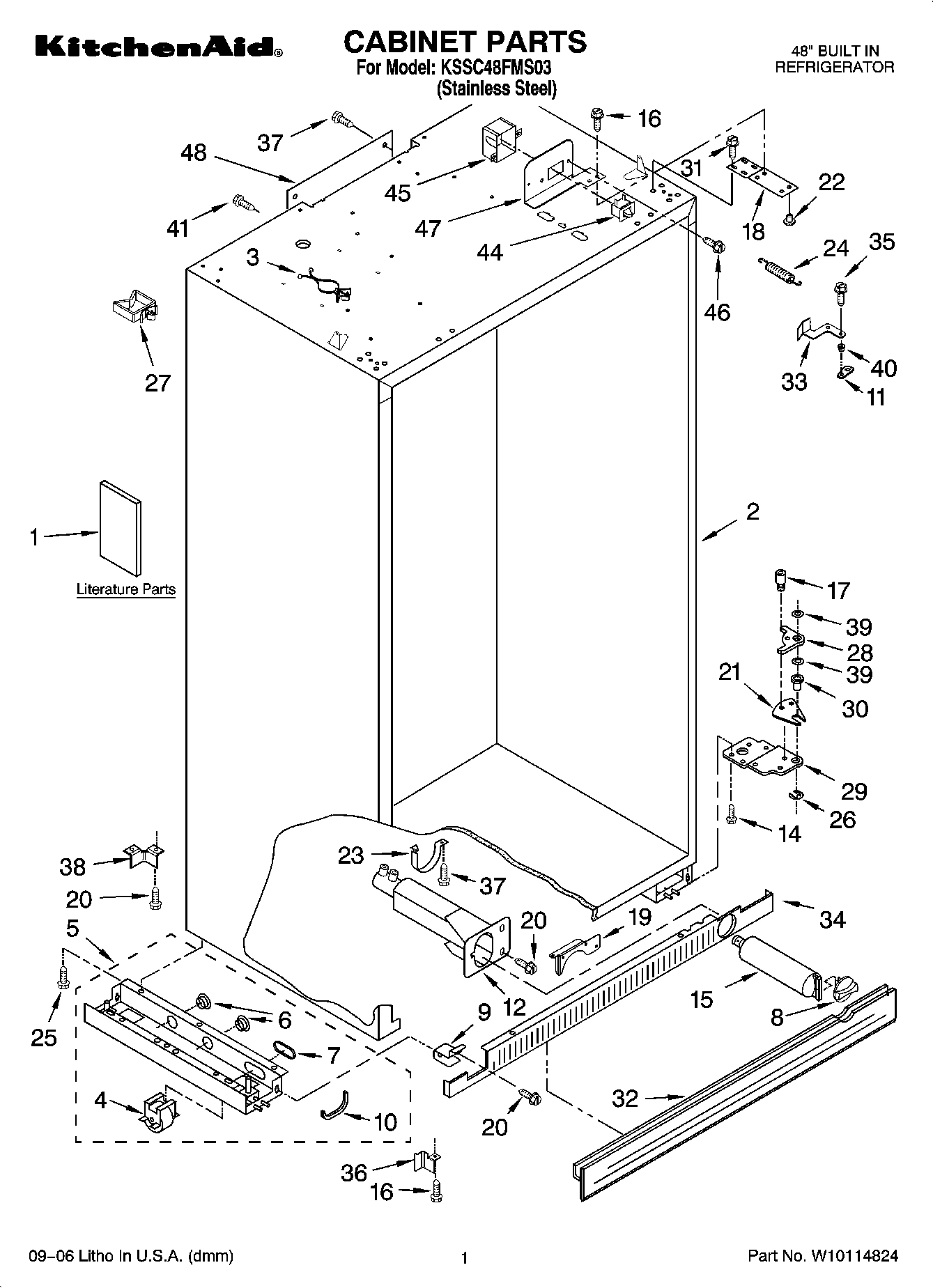

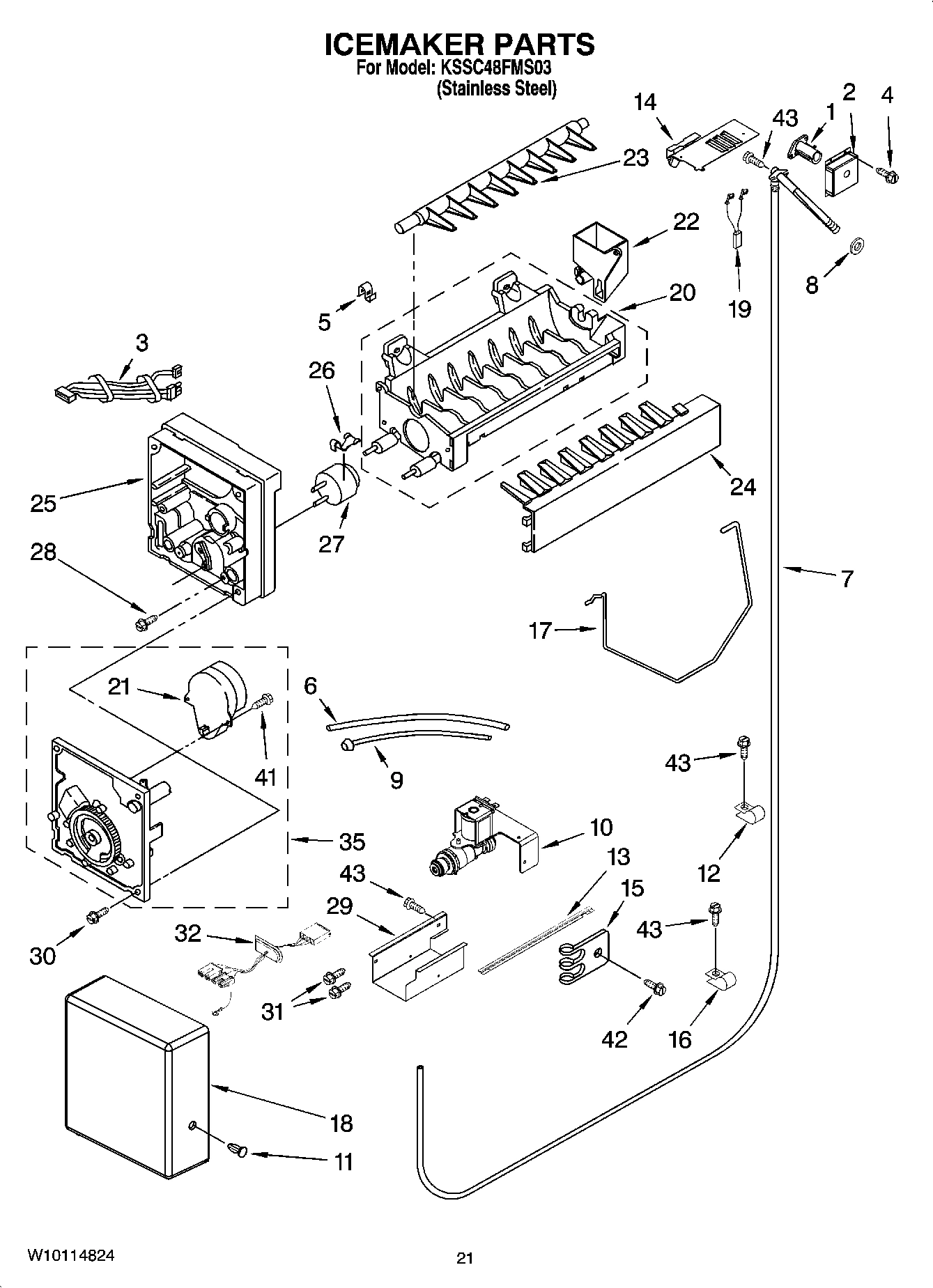

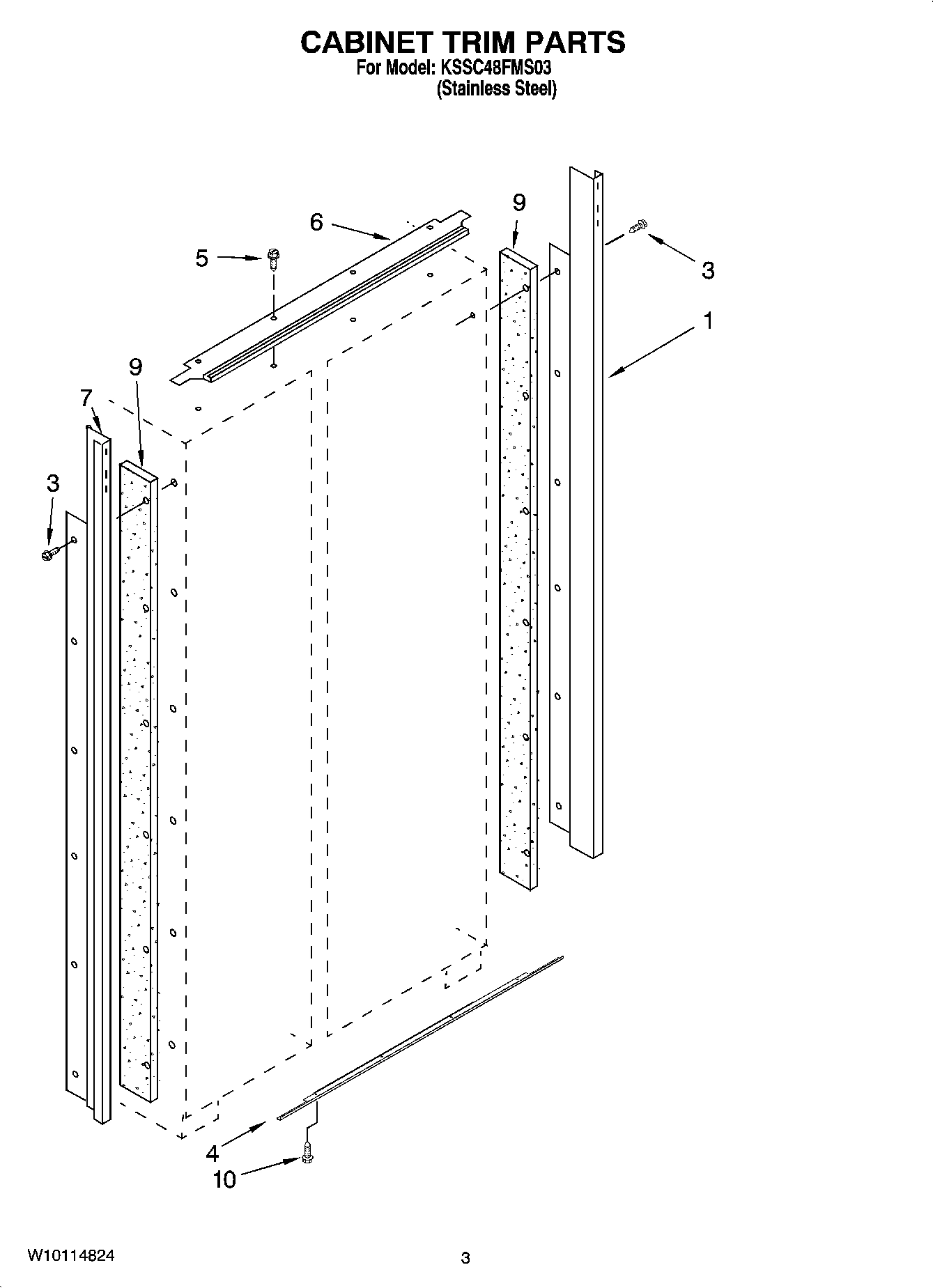

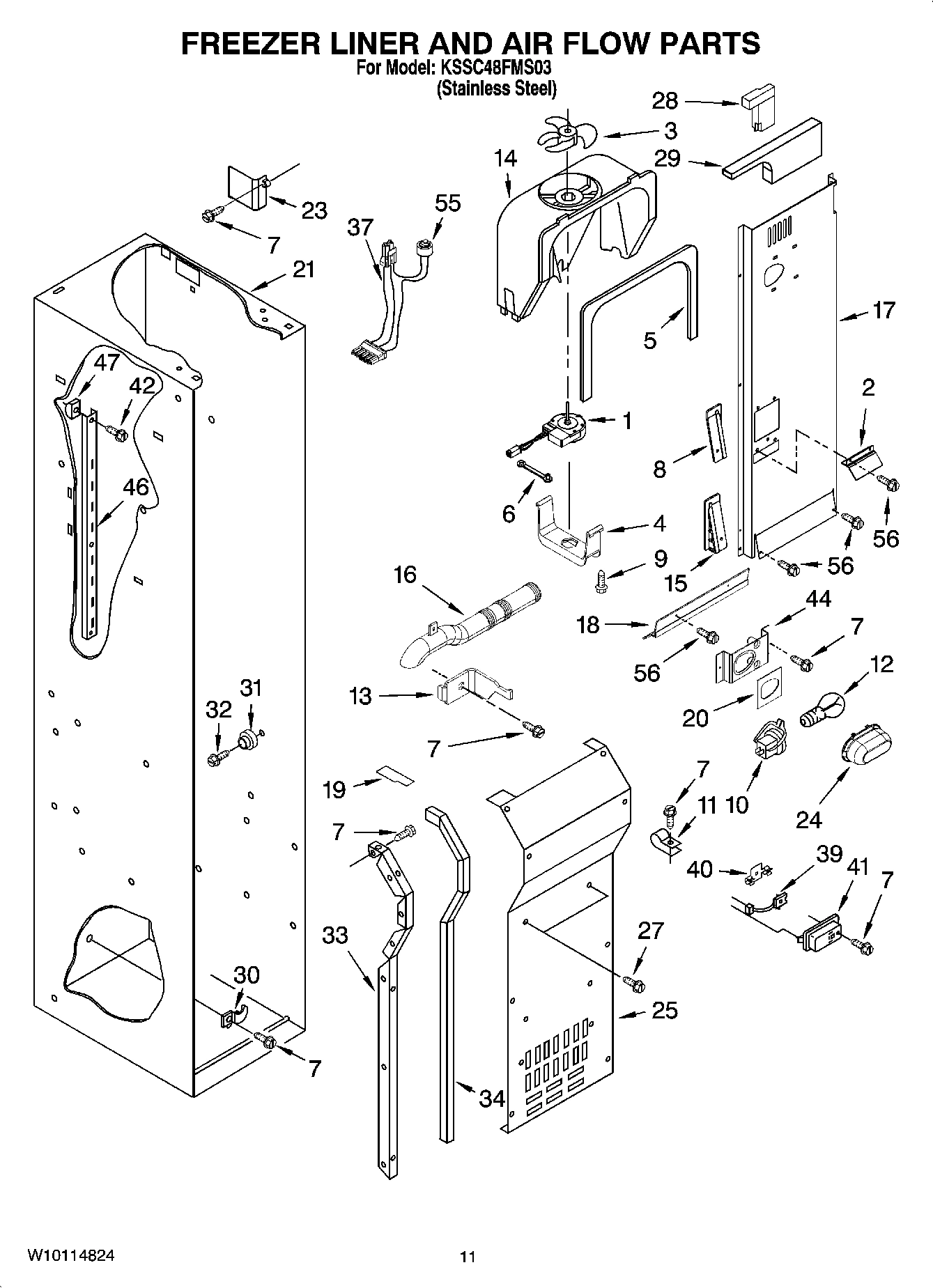

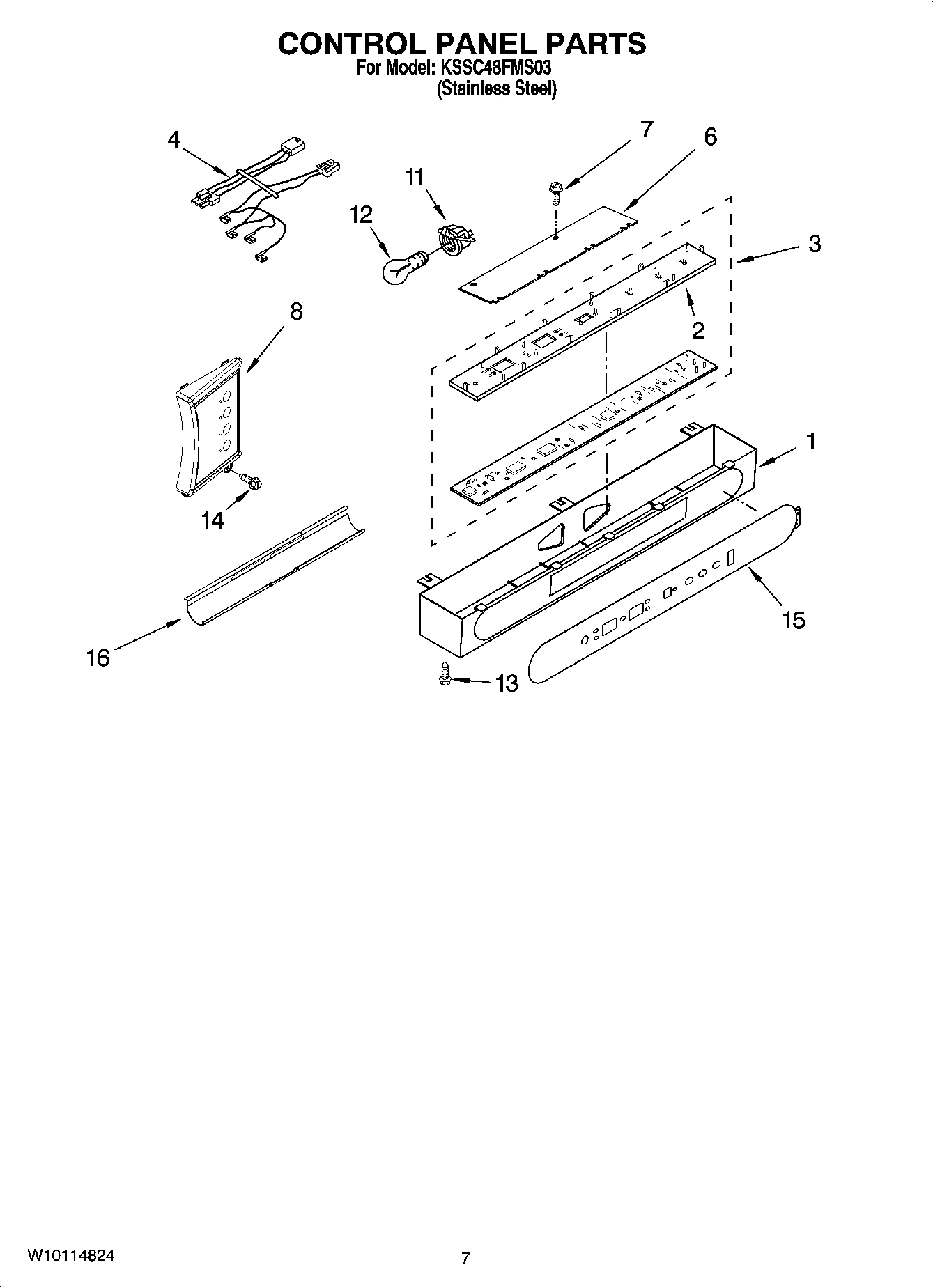

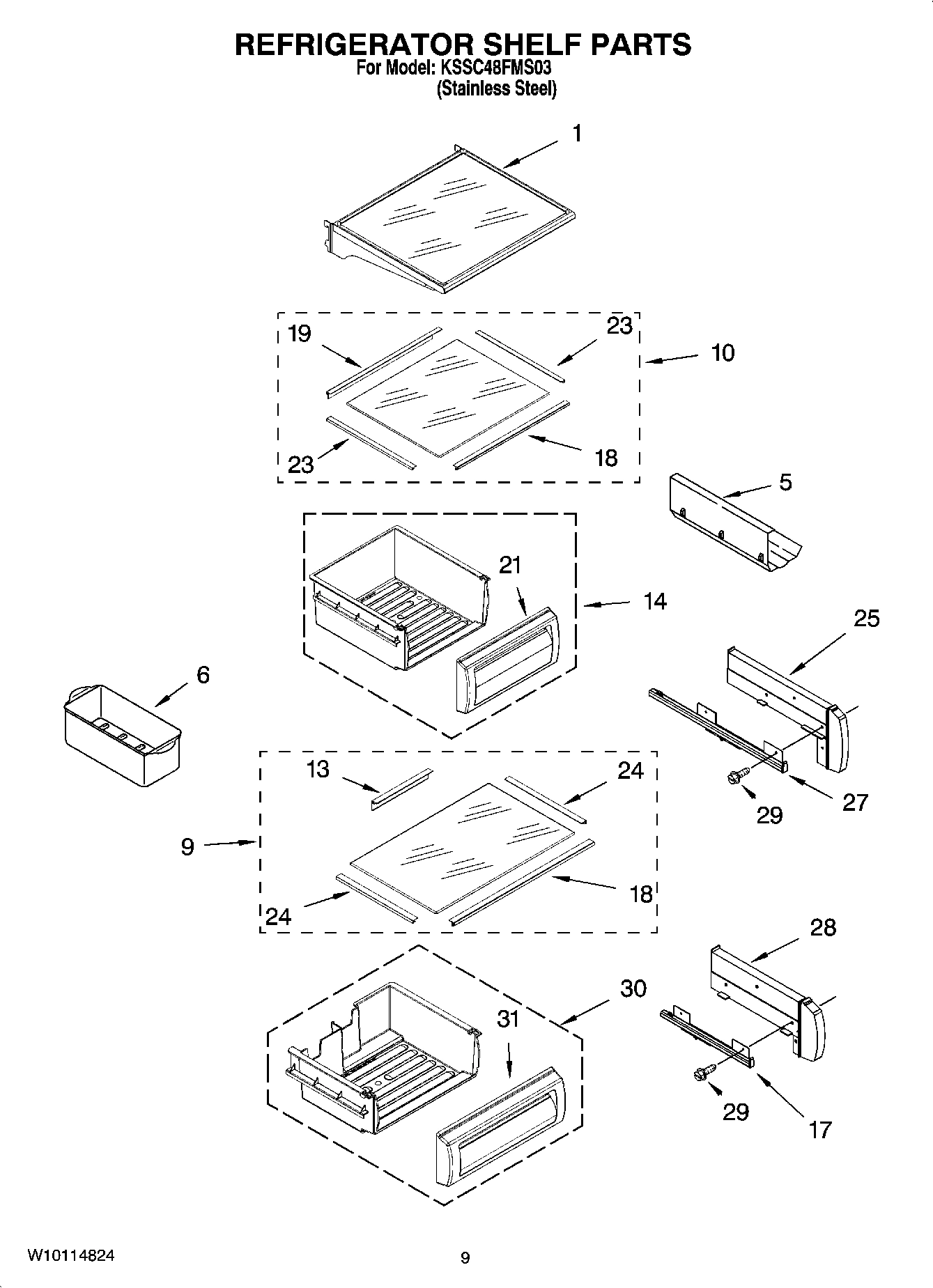

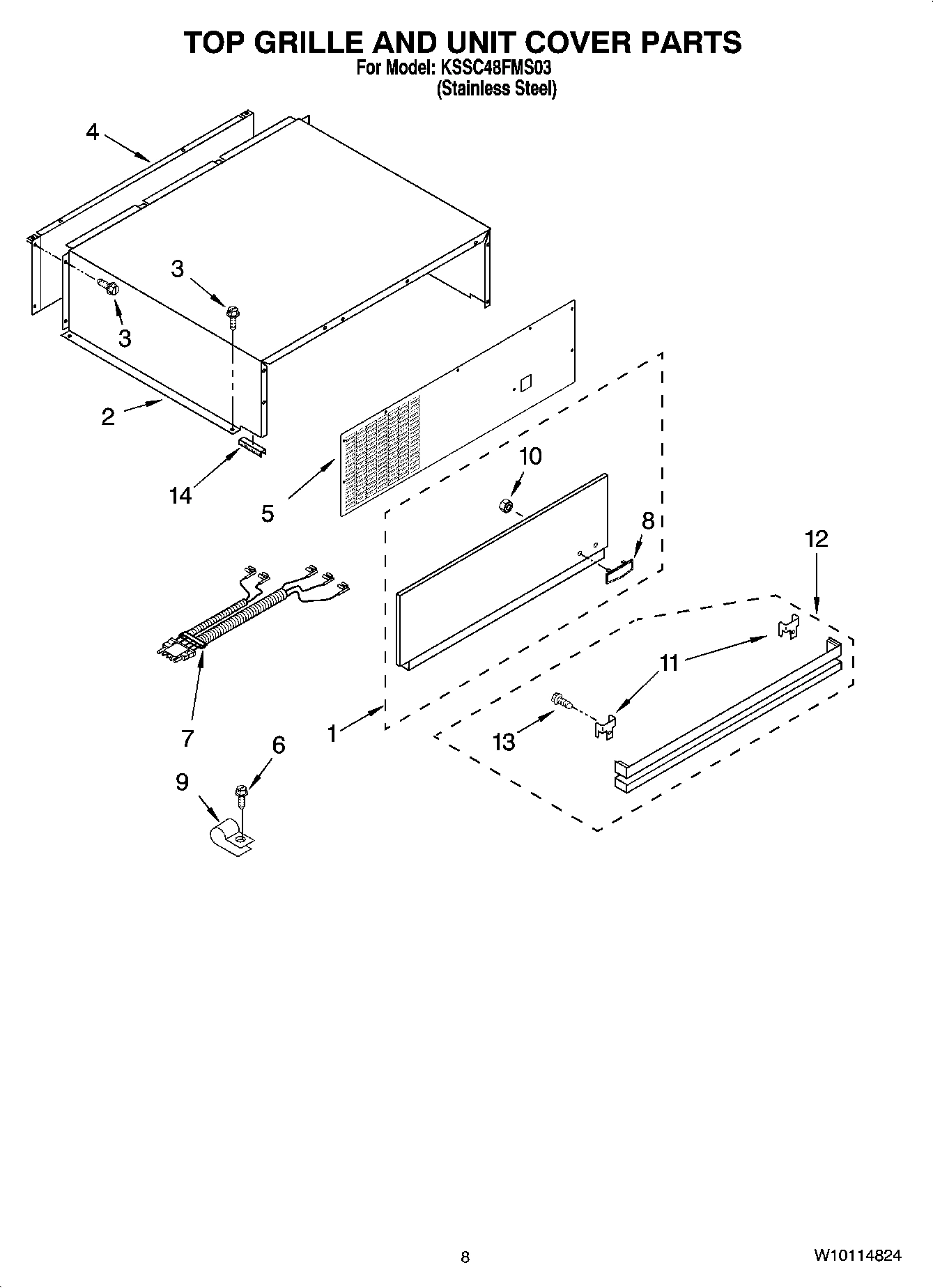

Model Whirlpool KSSC48FMS03 48`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

1

Liner (Not A Serviceable Part) WPL ARI105599A Contact Us For Availability

1

Wire, Shelf WPL 2302869 Contact Us For Availability

1

Control Box WPL 2302773 Contact Us For Availability

2

W10213535 Whirlpool Refrigerator Shelf Backorder WPL W10213535 $54.52

2

BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability

2

Insert, Control Box WPL 2303938 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

2302884 Whirlpool Refrigerator Wire Shelf Backorder WPL 2302884 $125.19

3

2310136 Whirlpool Refrigerator Wire Harness In Stock WPL 2310136 $67.17

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $336.32

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

Circuit Board, Housing Control WPL 2302913 Contact Us For Availability

4

2310197 Whirlpool Wire Harness Backorder WPL 2310197 $84.02

4

2316688 Whirlpool Refrigerator Cabinet Trim Backorder WPL 2316688 $65.79

4

Spacer-Door, Top WPL 2256381 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

4

Gasket WPL 2259086 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

5

WP2256271 Whirlpool Refrigerator Front Basket Backorder WPL WP2256271 $54.79

5

WP2259077 Whirlpool Ladder Assembly Backorder WPL WP2259077 $28.09

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $24.30

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Tube, Filter Inlet WPL 2320654 Contact Us For Availability

6

Support, Control Box WPL 2221121 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.33

7

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

7

Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $118.26

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

8

Bracket, Switch WPL 2302969 Contact Us For Availability

8

Door, Ice WPL 2266935 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $12.11

9

WP2266932 Whirlpool Refrigerator Container Backorder WPL WP2266932 $99.73

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $44.95

9

WPW10281063 Whirlpool Refrigerator Heater Pan In Stock WPL WPW10281063 $171.27

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Meat Pan Cover Assembly WPL 2302843 Contact Us For Availability

2266955 Whirlpool Spacer Backorder WPL 2266955 $8.00

2302986 Whirlpool Refrigerator Cover Backorder WPL 2302986 $35.67

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $97.02

Crisper Cover Assembly WPL 2302836 Contact Us For Availability

Shroud, Condenser (Left) WPL 2302973 Contact Us For Availability

Cover, Wiring WPL 2316683 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

W10219463-includeCORE Whirlpool W10219463 Con Backorder WPL W10219463-includeCORE $254.73

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

WPW10169528 Whirlpool Refrigerator Diffuser Backorder WPL WPW10169528 $142.28

Cam, Door Closer WPL 2005783 Contact Us For Availability

Cover, Box WPL 2316684 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $97.12

Spacer, Door (Handle Side) WPL 2309060 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $29.61

2310205 Whirlpool Wire Jumper Backorder WPL 2310205 $42.31

Door Spacer, Bottom WPL 2257637 Contact Us For Availability

Trim, Glass Rear WPL 2257583 Contact Us For Availability

Tube, Discharge WPL 2259354 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Screw WPL 3400525 Contact Us For Availability

Screw WPL 488357 Contact Us For Availability

15

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

15

OVERLAY WPL 2257520 Contact Us For Availability

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $32.48

WP2306094 Whirlpool Evaporator In Stock WPL WP2306094 $243.00

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

CONDENSER WPL 2259307 Contact Us For Availability

Shield, Light WPL 2302716 Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $127.84

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $176.19

WP2306389 Whirlpool Refrigerator Heater In Stock WPL WP2306389 $72.76

Grommet (4) WPL 943447 Contact Us For Availability

18

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

18

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

18

Wire, Jumper WPL 2310243 Contact Us For Availability

19

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

19

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $83.71

19

Screw WPL 487522 Contact Us For Availability

20

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $5.38

20

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

20

Gasket, Evaporator WPL 2220832 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2309222 Whirlpool Refrigerator Diffuser Backorder WPL WP2309222 $30.89

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

Wire Tie WPL 4389107 Contact Us For Availability

2310207 Whirlpool Wire Harness Backorder WPL 2310207 $30.25

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $30.25

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $5.20

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

Bushing WPL 2300082 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $137.10

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $31.04

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $129.41

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $33.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $32.19

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

Orifice, Fan WPL 2003169 Contact Us For Availability

26

2320554 Whirlpool Bracket Backorder WPL 2320554 $26.21

26

Tube, Drier Transition WPL 2259302 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability

28

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

28

Tube, Heat Loop Transition WPL 2259341 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $3.33

30

W10407628 Whirlpool Refrigerator Meat Pan Backorder WPL W10407628 $94.10

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $28.40

30

Housing, Power Supply WPL 2259349 Contact Us For Availability

31

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

31

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

31

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $71.39

32

Skirt-Grille, Bottom WPL 2209026B Contact Us For Availability

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

33

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Grille Bottom, Front WPL 2209431B Contact Us For Availability

35

Screw WPL 2005921 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

36

Cover, Fan WPL 2209495 Contact Us For Availability

37

Cover, Condenser WPL 2259092 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

Grommet, Edge WPL 2307907 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $5.42

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

39

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $53.73

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $24.52

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

42

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2310217 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI105601A Contact Us For Availability

REFRIGERANT CHARGE 7.75 oz. (R-134A) WPL ARI105602A Contact Us For Availability

55

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38
