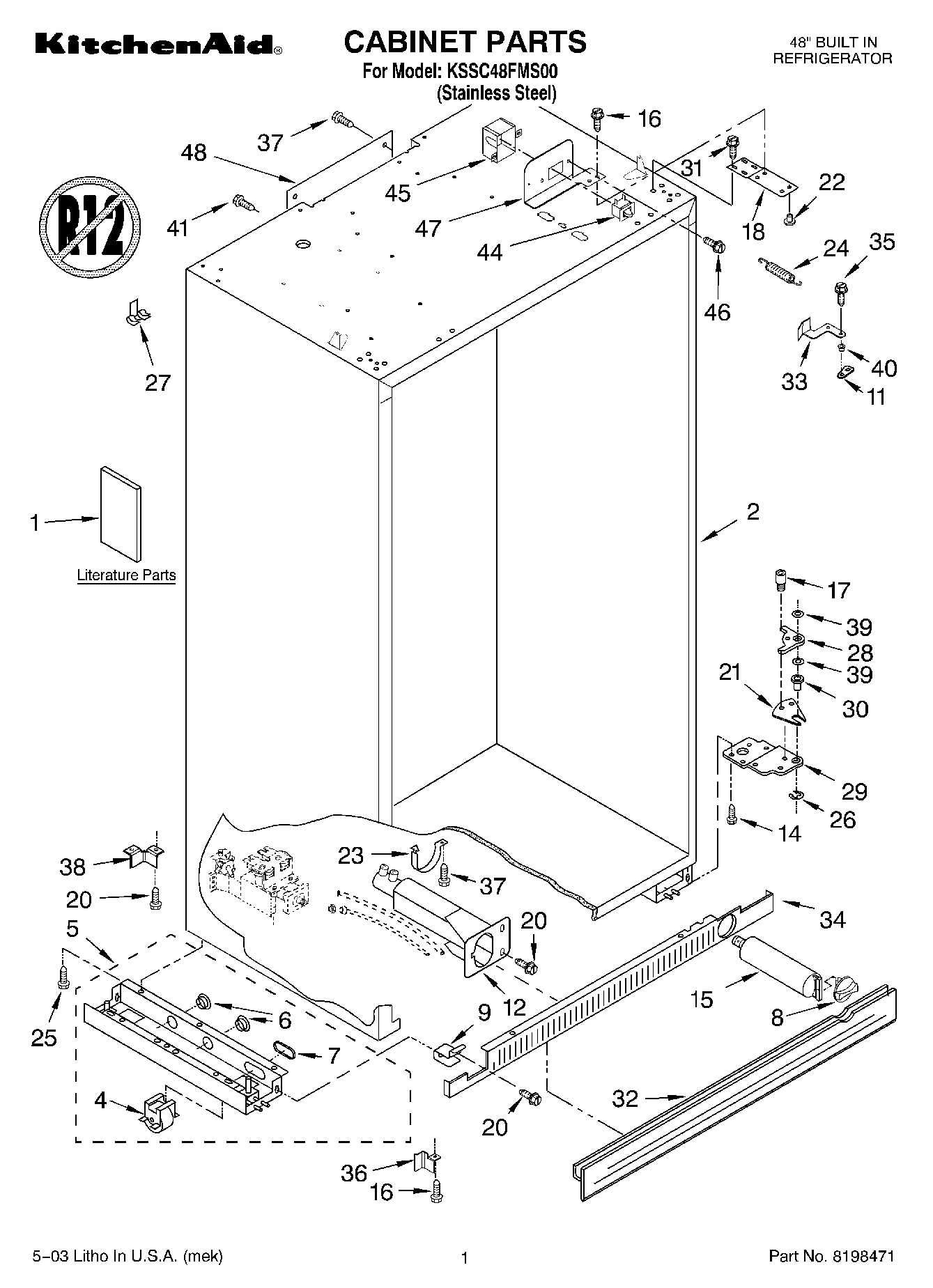

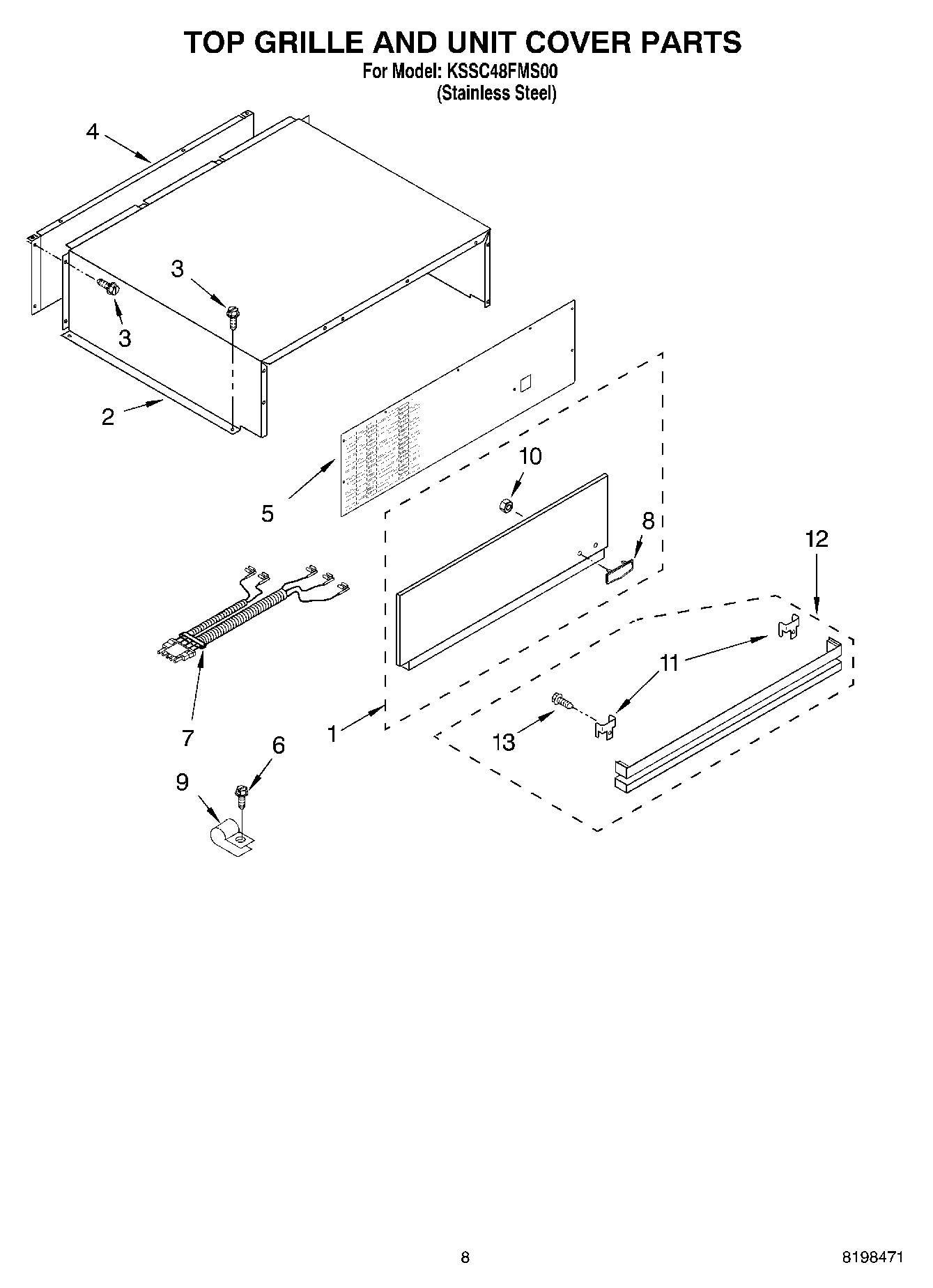

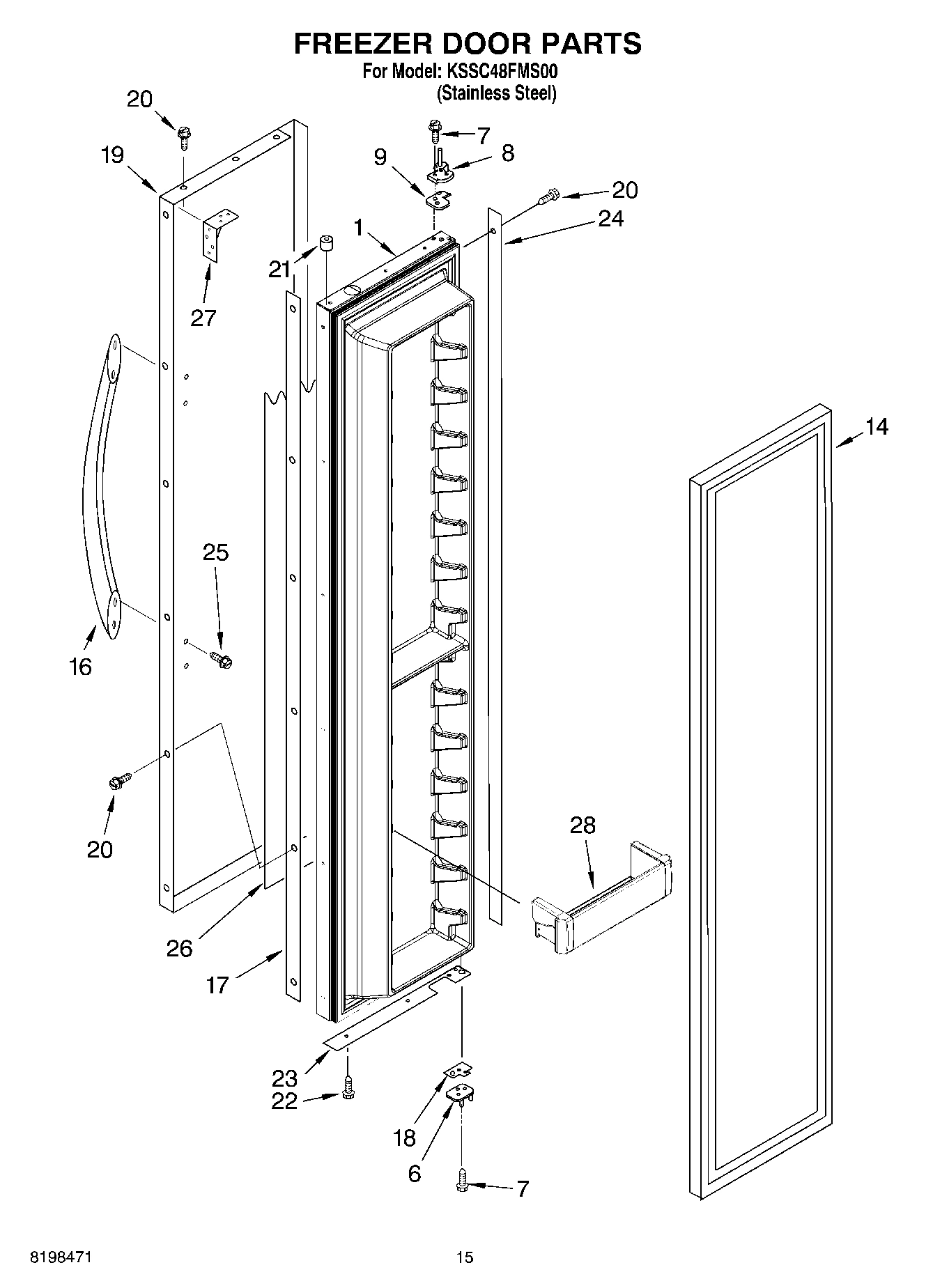

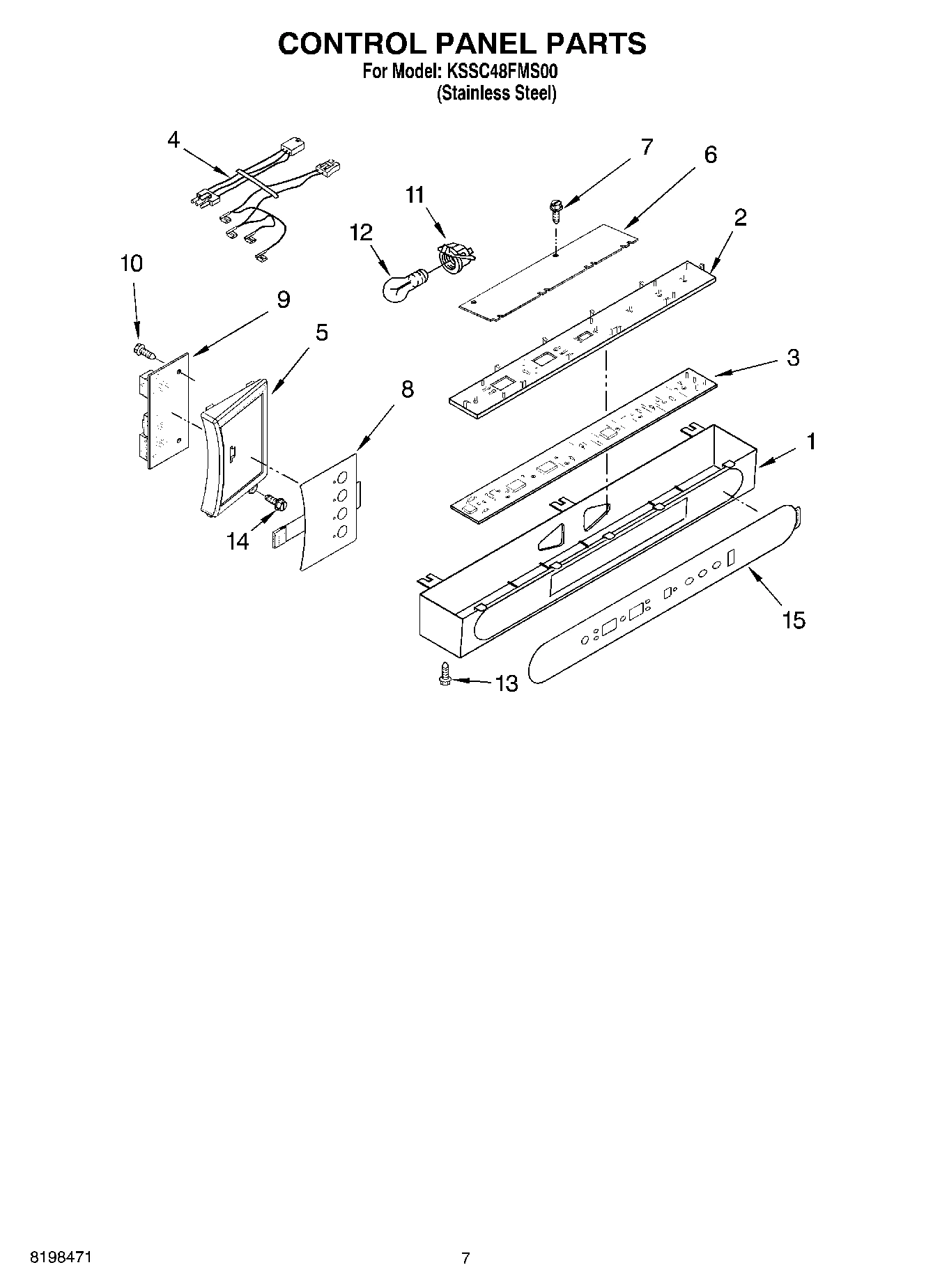

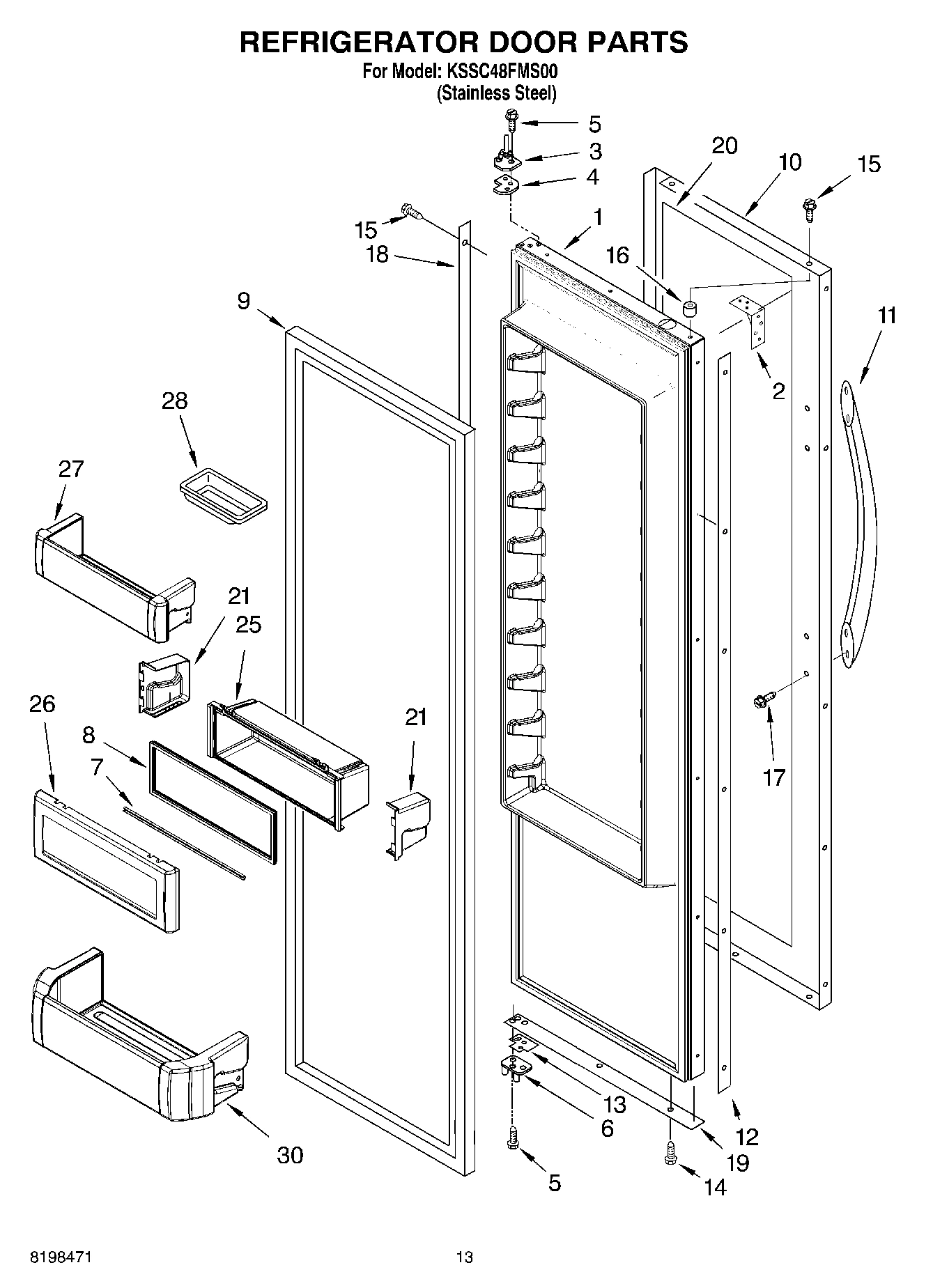

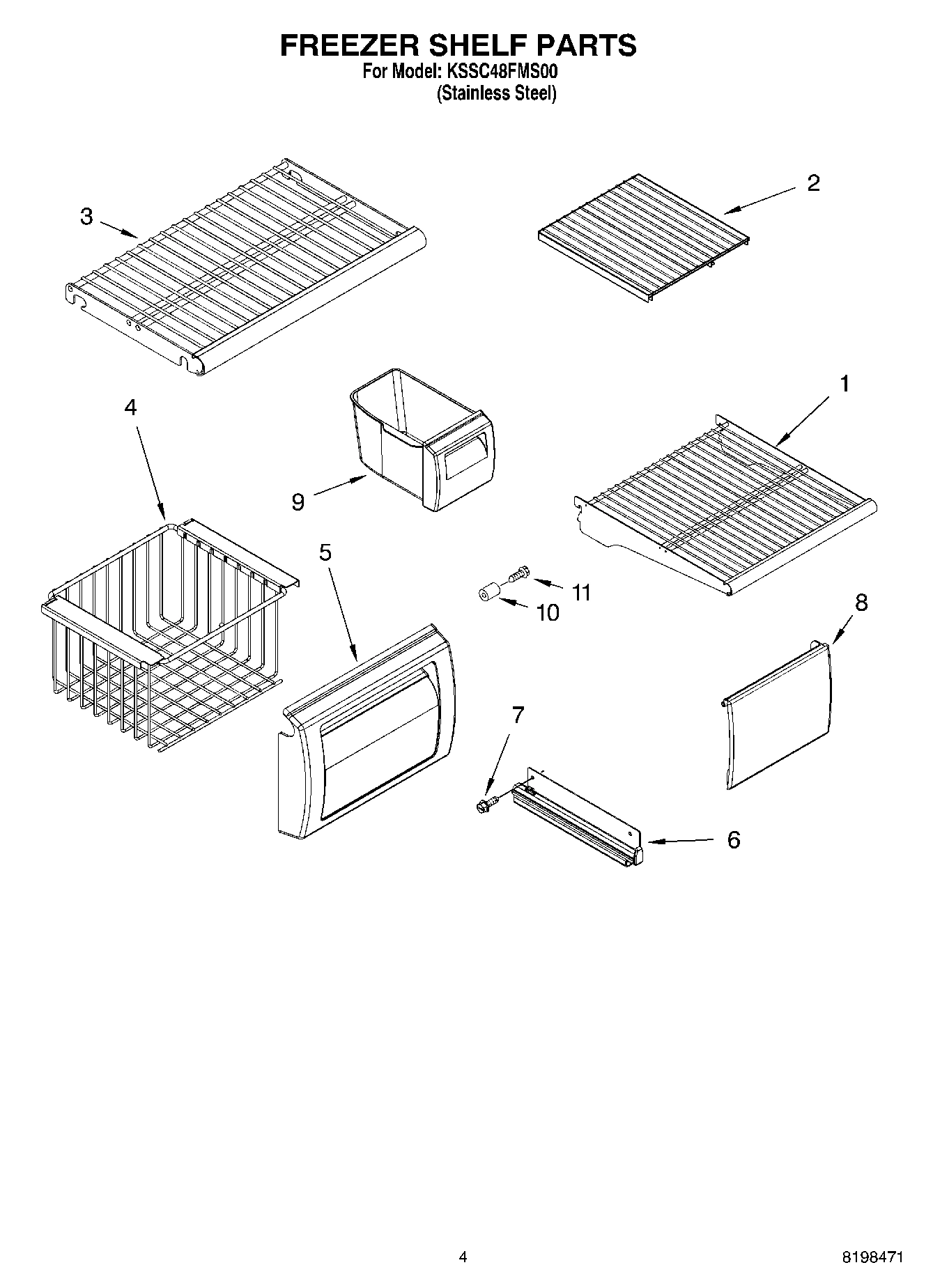

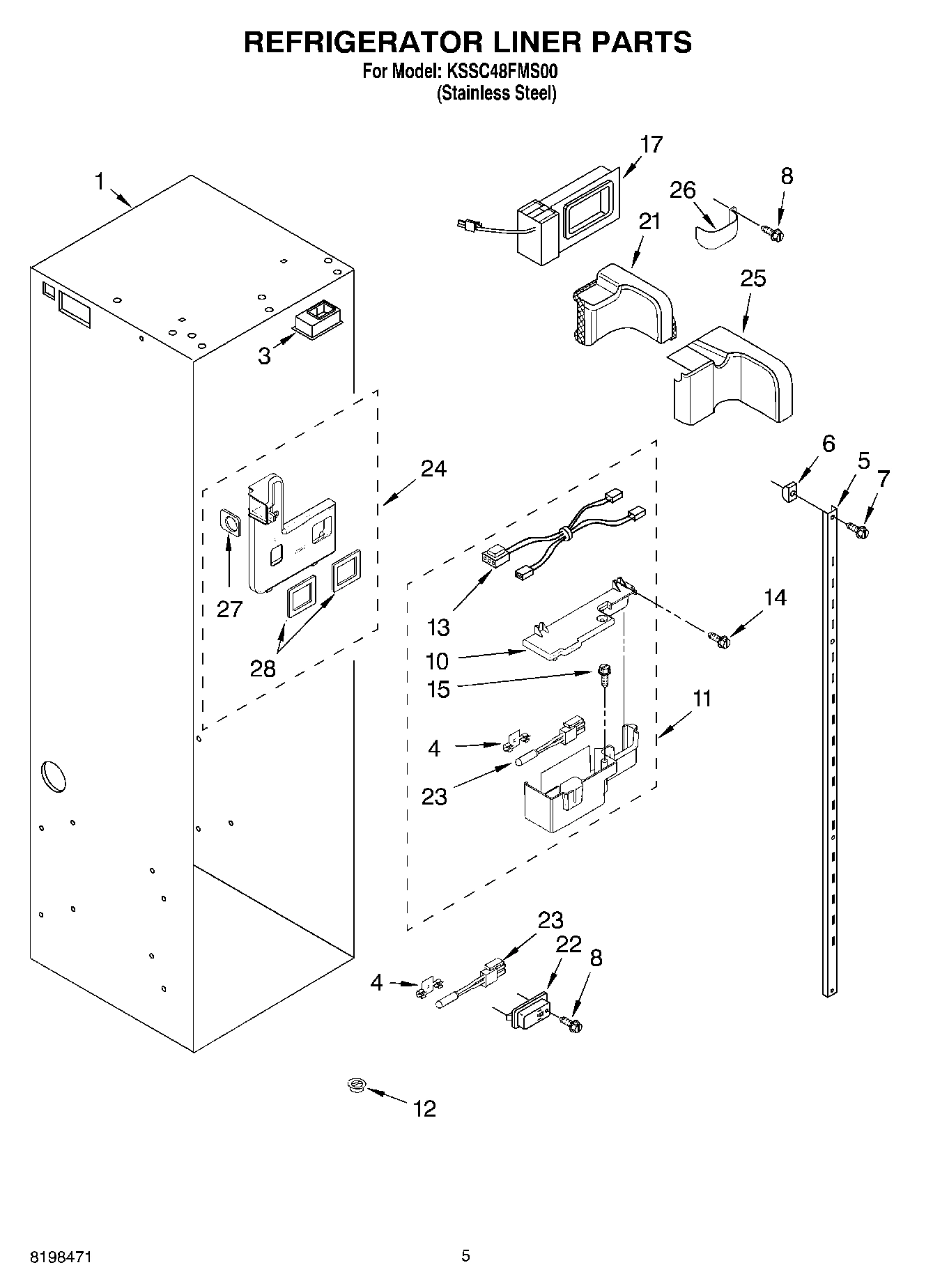

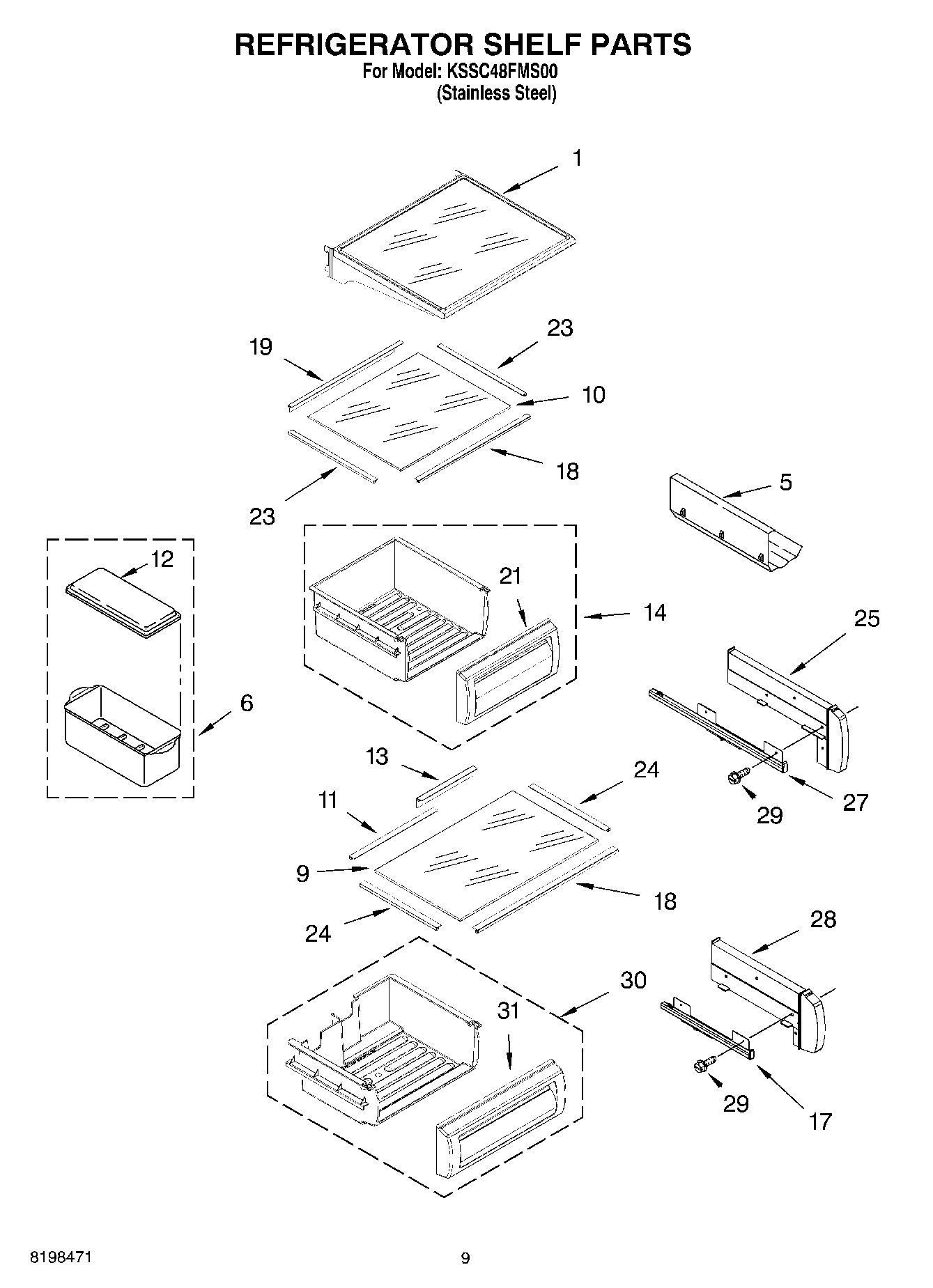

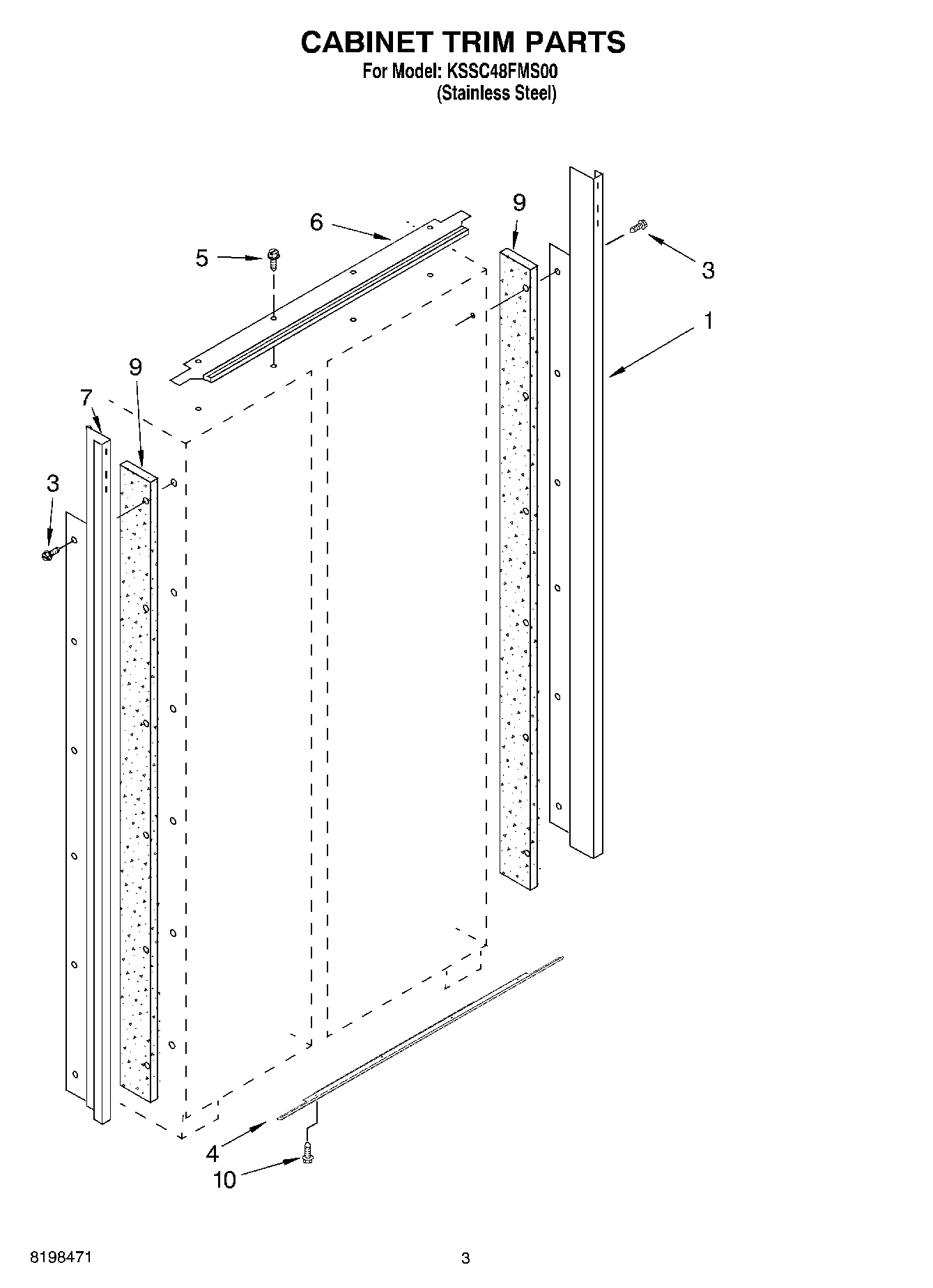

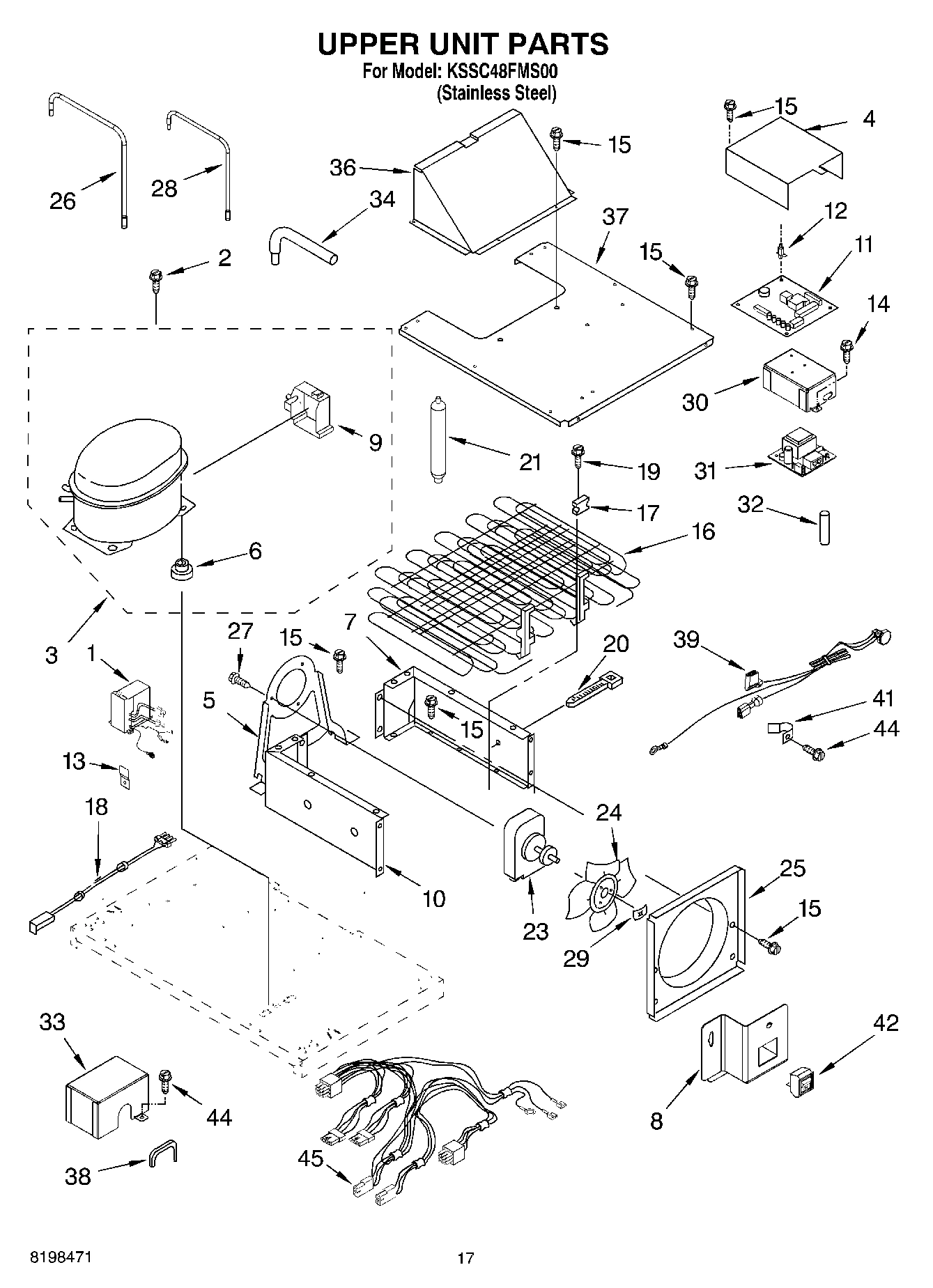

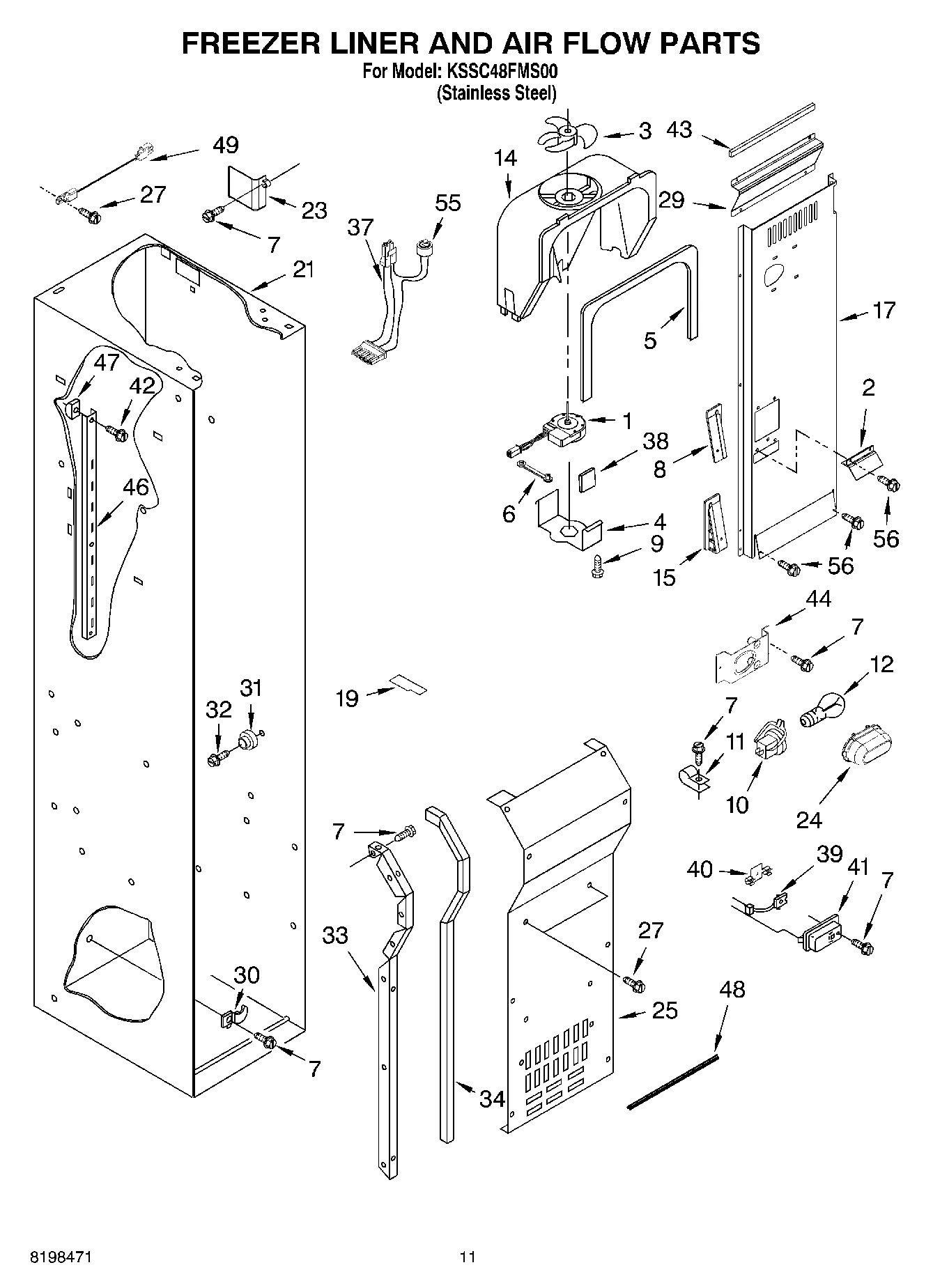

Model Whirlpool KSSC48FMS00 48`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

1

WP2222593 Whirlpool Cantilever Shelf Backorder WPL WP2222593 $159.67

1

Refrigerator Door Panel (Includes Item 9) WPL 2252331 Contact Us For Availability

1

Control Box WPL 8201533 Contact Us For Availability

1

Fan Motor WPL 2259385 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) WPL 2252328 Contact Us For Availability

2

BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability

2

Insert, Control Box WPL 2215670 Contact Us For Availability

2

Deflector, Air WPL 2266801 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $336.32

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

Circuit Board, Housing Control WPL 2252110 Contact Us For Availability

4

W11318849 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318849 $97.74

4

Spacer-Door, Top WPL 2256381 Contact Us For Availability

4

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

5

WP2256271 Whirlpool Refrigerator Front Basket Backorder WPL WP2256271 $54.79

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Panel Control, Meat Pan WPL 2258914 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $24.30

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Support, Control Box WPL 2221121 Contact Us For Availability

6

Egg Bin WPL 2221071 Contact Us For Availability

7

W11348580 Whirlpool Refrigerator Bin In Stock WPL W11348580 $103.37

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.33

7

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

7

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

7

Shroud, Condenser (Right) WPL 2266803 Contact Us For Availability

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $118.26

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

8

Touch Pad, Meat Pan WPL 2252067 Contact Us For Availability

8

Bracket, Switch WPL 2259096 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

WP2266903 Whirlpool Refrigerator Door Gasket In Stock WPL WP2266903 $203.10

9

WP2266932 Whirlpool Refrigerator Container Backorder WPL WP2266932 $99.73

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Glass, Meat Pan Cover WPL 2256278 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

Skin, Door WPL 2006773 Contact Us For Availability

Clip, Retainer WPL 2302712 Contact Us For Availability

Glass, Crisper Cover WPL 2256428 Contact Us For Availability

Shroud, Condenser (Left) WPL 2259369 Contact Us For Availability

W10823805-includeCORE Whirlpool W10823805 Ref Backorder WPL W10823805-includeCORE $326.94

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Cam, Door Closer WPL 2005783 Contact Us For Availability

Trim, Glass Rear Side WPL 2257611 Contact Us For Availability

Clamp, Nylon WPL 488937 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $97.12

Spacer, Door (Handle Side) WPL 2005290 Contact Us For Availability

Cover, Egg Bin WPL 2169935 Contact Us For Availability

13

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $29.61

13

Door Spacer, Bottom WPL 2257637 Contact Us For Availability

13

Trim, Glass Rear WPL 2257583 Contact Us For Availability

W10407625 Whirlpool Refrigerator Crisper Pan Backorder WPL W10407625 $95.15

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

WP2266901 Whirlpool Door Gasket In Stock WPL WP2266901 $250.47

Screw WPL 3400525 Contact Us For Availability

15

2259465 Whirlpool Refrigerator Wedge Backorder WPL 2259465 $36.07

15

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

15

OVERLAY WPL 2257520 Contact Us For Availability

16

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

16

CONDENSER WPL 2259307 Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $127.84

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2006751 Whirlpool Refrigerator Heater Backorder WPL WP2006751 $61.16

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $176.19

Grommet (4) WPL 943447 Contact Us For Availability

Air Duct WPL 2259020 Contact Us For Availability

Spacer, Door-Skin (Handle Side) WPL 2300028 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

Trim, Glass Front WPL 2256229 Contact Us For Availability

Wire, Jumper WPL 2187679 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $83.71

WP2257343 Whirlpool Spacer Assembly Backorder WPL WP2257343 $46.70

Screw WPL 487522 Contact Us For Availability

Trim, Glass Rear WPL 2256255 Contact Us For Availability

Skin, Door WPL 2006776 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $5.38

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Filler, Door WPL 2005327 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $3.70

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $3.70

Liner (Not A Serviceable Part) WPL ARI105571A Contact Us For Availability

22

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

22

Bushing WPL 2002903 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $137.10

WP2257333 Whirlpool Spacer Backorder WPL WP2257333 $54.20

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

TRIM, GLASS SIDE CRISPER PAN WPL 2252255 Contact Us For Availability

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $31.04

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $33.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

SPACER, DOOR-SKIN HINGE SIDE) WPL 2005030 Contact Us For Availability

Light Shield WPL 2259367 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $32.19

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $94.21

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

Orifice, Fan WPL 2003169 Contact Us For Availability

Cover, Evaporator WPL 2221106 Contact Us For Availability

26

Tube, Drier Transition WPL 2259302 Contact Us For Availability

26

Filler, Door WPL 2005323 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

BIN-CNTLVR Backorder WPL W11752086 $36.67

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2256243 Whirlpool Refrigerator Track In Stock WPL 2256243 $29.10

2256244 Whirlpool Refrigerator Track Backorder WPL 2256244 $40.33

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W11590561 Whirlpool Refrigerator Cantilever B Backorder WPL W11590561 $33.89

Tube, Heat Loop Transition WPL 2259341 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

F.C. (6) WPL ARI105572A Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $3.33

Deflector, Air Duct WPL 2259055 Contact Us For Availability

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

W10323748 Whirlpool Refrigerator Cantilever B Backorder WPL W10323748 $63.13

W10407628 Whirlpool Refrigerator Meat Pan Backorder WPL W10407628 $94.10

Housing, Power Supply WPL 2259349 Contact Us For Availability

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2256367 Whirlpool Refrigerator Front Pan Backorder WPL WP2256367 $72.33

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $71.39

32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

32

Skirt-Grille, Bottom WPL 2209026B Contact Us For Availability

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

2259355 Whirlpool Refrigerator Evaporator Rai Backorder WPL 2259355 $47.78

33

Cover, Electrical WPL 2259463 Contact Us For Availability

33

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Grille Bottom, Front WPL 2209431B Contact Us For Availability

35

Screw WPL 2005921 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

36

Cover, Fan WPL 2209495 Contact Us For Availability

37

Cover, Condenser WPL 2259092 Contact Us For Availability

37

Harness, Evap Fan WPL 2187520 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.41

38

Grommet, Flexible WPL 2266857 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $5.42

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

39

Service Cord WPL 2259197 Contact Us For Availability

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

43

Gasket, Air Duct WPL 2259058 Contact Us For Availability

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

44

Bracket, Light WPL 2257571 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187625 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI105573A Contact Us For Availability

and Optional Parts Not Included WPL ARI105574A Contact Us For Availability

REFRIGERANT CHARGE 7.75 oz. (R-134A) WPL ARI105575A Contact Us For Availability

46

WP2259032 Whirlpool Ladder Backorder WPL WP2259032 $27.52

47

2259445 Whirlpool Support Assembly Backorder WPL 2259445 $27.52

48

Gasket, Air Duct WPL 2259468 Contact Us For Availability

49

THERMISTOR WPL 2266949 Contact Us For Availability

55

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $90.29
