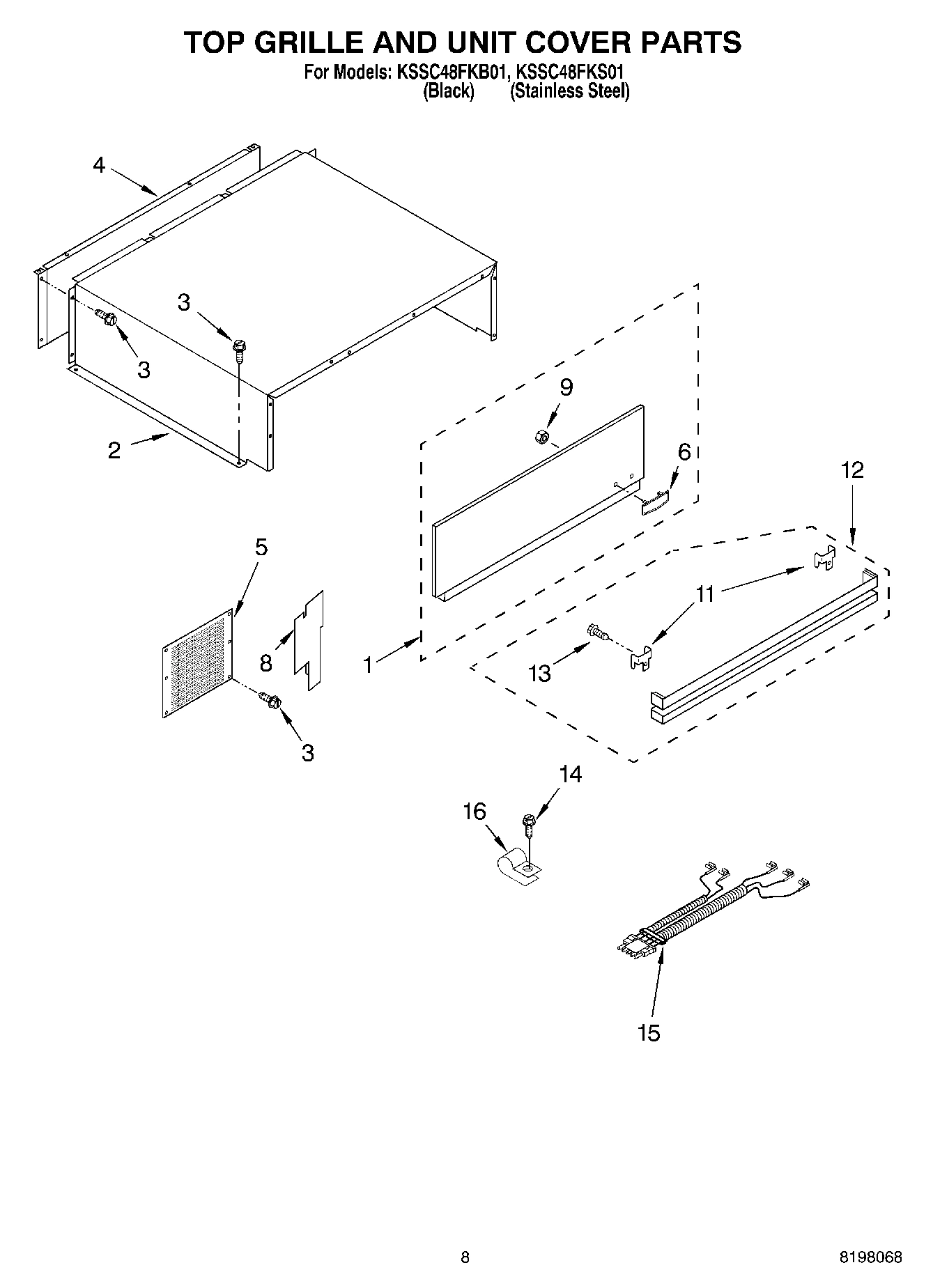

Model Whirlpool KSSC48FKS01 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $226.28

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $67.89

1

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

1

Literature Parts (Installation Instructions) WPL LIT2215852 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2221227 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2254714 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2254722 Contact Us For Availability

1

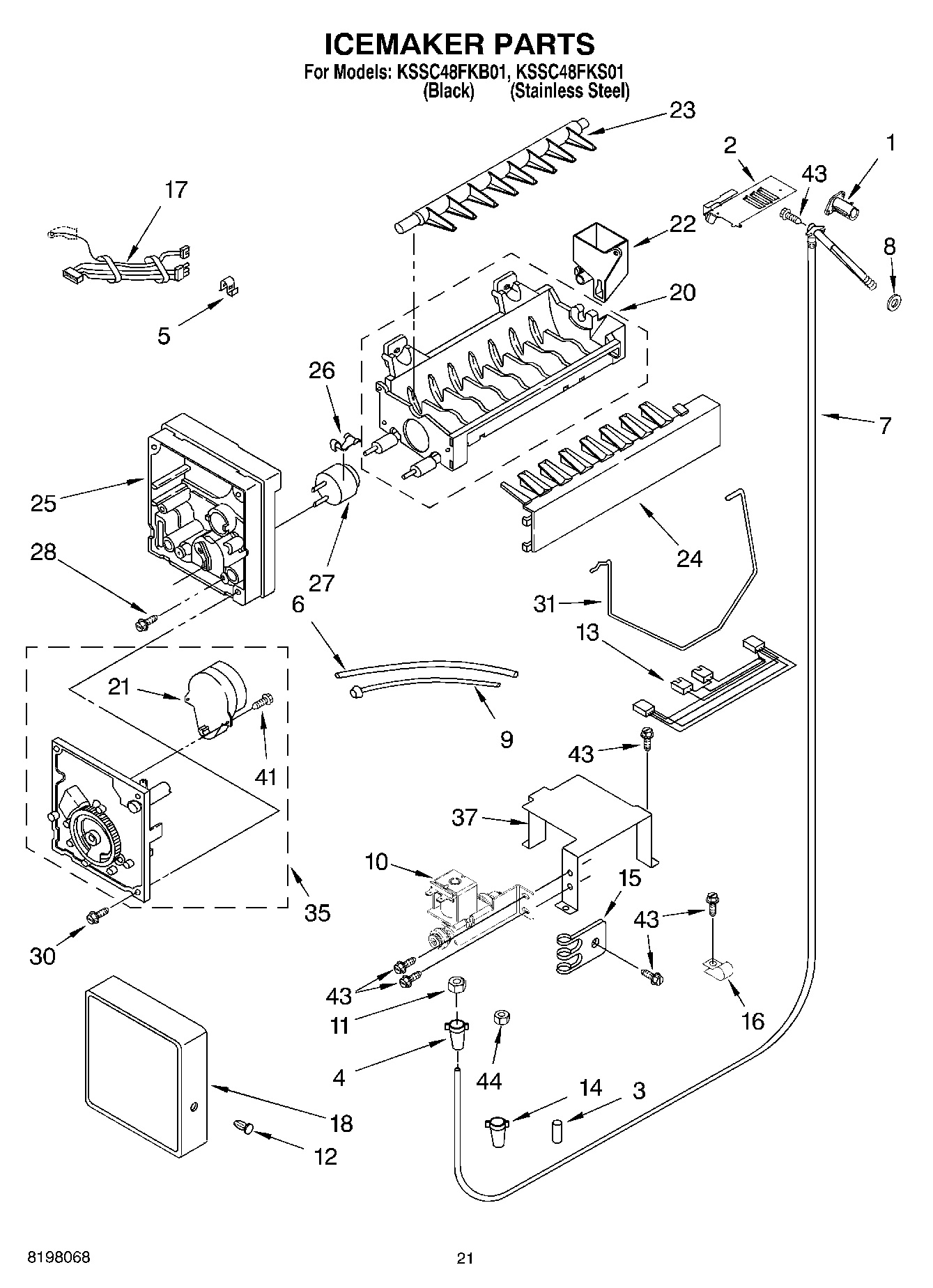

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Stainless Steel) WPL 2215919S Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI105561A Contact Us For Availability

1

Refrigerator Door Panel WPL 8201581 Contact Us For Availability

2

Cup, Clearance WPL 2002732 Contact Us For Availability

2

Cabinet (Not A Serviceable Part) WPL ARI105560A Contact Us For Availability

2

Wire Harness WPL 2209119 Contact Us For Availability

2

Plate, Door Handle WPL 2209202 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct Backorder WPL 2208970 $51.19

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

3

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $319.55

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Grommet, Tube Crossover WPL 2005004 Contact Us For Availability

3

Hinge Assembly, Top WPL 2220922 Contact Us For Availability

4

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254726 Contact Us For Availability

4

Spacer-Door, Top WPL 2004520 Contact Us For Availability

4

Housing, Control Board WPL 2199929 Contact Us For Availability

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Side Support WPL 2209067 Contact Us For Availability

5

Ladder, Shelf (2) WPL 2221211 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

6

2221121 Whirlpool Refrigerator Support Backorder WPL 2221121 $32.68

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $49.98

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Suction Tube WPL 2209035 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003647 Contact Us For Availability

6

Hinge Assembly, Bottom WPL 2220809 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability

7

Cabinet Trim (Left Side) (Stainless Steel) WPL 2215936S Contact Us For Availability

7

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2209038 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $26.75

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

8

Deflector, Air Duct WPL 2003924 Contact Us For Availability

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112542 Contact Us For Availability

8

Panel, Condenser Front WPL 2215665 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $12.81

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

WP1112247 Whirlpool Refrigerator Cover Backorder WPL WP1112247 $54.09

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188499 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

Ice Container WPL 2208908 Contact Us For Availability

Clip, Wire WPL 2005237 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability

Door Skin (Stainless Steel) WPL 2006773 Contact Us For Availability

Door Skin (Black) WPL 2209102B Contact Us For Availability

Shroud, Condenser (Left) WPL 2209037 Contact Us For Availability

W10823805-includeCORE Whirlpool W10823805 Ref Backorder WPL W10823805-includeCORE $380.03

Cam, Door Closer WPL 2005783 Contact Us For Availability

Clamp, Nylon WPL 488937 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Handle, Door (Black) WPL 2209095B Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Release Valve WPL 2220993 Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $28.20

Fastner WPL 1112871 Contact Us For Availability

Tube, Discharge WPL 2209036 Contact Us For Availability

Seal, Air Duct WPL 2221175 Contact Us For Availability

Door, Spacer Bottom WPL 2004549 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

Screw WPL 3400525 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Door Brace, Corner WPL 2004447 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Deflector, Air Duct WPL 2003929 Contact Us For Availability

Overlay WPL 2221065 Contact Us For Availability

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $31.71

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2306094 Whirlpool Evaporator In Stock WPL WP2306094 $242.21

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

Retainer, Knob WPL 2003841 Contact Us For Availability

Filler, Door WPL 2005327 Contact Us For Availability

Condenser WPL 2209062 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw Backorder WPL WP2005378 $4.58

WP2006751 Whirlpool Refrigerator Heater Backorder WPL WP2006751 $58.25

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

Assembly, Air Duct WPL 2209336 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

Scpcer, Door (Hinge Side) WPL 2005030 Contact Us For Availability

Jumper, Wire WPL 2187422 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $28.80

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $79.73

WP2257343 Whirlpool Spacer Assembly Backorder WPL WP2257343 $44.47

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Screw WPL 487522 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Meat Pan WPL 2220903 Contact Us For Availability

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Harness, Wire WPL 2221262 Contact Us For Availability

Panel, Interior Door WPL 1113950 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

Liner (Not A Serviceable Part) WPL ARI105562A Contact Us For Availability

Diffuser Assembly WPL 2208997 Contact Us For Availability

Ladder, Shelf (2) WPL 1113949 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Blade, Fan WPL 2190685 Contact Us For Availability

Light Shield (2) WPL 2198589 Contact Us For Availability

Grommet, Water Tube WPL 2209444 Contact Us For Availability

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Cover, Evaporator WPL 2221106 Contact Us For Availability

Gasket WPL 1113955 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

Door, Utility Bin WPL 2003465 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stop, Roller WPL 1113169 Contact Us For Availability

Fastener (3) WPL 1113227 Contact Us For Availability

Door Shelf (3) WPL 1113974 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Shelf Bin (4) WPL 2195934 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

Diffuser, Air Duct WPL 2208929 Contact Us For Availability

30

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

30

Spacer, Door (Handle Side) WPL 2221012 Contact Us For Availability

31

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

31

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

Skirt-Grille, Bottom WPL 2209026B Contact Us For Availability

Shelf, Gallon Door WPL 2188333 Contact Us For Availability

Sleeve, Condenser WPL 2000645 Contact Us For Availability

WP2307857 Whirlpool Refrigerator Extension In Stock WPL WP2307857 $32.17

WPW10121046 Whirlpool Refrigerator Extension In Stock WPL WPW10121046 $38.52

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

Evaporator, Cover Rail (Right Side) WPL 2221108 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Grille Bottom, Front WPL 2209431B Contact Us For Availability

35

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

35

Screw WPL 2005921 Contact Us For Availability

35

Wire, Jumper WPL 2221077 Contact Us For Availability

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $12.50

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

Cover, Fan WPL 2209495 Contact Us For Availability

37

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

37

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

37

Cover, Condenser WPL 2215628 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

38

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

39

Service Cord WPL 2003381 Contact Us For Availability

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

43

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover Backorder WPL 2215938 $28.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187417 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

47

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $29.43

47

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $29.43

48

WPL 2209449 WPL 2209449 Contact Us For Availability

49

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
