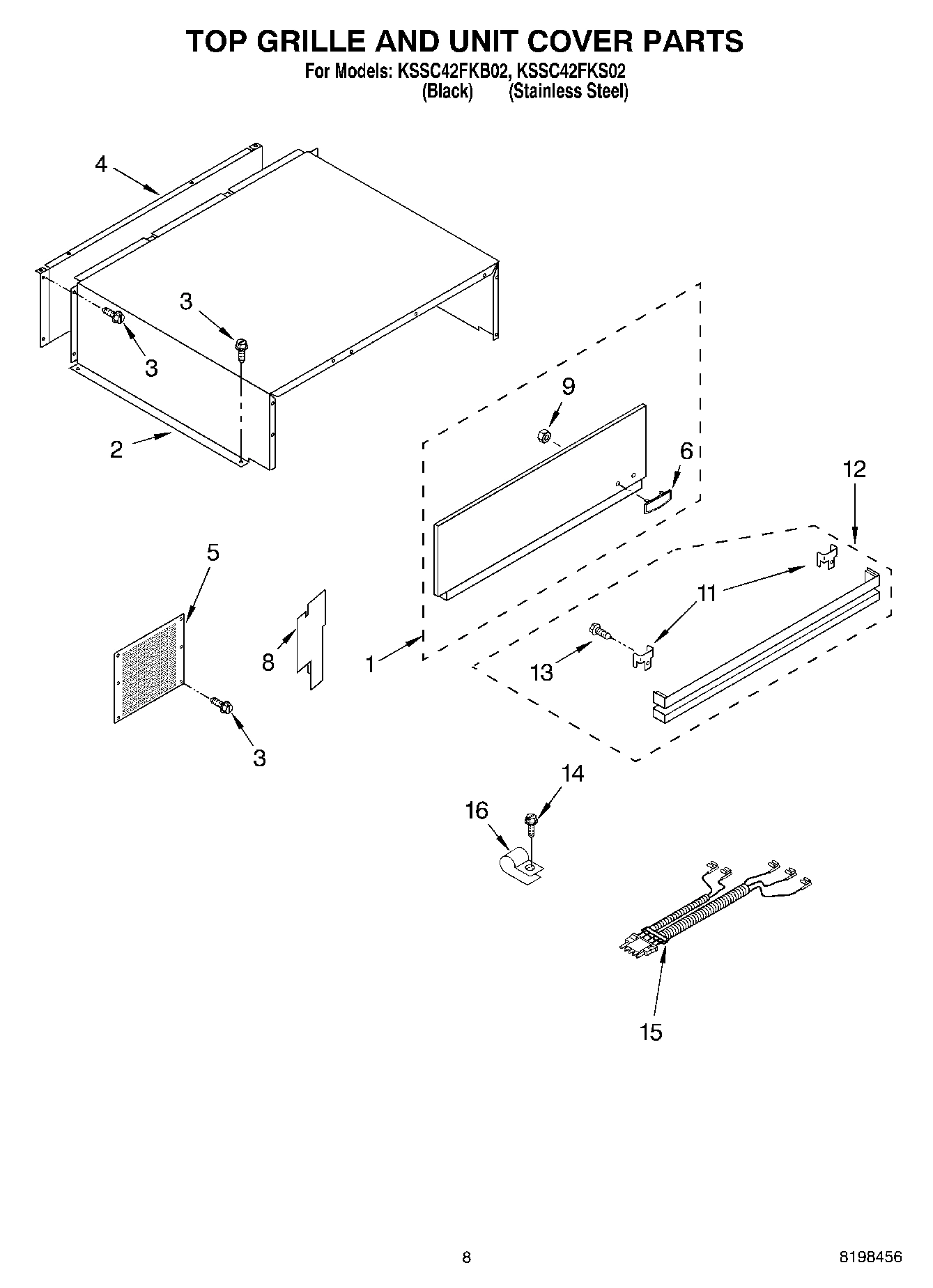

Model Whirlpool KSSC42FKS02 42`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $226.28

1

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $67.89

1

Solid Shelf WPL 2220890 Contact Us For Availability

1

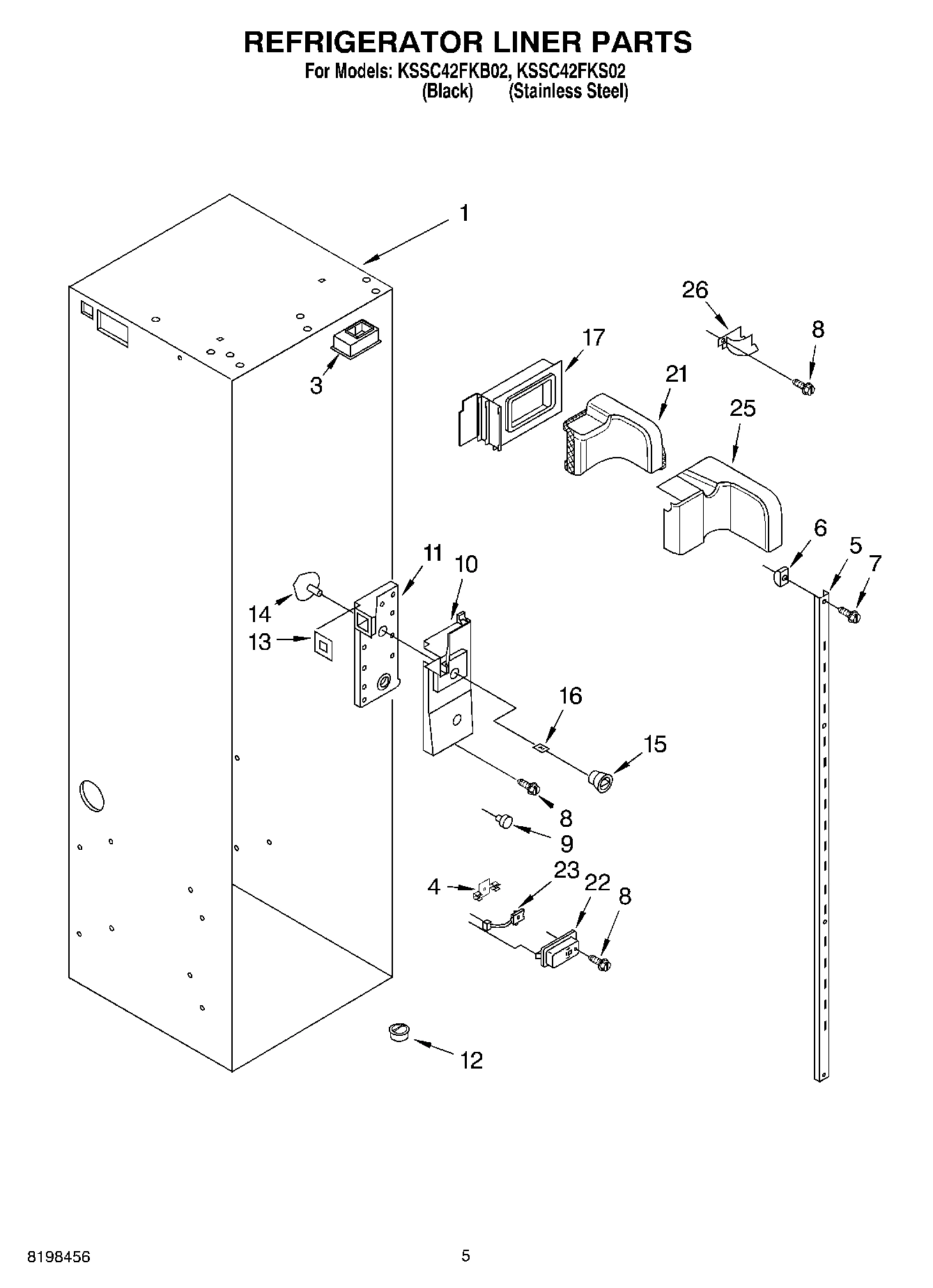

Liner (Not A Serviceable Part) WPL ARI105357A Contact Us For Availability

1

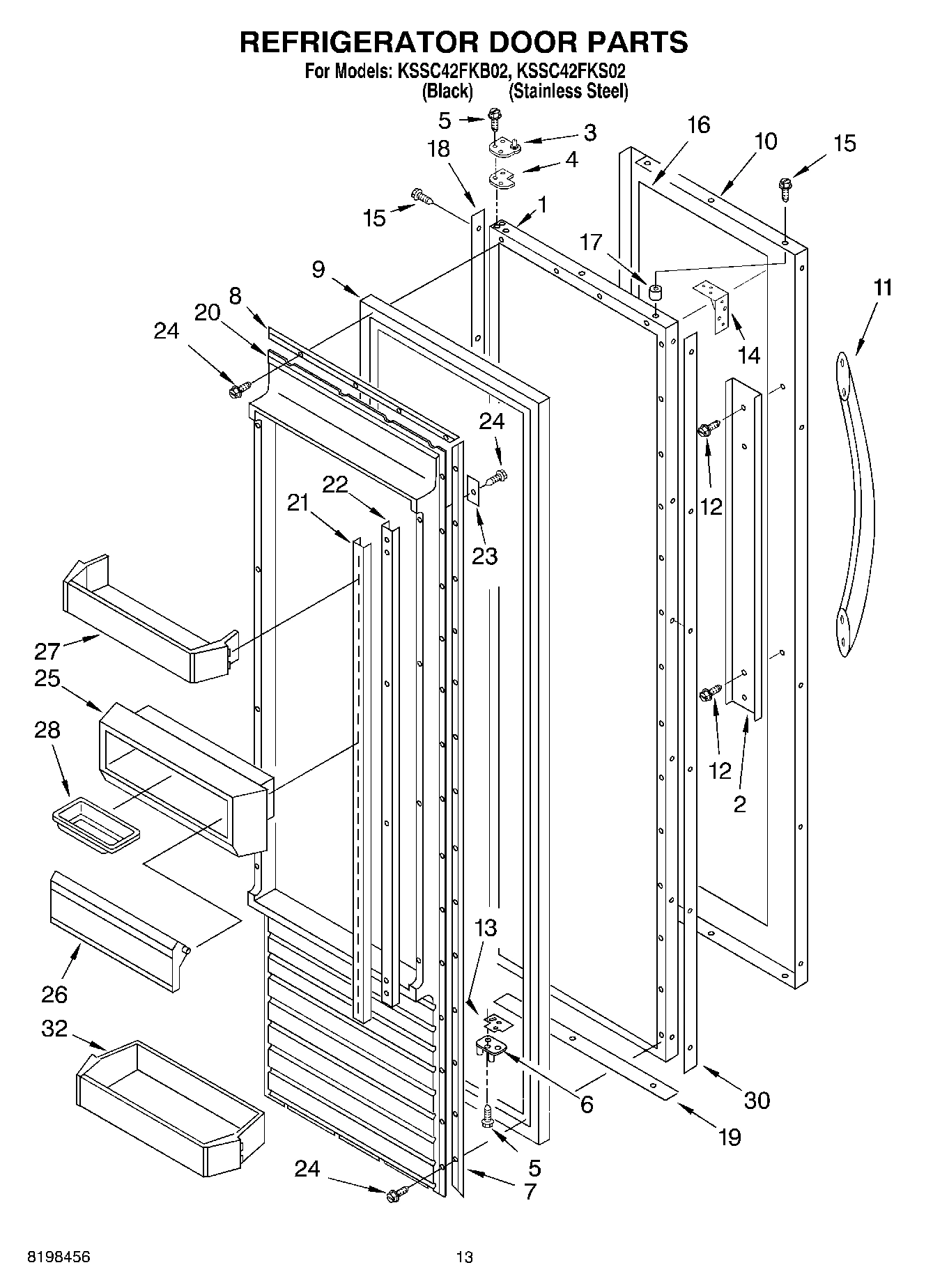

Refrigerator Door Panel (Includes Insulation) WPL 2259181 Contact Us For Availability

1

Frame, Shelf WPL 2174403 Contact Us For Availability

1

Panel, Decorator (Black) WPL 2215953B Contact Us For Availability

1

Panel, Decorator (Stainless steel) WPL 2215953S Contact Us For Availability

2

Front, Ice Compartment WPL 2220847 Contact Us For Availability

2

Plate, Door Handle WPL 2209202 Contact Us For Availability

2

Glass, Shelf WPL 2003376 Contact Us For Availability

2

Cover, Unit WPL 2209490 Contact Us For Availability

2

Cup, Clearance WPL 2002732 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct Backorder WPL 2208970 $51.19

3

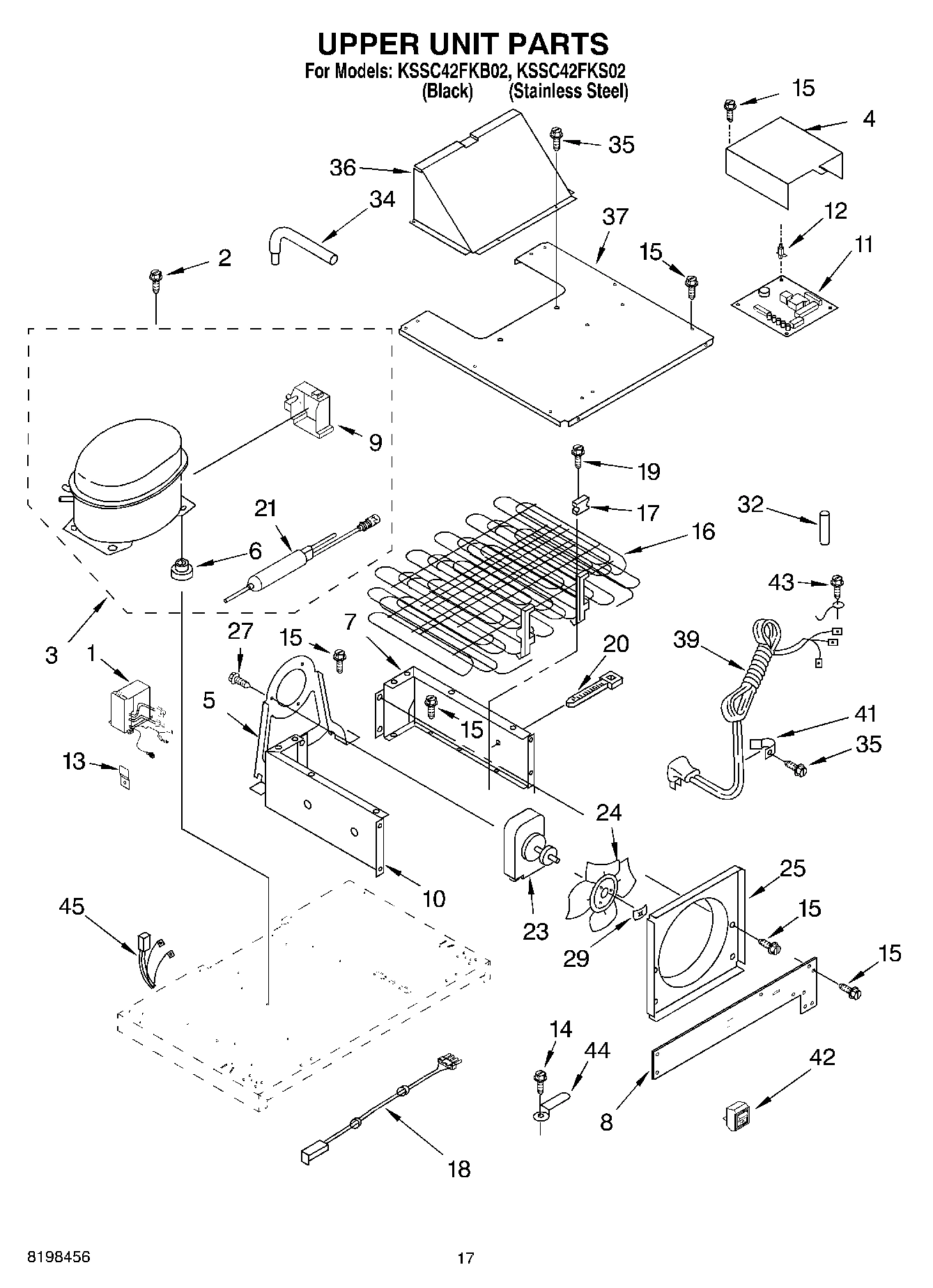

W10841139 Whirlpool Refrigerator Compressor In Stock WPL W10841139 $319.55

3

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $111.87

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Circuit Board, Housing Control WPL 2209159 Contact Us For Availability

3

Shelf, Deep WPL 1113565 Contact Us For Availability

3

Shelf, Fixed (2) WPL 1113637 Contact Us For Availability

3

Reflector, Shelf WPL 1113547 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

4

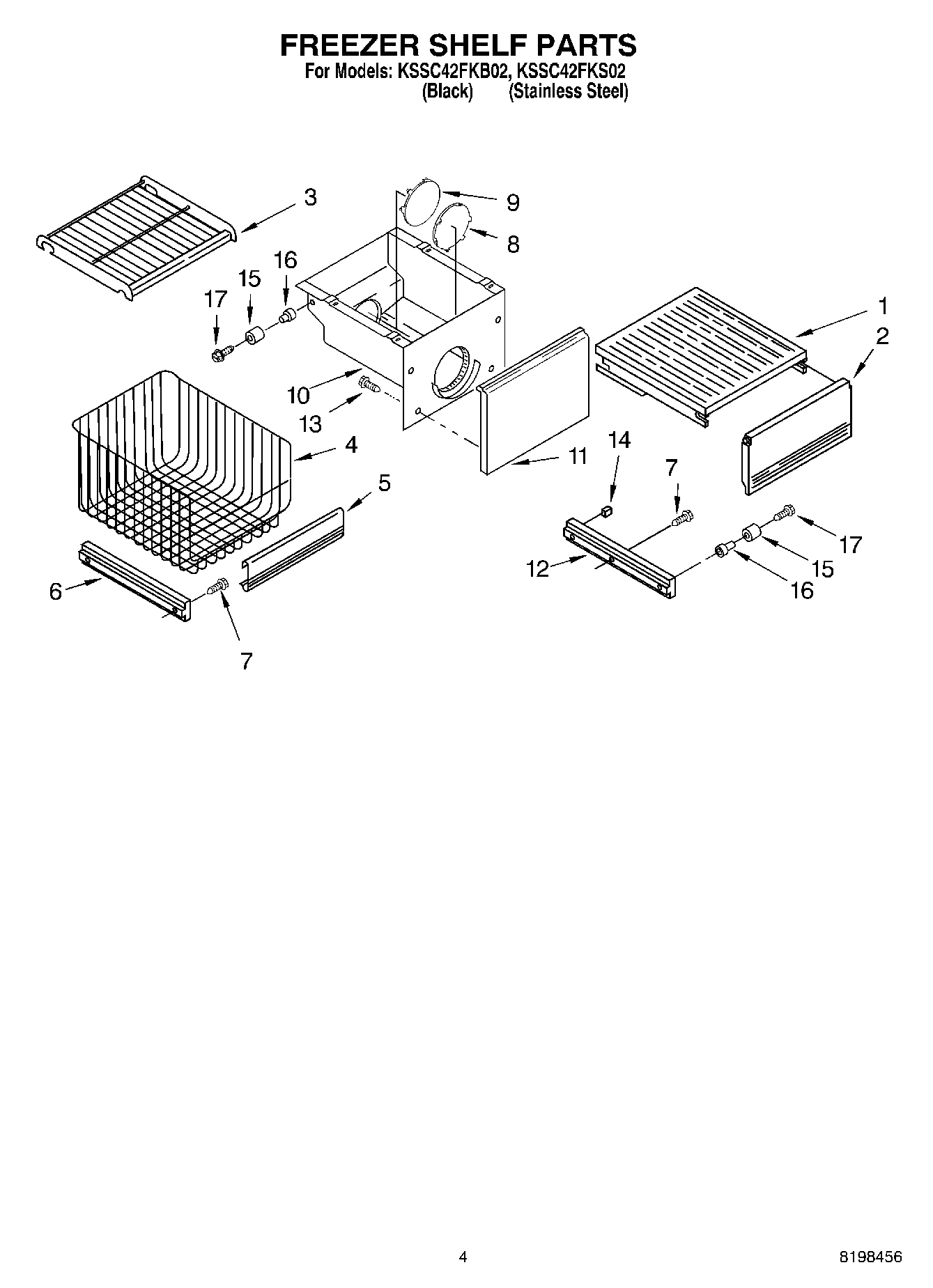

Basket WPL 2208194 Contact Us For Availability

4

Housing, Control Board WPL 2257354 Contact Us For Availability

4

Gasket, Glass (2) WPL 1113791 Contact Us For Availability

5

Backorder WPL 2179404 $8.47

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Trim, Basket WPL 2220844 Contact Us For Availability

5

Ladder, Shelf (2) WPL 2221211 Contact Us For Availability

5

Bracket, Fan Motor WPL 2215641 Contact Us For Availability

5

Guard, Wiring WPL 2209492 Contact Us For Availability

6

2221121 Whirlpool Refrigerator Support Backorder WPL 2221121 $32.68

6

2302878 Whirlpool Refrigerator Door Hinge Backorder WPL 2302878 $34.92

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $49.98

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

Slide, Basket (Left Side) WPL 2208197 Contact Us For Availability

6

Slide, Basket (Right Side) WPL 2208198 Contact Us For Availability

6

Egg Bin WPL 2221071 Contact Us For Availability

6

Nameplate WPL 2005292 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

7

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

7

Shroud, Condenser (Right) WPL 2257350 Contact Us For Availability

7

Frame, Assembly Meat Pan WPL 2006524 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $26.75

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

8

Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability

8

Panel, Condenser Front WPL 2215665 Contact Us For Availability

8

Baffle-Air, Condenser WPL 8201530 Contact Us For Availability

8

Deflector, Air Duct WPL 2003925 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $12.81

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

WP1113894 Whirlpool Refrigerator Cover Backorder WPL WP1113894 $43.11

9

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Spacer-Door, Top WPL 2256381 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2188498 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

Ice Container WPL 2208907 Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability

Door Skin (Stainless Steel) WPL 2006772 Contact Us For Availability

Door Skin (Black) WPL 2209099B Contact Us For Availability

Shroud, Condenser (Left) WPL 2209037 Contact Us For Availability

Glass, Crisper (Includes 9) WPL 2003379 Contact Us For Availability

W10823805-includeCORE Whirlpool W10823805 Ref Backorder WPL W10823805-includeCORE $380.03

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Cam, Door Closer WPL 2005783 Contact Us For Availability

BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability

Front Cover WPL 2003044 Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Handle, Door (Black) WPL 2209095B Contact Us For Availability

Meat Pan, Connector WPL 2000742 Contact Us For Availability

Bracket, Louver WPL 2254759 Contact Us For Availability

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

Grille, Louver (Black) WPL 2215934B Contact Us For Availability

Grille, Louver (Stainless steel) WPL 2215934S Contact Us For Availability

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $28.20

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Seal, Air Duct WPL 2221175 Contact Us For Availability

Fastner WPL 1112871 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Screw WPL 3400525 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

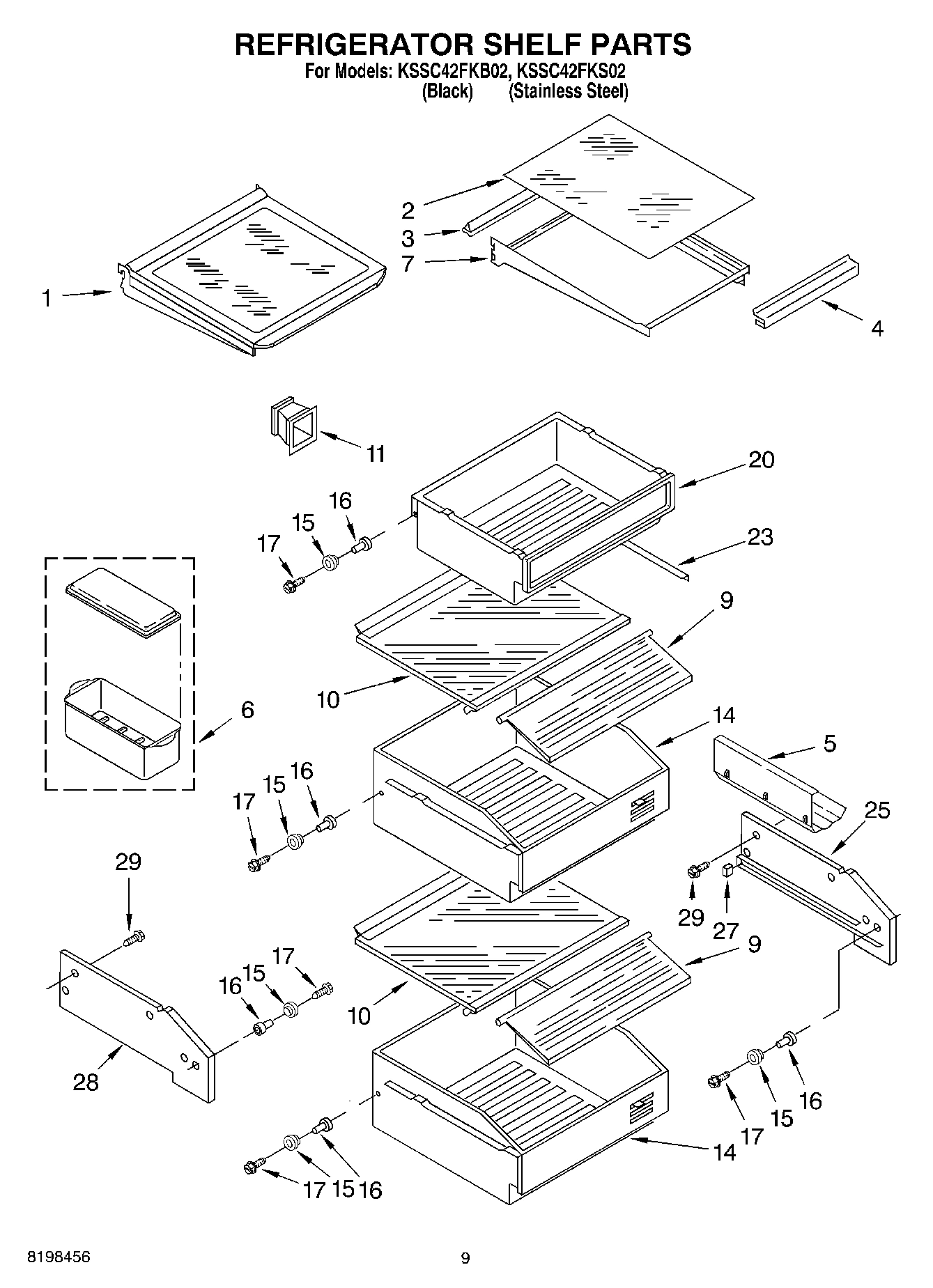

Crisper Pan (2) WPL 2220896 Contact Us For Availability

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $2.51

Overlay WPL 2221066 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

Deflector, Air Duct WPL 2003928 Contact Us For Availability

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $31.71

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

Retainer, Knob WPL 2003841 Contact Us For Availability

Filler, Door WPL 2005326 Contact Us For Availability

Condenser WPL 2209062 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw Backorder WPL WP2005378 $4.58

WP2006750 Whirlpool Refrigerator Heater In Stock WPL WP2006750 $48.56

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Grommet (4) WPL 943447 Contact Us For Availability

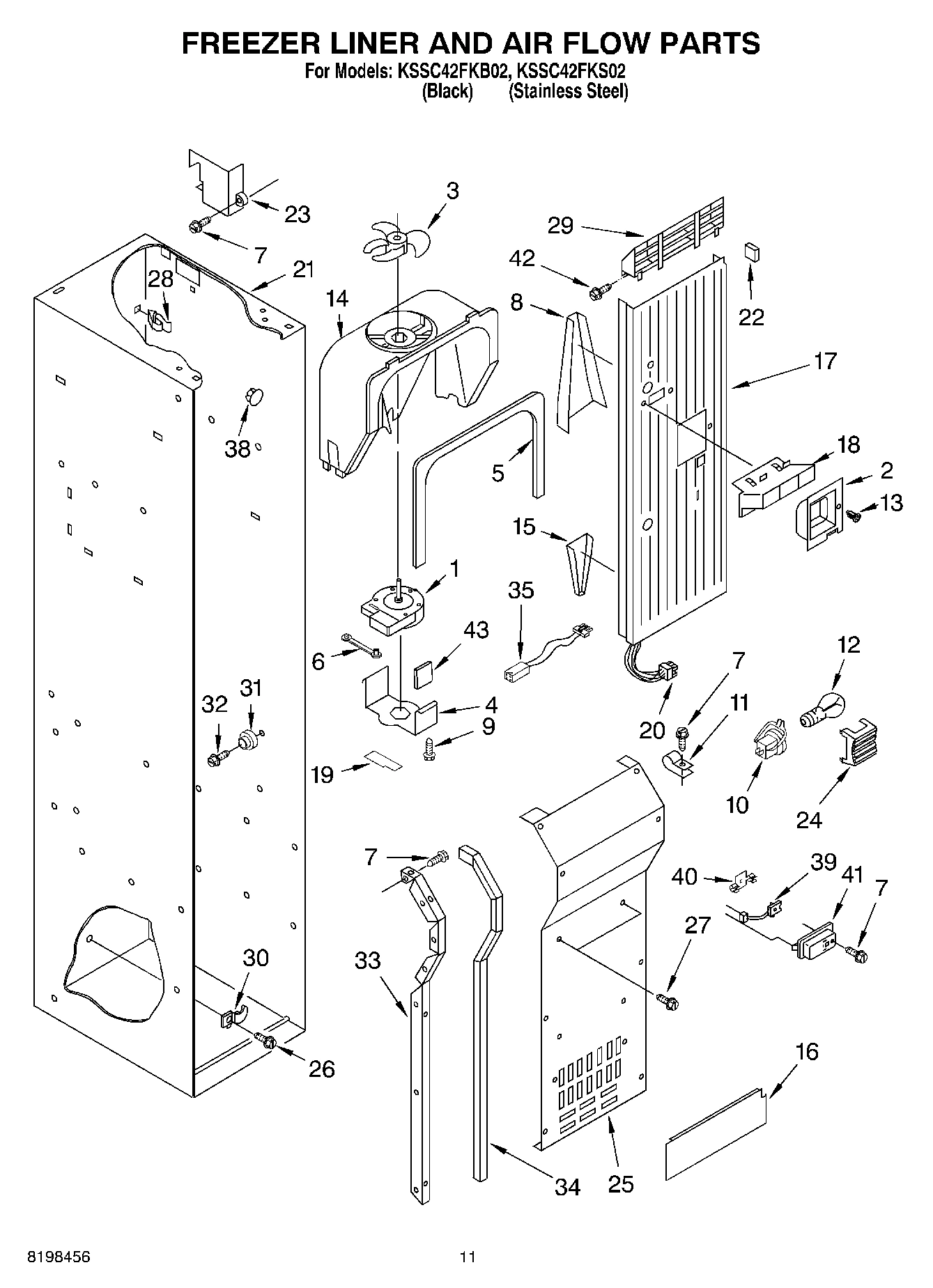

Assembly, Air Duct WPL 2209335 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

Door, Spacer WPL 2257637 Contact Us For Availability

Scpcer, Door (Hinge Side) WPL 2005030 Contact Us For Availability

Jumper, Wire WPL 2187422 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $28.80

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $79.73

Screw WPL 487522 Contact Us For Availability

Spacer, Door Bottom WPL 2004934 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Meat Pan WPL 2220902 Contact Us For Availability

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Panel, Interior Door WPL 1113953 Contact Us For Availability

Harness, Wire WPL 2221262 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

Diffuser Assembly WPL 2208997 Contact Us For Availability

Ladder, Shelf (2) WPL 1113951 Contact Us For Availability

Liner (Not Serviceable Part) WPL ARI105358A Contact Us For Availability

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Blade, Fan WPL 2190685 Contact Us For Availability

Light Shield WPL 2198589 Contact Us For Availability

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Bin, Utility WPL 1112721 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

Cover, Evaporator WPL 2221105 Contact Us For Availability

26

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

26

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

26

Door, Utility Bin WPL 2003464 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stop, Roller WPL 1113169 Contact Us For Availability

Door Shelf (3) WPL 1113973 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

Diffuser, Air Duct WPL 1112852 Contact Us For Availability

30

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

30

Spacer, Door (Handle Side) WPL 2221012 Contact Us For Availability

31

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

31

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

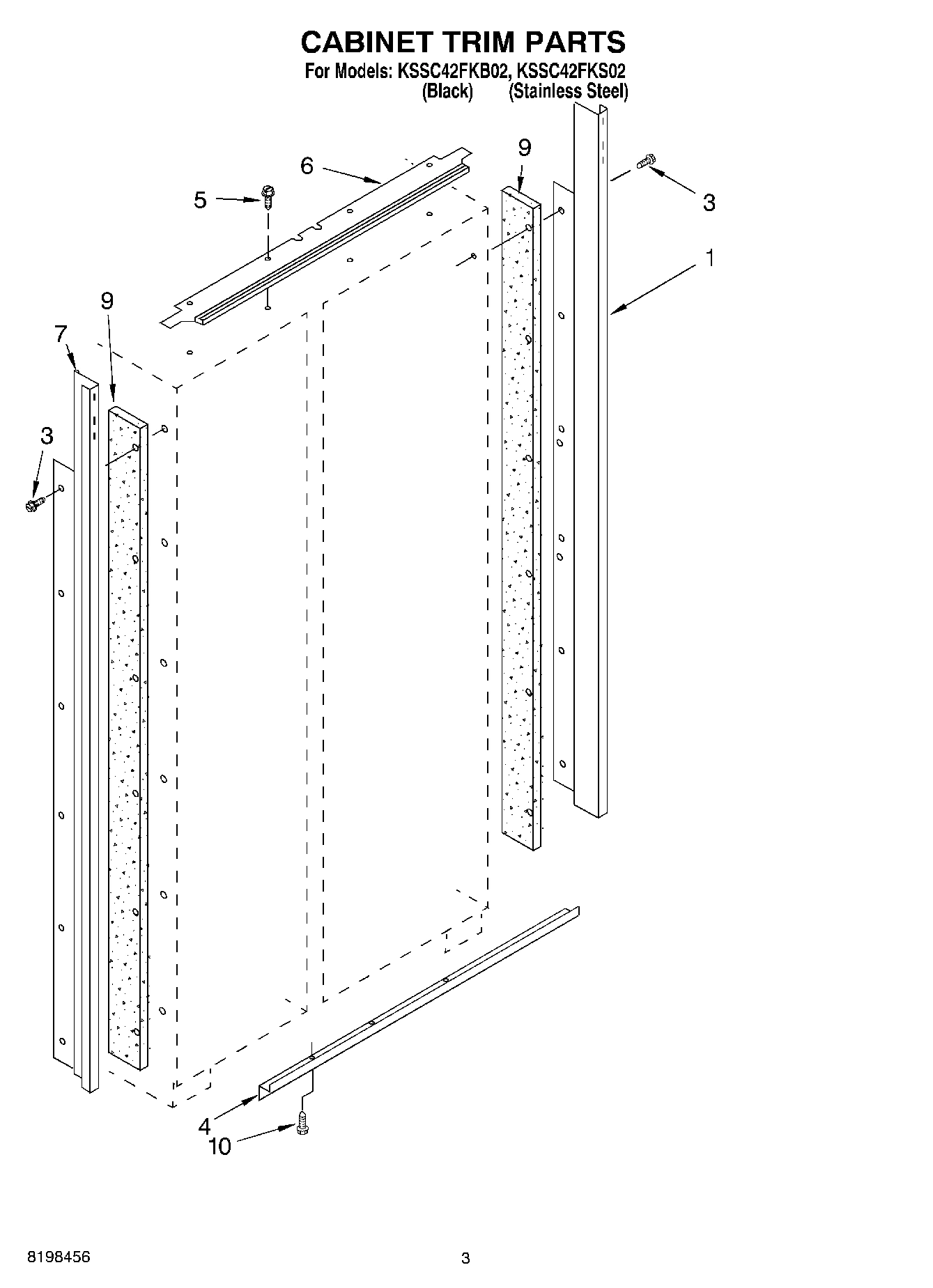

SKIRT, GRILLE (BOTTOM) WPL 2209025B Contact Us For Availability

Shelf, Gallon Door WPL 2188332 Contact Us For Availability

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

33

Evaporator, Cover Rail (Right Side) WPL 2221108 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

35

Screw WPL 2005921 Contact Us For Availability

35

Wire, Jumper WPL 2221077 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

36

Cover, Fan WPL 2209495 Contact Us For Availability

37

Cover, Condenser WPL 2257351 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

38

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

39

Service Cord WPL 2003381 Contact Us For Availability

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

42

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

43

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187662 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI105359A Contact Us For Availability

and Optional Parts Not Included WPL ARI105360A Contact Us For Availability

REFRIGERANT CHARGE 7.75 oz. (R-134A) WPL ARI105361A Contact Us For Availability

100

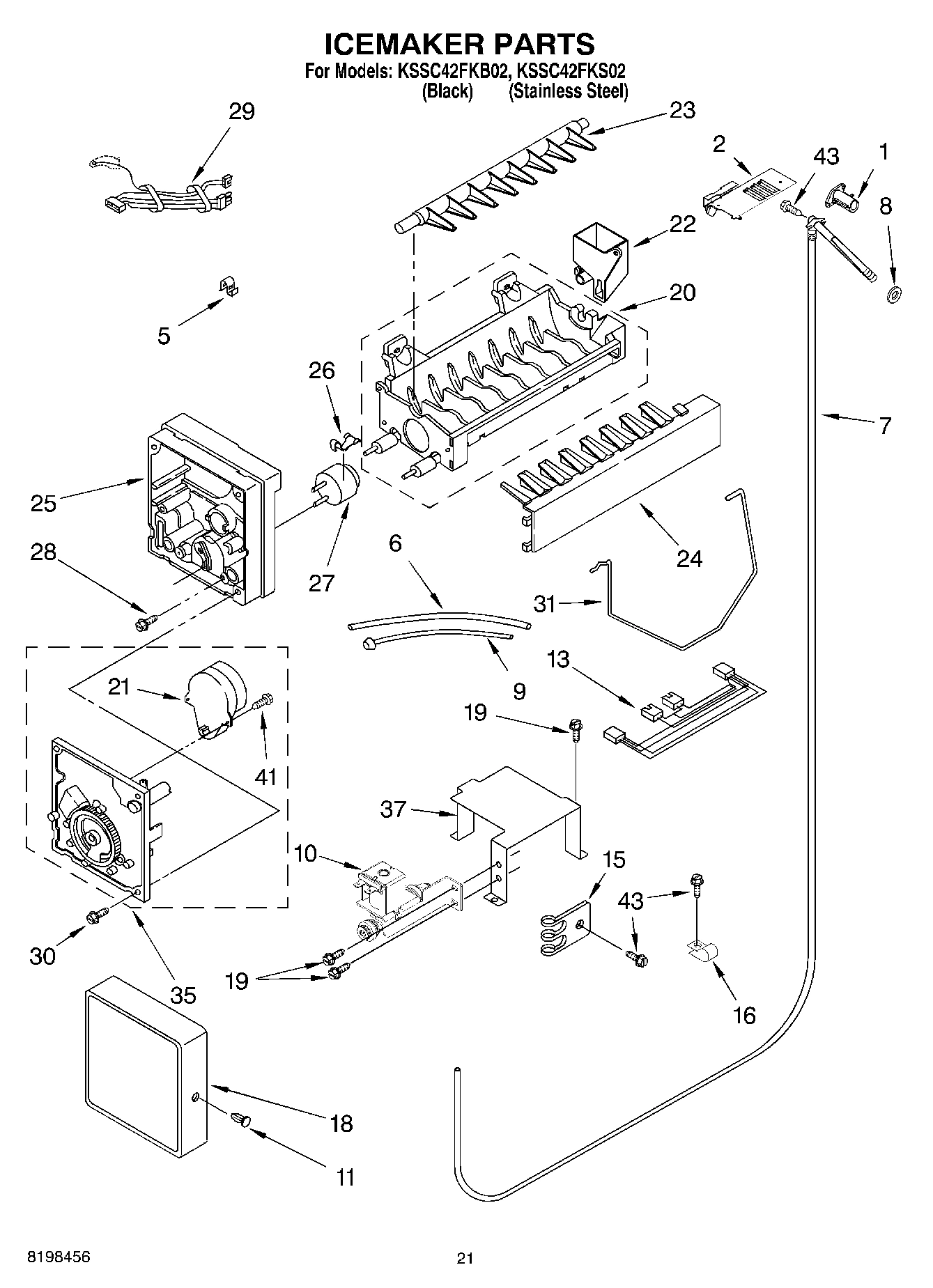

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
