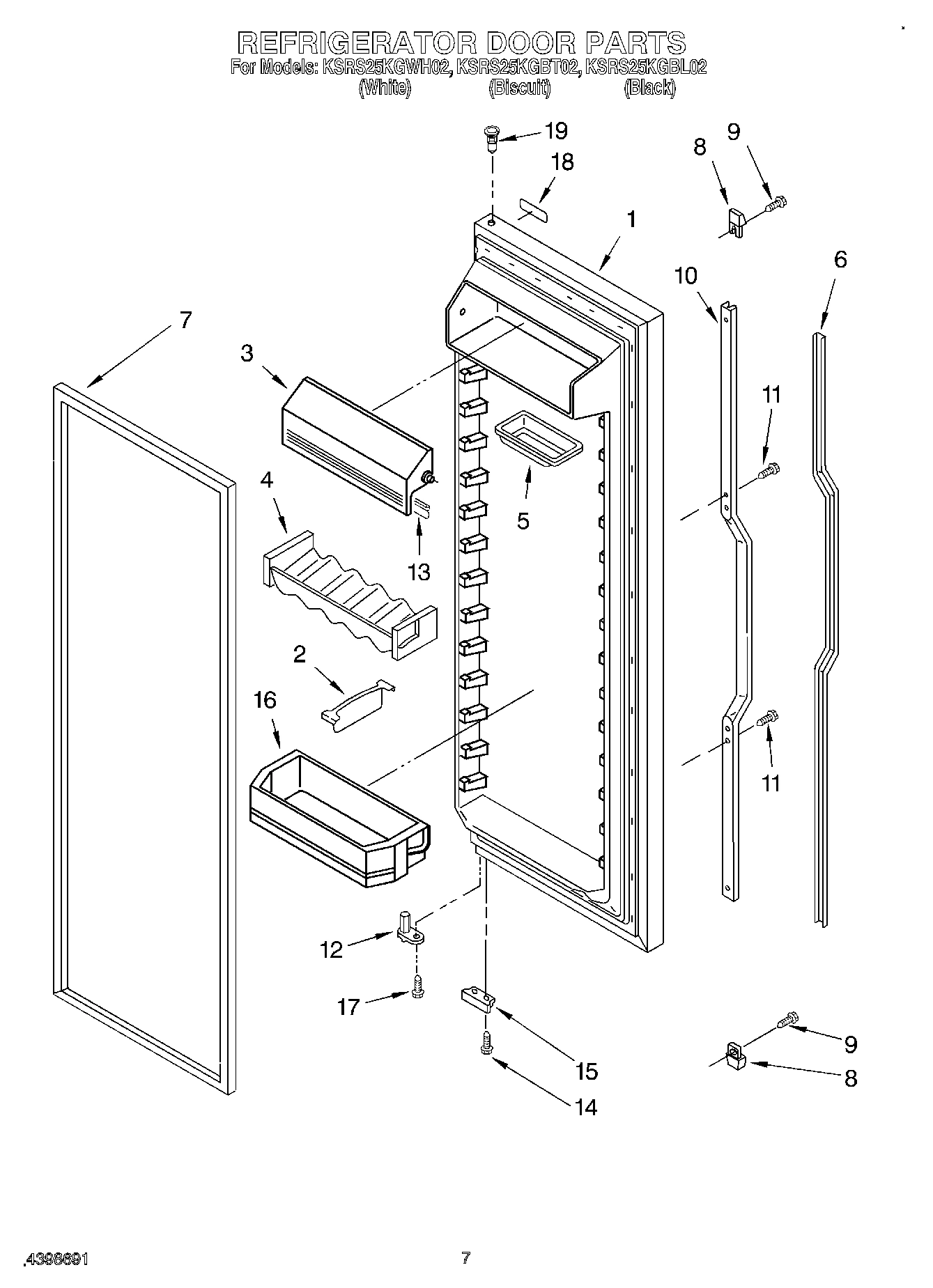

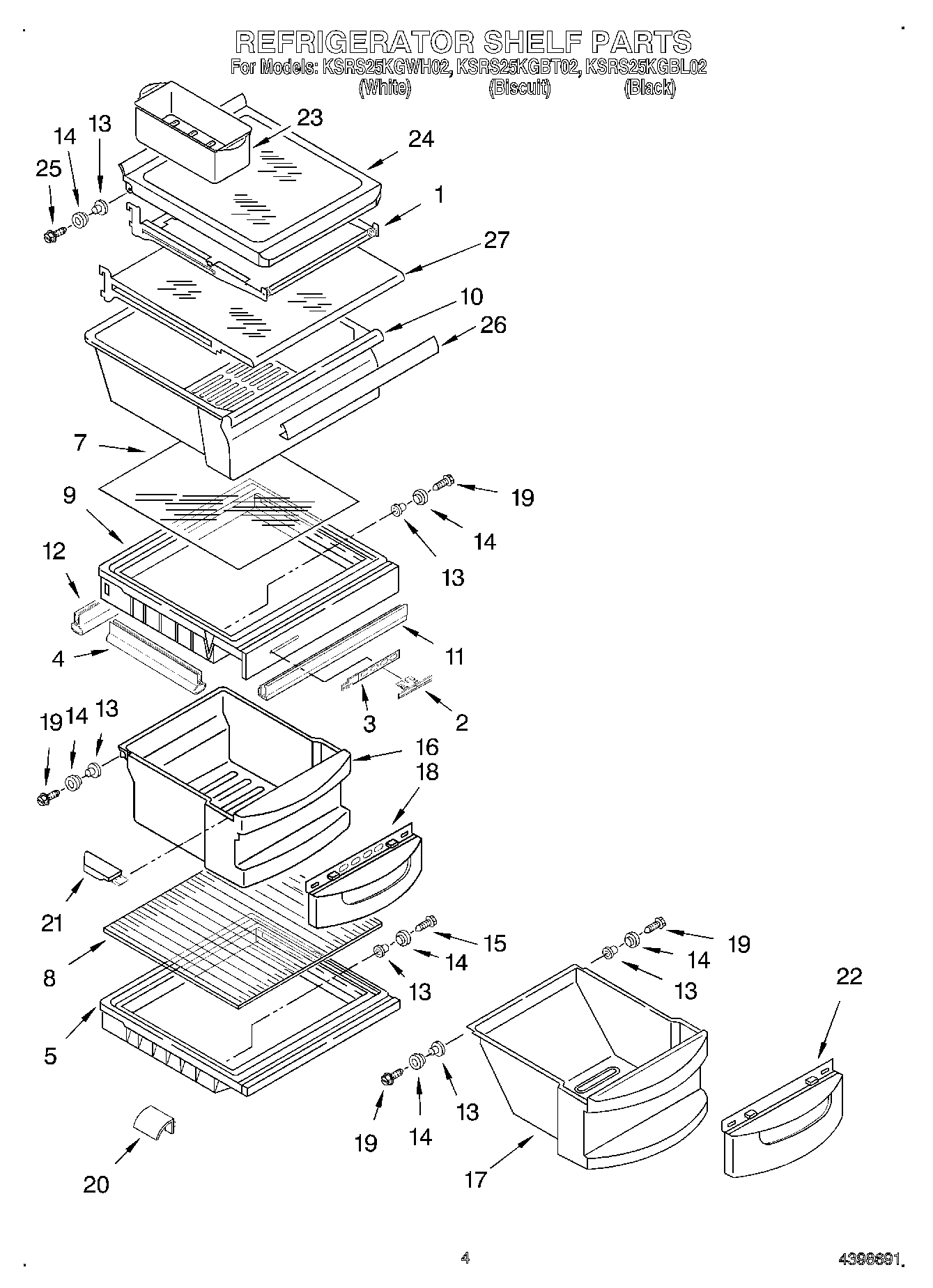

Model Whirlpool KSRS25KGBT02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI102453A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI102454A Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Shelf, Top Compartment WPL 2174493 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

Air Duct Freezer WPL 2203594 No Longer Available

5

WP2161491 Whirlpool Crisper Drawer Cover Backorder WPL WP2161491 $78.23

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

Stud, Rear WPL 2196207 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2209606 Whirlpool Gasket Assembly Backorder WPL WP2209606 $26.21

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2181796 Contact Us For Availability

10

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP2209607 Whirlpool Gasket Assembly Backorder WPL WP2209607 $26.21

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

14

Light Bar (RC) WPL 2179920 Contact Us For Availability

14

Cover, Wiring WPL 2161915 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

15

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Backorder WPL 2179404 $8.47

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

8201799 Whirlpool Refrigerator Compressor Sta In Stock WPL 8201799 $64.96

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $127.47

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Shelf WPL 2198478 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

18

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

18

Window, Crisper WPL 2174076 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

20

2198479 Whirlpool Refrigerator Light Lens Backorder WPL 2198479 $26.21

20

Harness, Control Box WPL 2186813 Contact Us For Availability

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

21

Basket, Shallow WPL 2181763 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Front, Basket WPL 2171767 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Clamp WPL 2161324 Contact Us For Availability

Basket, Square WPL 2181765 Contact Us For Availability

24

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $28.49

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

24

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $174.78

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

Escutcheon, Control Box WPL 2161486 Contact Us For Availability

Basket, Sloped WPL 2181764 Contact Us For Availability

Tray, Evaporator WPL 1110674 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

Light Bar (FC) WPL 2179921 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Window WPL 2172941 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

29

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

31

Unit, Harness WPL 2188339 Contact Us For Availability

32

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw WPL 489387 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 1110663 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
