Model Whirlpool KSRS22QAWH21 – Common Parts & Diagrams
07 - DISPENSER FRONT
09 - FREEZER LINER

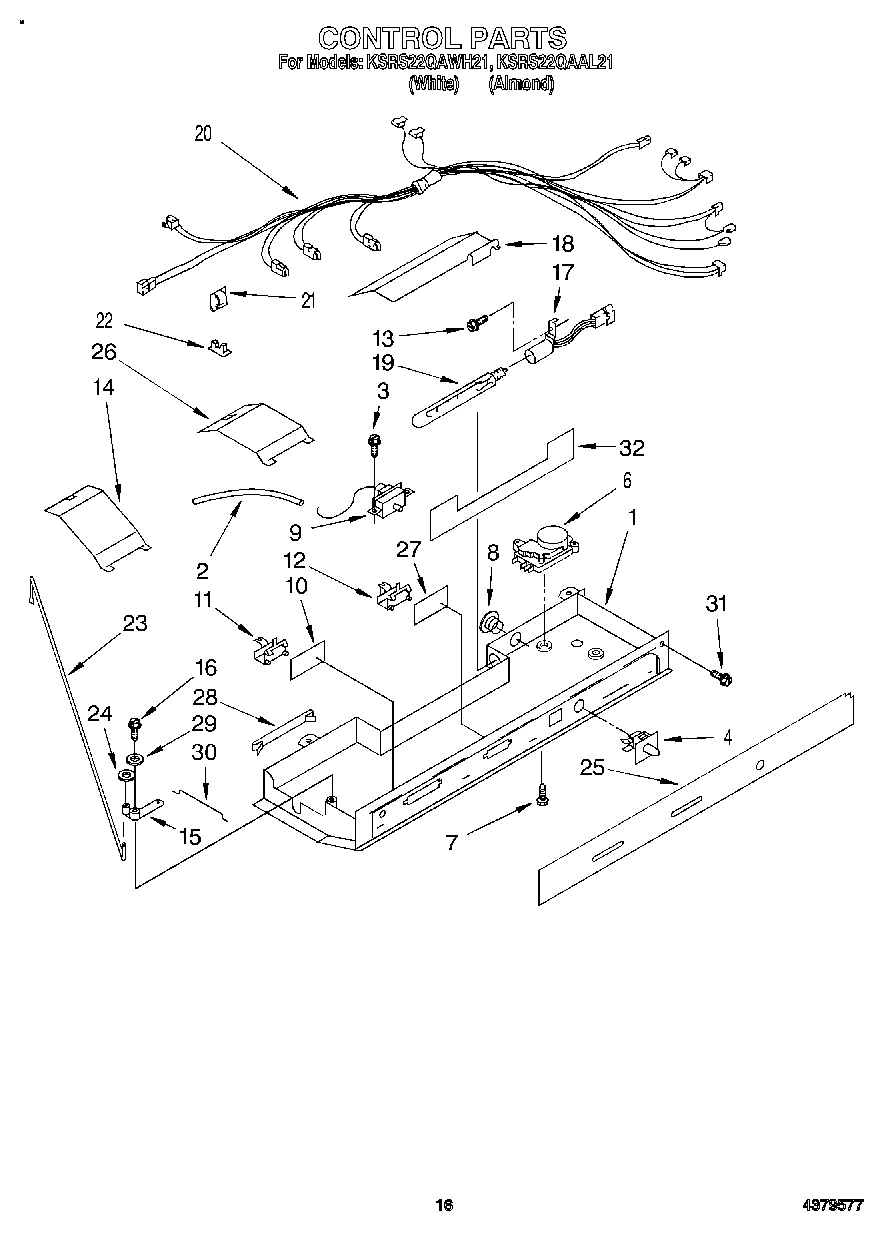

10 - CONTROL

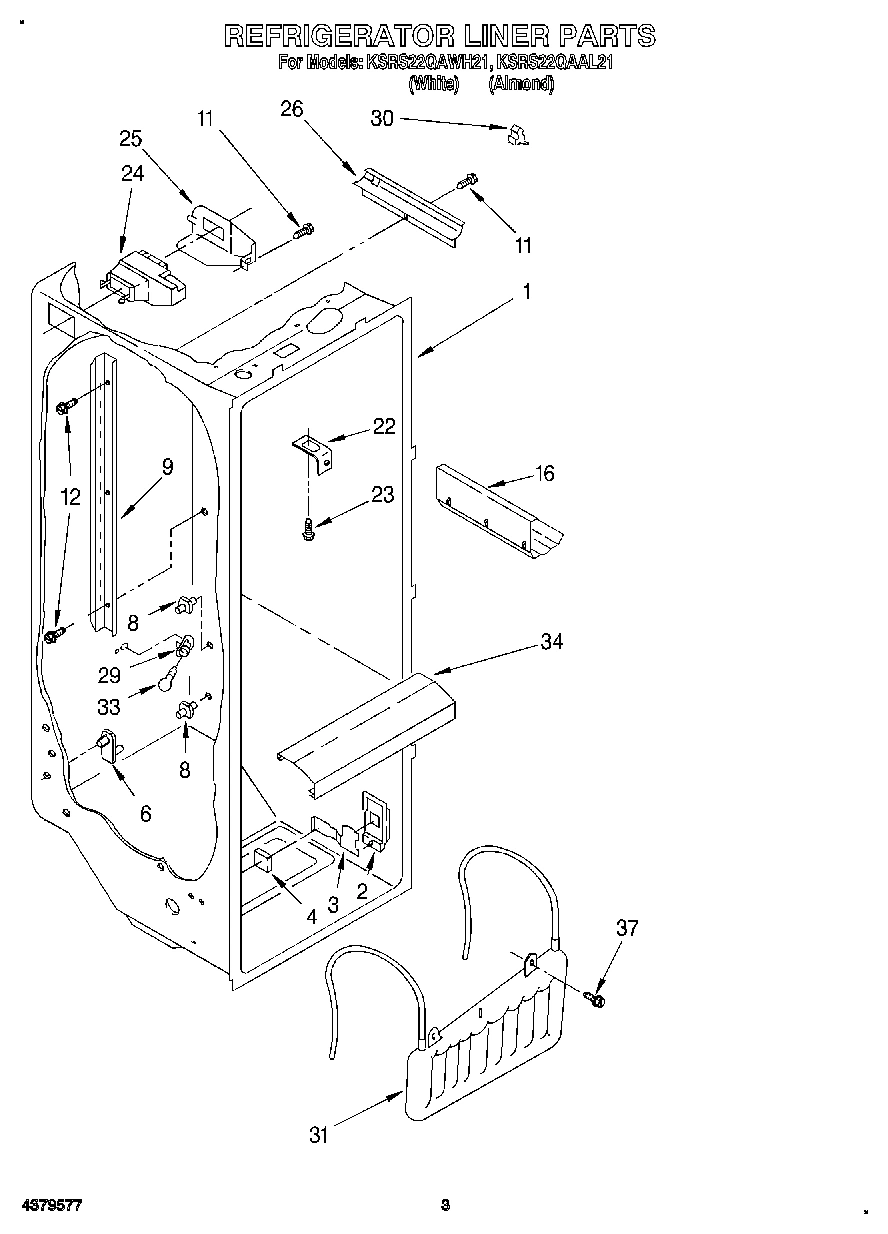

02 - REFRIGERATOR LINER

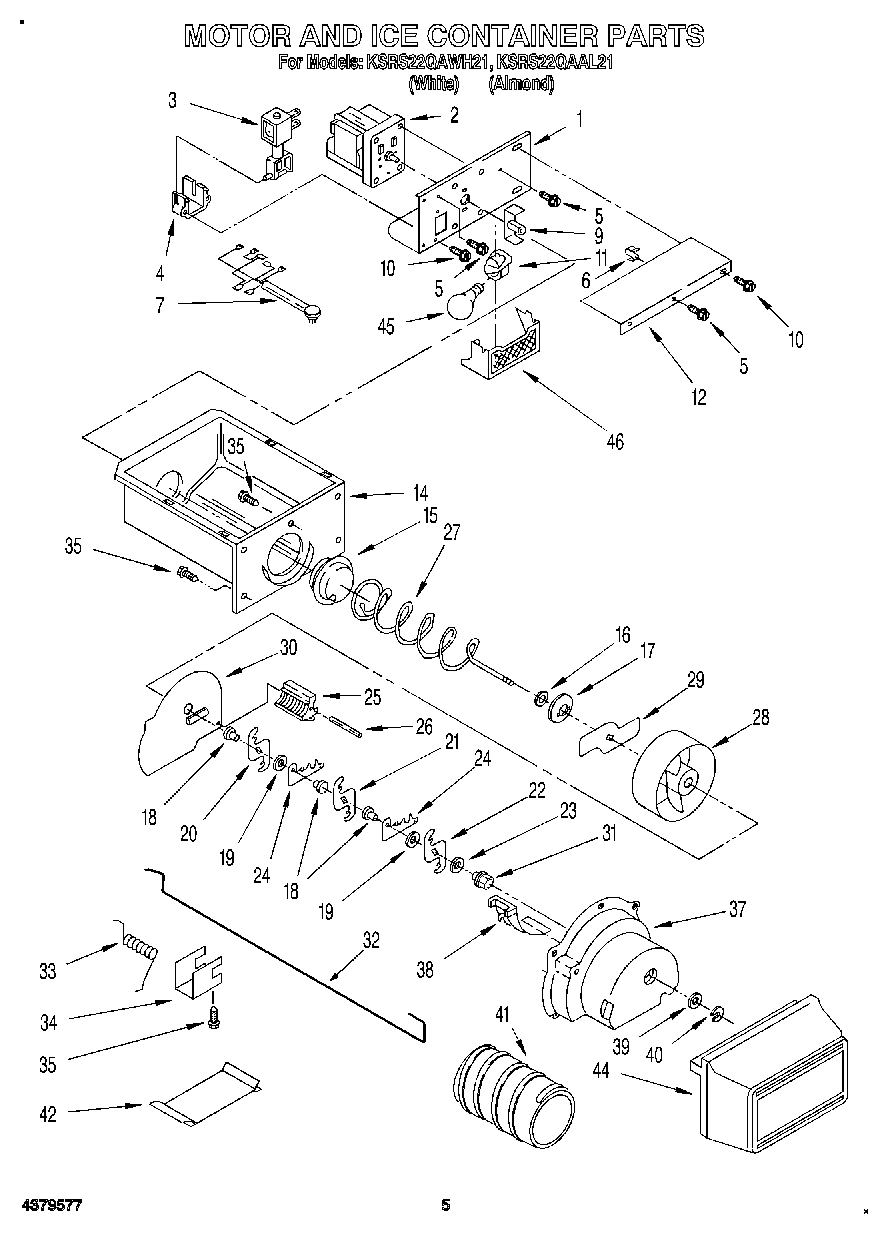

04 - MOTOR AND ICE CONTAINER

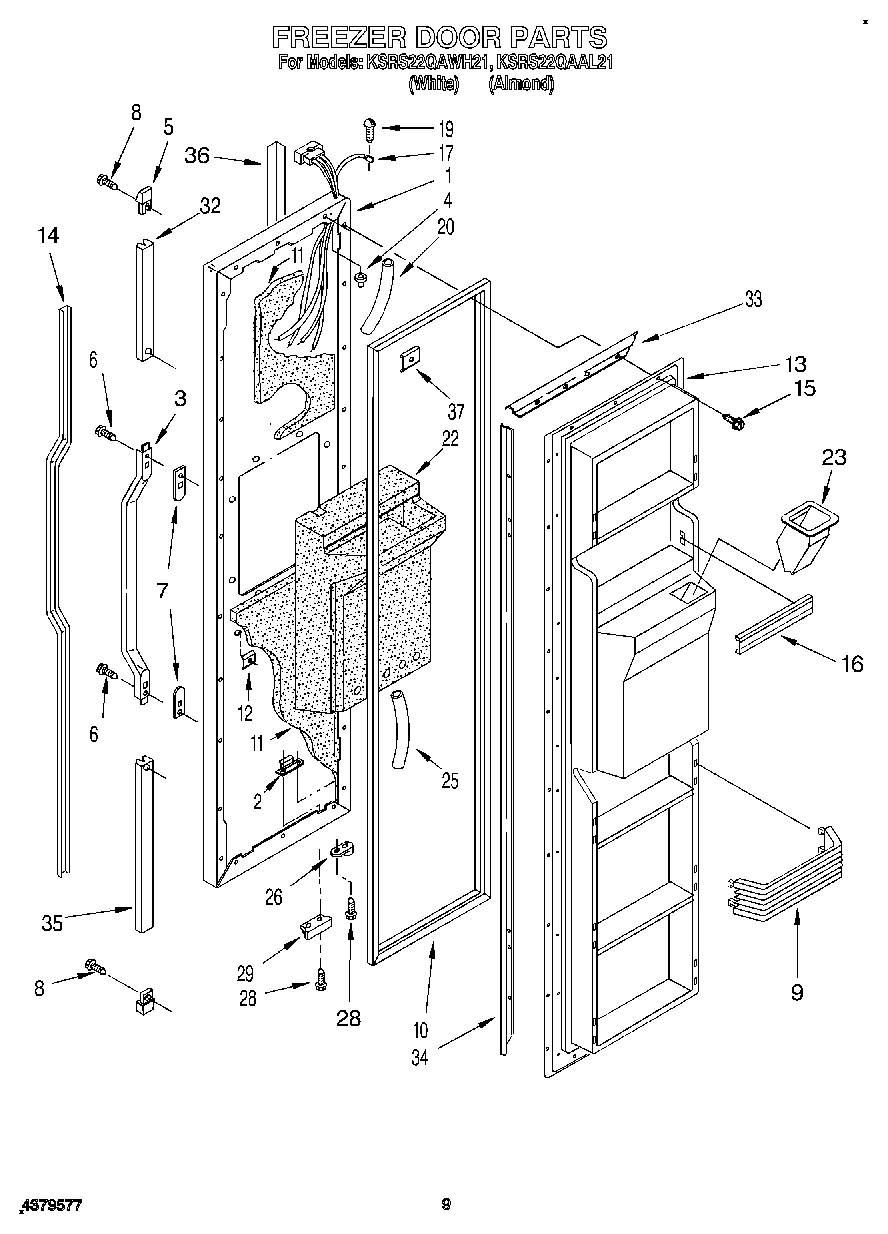

06 - FREEZER DOOR
11 - ICEMAKER
12 - AIR FLOW, LIT/OPTIONAL

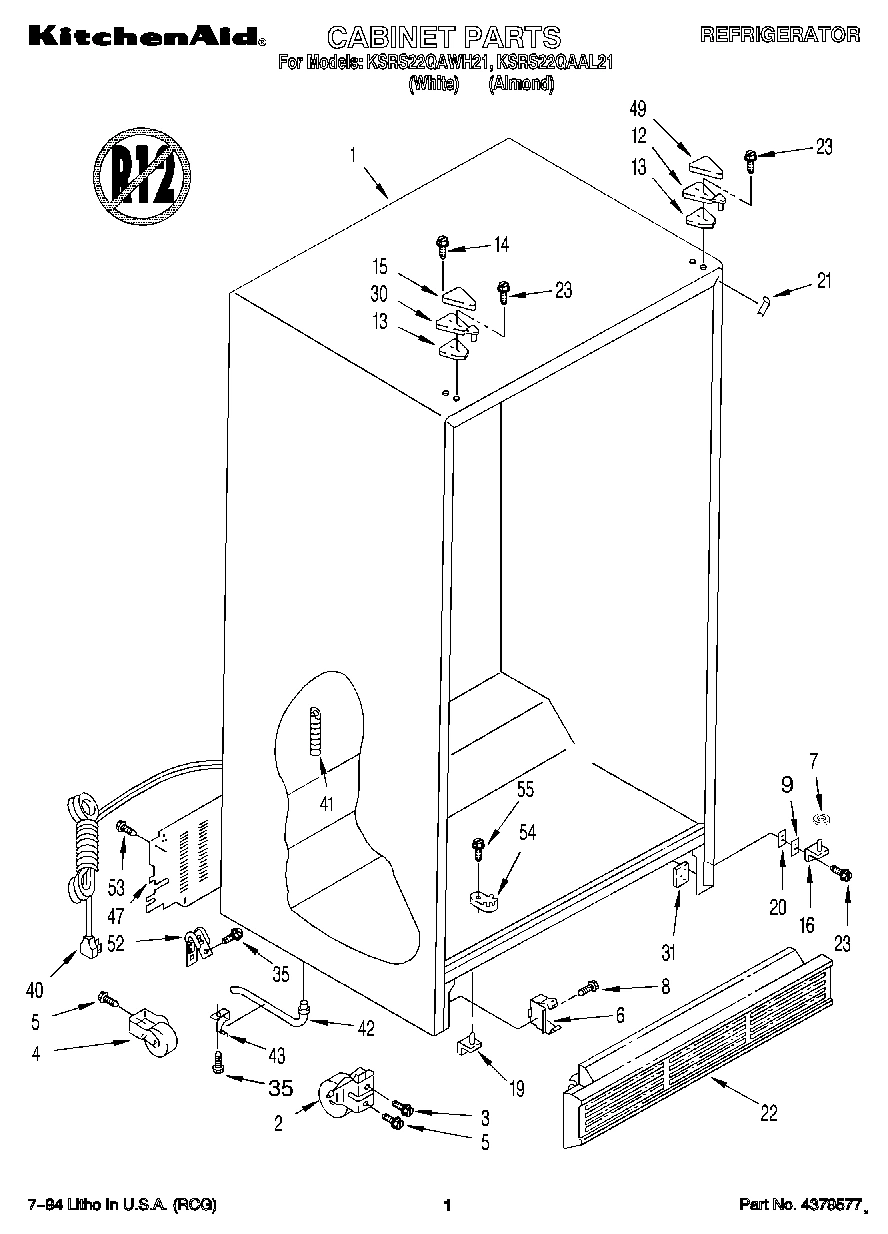

01 - CABINET

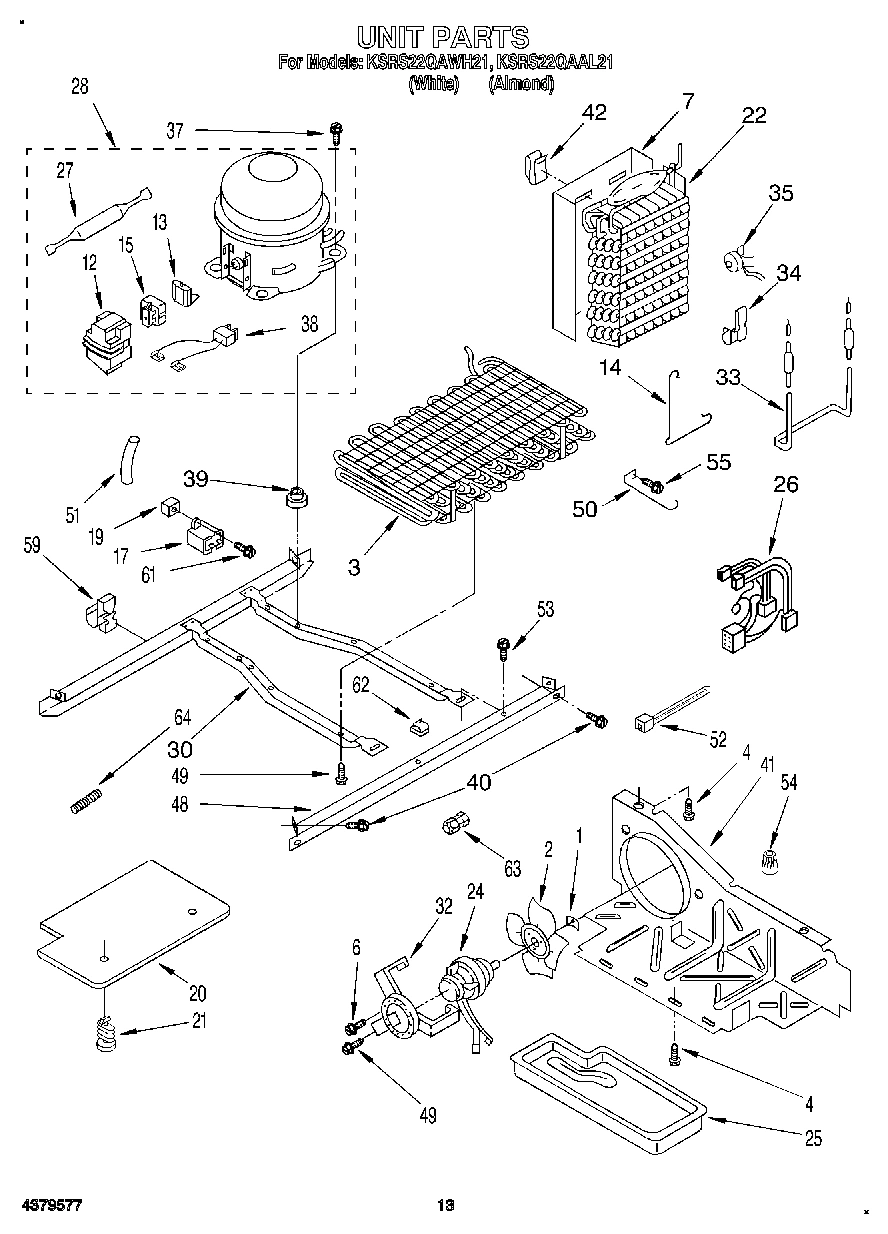

08 - UNIT

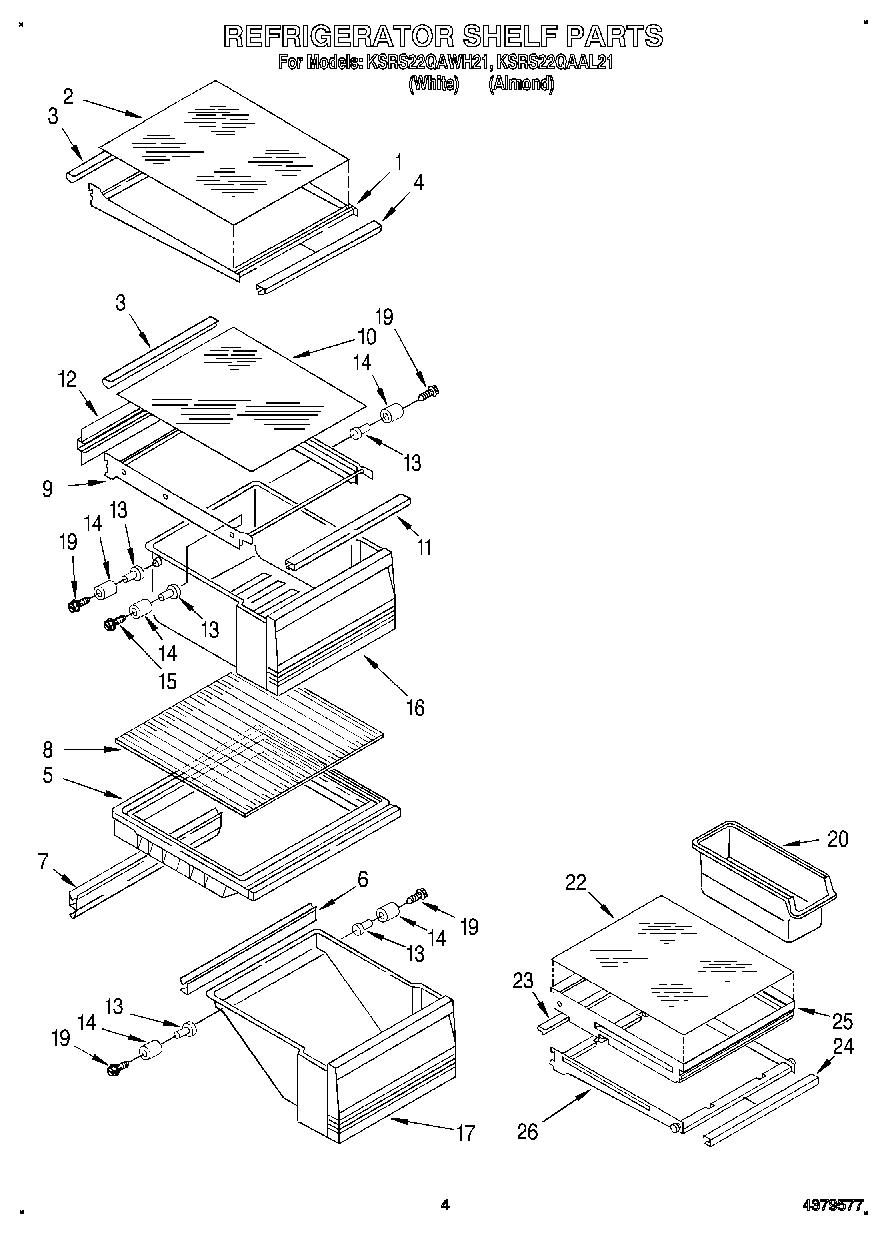

03 - REFRIGERATOR SHELF

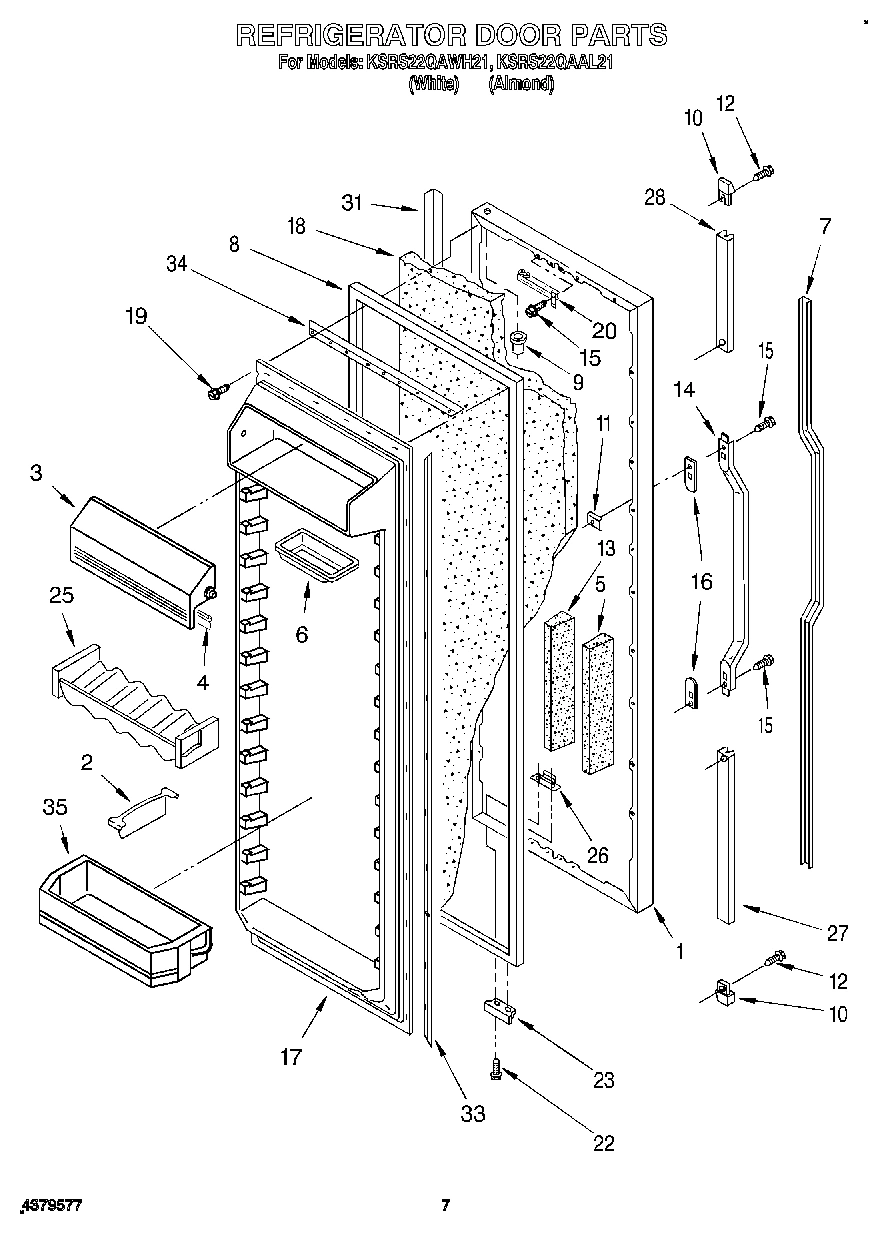

05 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSRS22QAWH21
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161900 WPL LIT2161900 Contact Us For Availability
WPL LIT2168928 WPL LIT2168928 Contact Us For Availability
WPL LIT2169536 WPL LIT2169536 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100941A Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1125946 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1125952 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI100940A Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362044 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362045 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Load Lock (4) WPL 1117999 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Dike, Door Handle Side WPL 1126149 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Insert, Handle (White) WPL 1117950 Contact Us For Availability
7
Washer WPL 489366 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1117951 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Shelf Bin (4) WPL 1117928 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Pan Shelf & Slide (Includes 13, 14, & 15) Ass WPL 2161760 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
10
End Cap, Handle WPL 1107341 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Screw Anchor WPL 941242 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
12
Screw WPL 489075 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1126179 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Dike, Door Hinge Side WPL 1126150 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Handle Assembly WPL 1107215 Contact Us For Availability
14
Insert, Handle (Almond) WPL 1125721 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
15
Relay (See Overload) WPL ARI100943A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Spacer, Handle WPL 1107651 Contact Us For Availability
16
Trim, Door Shelf WPL 1126496 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Crisper Pan (2) (Includes 13, 14 & 19) WPL 2161893 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door WPL 1119212 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Utility Pan (Includes 13, 14 & 19) WPL 2161892 Contact Us For Availability
17
Panel, Interior Door WPL 1117904 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Bracket, Door Stop WPL 2155332 Contact Us For Availability
23
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
23
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
25
Holder, Beverage WPL 1125981 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
26
Tap, Plate WPL 2155335 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2161806 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1117953 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Retainer, Insert WPL 1107241 Contact Us For Availability
31
Trim, Door WPL 1119061 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
35
Almond Handle Insert WPL 4211135 Contact Us For Availability
35
Trim Kit Panel (White) WPL 4211136 Contact Us For Availability
35
Trim Kit Trim Kit Panel WPL 4318331 Contact Us For Availability
35
Handle Insert (Black) WPL 4318334 Contact Us For Availability
35
Woodgrain WPL 4318335 Contact Us For Availability
35
Black Grille Kit WPL 4318416 Contact Us For Availability
36
Clip, Support WPL 2155021 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Spacer, Holding Switch WPL 625834 Contact Us For Availability
42
Housing WPL 2152700 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171263 Contact Us For Availability
44
Insert, Tube WPL 1129177 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
