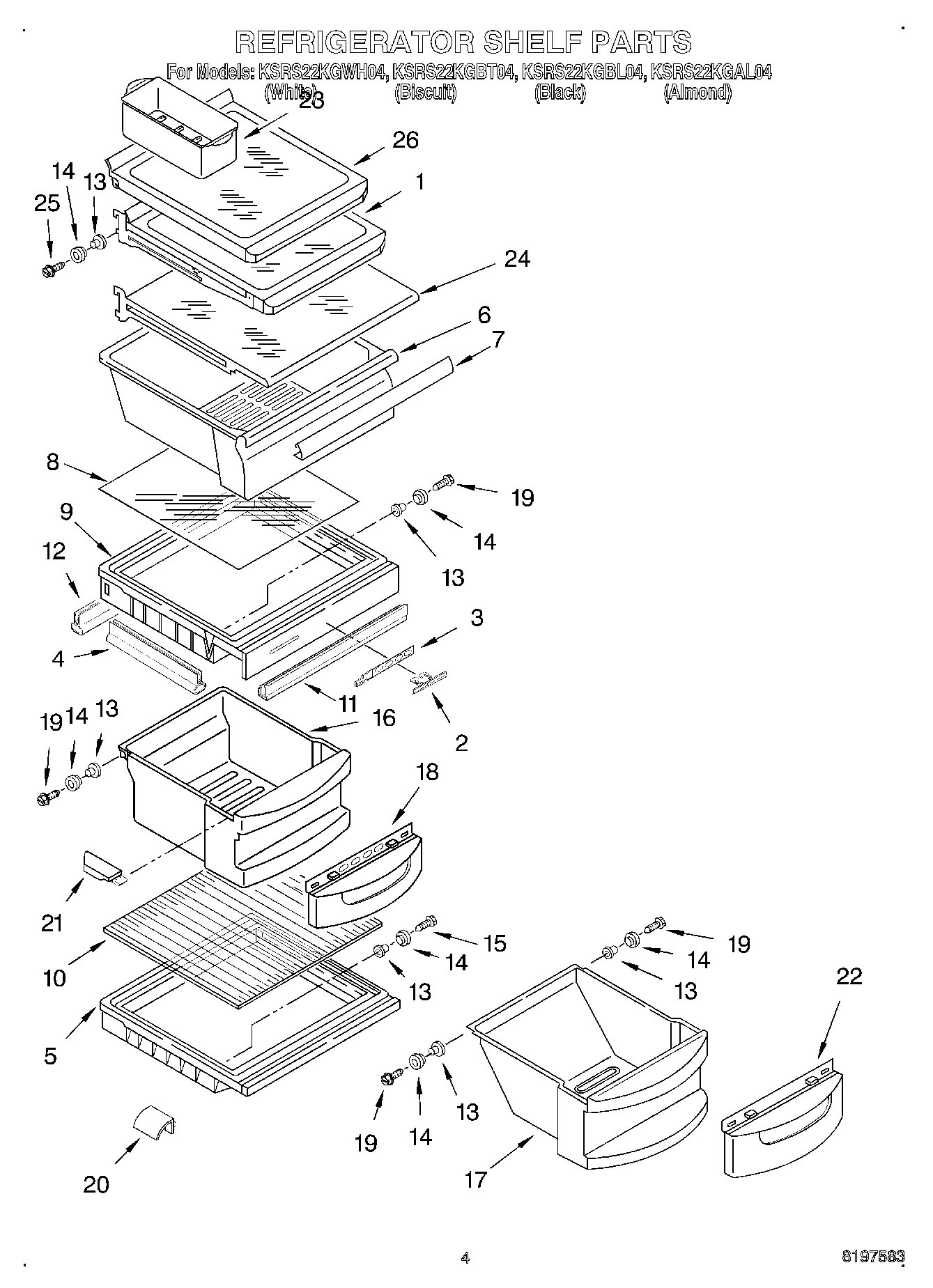

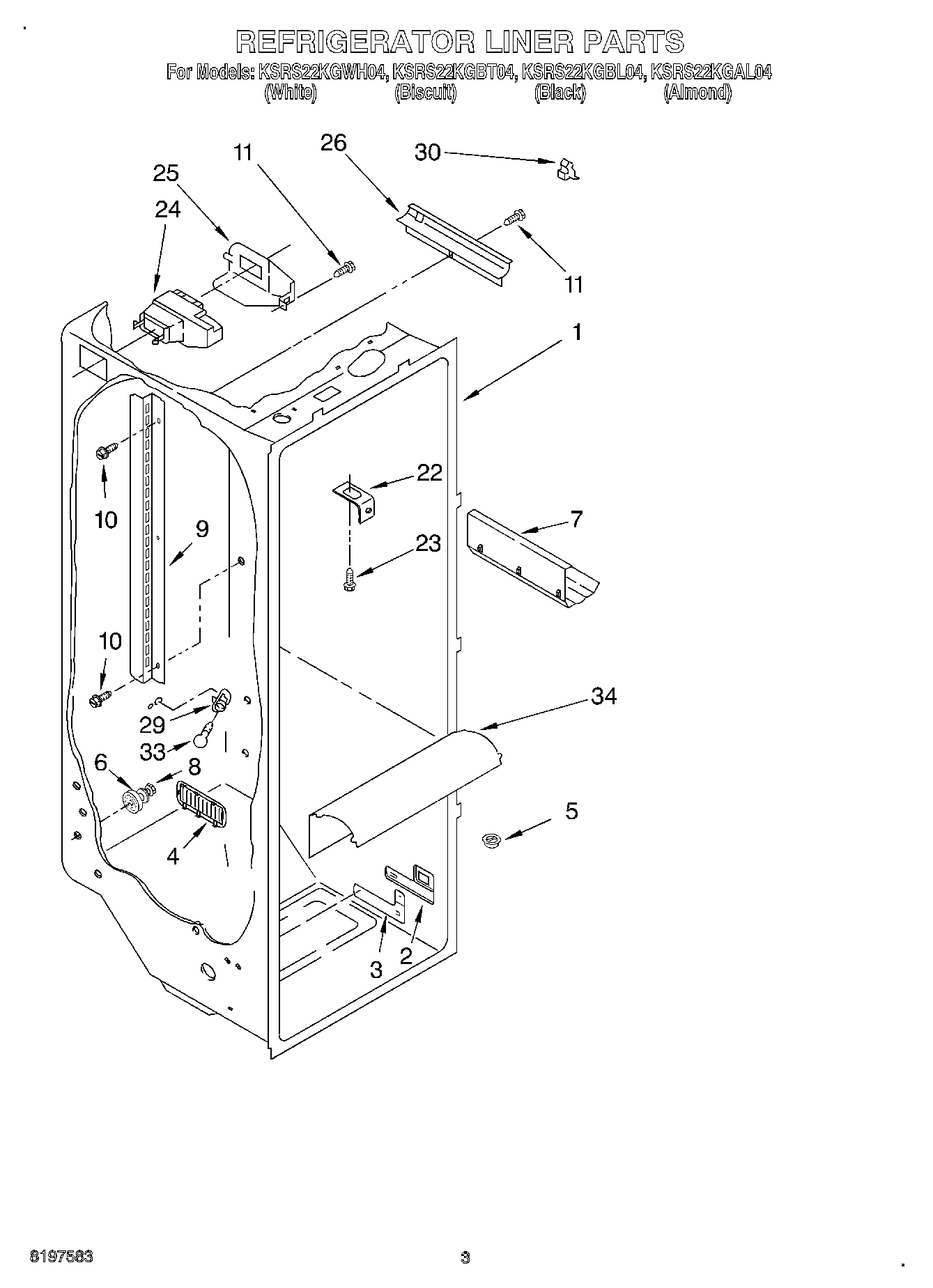

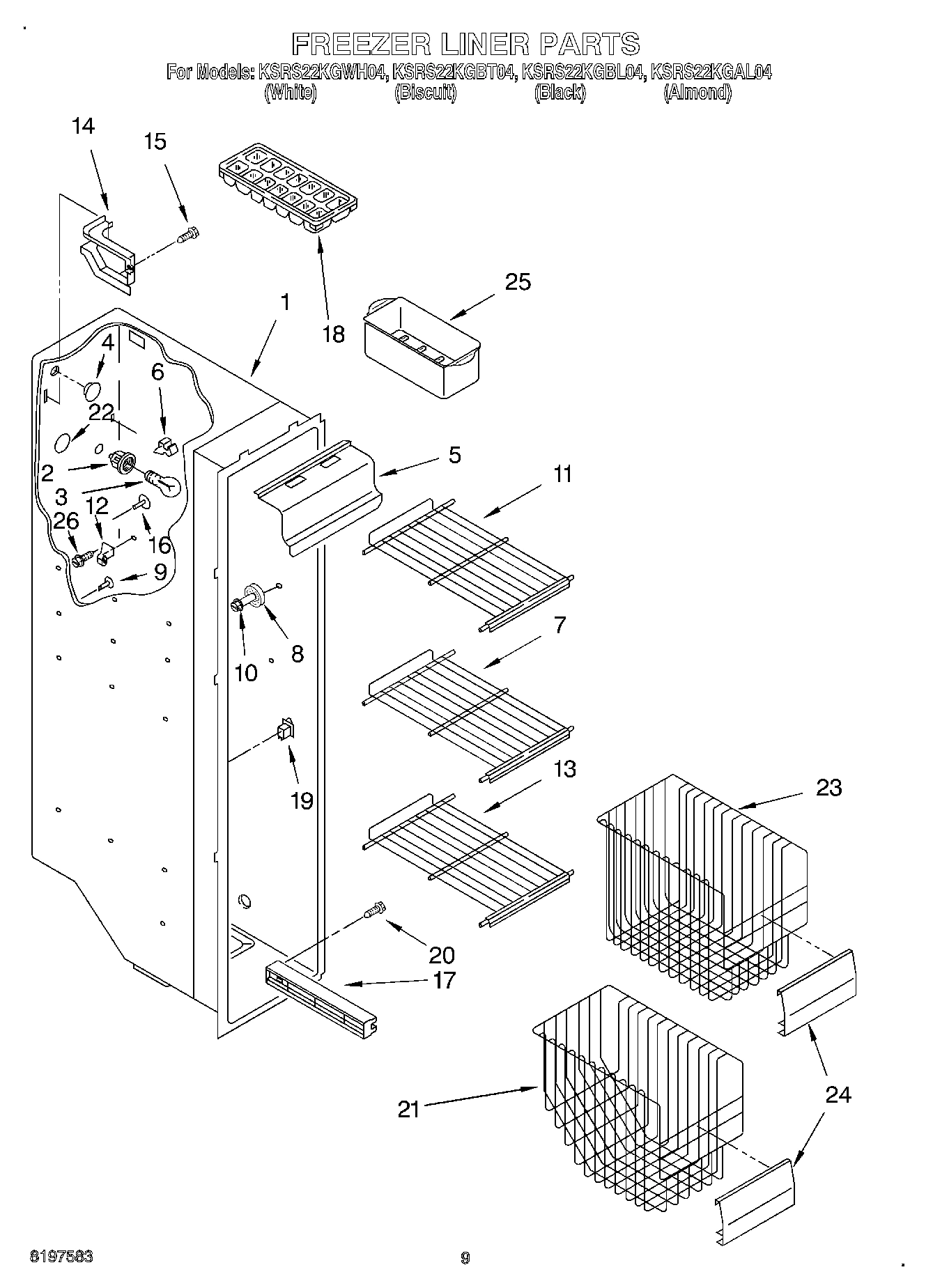

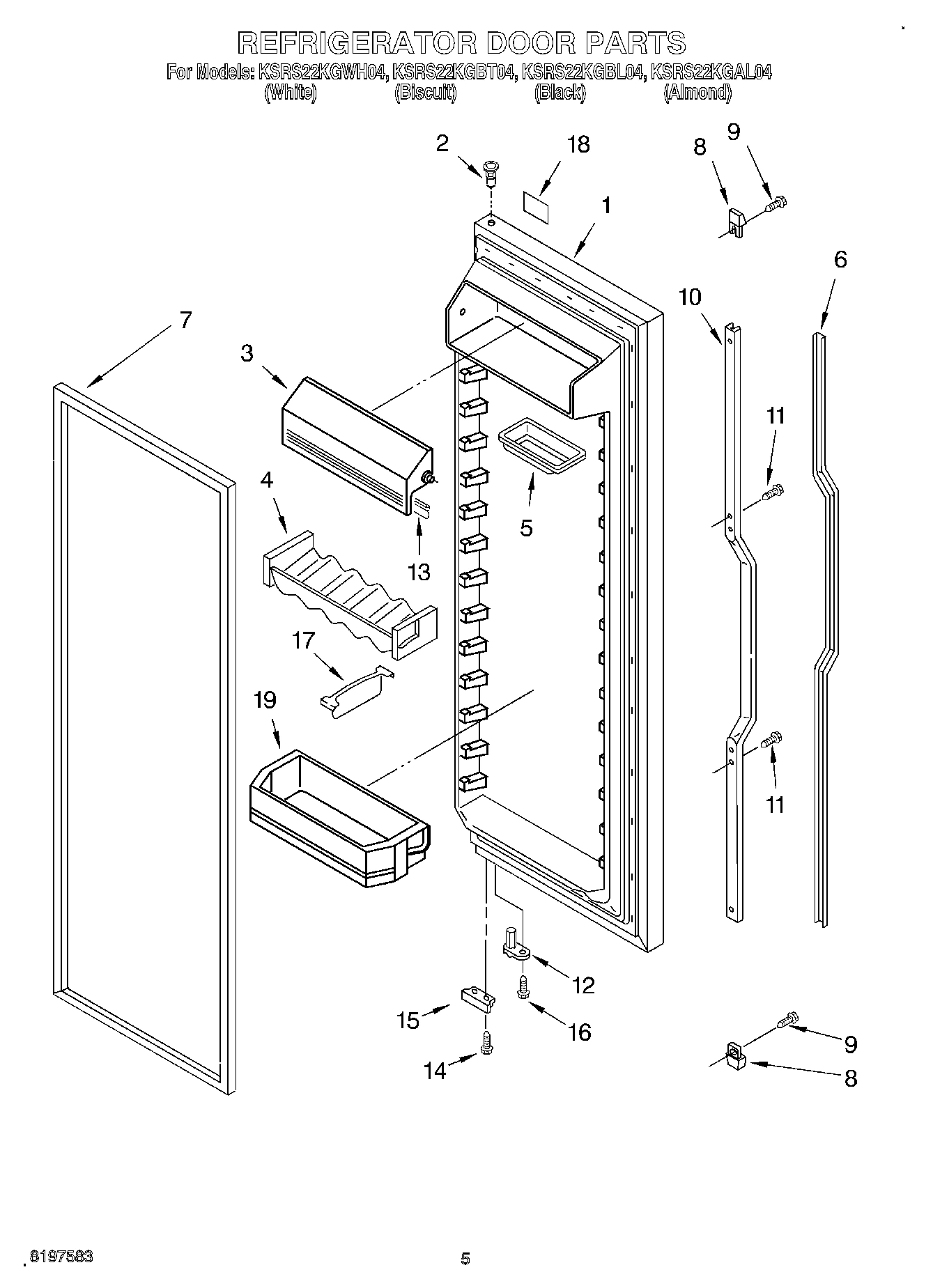

Model Whirlpool KSRS22KGBT04 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

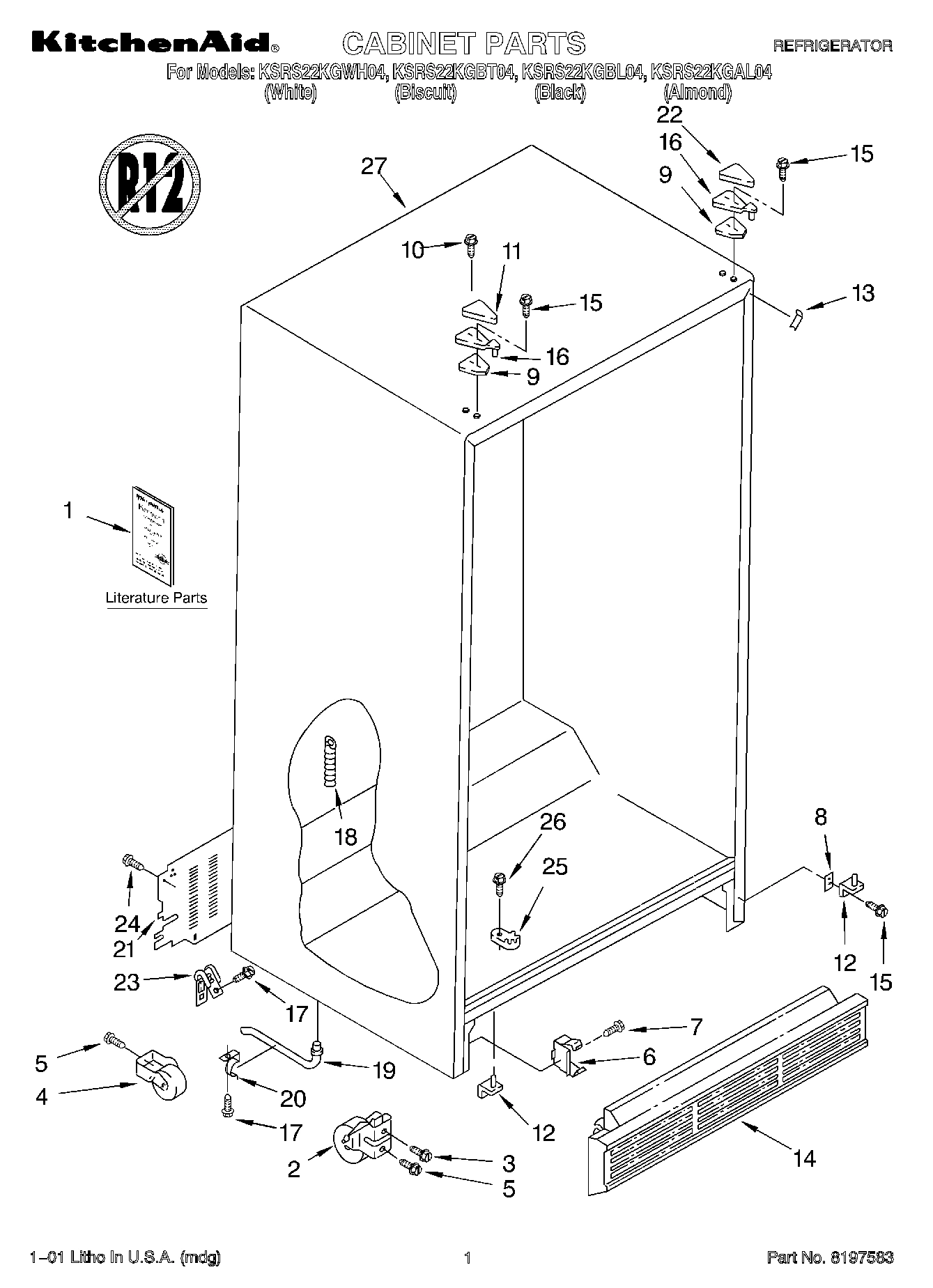

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2186638 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2206106 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2211863 Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability

1

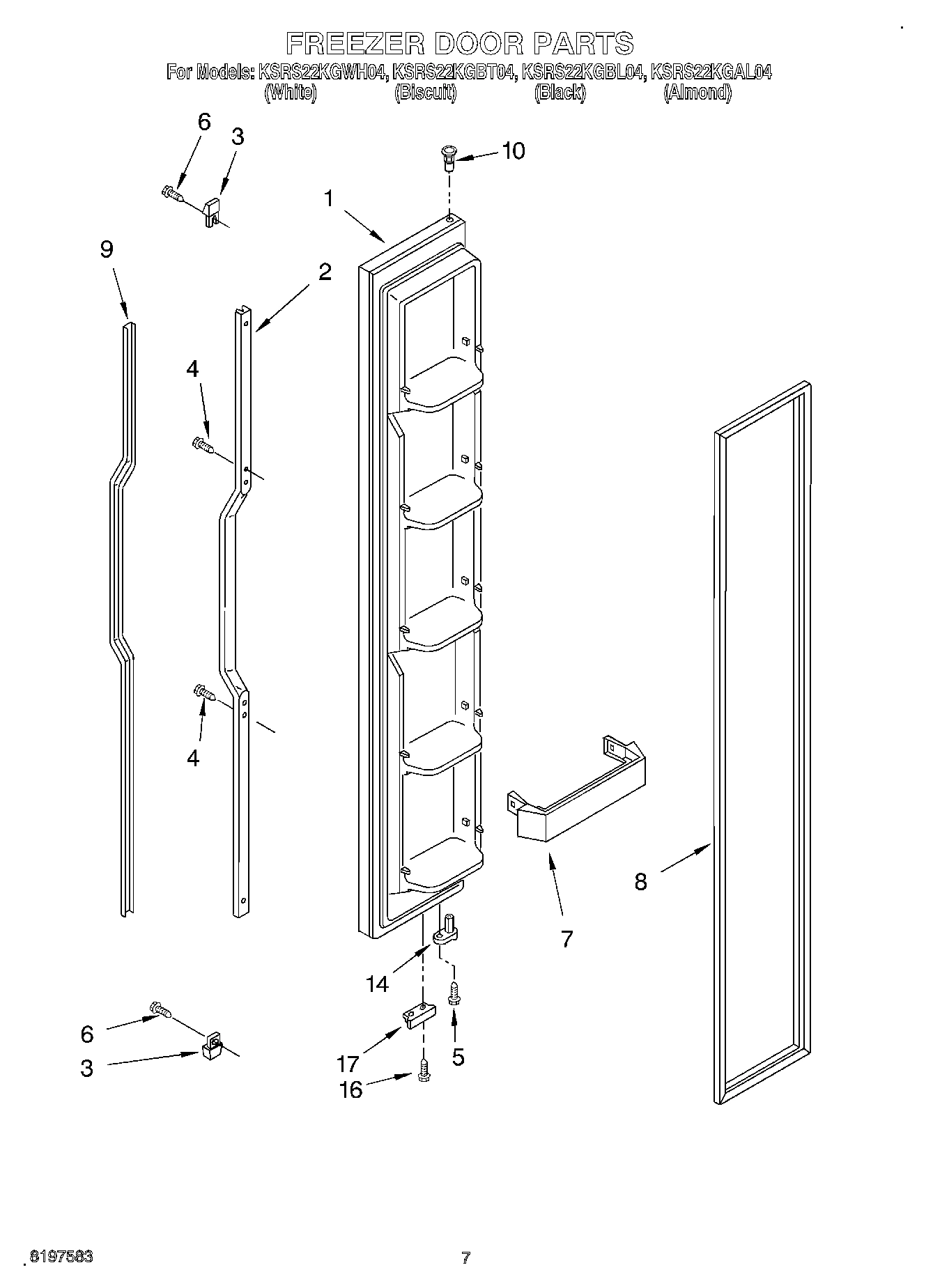

Freezer Door (Includes No.8) (Black) WPL 2194198B Contact Us For Availability

1

Freezer Door (Includes No.8) (Almond) WPL 2194198N Contact Us For Availability

1

Freezer Door (Includes No.8) (Biscuit) WPL 2194198T Contact Us For Availability

1

Freezer Door (Includes No.8) (White) WPL 2194198W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Retainer, Insert (Black) WPL 2194776B Contact Us For Availability

2

Retainer, Insert (Almond) WPL 2194776N Contact Us For Availability

2

Retainer, Insert (Biscuit) WPL 2194776T Contact Us For Availability

2

Retainer, Insert (White) WPL 2194776W Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

3

End Cap (2) (Black) WPL 2194778B Contact Us For Availability

3

End Cap (2) (Almond) WPL 2194778N Contact Us For Availability

3

End Cap (2) (Biscuit) WPL 2194778T Contact Us For Availability

3

End Cap (2) (White) WPL 2194778W Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.14

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

6

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

7

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

7

Shelf Bin (5) WPL 2171071 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

Shim WPL 2209697 Contact Us For Availability

8

Glass, Cover WPL 2189526 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Shim, Hinge Top WPL 2196048 Contact Us For Availability

9

Insert, Handle (White) WPL 2173830 Contact Us For Availability

9

Insert, Handle (Almond) WPL 2173831 Contact Us For Availability

9

Insert, Handle (Black) WPL 2173832 Contact Us For Availability

9

Insert, Handle (Biscuit) WPL 2200434 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Glass, Cover WPL 2174148 Contact Us For Availability

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Hinge Cover (Black) WPL 2171947 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

Support, Stud WPL 2196207 Contact Us For Availability

Gasket, (Rear) WPL 2174274 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Cover, Wiring WPL 2161915 Contact Us For Availability

Grille (Black) WPL 2198469B Contact Us For Availability

Grille (Almond) WPL 2198469N Contact Us For Availability

Grille (Biscuit) WPL 2198469T Contact Us For Availability

Grille (White) WPL 2198469W Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

15

Start Device, Combination (Start Relay and Ov WPL 2188505 Contact Us For Availability

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $133.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Slide, Bin (Left Side) WPL 2181759 Contact Us For Availability

Slide, Bin (Right Side) WPL 2181760 Contact Us For Availability

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Window, Crisper WPL 2174076 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $30.25

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

Basket, Slope WPL 2181762 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Icemaker, Hole Seal WPL 2185731 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

23

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

23

Basket, Tall WPL 2181761 Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $162.82

NLA:SCREW Backorder WPL WPW10141645 $3.70

Trim, Basket WPL 2171768 Contact Us For Availability

Shelf, Snack Pan WPL 2206346 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Screw WPL 489439 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4389202 Whirlpool Wire Harness Backorder WPL 4389202 $162.16

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

Cabinet (Not A Serviceable Part) WPL ARI100896A Contact Us For Availability

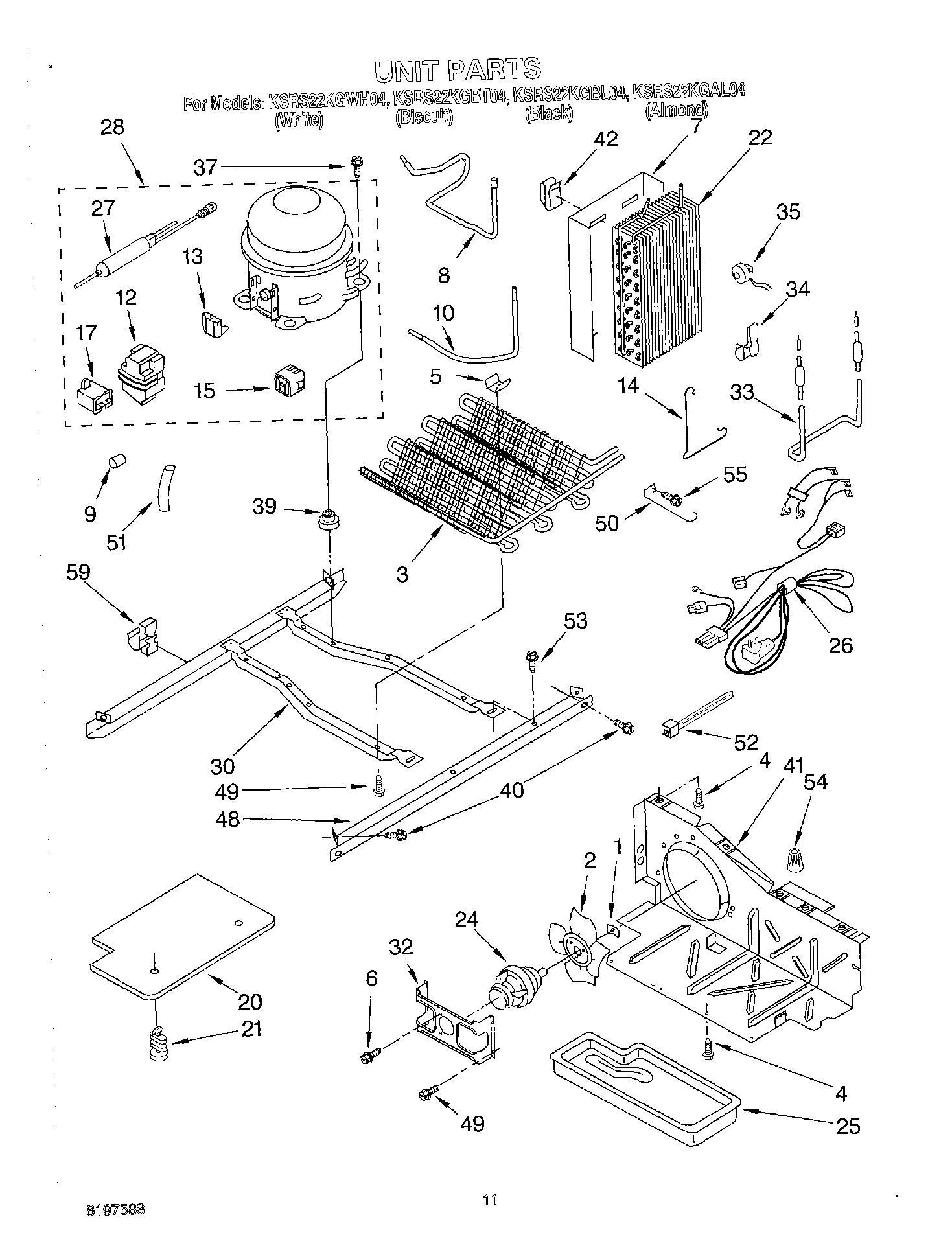

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw WPL 489387 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
