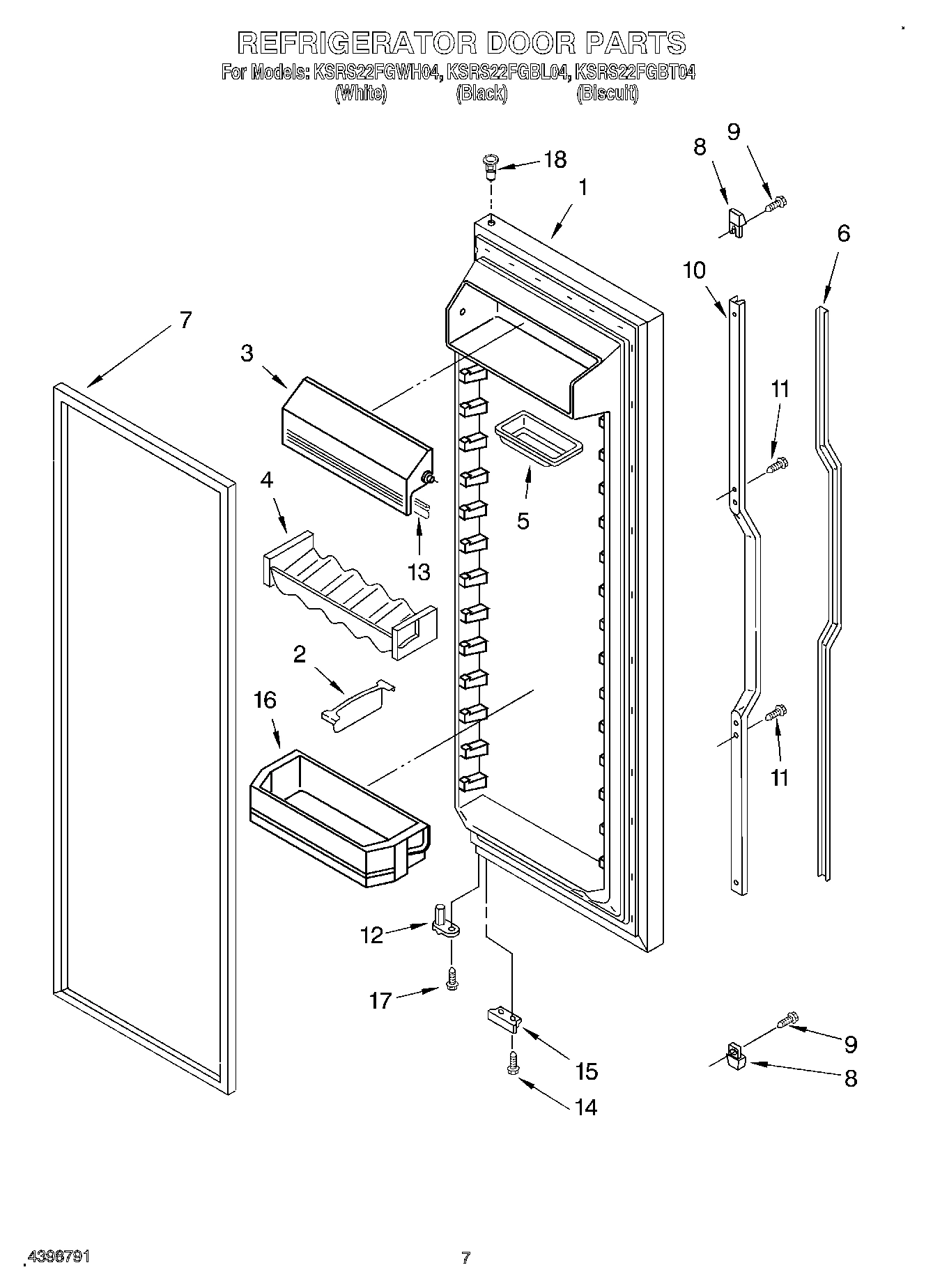

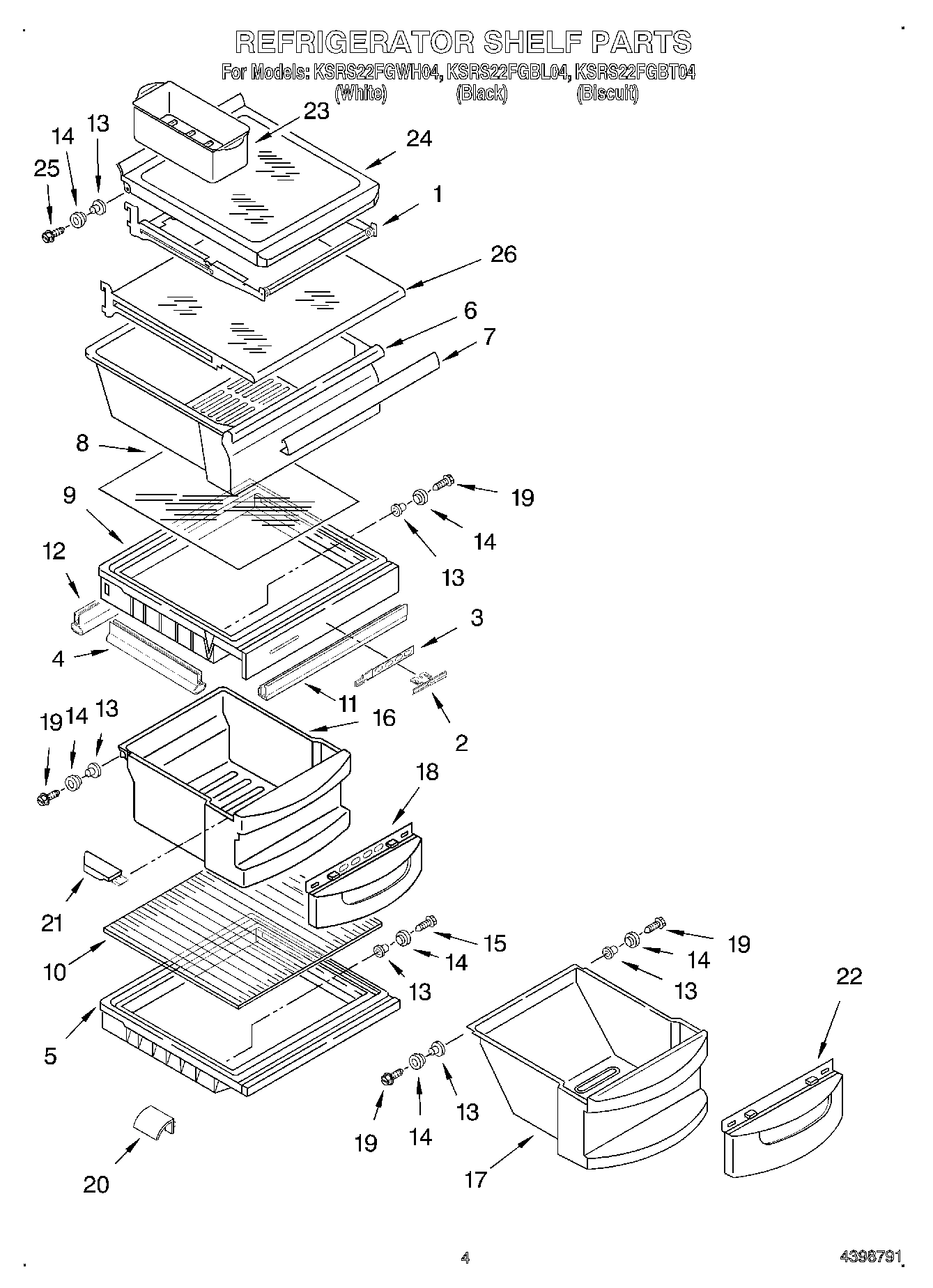

Model Whirlpool KSRS22FGWH04 – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI100867A Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI100868A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI100870A Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Slide, Ice Door WPL 1115380 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $14.90

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

4

Gasket WPL 2209604 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.14

5

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $121.72

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

Door, Ice WPL 2180205 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Adaptive Defrost Control WPL 2162046 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $40.99

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2181796 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

9

Gasket WPL 2209605 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $113.37

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Stud, Rear WPL 2196207 Contact Us For Availability

Nut, Compression WPL 2200083 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

NLA:SCREW Backorder WPL WPW10141645 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $133.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Window, Crisper WPL 2174076 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Black) WPL 2186514B Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2186514T Contact Us For Availability

Overlay, Front Cover (White) WPL 2186514W Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2206516 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

Front Cover, Housing (Not Available, Order No WPL ARI100869A Contact Us For Availability

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Front Cover Assembly (Includes Items 18, 19, WPL 2186510B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186510T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186510W Contact Us For Availability

Basket, Upper WPL 2181761 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $162.82

Front, Basket WPL 2171768 Contact Us For Availability

Retainer, Light Lens WPL 2200097 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

Basket, Lower WPL 2181762 Contact Us For Availability

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Light Bar (FC) WPL 2179921 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

28

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
