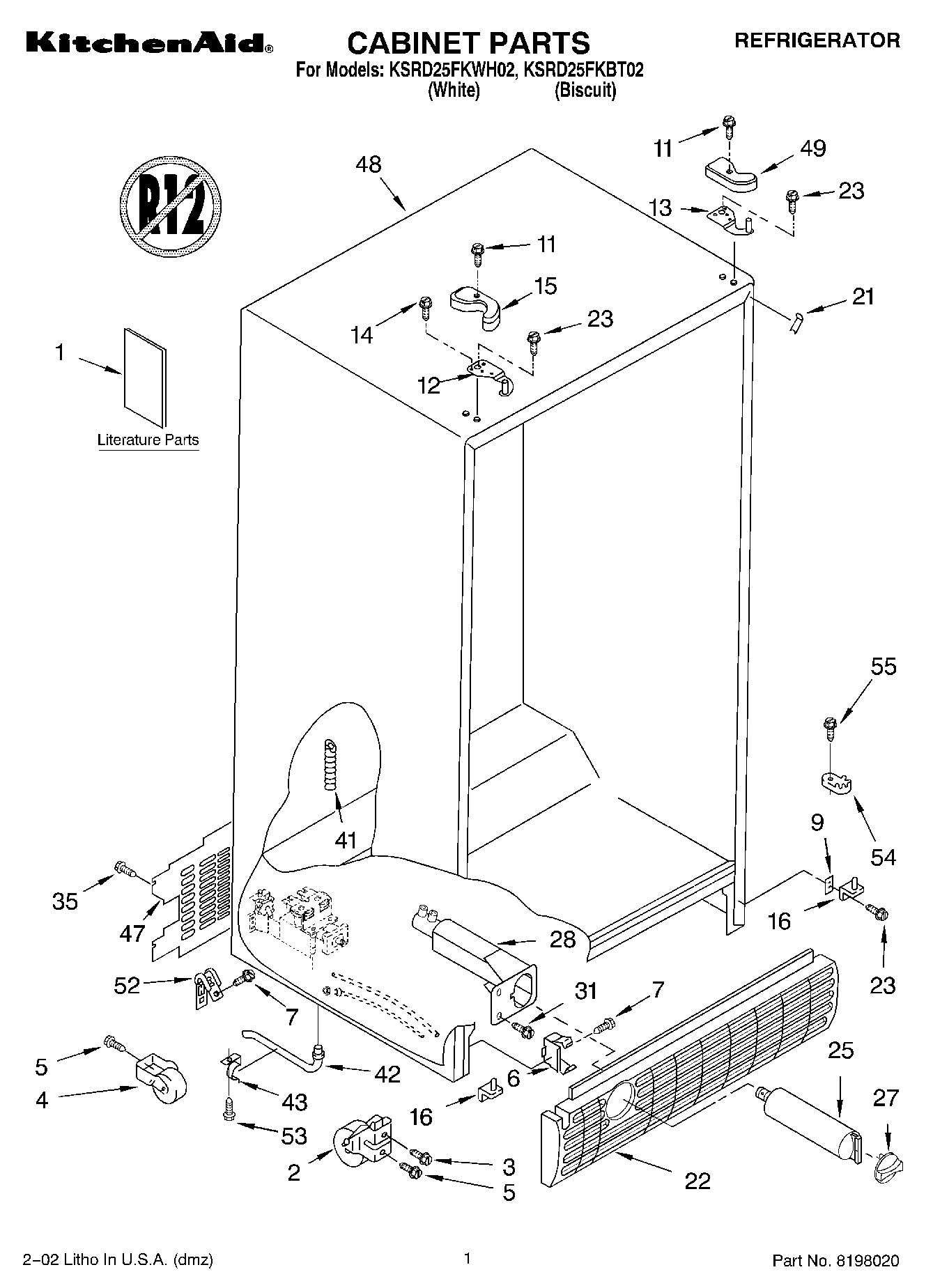

Model Whirlpool KSRD25FKBT02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

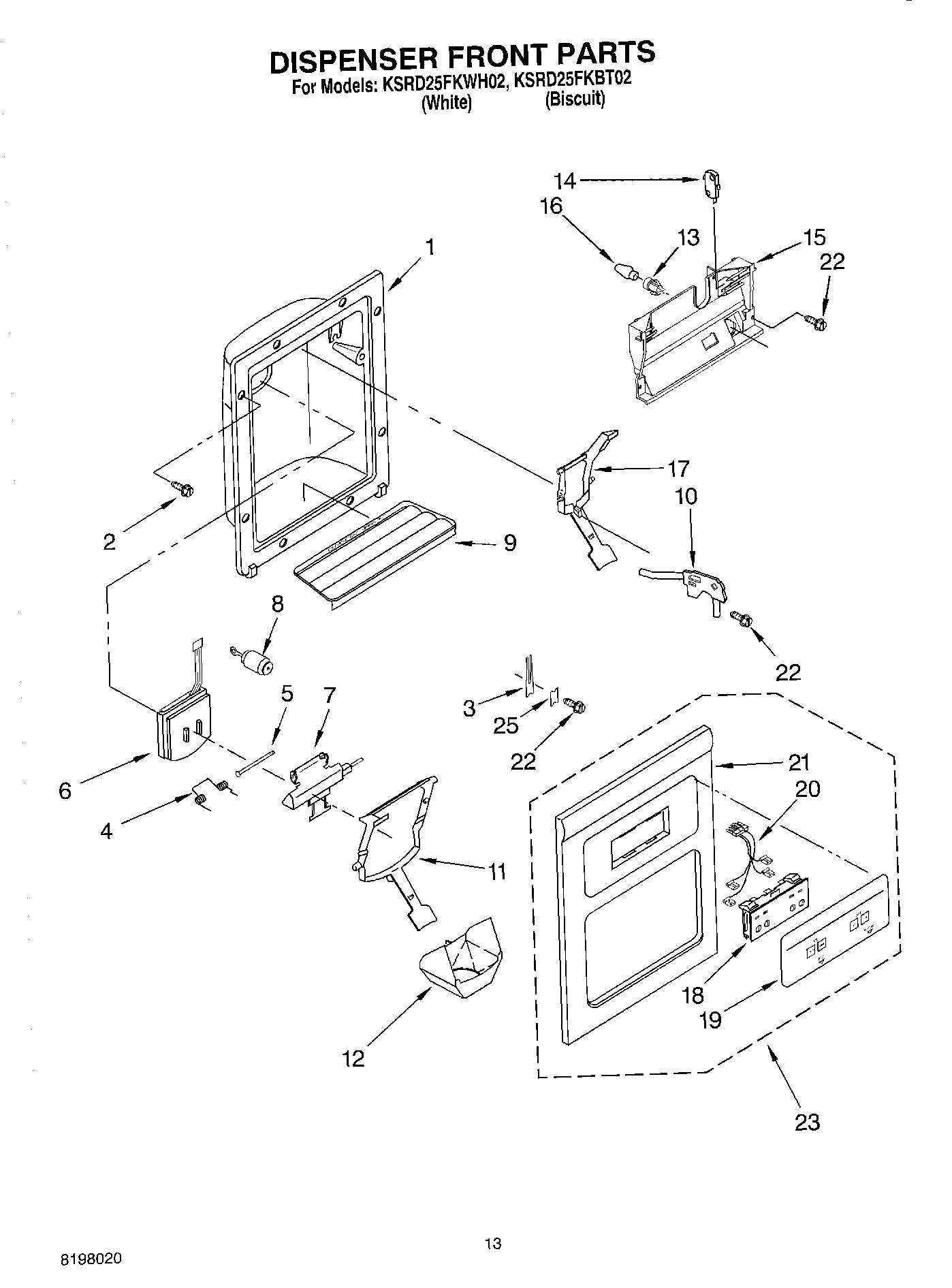

Housing, Dispenser (Not Serviced) WPL ARI95826A5 Contact Us For Availability

1

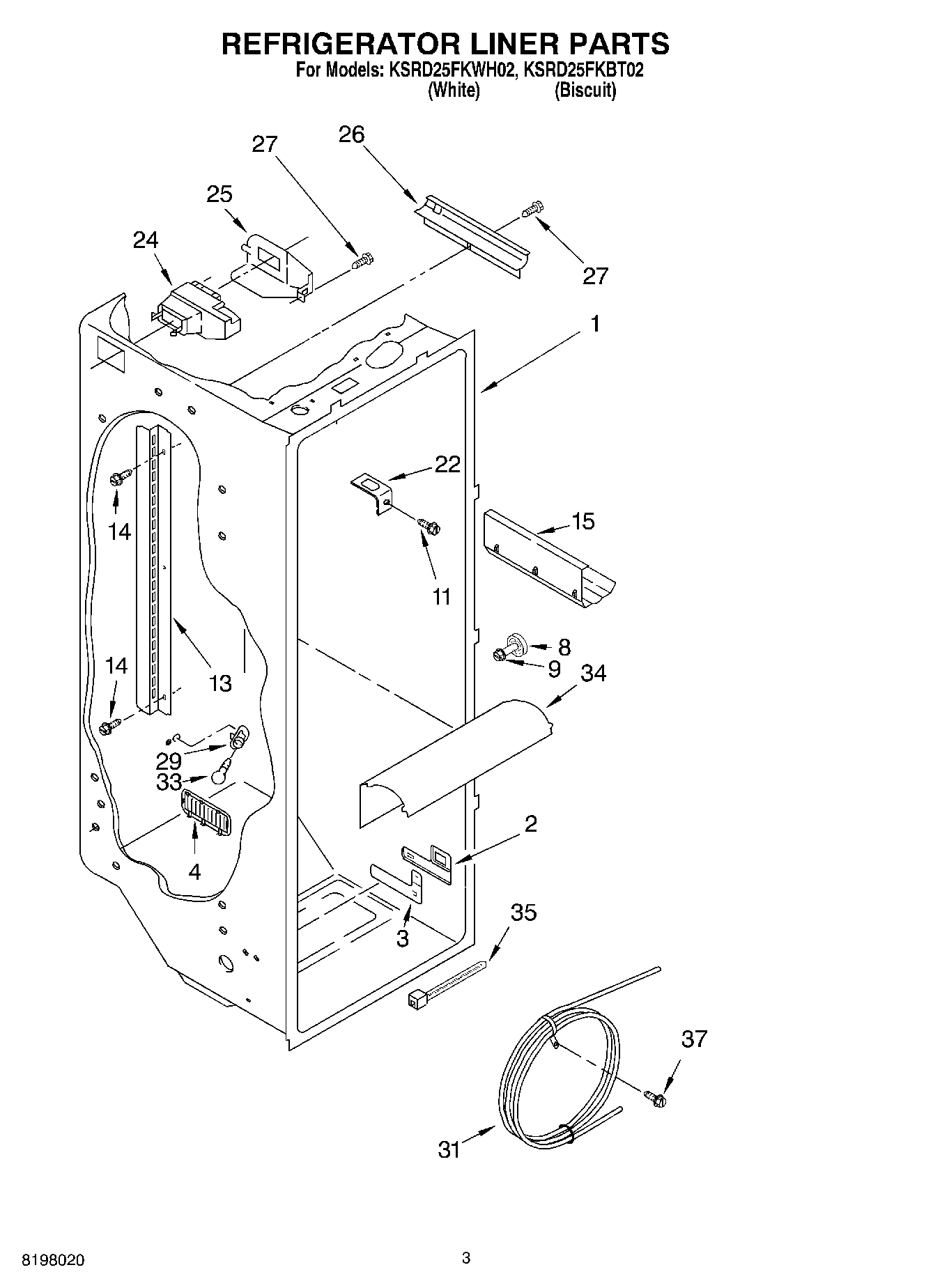

Liner (Not A Serviceable Part) WPL ARI95824A5 Contact Us For Availability

1

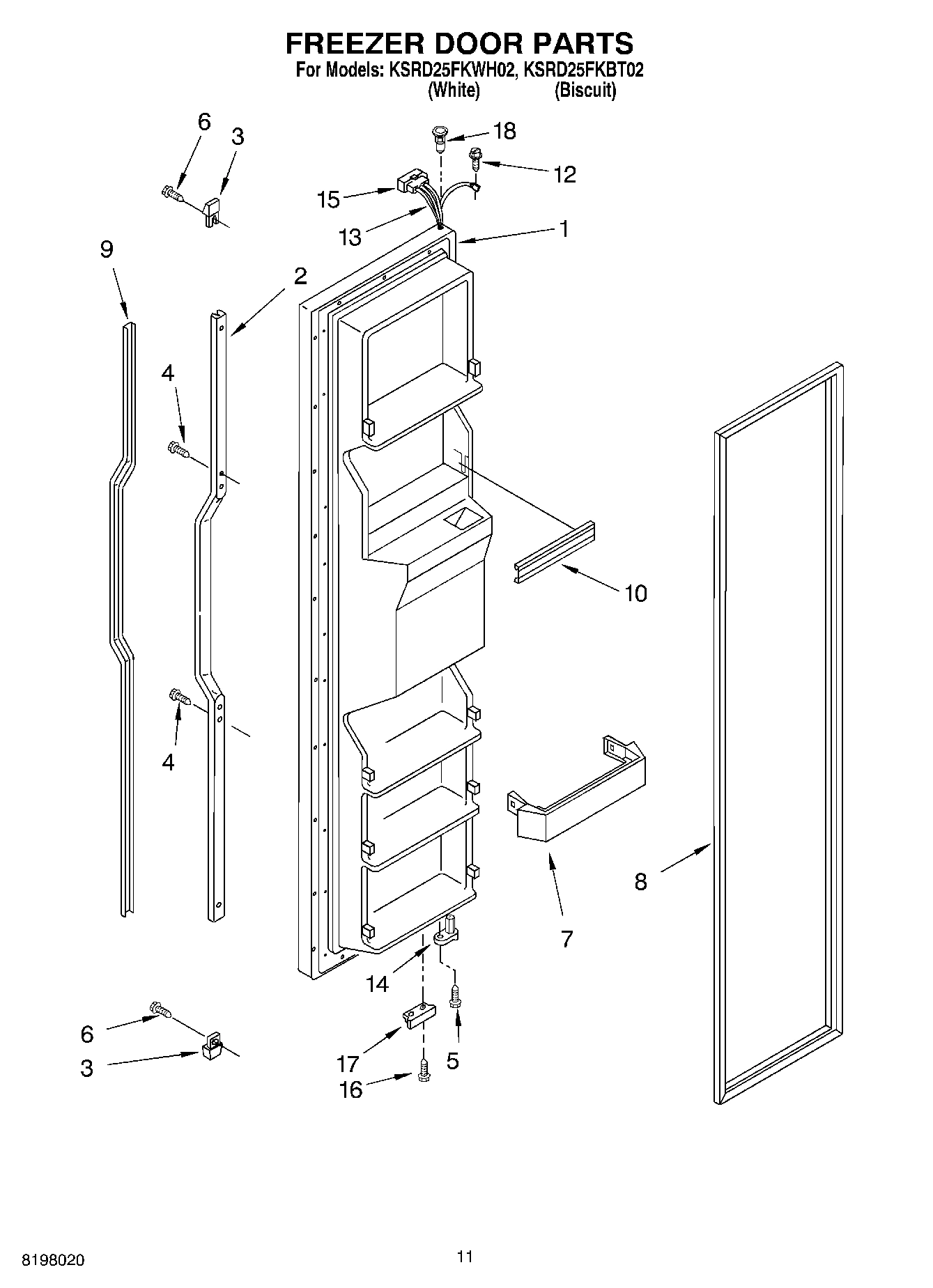

Freezer Door (Includes Item 8 And Dispenser F WPL 2216263T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2216263W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability

2

Retainer, Insert (White) WPL 2194777W Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

End Cap (2) (Biscuit) WPL 2194778T Contact Us For Availability

3

End Cap (2) (White) WPL 2194778W Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

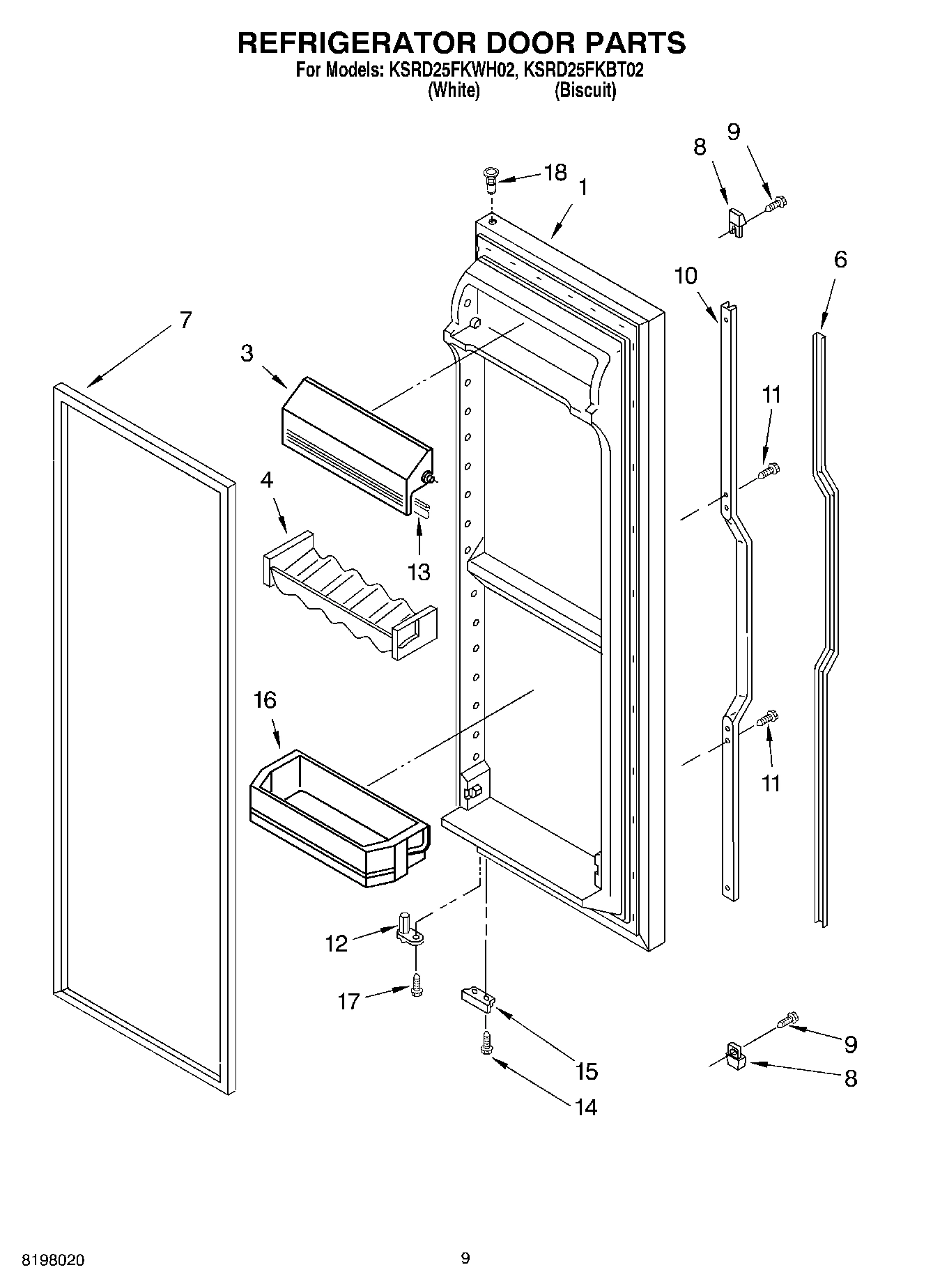

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Shelf Bin (4) WPL 2171070 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

9

Insert, Handle (White) WPL 2173825 Contact Us For Availability

9

Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Grommet WPL 2176134 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

Shelf Ladder WPL 2206273 Contact Us For Availability

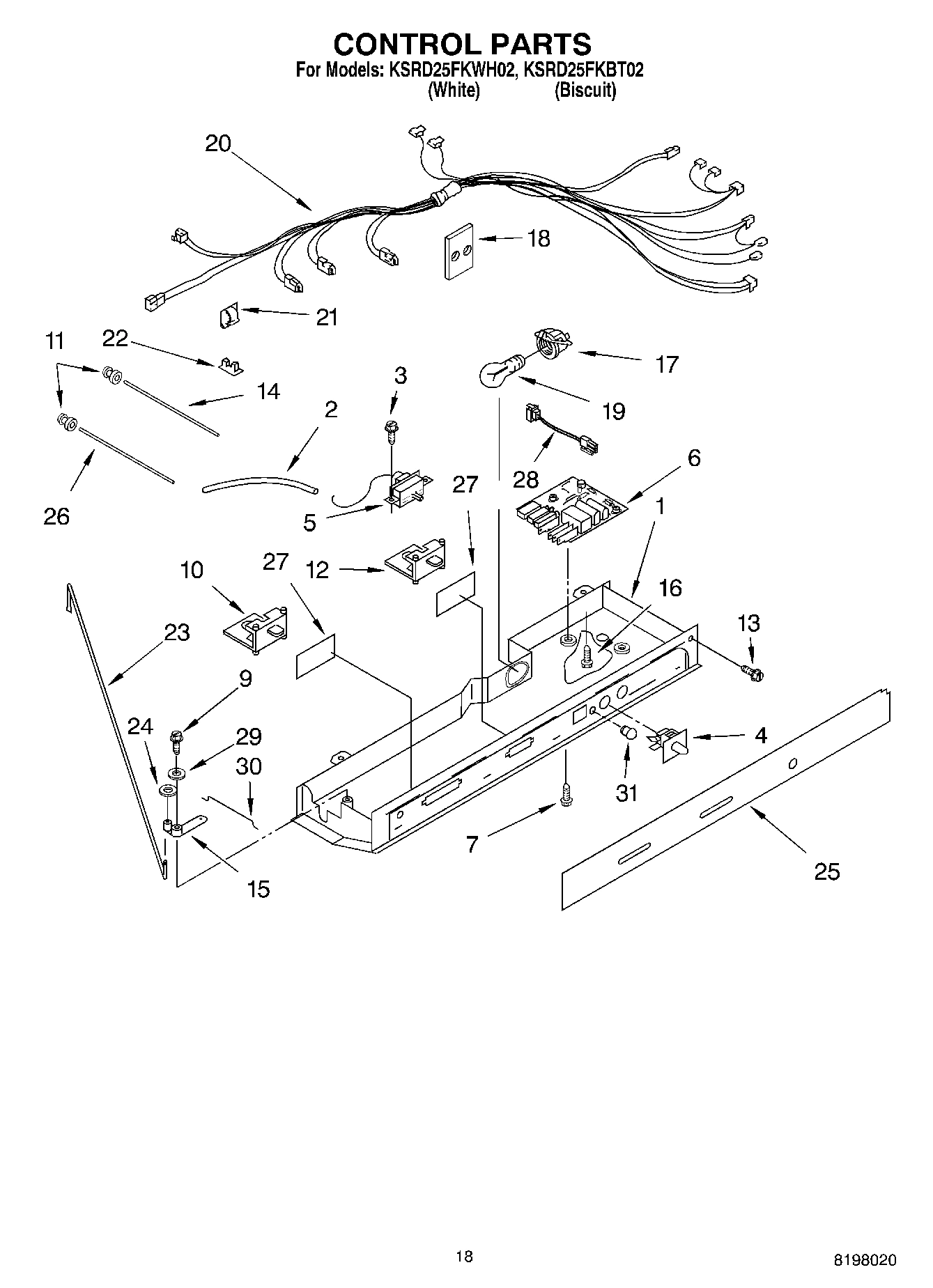

Wire Harness WPL 2200400 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Start Device, Combination (Start Relay and Ov WPL 2212194 Contact Us For Availability

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

Switch Assembly (Not Available- Order No.23) WPL ARI95827A7 Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

Overlay, Front Cover (Not Available- Order No WPL ARI95828A2 Contact Us For Availability

20

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI95829A2 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2220096T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2220096W Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

26

Heat Shield WPL 2149294 Contact Us For Availability

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

Stud, Rear WPL 2196207 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Unit, Harness (Includes Power Cord) WPL 2187398 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2206269 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw (2) WPL 488280 Contact Us For Availability

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

47

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.17

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

48

Cabinet (Not A Serviceable Part) WPL ARI95823A4 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

49

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

53

NLA:SCREW Backorder WPL WPW10141645 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

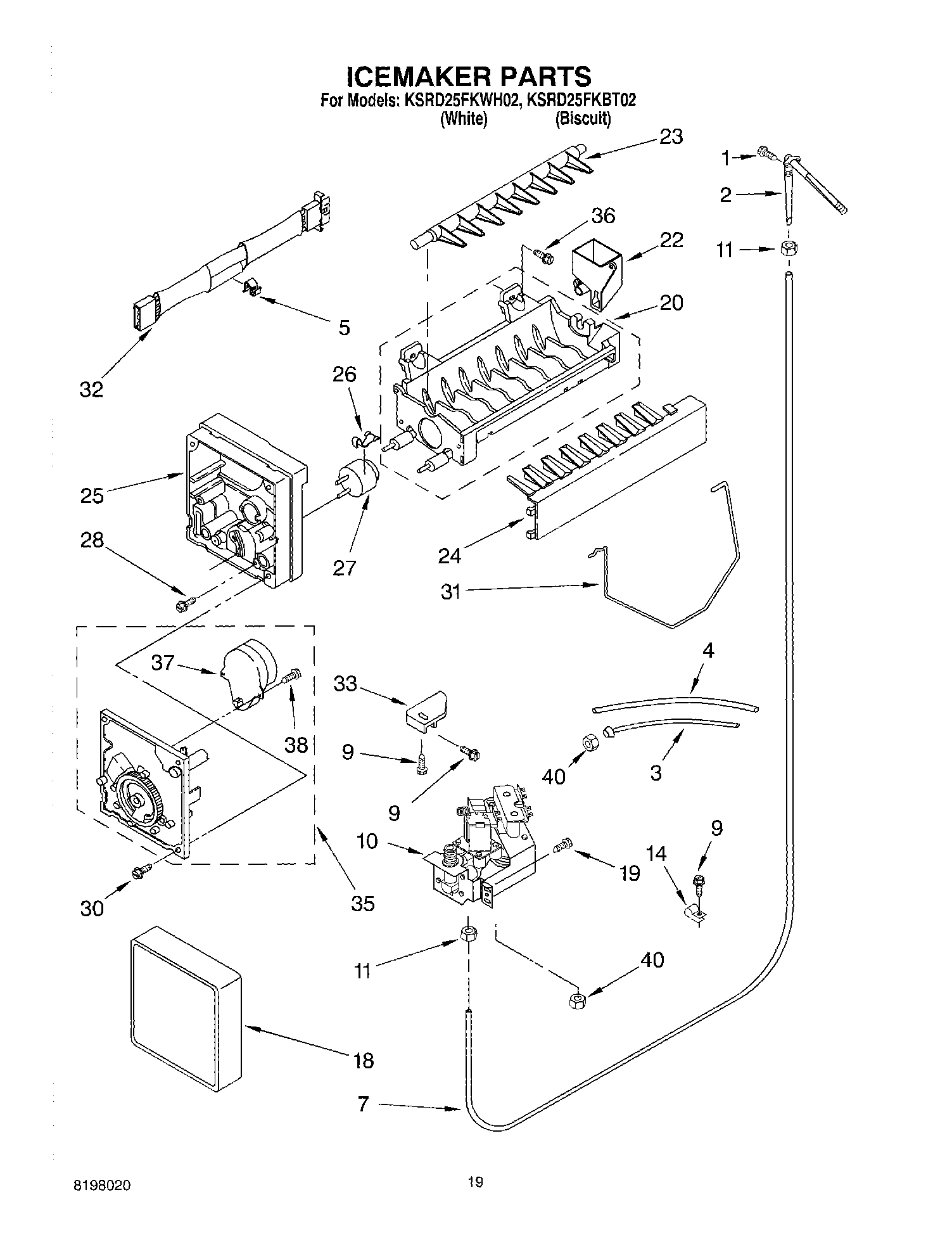

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAIN WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
