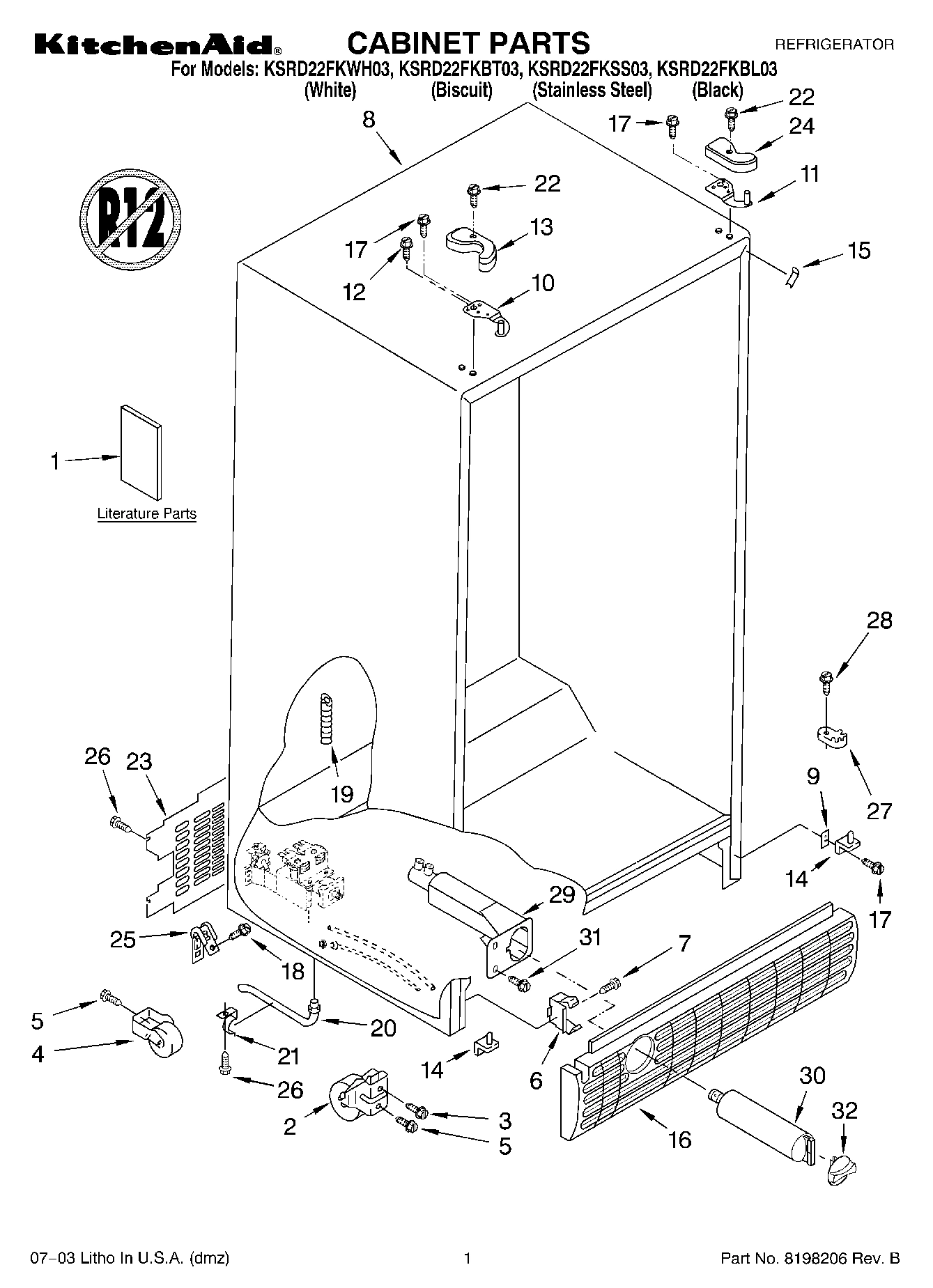

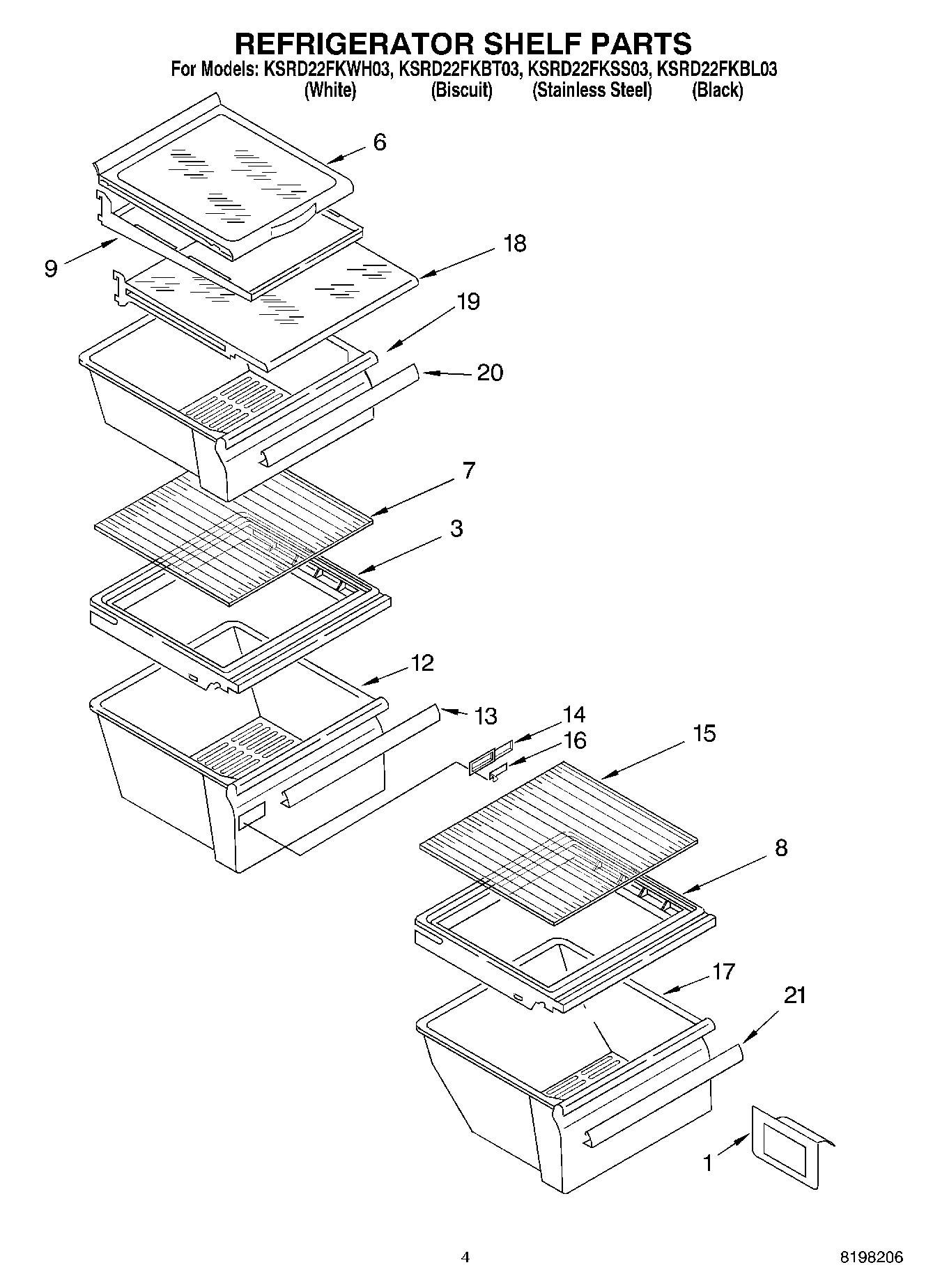

Model Whirlpool KSRD22FKSS03 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $14.90

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, B WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI95482A9 WPL ARI95482A9 Contact Us For Availability

WPL ARI95483A7 WPL ARI95483A7 Contact Us For Availability

WPL ARI95484A7 WPL ARI95484A7 Contact Us For Availability

WPL ARI95485A4 WPL ARI95485A4 Contact Us For Availability

WPL ARI95486A8 WPL ARI95486A8 Contact Us For Availability

1

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Liner (Not A Serviceable Part) WPL ARI95473A6 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

4

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $41.91

4

Insert, Handle (Biscuit) WPL 2200434 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

6

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Shim WPL 2209697 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

Grommet WPL 2176134 Contact Us For Availability

Ladder, Shelf WPL 2206270 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Stud, Rear WPL 2196207 Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

Shelf Bin (4) WPL 2171071 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Wire Assembly WPL 2187324 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Heat Shield WPL 2149293 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

29

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

34

Light Lens WPL 2209769 Contact Us For Availability

35

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

Unit, Harness WPL 2187510 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186496 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI95479A4 Contact Us For Availability

and Optional Parts Not Included WPL ARI95480A3 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI95481A9 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
