Model Whirlpool KSRB27QDBL01 – Common Parts & Diagrams

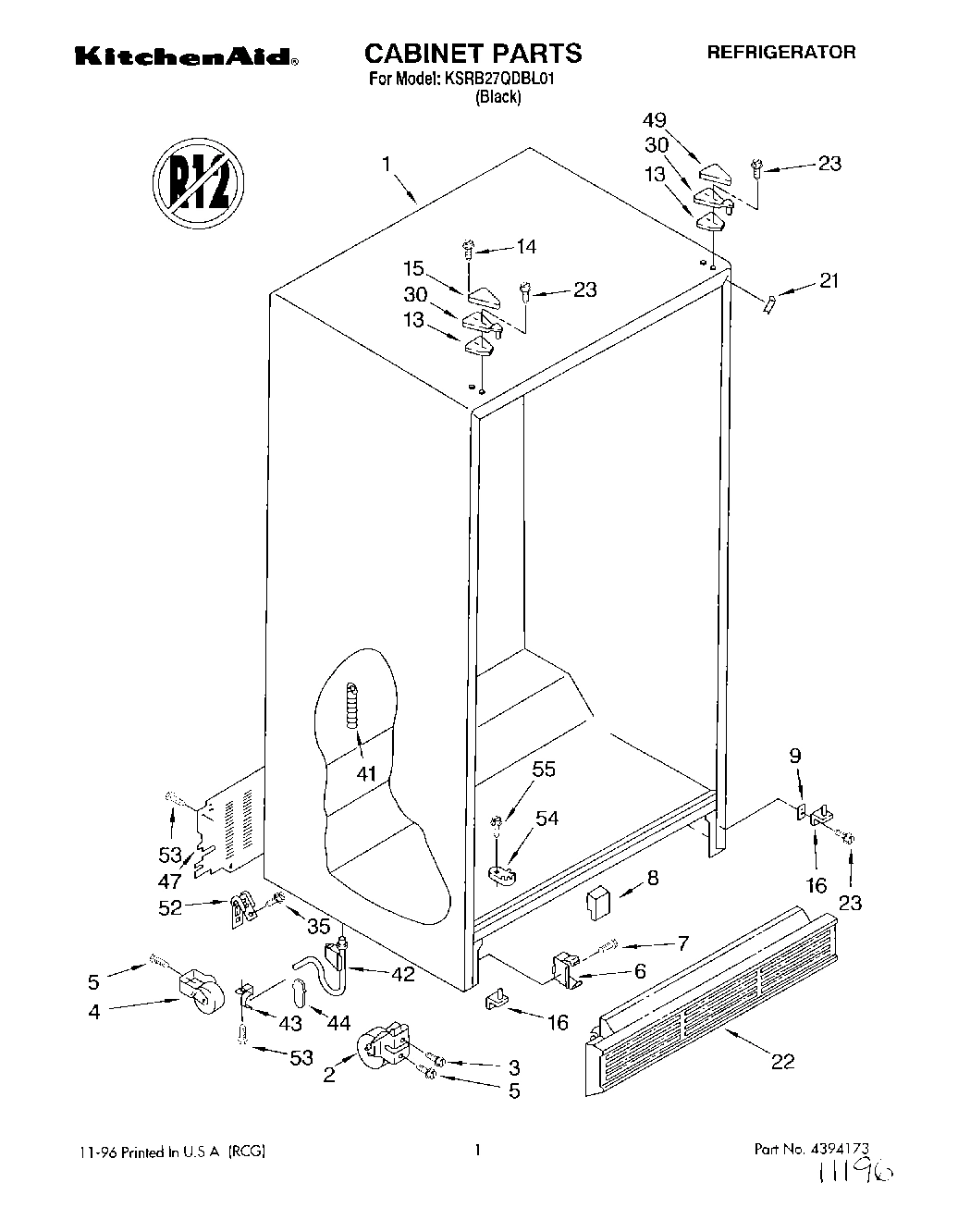

01 - CABINET

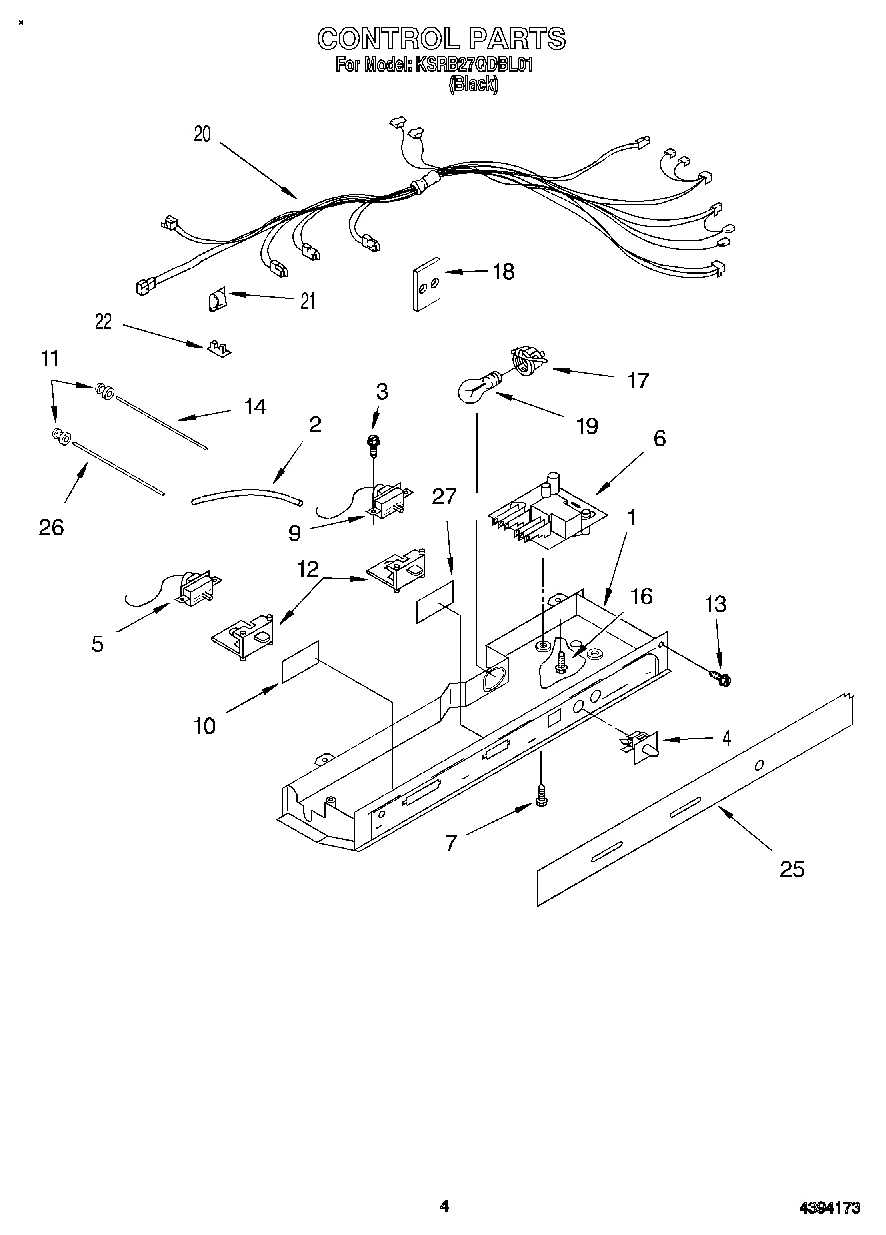

03 - CONTROL
12 - AIR FLOW, LIT/OPTIONAL
11 - ICEMAKER
05 - FREEZER LINER
07 - REFRIGERATOR DOOR
04 - REFRIGERATOR SHELF
06 - MOTOR AND ICE CONTAINER
02 - REFRIGERATOR LINER
09 - DISPENSER FRONT
08 - FREEZER DOOR
10 - UNIT
Common parts from model Whirlpool KSRB27QDBL01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item 7) WPL 2189690 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2174023 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95112A5 Contact Us For Availability
1
Freezer Door (Includes Item 7 And Dispenser F WPL 2194010 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load Lock WPL 2171283 Contact Us For Availability
2
End Cap WPL 1126073 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
End Cap WPL 1126074 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI95114A7 Contact Us For Availability
4
Trim, Dispenser WPL 1125980 Contact Us For Availability
5
Screw WPL 489376 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Screw WPL 489112 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Handle WPL 1126070 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
12
Black Glass WPL 1126015 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Trim, Door WPL 1126072 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Grille, Overflow WPL 2152678 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Chute, Ice WPL 2156145 Contact Us For Availability
15
Trim, Door WPL 1117901 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI95115A7 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Bracket, Door Stop WPL 2155331 Contact Us For Availability
17
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Black Glass, Upper WPL 1126016 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Black Glass, Lower WPL 1126017 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Screw WPL 489374 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Shallow WPL 2181763 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 2177143 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Cover WPL 2169935 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
31
Unit, Harness WPL 2181709 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2177148 Contact Us For Availability
39
Insert, Cover WPL 2174340 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 2179388 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
